MWS 6
Microprocessor-Weather
Station

REINHARDT System- und Messelectronic GmbH
Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. [phone]
PM BD MWS6 E Page 1 of 34
erstellt am 02.11.2000
Manual MWS 6
Table of Contents
Setting Up 3
START the software 4
Setup-Menu 5
Digital Display 5
Available Settings 6
Selecting your Desktop 6
History 7
Statistics 8
Data Evaluation without connected Weather Station 8
Set Process Control 9
Automatic Slide Show 9
Software 10
MWS_MESS.EXE 10
MWS5.EXE 10
README.WS 10
CHKMWS.EXE 10
MWS_AUTO.DAT 10
GRAF_SET.DAT 10
GRAF_COL.DAT 11
MWS2_SET.DAT 11
KLI_SCOM.DAT 11
Storage Interval 11
MWSSET.EXE 12
Technical Appendix 13
Maintenance 13

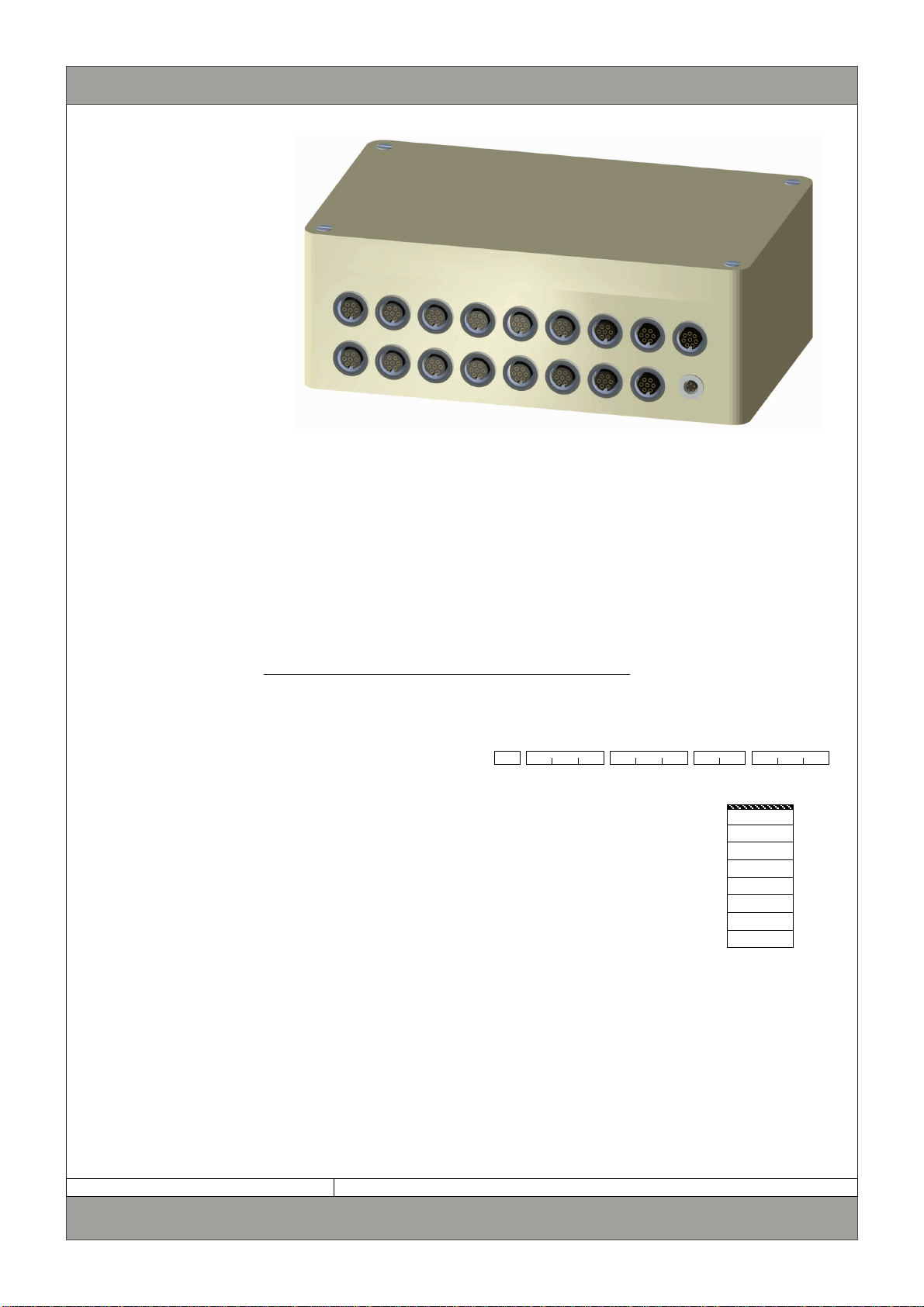

Data Collector Box 14
Temperature Sensor 17
Humidity Sensor 17
Pressure Sensor 17
Solar Sensor 17
Wind Speed Sensor and Wind Direction Sensor 18
Rain / Precipitation Sensor 18
UV-Sensor 18
Light Intensity Sensor 18
Additional Sensor 19
Accuracy 20
Data format 22
Hardware Basis 22
System requirements for DOS-versions 22
SMARTDRIVE 22
Data Cable 23
Allocation of the 9-pole Socket for External Sensors 24
Connecting an Additional Sensor 25
Excerpt from the Directions of Deutscher Wetterdienst for Automatic Weather Stations 26
Trouble Shooting 27
Fault Protocol File 27
Option LCD-Display 28
Possible Displays 28
Changing the Configuration 28
Control Parameters 29
Connection Cable LCD to PC 30
Adjustment of an Additional Sensor 32
Control-Parameters 33
Special Information on the System 34
Controlling the Microprocessor 34

REINHARDT System- und Messelectronic GmbH
Fax: [phone] und 1414 E-Mail: [email protected] http://www.reinhardt-testsystem.deBergstr. 33
86911 Diessen-Obermühlhausen Tel. [phone] Fax: [phone] und 1414
PM BD MWS6 E Page 2 of 34
Manual MWS 6
erstellt am 02.11.2000 von DO
Microprocessor Weather Station MWS 6

REINHARDT System- und Messelectronic GmbH
Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. [phone]
PM BD MWS6 E Page 3 of 34
erstellt am 02.11.2000
Manual MWS 6
MWS 6 Weather Station has been designed for measuring the most important
weather parameters such as temperature, humidity, barometric pressure, wind
directionandwindspeed,optionallysolarenergy,UV-radiation,lightintensityand
precipitation.
All parameters can be displayed graphically, digitally or as an "instrument".
There is also a statistics and a history function.
Setting up the weather station is easy:
Mount the weather station on a 1 " pipe. Orient the North-marker to North and
clampMWS 6 inplace (Please use the wallclamp enclosed.).Take care that thepipe
is mounted as perpendicularly as possible, otherwise the windvane will not work
properly and will preferably rotate in one direction.
Another important note !!!
The wind sensors of MWS 6 weather station are very sensitive and can
easilybedestroyed.Thereforedokeepthepackingofyourweatherstation.
Ifyouwanttoshipyourweatherstationlater,thispackingguaranteesthat
the weather station is protected from damage!!
If a transport damage is caused by insufficient packing, we are not liable
for any warranty claims!!!!
Please ask for a quotation of an original packing if it is no longer available
to you.
Theweatherstationmustbesetupataplacewhichisexposedtowindandsunshine,
becauseotherwisewinddirection,windspeedand solar energy cannot bemeasured
correctly.
(Please see "Directions of Deutscher Wetterdienst")
Connect the enclosed cable as follows:
Connect the 9pole connector to a free serial interface of your PC (COM1 or COM2
under the Windows-version COM3 or COM4 as well).
Plug the power supply into a power outlet 230V / 50Hz.
Additional sensors are connected at the 8-pole connector of MWS 6. In case you use
more than one additional sensor, you need the collector for connecting additional
sensors. It is connected to MWS 6 itself and ranges the connected sensors.
The 5-pole connector is plugged into MWS 6. The weather station is ready for use
now.
Pleasenotethatyoumustinanycaseusethepowersupplieswhichwehave
provided or which are technically identical with your MWS 6 weather
station. Nominal value must be between 10 V and 13V DC voltage; it must
be possible to apply 200 mA at least. Please note also that all the power
supplies we provide are only made for use in dry rooms.
Setting Up
N.B. !!!
Note on Security

REINHARDT System- und Messelectronic GmbH
Fax: [phone] und 1414 E-Mail: [email protected] http://www.reinhardt-testsystem.deBergstr. 33
86911 Diessen-Obermühlhausen Tel. [phone] Fax: [phone] und 1414
PM BD MWS6 E Page 4 of 34
Manual MWS 6
erstellt am 02.11.2000 von DO
When you have set up the hardware, you install the software and start the unit.
InserttheInstallationdiskintoyourfloppydriveandenter"setup".Thenyoufollow
the instructions of the Installation routine.
A MWS 6 directory is established for the copy of MWS 6-software.
(UndertheWindows-versionthisdirectoryiscalledWMWS6.Aprogramgroupand
an icon for the weather station are also created here.)
Bystandardthesoftwareisconfiguredfor use of the weatherstationonCOM2with
a 5 minutes-storage interval (BAUD-Rate 9600). For changing these settings, you
start the "MWSSET.EXE" program.
CAUTION:IfyouchangedtheBAUDratewithMWS6SET.EXE,youneedtocahnge
the BAUD rate of the MWS6 via terminalprogram (see also Microprocessor Control
Parameters).
Nowyoustartthesoftwarebyentering"start"(UnderWindowsyoudouble-clickthe
program icon).
Data recording is started here. Data are now written to your harddisk in the set
storage interval. If you quit your software and restart it later, the software fills the
gaps with blanks (Dummy) so that the time axis is not moved. A new data file is
automatically created every month. It is made up of Month_Year and file extension
.mws.
E.g.: October 1998 : 10_98.mws .
Ifthesoftwareisnotstarted,theremaybeafaultydatafileonyourharddiskorthere
is not enough storage available. The program is broken off then.
If the software finds a faulty data file, the program brings a message. In this case,
you break off with "j" and delete the faulty file.
NevereditthedatafilesofMWS6(extension.MWS).Mosteditorscannotdeal
with files of that size. Even if these files are only slightly changed, it may
happen that the data can no longer be interpreted!
(For more details on the software components see "Software").
START the software
NOTE!!!!

REINHARDT System- und Messelectronic GmbH
Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. [phone]
PM BD MWS6 E Page 5 of 34
erstellt am 02.11.2000
Manual MWS 6
Digital DisplayWhen MWS 6 is first started, the software will look like this:
Then you ought to call up the Setup-menu where you make the following settings: Setup-Menu

REINHARDT System- und Messelectronic GmbH
Fax: [phone] und 1414 E-Mail: [email protected] http://www.reinhardt-testsystem.deBergstr. 33
86911 Diessen-Obermühlhausen Tel. [phone] Fax: [phone] und 1414
PM BD MWS6 E Page 6 of 34
Manual MWS 6
erstellt am 02.11.2000 von DO
Hereyoucanchoosetheunitsfortemperature,humidity,barometer,rain/precipitation
and wind speed. It is also possible to set the graphical resolution and a statistics
reset. Another important point is setting the local altitude because the display of
barometric pressure depends on it. You can also choose if the measuring windows
you have called up are placed automatically (window tiles) or if you want to make
these settings yourself.
For presentations you make the software execute an automatic slide show after the
program is started (also see "automatic slide show")
All settings are saved with the OK-button when the Setup menu is finished
correctly.
Click on "Window" in the menu bar and then on menu item "MeasMode Display".
Here you can choose in which windows the weather data are to be displayed.
There are three kinds of measuring windows: numbers, graphs and instruments. If
you want a digital display of the sensors, you mouse-click on the symbols above the
measuring window.
You have free choice here and are only limited by the resolution of your monitor.
Apart from that you can save any two desktops under menu item "Desktop → save"
in the Setup menu.
Available Settings
Selecting your
Desktop

REINHARDT System- und Messelectronic GmbH
Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. [phone]
PM BD MWS6 E Page 7 of 34
erstellt am 02.11.2000
Manual MWS 6
This window shows the three different kinds of display:
Under menu item "History" you can evaluate recorded data. You can choose from
items "History" and "Statistics". History

REINHARDT System- und Messelectronic GmbH
Fax: [phone] und 1414 E-Mail: [email protected] http://www.reinhardt-testsystem.deBergstr. 33
86911 Diessen-Obermühlhausen Tel. [phone] Fax: [phone] und 1414
PM BD MWS6 E Page 8 of 34
Manual MWS 6
erstellt am 02.11.2000 von DO
Under "History" you can display the data of any sensor for one day, one week or one
monthwithanystarttimeyouchoose.Option"allpoints"displaysallthesaveddata
files.
Youselectifthe measuring graphs onlyorif the statistical valuesaredisplayed too.
Please note that if the statistical values are also displayed, the time for calculating
lengthens considerably. The displayed curves can be measured exactly with the
rightmouseear.Inordertodoso,youmovethemousearrowtoanypointofthecurve
and press the right mouse ear.
The measured value is then displayed above the measuring screen together with
date and time.

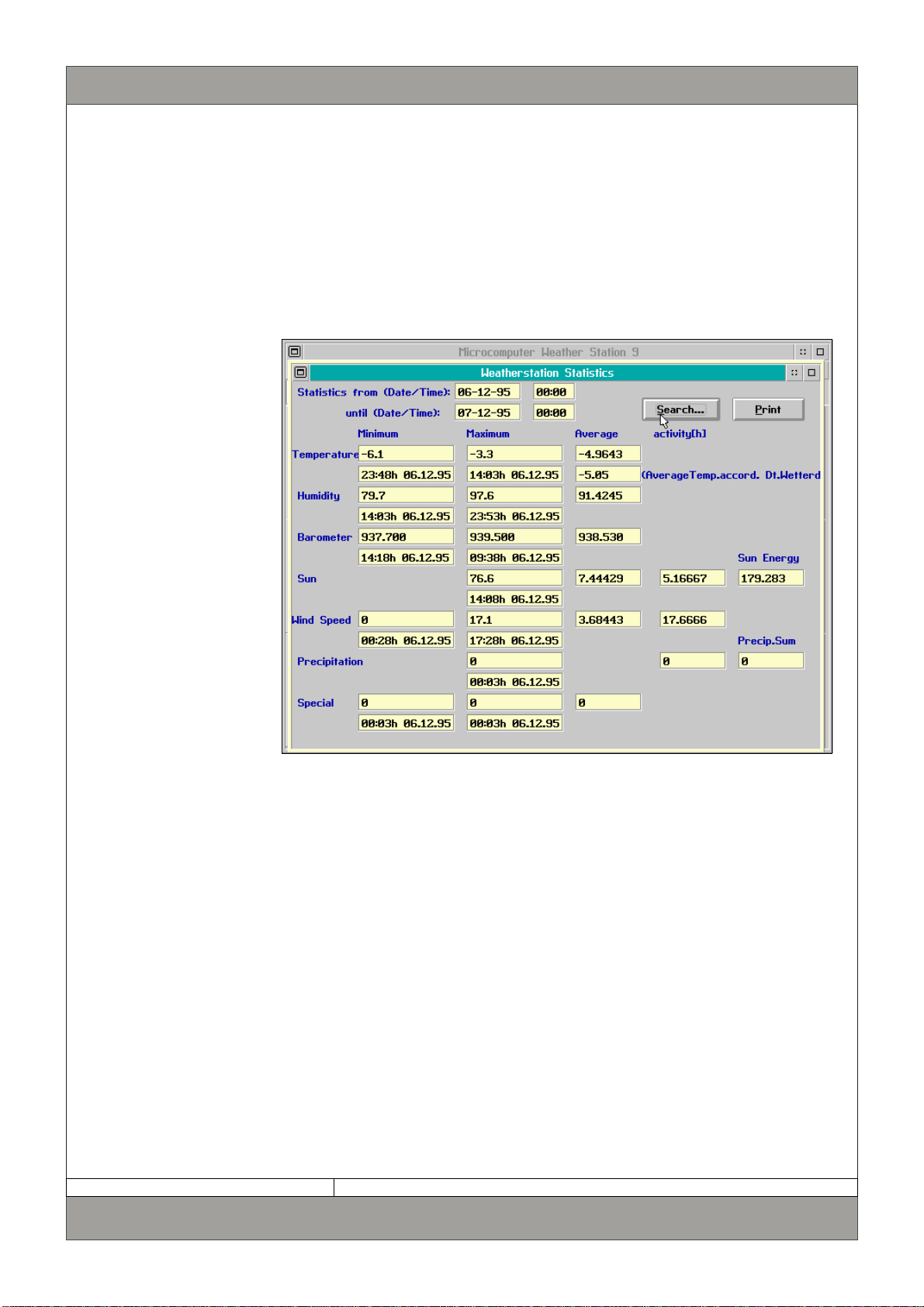

Statistics is for statistical evaluation only. There is no graphical display. For any
sensor, there is minimum, maximum and average value. For solar radiation, wind
speedandrain/precipitationactivityisdisplayedinhours.Forsolarenergy,youalso
get a value for the complete power during the period of time you have set.
Even if the weather station is not connected, it is possible to evaluate the recorded
weather data (Files with extension .MWS).
In order to do so, you start the "MWSSET.EXE" program and de-activate the
interface.Startyourweathersoftwareasusual.WithHistoryand Statisticsyoucan
then evaluate the stored data.
(Note : No new weather data can be saved if the weather station is not connected!)
Data Evaluation
without connected
Weather Station
Statistics

REINHARDT System- und Messelectronic GmbH
Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. [phone]
PM BD MWS6 E Page 9 of 34
erstellt am 02.11.2000
Manual MWS 6

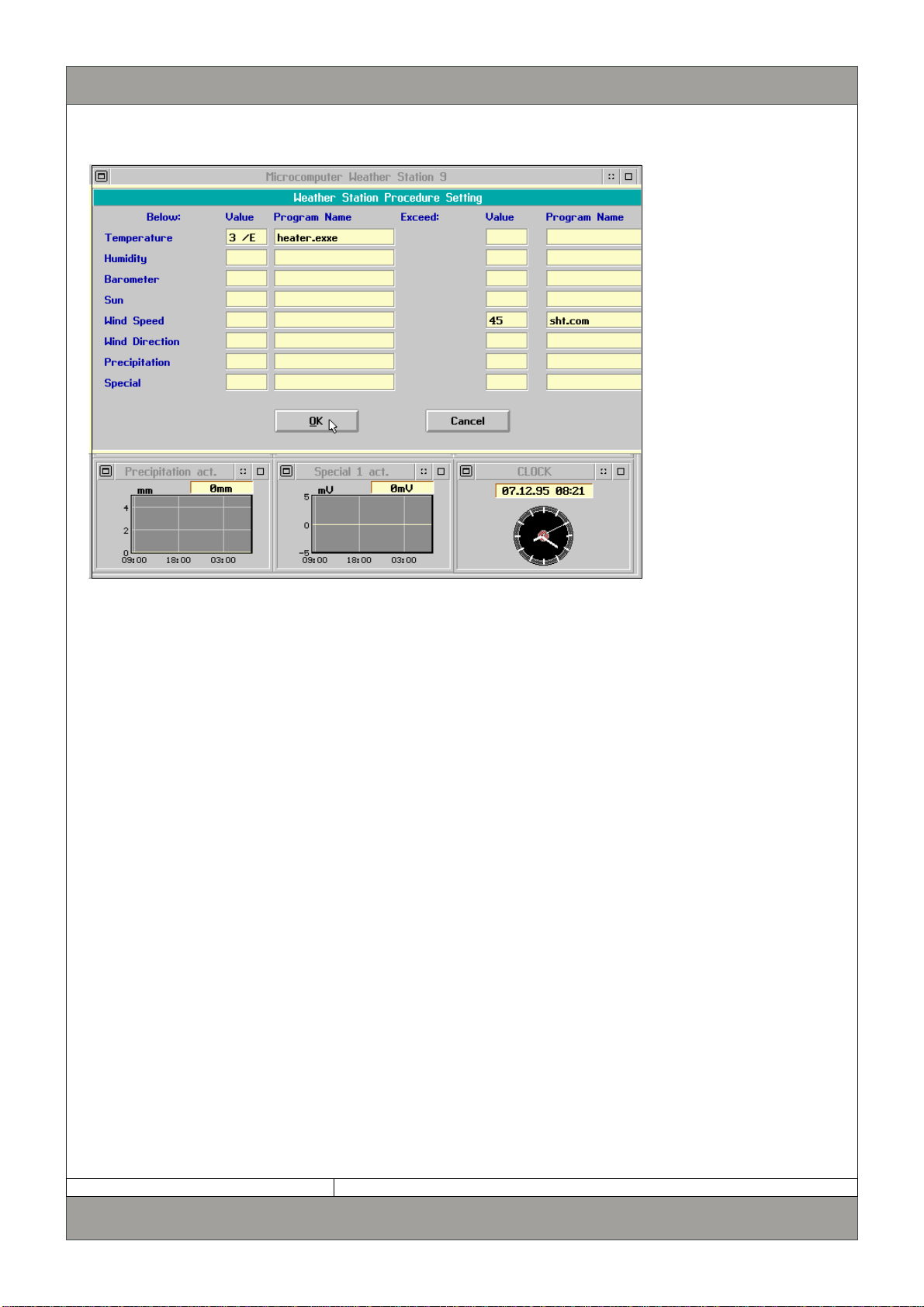

"Set Process Control" is another useful tool under menu item "Setup".
Dependenton measured values,you canstart programs withthis menuitem or you
canturnonoroffvariousdevices,usingaspecialsoftwareandarelayboard.Youcan
use this e.g. for irrigation devices in greenhouses.
Inorder to doso, you link certain measuredvalues to aspecial programas shown in
the menu above.
Every 10 seconds, the selected limit values are determined. The linked program is
also called up every 10 seconds when the limit values are exceeded or fall below the
setvalue.Incaseyoudonotwantaprogramcallevery10seconds,youenterthelimit
valuewith parameter/E.Then thelinked programwill onlybe calledonce whenthe
limit value is exceeded or falls below the set value.
Under menu item "Auto" you can create an automatic slide show of various
measuring windows, display of text you have entered yourself and even a display of
pictures with 16 colours (The DOS-version requires PCX and the Windows-version
BMP-files).
This automatic slide show is controlled with a text file, where you can set a special
sequence and period that the pictures are on screen. (MWS_AUTO.DAT)
FormoredetailedinformationseetheonlineHelp("?"inthemenubarorusetheF1-
key).
Set Process Control
Automatic Slide Show

REINHARDT System- und Messelectronic GmbH
Fax: [phone] und 1414 E-Mail: [email protected] http://www.reinhardt-testsystem.deBergstr. 33
86911 Diessen-Obermühlhausen Tel. [phone] Fax: [phone] und 1414
PM BD MWS6 E Page 10 of 34
Manual MWS 6
erstellt am 02.11.2000 von DO
Software
Any program of the weather station must be started straight from the respective
directory !! Otherwise there might be inexplicable malfunctions !
MWS 6 software, DOS-version, is basically made up of two programs:
MWS_MESS.EXE(Meas-program) and MWS6.EXE (display software).
The basic part of the Windows-Version is WMWS6.EXE . The Windows-version
needs WIN3.x, WIN95 / 98 or Windows NT.
MWS_MESS.EXE is a measuring program which is memory resident. It records
datain the background and saves them tothe hard disk in 5 minutes intervals.The
interval can be set with MWSSET.EXE. When MWS_MESS.EXE is started, the
MWS-directory is searched for data which are already saved.
Missingdataare written toharddisk as empty files.Recording starts in thenormal
rhythm then.
The program stays in memory and requires about 80 KB. Before you turn off your
computer,youhavetoclosethemeasuringprogrambyenteringmws_mess/u.When
you start the software by entering "Start", this measuring program is called
automatically, when you close the graphical form, you can choose if the measuring
program is to further record data in the background or if it is closed.
Parameter for MWS_MESS.EXE:
MWS_MESS /tx :Savetheweatherdatatotheharddiskinanx-minutes-interval.
MWS_MESS /d :Multipleinstallationofthemeasuringsoftware.Thismustonly
be used if you start mws_mess.exe several times over.
This part of the program is not applicable in the Windows-version.
MWS6.EXEenables you tographically display theweather data andallows several
otherapplications,suchase.g.statisticalevaluationoftheweatherdata,historyand
control functions.
This part of the program is called WMWS6.EXE and contains MWS_MESS.EXE.
README.xxxcontainsimportantinformationwhichinpartscannotbefoundinthe
manual.
CHKMWS.EXE checks if there are errors in the weather data files.
MWS_AUTO.DAT is the control file for the automatic slide show.
(Forfurtherdetailssee"Help"fortheMWS6.EXE(WMWS6.EXE)displaysoftware.)
GRAF_SET.DAT determines Font size, Graphic mode and printer selection.
Basics!!
MWS_MESS.EXE
README.WS
CHKMWS.EXE
MWS_AUTO.DAT
GRAF_SET.DAT
MWS5.EXE
Software

REINHARDT System- und Messelectronic GmbH
Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. [phone]
PM BD MWS6 E Page 11 of 34
erstellt am 02.11.2000
Manual MWS 6
With GRAF_COL.DAT you can set the desktop colours as you like.
The numbers and colours are coordinated as follows:
Foreground and background colours :
0-black, 1-blue, 2-green, 3-cyan, 4-red, 5-magenta, 6-brown, 7-light grey.
Foreground-colours:
8-dark grey, 9-light blue, 10-light green, 11- light cyan, 12-light red, 13-light
magenta, 14-yellow, 15-white
You can set this with MWSSET.EXE.
MWS2_SET.DATcontainsthesensornames,unitsanddiversecontrol parameters.
You can enter the names of the measured value windows and the units for possible
additionalsensors.Allotherparametersshouldbeleftunchanged,becauseinexpert
changes can result in a completely wrong measurement.
Please see MWS2_SET.DOK.
KLI_SCOM.DAT is a control file of the interface.
It contains the configuration values of the COM-ports.
The following values are possible:
Line 1: Entry of the data source (0..3 means COM1..4)
If you do not want to read in the weather data directly from the interface
but from a file, you just enter the path name where the weather data are
stored and not the interface identification, e.g.: F:\DATEN\WETTER.
If the data must not be written into the MWS6-directory, you enter the
desired data path after the interface identification and separate it by a
comma, e.g. for interface COM2 and data path D:\WETTER :
1,D:\WETTER.
You may need these possibilities if you use your weather station in a
network and want to have access to the weather data from several
computers.
(Please also see the readme-file!)
If you want to use the software for the history function only you enter -1
in this field. This de-activates the interface.
Line 2: Number of data bits
Line 3: Number of stop bits
Line 4: Parity
Line 5: Baud rate
Line 6: DOS-ID number (Standard 193), please change if necessary (e.g. in
networks).
Line 7: Interval for data storage to harddisk (ab V1.10).
You can also set this with MWSSET.EXE.
The storage interval can be set in a 10 seconds raster and lasts from a minimum 30
seconds to a maximum 40 minutes.
GRAF_COL.DAT
MWS2_SET.DAT
KLI_SCOM.DAT
Storage Interval

REINHARDT System- und Messelectronic GmbH
Fax: [phone] und 1414 E-Mail: [email protected] http://www.reinhardt-testsystem.deBergstr. 33
86911 Diessen-Obermühlhausen Tel. [phone] Fax: [phone] und 1414
PM BD MWS6 E Page 12 of 34
Manual MWS 6
erstellt am 02.11.2000 von DO
Youcansetthemost important features (Interface, storageinterval,coloursofyour
desktop...) with the MWSSET.EXE program.
With this tool you can set
(1) interface, file path, file source, BAUD-rate, storage interval and DOS-ID-
number
(2) + (3) the colours
(4) MWS6 manually via Terminal-program.
Pleasenotethatyouprovokeerrorsbyvarioussettingsorbychangingfiles
withextension.DAT.Youmightevendeleteimportantsettingsirretrievably.
Therefore only change your settings if you definitely know the results of
yourchanges.Weare notliableforanymalfunctions ordamagesthatarise
from inexpert settings or changes.
MWSSET.EXE
NOTE

REINHARDT System- und Messelectronic GmbH
Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. [phone]
PM BD MWS6 E Page 13 of 34
erstellt am 02.11.2000
Manual MWS 6
Technical AppendixAll changes which are not yet described in your manual can be looked up in the
readme file !
Because of its elaborated sensors, MWS 6 almost needs no maintenance. The
dripping hole of the rain collector may be clogged by insects, leaves etc. In this case,
thedisplayofrainremainsunchangedevenifitisraining.Youjusthavetocarefully
clean the rain collector.
Ifnoprecipitationisdisplayedalthoughitisraining,therainseesawmightgetstuck
by insects below the rain funnel. Carefully take off the funnel then and remove
cobwebs etc. Then chekc if the seesaw works properly and fix the funnel on the
housing.
In any case do not open the housing. Otherwise, delicate components inside the
weather station might be destroyed.
Our warranty ends if there is any intervention into hardware or software
from your side.
MWS6-weatherstationhasbeendevelopedforstationaryuseundernormalclimatic
conditions (temperate zone). Use under extreme conditions such as e.g. on board of
aship,mobileuseonameasuringvehicleetc.hasnotbeentested.Itisthereforenot
recommended to set up the weather station where it is exposed to salt or salt water
( e.g. on roads, on the coast etc.).
Maintenance

REINHARDT System- und Messelectronic GmbH
Fax: [phone] und 1414 E-Mail: [email protected] http://www.reinhardt-testsystem.deBergstr. 33
86911 Diessen-Obermühlhausen Tel. [phone] Fax: [phone] und 1414
PM BD MWS6 E Page 14 of 34
Manual MWS 6
erstellt am 02.11.2000 von DO
The available memory of the data collector box depends on the number of RAM-
modules(minimum1RAMmaximum8RAMswith128keach)andonthenumberof
connected sensors.
The number of connected sensors does not refer to the number of sockets which are
used but on the total of edited measured values.
Maximum number of sensors therefore is 45 (with 15 connected combined sensors
formeasuringtemperature,humidityandairpressure,althoughReinhardt-software
only supports a maximum 15 sensors).
The RAM-modules we use have 128k memory capacity. If your RAM is fully
equipped,you have a memory capacity of 1,024k.Please note that the system needs
4kofthefirstRAMforinternalpurposessothatthis range is notavailablefordata.
Memory requirements can be calculated as follows:
Memory requirement in Byte = 7 + (5 * number of sensors)
Structure of a data file:
Available memory with
1RAM : 124k 1RAM : 124k
2RAMs : 252k
3RAMs : 380k
4RAMs : 508k
5RAMs : 636k
6RAMs : 764k
7RAMs : 892k
8RAMs : 1020k
IfyouwanttofindoutthenumberoffileswhichcanbestoredinyourRAM,you just
divide the memory requirement of a data file by the available memory.
Example: 8 measured values if equipped with 4RAMs.
(508k * 1024) / (7 + (5 * 8sensors)) => 11,067 Data files
FF
Länge Time Date Kennung Messwert
13 323
0
128
256
384
512
640
768
896
1024
4k System
Data Collector Box

REINHARDT System- und Messelectronic GmbH
Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. [phone]
PM BD MWS6 E Page 15 of 34
erstellt am 02.11.2000
Manual MWS 6
Ifyou havechosen a 5minutes memoryinterval (288data files/ day),you canstore
more than 38 days in the data logger, if you have 4 RAMs with 8 sensors.
Data logger and time are still there if the POWER-connector is plugged in, but no
more data are recorded. Current consumption is about 200 µA then which grants a
data buffer up to 150 days. The internal batteries will be exhausted then and must
be changed.
If you remove the power connector, the data logger is emptied and the clock is
deleted.
Ifthemainssupplyisremoved,thedatacollectorworksasiftherehadbeenapower
failure and uses the internal buffer batteries.
Please note that with a plugged-in power connector and plugged-off mains supply,
the internal buffer batteries are discharged!
Note

REINHARDT System- und Messelectronic GmbH
Fax: [phone] und 1414 E-Mail: [email protected] http://www.reinhardt-testsystem.deBergstr. 33
86911 Diessen-Obermühlhausen Tel. [phone] Fax: [phone] und 1414
PM BD MWS6 E Page 16 of 34
Manual MWS 6
erstellt am 02.11.2000 von DO
This page is left for later expansions.

REINHARDT System- und Messelectronic GmbH
Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. [phone]
PM BD MWS6 E Page 17 of 34
erstellt am 02.11.2000
Manual MWS 6
Temperature sensor
Temperature measurement is based on a precision PT100. The resulting measured
value is linearised by the microprocessor. By standard, the temperature sensor is
mounted on the lower side of the weather station.
Range:from -40°C to + 50 °C, measuring accuracy ±0.3 °C,(displayalso possible in
Kelvin or °Fahrenheit)
Humidity Sensor
isafastrespondingcapacitivesensor(monolithic)whichisbasedonadielectricwith
variable humidity (capacitance). In proportion to humidity the electronics create a
signal with changing frequency which is evaluated by the microprocessor. The
sensor is also mounted on the lower side of the weather station. Together with the
PT100, it is covered by a protective cover of Gore-Tex so that it does not become
polluted or destroyed by dust or insects.
Our humidity sensor can be used in a temperature range between -40 °C to + 50 °C.
It is linearized to an accuracy of 2 %.
Range: from 12 to 100 %, measuring accuracy ±2 %, display also as dewpoint
measurement in °C or °F.
Accuracy of dewpoint display is dependent on humidity and temperature. The
higher the measured values of humidity and the lower those of temperature, the
more exact is the display of dewpoint.
Maximum deviation is 1.2°C in the worst case.
Note:Thissensorisveryresponsivetostaticchargeandairpollution(dust,
aggressive gases, but also salt).
Pleasenotethatunderunfavourableconditions(i.e.microbicstresscaused
bymoulds,bacteria)thissensoragesfaster than under normal conditions.
Pressure Sensor
is a monolithic, laser-trimmed sensor for absolute pressure which is linearized to 5
hPaforthewholetemperaturerange,i.e.,thebarometeris temperaturecompensated.
Anothertemperaturelinearisationreducesthedeviationtolessthan2hPaoverthe
whole temperature range. The measuring signal is elaborated by an instrumental
amplifier. The sensor can be used in the temperature range of -40 °C to + 50 °C.
Measuringrangeabsolute:from700hPato1100hPawith±1hPaaccuracy.Display
can be reduced to 0 m above sea level (input of the local altitude in [m], display also
in mm mercury column or Inch mercury column).
Solar Sensor
This is a pyranometer which absorbs radiation between 305 and 2600 nm. Then it
measures thermically the subtraction of a black and a white surface. Two PT 1000
are the measuring sensors. Output of the measured values is in W/m2.
Range: from 0 to 1500 W/m2, measuring accuracy is ±2 % of final value
Temperature Sensor
Humidity Sensor
Pressure Sensor
Solar Sensor

REINHARDT System- und Messelectronic GmbH
Fax: [phone] und 1414 E-Mail: [email protected] http://www.reinhardt-testsystem.deBergstr. 33
86911 Diessen-Obermühlhausen Tel. [phone] Fax: [phone] und 1414
PM BD MWS6 E Page 18 of 34
Manual MWS 6
erstellt am 02.11.2000 von DO
Wind Speed And Wind Direction Sensor
consistsof three glass-coated PT100shifted in an angleof 120°, whichare heatet to
50-60°Candcooledbywind.Amicroprocessorcalculatesthewindspeedonthedrop
of temperature and due to the different position of the three PT100, the wind
direction as well.
Rangeofwindspeed:inkm/hfrom0to150km/hwithameasuringaccuracyof±2km/
h, (display also in m/s, miles/h, Knot or Beaufort), starting speed 0.6 m/s.
As we have a very comfortable, 3-fold way of measuring wind speed with current
wind speed (WG), average wind speed (WD) and wind peaks (WS), you can conform
your wind measurement to your very needs.
Please note that dependent on the current winds, the 3 different methods of
measuring wind speed can result in very differing graphs: When measuring WG,
only a current value is written in the selected measuring interval, when measuring
WD and WS, there is continuous evaluation and the whole measuring period is
monitored.
Wind direction is given in °, with 90°being East, 180°being South, 270°being West
and 0 °being North.
Range: in 360 °, measuring accuracy 5 °with a starting speed by 0.6 m/s.
Thereisalso current windspeed(WR) and asliding average for theprevailing wind
direction (WV).
Rain/Precipitation Sensor (Option)
A self-emptying see-saw is tilted by the collected rain. All the water that has been
collected on the normed area of 200 cm2is led through a funnel to the see-saw. The
see-saw tilts whenever a certain quantity of water has been collected. The tilting
createspulseswhicharecounted.Thesoftwaretakesthepulsestocalculatetherain
that has fallen per m2. The current intensity of rain is also found and displayed.
Range: from 0 to 50 mm/m2, measuring accuracy ±0.1 mm/m2
UV-Sensor (Option)
measures ultraviolet radiation in the range of 210-380 nm. Maximum sensitivity is
about 275nm (UV-B). What is most particular about this sensor is how it gathers
measured values. Not only does it cover radiation from above but also the lateral
radiation.
Light Intensity Sensor (Lux-Sensor) (Option)
measures light intensity in Lux. Measuring range is from 300 nm to 720 nm.
Wind Speed Sensor
and Wind Direction
Sensor
Rain / Precipitation
Sensor
UV-Sensor
Light Intensity Sensor

REINHARDT System- und Messelectronic GmbH
Bergstr. 33 86911 Diessen-Obermühlhausen Postfach 12 41 D-86908 Diessen Tel. [phone]
PM BD MWS6 E Page 19 of 34
erstellt am 02.11.2000
Manual MWS 6
Additional Sensor
Sensorsof any kind can be integrated as additional sensors. The informationsignal
mustbeappliedasvoltageintherangebetween0Vand+4Vorithastobeadapted
to MWS 6 by a special amplifier. Negative or higher voltages are blocked, but out of
security reasons, should be avoided in any case!
The sensor signals are linearised by software.
See Adjustment of an additional sensor (P.28).
Additional sensors can be voltage supplied by the weather station as long as its
current consumption is below 25 mA.
If current consumption exceeds this value, we cannot grant that MWS 6
weather station works properly !!!
If they need higher currents, the sensors must have an external power supply and
its ground has to be connected to the MWS 6-ground (Pin 1 of the connector socket).
You can call for adjustment instructions of the additional inputs at any time.
Additional Sensor
Note
