RELISYS RDAB100-RU User manual

DIGITAL AUDIO BROADCASTING
USERS MANUAL
DAB Receiver

RISK OF ELECTRONIC
SHOCK DO NOT OPEN
CAUTION:
DO NOT REMOVE THE COVER FOR REDUCING THE RISK OF ELECTRIC SHOCK.
NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
GENERAL SAFETY SUMMARY
WARNING
To prevent fire or shock hazard , do not expose the unit to rain or moisture.
IMPORTANT SAFETY INSTRUCTIONS
1. All the safety and operating instructions should be read before the product is
operated.
2. The safety and operating instructions should be retained for future reference.
3. All warnings on the product and in the operating instructions should be
adhered to.
4. All operating and use instructions should be followed.
5. Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for the cleaning.
6. Do not use attachments not recommended by the products manufacturer if
they may cause hazards.
7. Do not use this product near water - for example, near a bath tub, wash bowl,
kitchen sink, or laundry tub, in a wet basement, or near a swimming pool; and
the like.
8. Any mounting of the product should follow the manufacturer's instructions, and
should use a mounting accessory recommended by the manufacturer.
9. This product should be operated only from the type of power source indicated
on the marking label. If you are not sure of the type or power supply to your
home, consult your product dealer or local Power Company. For products
intended to operate from batteries power, or other sources, refer to the
operating instruction.
10.Power supply cord should be routed so that they are not likely to be walked on
or pinched by items placed upon or against them, paying particular attention
to cords at plugs, or other sources, refer to the operating instructions.
ENGLISH

11. For added protection for this product during a lightning storm, or it is left
unattended and unused for long periods of time, unplug it from the wall outlet
and disconnect cable system. This will prevent damage to the product due to
lightning and power line surges.
12. Never push objects of any kind into this product through openings as they may
touch dangerous voltage points or short-out parts that could result in a fire or
electronic shock. Never spill liquid of any kind on the product.
13. Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
14. Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions.
ENGLISH
When the power- supply cord or plug is damaged
If liquid have been spilled, or objects have fallen into the products
If the product does not operate normally by following the operating
instructions, adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore this product to its normal operation.
If the products has been dropped or damaged in any way.
When the product exhibits a distinct change in performance - this
indicates a need for service.
15. When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or that have the same
characteristics as the original part. Unauthorized substitutions may result in fire,
electric shock, or other hazards.
16. Upon completion of any service or repair to this product ask the service
technician to perform safety checks to determine that the product is in proper
operating condition.
17. The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products including amplifiers that produce heat.

CONTENTS
INTRODUCTION
Features
PACKAGE CONTENT

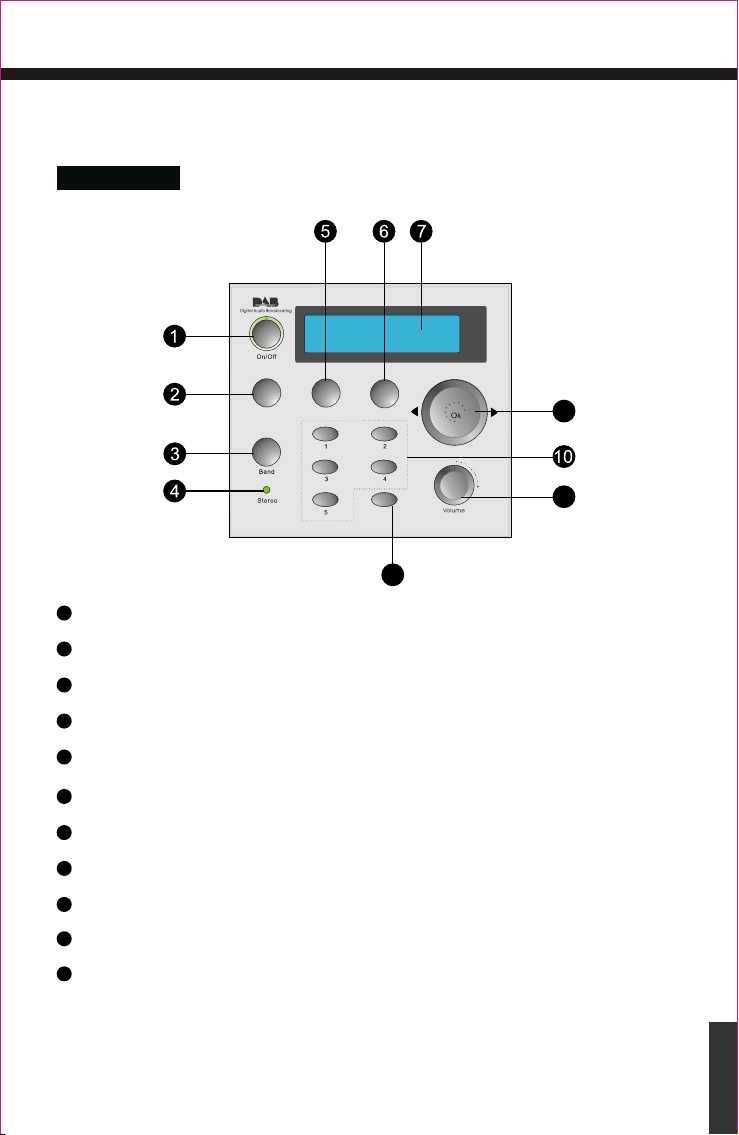

CONTROLS
The DAB Receiver
CONNECTION
OPERATION
DAB Mode
FM Mode
1
2
1
RDAB100-RU
2
3
3
5
6
Advanced Setup Options
TROUBLE SHOOTING
6
7
9
10
15
Get Started 6
Alarm Setting 12

World
Digital Audio Broadcasting Receiver
ENGLISH
1
INTRODUCTION
Nowadays, everything goes to digital. Having the Digital Audio
Broadcasting receiver to fulfill your need of entertainment. With the
cutting-edge digital technology, the Digital Audio Broadcast receiver
performs crystal clear CD quality sound. By using a special
spectrum transmission mechanism, Coded Orthogonal Frequency
Division Multiplexing (COFDM), the unit receives the transmitting
signal without any annoying interference and signal distortion.
Besides CD quality sound and distortion-free reception, the DAB
receiver is also able to offer broadcasting data, text, pictures even
videos.
Features
Digital Audio Broadcasting with FM/RDS radio
Crystal clear CD quality sound
Fully compliant to ETSI EN 300 401
RDAB100-RU Supports DAB Band III(mode I, II, III, IV) and
L Band (Mode I, II, III, IV))
Clock, Alarm, Sleep, Snooze functions
Auto search or Manual search
User-friendly interface
10 Station memory preset (5 on DAB and 5 on FM) and
quick click buttons
16 x 2 Character LCM with backlight

ENGLISH
2

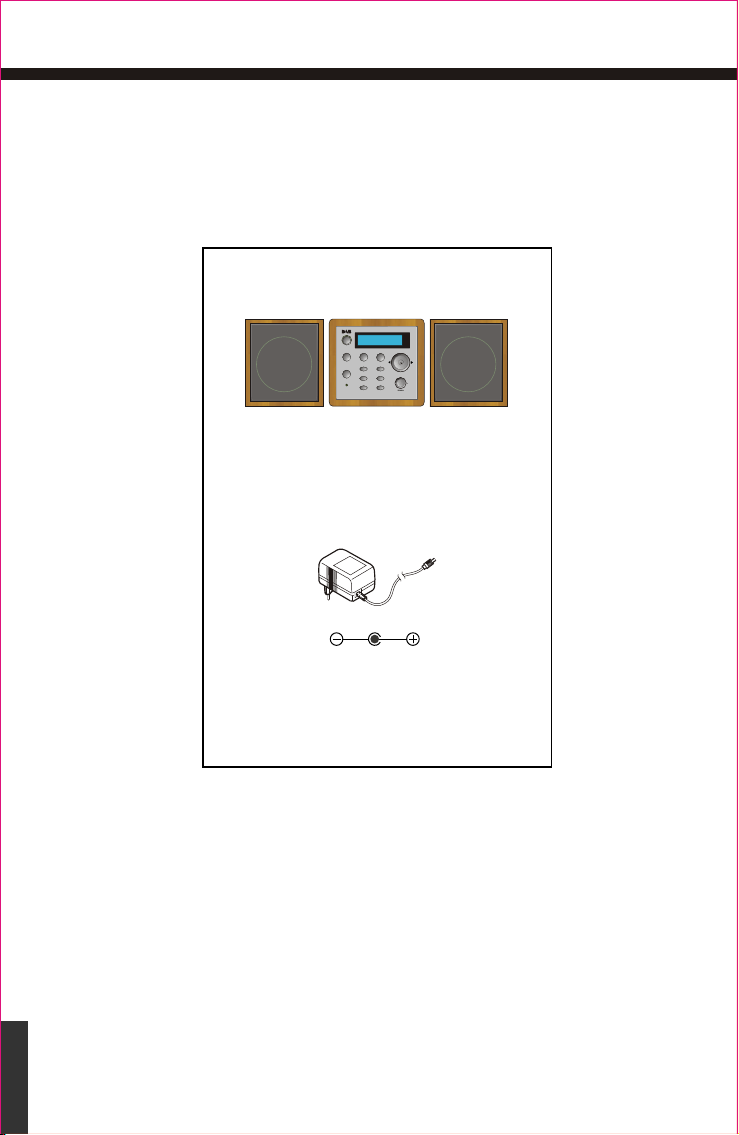

PACKAGE CONTENT
The package includes the following devices.
After unpacking your box, please check that you have all following items.
RDAB100-RU
One unit of DAB receiver
One unit of power adaptor
Input: AC 100-240V ~ 50/60Hz
Output: DC 9V / 1.1A
Polarity:
(Speakers optional)
Welcome
DAB
On/Off
Band
Autotune
-Full
Info
-Advanced
Snooze
5
3 4
1 2
Stereo
Sleep

Auto tune
-Full
Snooze Info
-Advanced
DAB
Welcome
Sleep
CONTROLS
The DAB Receiver
Front Panel
POWER button and LED indicator
Auto Tune button provides one touch DAB tuning
BAND button for the selection of radio modes between DAB and FM
Stereo LED indicate when stereo is being received
Snooze button silence the alarm for 5 minutes
INFO button steps through the displays of several information texts
16 x 2 Characters LCM with backlight
TUNE knob for scrolling through and selecting radio stations
VOLUME knob increases or decreases the volume
PRESET buttons (1-5) for recalling or storing favour stations
1
2
3
4
5
6
7
8
9
10
ENGLISH
3
8
9
11
Sleep button enables for setting time for radio to off-stand by
or off-standby to radio
11

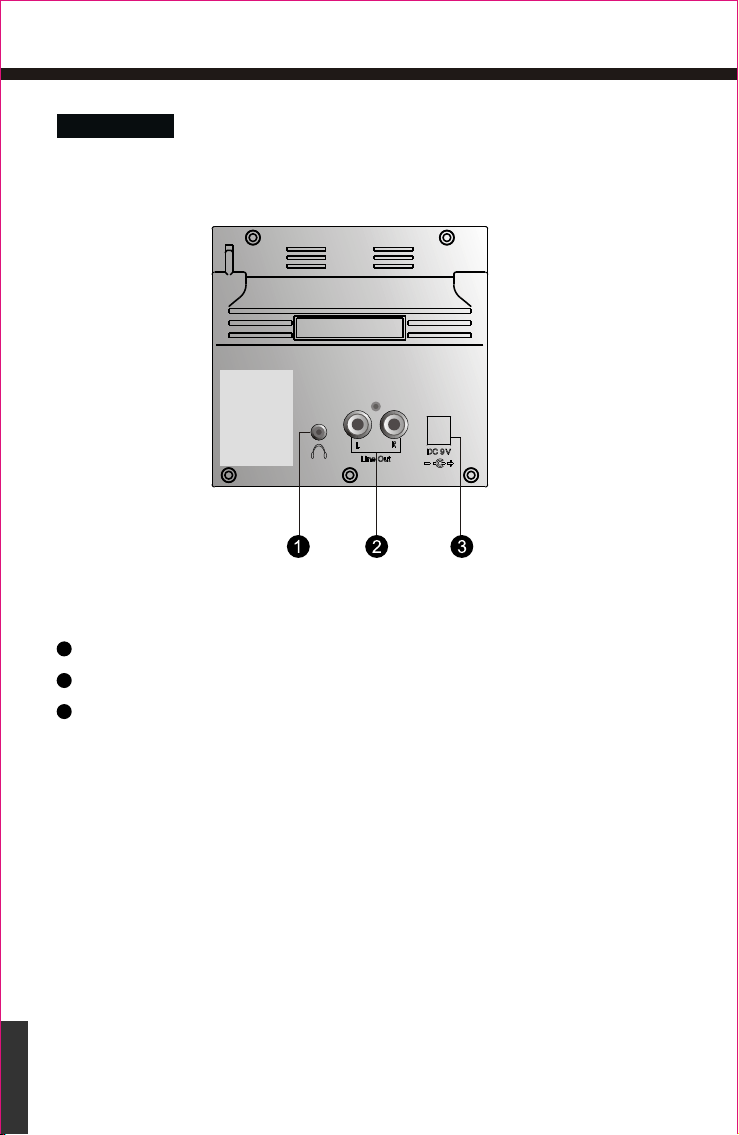

CONTROLS
Real Panel
ENGLISH
4
HEADPHONE connector
STEREO LINE OUT connector
Adaptor connector
1
2
3

ENGLISH
5

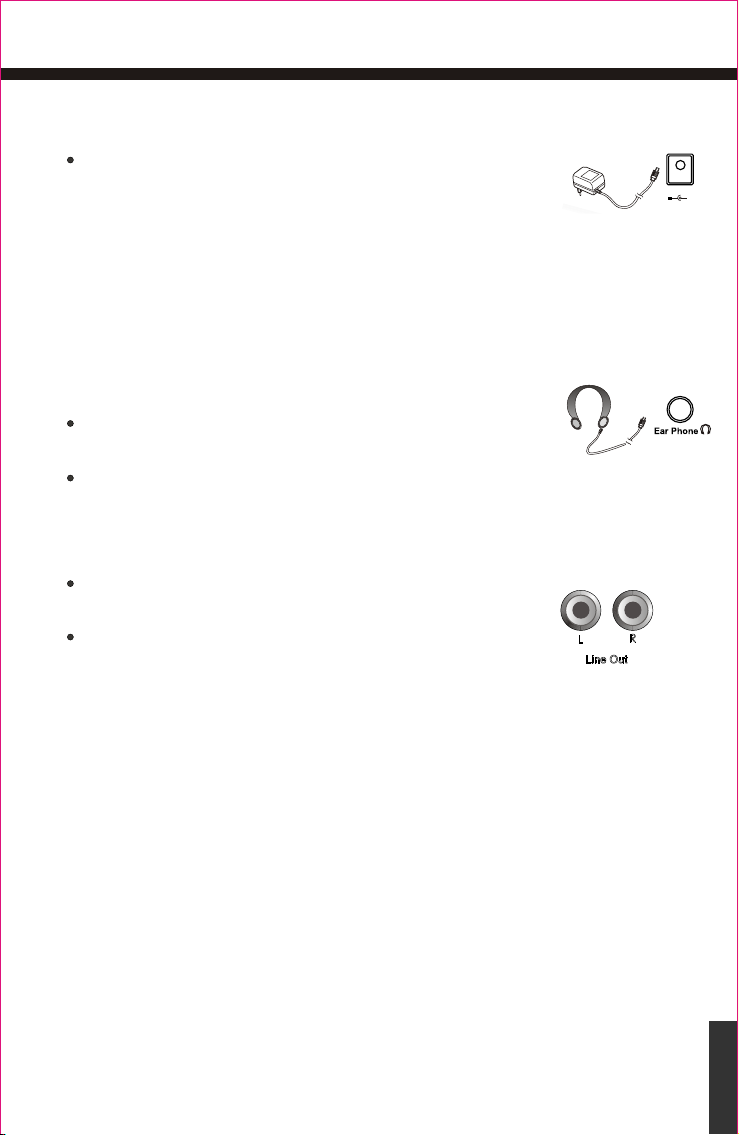

CONNECTION
Connecting to an external amplifier
You can use the Line Out (analogue) to connect to
the external amplifier.
Connect a stereo phono cable (not included) into
the Right and Left sockets of the Line Out rightly.
Connecting to power supply
Connect the DAB receiver to a standard wall outlet
of the appropriate voltage.
Connecting to headphone
Connect a set of stereo headphones into the
headphones socket.
DC9V
++
Caution: Do not use an unauthorized substitution
which may result in damage, fire or other hazards.
We do not reserve the responsibility for any improper
using which may lead to damage, danger or injury.
Note: We offer the acceptable specification of power
supply in Output:DC9V/1.1A; Input:AC 100-240V ~ 50/60Hz.
The front speakers will not have sound when
ear phone is used.

OPERATION
6
Power On and Off
Select the band
The BAND button enable you to switch the band
between DAB and FM.
Press Band button on the unit to select the Band
between DAB and FM.
SCAN
N
ING%+00
08
5 D
()1 8 7.07 M HZ
0
SCAN
N
ING%+00
08
5 D
()1 8 7.07 M HZ
0
SCAN
N
ING%+00
08
5 D
()1 8 7.07 M HZ
0
SCAN
N
ING%+00
08
5 D
()1 8 7.07 M HZ
0
SCAN
N
ING%+00
08
5 D
()1 8 7.07 M HZ
0WL
C
OME
E
ENGLISH
The text on the display screen will indicate which
mode you selected. DAB mode is selected by default.
Get Started
F M
97.5MHZ
CR1D
A
B
BC
Tuning at the fist time
When the unit is turned on at the first time, a DAB
autotune process will be performed automatically.
If stations are found during the autotune,
the first station on the list will be shown on the
display and you will hear it from the speakers.
If the stations are not found during the
autotune, the display will show "No Signal".
On
Off standby
: GREEN
: DARK
14:0 0
After setting up all the connections, extend the
aerial in the optimise position.
Plug the Power cable to turn on the unit.
Power up at the first time, get real time clock
from DAB station. If it fails to get real time clock
from DAB station, the clock display will flash.
When off standby, press On/Off button to switch
to On.
When On, press On/Off button to switch to off
standby.
The Power LED indicates the status of the unit.
Quic
k
sc a n
u ot t u ne
A
NS
oigDB
A
Sa
er h
cin g
0
n a l
BCR1DB
A
C
1

ENGLISH
7

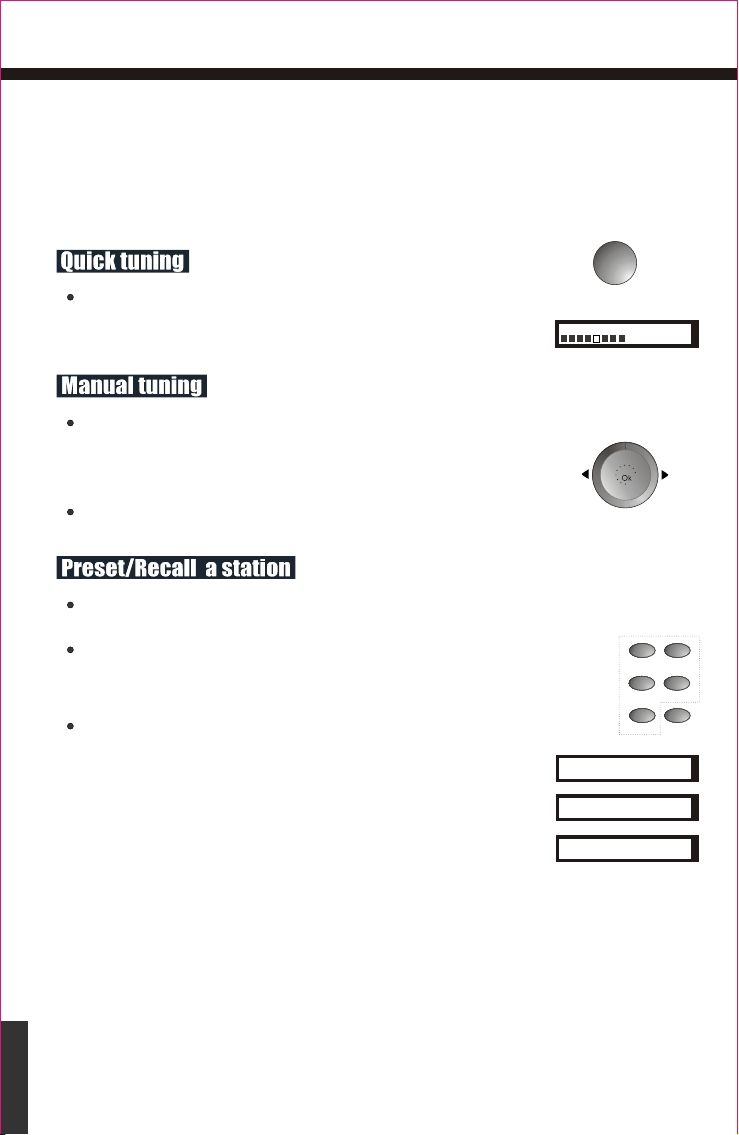

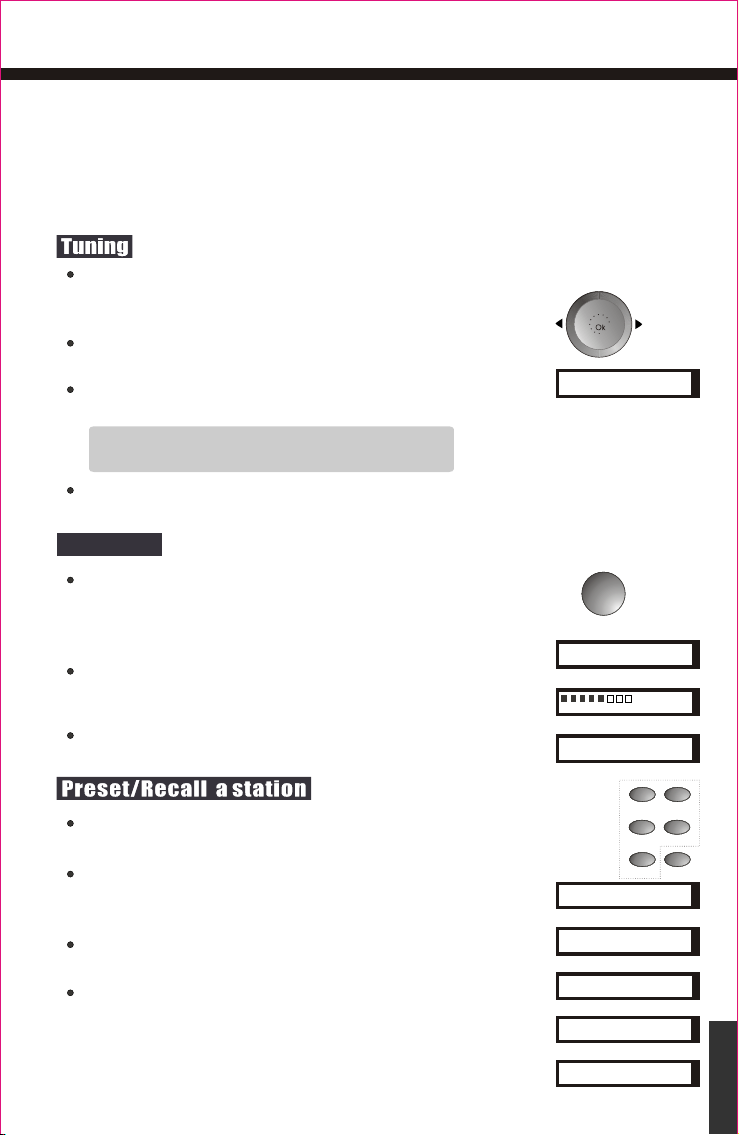

DAB mode
Providing more instruction on using the DAB receiver, it includes tuning,
auto tune, presetting/recall a station, station information, adjusting
volume.
The Auto Tune button enable you to re-tune the unit.
Press the Auto Tune buttons to scan all frequencies which
are available in your nation and store them into a list in
the receiver. This process might take a few minutes.
STOPPING the auto tune process by pressing enter.
Note: You can cancel the auto tune process by
pressing any other keys on the front panel.
Press Auto Tune button and hold, a full scan of all DAB
Band III channels will be performed.
BC
B R 1
BC
BRD
A
I
O
I
S
T
HE
u ot tu n e
A
Auto tune
-Full
The Preset 1- 5 buttons allow you to store
and recall the station you want.
To preset a selected station, press the relevant
number (1-5) for more than 3 seconds. The display
will show "Preset stored"
You preset no service in DAB if nothing is being received.
("NO SIGNAL" is displayed)
To recall a stored station, press the relevant preset
number (1-5) . If a stored station is existed in the unit,
the unit will tune to the selected station. If there is no
station stored with the preset button, the display will show
"Preset empty" briefly and tune back to previous station.
BC BR1
BB
OPERATION

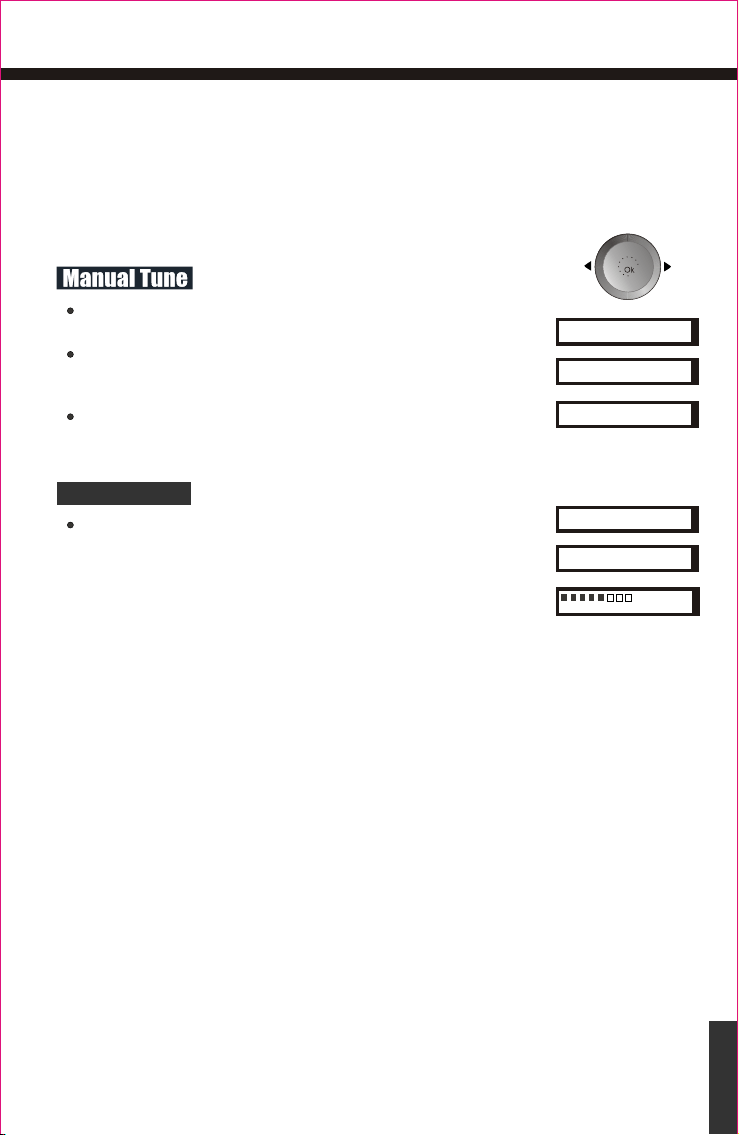

The TUNE knob allows you to tune the frequency and
select different stations. Tune and station selection
vary depending upon which mode you select.
The "STEREO" indicator lights during reception of
stereo broadcasts.
Rotate the TUNE knob to see the name of other
stored station shown on LCM Display.
Push and release the Tune knob when you find the
station that you want to listen.
Clockwise: increase frequency
Counterclockwise: reduces frequency
N
o s ignal
a
t
a
vai l
B
C
BR1DB
A
No b
Auto Tune
D BA
C
T
HE
IS
R
A D IO
BC B R 1
Pe rs t
e
1
S
t o
r
e d
D BA
Quic
k
sca n
2
Sa
er h
c
i n
g
...
BC B R 1
BC
BRD
AIOIS
T
HE
DB A
D A B
le
B
C
BR1DB
A
m
e s e t 1
E P r pty
5
3 4
1 2
5
3 4
1 2
5
3 4
1 2
5 Sleep
3 4
1 2

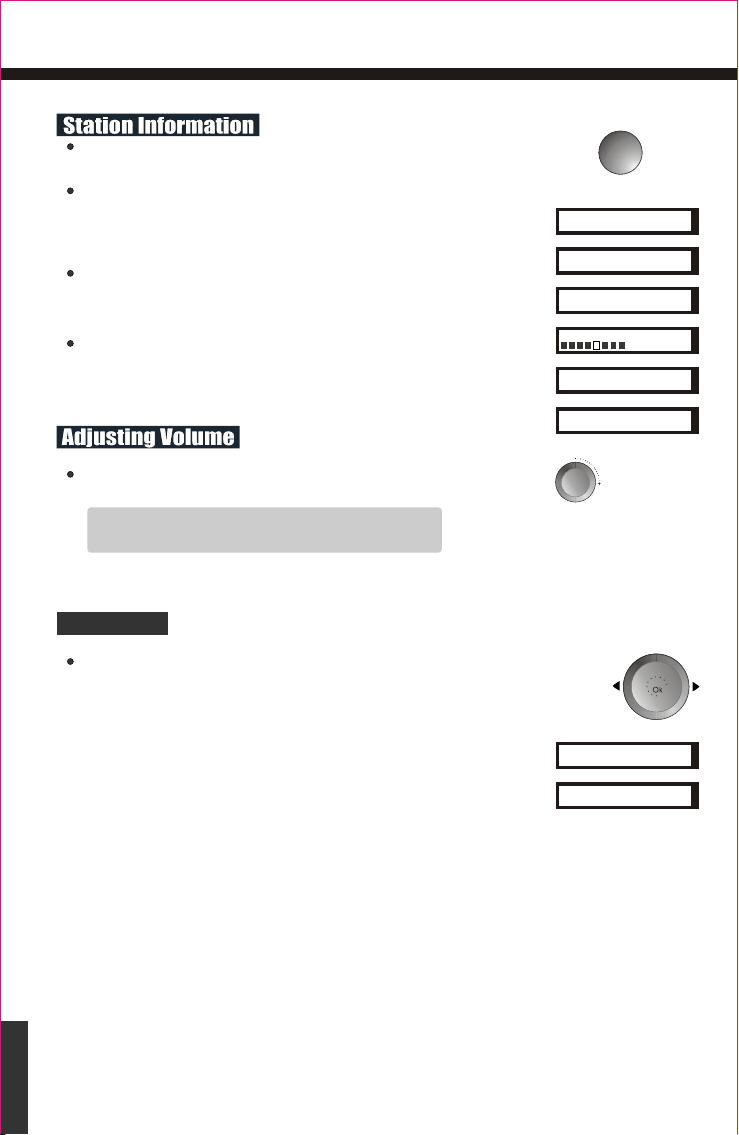

Providing detailed information of the station that you
are listen to.
Press the Info button and release it, the information
text displayed will step through DLS information,
program type, Ensemble name, Signal strength,
Time and Date, alarm status.
Press the Info button and hold for 2 seconds,
the information text displayed will step through
software version and Audio type / bit rate.
Rotate the volume knob to increase the volume to
a proper level
Clockwise: increase volume level
Counterclockwise: reduce volume level
The TUNE knob allows you to enable the tuning of a
selected station. scrolling tune knob to next station,
press it, and hold for 2 seconds. the state of the
auto select function will be toggled ON/OFF, then
a tuning operation to the current selected service
will be preformed.
2 1 -
0
7-04
BBA
R
SH
E
I
C
DO
IT
BB B 1
AD
R
C
If the Info button is pressed again, the information
text will revert to DLS.
Info
-Advanced
OPERATION
BR
C1DAB
B
<rPgTy
p
e
>
BB
C
R1DAB
BBC
ENGLISH
8
Auto Select
BB
C
R1DAB
B B
C
R 1 D A B
07:
1
020
Volume
ot s e l e
ct
A N
uO
Atu o s e l
e
ctF
OF
ON 0
7:10
B B
C
R 1 D A B
A L A R M

ENGLISH
9
Providing more instruction on using the DAB receiver, it includes
manual tune, display mode and station information. Press tune knob
to enter the advanced setup options. Rotate the tune knob to scroll
through the compression menu.
Pressing tune knob and hold for 2 seconds allows
you to turn on manual tune mode.
Scroll the tune knob to select avaiable ensemble,
press tune knob to enter a service list, scroll tune knob
to select a service.
Press tune knob again and return to Autotune mode.
In DAB and FM mode, press tune knob and hold, then
plug the power cable, a system reset will be performed
and the receiver will reboot. After reboot, (1) the preset
of both DAB and FM will be cleared. (2) the auto select
function of DAB will be off. (3) the audio mode of FM will
be set to auto.
OPERATION
Advanced Setup Options
System Reset
na
ul
au e
n Mt
u
Atot
u
n e
u
Qic k
s
c a n
Sytr
s
e
me e t
s
0
Sa
er h
c
i n
g
...
C20 2132 5 1.H
Mz
CBBDB
A
AL
CAMN
CBBDB
A
I
SSC

OPERATION
ENGLISH
10
FM mode
Providing more instructions on using the FM mode, it includes setting
tuning method, quick tuning/manual tuning and preset / recall a station.
There are two methods of tuning in FM mode.
The "STEREO" indicator lights during reception of
stereo broadcasts.
To do a quick tunning, press Auto Tune button,
the unit search the next available station and
stop at the first station it find. Repeat to find
the next station.
In manual tunning method, rotate the tune knob,
the frequency will change in steps of 50 kHz. Keep
manual tuning until you reach the frequency which
you want to listen.
The Preset 1- 5 buttons allow you to you to store and
recall the station you want.
To preset a selected station, press the relevant number
(1-5) for more than 3 seconds. The display will show
"Preset stored")
To recall a stored station, press the relevant number
(1-5) . If the stored is existed in the unit, the unit will tune
to the selected station. If there is no station stored with
the preset buttons, the display will show " Press empty "
briefly and tune back to previous station.
H
8
8 .5z M
8
.
85M H z F M
t
e
s et1 S
Pro
Auto tune
-Full
FM
88.5MHz
8
.
85MHzFM
rde
m
e
s et1 E
Prp
8
.
85MHzFM
ty
5
3 4
1 2
5
3 4
1 2
5
3 4
1 2
5 Sleep
3 4
1 2

ENGLISH
11
OPERATION

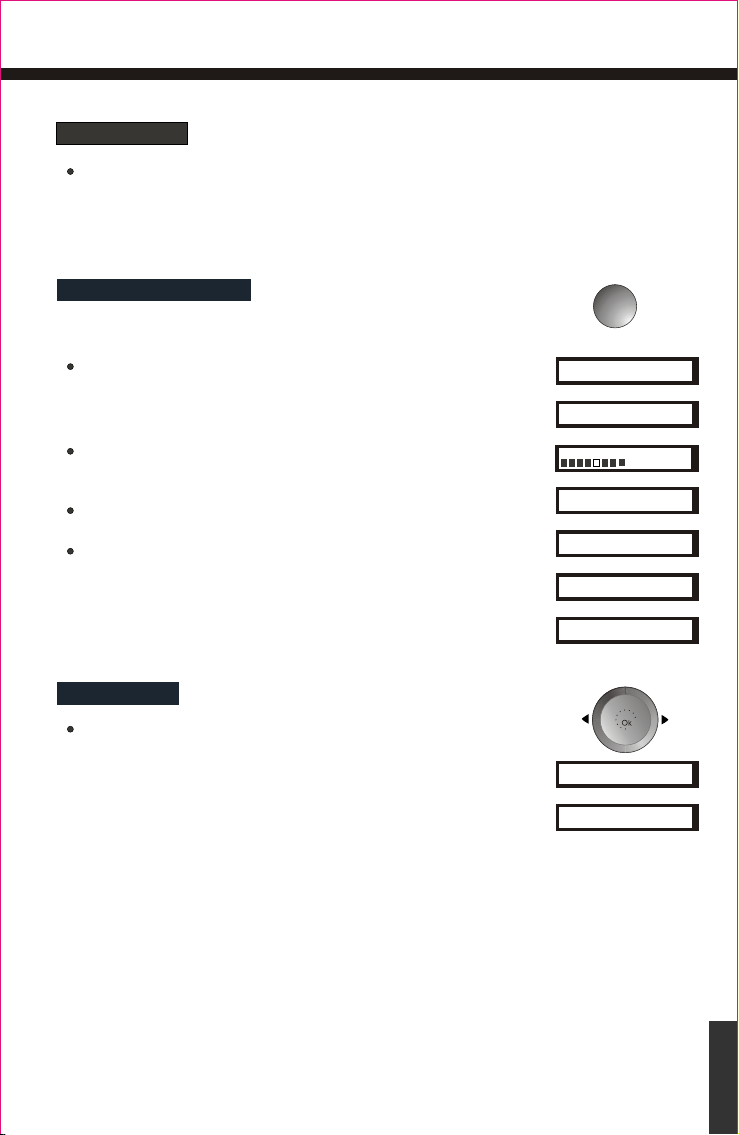

RDS Function
If broadcasting stations located on your country
provide RDS services, the clock and program
service name will display on LCM.
1 0 1
.MHz
Pressing the tune knob allows you to toggle the
audio mode between Auto and Mono.
Audio Mode
Providing detailed information of the station that you
are listen to.
Press the Info button and release, the information text
displayed will step through Radio Text, Programme Type,
Signal strength, Time and Date, Frequency and Audio
type, Alarm status.
Press the Info button and hold for 2 seconds, the
information displayed will step through software version
and PI code.
If the Info button is pressed again, the information text,
will revert to Radio Text.
In Off standby, press the Info button to display the Alarm
status.
Station Information
Info
-Advanced
5MF
Rao i
d
<x
e
Tt>
101
.MHz
5MF
P
r
r<>
p
y
te
FM
101
.MHz
5
101
.MHz
5MF
T
i
/
e
m
<t
a
De>
101
.MHz
5MF
101
.MHz
5
101
.MHz
5MF
Au1
o(St
tereo)
Auo iModdo nM
:oe
Auo iModdo tA
:ue
ogamem
101
.MHz
5MF
ALMRA07:00 N
O

OPERATION

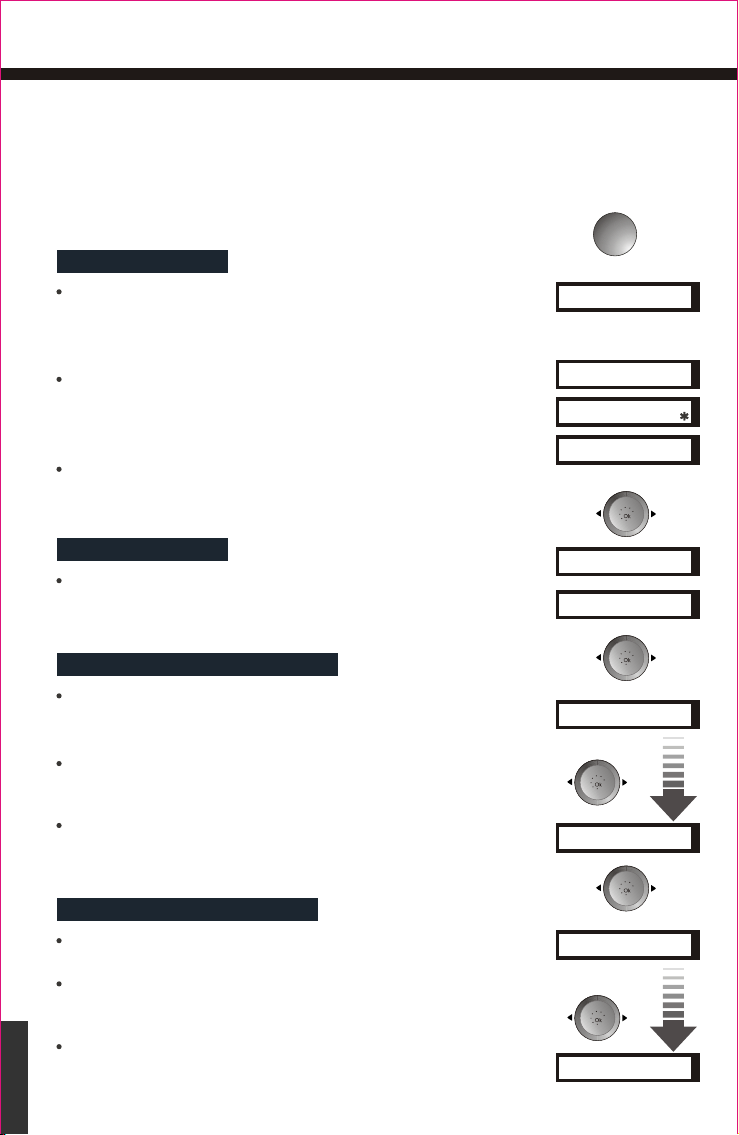

Alarm Setting
Providing more instructions on using the alarm function, it includes setting
alarm under radio and displaying alarm status under clock mode.
Alarm Mode
In DAB mode, press the Info button to cyclically display
the Ensemble name > Signal
strength > Time date > alarm status, until alarm status is
displayed.
DLS > Program type >
Alarm On and Off
When the Alarm status is displayed in DAB or FM , press
tune knob to toggle between alarm On and alarm Off.
In FM mode, press the Info button to display the
Program type > Signal strength > Time date > Current
station > Stereo status auto or mono > alarm status,
until alarm status is displayed.
In Off standby press Info button to display the Alarm status.
Alarm time MINUTES setting
When the Alarm status is displayed, press tune knob
and hold for 2 seconds to enter the alarm time minutes
set mode.
Rotate the knob clockwise to increase the alarm time
or anticlockwise to decrease the alarm time in one
minute steps.
If no adjustment is made within 5 seconds the system
will time-out and reverts to the original setting.
Alarm time HOURS setting
After the alarm time minutes setting, press tune knob
again to enter the Alarm time HOURS set mode.
Rotate the knob clockwise to increase the alarm time
or anticlockwise to decrease the alarm time in one
hour steps.
If no adjustment is made within 5 seconds the system
will time-out and reverts to the original setting.
BC BR1
AL
D BA
ARMON0 : 07 0
ALARMON0 : 07 0
9. 75M
AL
MF
ARMON0 : 07 0
zH
9. 75M
AL
MF
ARMON0 : 07 0
zH
9. 75M
AL
MF
ARMOF0 : 07 0
zH
F
AL
MF
ARMON0 : 07 0
9.
75M zH
AL
MF
ARMON0 : 37 5
9.
75M zH
AL
MF
ARMON0 : 37 5
9.
75M zH
AL
MF
ARMON1 : 36 5
9.
75M zH
ENGLISH
12
Info
-Advanced
10:00

Silence the Alarm
When the alarm triggers DAB, FM or Beep, press On/Off
button to silence the alarm for 24 hours.
Alarm time-out
The alarm will auto shut off for 24 hours after triggered for
one hour.
DAB alarm type
FM alarm type
Beep alarm type
Press tune knob to enter the alarm preset station
select mode.
Press tune knob to enter the alarm preset station
select mode.
Press tune knob to enter the alarm Beep level
select mode.
When preset stations have been saved, rotate the
knob clockwise or anticlockwise to select cyclically
DAB Preset stations CURRENT SERVICE > 1>2>3>4.
When preset stations have been saved, rotate the
knob clockwise or anticlockwise to select cyclically
FM Preset stations CURRENT SERVICE > 1>2>3>4.
Rotate the knob clockwise or anticlockwise to select
cyclically the Beep output levels 1>2>3>4.
Press tune knob to store and display the alarm settings
for 5 seconds then return to the DAB, FM or Off standby
condition.
If above adjustments no next action is made within 5
seconds the system will time-out and reverts to the original
setting.
Alarm default
Unless adjusted the alarm will default at 07:00Hrs in Beep
mode level 4.
Or press Snooze button to silence the alarm for 5 minutes.
The display will show "Snooze".
Alarm Type setting
Press the tune knob again to enter the alarm type
mode.
Rotate the knob clockwise or anticlockwise to select
cyclically DAB > FM > Beep alarm type.
AL
MF
ARMTYB: EE P
9.
75M zH
PE
AL
MF
ARMTYD: BA
9.
75M zH
PE
AL
MF
ARMTYF: M
9.
75M zH
PE
CU
BA
RRENTVR CI E
BC
BR1 D
SE
D A
BA
B RP E S1:
BC
BR1 D
E T
F M
MF
RP E S3:
9.
75M zH
E T
EE
MF
B VP O L4:
9.
75M zH
Snooze
ENGLISH
13
07:00
07:00
Zz
OPERATION

Setting for Sleep
In DAB and FM On state, press Sleep button to
cyclically select the radio to switch to Off standby
after 90 minutes > 60 minutes > 30 minutes >
10 minutes > Off.
In Off standby, press Sleep button to cyclically select
the radio to switch On in the last used state and then
switch to Off standby after 90 minutes > 60 minutes
> 30 minutes > 10 minutes > Off.
Clock
24 hour display of hours and minutes.
Power interrupt
In the event of a power interrupt the DAB station list,
Preset Stations, Alarm settings and last use settings will
be retained in memory.
The DAB and FM radio, the display, the display backlight
and the alarm output will not operate during the power
interrupt.
ENGLISH
14
Alarm tone
The alarm tone Beeps with increasing rapidity during
the first minute after being triggered.
Sleep
14
:
10
SEL E M EP
6 0 m n
IT
i
OPERATION
