REMKO KP8 User manual

REMKO
Edition GB-I07
KP8 CONDENSATE PUMP

3
Contents
Carefully read this installation manual prior to commis-
sioning/using the units!
This operating manual is a translation of the German original.
This manual is an integral part of the unit and must
always be kept in the vicinity of the installation location
or on the unit itself.
Subject to modifications; no liability accepted for errors
or misprints!
Safety notes 4
Environmental protection and recycling 5
Guarantee 5
Description 5
Intended use 5
Scope of delivery 6
Technical data 6
Assembly 7-8
Electrical wiring 9
Electrical wiring diagram 9
Care and maintenance 10

4
REMKO KP8 CONDENSATE PUMP
Carefully read the operating manual
before placing the unit in service for
the first time. It provides useful tips,
notes and hazard warnings to prevent
injury and material damage. Failure
to follow the directions in this manual
can endanger persons, the environment
and the equipment itself and will void any
claims for liability.
■ Keep this manual in the vicinity of
the units.
■ Only qualified personnel may set up
and install the units and components.
■ The set-up, connection, and operation
of the unit and its components
must take place in accordance with
the operating conditions stipulated
in this manual and comply with
all applicable local regulations.
■ Modification of the units or
components supplied by REMKO
is not permitted and can cause
malfunctions.
■ Units and components may not
be operated in areas where there
is an increased risk of damage.
Observe the minimum clearances.
Safety notes
■ The electrical power supply is
to be adapted to the requirements
of the units.
■ The operational safety of the units
and components is only assured
if they are fully assembled and used
as intended. Safety devices may not
be modified or bypassed.
■ Do not operate units or components
if there are obvious defects or signs
of damage.
■ The units and components must
be kept at an adequate distance from
flammable, explosive, combustible,
abrasive and dirty areas or
atmospheres.
■ Installation, repair and maintenance
work may only be carried out
by authorised specialists. Visual
inspections and cleaning can
be performed by the operator as
long as the unit is disconnected from
the power.
■ Take appropriate precautions when
performing installation, repair
or maintenance work or cleaning
the unit to make sure the unit does
not pose a danger to persons.

5
Description
Guarantee
The warrantyconditions are listed
in the “General terms and conditions”.
Please contact your direct contractual
partner in the first instance.
Environmental protection
and recycling The KP8 condensate pump is used
to remove the condensate water
from the indoor units or cold water
collectors to higher drains. Depending
on the space available, the condensate
pump can be installed on the right
or left, e. g. in cable ducts next to
the indoor units or on an intermediate
ceiling. An additionally installed liquid
level switch switches the pump on
and off. If the condensate level is too
high, the safety switch will switch off
the cooling request (compressor contact)
and release an alarm contact.
Disposal of packaging
All products are packed for transport
in environmentally friendly materials.
Make a valuable contribution to reducing
waste and sustaining raw materials.
Only dispose of packaging at approved
collection points.
Disposal of components
The manufacturing process for the units
is subject to continuous quality
control. Only high-grade materials are
processed, the majority of which are
recyclable. Help protect the environment
by only disposing of the components
in accordance with local regulations and
in an environmentally safe manner, e.g.
through authorised disposal and recycling
specialists or at collection points.
Intended
use
Depending on the model, the units
and the additional fittings with which
they are equipped are only intended
to be used as an air-conditioner
for the purpose of cooling or heating
the air in an enclosed space.
Any different or additional use is a non-
intended use. The manufacturer/supplier
assumes no liability for damages arising
from non-intended use. The user bears
the sole risk in such cases.
Intended use also includes working
in accordance with the operating and
installation instructions and complying
with the maintenance requirements.

6
REMKO KP8 CONDENSATE PUMP
Scope of delivery
No. Designation
No. Designation
A Condensate pump E Vent hose Ø 7 mm
B Reservoir with cable H Reservoir retaining plate
C Connecting cable, approx. 1.7 m F Connection hose 90°,Ø 19 mm
D Condensate hose 2 m,Ø 7 mm
Series KP 8
Max. flow rate at delivery head 0 m, horizontal pressure pipe 5 m 10 l/h
Max. flow rate at delivery head 2m, horizontal pressure pipe 10m 8 l/h
Max. flow rate at delivery head 4m, horizontal pressure pipe 20m 5 l/h
Max. flow rate at delivery head 10 m 1 l/h
Max. condensate temperature 35 °C
Max. environmental temperature 50°C
Suction hose diameter 5 mm
Pressure hose diameter 4-6 mm
Return flow valve on pressure side Available
Power supply 230V/1~/50Hz
Max. rated current consumption 0.5 A
Max. rated power consumption 24 W
Enclosure class IP 64
Dimensions H x W x D 80/85/40
Serial number 665...
EDP 1613125
Technical data
A
B
CD
F
E
H

7
Assembly
Assembling the condensate pump
for the units RVT, RXW, MXW, ATY, MVW
1. Connect condensate hose with an inner
diameter of 15 mm to the condensate
drain of the air conditioner, shorten
if necessary.
2 Slide the approx. 10 cm long vent
hose (Fig. 1, above) onto the upper
connection of the reservoirs.
3. Place the reservoir so that the end of
the vent hose is at least 2 cm above
the condensate tray and that an axial
rotation of 15° is not exceeded.
4. Fix the reservoir with the retaining
plate by pushing the reservoir
onto the retaining plate and gluing
it to a smooth and clean surface.
5. Slide the approx. 2 m long
condensate hose (Fig. 1, above)
onto one of the lower connections
of the reservoir. Pay attention
to the inclination angle of the reservoir!
6. Place the condensate pump in a cable
duct or in the intermediate ceiling. Slide
the condensate hose onto the plastic
connector on the condensate pump
(Fig. 2).
Observe the flow direction of the pump.
Water inlet: on the brass socket Water
outlet: on the plastic hose.
7. Ensure that the condensate pump
is adequately ventilated. The pump
must be not insulated.

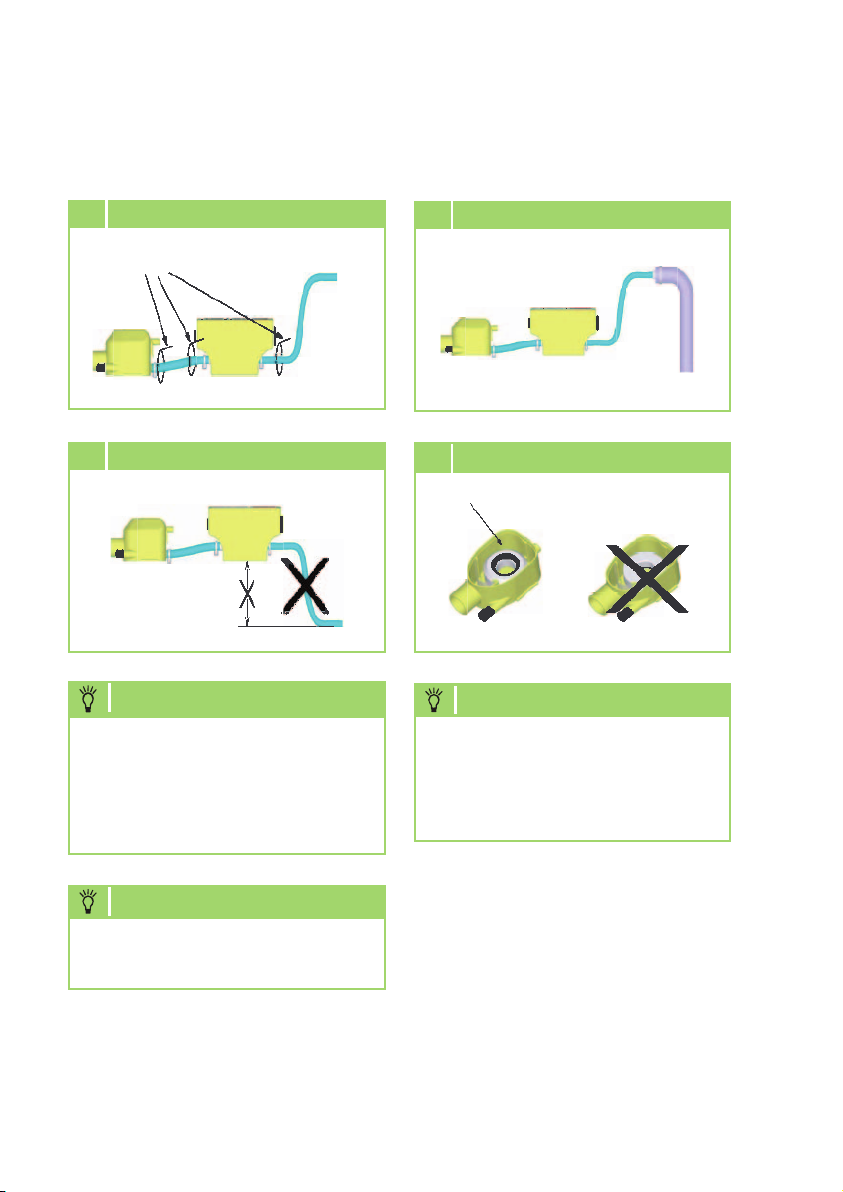

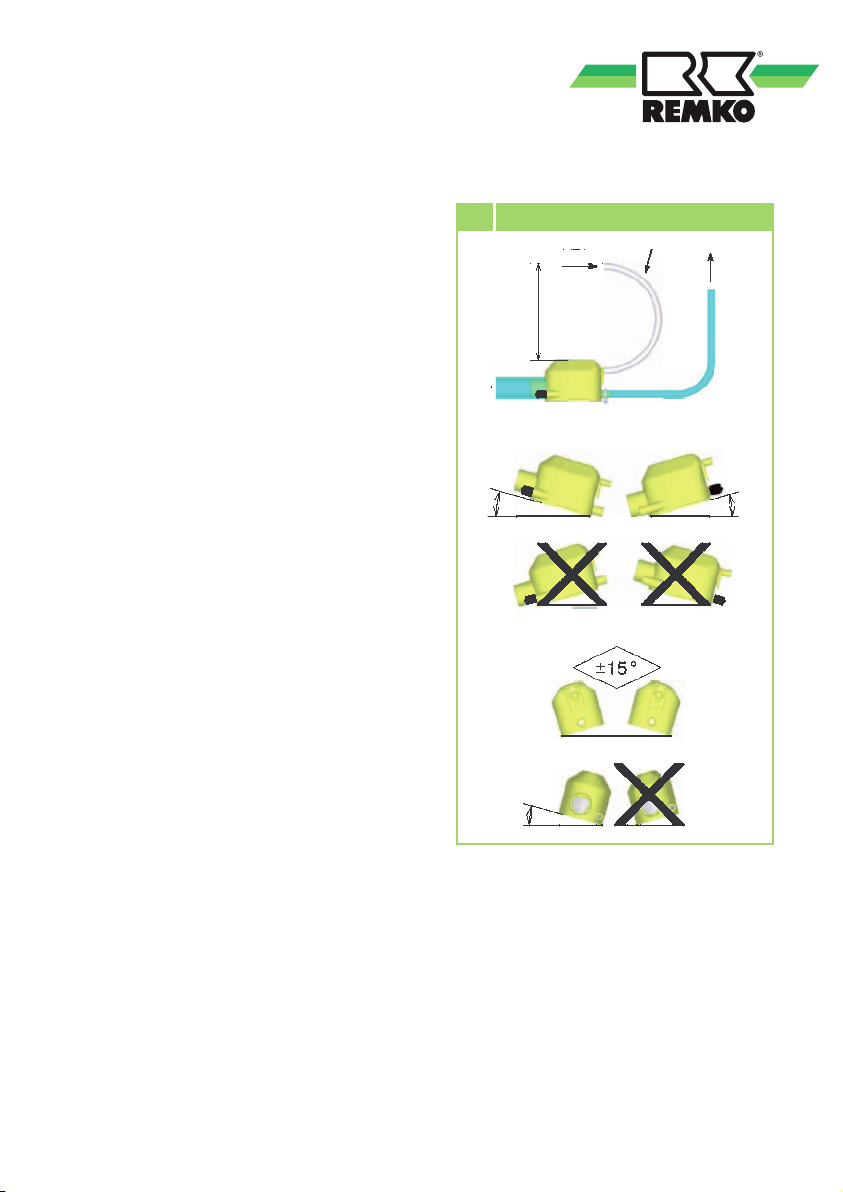

1 Installing the reservoir
15° 15°
15°
8. Drain the pressure pipe of the pump
into the drain (Fig. 3).
Vent hose
Condensate hose

8
REMKO KP8 CONDENSATE PUMP
Depending on the type
of device, lamps or acoustic
devices can be connected
to indicate malfunctions.
NOTE
Make sure that the installation
is frost-free.
NOTE
3 Installing the condensate pump
2 Installing the pump
Cable tie
4 Installing the condensate pump
No difference
in height
5 Installing the float
Magnetic ring on top
The pressure pipe must not be
laid with an immediate incline,
in order to prevent the pressure
hose emptying.
NOTE

9

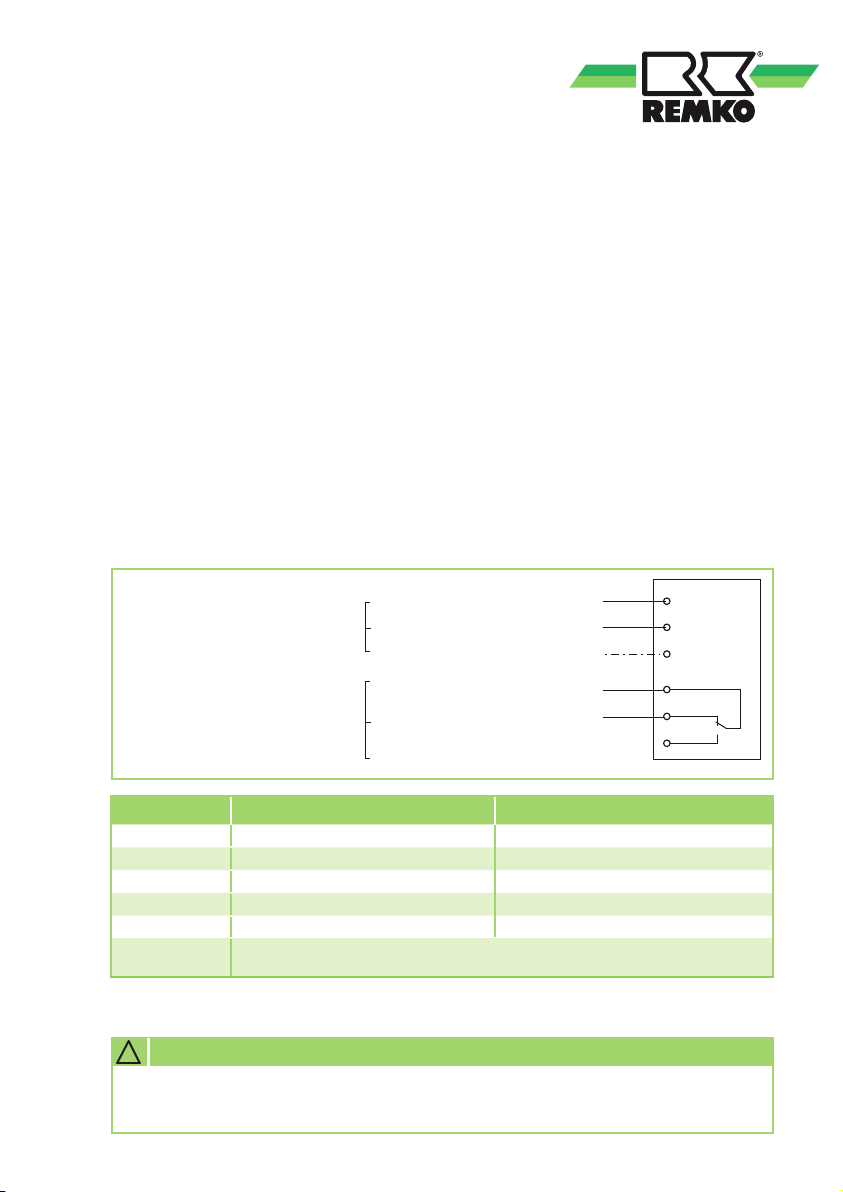

Electrical wiring diagram
KP 8 connection KP 8
PE: Earth conductor (green/yellow)
N: Neutral conductor (blue)
L: Phase conductor (brown)
Power supply, 230 V/,1~, 50 Hz
N
PE
L
Electrical wiring
1. Insert the 2 m long 4-pin
connection cable of the reservoir
into the socket of the condensate
pump.
2. Connect the supplied double cable
with the 6-pin plug into the free
socket of the condensate pump.
3. Connect the 6 cores as shown
in the wiring diagram below.
When using the malfunction contacts, unused cable ends must
be properly insulated (terminal block).
!CAUTION
NC
C
NO
Changeover contact, see table 1
NC: Normally closed contact (white)
Connection see tab. 1, column 2
C: Common contact (black)
Connection see tab. 1, column 3
NO: Normally open contact (violet)
Connection of malfunction signalling device
Indoor unit Connection to NC (white) Connection to C (black)
RXW Control conductor, contact 3on IT Control conductor, contact 3on AT
RVT Control conductor, contact Son IT Control conductor, contact Son AT
MXW Control conductor, contact Son IT Control conductor, contact Son AT
ML...DC Control conductor, contact Son IT Control conductor, contact Son AT
RXT Phase conductor, input Son IT *)
MVW Disconnect the CN 19 (WATER) in the middle and connect
pump contacts NC (white) and contact C (black).
*) varies, depending on where the 230V, 1~, 50Hz power supply comes from!
4. Check assembly again and perform
a functional test.
5. Fill water into the condensate
tray and check whether the pump
is switched on and the condensate
is pumped out to the drain on site.
To check the air conditioner's alarm
contact, add enough water to trigger it.

10
REMKO KP8 CONDENSATE PUMP
Care and maintenance
Check the condensate tray, condensate hoses and pump connections as well
as the float in the reservoir regularly for dirt.
Type of task Commissioning Half-yearly
General X X
Check voltage and current X
Check condensate drain/ventilation X X
Clean reservoir (see note) X X
Check insulation if necessary X
Check malfunction contact X X
Only neutral detergents may
be used for cleaning.
NOTE
The float must always be mounted
with the magnetic ring upwards
after cleaning. See page 8, fig. 5.
NOTE

11
