Remlinger 2300 Safety guide

Manual # - MAN-GD-2300-002
Grain Drill
Model 2300
Owner’s Manual
Installation and Parts Manual
Our Tradition is Quality Driven and Field Proven

2 MAN-GD-2300-002

3 MAN-GD-2300-002
Remlinger 2300 Grain Drill
Thank you for purchasing a Remlinger 2300 Grain Drill. The Remlinger 2300 was designed to be a
cost-effective way to accommodate a wide variety of applications. This design produces a machine with
enough strength and flexibility to carry you through your various seeding operations. Traditional seed
placement, pasture renovation, native grass plots and small seed cover crops to name a few.
The basic drill, with the large seed hopper only, can be used as a no-till drill in the traditional sense. It
is capable of drilling a wide variety of beans, peas, wheat and larger grass seed. This basic setup can also be
used to renovate existing pastures or create new pasture areas.
The addition of the native grass seed hopper gives your basic drill more flexibility. The hopper comes
standard with aggressive internal agitators to keep the fluffy seed from bridging and feeds them into saw-
toothed picker wheels. The picker wheel act as the seed meter. This hopper can be used to create native
grass plots for wild life, help prevent erosion and return un-useable farm ground back to its natural state.
Finally, a small seed hopper can be added to the basic drill setup. The small seed hopper allows you to
drill a wide variety of alfalfas, clovers, ryegrass and radishes. These seeds are normally used as a cover crop
providing nutrients, loosening of the soil and weed control.
The native grass and small seed hoppers can be used in any combination with the basic drill setup.
Each can be added at any time. The Remlinger 2300 Grain Drill is capable of performing a wide array of
applications across your farming operation. Try it out and we bet that you will agree.
Read and study the operator’s manual carefully to learn how to safely service and operate your
machine. Failure to do so could cause personal injury or equipment damage.
In addition to the equipment furnished with your drill, attachments are available to help you do a better
job. Right-Hand and Left-Hand sides are determined by facing in the direction the drill will travel when
in use.
For your convenience write model and serial number in area provided below. Serial number is located
on side end of tool bar.
Model Number:
Serial Number:
Date of Purchase:

4 MAN-GD-2300-002
This symbol indicates an important Safety Alert Message in
this Manual. Carefully read and understand the message
that follows. The potential for series injury or death is
possibly.
Warning
Before using this grain drill, make certain that every operator:
•Is instructed in safe and proper use of this drill.
•Reads and understands the manual pertaining to the drill.
•Reads and understands ALL (if applicable) Safety Decals on the drill.
•Clears the area of all other people before operating the drill and / or attachments.
•Learns and practices safe use of the drill and / or attachments in a safe clear open area before operating in
the field.
Safety Rules
•Never attempt to operate or adjust the drill without reading this manual.
•Do not attempt to adjust the drill while it is in motion.
•Caution is required when hooking up or un-hooking the drill. Parking stands have been provided to help
support the drill.
•Always use any transport locks that are provided on the drill or attachment.
•Always place all safety decals, SMV sign and reflectors in their proper locations. Clean and replace as
necessary.
•Never allow anyone to ride on the drill or attachments.
•Always slow down when turning and traveling over rough terrain.
•Always support the drill when mounting or working on the attachments.
•Hydraulic oil escaping under pressure can have sufficient force to penetrate the skin causing serious
personal injury.
•Before disconnecting lines be sure to relieve all pressure. Before applying pressure to the system, be sure
all connections are tight and that lines, pipes, and hoses are not damaged.
•Be careful around teeth, tines, sweeps, and blades: they get sharper with wear.
•Be careful walk board may be slippery when wet.

5 MAN-GD-2300-002
Warning – Transport Safety
Before transporting or traveling on public roads with this grain drill, make certain that every operator:
•Reads and understands the manual pertaining to the drill.
•Checks and complies with state and local regulations.
•Makes sure SMV, reflectors and warning lights are in working order.
•Uses tractor warning lights during transporting.
•Uses required warning flags, emblems and lights.
•Checks that red reflectors are on the back-outer edges of the drill and are clearly visible.
•Checks that amber reflectors are on the side and front outer edges of the drill and are clearly visible
•Travel at a reasonable and safe speed. “Never exceed maximum speed of 25 mph”. Reduce speed and /
or use lower gear on rough ground or slopes.
•Transport drill in its narrowest configuration. All attachments folded.
•No sudden stops, stop slowly.
•Properly adjust and use mirrors on transport vehicles as required.
•Signals and check behind when turning.
•Be sure to have clear visibility while turning.
•Be extremely cautious in poor visibility situations such as; hills, poor weather conditions and at night.
2/3 of roadway farm accidents occur while turning
Failure to follow any of these safety warnings could cause
series injury or death. Use good judgement when
transporting and maintain control at all times. Comply with
state and local laws and regulations. Always strive to
prevent accidents and watch out for other vehicles.

6 MAN-GD-2300-002
Table of Contents
COMMON USED SYMBOLS........................................................................................... 8
TO THE OWNER.............................................................................................................. 9
WARRANTY POLICY ...................................................................................................... 9
INTRODUCTION............................................................................................................ 10
GENERAL INSTRUCTIONS.......................................................................................... 10
PERIODIC CHECK LIST................................................................................................ 10
ASSEMBLY REQUIRED................................................................................................ 11
3POINT HITCH.............................................................................................................. 11
PULL TYPE HITCH.......................................................................................................... 11
SPECIFICATIONS.......................................................................................................... 12
3POINT HITCH.............................................................................................................. 12
PULL TYPE HITCH.......................................................................................................... 13
ROW SPACING.............................................................................................................. 14
RECOMMENDED TORQUE SPECIFICATIONS ........................................................... 14
OPERATING INSTRUCTIONS ...................................................................................... 15
GENERAL DESCRIPTION................................................................................................. 15
OPERATING CHECK LIST................................................................................................ 15
MAINTENANCE............................................................................................................... 16
LUBRICATION ................................................................................................................ 16
PARKING STANDS.......................................................................................................... 16
TRACTOR REQUIREMENTS............................................................................................. 17
STORAGE...................................................................................................................... 17
TRANSPORTING............................................................................................................. 18
PARKING....................................................................................................................... 18
DRIVE SYSTEM.............................................................................................................. 19
HYDRAULICS................................................................................................................. 19
START-UP PROCEDURE.............................................................................................. 20
SETTINGS AND ADJUSTMENTS................................................................................. 21
FRAME SETTING............................................................................................................ 21
SMALL GRASS SEED TUBE ............................................................................................ 21
NO-TILL COULTERS....................................................................................................... 22
OPENER DOWN PRESSURE SPRINGS............................................................................. 22
OPENER T-HANDLES..................................................................................................... 22
FIELD OPERATION GUIDE........................................................................................... 23
ADDITION OF EXTRA WEIGHT......................................................................................... 23
GROUND PREPARATION................................................................................................. 23
GROUND SPEED............................................................................................................ 23
SEEDING ADJUSTMENTS............................................................................................ 24
SEED RATE CHANGE..................................................................................................... 24
METER RATE ADJUSTMENTS ......................................................................................... 24
CALIBRATION PROCEDURE....................................................................................... 25
SEED CHARTS.............................................................................................................. 26
SPROCKET LAYOUT –LARGE HOPPER W/O NATIVE GRASS SEED HOPPER...................... 32
SPROCKET LAYOUT –SMALL SEED HOPPER W/O NATIVE GRASS SEED HOPPER............. 33

7 MAN-GD-2300-002
TROUBLE SHOOTING .................................................................................................. 34
PULL TYPE HITCH PARTS........................................................................................... 35
FRAME – DIAGRAM...................................................................................................... 36
FRAME – DESCRIPTION .............................................................................................. 37
HOPPER ASSEMBLY - DIAGRAM ............................................................................... 38
HOPPER ASSEMBLY – DESCRIPTION....................................................................... 39
DRIVE WHEEL – DIAGRAM.......................................................................................... 40
DRIVE WHEEL – DESCRIPTION .................................................................................. 41
LIFT WHEEL ASSEMBLY – PULL TYPE DRILL.......................................................... 42
GAUGE WHEEL ASSEMBLY – 3 POINT DRILL.......................................................... 43
HUB ASSEMBLY - OPTIONAL ..................................................................................... 44
3 POINT HITCH.............................................................................................................. 45
NO-TILL MOUNTING BRACKET .................................................................................. 46
NO-TILL COULTER ASSEMBLY .................................................................................. 47
OPENER ASSEMBLY – DIAGRAM .............................................................................. 48
OPENER ASSEMBLY – DESCRIPTION....................................................................... 49
SCRAPER ASSEMBLY................................................................................................. 50
DOUBLE DISK OPENER BLADE ASSEMBLY ............................................................ 50
HYDRAULIC COMPONENTS – PULL TYPE DRILL .................................................... 51
SMALL SEED HOPPER ASSEMBLY – DIAGRAM (OPTIONAL) ................................ 52
SMALL SEED HOPPER ASSEMBLY – DESCRIPTION (OPTIONAL)......................... 53
SMALL SEED METER ASSEMBLY.............................................................................. 54
LARGE SEED METER ASSEMBLY.............................................................................. 55
NATIVE GRASS SEEDER ATTACHMENT – (OPTIONAL).......................................... 56
CALCULATING HOW MUCH TO PLANT ............................................................................. 56
SEED RATE ADJUSTMENT.............................................................................................. 56
STANDARD SPROCKET RATIOS ...................................................................................... 57
CALIBRATING THE SEED RATE ....................................................................................... 58
DRILL SETUP................................................................................................................. 58
SEED CHARTS............................................................................................................... 58
SEED CHARTS WITH NATIVE GRASS SEED OPTION......................................................... 59
SPROCKET LAYOUT –LARGE HOPPER WITH NATIVE GRASS SEED HOPPER .................... 61
SPROCKET LAYOUT –SMALL SEED HOPPER WITH NATIVE GRASS SEED HOPPER ........... 62
SPROCKET LAYOUT –NATIVE GRASS SEED HOPPER...................................................... 63
NATIVE GRASS SEED HOPPER ASSEMBLY DIAGRAM – (OPTIONAL).................. 67
NATIVE GRASS SEED HOPPER ASSEMBLY DESCRIPTION – (OPTIONAL) .......... 68
REGISTRATION FORM................................................................................................. 69
Please Return With-in 30 Days of Purchase............................................................ 69

8 MAN-GD-2300-002
Common Used Symbols
Alert, Caution or Important Symbol
Danger or Warning Symbol
Fluid under Pressure Symbol
Lubrication Symbol

9 MAN-GD-2300-002
To the Owner
This manual contains important information about the safe assembly, adjustment, operation and
maintenance of your 2300 Grain Drill. The Drill and Optional Equipment have been fully assembled at the
factory when appropriate. The use of this manual describes how to complete any remaining assembly.
Additional diagrams may also be included for specific applications. Please contact your dealer or Remlinger
Manufacturing for any questions. 1-800-537-7370
Any unauthorized modification to any part of the Grain Drill or attachments could cause series injury
and void any warranty consideration. Please refer to the Warranty Policy referenced below. This manual
should be placed in the Owner’s Manual Canister on the implement to which it is attached. For additional
manuals or to replace a lost or damaged manual, please contact your dealer. The manual number is
referenced on the lower right-hand corner of each page.
Warranty Policy
Remlinger Mfg. will warrant all products against defects in material and workmanship manufactured and
sold by it. Warranty will only be granted after examination by appropriate personnel. This warranty is
expressly limited to the replacement of defective products. This warranty does not obligate Remlinger
Manufacturing to cover cost of labor to replace these parts.
Remlinger Mfg. reserves the right to change specifications, add improvements or discontinue
manufacture of any of its equipment without notice or obligation to purchasers of its equipment. This warranty
gives you specific legal rights. You may also have other rights which vary according to state or province.
WARRANTY EXCLUSIONS: Labor, transportation, or any cost related to a service call is not provided by
Remlinger Mfg. This Limited Warranty does not apply to damage resulting from misuse, neglect, normal wear,
accident or improper installation or maintenance.
BASIC WARRANTY: All Remlinger manufactured products are warranted for one year from date of purchase.
WARRANTY CERTIFICATION: Warranty registration should be mailed, emailed or faxed within 30 days of
purchase to certify warranty coverage.
UNAPPROVED PARTS OR MODIFICATION: All obligations of Remlinger Mfg. under this Warranty are
terminated if unapproved parts are used or if equipment is modified or altered in any way not approved by
Remlinger Mfg.

10 MAN-GD-2300-002
Introduction
This manual contains an illustrated parts catalog and instructions for installation, operation, and service
of unit. Please read carefully and follow all instructions.
Parts catalog covers serviceable parts and is broken down into groups for each section of unit.
Parts shown in exploded views of assemblies have reference numbers that correspond to Part
Numbers. DO NOT ORDER PARTS BY REFERENCE NUMBERS. Part number and part description are
shown with reference numbers. Total number of parts required per unit or assembly is shown opposite each
part number.
When ordering parts, always give parts number and part description. If part the number cannot be
found in manual, give clear description of part and its location and function. Specify machine type and size.
General Instructions
Read all assembly instructions carefully and observe illustrations. Lubricate all bushings and moving
parts as you proceed. Bolts should be used in the holes in which they are designated. Leave bolts loose until
parts are attachments are completely assembled. Then tighten bolts. It is important that bolts are tight. Loose
bolts can cause breakage of parts. If bolts must be replaced, replace them only with bolts of equal strength.
The radial lines on the bolt determine their strength.
Periodic Check List
•Retighten all nuts and bolts. Shipping, transporting and general can cause nuts and bolts to become
loose.
•Check all drive chains, sprockets and keys. Verify drive chains and sprockets are properly aligned and
chains are proper length.
•Check seed meter adjustment. Move the seed rate adjuster lever to the “0” or closed position. Check all
seed meters to be sure all meters are in the fully closed position. If necessary, loosen the setscrews in the
locking collars of the seed meter and adjust all meters to the fully closed position.
Small Seed Meter Main Hopper Meter

11 MAN-GD-2300-002
Assembly Required
3 Point Hitch
The Remlinger Grain Drill is shipped completely assembled from the factory. The gauge wheel arms may have
been removed for shipping. Optional equipment such as, harrows or rollers may be partially assembled also
due to shipping restrictions.
Pull Type Hitch
The pull type drill requires the pull hitch, wheels, tires and hydraulic hoses to the tractor to be assembled. The
shipping stand on the front of the drill can be removed.

12 MAN-GD-2300-002
Specifications
3 Point Hitch
Gage Wheel Packages are not available on 5’ & 7’ Drills
All dimensions are approximate and subject to change at any time.

13 MAN-GD-2300-002

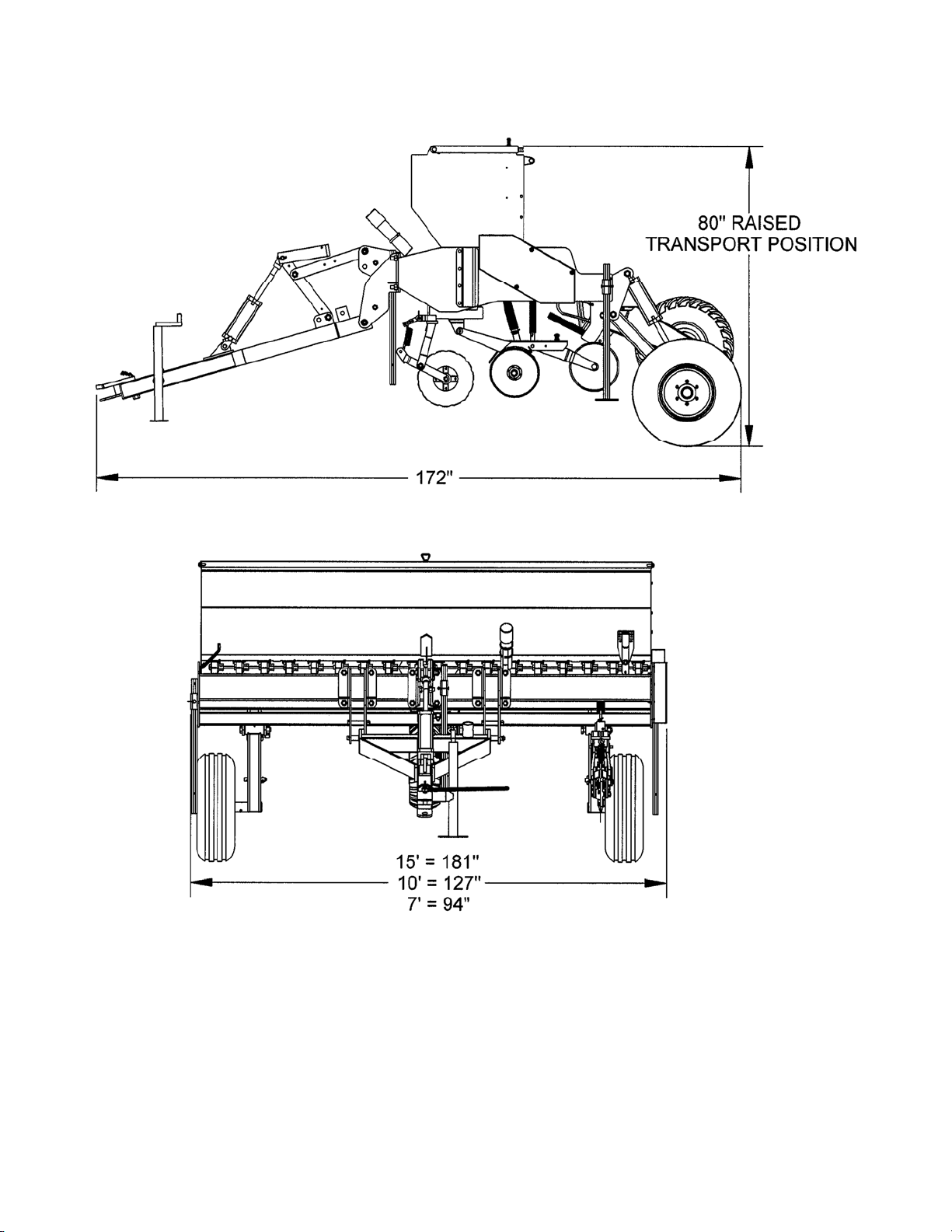

Pull Type Hitch
Pull Packages are not available on 5’ Drills
All dimensions are approximate and subject to change at any time.

14 MAN-GD-2300-002

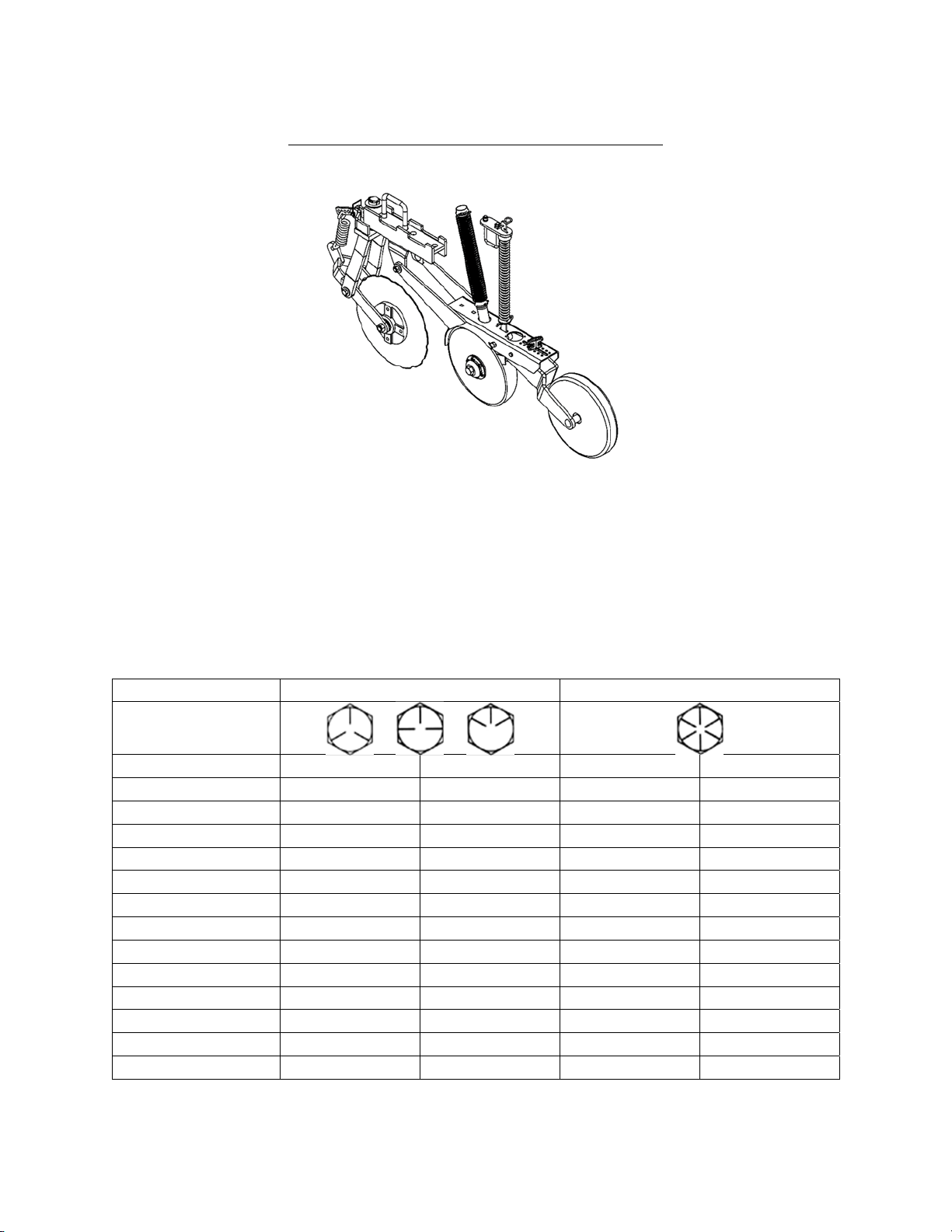

Row Spacing
Opener with No-Till Coulter & 2 x 13 Press Wheel
Row spacing can be changed easily from your current width to any row width you desire, within the
limits of the over-all drill width. Determine the row width desired. Each opener unit may be easily moved right
or left on the pull bar by simply loosening two U-bolts. If you do not wish to use all attached opener units, cap
off the un-needed meters. Optional meter covers are available.
Recommended Torque Specifications
SAE Grade No. 5 8
Bolt Head
Identification
Bolt Size Lb. - Ft N - m Lb. - Ft N - m
1/4” 9 - 11 12 – 15 12 - 15 16 - 20
5/16” 17 - 20.5 23 – 28 24 - 29 33 - 39
3/8” 35 – 42 48 - 57 45 - 54 61 - 73
7/16” 54 – 64 73 - 87 70 - 84 95 - 114
1/2” 80 - 96 109 - 130 110 - 132 149 - 179
5/8” 150 – 180 203 - 244 220 - 264 298 - 358
3/4” 270 – 324 366 – 439 380 - 456 515 - 618
7/8” 400 – 480 542 – 651 600 - 720 814 - 976
1” 580 - 696 787 – 944 900 - 1080 1220 - 1464
1-1/8” 800 – 880 1085 – 1193 1280 - 1440 1736 - 1953
1-1/4” 1120 – 1240 1519 – 1681 1820 - 2000 2468 - 2712
1-3/8” 1460 – 1680 1980 – 2278 2380 - 2720 3227 - 3688
1-1/2” 1940 - 2200 2631 – 2983 3160 - 3560 4285 - 4827

15 MAN-GD-2300-002
Operating Instructions
General Description
The following information is a brief description of how this seeder works. It is included to help you understand
the operation of this seeder.
The power to drive the seeding function of this seeder comes from the ground speed of the tractor. The seed
metering is powered by the rear drive wheel at a rate proportional to the distance driven. This ensures that the
rate applied remains constant as ground speed is varied. The power is transmitted via drive chains to the seed
meters. This drive can be adjusted to three rate settings to vary seed rates. The seed rate is adjustable using
the seed rate lever located on the hopper. This system will handle a large variety of seed sizes from the small
legumes to kidney beans or sunflowers.
Operating Check List
In addition to design and configuration of equipment, hazard control and accident prevention are dependent
upon the awareness, concern, prudence and proper training involved in its operation, transport, maintenance
and storage of equipment. Before beginning to operate your seeder, the following inspection should be
performed.
Check
•Read and follow the “Safety Rules” carefully.
•Read all of the “Tractor Hook Up” and preparation instructions.
•Lubricate the seeder as needed. Refer to “Lubrication”
•Check the seeder initially and periodically for loose bolts & pins. “Torque Values Chart”.
•Make sure all guards and shields are in place.
•Check initially and periodically for loose bolts, pins, chains.
•Inspect the seed meters and seed tubes for foreign matter.
•Set speed change sprocket for drive type desired.
•Set and calibrate seed rate. See “Seed Rate Charts”.
•Make sure the meter gate adjustment handle on each cup is set the same across the seeder.
•Clear the area to be seeded of rocks, branches, or other foreign objects.
•Raise drill before turning, to keep from binding or bending openers or coulters.
•Do not back up with the drill lowered in planting position. Seed tubes may plug and opener damage may
occur.

16 MAN-GD-2300-002
Maintenance
Install cylinder locks or parking stands before performing any maintenance to your seeder.
Proper servicing and adjustment is the key to the long life of any farm implement. With careful and systematic
inspection, you can avoid costly maintenance, time and repair.
•After using your grain drill for several hours, check all bolts to be sure they are tight.
•After transporting your grain drill for several hours, check all bolts and nuts to be sure they are tight.
Lubrication
•All bearings on the seeder are sealed and do not require lubrication.
•Oil chains every 40 hours. Wipe off excess oil.
•Grease lift wheel arms, gauge wheel arms and no till swivels every 8 hours.
•Lubricate each meter shaft at drive end sprocket, center coupler and end guide. Slide seed meter
adjustment lever back and forth in order to get the oil back into the square.
Parking Stands
1. After hitching the tractor to the seeder, raise the seeder to take the weight off the parking stands. The
stands are located at the rear of the drill on each end.
2. Raise the stands and secure with the pins in the bottom hole of the stand.
Warning
Warning: Do not move the drill with weight on the
stands, they will bend.

17 MAN-GD-2300-002
Tractor Requirements
3-point mounted drills are equipped with a bolt-on hitch, adjustable to handle either CAT II, CAT III Narrow or
CAT III tractor lift links or quick hitches. Refer to Tractor Specifications and Capacities for seeder weigh
t.
Caution
Caution: Before hitching the tractor to a 3-point mounted
drill be certain the tractor front end is properly weighted
to handle the weight of the drill when it is fully loaded with
seed.
Tractor 3 Point Hookup
1. Back tractor up to seeder until 3 Point links are aligned with 3 Point hitch brackets on seeder.
2. Secure the tractor’s 3 Point lower links to the lower 3-Point brackets using 1-1/8” diameter hitch pins.
Pull Type Hookup
Remlinger pull type drills are designed to work with CAT II or III drawbar tractor using a minimum 1” diameter
pin. The drill requires two hydraulic outlets.
Storage
•At the end of the working season or when your grain drill will not be used for a long period, it is good
practice to clean off any dirt or grease that may have accumulated on the seeder and any of the moving
parts.
•Be sure that the seed box is completely cleaned before storing.
•Lubricate (with multi-purpose grease) all fittings as indicated in picture below.
•Each meter shaft at drive end sprocket, center coupler and end guide on each hopper should be oiled to
prevent seizing. Squirt oil on the square drive shaft and move the seed meter adjustment lever back and
forth in order to get the oil back into the square.
•Repaint parts where paint is worn or scratched to prevent rust.
•Replace all damaged or missing decals.
•Store the grain drill inside if possible. Inside storage will reduce maintenance and make for a longer seeder
life.
•Inspect for loose, damaged or worn parts and adjust or replace if needed.

18 MAN-GD-2300-002
Transporting
Caution
Caution: When traveling on public roads whether at
night or during the day, use accessory lights and
devices for adequate warning to operators of other
vehicles. Comply with all federal, state and local laws.
•Do not transport with a full hopper of seed, the hopper should be as empty as possible to avoid extra weight
during transport.
•Select a safe ground travel speed when transporting from one area to another. To avoid tire failure, never
exceed maximum speed of 25 mph. When traveling on roadways, transport in such a way that faster
moving vehicles may pass you safely.
•When transporting a pull-type drill, insert transport locks on cylinders and lower drill to the stops before
unhooking hydraulic hoses.
•Reduce tractor ground speed when turning. Leave enough clearance so the seeder does not contact
obstacles such as buildings, trees or fences.
•When traveling over rough or hilly terrain, shift tractor to lower gear.
Parking
The following steps should be done when preparing to store the seeder or unhitch it from the tractor. See
“Maintenance and Lubrication” for additional information on long term storage of your seeder.
1. Park the seeder on a level, solid surface.
2. Secure jack, transport locks and / or parking stands.
3. Shut off tractor engine and engage parking brake.
4. Unhitch from tractor.

19 MAN-GD-2300-002
Drive System
Your Seeder uses standard # 40 roller chain throughout its drive system. The drive system is simple and
designed for low maintenance. Remlinger drills feature a spring-loaded floating drive wheel for 3 point or pull
type drills. This floating design allows the drive wheel to move up or down to follow the ground contour. The
floating action helps prevents seed skips in the roughest of fields. Spring pressure may have to be adjusted
depending on ground conditions.
•Check the drive idlers to ensure that they are taking up any “excess” chain slack.
•Check each chain to ensure that it is not over-tightened.
•Annually clean and lubricate chain with chain oil.
Hydraulics
Oil escaping from a very small hole can be almost invisible. Use a piece of cardboard or wood instead
of a hand to search for suspecting leaks. If injured by escaping oil, see a doctor at once. Serious infection or
reaction can develop if proper medical treatment is not administered immediately. Always relieve pressure in a
hydraulic system before working with hydraulic system components.
Caution
Caution: Escaping fluid under pressure can cause
serious injury and requires doctor's immediate
attention. Keep away from hydraulic system until
pressure is relieved.
Caution
Caution: Do not store the drill with hydraulic pressure
in the remote hydraulic cylinders.

20 MAN-GD-2300-002
Start-up Procedure
1. Set the frame height to 21-23” from the ground to the bottom of the tube the openers are mounted on. The
openers should be engaged in the ground at the desired depth when measuring height.
2. Adjust the hitch cylinder or tractor top link so that the frame tube that the openers mount on is level in
seeding position.
3. On mounted drills: remove the float pins on the tractor’s 3-point arms.
4. Set the Meter Adjustment Lever, Meter Gates, and Sprocket speed according to the seed charts and
calibrate.
5. Set the No-Till coulter in the second hole from the top, the first hole is shallower, third is deeper, it should
be set at the desired seeding depth or slightly deeper.
6. Set the lower “W” Clip in the bottom hole, move it up if more down pressure is required.
7. Set the T-Handle in the center hole. To plant deeper, move the T-Handle backward. To plant shallower,
move the T-Handle forward.
8. If the drill does not penetrate after adding spring down pressure, additional weight may be required or keep
the hoppers full of seed to push the openers in the ground. Optional weight brackets are available.
9. Recheck planting depth and rate whenever you change fields.
NOTE: For detailed instruction see “Settings and Adjustment” in the following section.
Warning
Warning: Do not force the seed meters too close if
there is seed in them. This may damage the meters.
If the meters need to be closed, do so while turning
the drive wheel.
