Remos GX Owner's manual

Pilot Operating Handbook
including Flight Training Supplement
Rev. 02 / July 2009

Rev. 02 – July 16
th
, 2009
Introduction
Introduction – i
Aircraft Data
Light Sport Aircraft REMOS GX
The REMOS GX was manufactured in accordance with the Light
Sport Aircraft airworthiness standards and does not conform to
standard category airworthiness requirements.
Serial No.:
Built:
Call Sign:
Engine-Type:
Serial No. Engine:
Propeller-Type:
Serial No. Propeller:
Manufacturer: REMOS Aircraft GmbH Flugzeugbau
Franzfelde 31
D-17309 Pasewalk
Phone: [phone]
Fax: [phone]
e-mail: [e-mail]
Internet: www.remos.de
Date: Signature/Dealer Stamp:

Rev. 02 – July 16
th
, 2009
Introduction
Introduction – ii
List of Effective Pages
This POH consists of the following listed pages and sections. You
will find a marking, indicating the revision and date of issue at the top
border of each page. Insert latest changed pages, destroy
superseded pages.
Section/Page: Section Change
Issued S/N
Title i Rev. 02 16-07-2009 250ff
Aircraft Data ii Rev. 02 16-07-2009 250ff
List of Effective Pages iii Rev. 02 16-07-2009 250ff
Remarks and Alterations iv - v Rev. 02 16-07-2009 250ff
Table of Contents vi Rev. 02 16-07-2009 298,299,304ff
Views vii Rev. 02 16-07-2009 250ff
General Information 1.1 thru 1.4 Rev. 02 16-07-2009 250ff
Airplane and Systems Descriptions 2.1 thru 2.19 Rev. 02 16-07-2009 298,299,304ff
Operating Limitations 3.1 thru 3.7 Rev. 02 16-07-2009 250ff
Weight and Balance Information 4.1 thru 4.7 Rev. 02 17-07-2009 250ff
Performance 5.1 thru 5.3 Rev. 02 16-07-2009 298,299,304ff
Emergency Procedures 6.1 thru 6.13 Rev. 02 16-07-2009 250ff
Normal Procedures 7.1 thru 7.16 Rev. 02 16-07-2009 250ff
Aircraft Ground Handling and… 8.1 thru 8.22 Rev. 02 16-07-2009 250ff
Required Placards and Markings 9.1 thru 9.6 Rev. 02 16-07-2009 250ff
Supplementary Information 10.1 Rev. 02 16-07-2009 250ff
Flight Training Supplement 10.1.1 thru 10.1.10 Rev. 01 07-01-2008 250ff
Towing Glider Supplement 10.1.2 thru 10.2.9 Rev. 02 16-07-2009 250ff
Imprint x Rev. 02 16-07-2009 250ff

Rev. 02 – July 16
th
, 2009
Introduction
Introduction – iii
Remarks and Alterations
Applied Modifications
Please make a notation below, if any changes have been made to
this manual or to the plane. This manual is an important
documentation for pilots in command to ensure a safe operation of
the aircraft. Therefore it is recommended to keep this Operating
Handbook updated with the newest information available. You can
get the latest upgrades of this manual from your dealer or directly
from the manufacturer’s homepage.
Pos. Page Concern Date Signature

Rev. 02 – July 16
th
, 2009
Introduction
Introduction – iv
Remarks and Alterations
Applied Modifications (continued)
Pos. Page Concern Date Signature

Rev. 02 – July 16
th
, 2009
Introduction
Introduction – v
Table of Contents
General Information about this Handbook
This Flight Operation Handbook is divided into several chapters. The
structure of this handbook complies with the Light Sport Aircraft
airworthiness standards.
Section
Description Page
1 General Information 1-1 thru 1-3
2 Airplane and Systems Descriptions 2-1 thru 2-16
3 Operating Limitations 3-1 thru 3-3
4 Weight and Balance Information 4-1 thru 4-6
5 Performance 5-1 thru 5-6
6 Emergency Procedures 6-1 thru 6-6
7 Normal Procedures 7-1 thru 7-12
8 Aircraft Ground Handling and Servicing
8-1 thru 8-17
9 Required Placards and Markings 9-1 thru 9-10
10 Supplementary Information 10-1
10.1 Flight Training Supplement 10.1-1 thru 10.1-8
10.2 Towing Glider Supplement 10.2-1 thru 10.2-15

Rev. 02 – July 16
th
, 2009
Introduction
Introduction – vi
Views
The REMOS GX is designed as full composite carbon fiber aircraft.
Wingspan 30,6 ft
Height 7,5 ft
Overall Length 21,3 ft

Rev. 02 – July 16
th
, 2009
1 General Information
General Information 1 - 1
Table of Contents
Paragr.
Description Page
1.1 Introduction 1-2
1.2 Certification 1-2
1.3 Quick Reference 1-2
1.4 Technical Specifications 1-3

Rev. 02 – July 16
th
, 2009
1 General Information
General Information 1 - 2
1.1 Introduction
This Operation Handbook is designed to help enable a safe and
successful completion of each flight with the REMOS GX. It provides
you with all necessary information for regular maintenance and
operation of the aircraft. Therefore we recommend that the pilot
keeps this Operating Handbook upgraded with the newest
information available. You can get the newest version of this
Handbook from your local dealer or directly from the manufacturer’s
homepage.
1.2 Certification
The REMOS GX was manufactured in accordance with the Light
Sport Aircraft airworthiness standards and does not conform to
standard category airworthiness requirements.
1.3 Quick Reference
Type: Full composite carbon fiber aircraft with two seats.
Design: High wing design with struts, front mounted engine
and propeller, traditional stabilizer concept,
differential ailerons. Electrically operated flaps (0° to
40°), electric elevator trim, three-wheel landing gear
with steerable nosewheel. Main gear with hydraulic
disc brakes. The cabin is equipped with two seats
side by side and will be entered and exited by doors
on the left and right side of the fuselage.
Layout: Main components are built in halfshells from
composite fiber material, which are bonded together
(carbon fiber, Kevlar and glass fiber).
Engine: Rotax 912 UL-S
Propeller: Sensenich: 2-blade ground adjustable
Neuform: 3-blade ground adjustable
ICAO Code: GX (as per ICAO Doc8643)

Rev. 02 – July 16
th
, 2009
1 General Information
General Information 1 - 3
1.4 Technical Specifications
Specifications posted below are related with an MTOM of 1.320 lb.
Wingspan 30,6 ft
Overall Length 21,3 ft
Height 7,5 ft
Wing area 118,0 ft²
Wing load 11,18 lb/ft²
Wing chord 4,06 ft

Rev. 02 – July 16
th
, 2009
2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 1
Table of Contents
Paragr.
Description Page
2.1 Engine 2-2
2.2 Propeller, Gearbox 2-2
2.3 Fuel and Fuel Capacity 2-3
2.4 Engine Oil, Coolant 2-3
2.5 Operating Weights and Loading 2-3
2.6 Cockpit Overview 2-4
2.7 Basic Instrumentation 2-5
2.8 Control Panel 2-5
2.9 Electric Fuses 2-6
2.10 Cockpit Lighting 2-7
2.11 Dual Throttle, Oil Temp Control, … 2-8

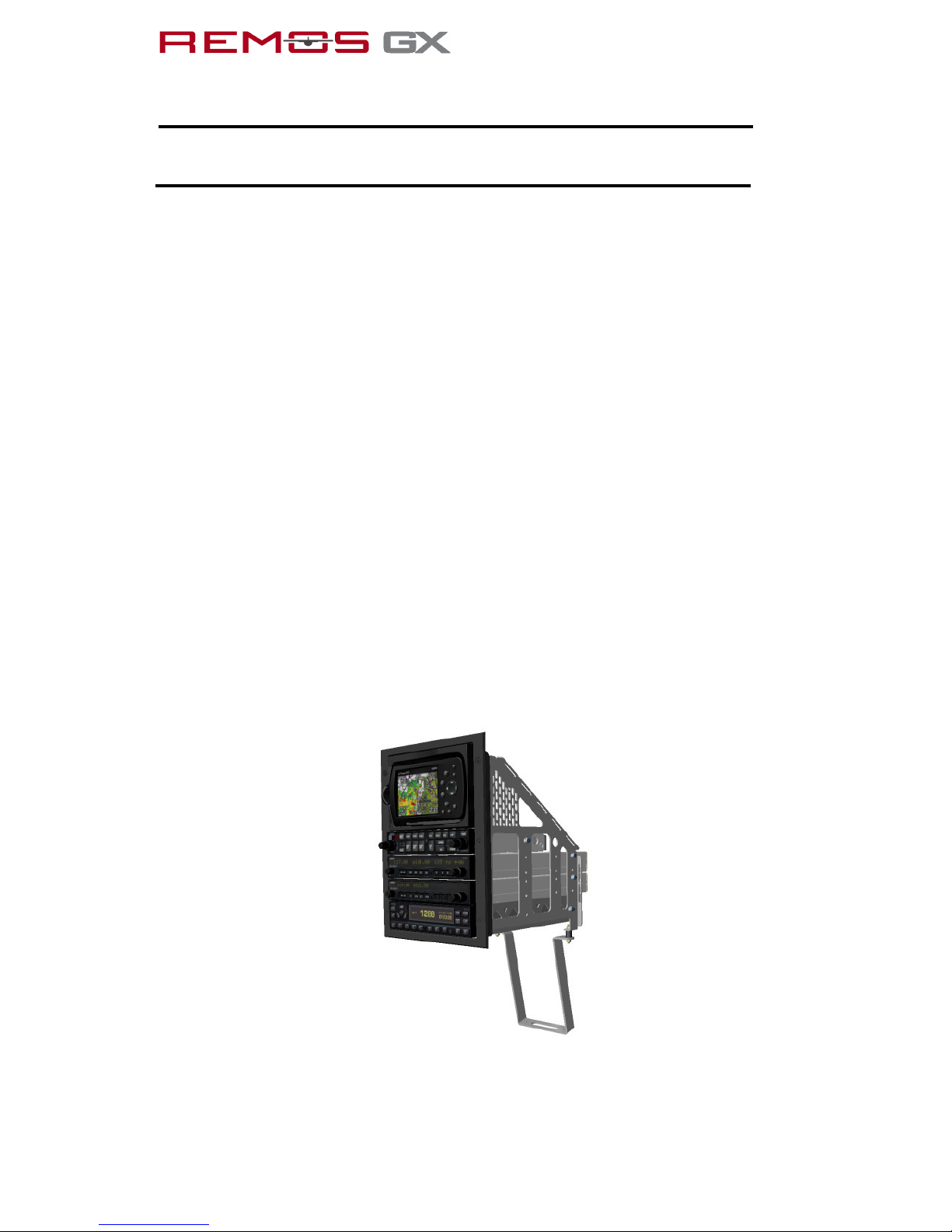

2.12 Center Console 2-9
2.13 Avionics Equipment 2-10
2.14 Secondary Instrumentation… 2-12
2.15 Glass Cockpit – Left Hand Panel 2-12
2.16 Dynon FlightDEK-D180 2-13
2.17 Dynon EFIS-D100 / HS-34 2-14
2.18 Dynon EMS-D120 2-15
2.19 Inflight Entertainment 2-16

Rev. 02 – July 16
th
, 2009
2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 2
2.1 Engine
Manufacturer: Bombardier-Rotax
Engine type: 912 UL-S *
Max. power: at take-off: 73,6 kW / 100 hp
permanent: 69,9 kW / 95 hp
Max. rpm: at take-off: 5.800 rpm.
permanent: 5.500 rpm.
Max. cylinder head temp: 275°F (135°C)
Max. fuel pressure: 5,7 psi (0,4 Bar)
Max. oil temperature: 266°F (130°C)
Min. oil temperature: 120°F (50°C)
2.2 Propeller, Gearbox
Propeller Manufacturer: Propeller type / nr. of blades:
Sensenich 2A0-R5R70-EN
2-blade, carbon **
Neuform CR3-65-47-101.6
3-blade, composite **
Gearbox Manufacturer: Rotax
Gearbox ratio, Engine / Prop: 2,43 : 1
Clutch: yes
* Manufacturer specification until overhaul / TBO = 1.500 hrs.
** Refer to manufacturer specification for servicing information.
! Values are subject to change without notice; please refer to the latest issues
of the appropriate manufacturer manuals.

Rev. 02 – July 16
th
, 2009
2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 3
2.3 Fuel and Fuel Capacity
Permissible fuel qualities:
Premium Unleaded Auto Fuel
(min. 91AKI) 100 LL Aviation Fuel
Useable fuel capacity: 21 gallons
Total fuel capacity: 22 gallons
2.4 Engine Oil, Coolant
Engine oil: Automotive engine oils *
,1
Engine oil capacity: 0,75 gallons (2,8 liters)
Recommended oil: Motorcycle oil of a registered
brand with gear additives
1
Recommended cooling fluid: Conventional coolant, ethylene
glycol based
1
Coolant capacity: 0,65 gallons (2,5 liters)
Ratio: 1:1 (Concentrate : Water)
2.5 Operating Weights and Loading
Maximum take-off weight (MTOW): 1.320 lb
(600 kg)
Maximum useful load: 650 lb
(295 kg)
Minimum empty weight: ** 670 lb
(305 kg)
Minimum flying weight: 815 lb
(370 kg)
Baggage: 66 lb
(30 kg)
Fuel (max): 126 lb
(57 kg)
* No Aircraft engine oils, refer to Rotax operation instructions
1
Refer to Rotax SI-912-016-R02
** Empty weight with basic equipment as described within the POH, without
recovery system.
! Values are subject to change without notice; please refer to the latest issues
of the appropriate manufacturer manuals.

Rev. 02 – July 16
th
, 2009
2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 4
2.6 Cockpit Overview
Cockpit example
The following pages will give you more information about how to
operate your REMOS GX.
Note: Some of the illustrated devices or options may not be
available, due to the regulations of the ASTM standard. Please
ask your local dealer for more information
.

Rev. 02 – July 16
th
, 2009
2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 5
2.7 Basic Instrumentation
The REMOS GX is available in the cockpit configurations
“Explorer”, “Aviator I”, “Aviator II”. For all cockpit variants the
compass is neatly arranged on the top of the panel, because of
electro-magnetic reasons. If the aircraft equipped with an
adjustable pitch propeller, an electronic controller is integrated
into the left cockpit panel always (not for ASTM aircraft certified
in USA).
The basic equipment of your REMOS GX consists of the
following instruments: ASI, VSI, Altimeter, Slip Indicator and an
analog Tachometer. Optional it is possible to equip the aircraft
with an electric artificial Horizon, Directional Gyro, Turn and
Bank Indicator. Please refer to the appropriate manuals for
detailed information.

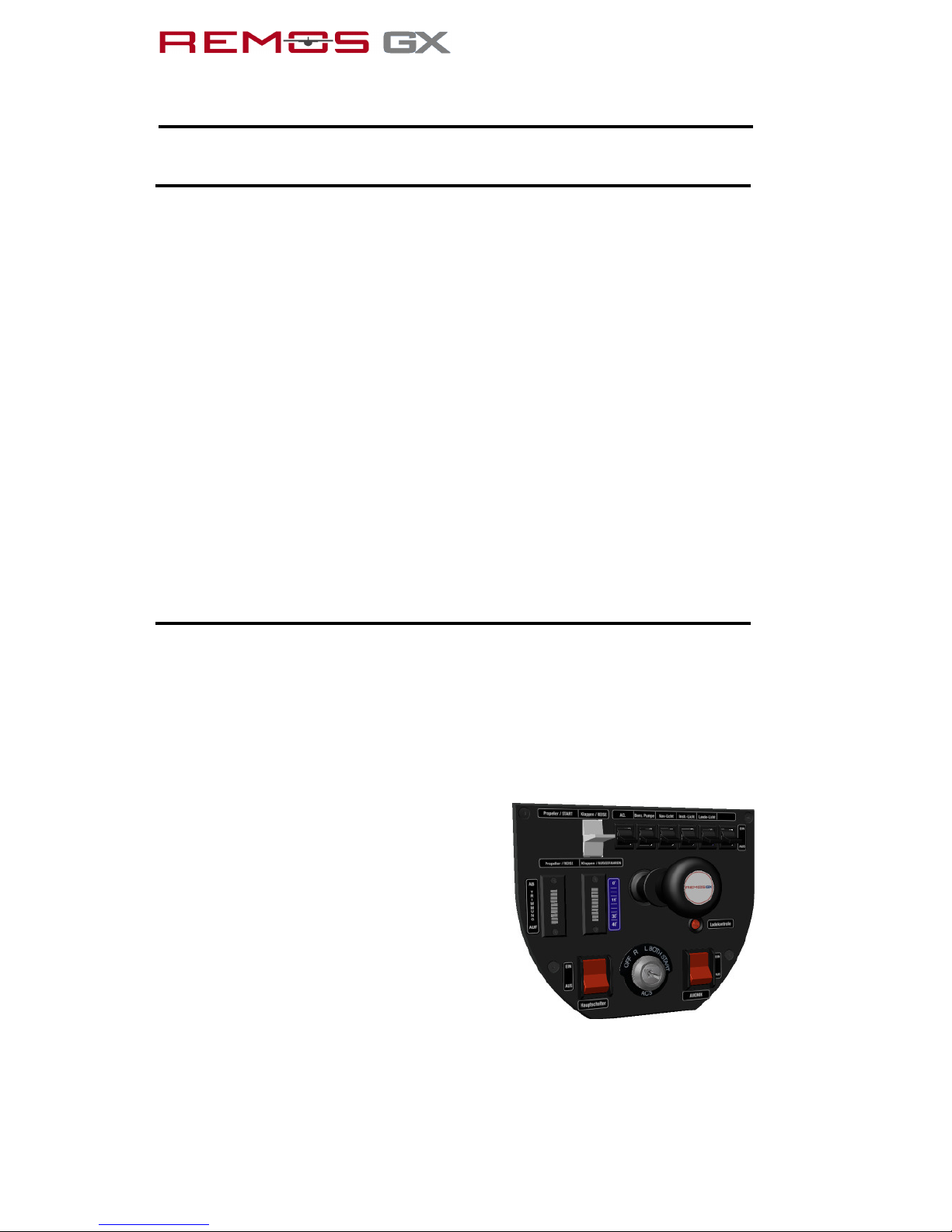

2.8 Control Panel
Most of the major controls and switches to operate the aircraft
are combined on the central control panel. All switches are
labeled definitely.
The following functions are contained:
•Flap control lever (white)
•Anti Collision Light (ACL)
•Electric fuel pump
•Navigation lights (wing & tail)
•Instrument lighting
•Landing light
•Autopilot engage (optional)
•Trim position indicator (LED, left)
•Flap position indicator (LED, right)
•Throttle control with friction lock
•Charge tell tale for electric generator
•Master- and Avionic switches
•Ignition lock / magneto check

Rev. 02 – July 16
th
, 2009
2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 6
2.9 Electric Fuses
The electrical system of the REMOS GX consists of a Master-
Bus system, which allows installation of additional equipment
very easily. The Master-Bus is separated into Master and
Avionics circuits, each populated by 6 automatic circuit
breakers. An additional charge fuse is located in front of the
firewall, beneath the battery bracket.
All the circuit breakers are labeled, additionally the decal to the
right is applied inside the cockpit, to give more detailed
information.
In kind of a defect, the circuit breakers may also be replaced by
standard automotive fuses.

Rev. 02 – July 16
th
, 2009
2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 7
2.10 Cockpit Lighting
The REMOS GX cockpit does feature an effective LED panel
lighting system, which can be dimmed independently from the
instrument lights. It is a dazzle-free system designed for Night-
VFR use.
At the left the cockpit frame, you will find the dim control knob.
The system is activated when the instrument lighting switch
located on the switchboard is switched on.

Rev. 02 – July 16
th
, 2009
2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 8
2.11 Dual Throttle, Oil Temperature Control,
Additional Terminals
Two extension panels are located to the left and to right of the
cockpit frame which are used as follows:
Left Panel
At the upper position the oil
temperature control is installed.
Push – to increase temperature,
Pull – to decrease temperature.
At the lower position the dual
throttle control is located. The dual
throttle lever does not feature a
friction lock.
Right Panel
At the upper position the 12V
receptacle for external use (i.e.
portable GPS) is installed. Beneath
you will find two audio-in
connectors (if fitted).
This panel is also prepared to add
2 Sub-D 9-pin connectors, to be
used as PC interface for
connecting installed devices to a
personal computer.
An USB-Converter is provided with
the basic equipment for the
aircraft.

Rev. 02 – July 16
th
, 2009
2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 9
2.12 Center Console
The following controls are located on the center console:
All controls are labeled.
On the center console you will find
all important decals, which posts the
limits required for a safe operation of
the aircraft. In addition a start-up checklist
is provided.
•Choke – green
•Carburetor heat – yellow
•Fresh air control – blue
•Cabin heat – red
•Fuel valve
•Brake lever including fluid reservoir
•Parking brake valve

Rev. 02 – July 16
th
, 2009
2 Airplane and Systems Descriptions
Airplane and Systems Descriptions 2 - 10
2.13 Avionics Equipment (optional)
The REMOS GX provides a modular cockpit system which
enables to install a wide range of COMM and NAV equipment. A
radio rack for the most popular devices, associated with the
REMOS „plug-n-fly“ harnesses allows easy installation of add-
on´s and guarantees interference-free operation.
The radio rack is held in place by 6 shock mounts to give a
maximum protection against vibration. Due to the modular
design, the complete radio rack can be removed from the
cockpit frame as a whole, which eases servicing and alterations.
More information about how to disassemble are given in section
8 “Aircraft Ground Handling and Servicing”. Nevertheless we
strongly recommend to contact an avionics shop for all electrical
belongings.
Please refer to the appropriate manufacturer manuals for
detailed operation instructions.
The following pages will provide more information about all
avionics combinations available from the factory.
