Remta R112CE User manual

USER MANUAL
BELGE NO : 2422-GAR-7013/16
PIN : 2422CS701316
Model: R112CE - R113CE
Üretici: REMTA MAKİNA İTH. İHR. SAN. TİC. LTD. ŞTİ.
Üretim Adresi: Akçaburgaz Mah. 4. Cad. 153. Sok. No:23 34522 Esenyurt - İstanbul
[phone] • [email protected] • www.remta.com.tr
INDUSTRIEL GAS FRYER

Our dear customer,
• Our device is manufactured in accordance with international standards and we thank
you for choosing our device and for your trust.
• In order to use the device for a long time, safe and high performance, we request
that you use this manual carefully and use it in accordance with the details specified
during use.
• Ensure that the person using the device reads the manual and is trained.
• Please check the following details before calling our service in solving the problems
you encounter.
• In case of possible malfunctions, do not allow any intervention to the device other
than our technical service and competent persons.
• • Before installing and using the device, please read the user manual
carefully and ensure that the users of the device read it. When you
operate the device without reading the manual, the device will be out
of warranty. Get the necessary information from our technical service
for the issues that you do not fully understand.
• • Ensure that the necessary electrical, gas and sanitary installations in
accordance with the legal regulations are prepared safely by qualified
personnel, which are specified in the manual or communicated to you
in the place of installation.
PRESENTATION
BEFORE SETUP

MODELS
R112CE
R113CE
POWER
6 kW
12 kW
TOTAL
EXPENDITURE
G20
0,63
m3/h
1,26
m3/h
TOTAL
EXPENDITURE
G30
0,47 kg/h
0,94 kg/h
AIR
17 m3/h
34 m3/h
TYPE
A1
A1
GAZ GİRİŞİ
inch
1/2"
1/2"
NATURAL GAS: G20 - LPG GAS G30
TECHNICAL INFORMATION

HOT SURFACE
This device must be installed in accordance with current regulations and used only in a
well-ventilated area. Consult instructions prior to installation and use of the device.
DIMENSIONS AND WARNING SIGNS
FRİTÖZ
2422CS
Ürün Adı ...................................: 10 lt Musluklu Gazlı
Model ........................................: R112CE
AT PIN.......................................: 2422-GAR-7013/16
Ölçüler.......................................: ---
Ağırlık ........................................: -- kg
Toplam Gaz Gücü (QN).......: 6 kW Toplam
Harcama (V) G20..: 0,63 m³/h
LP
G
Toplam Harcama (V) G30..: 0,47 kg/h D.GAZ
Havalandırma.........................: 17 m³/ h
Çalışma Basıncı .....................: G20 20mbar-G30 30-50mbar
Hedef Ülke ..............................: TR
Cihaz Tipi .................................: A1
Kategori ...................................: II 2H3B/P
Üretim Tarihi ...........................:
Seri No......................................:
DİKKAT!..Bu cihaz yürürlükteki yönetmeliklere uygun
olarak tesisi edilmeli ve yalnızca iyi havalandırılmış
yerlerde kullanılmalıdır. Kullanımdan önce ve sonra
talimatlara mutlaka uyunuz.
Remta Makina •Akçaburgaz Mh. 4.Cd. 153. Sk. No:23
Esenyurt/ İstanbul / Turkey •TEL: [phone]
www.remta.com.tr MADE IN TURKEY

SAFETY IN INSTALLATION
-Be sure to read the instructions before installing and using the device.
-The facility where the device will be installed must comply with the applicable
regulations.
-If the device is working with the tube, the distance between it should be at least
50 cm and this distance should be maintained continuously.
- The device should definitely be operated under a hood with an effective
ventilation system.
- Flammable solid or liquid materials should not be kept in the area where the
device operates. (Wood and plastic materials, petroleum and chemical products,
fabric parts such as curtains and clothes, etc.)
SAFETY IN USE
-As the device is for industrial purposes, it should only be used by trained
qualified personnel who have read this user manual.
In use, oil spilled on the floor can create a slippery floor, so it must be cleaned
in time.
- Never operate the product when there is no oil in the oil chamber (min.5 liters
of oil). You damage the oil reservoir of the product.
SAFETY IN CLEANING AND MAINTENANCE
- While cleaning the device, pressurized water should never be used.
- The device should be cleaned in closed position and if flammable chemicals
are used in cleaning the surface, care should be taken to completely dry this
cleaning agent on the surface before operating the device.
-Except for our authorized service and technically competent staff, the device
should not be interfered with.
SAFETY IN GAS LEAKS AND FLAMES
-In case of fire and flame for any reason, before panic, turn off the device and
other installation gas valves and electrical switches and use fire extinguishers,
never use water in extinguishing because water may cause the flame to spread
faster.
-When you feel the smell of gas, in case of gas leakage, turn off the device and
installation valves and electrical switches, open the doors and windows to
ventilate the environment and call our technical service.
SAFETY

TRANSPORT
• The device can be handled by at least two people with human power or
with a pallet truck. can be transported by means such as. It should be
transported vertically as in the usage position.
• It should be transported in a balanced way and should be moved slowly to
avoid shaking.
• While carrying it, care must be taken that the device does not fall or hit
anywhere.
SUBSTITUTION
• The installation location of the device cannot be changed, its connections
cannot be extended or changed except our technical service or technical
staff.
• In case of change of location by technical staff; The device valves and the
main valve should be closed and if they are hot, they should be allowed to
cool down. Gas leakage and device operation should be checked after re-
assembly. Except for our technical service, if the device is replaced, the
device will be out of warranty.
The service life of the device is 10 years.
TRANSPORT AND SUBSTITUTION
PRODUCT LIFE

CUSTOMER PREPARATIONS BEFORE INSTALLATION
• Partitions around the device location should be at least 5 cm if they are made
of non-combustible material, otherwise at least 20 cm.
• Attention should be paid to fire protection rules.
• Before calling our technical service for installation, the necessary gas
installation must be available at the place where the assembly of the device will
be made.
ASSEMBLY
• The ground on which the device will be placed must be smooth and level. If the
counter will be placed on a bench, the legs of the bench should be adjustable
and the balance balance should be provided. Care should be taken to ensure
that the upper surface of the counter is made of non-flammable material.
• Before installation, safety details and suitability of installation conditions
should be checked.
• The gas connection is made to the device, paying attention that the installation
is in accordance with the gas type and pressure specified on the label on the
device. Installation should never be made to a different installation than the
information on the device.
• Connection entry dimensions are specified on the technical specifications
page.
• After the device is assembled, it is operated and its burning is controlled. If
necessary, air adjustment is made to prevent soot burning and to ensure ideal
combustion.
• After the assembly is completed, gas tightness should be checked with soap
bubbles.
• No changes can be made to the injector and valves that will take out of the
rated power in the device.
• The use of parts other than original parts is out of warranty.
DEVICE INSTALLATION

SETUP
THE DISTANCE BETWEEN THE TUBE AND THE DEVICE SHOULD BE A MINIMUM 500 mm.
BETWEEN THE DEVICE AND THE SIDE WALLS • THE MINIMUM MUST BE 200mm.

PURPOSE OF USAGE
The device is used for frying potatoes in the kitchens of industrial facilities
(such as collective food service establishments, restaurants, touristic facilities,
buffets).
NOTE: Do not use it outside of its intended use. It should be used by people
who know the safety and technical conditions and have read the user manual.
Minumum
FIRE
Off

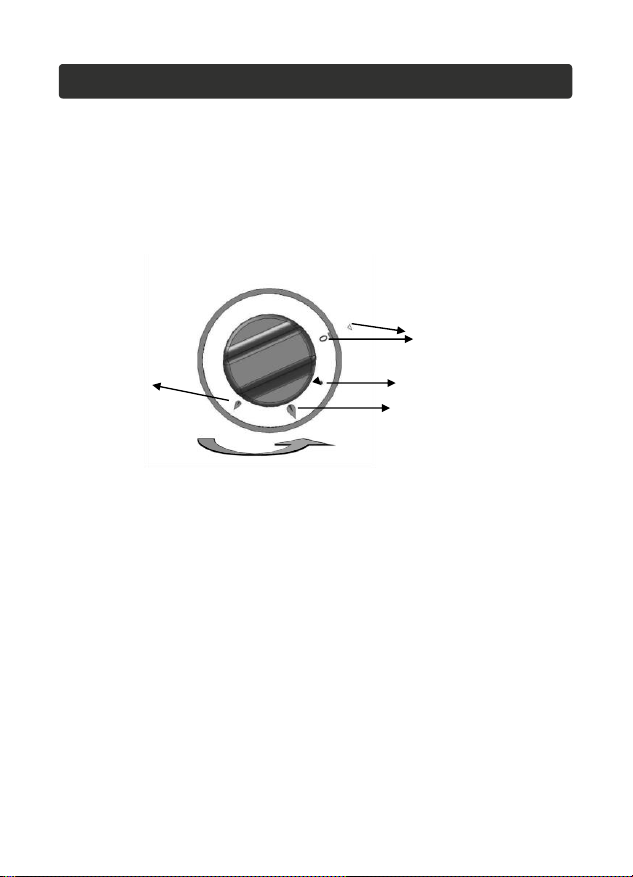

ON / OFF / FIRE
Maximum Flame
PRODUCT USING

PLACEMENT OF THE MATERIAL TO BE COOKED IN THE DEVICE
The ingredients to be cooked are placed in the basket of the device. The
material to be cooked is placed in the oil reservoir with a basket. The material to
be cooked in the basket is placed in the chamber so that it remains in the oil.
OPERATING
By pressing the gas valve from the off position to the on position, the gas path
is opened and by pressing the lighter on the device until ignition is achieved,
the plot is observed through the observation hole on the front panel of the
device. It is held down until the ignition of the key burner for 20-25 seconds after
the ignition of the plot. In order to put the device on standby, the gas valve is
turned to the off position and brought to the minimum flame position. This will
significantly reduce the gas consumption.
CLOSING
After the cooking process is completed, the gas valve is turned from its on
position to the off position (clockwise) and closed completely. For your safety, it
is recommended to turn off the cylinder valve or gas line valve after the valve is
closed.
FLAME CONTROL
The safety system on the gas valve will automatically cut off the gas flow within
40 seconds, if the burner flames go out while the device is switched on for any
reason.
USING THE DEVICE

CLEANING
• Before using the device for the first time, clean the outer surface and oil
reservoir with a sponge and liquid cleaning material.
• After each use of the device, the burnt oil in the reservoir should definitely
be cleaned. Uncleaned oils can cause odor, harbor bacteria, and clog the oil
drain pipe with food waste.
• Salt spirit, cif etc. during cleaning. Do not use CHEMICAL CLEANING
MATERIALS such as.
MAINTENANCE
• These periodic maintenance should be done by a technical staff member.
• We recommend maintenance at least every 6 months depending on the
frequency of use.
• Even if it is within the warranty period, the maintenance of the device by
our technical service personnel is subject to a fee in case of malfunctions
resulting from lack of periodic maintenance and incorrect use.
The following details should be considered in maintenance.
Injectors: The injector hole must be completely clean. Air adjustment ring: It
should not be clean and clogged. The adjustment of the air mixer must be
made by the technical service personnel.
Safety: The flame should be smooth and in contact with the thermocouple.
Burner: The paths and holes where the gas passes should be clean and not
blocked. Obstructed surfaces and holes should be cleaned. The parts that
need to be removed during cleaning must be installed by the technical
service personnel and the gas leak must be checked with soap bubbles after
assembly.
MAINTENANCE AND CLEANING

• The device does not convert to other gases.
• It is used according to the factory production gas type.
REMTA MAKİNA İTH. İHR. SAN. ve TİC. LTD. ŞTİ.
Adres: Akçaburgaz Mah. 4. Cad. 153. Sok. No:23 Esenyurt / İstanbul
Tel:[phone]
[e-mail] • www.remta.com.tr
Ülke çapında tüm yetkili servislerimizin adres ve telefon bilgilerine aşağıda
belirtilen web adresinden ulaşabilirsiniz.
https://www.remta.com.tr/sayfa/yetkili-servisler
TRANSFORMATION TO OTHER GAS
SERVICE AND SPARE PARTS STATION

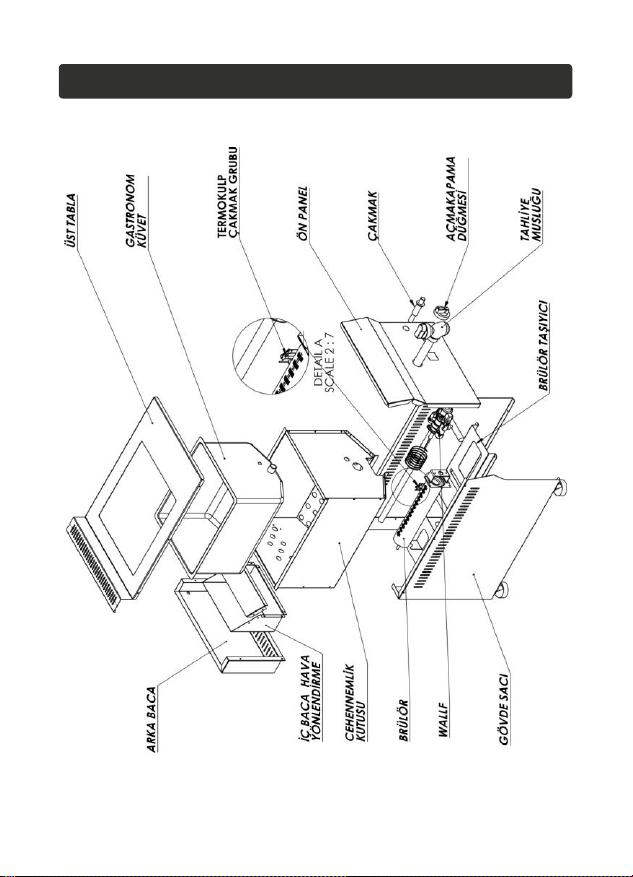

PARTS LIST

NOTLAR

NOTLAR

GARANTİ ŞARTLARI
ÜRÜNLERİMİZ EEE YÖNETMELİĞİNE UYGUNDUR.

GARANTİ BELGESİ
Warranty Document
ÜRETİCİ FİRMA
ÜNVAN
ADRES
TEL-FAKS
E-POSTA
WEB SAYFASI
ÜRÜNÜN CİNSİ
MARKASI
MODELİ
: REMTA MAKİNA
: REMTA MAKİNA İTH. İHR. SAN. TİC. LTD. ŞTİ.
: Akçaburgaz Mh. 4. Cd. 153. Sk. No:23 34522 Esenyurt / İstanbul
: [phone]
: [e-mail]
: www.remta.com.tr
: GAZLI FRİTÖZ
: REMTA
: R94-R95-RL96-RL97
TESLİM TARİHİ VE YERİ :
GARANTİ SÜRESİ : 2 YIL
AZAMİ TAMİR SÜRESİ, : 20 İŞ GÜNÜ
SERİ NO :
SATICI FİRMA :
ÜNVAN :
ADRES :
TEL-FAKS :
E-POSTA :
FATURA TARİH VE NO :
TESLİM TARİHİ VE YERİ :
TARİH, İMZA VE KAŞE :
Bu belgenin kullanılmasına; 6502 sayılı Tüketicinin Korunması Hakkında Kanun uyarınca,
T.C. Gümrükve Ticaret Bakanlığı Tüketicinin KorunmasıvePiyasaGözetimiGenel Müdürlüğü
tarafındanizinverilmiştir.
