Residentia RU9EEB User manual

User Manual \
Electric Freestanding
Oven
\ RU9EEB

Dear Customer, Congratulations on purchasing your new cooker.
The Residentia brand is proudly distributed within
Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this
manual for information regarding your product’s
parts and labour warranty, or visit us online at
www.residentiagroup.com.au.
At Residentia Group, we are customer obsessed and
our Support Team are there to ensure you get the most
out of your appliance. Should you want to learn more
about cooking with your oven or most importantly taking
care of your oven when cleaning, our Support Team are
here to help.
You can use our online Support Centre at anytime by
visiting http://support.residentiagroup.com.au, or you
can contact us via phone by dialling 1300 11 HELP (4357).
It is important that you read through the following use
and care manual thoroughly to familiarise yourself with
the installation and operation requirements of your
appliance to ensure optimum performance.
Again, thank you for choosing a Residentia appliance
and we look forward to being of service to you.
Kind Regards,
The Residentia Team
T1300 11 4357
E [e-mail]
W residentiagroup.com.au
ACN 600 546 656
Residentia Group
PO Box 581
Stanhope Gardens
NSW Australia 2768

This cooker must only be installed in
accordance with the instructions provided
and by a suitably licensed and qualified
installer. Incorrect installation may cause harm
to persons, damage property and void the
product’s warranty.
Important
Please ensure that you read the entire
instructions before beginning the installation
of your cooker.
Please Note
When the oven is first switched on, it may
give o an unpleasant smell. This is due to
the bonding agent used for the insulating
panels within the oven. This is completely
normal, if it does occur, you merely have
wait for the smell to clear before putting
food into the oven.
–The appliance and its accessible parts
become hot during use.
– Care should be taken to avoid touching
heating elements.
– Children less than 8 years of age shall be
kept away unless continuously supervised.
– This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
– Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass
since they can scratch the surface, which
may result in shattering of the glass.
– The hob surface is of glass-ceramic: if the
surface is cracked, switch o the appliance
to avoid the possibility of electric shock.
– For the models equipped with a facility to
use a temperature 2 sensing probe: Only
use the temperature probe recommended
for this oven.
–During use, the appliance becomes very hot.
– Care should be taken to avoid touching
heating elements inside the oven.
– Do not allow children to go near the oven
when it is operating, especially when the
grill is on.
–Ensure that the appliance is switched o
before replacing the oven lamp to avoid
the possibility of electric shock.
–The means for disconnection must
be incorporated in the fixed wiring in
accordance with the wiring specifications.
– Children should be supervised to ensure
that they do not play with the appliance.
–This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by person responsible for their safety.
– Accessible parts may become hot during
use. Young children should be kept away.
–Never use steam cleaners to clean your
cooking range
– For models with induction hobs: metallic
objects such as knives, forks, spoons and
lids should not be placed on the hob surface
since they can get hot.
– For models with induction hobs : After use,
switch o the hob element by its control
and do not rely on the pan detector.
–For the models with a lid : any spillage should
be removed from the lid before opening.
The hob surface should be allowed to cool
before closing the lid.
Warning
The appliance must not be used by
people (including children) with or without
experience or their safety.
Young children should be supervised to
ensure they not play with the limited physical,
sensory or mental abilities, expertise, unless
they have received instructions for using it
from those responsible for appliance.
Safety Instructions \

Contents \ Page
Safety Precautions
\ 06
Before Installing
\ 06
Your Cooker
\ 07
Installation
\ 08
Fitting the Adjustable Feet
\ 08

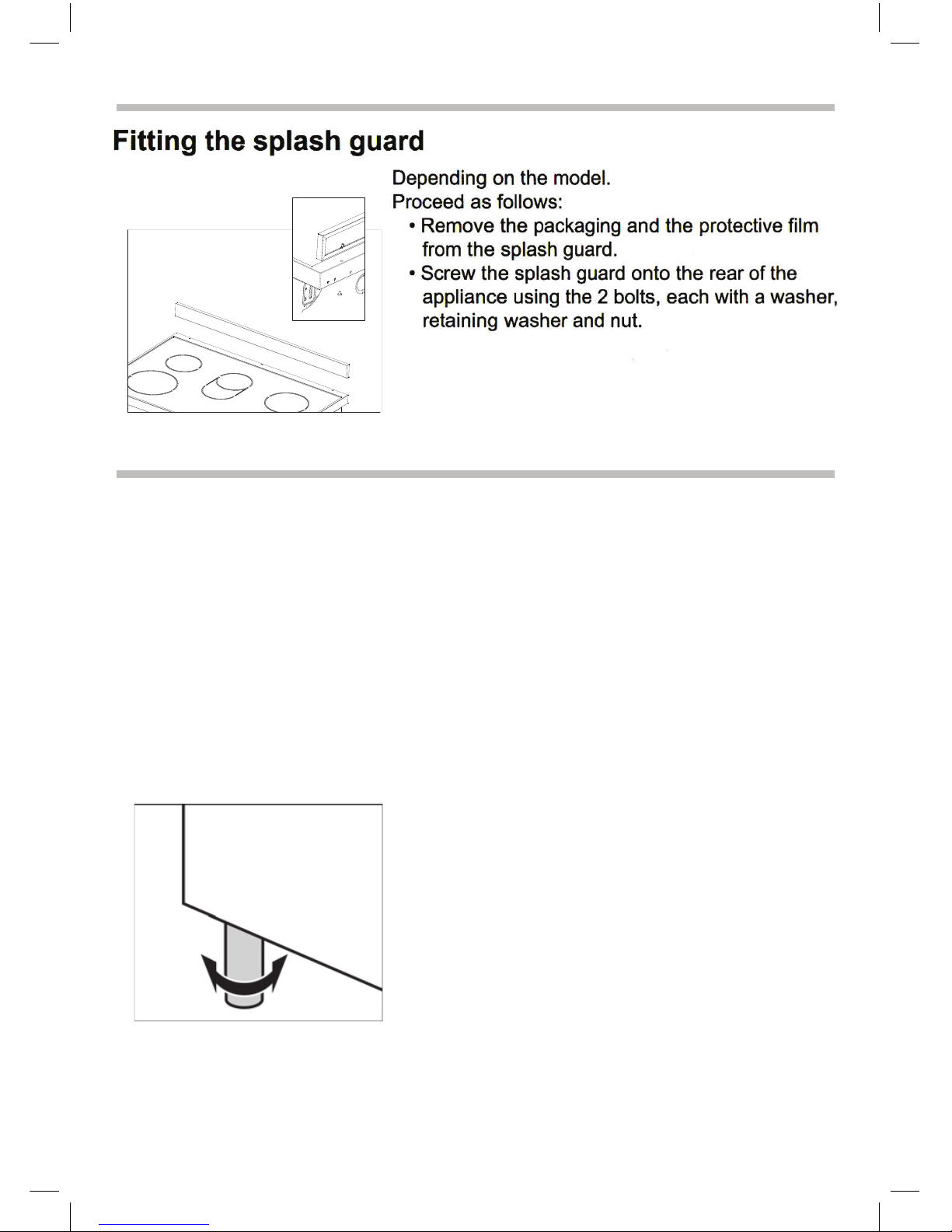

Fitting the Splash Guard
\ 09
Positioning & Levelling
\ 09
Electrical Connection
\ 10

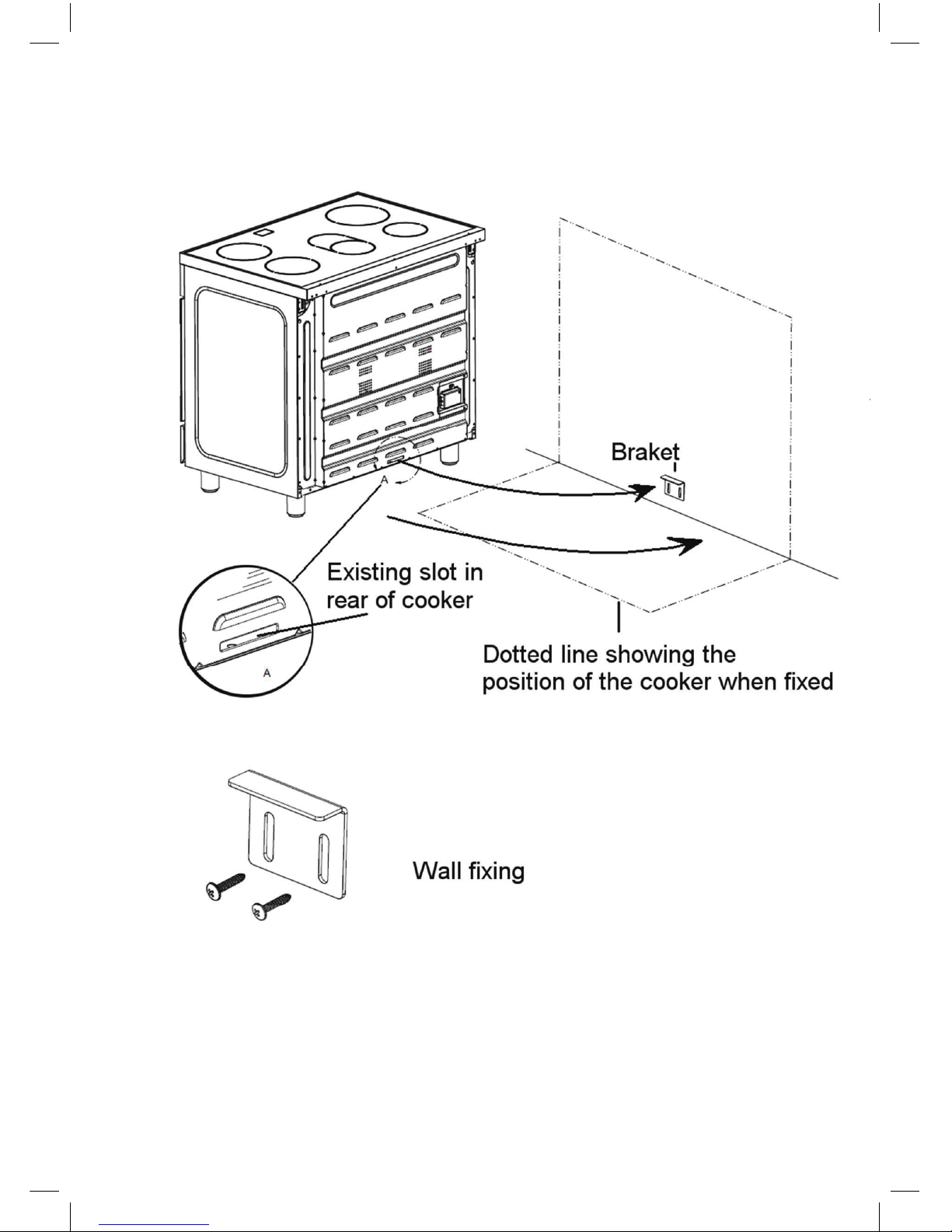

Stability Brackets
\ 12
Using Your Cooker
\ 13–46
Residentia\User Manual

Safety precautions
This manual is valid for several models. Variations
in details for each cooker are possible.
The safe operation of this appliance can only be
guaranteed if it has been professionally assembled
and installed in accordance with these instructions.
The individual who assembled and installed the
appliance is liable for damage or faults resulting
from incorrect assembly or installation.
All installation and adjustment work, must be
undertaken by an authorized expert and carried
out in accordance with the currently applicable
rules and regulations of the local electricity supply
company.
Shut off the supply of electricity before carrying
out any work.
Electrical appliances must always be earthed.
If an extractor hood is to be fitted, it must be
fitted according to the associated assembly
instructions. Ensure that the hood is fitted at
least 650 mm clear of the hob.
Before installing
Appliance
Unpacking Check the condition of the appliance after
unpacking
it. Do not connect the appliance if it has
been
damaged in transport.
Dispose of packaging in an environmentally-
friendly
manner.
6
Appliance dimensions Note the specified dimensions.
A=95-160 mm
40 mm
A
895 mm
597 mm
769 mm
All product outward appearance, the color
take the material object as, the picture only
supply the reference.
Adjacent units Adjacent units must be made of non-combustible
material. The fronts of adjacent units must be
resistant to temperatures up to at least 90 °C. If the
appliance is fitted close to other units, the minimum
distances specified in the picture must be maintained.
7

Safety precautions
This manual is valid for several models. Variations
in details for each cooker are possible.
The safe operation of this appliance can only be
guaranteed if it has been professionally assembled
and installed in accordance with these instructions.
The individual who assembled and installed the
appliance is liable for damage or faults resulting
from incorrect assembly or installation.
All installation and adjustment work, must be
undertaken by an authorized expert and carried
out in accordance with the currently applicable
rules and regulations of the local electricity supply
company.
Shut off the supply of electricity before carrying
out any work.
Electrical appliances must always be earthed.
If an extractor hood is to be fitted, it must be
fitted according to the associated assembly
instructions. Ensure that the hood is fitted at
least 650 mm clear of the hob.
Before installing
Appliance
Unpacking Check the condition of the appliance after
unpacking
it. Do not connect the appliance if it has
been
damaged in transport.
Dispose of packaging in an environmentally-
friendly
manner.
6
Appliance dimensions Note the specified dimensions.
A=95-160 mm
40 mm
A
895 mm
597 mm
769 mm
All product outward appearance, the color
take the material object as, the picture only
supply the reference.
Adjacent units Adjacent units must be made of non-combustible
material. The fronts of adjacent units must be
resistant to temperatures up to at least 90 °C. If the
appliance is fitted close to other units, the minimum
distances specified in the picture must be maintained.
7

Installation
This appliance is always supplied with a set of
adjustable feet and, depending on the model, with a
splash guard.
The appliance may also be used without the splash
guard.
Fitting the adjustable feet
Beforehand:
• Remove all parts that are not permanently fixed,
especially the pan supports and burners.
• Remove the accessories from the oven.
Proceed as follows:
• Tilt the appliance by raising one side slightly from
the floor.
• With the plates in position, screw the adjustable
feet into the mounting holes on the underneath of
the appliance.
• Repeat the process on the other side.
You can make the final adjustments to the feet in
order to level the appliance once the gas and
electricity supply have been connected.
If it is necessary to pull the appliance, screw the
adjustable feet in fully. Make the final settings only
when the other installation tasks have been
completed.
8
Positioning and levelling
Positioning the appliance
When installing the appliance, make sure that there
is enough space in the final installation location to
pull
the appliance forwards for cleaning and
maintenance
work.
The ground underneath must be hard and stable.
The wall immediately behind the appliance must be
made from non-flammable material, e.g. tiles.
If you need to pull the appliance in order to position
it,
make sure that the adjustable feet are screwed
in
fully.
Levelling the appliance
Level the appliance once all other work has been
completed.
To do this, turn the adjustable feet.
9

Installation
This appliance is always supplied with a set of
adjustable feet and, depending on the model, with a
splash guard.
The appliance may also be used without the splash
guard.
Fitting the adjustable feet
Beforehand:
• Remove all parts that are not permanently fixed,
especially the pan supports and burners.
• Remove the accessories from the oven.
Proceedas follows:
• Tilt the appliance by raising one side slightly from
the floor.
• With the plates in position, screw the adjustable
feet into the mounting holes on the underneath of
theappliance.
• Repeat the process on the other side.
You can make the final adjustments to the feet in
order to level the appliance once the gas and
electricity supply have been connected.
If it is necessary to pull the appliance, screw the
adjustable feet in fully. Make the final settings only
when the other installation tasks have been
completed.
8
Positioning and levelling
Positioning the appliance
When installing the appliance, make sure that there
is enough space in the final installation location to
pull
the appliance forwards for cleaning and
maintenance
work.
The ground underneath must be hard and stable.
The wall immediately behind the appliance must be
made from non-flammable material, e.g. tiles.
If you need to pull the appliance in order to position
it,
make sure that the adjustable feet are screwed
in
fully.
Levelling the appliance
Level the appliance once all other work has been
completed.
To do this, turn the adjustable feet.
9

Electrical connection
• This appliance must be earthed by law. Before connecting the appliance to the
electrical supply, check that the earth system in your house is working correctly.
•
Check that unit voltage and power, marked on the rating plate applied on the
appliance, are correct for the supply. It is necessary that the feeding network is
protected by a powerful switch able to disconnect completely the network with a
contacts separation of at least 3 mm. Be sure that the earth wire green/yellow is
not interrupted by the switch.
WARNING: THIS APPLIANCE MUST BE EARTHED
•
In order to avoid hazard, any electrical work performed on this equipment or its
associated wiring should only be done by persons authorised by the manifacture
or similary qualified persons.
Replacement or mounting of the power cord
The mains cable is replaced via the rear backboard.
The mains cable must be of the following type:
380
-
H05
H05
V
H05
H07
-
415V 3N~
RR-F
V
V-F 5×
2
RN-F
RN-F
2
.5mm2
220-240V
H05RR-F
H05VV-F
H05RN-F
H07RN-F
3×4mm2
10
• Connect the yellow-green wire to the terminal. Thiswire must be at least 10 mm
longer than the other wires.
• Connect the blue neutral wire to terminal N.
• Connect the brown power wire to terminal L.
Leave the mains cable slightly overlong so that you can pull out the appliance for
cleaning purposes.
Proceed as follows:
• Remove the rear backboard.
• Undo the screw on the terminal block that fixes the cable in place.
• Loosen the screw contacts and replace the cable with a new one of the same length.
The cable must comply with the stipulated specifi- cations.
11

Electrical connection
• This appliance must be earthed by law. Before connecting the appliance to the
electrical supply, check that the earth system in your house is working correctly.
•
Check that unit voltage and power, marked on the rating plate applied on the
appliance, are correct for the supply. It is necessary that the feeding network is
protected by a powerful switch able to disconnect completely the network with a
contacts separation of at least 3 mm. Be sure that the earth wire green/yellow is
not interrupted by the switch.
WARNING: THIS APPLIANCE MUST BE EARTHED
•
In order to avoid hazard, any electrical work performed on this equipment or its
associated wiring should only be done by persons authorised by the manifacture
or similary qualified persons.
Replacement or mounting of the power cord
The mains cable is replaced via the rear backboard.
The mains cable must be of the following type:
380
-
H05
H05
V
H05
H07
-
415V 3N~
RR-F
V
V-F 5×
2
RN-F
RN-F
2
.5mm2
220-240V
H05RR-F
H05VV-F
H05RN-F
H07RN-F
3×4mm2
10
• Connect the yellow-green wire to the terminal. This wire must be at least 10 mm
longer than the
other wires.
• Connect the blue neutral wire to terminal N.
• Connect the brown power wire to terminal L.
Leave the mains cable slightly overlong so that you
can pull out the appliance for
cleaning purposes.
Proceed as follows:
• Remove the rear backboard.
• Undo the screw on the terminal block that fixes the cable in place.
• Loosen the screw contacts and replace the cable with a new one of the same length.
The cable must comply with the stipulated specifi-
cations.
11

Stability bracket
12
Instructions for use
Important information
Safety precautions .................................................................................... 15
Property damage .....................................................................................
17
Your new appliance:
18
The hob ................................................................................................... 19
The oven ..................................................................................................21
The storage compartment ........................................................................ 28
Before using for the first time
29
Baking out the oven ................................................................................. 29
Using the rotary spit ................................................................................. 31
Cleaning and care
Catalytic cooking compartment panels
Using the correct cleaning agent .............................................................. 35
Removing and fitting the appliance door ................................................... 37
Faults and the after-sales service 40
Replacing the oven light bulb .................................................................... 41
Aftersales service ..................................................................................... 42
Tips and tricks
Tips for saving energy ............................................................................... 43
Tips for using your appliance..................................................................... 44
14
34
43
..................................................... 34
Cleanng the interior glass of the oven ...................................................... 36
Removing and inserting the hook-in racks ................................................ 39
13

Stability bracket
12
Instructions for use
Important information
Safety precautions .................................................................................... 15
Property damage
.....................................................................................
17
Your new appliance:
18
The hob ................................................................................................... 19
The oven
..................................................................................................21
The storage compartment
........................................................................ 28
Before using for the first time
29
Baking out the oven ... ..............................................................................
29
Using the rotary spit
................................................................................. 31
Cleaning and care
Catalytic cooking compartment panels
Using the correct cleaning agent
.............................................................. 35
Removing and fitting the appliance door
................................................... 37
Faults and the after-sales service 40
Replacing the oven light bulb .................................................................... 41
Aftersales service
..................................................................................... 42
Tips and tricks
Tips for saving energy ............................................................................... 43
Tips for using your appliance ..................................................................... 44
14
34
43
..................................................... 34
Cleanng the interior glass of the oven ...................................................... 36
Removing and inserting the hook-in racks
................................................ 39
13

Important information
Read the instructions for use carefully.
This will enable you to operate your appliance
safely
and correctly.
This manual is valid for several models. Variations in
details for each cooker are possible.
Please keep the instruction manual, installation
instructions and the various accessories in a safe
place. Please pass on these manuals and
accessories to the new owner if you sell the
appliance.
Transport damage
Check the appliance for damage after unpacking
it. Do not connect the appliance if it has been
damaged
in transport.
Environmentally-friendly
disposal
Dispose of packaging in an environmentally-
friendly
manner.
This appliance is labelled in accordance with
European Directive 2012/19/EU on Waste
Electrical
and Electronic Equipment WEEE.
Connections Have a licensed professional carry out the electric
connection .
Assembly instructions are supplied with the
appliance.
Any damage caused by the appliance being
incorrectly connected is not covered under the
guarantee. We assume no liability for damage and
faults caused by connection and setting errors.
¦
14
Safety precautions
This appliance is intended for domestic use only.
This appliance must only be used for food
preparation.
Adults and children must not operate the appliance
without supervision if:
• they do not have the physical or mental ability;
• or they lack the knowledge and experience
required to operate the appliance safely and
correctly.
Never let children play with the appliance.
Never drag, push or move the device once
unpacked. The appliance should be lifted and
placed in the position desired in order to prevent
accidental damage to the floor.
Open the cover plate when the oven is working.
Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass
since they can scratch the surface, which may
result in shattering of the glass.
Do not use steam cleaners to clean the appliance.
Hot surfaces Risk of burns.
Never touch the hob plates, the surfaces of the
cooking compartment, the heating elements or the
oven steam outlets when they are hot.
Children must be kept at a safe distance from the
appliance at all times.
Open the appliance door carefully. Hot steam may
escape.
If the hob plates are in operation for a prolonged
period, the areas between them can become hot.
Risk of fire.
Never leave flammable objects on the hob or in
the storage compartment, or keep them in the
cooking compartment.
Risk of short-circuit.
Never trap the mains cable of electrical
appliances in the appliance door when it is hot or
pull the cable over
the hob plates when they
are hot. The cable insulation may melt.
15

Important information
Read the instructions for use carefully.
This will enable you to operate your appliance
safely and correctly.
This manual is valid for several models. Variations in
details for each cooker are possible.
Please keep the instruction manual, installation
instructions and the various accessories in a safe
place.Please pass on these manuals and
accessories to the new owner if you sell the
appliance.
Transport damage
Check the appliance for damage after unpacking
it. Do not connect the appliance if it has been
damaged in transport.
Environmentally-friendly
disposal
Dispose of packaging in an environmentally-
friendly manner.
This appliance is labelled in accordance with
European Directive 2012/19/EU on Waste
Electrical and Electronic Equipment WEEE.
Connections Have a licensed professional carry out the electric
connection .
Assembly instructions are supplied with the
appliance.
Any damage caused by the appliance being
incorrectly connected is not covered under the
guarantee. We assume no liability for damage and
faultscaused by connection and setting errors.
¦
14
Safety precautions
This appliance is intended for domestic use only.
This appliance must only be used for food
preparation.
Adults and children must not operate the appliance
without supervision if:
• they do not have the physical or mental ability;
• or they lack the knowledge and experience
required to operate the appliance safely and
correctly.
Never let children play with the appliance.
Never drag, push or move the device once
unpacked.
The appliance should be lifted and
placed in the
position desired in order to prevent
accidental
damage to the floor.
Open the cover plate when the oven is working.
Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass
since they can scratch the surface, which may
result in shattering of the glass.
Do not use steam cleaners to clean the appliance.
Hot surfaces Risk of burns.
Never touch the hob plates, the surfaces of the
cooking
compartment, the heating elements or the
oven
steam outlets when they are hot.
Children must be kept at a safe distance from the
appliance at all times.
Open the appliance door carefully. Hot steam may
escape.
If the hob plates are in operation for a prolonged
period,
the areas between them can become hot.
Risk of fire.
Never leave flammable objects on the hob or in
the
storage compartment, or keep them in the
cooking
compartment.
Risk of short-circuit.
Never trap the mains cable of electrical
appliances in
the appliance door when it is hot or
pull the cable over
the hob plates when they
are hot. The cable insulation may melt.
15

Overheated oil and fat Risk of fi re.
Overheated oil or fat can ignite very quickly.
Never leave fat or oil to heat unattended. Should the
oil ignite, do not try to put it out by pouring water on it.
Cover the pan immediately with a lid or plate. Switch
off the hob plate. Allow the cookware to cool down
on the hob plate.
High-proof alcohol Be careful with food that is prepared using drinks with
a high alcohol content (e.g. cognac, rum).
Alcohol evaporates at high temperatures. In
unfavourable circumstances, the alcoholic vapours
could catch fire in the appliance.
Risk of burns.
Only use small quantities of drinks with a high alcohol
content and open the appliance door carefully.
Repairs Risk of electrocution.
Incorrect repairs are dangerous.
Repairs may only be carried out by one of our
experienced after-sales engineers.
Risk of electrocution.
Never replace a damaged power cable yourself.
Power cables may only be replaced by one of our
experienced after-sales engineers.
Switch off the circuit breaker in the fuse box if the
appliance is faulty.
16
Property damage
Damageto the hob Only use the hob plates if cookware is placed on
them.
Do not heat empty pots or pans. This will damage the
pan base.
Do not allow saucepans to boil dry, in particular
enamel and aluminium saucepans.
The pan base must be clean, dry and flat.
With electric hotplates, it is possible that not enough
heat is drawn off and the pans become red hot.
Pleasefollow the manufacturer's instructions when
usingspecial cookware. Aluminium foil and plastic
containers can melt and stick on hot burners.
Do not use a roasting dish which has to be heated
usingtwo burners. This will cause heat to
accumulate. This could damage the appliance.
Pleasenote that appliances with a hob cover may
only be used with the hob cover open.
17

Overheated oil and fat R isk of fire.
Overheated oil or fat can ignite very quickly.
Never leave fat or oil to heat unattended. Should the
oil ignite, do not try to put it out by pouring water on it.
Coverthe pan immediately with a lid or plate. Switch
off the hob plate. Allow the cookware to cool down
on thehob plate.
High-proof alcohol Be careful with food that is prepared using drinks with
a high alcohol content (e.g. cognac, rum).
Alcohol evaporates at high temperatures. In
unfavourable circumstances, the alcoholic vapours
could catch fire in the appliance.
Risk of burns.
Only use small quantities of drinks with a high alcohol
contentand open the appliance door carefully.
Repairs Risk of electrocution.
Incorrect repairs are dangerous.
Repairs may only be carried out by one of our
experienced after-sales engineers.
Risk of electrocution.
Never replace a damaged power cable yourself.
Power cables may only be replaced by one of our
experienced after-sales engineers.
Switch off the circuit breaker in the fuse box if the
appliance is faulty.
16
Property damage
Damage to the hob Only use the hob plates if cookware is placed on
them.
Do not heat empty pots or pans. This will damage the
pan base.
Do not allow saucepans to boil dry, in particular
enamel and aluminium saucepans.
The pan base must be clean, dry and flat.
With electric hotplates, it is possible that not enough
heat is drawn off and the pans become red hot.
Please follow the manufacturer's instructions when
using special cookware. Aluminium foil and plastic
containers can melt and stick on hot burners.
Do not use a roasting dish which has to be heated
using two burners. This will cause heat to
accumulate. This could damage the appliance.
Please note that appliances with a hob cover may
only be used with the hob cover open.
17

Damage to the oven Never cook meals on the floor of the cooking
compartment. Do not leave the baking tray on the
cooking compartment floor. Do not cover it with
aluminium foil.
Do not place oven or cookware on the oven floor.
This will cause heat accumulation. The baking and
roasting times will no longer be correct and the
enamel will be damaged.
Never pour water directly into a hot oven. This will
damage the enamel.
When making very moist fruit flans, do not put too
much on the baking tray. Fruit juice dripping from the
baking tray leaves stains that cannot be removed.
Do not stand or sit on the open oven door.
Damage to the fronts of
adjacent units
Only leave the oven to cool down with the door
closed. The fronts of adjacent units may eventually
become damaged even if you only leave the oven
door open slightly.
If the oven door seal is very dirty, the appliance door
will no longer close properly during operation. The
fronts of adjacent units will become damaged over
time. Keep the seal clean.
Your new
appliance
Get to know your appliance. You will find information about the control panel and
hob, as well as the oven,
types of heating and accessories.
18
Ceramic hob
Table for for domestic electric hob in according to the Delegated
Regulation (UE) n° 65/2014 and Regulation (UE) n° 66/2014 Energy
Consumption calculated according to standard EN 60350-2: 2013-07
MIDEA
Identification Model See rating plate
Type hob Cooktop
Number of zones or areas of cooking 5
Type of heating system Radiating plate
Cooking circular zones
1 = 
2 = 
3 = 
4 = 
22,0
15,5
19,0
19,0
cm
cm
cm
cm
Cooking not circular zones 5 L
W
26,0
15,5
cm
cm
Energy consumption per areaEC electric cooking
1 = 190,5
2 = 218,0
3 = 203,0
4 = 201,4
5 = 220.4
Wh/kg
Wh/kg
Wh/kg
Wh/kg
Wh/kg
Energy consumption of the hob EC electric hob 206,6 Wh/kg
HOB TOTAL 9.0KW
OVEN TOTAL 2.94KW
Maximum Power 11.94KW
Voltage
220-240V～50/60Hz
380-415V 3N～50/60Hz
19

Damage to the oven Never cook meals on the floor of the cooking
compartment. Do not leave the baking tray on the
cooking compartment floor. Do not cover it with
aluminium foil.
Do not place oven or cookware on the oven floor.
This will cause heat accumulation. The baking and
roasting times will no longer be correct and the
enamel will be damaged.
Never pour water directly into a hot oven. This will
damage the enamel.
When making very moist fruit flans, do not put too
much on the baking tray. Fruit juice dripping from the
bakingtray leaves stains that cannot be removed.
Do not stand or sit on the open oven door.
Damage to the fronts of
adjacent units
Only leave the oven to cool down with the door
closed. The fronts of adjacent units may eventually
becomedamaged even if you only leave the oven
door open slightly.
If the oven door seal is very dirty, the appliance door
will no longer close properly during operation. The
frontsof adjacent units will become damaged over
time.Keep the seal clean.
Your new appliance
Get to know your appliance. You will find information about the control panel and
hob, as well as the oven, types of heating and accessories.
18
Ceramic hob
Table for for domestic electric hob in according to the Delegated
Regulation (UE) n° 65/2014 and Regulation (UE) n° 66/2014 Energy
Consumption calculated according to standard EN 60350-2: 2013-07
IdentificationModel Seeratingplate
Typehob Cooktop
Numberofzonesorareasofcooking 5
Typeofheatingsystem Radiatingplate
Cookingcircularzones
1 = 
2 = 
3 = 
4 = 
22,0
15,5
19,0
19,0
cm
cm
cm
cm
Cookingnotcircularzones 5 L
W
26,0
15,5
cm
cm
Energyconsumptionperarea EC electric cooking
1 = 190,5
2 = 218,0
3 = 203,0
4 = 201,4
5 = 220.4
Wh/kg
Wh/kg
Wh/kg
Wh/kg
Wh/kg
Energyconsumptionofthehob EC electric hob 206,6 Wh/kg
HOB TOTAL 9.0KW
OVEN TOTAL 2.94KW
Maximum Power 11.94KW
Voltage
220-240V～50/60Hz
380-415V 3N～50/60Hz
19

20
The oven
Always keep small children away from the oven while it is in use.
Before cooking for the first time switch the oven on and allow it to heat up while empty. At this
point you may notice a slightly odour, this is perfectly normal and occurs as the protective
covering which surrounds the insulating panels is gently removed. This covering is designed
for transit purposes only and its removal will not affect the performance of your oven.
Prior to use simply wipe the oven interior with a damp cloth, it is then ready for cooking.
21
