1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are
hot.
•If the appliance has a child safety device, we
recommend you activate it.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Children of less than 3 years should be kept away
unless continuously supervised.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•Internally the appliance becomes hot when in operation.
Do not touch the heating elements that are in the
appliance. Always use oven gloves to remove or put in
accessories or ovenware.
•Before maintenance cut the power supply.
•Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
ENGLISH 3

•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the side
walls. Install the shelf supports in the opposite
sequence.
•The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Do not let mains cables to come in
touch with the appliance door,
specially when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
www.electrolux.com4

fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is in
operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly
on the bottom of the appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no
effect on the performance of the
appliance. It is not a defect in the
sense of the warranty law.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door
closed.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Service.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Remaining fat or food in the appliance
can cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, obey the
safety instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
ENGLISH 5

2.5 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION
3.1 General overview
1 3 5 6 742 24
8
10
9
9
1
2
3
4
12
11
11
12
1
2
3
4
5
1Knob for the top oven functions
2Power lamp / symbol / indicator
3Knob for the top oven temperature
4Temperature lamp / symbol / indicator
5Electronic programmer
6Knob for the main oven functions
7Knob for the main oven temperature
8Heating element
9Lamp
10 Fan
11 Shelf support, removable
12 Shelf positions
3.2 Accessories
•Wire shelf
For cookware, cake tins, roasts.

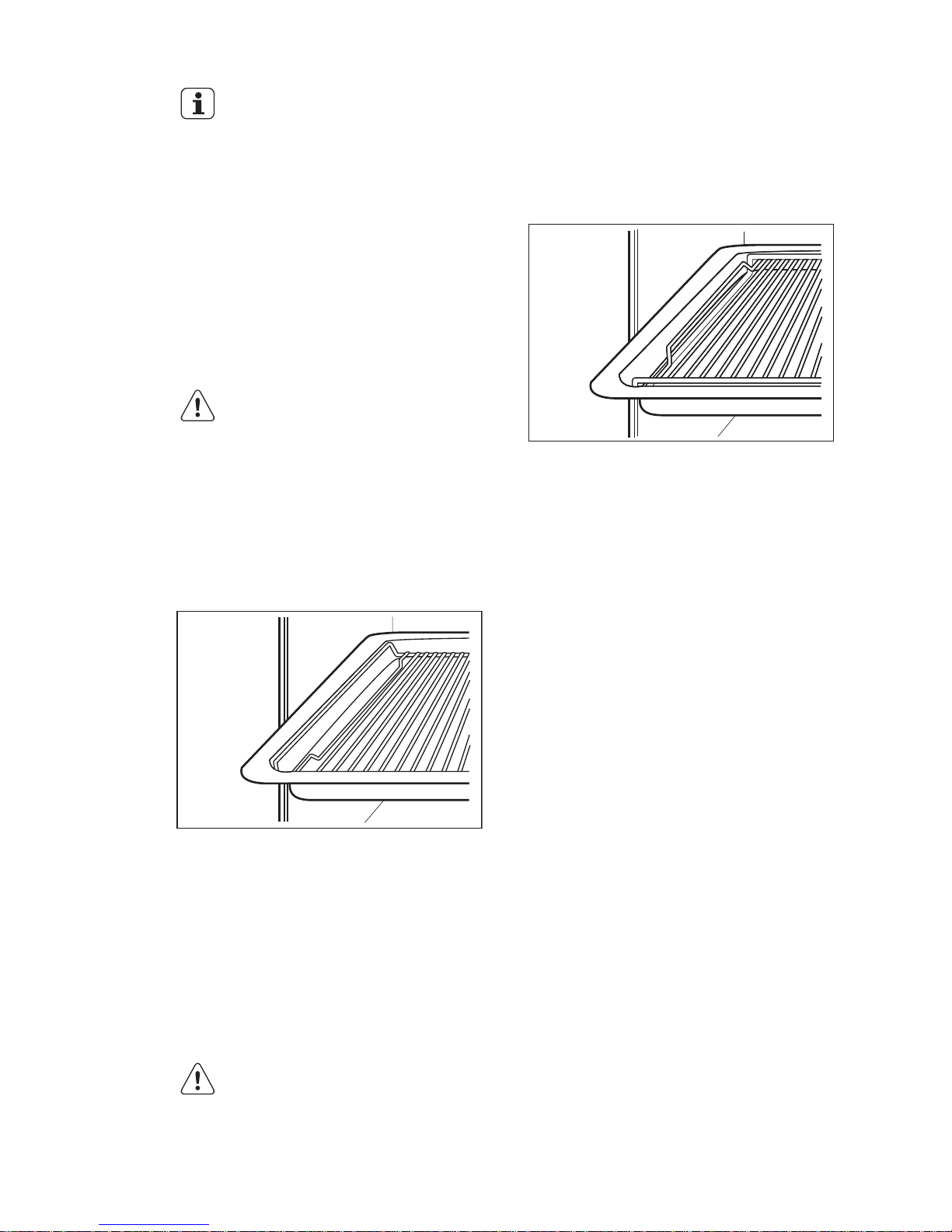

•Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
•Trivet
For roasting and grilling.
Use the trivet only with the
Grill- / roasting pan.
4. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
4.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
www.electrolux.com6

Refer to "Care and cleaning"
chapter.
1. Clean the appliance before first use.
2. Put the accessories and the
removable shelf supports back to their
initial position.
4.2 Setting the time
You must set the time before you operate
the oven.
Only the top oven works
without the set time.
The indicator for the Time of day function
flashes when you connect the appliance
to the electrical supply, when there was a
power cut or when the timer is not set.
Press the or button to set the
correct time.
After approximately five seconds, the
flashing stops and the display shows the
time of day you set.
4.3 Changing the time
You cannot change the time
of day if the Duration or
End function operates.
Press again and again until the
indicator for the Time of Day function
flashes.
To set a new time, refer to "Setting the
time".
4.4 Preheating
Preheat the empty appliance to burn off
the remaining grease.
Preheat the two ovens. Heat
up one oven at a time. Set
the functions listed below, if
applicable.
1. Set the function and the
temperature to 250ºC.
Let the appliance operate for 1 hour.
2. Set the function and the
temperature to 250ºC.
Let the appliance operate for 15
minutes.
3. Set the function and the
temperature to 250ºC.
Let the appliance operate for 15
minutes.
Accessories can become hotter than
usual. The appliance can emit an odour
and smoke. This is normal. Make sure that
the airflow is sufficient.
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Retractable knobs
To use the appliance, press the control
knob. The control knob comes out.
5.2 Activating and deactivating
the top / main oven
It depends on the model if
your appliance has knob
symbols, indicators or
lamps:
• The indicator comes on
when the oven heats up.
• The lamp comes on when
the oven operates.
• The symbol shows
whether the knob controls
one of the cooking zones,
the oven functions or the
temperature.
1. Turn the knob for the top / main oven
functions to select an oven function.
ENGLISH 7

2. To deactivate the oven turn the knob
for the top / main oven functions to
the off position.
5.3 Top oven functions
Oven function Application
Light To activate the lamp without a cooking function.
Conventional
Cooking
To bake and roast food on 1 shelf position.
Top Heat To brown bread, cakes and pastries. To finish cooked
dishes.
Bottom Heat To bake cakes with crispy bottom and to preserve
food.
Grilling To grill flat food and to toast bread.
Fast Grilling To grill flat food in large quantities and to toast bread.
5.4 Main oven functions
Symbol Oven function Application
Light To activate the lamp without a cooking function.
True Fan Cooking To bake on up to 3 shelf positions at the same
time and to dry food. Set the temperature 20 - 40
°C lower than for Conventional Cooking.
Defrost To defrost frozen food.
5.5 Display
The electronic programmer
works only with the main
oven.
www.electrolux.com8

A B C
A) Function indicators
B) Time display
C) Function indicator
5.6 Buttons
Button Function Description
MINUS To set the time.
CLOCK To set a clock function.
PLUS To set the time.
6. CLOCK FUNCTIONS
6.1 Clock functions table
Clock function Application
Time of day To set, change or check the time of day.
Minute Minder To set countdown time. This function has no effect on the
operation of the appliance.
Duration To set the cooking time of the oven.
End To set the time of day when the oven should deactivate.
You can use the functions
Duration and End at
the same time to set the time
for how long the appliance
should operate and when the
appliance should deactivate.
This lets you activate the
appliance with a delay in
time. First set the Duration
and then the End .
6.2 Setting the clock functions
For Duration and End , set an oven
function and temperature of cooking. This
is not necessary for the Minute Minder .
1. Press again and again until the
indicator for the necessary clock
function starts to flash.
2. Press or to set the necessary
clock function.
The clock function operates. The display
shows the indicator for the clock function
you set.
ENGLISH 9

For the Minute Minder
function the display shows
the time left.
3. When the time ends the indicator of
the clock function flashes and an
acoustic signal sounds. Press a
button to stop the clock function.
4. Turn the knob for the oven functions
and the knob for the temperature to
the off position.
With the Duration and
End functions, the
appliance deactivates
automatically. The functions
work only for the main oven.
6.3 Cancelling the clock
functions
1. Press the again and again until the
necessary function indicator flashes.
2. Press and hold .
The clock function goes out after some
seconds.
7. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
7.1 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Deep pan:
Push the deep pan between the guide
bars of the shelf support.
Wire shelf and the deep pan together:
Push the deep pan between the guide
bars of the shelf support and the wire shelf
on the guide bars above.
www.electrolux.com10

• All accessories have small
indentations at the top of
the right and left side to
increase safety. The
indentations are also anti-
tip devices.
• The high rim around the
shelf is a device which
prevents cookware from
slipping.
7.2 Trivet and Grill- / Roasting
pan
WARNING!
Be careful when you remove
the accessories from a hot
appliance. There is a risk of
burns.
You can use the trivet to roast larger
pieces of meat or poultry on one shelf
position.
1. Put the trivet into the deep pan so that
the supports of the wire shelf point up.
2. Put the deep pan into the oven on the
necessary shelf position.
You can use the trivet to grill flat dishes in
large quantities and to toast.
1. Put the trivet into the deep pan so that
the supports of the wire shelf point
down.
2. Put the deep pan into the oven on the
necessary shelf position.
8. ADDITIONAL FUNCTIONS
8.1 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
9. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
ENGLISH 11

The temperature and baking
times in the tables are
guidelines only. They depend
on the recipes and the quality
and quantity of the
ingredients used.
9.1 Double oven
Top oven
The top oven is the smaller of the two
ovens. It has 4 shelf positions. Use it to
cook smaller quantities of food. It gives
especially good results when used to cook
fruitcakes, sweets and savoury flants or
quiche.
Main oven
The main oven is the bigger of the two
ovens. It is particularly suitable for cooking
larger quantities of food.
9.2 Baking
• Your oven can bake or roast differently
to the appliance you had before. Adapt
your usual settings (temperature,
cooking times) and shelf positions to
the values in the tables.
• The manufacturer recommends that
you use the lower temperature the first
time.
• If you cannot find the settings for a
special recipe, look for the one that is
almost the same.
• You can extend baking times by 10 –
15 minutes if you bake cakes on more
than one level.
• Cakes and pastries at different heights
do not always brown equally at first. If
this occurs, do not change the
temperature setting. The differences
equalize during the baking procedure.
• With longer baking times, you can
deactivate the oven approximately 10
minutes before the end of the baking
time and then use the residual heat.
When you cook frozen food, the trays in
the oven can twist during baking. When
the trays become cold again, the
distortions are gone.
9.3 Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is
not browned sufficiently.
The shelf position is incor-
rect.
Put the cake on a lower
shelf.
The cake sinks and be-
comes soggy, lumpy or
streaky.
The oven temperature is too
high.
The next time you bake, set
a slightly lower oven tem-
perature.
The cake sinks and be-
comes soggy, lumpy or
streaky.
The baking time is too
short.
Set a longer baking time.
You cannot decrease
baking times by setting
higher temperatures.
The cake sinks and be-
comes soggy, lumpy or
streaky.
There is too much liquid in
the mixture.
Use less liquid. Be careful
with mixing times, especially
if you use a mixing ma-
chine.
The cake is too dry. The oven temperature is too
low.
The next time you bake, set
a higher oven temperature.
The cake is too dry. The baking time is too long. The next time you bake, set
a shorter baking time.
www.electrolux.com12

Baking results Possible cause Remedy
The cake browns unevenly. The oven temperature is too
high and the baking time is
too short.
Set a lower oven tempera-
ture and a longer baking
time.
The cake browns unevenly. The mixture is unevenly dis-
tributed.
Spread the mixture evenly
on the baking tray.
The cake is not ready in the
baking time given.
The oven temperature is too
low.
The next time you bake, set
a slightly higher oven tem-
perature.
9.4 Baking
To bake in the top oven use the function
Conventional Cooking.
To bake in the main oven use the function
True Fan Cooking.
Top oven
Food Temperature (°C) Time (min) Shelf position
Biscuits 170 - 190 10 - 20 2
Bread 200 - 220 30 - 35 1
Bread rolls / buns 170-180 10 - 15 1
Cakes:
- Small & Queen 160 - 170 18 - 25 2
- Sponges 160 - 175 20 - 30 2
- Victoria Sandwich 160 - 170 18 - 25 2
- Madeira 140 - 150 75 - 90 2
- Rich Fruit 140 - 150 120 - 150 2
- Gingerbread 140 - 150 75 - 90 2
- Meringues 90 - 100 150 - 180 2
- Flapjack 160 - 170 25 - 30 2
- Shortbread 130 - 150 45 - 65 2
Casseroles:
- Beef / Lamb 160 - 170 150 - 180 1
- Chicken 160 - 180 75 - 90 1
Convenience Foods Follow manufacturer's instructions.
Fish 170 - 190 20 - 30 2
Fish Pie (Potato Topped) 190 - 200 20 - 30 2
Fruit Pies, Crumbles 190 - 200 30 - 50 2
ENGLISH 13

Food Temperature (°C) Time (min) Shelf position
Milk Puddings 150 - 170 90 - 120 2
Pasta, Lasagne etc. 170 - 180 40 - 50 2
Pastry:
- Choux 180 - 190 30 - 40 2
- Eclairs, Profiteroles 180 - 190 30 - 40 2
- Flaky / Puff Pies 210 - 220 30 - 40 2
Shortcrust:
- Mince Pies 190 - 210 15 - 20 2
- Meat Pies 190 - 210 25 - 35 2
- Quiche, Tarts, Flans 180 - 200 25 - 50 2
Scones 220 - 230 8 - 12 2
Shepard's Pie 180 - 190 30 - 40 2
Souffles 190 - 200 20 - 30 2
Vegetables:
- Baked Jacket Pota-
toes
180 - 190 60 - 90 2
- Roast Potatoes 180 - 190 60 - 90 2
Yorkshire Pudding:
- Large 200 - 210 25 - 40 1
- Individual 210 - 220 15 - 25 1
Main oven
Food Temperature (°C) Time (min) Shelf position
Biscuits 180 - 190 10 - 20 3
Bread 190 - 210 30 - 35 3
Cakes:
- Small & Queen 160 - 170 18 - 25 3
- Sponges 160 - 170 20 - 25 3
- Madeira 140 - 160 60 - 75 3
- Rich Fruit 130 - 140 120 - 150 3
- Christmas 130 - 140 180 - 270 3
Fish 160 - 180 20 - 30 3
www.electrolux.com14

Food Temperature (°C) Time (min) Shelf position
Fish Pies, Crumbles 170 - 180 30 - 50 3
Milk Puddings 140 - 160 60 - 90 3
Pastry:
- Choux 180 - 190 30 - 40 3
- Shortcrust 180 - 190 25 - 35 3
- Flaky 180 - 190 30 - 40 3
- Puff Follow manufacturer's instructions. Reduce the temperature
by 20ºC.
Plate Tarts 180 - 190 25 - 45 3
Quiches / Flans 170 - 180 25 - 45 3
Scones 210 - 230 8 - 12 3
9.5 Roasting
• Use heat-resistant ovenware to roast
(refer to the instructions of the
manufacturer).
• You can roast large roasting joints
directly in the deep pan (if present) or
on the wire shelf above the deep pan.
• Roast lean meats in the roasting tin
with the lid. This keeps the meat more
succulent.
• All types of meat that can be browned
or have crackling can be roasted in the
roasting tin without the lid.
• We recommend that you cook meat
and fish weighing 1 kg and above in
the appliance.
• To prevent the meat juices or fat from
burning onto the pan, put some liquid
into the deep pan.
• If necessary, turn the roast (after 1/2 -
2/3 of the cooking time).
• Baste large roasts and poultry with
their juices several times during
roasting. This gives better roasting
results.
• You can deactivate the appliance
approximately 10 minutes before the
end of the roasting time, and use the
residual heat.
9.6 Grilling
Always grill with the maximum
temperature setting.
Set the shelf into the shelf position as
recommended in the grilling table.
For grilling in the top oven adjust the shelf
position to suit different thicknesses of
food.
Always set the pan to collect the fat into
the first shelf position.
Grill only flat pieces of meat or fish.
Always preheat the empty oven with the
grill functions for 5 minutes.
CAUTION!
Always grill with the oven
door closed.
Grilling and Fast Grilling - Top oven
Food Time (min)
Bacon Rashers 5 -6
Beefburgers 10 - 20
ENGLISH 15

Food Time (min)
Chicken Joints 20 - 40
Lamb Chops 15 - 25
Pork Chops 20 - 25
Whole Fish, Trout / Makarel 10 - 12
Fillets, Plaice / Cod 4 - 6
Kebabs 12 - 18
Kidneys, Lamb / Pig 6 - 10
Sausages 20 - 30
Toasted Sandwiches 3 - 4
Steaks:
- Rare 4 - 6
- Medium 6 - 8
- Well Done 12 - 15
9.7 Defrost - Main oven
Remove the food packaging and put the
food on a plate.
Use the first shelf position from the
bottom.
Do not cover the food with a bowl or a
plate, as this can extend the defrost time.
Food Quantity Defrosting
time (min)
Further de-
frosting
time (min)
Comments
Chicken 1 kg 100 - 140 20 - 30 Put the chicken on an upturned
saucer in a big plate. Turn half-
way through.
Meat 1 kg 100 - 140 20 - 30 Turn halfway through.
Meat 500 g 90 - 120 20 - 30 Turn halfway through.
Trout 150 g 25 - 35 10 - 15 -
Straw-
berries
300 g 30 - 40 10 - 20 -
Butter 250 g 30 - 40 10 - 15 -
Cream 2 x 200 g 80 - 100 10 - 15 Whip the cream when still slightly
frozen in places.
Gateau 1.4 kg 60 60 -
www.electrolux.com16

10. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
10.1 Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire. The risk is
higher for the grill pan.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a
dishwasher. It can cause damage to
the nonstick coating.
10.2 Stainless steel or aluminium
appliances
Clean the oven door with a
wet sponge only. Dry it with a
soft cloth. Do not use steel
wool, acids or abrasive
materials as they can
damage the oven surface.
Clean the oven control panel
with the same precautions.
10.3 Removing the shelf
supports
To clean the oven, remove the shelf
supports.
1. Pull the front of the shelf support away
from the side wall.
2. Pull the rear end of the shelf support
away from the side wall and remove it.
1
2
Install the shelf supports in the opposite
sequence.
10.4 Oven ceiling
WARNING!
Deactivate the appliance
before you remove the
heating element. Make sure
that the appliance is cold.
There is a risk of burns.
Remove the shelf supports.
You can fold down the heating element on
the oven ceiling to clean the oven ceiling
easily.
1. Hold the heating element with two
hands at the front.
2. Pull it forwards against the spring
pressure and out along the supports
on the two sides.
ENGLISH 17

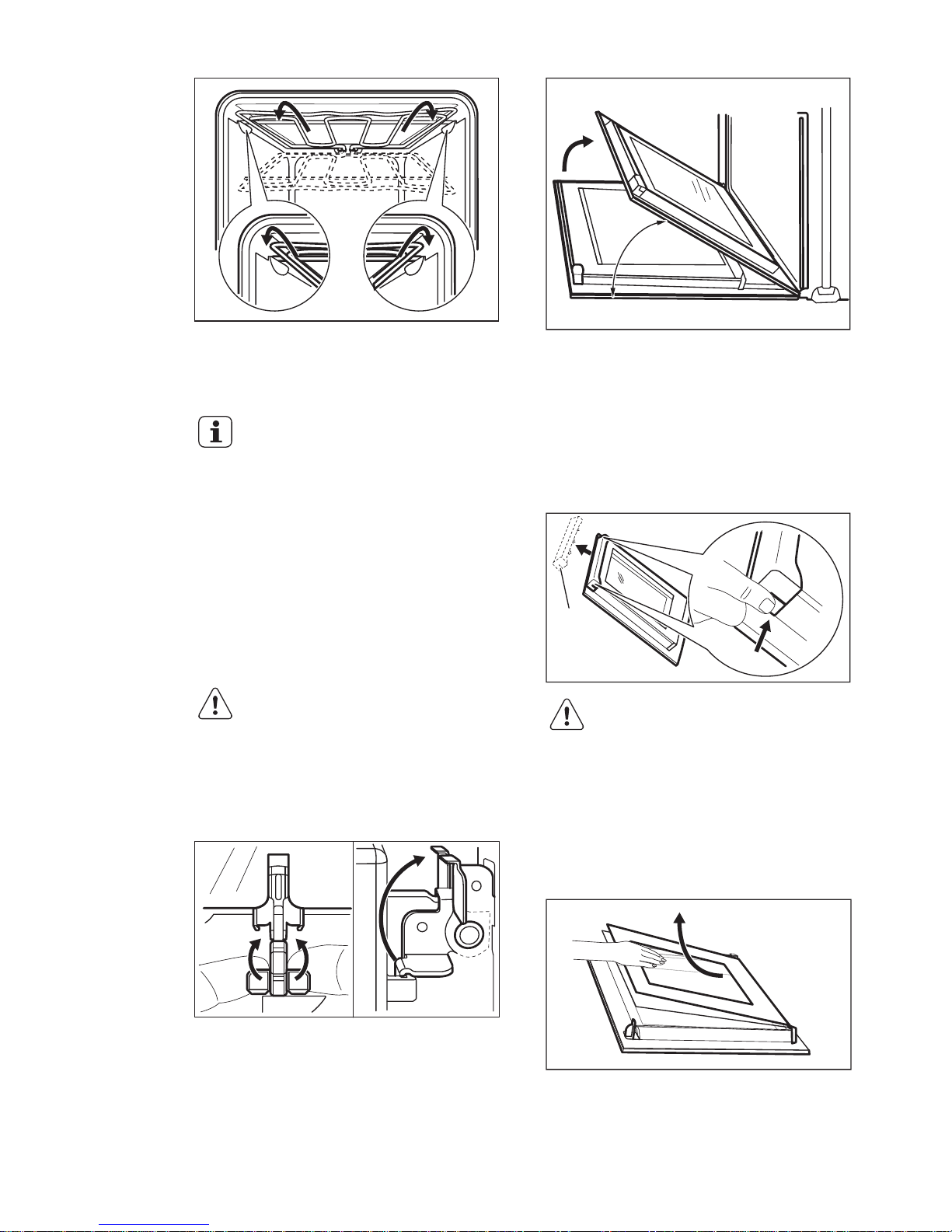

The heating element folds down.
3. Clean the oven ceiling.
4. Install the heating element in the
opposite sequence.
Install the heating element
correctly above the supports
on the inner walls of the
appliance.
5. Install the shelf supports.
10.5 Removing and installing the
door
You can remove the door and the internal
glass panels to clean it. The number of
glass panels is different for different
models.
WARNING!
Be careful when you remove
the door from the appliance.
The door is heavy.
1. Open the door fully.
2. Fully lift up the clamping levers (A) on
the two door hinges.
A
A
3. Close the door until it is at an angle of
approximately 45°.
45°
4. Hold the door with one hand on each
side and pull it away from the
appliance at an upwards angle.
5. Put the door with the outer side down
on a soft cloth on a stable surface.
This is to prevent scratches.
6. Hold the door trim (B) on the top edge
of the door at the two sides and push
inwards to release the clip seal.
1
2
B
CAUTION!
Rough handling of the glass,
especially around the edges
of the front panel, can cause
the glass to break.
7. Pull the door trim to the front to
remove it.
8. Hold the door glass panels on their
top edge one by one and pull them up
out of the guide.
9. Clean the glass panel with water and
soap. Dry the glass panel carefully.
www.electrolux.com18

When the cleaning is completed, install the
glass panels and the door. Do the above
steps in the opposite sequence. Install the
smaller panel first, then the larger.
10.6 Replacing the lamp
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
WARNING!
Danger of electrocution!
Disconnect the fuse before
you replace the lamp. The
lamp and the lamp glass
cover can be hot.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box
or deactivate the circuit breaker.
The back lamp
The lamp glass cover is at the
back of the cavity.
1. Turn the lamp glass cover
counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the oven lamp with a suitable
300 °C heat-resistant oven lamp.
Use the same oven lamp type.
4. Install the glass cover.
11. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
11.1 What to do if...
Problem Possible cause Remedy
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The clock is not set. Set the clock.
The oven does not heat up. The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up. The fuse is released. Make sure that the fuse is
the cause of the malfunc-
tion. If the fuse releases
again and again, contact a
qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
Steam and condensation
settle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15
- 20 minutes after the cook-
ing process ends.
The display shows "12.00". There was a power cut. Reset the clock.
11.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
The necessary data for the service centre
is on the rating plate. The rating plate is on
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
ENGLISH 19

We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
12. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
*
www.electrolux.com20
