Residentia Esatto EO64M User manual

Page:
1
User Manual:Model Code/s:
EO64M
Product:
60cm
Fan-Forced
Oven
Document:
User Manual

Dear Customer, Congratulations on purchasing your new fan-forced
oven. The Esatto brand is proudly distributed within
Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this
manual for information regarding your product’s
parts and labour warranty, or visit us online at
www.residentiagroup.com.au.
At Residentia Group, we are customer obsessed
and our Support Team are there to ensure you get
the most out of your appliance. Should you want
to learn more about your oven such as the various
cooking functions or importantly taking care of the
appliance, our Support Team are here to help.
You can use our online Support Centre at anytime
by visiting http://support.residentiagroup.com.au,
or you can contact us via phone by dialling:
1300 11 HELP (4357).
It is important that you read through the following
use and care manual thoroughly to familiarise
yourself with the installation and operation
requirements of your appliance to ensure optimum
performance.
Again, thank you for choosing an Esatto appliance
and we look forward to being of service to you.
Kind Regards,
The Residentia Team
T1300 11 4357
E [e-mail]
W residentiagroup.com.au
ACN 600 546 656
Residentia Group
PO Box 581
Stanhope Gardens
NSW Australia 2768

Page:
3
User Manual:
Contents: Page:
Safety instructions 4
Your Esatto Oven 6
Installation Instructions 8
Operating Your Oven 8
Cleaning & Maintenance 13
Troubleshooting & Technical Data 15
Warranty Information 16
Notes 18

Page:
4
User Manual:
Safety Instructions
This oven must only be installed by a suitably qualied and licenced person and in accordance with the instructions
provided. Incorrect installation may cause harm to persons, damage property and void the product’s warranty.
IMPORTANT! The power supply to the oven must be cut o before any adjustments
or maintenance work is undertaken.
WARNING When using this product, basic precautions should always be taken
including the following:
→ This oven is designed for domestic household use and for the cooking of domestic
foodstus.
IMPORTANT! Your built-in oven is an electrical appliance and as with any electrical
appliance (particularly with electric heating elements), basic precautions
must be followed in order to reduce the risk of re, burns, electrical
shocks and/or other serious injuries or even death.
→ The appliance becomes hot during operation. Take care not to touch the hot parts inside
the oven.
→ This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
→ Children should be supervised to ensure that they do not play with the appliance.
→ While in operation direct contact with the oven may cause burns!
→ Ensure that small items of household equipment, including connection leads, do not
touch the hot oven as the insulation material of this equipment is usually not resistant
to high temperatures.
→ Do not leave the oven unattended when cooking. Oils and fats may catch re due to
overheating.
→ Do not put pans on the opened door of the oven.
→ Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.
→ Do not use the oven in the event of a technical fault. Any faults must be xed by an
appropriately qualied and authorised Residentia Group service agent. Refer to the
warranty section at the rear of this user manual.
→ In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
→ The rules and provisions contained in this instruction manual should be strictly observed.
→ Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the oven.
→ The oven should not be cleaned using steam-cleaning equipment, as damage can occur
to the inner electrical components.
→ The panels adjacent to the oven must be made of heat resistant material, or heat
deectors installed.
→ Cabinets with a veneer exterior must be assembled with glues, which can withstand
temperature of up to 100 degrees Celsius.
→ Keep combustible materials such as: curtains, drapes, furniture, pillows, clothing, linens,
bedding, paper, etc. at least 900mm from the front sides and rear of the oven.
→ Do not use this oven in areas where fuel, paint or other ammable liquids or their
associated vapours may be present.

Page:
5
User Manual:
Safety Instructions (Continued)
→ To reduce the risk of re, do not place or install this oven in areas where the ventilation or
circulation ducts may become blocked.
→ The oven’s power cord must be connected to a properly grounded and protected,
220-240V electrical outlet. Always use ground fault protection where required by the
electrical code.
→ This oven is hard-wired and an extension cord should not be used.
→ When transporting or storing the unit, keep it in a dry location, free from dust, excessive
vibration or other factors, which may damage the unit.
→ Do not operate any oven with a damaged cord or plug, after the heater malfunctions
or has been dropped or damaged in any manner. Return the oven to an authorised
Residentia Group service centre to be checked.
→ If the supply cord is damaged, it must be replaced by a special cord or assembly available
from Residentia Group or its authorised service agent.
→ Use this oven only as described in this manual. Any other use not recommended by the
manufacturer may cause re, electric shock, or injury to persons.
→ Never add cold water to food on a hot universal tray or baking tray or directly onto food
in a hot oven. The steam created could cause serious burns or scalding and the sudden
change in temperature can damage the enamel.
→ Do not lift the oven by the handle.
DECLARATION OF CONFORMITY
This appliance complies with the following Australian/European Directives:
→2006/95/CE General regulations / Low tension
→1935/2004/CE 90/128/EEC This appliance is suitable to come in contact with food
→2004/108/CE Electromagnetic compatibility
→Low voltage – 73/23
→Safety standards – EN 60335-1, EN30-1-1, AS/NZS 3350-1,3350-2-6
The manufacturer declares that the oven is built using certied materials and requires the appliance
to be installed in accordance with the standards currently in force. This oven should only be used by a
trained person and for domestic purposes only.
UNPACKING
During transportation, protective packaging was used to protect the appliance against any damage.
After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the
environment. All materials used for packaging the appliance are environmentally friendly; they are 100%
recyclable and are marked with the appropriate symbol.
→ During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.)
should be kept out of reach of children.
DISPOSAL OF THE APPLIANCE
Old appliances should not simply be disposed of with normal household waste, but should be delivered
to a collection and recycling centre for electric and electronic equipment. A symbol shown on the
product, the instruction manual or the packaging shows that it is suitable for recycling.
Materials used inside the appliance are recyclable and are labelled with information concerning this.
By recycling materials or other parts from used devices you are making a signicant contribution to the
protection of our environment.
Information on appropriate disposal centres for used devices can be provided by your local authority.

Page:
6
User Manual:
Your Esatto Oven
CONTROLS
KEY
—
1. Oven function selection knob
2. Temperature control knob
3. Minute Minder Timer
1 3 2

Page:
7
User Manual:
Your Esatto Oven (Continued)

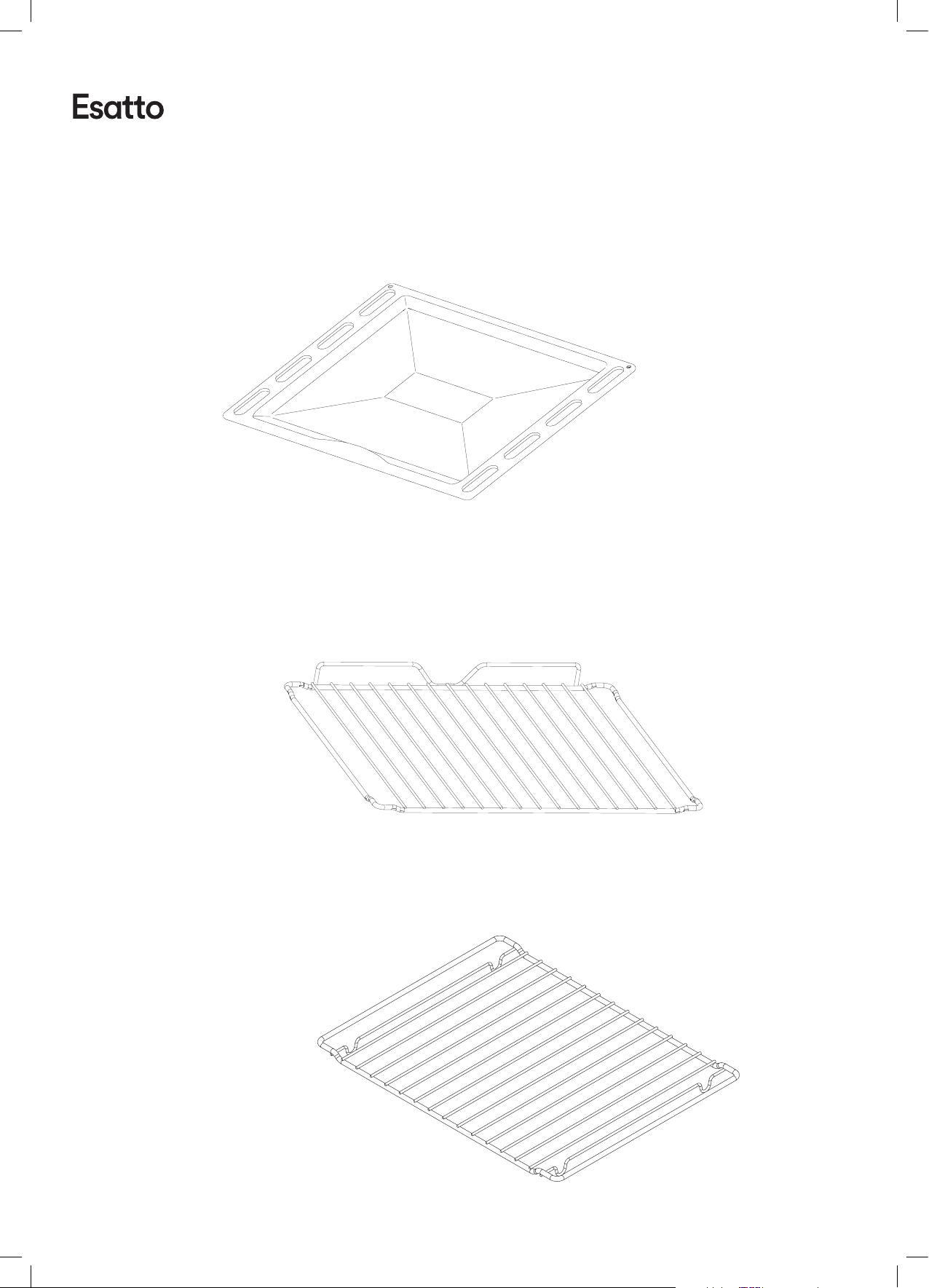

OVEN COMPONENTS
ROASTING TRAY
GRILLING RACK/SHELF
ROASTING TRAY INSERT

Page:
8
User Manual:
Installation Instructions
It’s important to carefully read the following installation instructions before beginning the installation of your oven.
IMPORTANT! The connection of this oven must be carried out by a suitably qualied and licensed
person, in accordance with the current versions of the following:
→ AS/NZS 3000 Wiring Rules
→ Electricity Safety Regulations 2010
→ The installation instructions within this user manual
Note: Ensure there is a grounded socket nearby (behind the unit). A dedicated
power circuit is recommended for the unit but not required. Additional
electrical appliances on the same circuit may exceed the current
(amperage) rating for that circuit. If after the installation of your unit the
circuit breaker trips or the fuse fails on a repeated basis then a dedicated
circuit will likely be required.

Page:
9
User Manual:
Installation Instructions (Continued)
POSITIONING
The adjacent cabinetry and wall materials must be able to withstand a minimum temperature rise of
85°C above the ambient temperature of the room.
→ The kitchen area should be dry and equipped with sucient ventilation. When installing
the oven, easy access to all control elements should be ensured.
→ This is a built-in oven and has been designed to be housed within an oven cabinet.
Coating or veneer used on cabinetry must be applied with a heat resistant adhesive
(rated to 100°c). This prevents surface deformation or detachment of the coating. In the
case of vinyl wrap kitchens, it is strongly recommended to have heat deectors installed
on either side of the oven cabinet.
→ Your oven cabinet should be made to suit the following dimensions and can be either a
tall or underbench cabinet to suit your kitchen design.
→ Make sure that the electrical circuit is disconnected or fuse removed, then connect the
oven into the mains supply.
IMPORTANT! As this appliance is hard-wired, the installation/connection should only be
completed by a licensed electrician.
→ Insert the oven completely into the oven cabinet and use the four screws supplied to x
the oven into place (refer to the diagram below).
590-59 5
600
56 0
560
500
40
600mm
600mm
500mm
40mm
600mm
600mm
560mm
560mm + 8
560mm

Page:
10
User Manual:
Installation Instructions (Continued)
FITTING GUIDELINES
WARNING! The installation must be carried out by a suitably qualied and licensed
person and in accordance with the current standards.
→ The oven is manufactured to work with three-phase alternating current
(220V-240V/50Hz). The connection diagram is also found on the cover of
the connection box.
Remember: → The connection wire should match the connection type and the power
rating of the oven.
→ The connection cable must be secured in a strain-relief clamp.
WARNING! Remember to connect the safety circuit to the connection box terminal
marked with . The electricity supply for the oven must have a safety
switch which enables the power to be cut o in the case of an emergency.
The distance between the working contacts of the safety switch must be
at least 3mm.
Before connecting the oven to the power supply it is important to read
the information on the data plate and the connection diagram.
CONNECTION DIAGRAM
Caution!Voltage of heating elements 220V～240V
PE terminal
L
5
For earthed one phase
connect on:L (Brown wire) connect
to 3 and N (blue wire)connect to 5,
safety wire (Yellowgreen) connectto
PE terminal
220V～240V

Page:
11
User Manual:
Operating your Oven
BEFORE THE OVEN’S FIRST USE
Remove all packaging and clean the interior of the oven.
→ Take out and wash the oven ttings with warm soapy water.
→ Switch on any ventilation within the room (such as a rangehood), or open any windows.
→ Heat the oven to a temperature of 250°c for approximately 30-45 minutes.
Note: There may be strong odour during the rst use, which is the burning o of any chemical
residues from its construction. This is normal for all ovens.
IMPORTANT! The inside of the oven should only be washed with warm water and a small amount
of washing up liquid.
OVEN FUNCTIONS & OPERATION
IMPORTANT! In order for the oven to operate, you must:
→ Select the required conditions of the oven.
I.e. its temperature and a mode of heating.
→ Set the knobs to the required positions, turning it to the right (clockwise).
→ Your oven will begin to operate.

Page:
12
User Manual:
Operating your Oven (Continued)
OVEN FUNCTIONS
Model: Functions:
EO64M
Function Symbol: Function Type: Function Description:
Oven Light
By selecting this option, the lighting inside the oven is switched on.
Note: The oven will not heat on this setting.
Defrost
This function allows all frozen foods to be rapidly and delicately thawed
thanks to the internal fan.
Central element and fan This function enables homogenous distribution of the heat inside the
oven, making it possible to cook several items of food at the same time.
Grill element
This function operates the top grill element. Important! You should only
ever use the grill with the oven door shut.
Grill and fan assist
This function operates the grill element with fan to distribute the heat
evenly. Excellent combination for cooking chicken and a variety of
roasts, sealing the juices in.
FAST START FEATURE
Your Esatto oven is equipped with a fast start function which can be used to bring your oven up to 150°c
in approximately 4 minutes.
To use this feature:
→ Set the oven function knob to the position of “Fan assisted Bottom & Central elements”.
→ Set the temperature knob to 150°c (or lower if desired).
→ Once the oven is at temperature, the “Oven Heating” indicator (Indicator D) will switch
o.
USE OF THE GRILL
Your Esatto oven grills through the use of infrared rays emitted by the incandescent grill heater.
IMPORTANT! You should always use the grill function with the door shut. When the grill is in use with
the oven door open, accessible parts can become hot and damage can be done to the
controls.
In order to use the grill:
→ Set the oven function knob to one of the grill functions.
→ Heat the oven for approximately 4-5 minutes.
→ Insert a tray with your dish onto the appropriate cooking shelf.
Note: The grill function can be used upto a maximum of 250°c, whilst the “Grill and fan assist”
function can be used at a maximum of 200°c.

Page:
13
User Manual:
Cleaning & Maintenance
By ensuring proper cleaning and maintenance of your Esatto oven, you can ensure that it will have a long and fault free
operation.
WARNING! Do not start cleaning the oven until it has completely cooled.
→ Typically you should only ever need to clean your oven with warm soapy water, or light
cleaning products to assist with the removal of fat or oil emulsions.
→ Your oven should be cleaned after every use and you can use the “Light” function to
assist with visibility.
→ After cleaning your oven chamber, you should wipe it dry.
CLEANING THE GLASS
→ Glass surfaces on the door and control panel should be cleaned immediately after soiling,
using a damp cloth.
→ Oven cleaners may be used to remove stubborn stains and built-up residues.
→ Avoid the use of harsh abrasive cleaners and sharp metal scrapers as they can scratch or
damage the surface.
CLEANING THE STAINLESS STEEL
All grades of stainless steel can stain or discolour and you must regularly ensure it’s kept clean using the
following procedures:
→ Start by using clean, warm soapy water. For stubborn stains or discolouration, you can
try stainless steel cleaners available from the supermarket.
→ Be careful when cleaning the stainless steel, as there may be sharp edges.
→ DO NOT use abrasive or harsh solvent cleaners.
CLEANING THE OVEN/GRILL
→ Always keep the internal of the oven clean, ensuring that fats and oils don’t accumulate
around the elements or fan.
→ Always keep the oven dish, baking trays and grill dish inserts clean as any deposits may
catch re or smoke.
→ Always wrap your meats in aluminium foil or use a covered oven-roasting dish to
minimise required cleaning.
DOOR REMOVAL
In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door.
To do this:
→ Tilt the safety catch part of the hinge upwards.
→ Close the door lightly, lift and pull it out towards you.
→ In order to t the door back on to the oven, do the reverse.
When tting, ensure that the notch of the hinge is correctly placed on the protrusion of the hinge holder.
After the door is tted to the oven, the safety catch should be carefully lowered down again. If the safety
catch is not set it may cause damage to the hinge when closing the door.

Page:
14
User Manual:
Cleaning & Maintenance (Continued)
REMOVAL OF THE INTERNAL GLASS PANEL
Unscrew and unfasten the plastic latch that is in the corner at the top of the door. Next take out the glass
from the second blocking mechanism and remove. After cleaning, insert and block the glass panel, and
screw in the blocking mechanism.
REPLACEMENT OF THE LIGHT GLOBE
WARNING! In order to avoid the possibility of an electric shock, ensure that the
appliance is switched o at the isolator switch, before removing the light
globe.
→ Set all control knobs to the o position and switch the oven o at the isolator switch.
→ Unscrew the Light Globe cover. Unscrew the blown light globe.
→ Replace the globe with a new oven globe with the following parameters:
→ Voltage: 230v
→ Power: 25W
→ E14 Oven globe
→ Screw the Light Globe cover back into place.

Page:
15
User Manual:
Troubleshooting & Technical Data
OPERATION IN CASE OF EMERGENCY
In the event of an emergency you should:
→ Switch o all oven controls (i.e. Cooking Function and Temperature)
→ Switch the oven o at the isolation switch or at the fuse box.
→ Call the Residentia Support Team on 1300 11 HELP (4357).
Some minor faults can be xed by referring to the instructions given in the Troubleshooting section
below. There is also a self-help section online at http://www.residentiagroup.com.au.
TROUBLESHOOTING
Fault Possible Cause Solution
The oven isn’t turning on. Break in power supply. ► Check the household fuse box for any blown fuses
and replace as necessary. Also ensure that a safety
switch hasn’t tripped.
The oven light isn’t working. The light globe is loose or has
blown.
►
When completely cool and switched o, remove
the globe cover and ensure that the globe is tight.
If blown, refer to the Cleaning and Maintenance
section on how to replace a globe.
The oven is burning the top of my dish whilst
the underside is under-done.
Not enough heat from the
bottom.
► Try using the Conventional cooking functions.
► Try lowering the temperature.
► Try using a lower shelf position.
The oven is burning the underside of my dish
whilst the top is under-done.
Excessive heat from the bot-
tom.
► Try using the Conventional cooking functions.
► Try lowering the temperature.
► Try using a higher shelf position.
The oven is burning the outside of my dish
whilst the inside is under-done.
Temperature is set too high. ►
Lower the temperature and increase the cooking
duration.
The outside of my dish is too dry even
though it looks cooked.
Temperature is set too low. ►
Increase the temperature and decrease the cooking
duration.
TECHNICAL DATA
Electrical details Rated Voltage: 220 - 240V, 50Hz
Power rating: Maximum 2.0kW
Oven details Dimensions (H,W,D mm): 59.5mm, 59.5mm, 57.5mm
Usable capacity: 58 litres
Weight: ~30kg

Page:
16
User Manual:
Continued over page →
Warranty
WARRANTY TERMS AND CONDITIONS
COOKING APPLIANCES
→This document sets out the terms and conditions of the product warranties for Residentia
Group Appliances. It is an important document. Please keep it with your proof of
purchase documents in a safe place for future reference should you require service for
your Appliance.
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning
referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian Consumer Law) Act (No.2)
2010;
(c) ‘Appliance’ means any Residentia Group product purchased by you accompanied by
this document;
(d) ‘ASR’ means Residentia Group authorised service representative;
(e) ‘Residentia Group’ means Residentia Group Pty Ltd of 20 Yaltara Avenue, Bundoora
Victoria 3083, ACN 600 546 656 in respect of Appliances purchased in Australia;
(f) ‘major failure’ as referred to in clause 10 of this warranty has the same meaning
referred to in the ACL and includes a situation when an Appliance cannot be
repaired or it is uneconomic for Residentia Group, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal, domestic or household use
(i.e. normal single family use) as set out in the instruction manual, the
Appliance is warranted against manufacturing defects in Australia for 12
months following the date of original purchase of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having purchased the Appliance for
re-sale, and ‘your’ has a corresponding meaning.
2. This warranty only applies to Appliances purchased and used in Australia and is in addition to (and does
not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia.
3. During the Warranty Period Residentia Group or its ASR will, at no extra charge if your Appliance is
readily accessible for service, without special equipment and subject to these terms and conditions,
repair or replace any parts which it considers to be defective. Residentia Group or its ASR may use
remanufactured parts to repair your Appliance. You agree that any replaced Appliances or parts become
the property of Residentia Group. This warranty does not apply to light globes, batteries, lters or
similar perishable parts.
4. Parts and Appliances not supplied by Residentia Group are not covered by this warranty.
5. You will bear the cost of transportation, travel and delivery of the Appliance to and from Residentia
Group or its ASR. If you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from Residentia Group or its
ASR, in all instances, unless the Appliance is transported by Residentia Group or its
ASR, the Appliance is transported at the owner’s cost and risk while in transit to and
from Residentia Group or its ASR.
6. Proof of purchase is required before you can make a claim under this warranty.

Page:
17
User Manual:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
The Australian Consumer
Law requires the inclusion
of the following statement
with this warranty:
Warranty continued
7. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective
parts or workmanship. Residentia Group is not liable in the following situations (which are not
exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions supplied with the
Appliance;
(b) the Appliance is modied without authority from Residentia Group in writing;
(c) the Appliance’s serial number or warranty seal has been removed or defaced;
(d) the Appliance was serviced or repaired by anyone other than Residentia Group, an
authorised repairer or ASR.
8. This warranty, the contract to which it relates and the relationship between you and Residentia Group
are governed by the law applicable where the Appliance was purchased.
9. To the extent permitted by law, Residentia Group excludes all warranties and liabilities (other than as
contained in this document) including liability for any loss or damage whether direct or indirect arising
from your purchase, use or non use of the Appliance.
10. For Appliances and services provided by Residentia Group in Australia, the Appliances come with a
guarantee by Residentia Group that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the
Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The
benets to you given by this warranty are in addition to your other rights and remedies under a law in
relation to the Appliances or services to which the warranty relates.
11. At all times during the Warranty Period, Residentia Group shall, at its discretion, determine whether
repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.
12. To enquire about claiming under this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the terms of this
warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim, Residentia Group and its ASR may
exchange information in relation to you to enable Residentia Group to meet its
obligations under this warranty.
IMPORTANT Before calling for service, please ensure that the steps in point 12 have been followed.
Service: Please call 1300 11 HELP (4357)
Spare Parts: Please call 1300 11 SPARE (7727)

Page:
18
User Manual:
Notes

Page:
19
User Manual:

Page:
20
User Manual:Model Code/s:
EO64M
