Reversi SUPREME DVD-400 N User manual

REVERSO-MANUFACTURING INC.
MANUFACTURERS OF
FIREPLACE EQUIPMENT AND ACCESSORIES
790 Rowntree Dairy Road, Woodbridge, Ontario, Canada L4L 5V3
Tel: [phone] Fax: [phone]
Website: www.reversomfg.com Email: [email protected]
These appliances have been tested and found to comply with the
established standards for GAS-FIRED DIRECT VENT WALL
FURNACES in CANADA and the U. S. A.
CAN1-2.17-M91, CAN/CGA I.R.#41 Section 2.12
ANSI-Z21.88a-1998/CSA2.33a 1998
INSTALLATION AND OPERATING
INSTRUCTIONS
REVERSO "SUPREME" DIRECT VENT FIREPLACES
Multi Sided Direct Vent Fireplace
DVD-400 N (Natural Gas)
DVD-400 P (Propane)
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Refer to this manual. For assistance or for additional information,
consult a qualified installer, service agency or gas utility.
PLEASE KEEP THESE OPERATING INSTRUCTIONS FOR FUTURE REFERENCE
Rev. September 2005
For Your Safety
If you smell gas:
1. Open windows.
2. Don't touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
For Your Safety
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.

2
IMPORTANT: SAVE THESE INSTRUCTIONS
To the new owner:
We at REVERSO MFG. LTD. are pleased that you have chosen one of our products for
your home environment. We would like to take this opportunity to assure you that you
have chosen a top quality product which will provide you with all the warmth and charm of
a wood fireplace at the flick of a switch without any of the fuss and mess you would
normally associate with lighting a wood fire.
You can now enjoy many years of clean burning, trouble free operation, as well as, high
efficiency performance.
At REVERSO we have continued to deliver on our commitment to uncompromising
quality and time proven reliability. We stand proudly behind our entire wood and gas
burning products division, which are industry renowned by the brand name REVERSO
"SUPREME".
The REVERSO "SUPREME", DVD400 series of products incorporates heavy gauge
fireboxes, state of the art safety controls, and leak proof construction, all in an aesthetically
pleasing finished package. When setup correctly, the gas effects flames and glowing
embers bed offer what many people consider to be the most realistic simulated wood fire
available today. Some of the logs even include burn out effects and knot holes which
appear to have burned through and allow flames to lick out.
The logs employed in these units are manufactured with the latest space age ceramic fiber
material which products the glowing effects commonly associated with a wood fire but,
can be used over and over again for many years without showing any signs of wear.
All "REVERSO" products have been tested by Warnock Hersey to the national standards
of the Canadian and American Gas Associations for both safety and efficiency.
The DVD400 series direct vent gas fireplaces are also the most versatile fireplaces
available today, as they are approved for either sidewall or roof top venting and can be

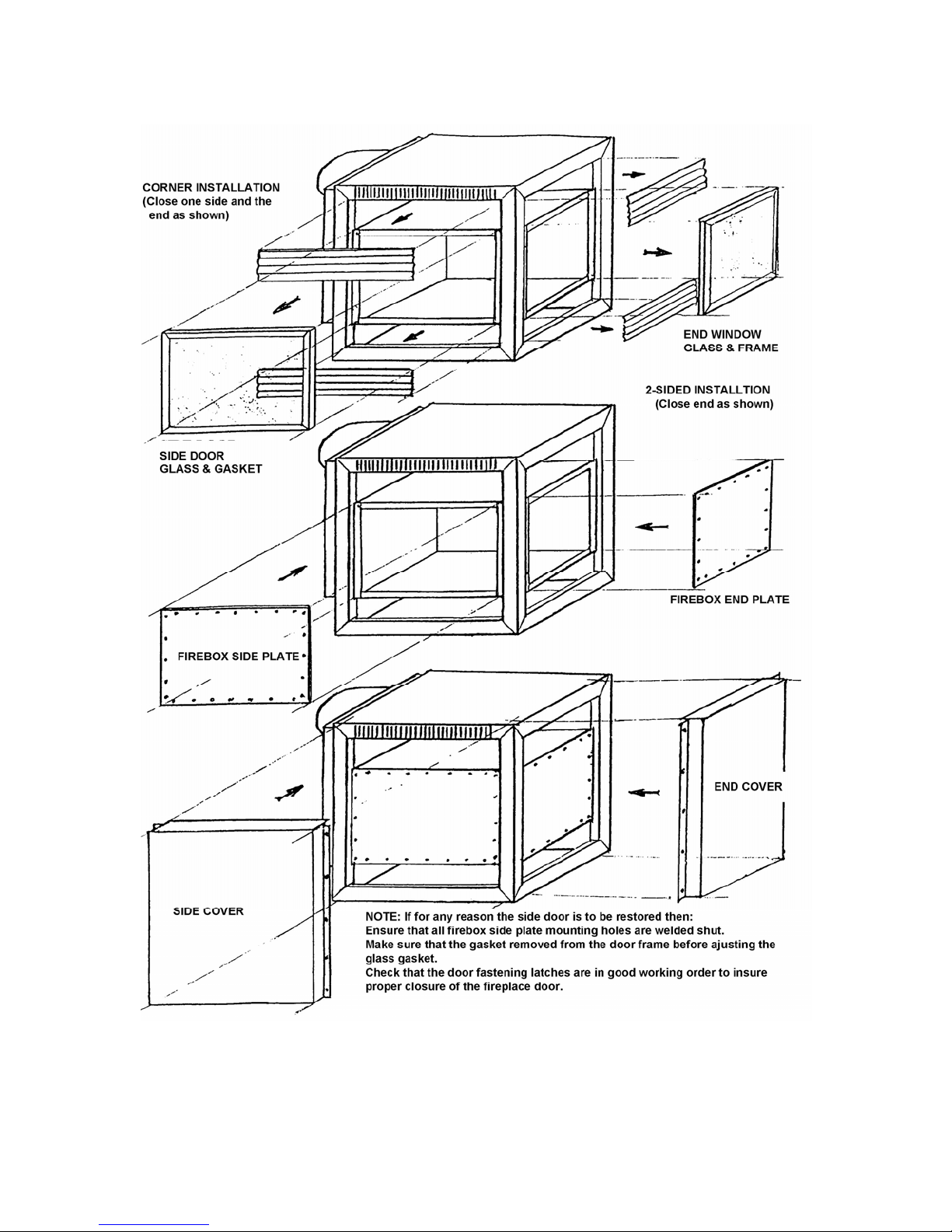

installed as either a freestanding 3-sided or 2-sided peninsula unit or as a corner unit (with
available conversion kit).
Please take a moment now to acquaint yourself with these instructions and the many
features of your new "REVERSO" gas fireplace.

3
GENERAL INFORMATION
All "REVERSO" gas-fired appliances must be installed in accordance with these instructions.
Carefully read all of the instructions in this manual first. Consult the building authority
having jurisdiction to determine the need for a permit prior to commencing the installation.
NOTE: Failure to follow these instructions could cause a malfunction of the fireplace which
could result in death, serious bodily injury, and/or property damage. Failure to follow these
instructions may also void your fire insurance and/or warranty.
FOR YOUR SAFETY
Follow these instructions, local codes and information in CAN / CGA B149 (.1 or .2)
Installation Codes for Gas Burning Appliances and Equipment (in Canada) or (in the U.S.A.)
follow local codes and/or the most current edition of the National Fuel Gas Code ANSI
Z223.1.2
FOR SAFE INSTALLATION AND OPERATION OF YOUR "REVERSO" GAS
FIREPLACE, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION:
PREPARATION FOR INSTALLATION
Remove the packaging from the appliance, and check to make sure there is no damage. In the
event damage is found, please report it to both the carrier and your dealer as soon as possible.
Before beginning, carefully check the glass door and the log set. Check to make sure there is
no hidden damage to the logs or any other component of the appliance.
INSTALLATION INSTRUCTIONS
GENERAL
This appliance should be inspected annually, at least, by a professional service person. It is
important that control compartments, circulating air passages and other components be kept
clean and free from excessive lint from carpeting. Make sure the pilot is turned off before
attempting to service this appliance.
It is a good practice to have all of your gas appliances inspected annually.
Due to high temperatures, the appliance should be located out of high traffic areas and away
from furniture and draperies.
Children and adults should be alerted to hazards of high surface temperatures and should stay
away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance.

4
Clothing or other flammable material should not be placed on or near the appliance.
Always connect this gas fireplace to an approved vent system and vent to the outside of the
building envelope. Never vent to another room or inside a building.
Make sure that the vent is properly sized and is of adequate height to provide the proper draft.
Inspect the venting system annually for blockage and any signs of deterioration.
To prevent injury do not allow anyone who is unfamiliar with the operation to use the
fireplace.
A faint odor and slight smoking will likely be noticed when the fireplace is first used. Open a
window until the slight smoking stops.
Any glass removed for servicing must be replaced prior to operating the appliance.
Thoroughly dean the location that has been chosen for installation of the REVERSO
fireplace.
Ensure that it is level before securing to the floor and connecting the gas.
Take a minute to plan out the best routes for the gas lines and the venting system.
Move the appliance into the exact location where it is going to be installed.
Under no circumstances should this appliance be modified.
Parts that have to be removed for servicing must be replaced prior to operating this
appliance. Only parts supplied by REVERSO should be used in this appliance.
Never use solid fuels such as wood, paper, cardboard, coal, etc., in this appliance.
Always keep the area. around these appliances clear of combustible materials, gasoline or
other flammable vapors and liquids. These appliances should not be used as a drying rack
for clothing or for hanging Christmas stockings or decorations.
SPECIFICATIONS: FOR REVERSO GAS PRODUCTS
GAS-FIRED VENTED WALL FURNACES (CAN/USA) DVD 400 (N)(P)
ALL MODELS ARE SUITABLE FOR INSTALLATION AS FREESTANDING NON-
RECESSED FIREPLACES, FOR INSTALLATION IN BEDROOMS OR FOR ZERO
CLEARANCE INSTALLATION WITH THE OPTIONAL ZERO CLEARANCE KIT'

5
SPECIFICATIONS
The above models have all been certified for use with either Natural or Propane gases,
designated in the model number by the suffix N (Natural Gas) or P (Propane)
Both of these appliances draw all of their air for combustion from the outside of the dwelling
through specially designed vent pipe.
FOR INSTALLATIONS ABOVE SEA LEVEL
In Canada, these appliances are certified for altitudes of 0- 4500'. In the U.S.A., the
appliance must be derated 4°/% for every 1000' above 2000' elevations.
All models are equipped with a variable input gas control which allow reductions in input of
approximately 25%, when heating requirements are lower.
ORIFICE SIZES: NATURAL PROPANE
MAIN BURNER: #49 DMS #57 DMS
FRONT BURNERS: #55 DMS #69 DMS
Manifold Press:("W.C.) 3.5" 10.0"
Mm. Manifold Press: 2.1" 7.8"
Max. Supply Press: 7.0" 13.0"
Min. Supply Press: 4.5" I0.8"
Max. BTUH Input: 24,000 24,000
Min. BTUH Input: 18,000 18,000
STEADY STATE EFFICIENCY: (With Minimum Vent Attached)
FAN OFF: 66% 66%
FAN ON: — —
DIMENSIONS:
Front Width: 36"
Height: 34"
Depth 18" Shipping Weight: 110 lbs.
CLEARANCES TO COMBUSTIBLES: Vent: 1"
(Corner installation with, back closed) Back: 4"
To
p
: 2"
Floor: 0"
Above: 6"

6
TWO SIDED MODEL - CLEARANCES TO COMBUSTIBLES:
As above with 4" clearance to the end of the appliance
Always observe the approved clearance to combustible materials.
ELECTRICAL REQUIREMENTS
No external electrical power supply is required to operate the REVERSO "SUPREME"
DVD400 series if these models have a Millivolt gas control which uses the pilot flame to
generate enough electricity to operate the main burner whenever the manual switch provided
is on.
The DVD400 N/P models may also have a fan delay limit switch mounted in the control
compartment of the appliance. This switch is designed to delay the operation of the fan
until sufficient heat has built up, to avoid uncomfortable drafts and to hold the fan on for
several minutes after the burners have shut-off, extracting all of the usable heat.
When supplied with the optional circulating fan, the appliance does come fully equipped
with a 120 volt household plug which will supply electrical power for the air circulation
fan.
When connected to 120 volts, the appliance must be grounded in accordance with local
codes, with the current version of CSA C22.1 (in Canada) or the National Electrical
Code ANSI/NFPA 70.
Circulation fan: 120V / 60 hz - Variable speed fan.
NOTE: Operation of the fan increases the efficiency and the heat output of the appliance.
LOCATIONS
As noted earlier, these appliances are approved for bedroom installations.
They may be installed on any flat, hard surface combustible or otherwise. They can be
located within the allowable clearances to combustibles against the wall, in a corner or out in
the center of the room if desired. (See diagram # 1)
Don't forget to try to line up the center
point of the flue with an open joist space
above the unit, when planning to vent
vertically.

7
GAS LINE CONNECTION
WARNING: Only persons licensed to work with gas piping
may make the necessary gas connections to this appliance.
The appliance is provided with an opening on both
sides of the control compartment. A 3/8" gas supply pipe must
be brought near this inlet hole, from either the left or right
hand side. It is recommended that a union be provided inside
or close to the control compartment to facilitate easier
servicing.
NOTE: The gas line connection may be made using 3/8"
copper tubing or an approved flex connector. Since some
municipalities have additional local codes, it is always best to
consult your local authorities and the CAN/CGA-B 149 (1 or
2) Installation Code.
For U.S.A. gas installations follow either local codes or the current edition of the National
Fuel Gas Code ANZI.Z223.1

8
GAS PIPE TESTING
The appliance and its shutoff valves must be disconnected from the gas supply piping system
during any pressure testing where the pressure exceeds 1/2 PSIG (3.45 kpa).
Always check for gas leaks with a soap and water solution, after completing the required
pressure test.
NEVER US AN OPEN FLAME FOR LEAK TESTING.
When using copper or flex connectors use only fittings approved for gas connections. The gas
control inlet is 3/8" NPT, therefore the 1/2" rigid gas line must be reduced to 3/8" NPT. A
typical gas line installation layout for rigid pipe is shown on the previous page.
VENTING (COAXIAL 8" AIR INTAKE & 4" EXHAUST)
Kits are available for venting either through the sidewall or vertically through the roof.

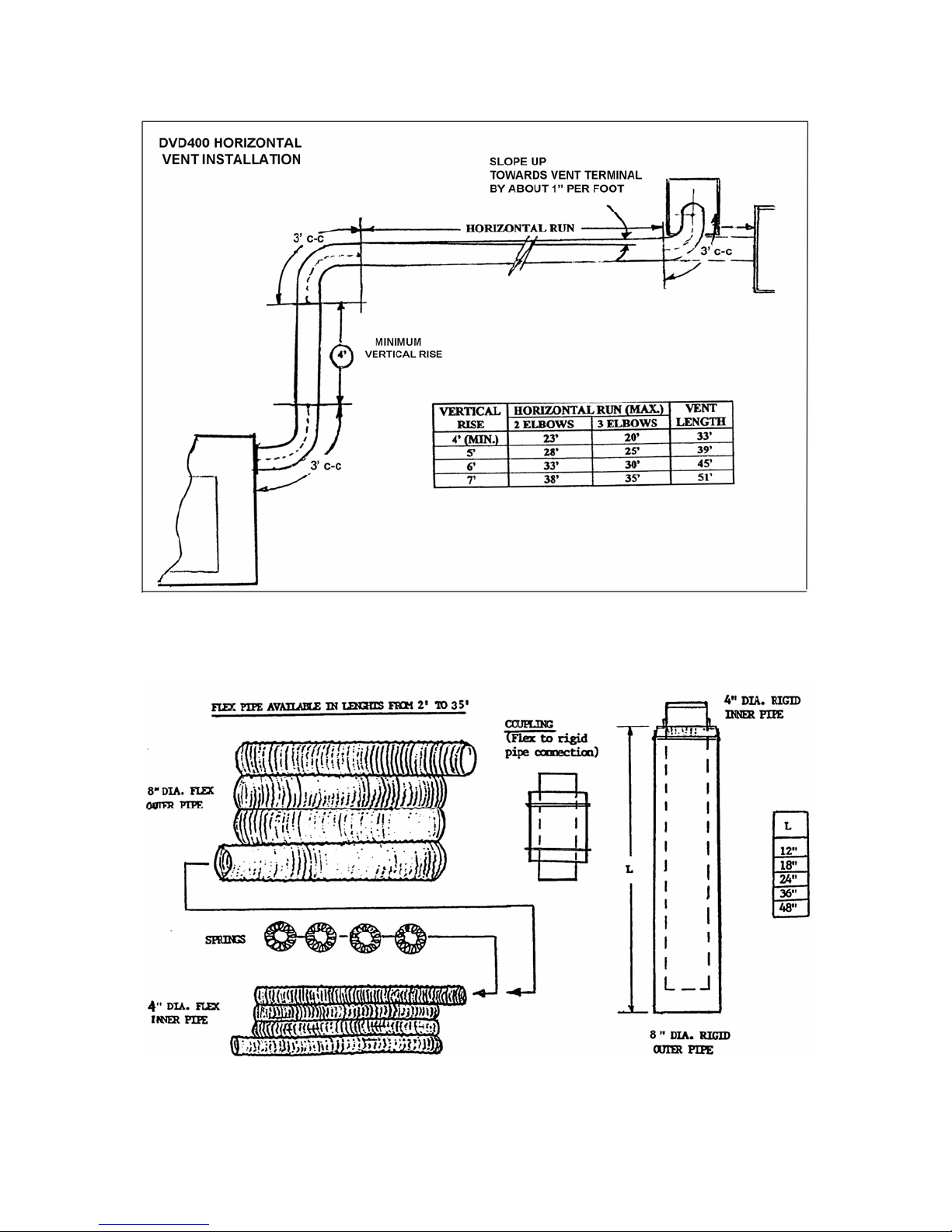

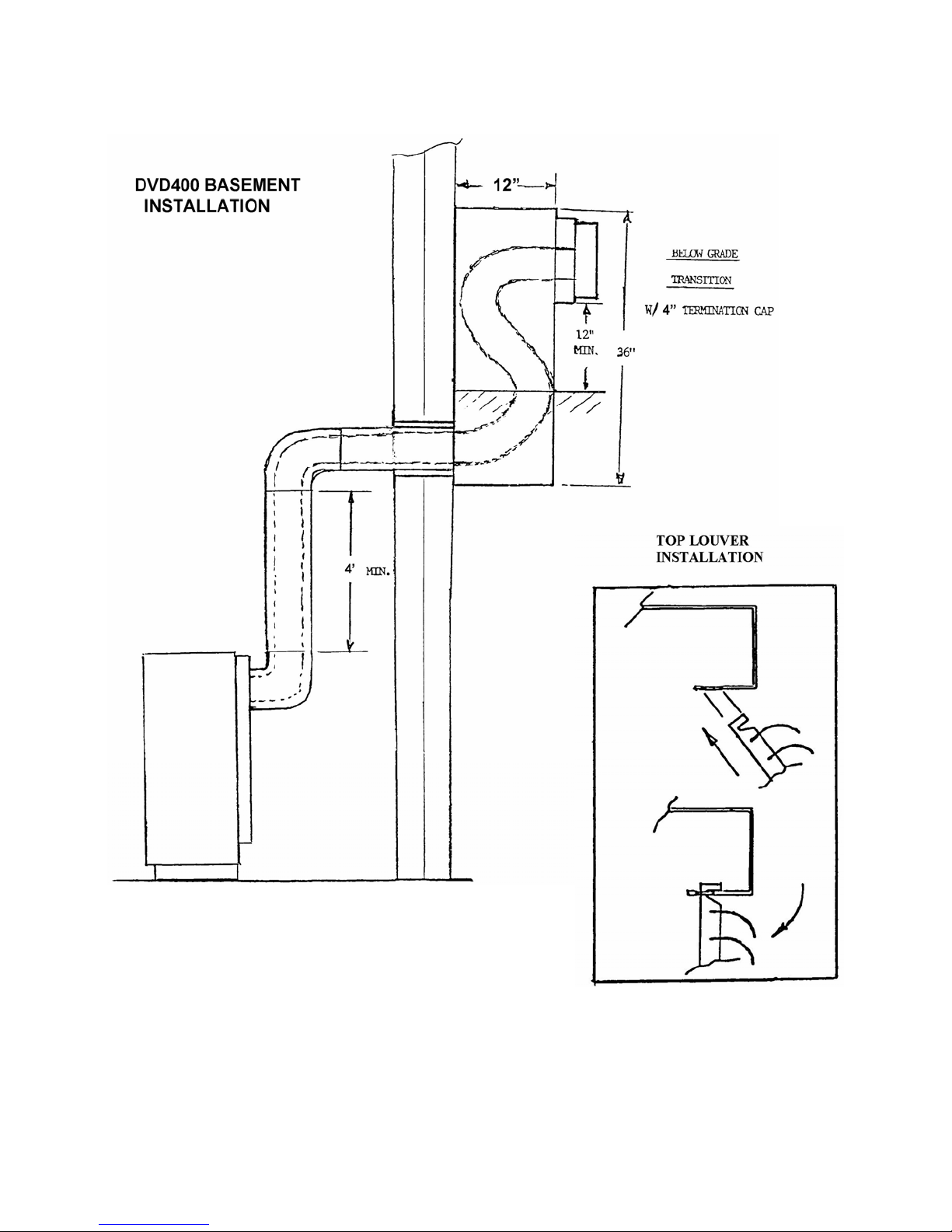

SIDEWALL VENTING
THIS APPLIANCE MUST BE INSTALLED WITH A MINIMUM VERTICAL LENGTH
OF 4' TO THE FIRST 90 DEGREE ELBOW. WITH THIS MINIMUM VERTICAL RISE,
HORIZONTAL RUNS OF UP TO 20' ARE PERMITTED TO REACH THE OUTSIDE
VENT TERMINATION.
FOLLOW THE VENTING INSTRUCTIONS ON THE FOLLOWING PAGES
PRECISELY BEFORE BEGINNING THE INSTALLATION, TAKING CARE TO
ENSURE AN APPROPRIATE OUTSIDE LOCATION FOR THE VENT TERMINATION
CAN BE ACCOMMODATED.

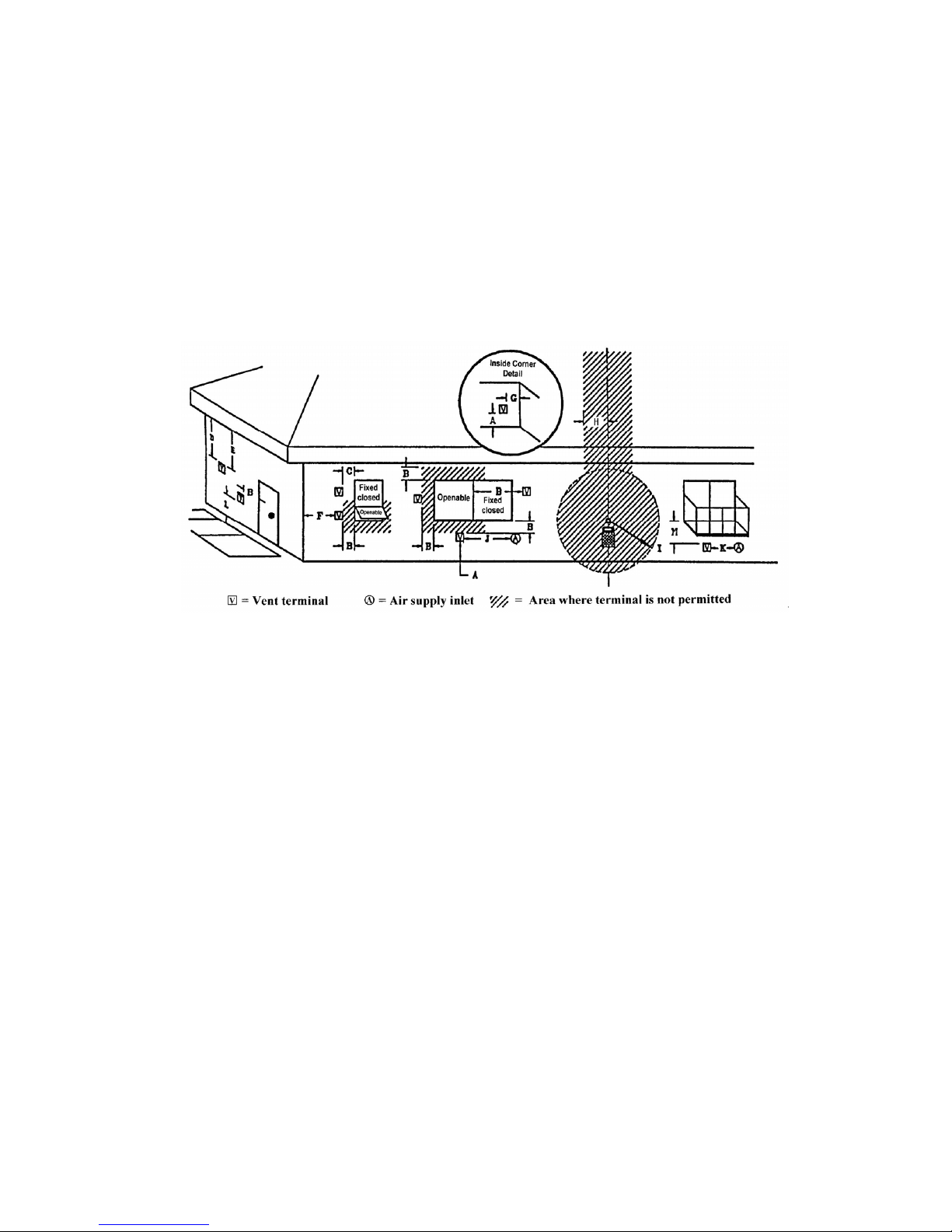

ALSO, TAKE CARE TO REVIEW THE DIAGRAM ON THE FOLLOWING PAGE
WHICH OUTLINES LOCATION LIMITATIONS GOVERNED BY NATIONAL CODE.
Since the Direct Vat is an unpressurized system, it will be sensitive to local conditions such
as elevation, wind conditions, vent location and fuel type utilized. This will affect the overall
appearance of the gas flame.

9
A = Clearance above grade, veranda, porch, deck, or balcony
[*12 inches (30mm) minimum]
B = Clearance to window or door that may be opened
[*12 Inches (30 cm) minimum]
C = Clearance to permanently closed window [minimum 12 Inches (30 cm)
recommended to prevent condensation on window]
D = Vertical clearance to ventilated soffit located above the terminal within a
horizontal distance of 2 feet (60 cm) from the centre -line of the
Terminal [18 Inches (46 cm) minimum]
E = Clearance to unventilated soffit [12 Inches (30 cm) minimum]
F = Clearance to outside corner [12 Inches minimum]
G = Clearance to inside corner [12 inches minimum]
H = * Not to be Installed above a meter/regulator assembly within 3 feet (90
cm) horizontally from the centre line of the regulator
I = Clearance to service regulator vent outlet [* 6 feet (1.8 m) Minimum]
J = Clearance to non-mechanical air supply inlet to building or the
combustion air inlet to any other appliance [12 Inches (30 cm)
minimum]
K = Clearance to a mechanical air supply Inlet [* 6 feet (1.8 m) minimum]
L = ***Clearance above paved side-walk or paved driveway located on
public property [* 7 feet (2.1 m) minimum]
M = Clearance under veranda, porch, deck, or balcony [*12 Inches (30 cm)
minimum **]
*** A vent shall not terminate directly above a side-walk or paved driveway which is located between two single family dwellings and serves both dwellings *
** Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of 2 sides beneath the floor *
* As specified in CGA B149 installation Codes (1991) Note: local Codes or Regulations may require different clearances

10

11

12

13

14

15
INSTALLATION OF THE LOG SET
The log set (2 long fiber logs and 4 shorter ceramic logs) for the DVD400 is included in the
master carton.
Check to ensure that there is no damage to any of the logs.
It is very important to install these logs in their proper position to ensure safe operating
conditions.

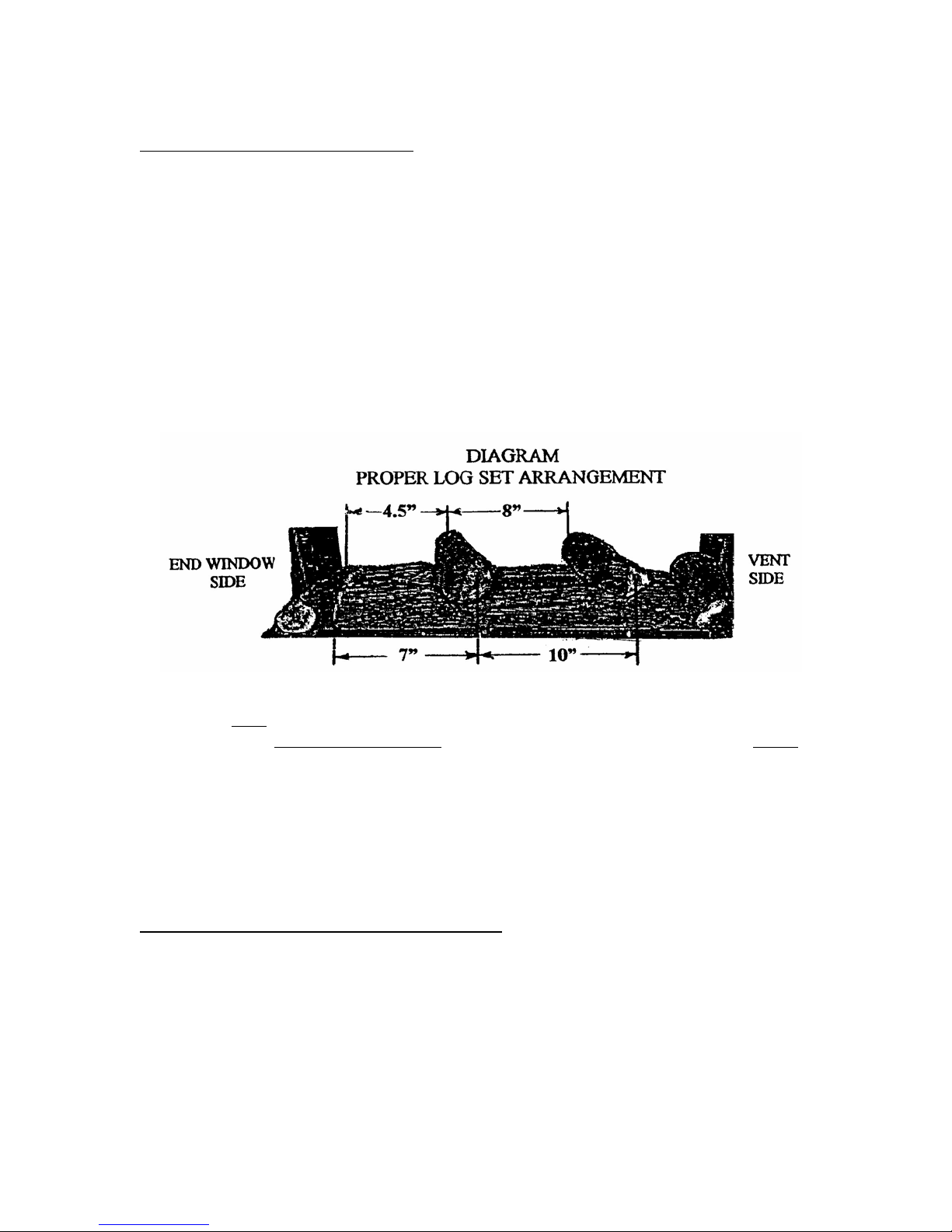

Make sure that the logs are not placed directly in the burner flame. SEE THE FOLLOWING
LOG PLACEMENT DIAGRAM :
WARNING : Dangerous operating conditions may occur if these logs are not positioned in
their certified locations.
1. Open the front (vent on right hand side) door by lifting the tabs on the easy-latch door
fasteners. Then, while holding the door, unfasten the latches. Swing the door down gently
until it rests on a supporting surface.
2. Remove the logs carefully from their packing.
3. Place the bottom fiber logs on the log holding surface beside the main burner. Make sure
that the notch at the end of the log clears the front burner .
4. Place the four top logs as shown in the diagram above.
Slight repositioning of the logs may be necessary after the appliance is turned on and the
exact flame location is visible.
INSTALLATION OF THE GLOWING EMBERS
CAUTION : Use only the amount (Log for each burner) and type of ember material supplied
for this appliance. The use of other materials on the burners can create dangerous conditions.
If over time, through cleaning and servicing, these embers require replacement please contact
your nearest REVERSO dealer for an approved ember replacement kit.

16

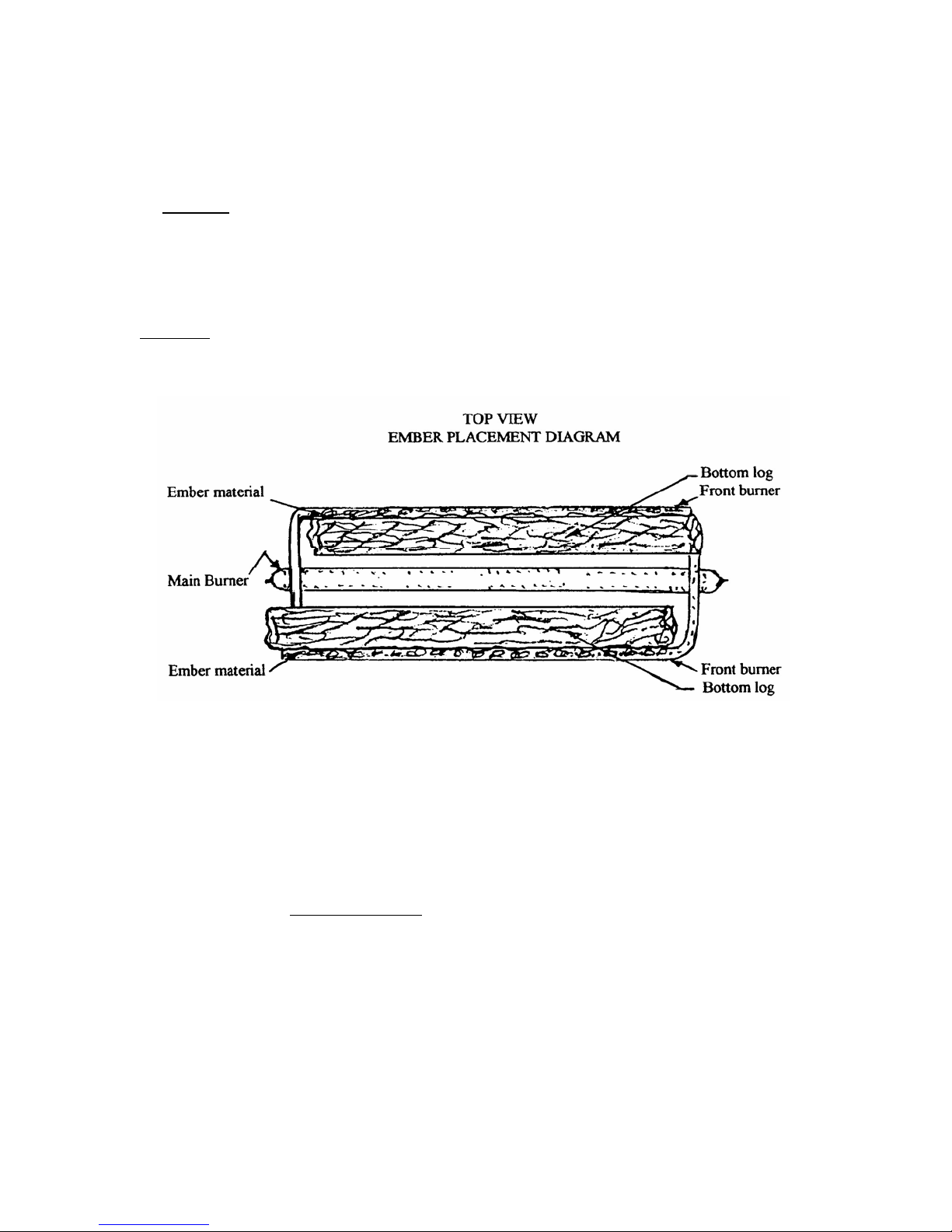

1. Gently remove the ember material from the plastic bag(s).
2. Spread small pieces evenly along the length of the bottom log, behind the front burner.
Repeat this procedure for the other front burner.
3. Carefully avoid any clumping or large buildups and do not place on top of burner holes.
4. DO NOT place embers on the main burner.
5. Upon the first light up watch for smooth and fast ignition to all burner ports. If a long
delay is observed then : a) First, wait for the appliance to cool down. b) Open the door(s)
of the appliance. c) Carefully reposition the embers at the point of the delay. d) Check to
ensure that no burner ports are plugged solid.
CAUTION : NEVER OPERATE THIS APPLIANCE WITH THE DOOR(S) OPEN
CARE OF YOUR GLASS DOOR ASSEMBLY
It will be necessary to clean the glass periodically.
During a cold start up condensation will sometimes form on the glass.
This is a normal condition with all gas fireplaces and stoves.
However, sometimes this condensation can allow dust and lint to cling to the glass surface.
Also, sometimes the initial paint curing of the appliance can leave behind a slight film on the
glass. This is only a temporary problem.
It is therefore recommended that the glass be cleaned initially after about two weeks of use.
After that, depending upon the amount of use, cleaning should be required no more than two
or three times per season. To clean the door, use a mild cleaner (i.e. Windex, Fantastic) and a
soft cloth. Abrasive cleaners will damage the protective coating.
ROUTINE MAINTENANCE WARNING:
Improper installation, adjustment, alteration, servicing or maintenance can result in personal

17
injury and property damage. Always refer to this manual for normal maintenance
requirements. For further assistance or additional information consult a qualified gas
installer; your REVERSO MFG. dealer or your local gas supplier.
This appliance must not be operated if it or the gas controls have been under water. Contact a
qualified gas technician for service before attempting to operate.
This appliance should be serviced regularly, to ensure continuing safety and efficiency
contact a qualified technician at least annually.
For cleaning, turn the gas control knob to the "OFF" position. This will extinguish the pilot
flame. Wait at least five (5) minutes before cleaning.
NOTE: This appliance is equipped with Neo Ceram Glass which can only be broken by a
significant impact or misuse.
FOR CLEANING THE INSIDE OF THE FIREBOX
Gently remove the embers and place on a piece of paper towel until ready to replace.
Remove the logs carefully from the combustion chamber and vacuum the burner
compartment thoroughly. Vacuum any dust on the logs and remove any lint from the main
burner and pilot burner.
After carefully replacing the logs and ember in their correct positions, and resealing the door,
relight the pilot following the instructions on the attached label, and turn on the main burner.
1. Check to ensure that all burner ports are list and burning properly.
2. Check to ensure that the right branch of the pilot flame is engulfing the thermocouple tip,
while the left branch of the pilot flame is engulfing the thermopile and the other branch is
long enough to light the rear main burners.
3. Check to ensure that the main burner lights instantly when the on switch is turned on and
that the flame carries across to the front burner fairly evenly.

18
REVERSO DVD400 OPTIONS
1- FIREFLICK REMOTE CONTROL KIT
2 -WALL THERMOSTAT
3 -VARIABLE SPEED BLOWER
4- ROOF OR SIDEWALL VENT TERMINAL
5- PROPANE OR NATURAL GAS CONTROLS
6 -ZERO CLEARANCE KIT
7- GOLD PLATED TRIM KIT
8- GOLD PLATED DOOR KIT
REPLACEMENT PARTS LIST
1- PILOTASSEMBLY
2 - PIEZO IGNITOR
3 - FRONT BURNER
4 - MAIN BURNER
5 - TOP LOG
6 - BOTTOM LOG
7 - GAS VALVE
8 - DOOR GLASS
9 - END GLASS
10 - BLOWER
11 - SPEED
CONTROL
For repairs contact a licensed, recognized service agency. For
spare parts contact your authorized REVERSO dealer.

19

20
