Reverso DTP-50 User manual

Diesel Tech Polisher
INSTRUCTIONS
Part # Model Voltage Amp Fuse
83-1000-01 DTP-50 12V 2.7A 10A
83-1001-01 DTP-90 12V 5A 10A
83-1002-01 DTP-125 12V 7.5A 10A

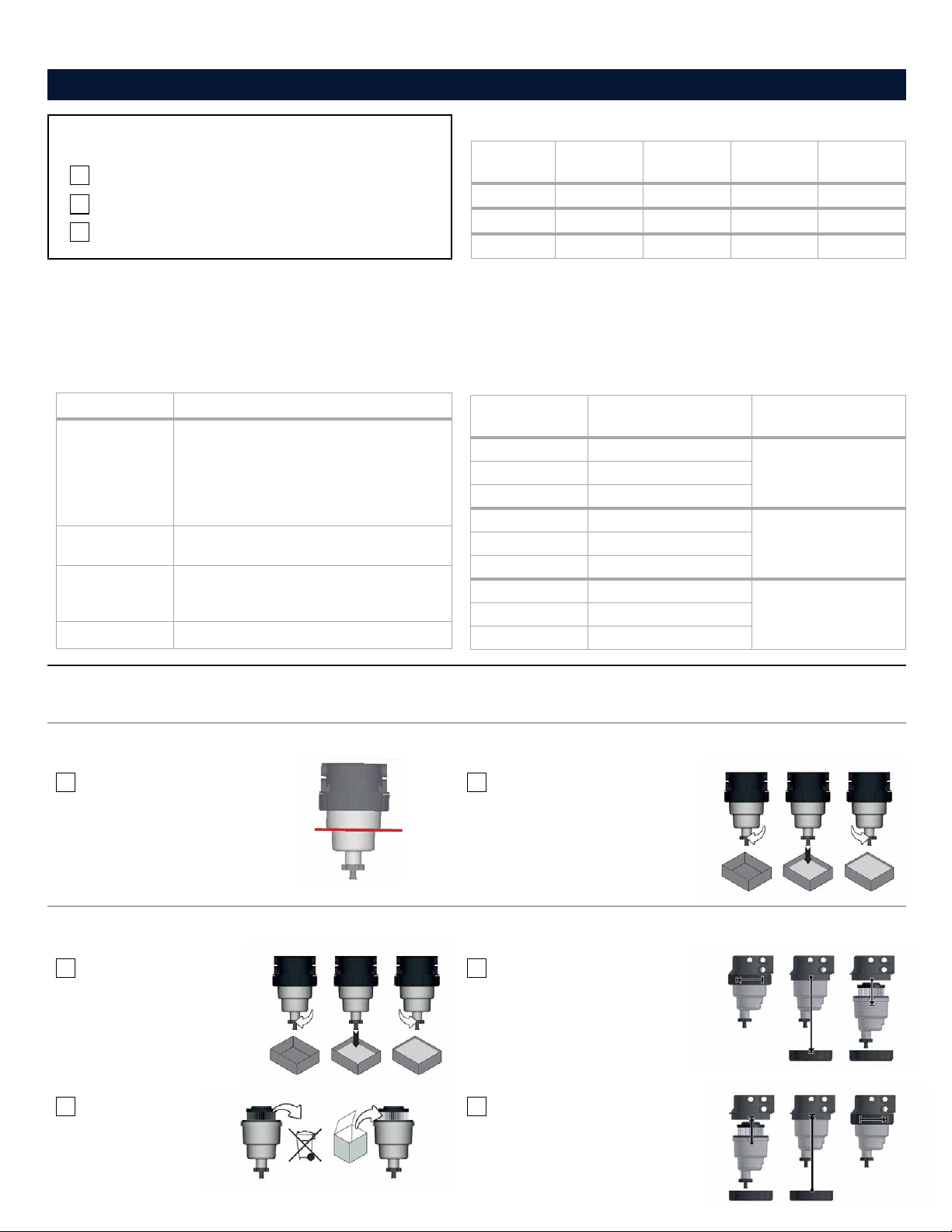

Quick Operation Guide Models
Model DTP-50 and DTP-90 Service the lter only while the system is off.
Draining The Filter
1
1 2
2
3
Insert suction and return hose into the tank.
Connect battery clips to power.
Drain water and disconnect after use.
Operation Notes
• Do not run pump dry.
• Do not operate unattended.
• For diesel fuel only. Not for use with gasoline.
Visually check the water
level regularly. The lter
must be drained when the
water reaches maximum
level, or when the pumps
like it’s straining.
Twist the valve left to drain.
Twist right to close, and
dispose appropriately.
MAX
Spare Parts
Part # Replacement
Elements Models
87-1961 10 micron
DTP-3-12
DTP-3-24
87-1962 6 micron
87-1963 3 micron
87-1960 10 micron
DTP-8-12
DTP-8-24
87-1964 6 micron
87-1965 3 micron
58-01010 10 micron
DTP-10-12
DTP-10-24
58-01030 30 micron
58-01060 60 micron stainless
Troubleshooting
Issue Possible Causes and Action
Low / No Flow
• Check if suction hose is stuck to the
bottom of tank.
• Verify voltage and fuse.
• Prime the pump and lter.
• Pump is worn. Inspect gears.
• Air leak. Inspect lines and seals.
Rapid pump
wear
• Pump has been run dry. Ensure
sufcient fuel supply.
Noisy operation
• Ensure sufcient fuel supply.
• Air in the suction hose. Check hose is
submerged in the fuel or check for leak.
Electrical • Verify voltage and fuse.
3Dispose of the used
element and insert
new element.
4Assemble container and
bayonet ring.
The system is ready for use.
Replacing The Element
1Visually check the
condition of the element
regularly. Empty the lter.
2While holding the container,
loosen bayonet ring with a
quarter-turn and remove.

Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Version 12/10/2021
Model DTP-125 Service the lter only while the system is off.
Draining The Filter
Replacing The Element
1
1
7
2
2
8
4 5
5
11
6
12
3
3
9
4
10
Loosen the bleed
screw on the lid by
two rotations.
Loosen the central
tightening screw on
the cover.
Insert new
element.
Pull the handle
of the drain valve
towards you
and open it by
a quarter-turn
counterclockwise.
Turn it until it
reaches the
stop position.
Put the spring
frame back in
position.
Close the drain
valve by turning
the handle
clockwise until it
snaps into place.
Tighten the bleed
valve on the lid.
The system is
ready for use.
Remove the
spring frame.
Check for correct
location of the
lid and the lter
head.
Pull out the
used element
by the handle,
and dispose
appropriately.
Turn the central
tightening screw
back on the
cover. System is
ready for use.
Drain the water and leave the bowl lled with
diesel fuel only.
Release the
lid with gentle
pressure and rotate
counterclockwise to
free it of the bayonet.
Put the lid and
cover back in
position.
Remove the
lid and cover
from the lter
housing.
Reset the cover
with a gentle
downwards
pressure and
turn clockwise.
