Reverso FPS-150 User manual

Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Manual
FPS- 150

Table of Contents
System Overview............................................................................... 1
Control Panel Overview..................................................................... 2
Technical Specications .................................................................... 3
Electrical and Installation................................................................... 4
Tank Diagrams................................................................................... 5
Initial Setup........................................................................................ 6
Digital Timer Instructions: Set Date and Time ................................... 7
Digital Timer Instructions: Set Schedule Timer.................................. 8
Digital Timer Instructions: Set Manual Timer..................................... 9
Digital Timer: Alarms........................................................................ 10
Backushing Instructions................................................................. 11
Filter Element Replacement ............................................................ 12
Troubleshooting............................................................................... 13
Reverso Pumps, Inc
201 SW 20th Street, Fort Lauderdale, FL 33315
Ph: [phone] | Fax: [phone]
The information herein is the property of Reverso Pumps, Inc. Without written permission, any copying,
transmitting to others, and other use except for which it is loaned is prohibited.

3
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
System Overview
1. Control panel
2. Cover (pump underneath)
3. Outlet (under cover)
4. Fuel/water separator (may include vacuum gauge)
5. Inlet
6. Water sensor (may be included)
7. Drain valve - Push in and turn counter-clockwise
to open
8. Digital timer
9. Power indicator light
10. Power switch
11. Service lter indicator light
12. Circuit breaker
13. Reset button
1
2
8
3
4
6
5
10
12
13
7
9
11
Previous Version of Digital Timer
and Control Panel

4
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Control Panel Overview
1. Power button
2. Digital timer
3. Manual timer mode button
4. Circuit breaker
5. Start button
6. Alarm reset button
7. Power on light - indicates when
system is on
8. Service system light - indicates
an alarm has been triggered and
user must service the system
9. Pump active light - indicates fuel
polishing system is running
10. Manual timer mode active light
- indicates system is operating
in manual timer mode (not
schedule timer mode)
11. Left key
12. Up key
13. Right key
14. Down key
15. OK key
16. Escape key
Control PanelDigital Timer
15
6
7
8
9
10
2
3
4
Control Panel
Digital Timer
ESC OK
M - W - F - -
MTWTFSS
11:00
15:00
ON
OFF
16 15 14
11 12 13

5
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Technical Specications
Flow Rate Approximately 150 GPH (567.8 LPH)
Circuit Breaker 10A@12V, 5A@24V
Service Space 4” on top and bottom, to facilitate changing filter elements and
draining water and particulate from the bowl
Pump Brass Gear stainless shaft
Max. Lift 5 ft. (1.52 m) vertical lift (lines>1/2”)
Timer Digital or mechanical timer
Inlet 1/2” male JIC flare fitting
Outlet 1/2” male JIC flare fitting
Filter Torque Values Bowl Retainer Ring 8 Nm (105 in-lbs)
Lid 8 Nm (105 in-lbs)
Bleed Screw 6 Nm (53 in-lbs)
• The system has been developed to be used with diesel fuel only, DO NOT USE WITH GASOLINE.
• The system is designed to meet environmental standards for safe operation (NOT for use with uids that have a
ash point below 135°F (38°C), e. g.: Gasoline, alcohol, aviation fuels...)
Warning

6
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Electrical and Installation
Primary Inspection
• Upon delivery inspect the FPS (Fuel Polishing
System) for any damage that may have occurred
during shipment.
• Inspect the interior of the unit for mechanical or
electrical damage.
• If the unit is damaged upon delivery, contact the
shipping company immediately.
Mounting
• The FPS should be wall mounted on a hard, vertical
surface capable of supporting the weight of the unit.
• The control electronics are enclosed in a NEMA 4
weather proof box and will withstand being located
outside.
• In all cases the unit should be located as close as
possible to the tank being serviced. (see Max. Lift in
Technical Specications).
• When installing the unit below the level of the fuel
on above ground fuel tanks, consideration should
be made to the installation of an anti-syphon valve
to prevent fuel spillage in the case of a leak in the
piping system.
Electrical
• Installation of unit should only be performed by
qualied installation personnel who have thoroughly
read and understands the installation instructions
covered in this manual.
• To avoid the risk of electric shock, make sure that
the power supply is disconnected. Ensure that the
power supply is at zero volts with a multimeter before
making any electrical connections.
• To ensure operator safety the FPS must be
connected to properly grounded power sources.
• Make sure that your unit and power supply are
congured for the same voltage rating.
• External control voltage must be supplied by
customer.
Piping
Use quality approved fuel line materials with at least
1/2” inner diameter line. Smaller plumbing will place
excessive load on the motor and shorten its life. A
full port ball valve should be installed on the inlet and
outlet ports of the FPS.
The pickup line(s) (suction) should originate from the
lowest point of the tank and should be connected
directly to the inlet. For optimal performance, ensure
that this line is free and nothing is restricting ow. It is
recommended to install a foot valve to keep the system
primed, especially if the system is located above the
lowest possible fuel level in the tank.
If the FPS is mounted below tank top level, a priming
tee should be installed on the highest point of the
suction line to be able to easily prime the systems
suction line.
The return line(s) (discharge) should be connected to
the outlet and enter the tank as far as possible from
the pick up tube and extending 2/3 down into the
tank. For optimal performance, ensure that the outlet,
discharge or return, line(s) are free and nothing is
restricting their ow.
The suction line of the FPS must be independent and
separate from the suction line of the engine. Do not
integrate into engine fuel system.
When installing this unit, FLEXIBLE CONNECTIONS
MUST BE USED TO REDUCE STRESS on the
plumbing and prevent damage to the unit.
Refer to Diag. 2 on next page.

7
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Tank Diagrams
Diag. 2
Hoses, piping, solenoid valves and foot valves shown in the diagrams below are not provided with the system and
must be provided by the user/contractor, unless agreed upon otherwise.
Single Tank Diagram
Diesel Fuel
Pick-Up Tube
Return to Tank Tank Vent
Moist
Air
Lowest Point
Of Tank
Accumulated
Water Sludge
Flow In
Flow Out

8
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Initial Setup
Open the fuel supply valve.
Prime fuel system and
check for leaks.
in.Hg psi


 




 
 

Set gauge pressure indicator
(red needle) slightly to the
left of the black needle prior
to operation.
The gauge will indicate
maximum vacuum pressure
during system operation.
Press start button.
Power on indicator will be lit.
If in manual timer mode, pump will immediately
begin running.
If in schedule timer mode, pump will only begin
running if within programmed date/time to run.
Verify the pump is operating by checking vacuum
gauge located on the lter. Gauge will be reading
0-5 in-Hg of vacuum.
• Must press manual timer mode button to
activate / deactivate.
• Manual timer mode light will be ON.
• Pump will start upon pressing the start button.
• Pump will automatically shut off after the
preset run time.
Operate in this mode if system will run one set time.
If the system is equipped with a mechanical timer, turn timer knob clockwise to desired number of hours for operation.
If the system is equipped with a digital timer, choose timer mode if available. You may have previous verison (circular
digital timer).
Operate in this mode if system will start/stop
automatically on the programmed days of the
week and times.
• Must press manual timer mode button to
activate / deactivate.
• Manual timer mode light will be OFF.
• Pump will automatically start and stop
according to the preset date and time.
in.Hg psi
-10
-20
-30 15
-10
5
0
0
-50 50
-100 100
KPa
-
-5
-5
When the indicator reaches
15 in-Hg, it is time to drain or
change the lter element.
The same procedure is
necessary if the water level
reaches 30% of the clear bowl.
1 2
3
4 5
Manual Timer Mode Schedule Timer Mode

9
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Digital Timer Instructions: Set Date and Time
ESC OK
Th 19:35
2012-01-26
The current date and time is displayed. Time is shown
as 24 hr clock. Date is shown YYYY-MM-DD.
Press ESC key.
Select Set Clock option and press OK key to continue.
Use the DOWN arrow to move the cursor to Set.. option.
Press OK key to continue.

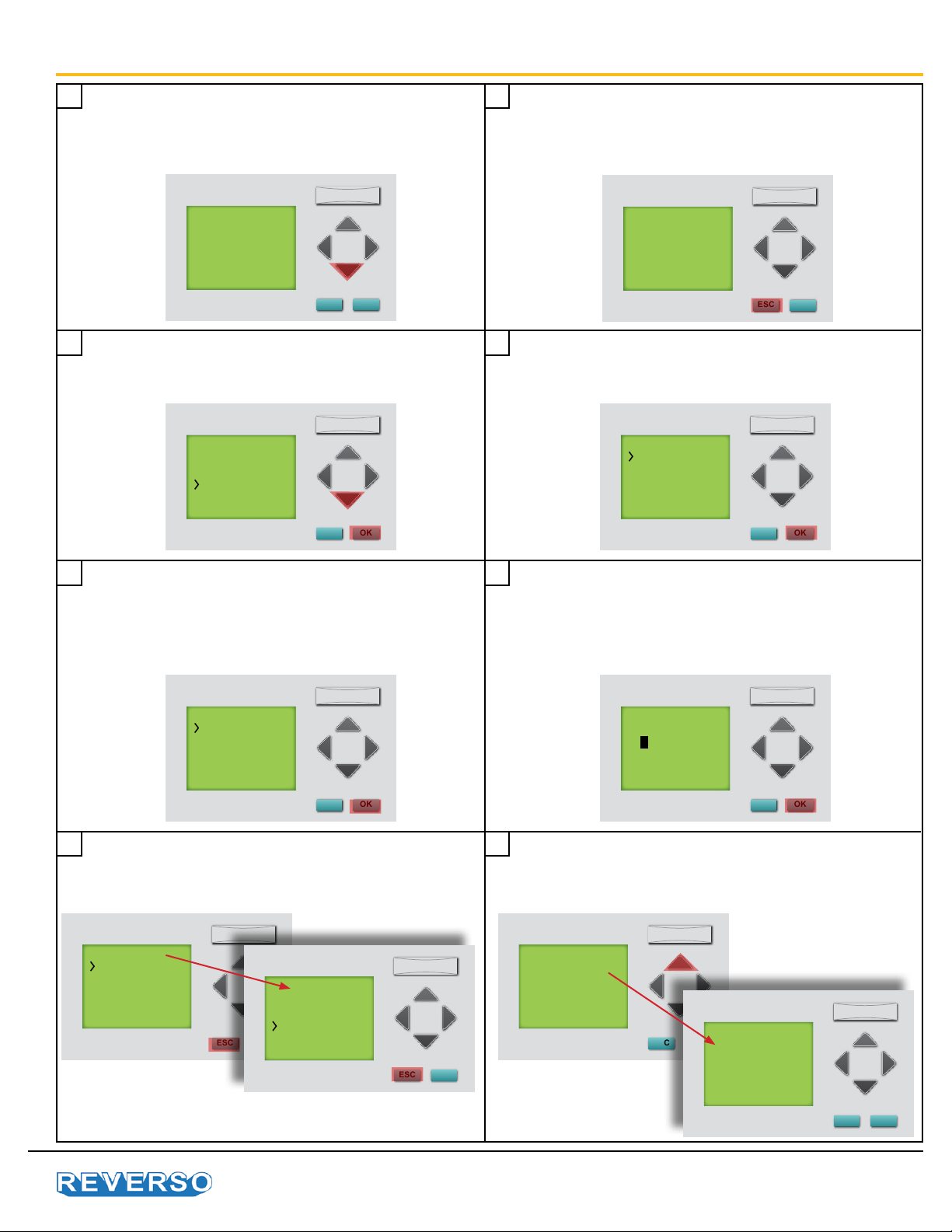

Starting at the program screen, press DOWN key to
view current time screen.
Flashing black box indicates your selection. Use
LEFT/RIGHT key to move selection. Use UP/DOWN
key to change date and time. Press OK key when
nished and to return to previous menu.
Select Clock.. option. Press OK key to continue.
1 2
3 4
5 6
Press ESC key. Press ESC key again to return to
current time screen.
Now shown is the current time screen. Press UP
key to return to program screen.
7 8
ESC OK
MTWTFSS
MTWTFSS
11:00
15:00
ON
OFF
ESC OK
Th 19:35
2012-01-26
ESC OK
Stop
Set Param
Set..
Prg Name
ESC OK
Clock..
Contrast
Start Screen
ESC OK
Set Clock
S/W Time..
Sync
ESC OK
Set Clock
S/W Time..
Sync
ESC OK
Set Clock
Th 19:35
YYYY-MM-DD
2 0 1 2- 0 1 - 2 6
ESC OK
Stop
Set Param
Set..
Prg Name
ESC OK
MTWTFSS
MTWTFSS
11:00
15:00
ON
OFF

10
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Digital Timer Instructions: Set Schedule Timer
ESC OK
MTWTFSS
MTWTFSS
11:00
15:00
ON
OFF
1 2
3 4
5
7
6
8
A. Ensure the breaker is ON.
B. Move the red power switch to the ON position and
power indicator light is on.
C. Ensure timer mode is switched to Schedule Timer.

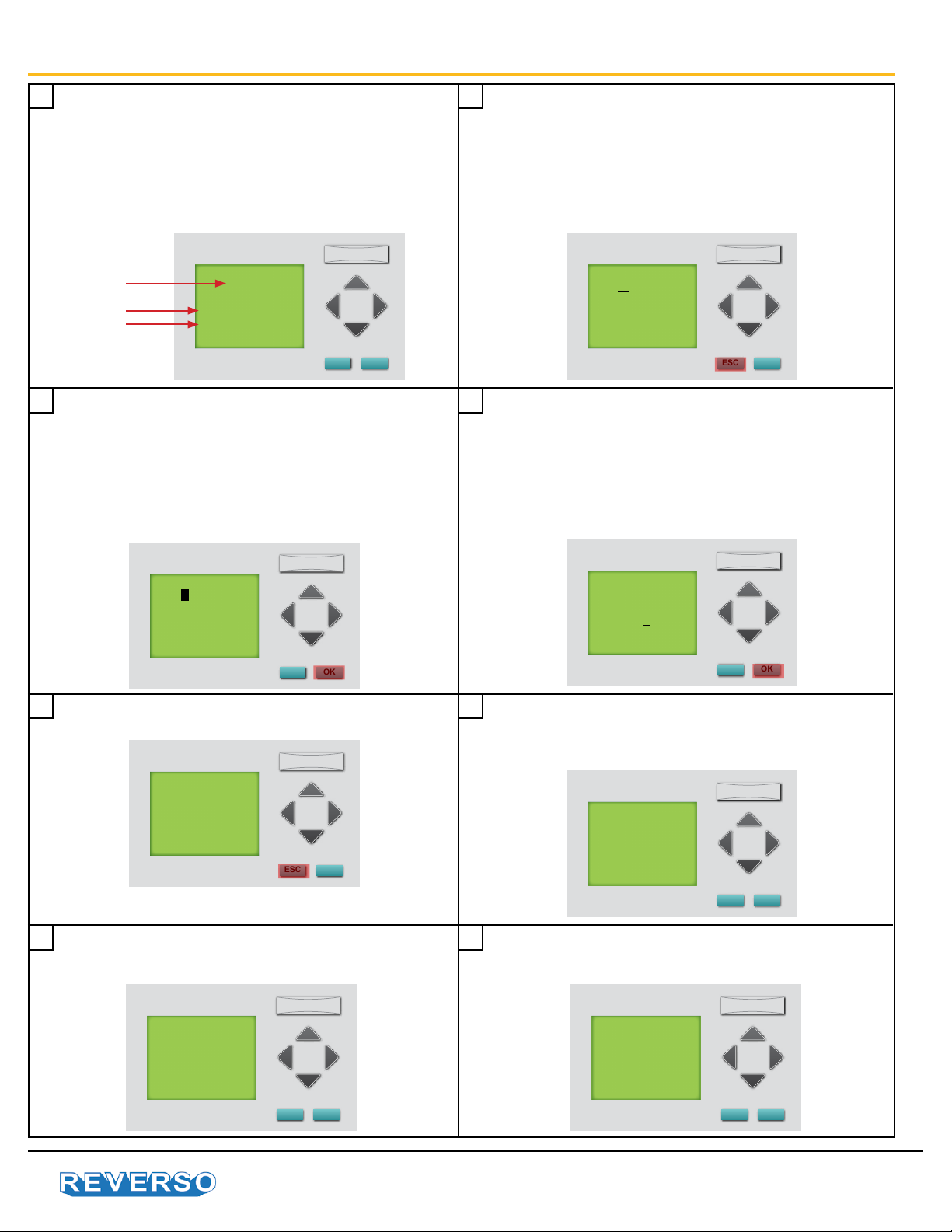

Change the run days
With the ashing underline in the days row, press the
OK key until ashing box appears. Use the LEFT/
RIGHT key to move between days. Use the UP/
DOWN key to program run days. A dash(-) indicates
the system will not run on that day. Press OK key when
nished and the cursor will return to ashing underline.
Press ESC to save. Flashing underline will disappear.
Every 5 seconds, screen will request user to push
Start button to activate pogram.
Hold the ESC key until ashing underline appears
under the rst day of the week. This ashing
underline indicates your selection. Use the LEFT/
RIGHT keys to move between the dates, start time,
and stop time.
When using this method, follow sequence
exactly or damage to program can occur (non-
warrantable situation).
Change the run time
With the ashing underline in the days row, use the
LEFT/RIGHT key to move to start time (ON).Press OK
key until ashing box appears. Use UP/DOWN key
to change time. Press OK key when nished and the
cursor will return to ashing underline. Repeat with
stop time (OFF).
Setting the schedule timer is nished. In this example,
system will run on Monday, Wednesday and Friday.
System will start at 8:00 am and stop at 2:00 pm.
Afterwards, every 5 seconds screen will indicate the
schedule timer is active.
Stop Time
Start Time
Run Days
ESC OK
MTWTFSS
MTWTFSS
11:00
15:00
ON
OFF
ESC OK
M- W - F - -
MTWTFSS
11:00
15:00
ON
OFF
ESC OK
M - W - F - -
MTWTFSS
08:00
14:00
ON
OFF
ESC OK
M - W - F - -
MTWTFSS
08:00
14:00
ON
OFF
ESC OK
M - W - F - -
MTWTFSS
08:00
14:00
ON
OFF
ESC OK
Automatic
Timer
Active
ESC OK
To Activate
Push the
Start
Button

11
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Digital Timer Instructions: Set Manual Timer
ESC OK
Manual
00:00
10:00
CURR
SET m
ESC OK
Manual
00:00
10:00
CURR
SET m
Use RIGHT arrow key to move underline to
program time (SET).
Flashing box will return to ashing underline. Press
ESC to save. Flashing underline will disappear.
Press and hold ESC key until ashing underline
appears. This indicates your selection.
Press OK key and ashing box appears.
Use UP/DOWN key to change time. The “m” indicates
minutes and can be changed to “h” for hours.
When nished, press OK key.
In the screen shown below, the system is set to run for
20 minutes and will stop once the time has expired.
Top row indicates current time.
Bottom row indicates program time.
Program time
Current time
1 2
3
5
4
6
ESC OK
Manual
00:00
10:00
CURR
SET m
ESC OK
Manual
00:00
20:00
CURR
SET m
ESC OK
Manual
00:00
20:00
CURR
SET m
ESC OK
Manual
00:00
10:00
CURR
SET m
Manual
00:00
10:00
CURR
SET m

12
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Digital Timer: Alarms
Backushing procedure can be executed up to 5 times
before replacing the lter element.
There are three different alarms installed in the unit.
If one of the alarms should sound: De-energize system when servicing unit.
1. Follow the directions displayed on the screen.
2. Press RESET/STOP button
3. Wait at least 2 minutes, then press START to restart the unit.
If you have successfully cleared the alarms, the unit should restart.
ESC OK
HI-WATER
DRAIN BOWL
ESC OK
HI-VAC
BACK FLUSH
FILTER
High Water Alarm
High Vacuum Alarm

13
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Previous Version Digital Timer: Set Schedule Timer
1
Set Current Date and Time
Press and hold CLOCK key.
Press DAY key until current
day is displayed. Repeat
using HOUR and MIN key
to set the time. Release
CLOCK key.
Set Programs
Press TIMER key. “1 ON”
will appear in the left of
screen. This is the rst
program that you want
the device to turn on.
Press DAY key to select
the day(s) you would like
this program to run. There
are 15 different choices.
When the one you require is
displayed, stop pressing the
DAY key. Press HOUR key
to set the hour. Press the
MIN key to set the minute.
Press TIMER key; “1 OFF”
is displayed in the left
of the screen. Follow
the instructions in the
previous step to set the
desired days and times
you want Program 1 to
turn off.
Press TIMER key again to
now set the second program
you want the device to run.
“2 ON” will appear in the left
of the screen. Repeat the
same procedure to set as
many of the 8 programs as
you would like.
Press TIMER key to advance the display and view
each on and off setting. Double check the dates and
times displayed. To make any changes, follow the
previous steps.
When nished, press CLOCK key and timer will start
to execute programs.
Manual Operation
The line above ON/AUTO/
OFF indicates which mode is
operating. Press the MANUAL
key to select ON/AUTO/OFF
mode. ON mode will turn
the device on. The red ON
indicator light will be on if the
unit is operating. AUTO mode
will begin the programs you
have previously set. OFF will
turn off the device.
Replace the Battery
Remove the control box
cover. Use a coin to
remove battery cover on
the back of the timer. Lift
the battery out with a at
head screwdriver. Install
new battery. Replace
battery cover and then
control box cover.
2
3 4
5 6
7 8

14
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Backushing Instructions
1
2 3
4
4
5
6 7
Prior to servicing the lters, ensure that the engine is OFF.
Backushing is for particulate removal only and will not remove sludge once embedded in the lter media.
Turn the system off and shut off the fuel
supply valve.
Open the bleed screw located at top of lter
lid by slightly unscrewing it.
This will break the vacuum in the lter
allowing water and small particulates to be
released from the lter element.
Allow water and dirt to settle
into bowl.
Large droplets of water and
dirt will fall to the bottom of
the bowl.
Drain out the water and dirt
that has accumulated in the
bottom of the bowl.
Close drain valve by pushing and turning
clockwise.
Allow dirt and water to settle again.
As the fuel is drained out of the
separator in step 4, more dirt and water
will be ushed from the lter and will
collect in the bottom of the bowl.
If necessary, repeat step 4 and 5.
Open fuel supply valve.
PUSH in and turn
counter-clockwise to
open drain valve.
closed open
Prime the lter and close
the bleed screw (refer to
Technical Specications for
torque values).
Bleed Screw

15
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Filter Element Replacement
Step 1
Shut off the fuel supply valve
and isolate unit before servicing
the lter.
Step 2
Loosen the lid
screws evenly.
Step 3
Remove the lid.
Step 4
Take out the spring
cassette.
Step 5
Lift out lter element by the
handle. Replace with new
lter element and re-t the
spring cassette.
Step 6
Inspect lid gasket.
Replace if necessary.
Step 7
Fit lid checking for correct
positioning. Evenly tighten in
the sequence shown (refer to
Technical Specications for
torque values).
Step 8
Open the fuel
supply valve, prime fuel system
and check for leaks.
Prior to servicing the lters, ensure that the unit is OFF.
23
1
4
23
1
4
Replacement Filter Element
Element # Description
01010
01030
01060S
10 Micron
30 Micron (Standard)
60 Micron (Stainless Steel)

16
Reverso Pumps, Inc. www.reversopumps.com | [email protected] | Ph: [phone]
Troubleshooting
Version 9/4/14
• Pump does not run
• Pump and lter are not primed
• Fuel supply or discharge line blocked. Check the alarm
• Lift is too high
• Air leak in fuel supply to pump
• Inlet or outlet valve closed. Check the solenoid valve
• Foot (check) valve installed backwards
• Air leak at inlet
• Lift too high
• Pump worn
• Inoperative foot valve
• Piping improperly installed or dimensioned
• Filter/water separator plugged
• Pump has been run dry or insufcient fuel
• Plumbing on inlet side not appropriately
dimensioned. Pump requires too much power
• Air in plumbing lines
• Liquid too viscous
• Insufcient fuel supply
• Air leaks in the inlet pipe
• Air or gas on the suction side
• Control power not available
• Tripped circuit breaker on control board
• Pump failed and seized
• Motor failure
• Check service switch is in the ON position ( - )
• Loose pump plumbing ttings
• Worn pump shaft seal
• Excessive heat from over head storage tank
• Worn pump 0-rings or seals
No fuel delivery
Insufficient fuel delivered
Rapid pump wear
Noisy operation
Motor does not turn or turns intermittently
Pump leaks fuel
Problem Possible Causes
