REVOLT RV400 User manual

GET READY
TO RIDE
RV400

Explore your way
KNOW YOUR REVOLT
Description of components and parts 4
Description of speedometer 6
Remote control 7
Handle bar operations 8
Seat and Battery lock 11
MCB - Modular Circuit Breaker 12
Ready to ride – Power on 13
Battery use instruction 14
MYREVOLT MOBILE APPLICATION
User on-board 19
Home screen 20
Bike Location 22
Sound Screen 24
GeoFence 26
Switch Battery 29
Order Battery 31
Bike Diganostics 32
BATTERY AND CHARGING
Do’s & don’ts for battery and chargers 34
Driving steps from start to stop 36
WARRANTY POLICY
Warranty policy on vehicle 39
Warranty policy on battery 41
BATTERY CARE & PRECAUTIONS 42

Know Your
Revolt

Rear view mirror
Spoke-type
Aluminium rim
Brake disc
4
Storage box
Battery
compartment
Saddle
Motor
Electronic
side stand
Description of Components and Parts
Know Your Revolt

5
Description of Components and Parts
Front brake
lever Rear brake
lever
Speedometer
assembly
Right-handlebar
switch assembly
Know Your Revolt
Accelerator
Tail lamp
Left-handlebar
switch assembly
Headlamp
Controller
FRONT BACK

345
6
7
8
9
10
11 17 12 19 13 14 20 21 18 15 16
12
6

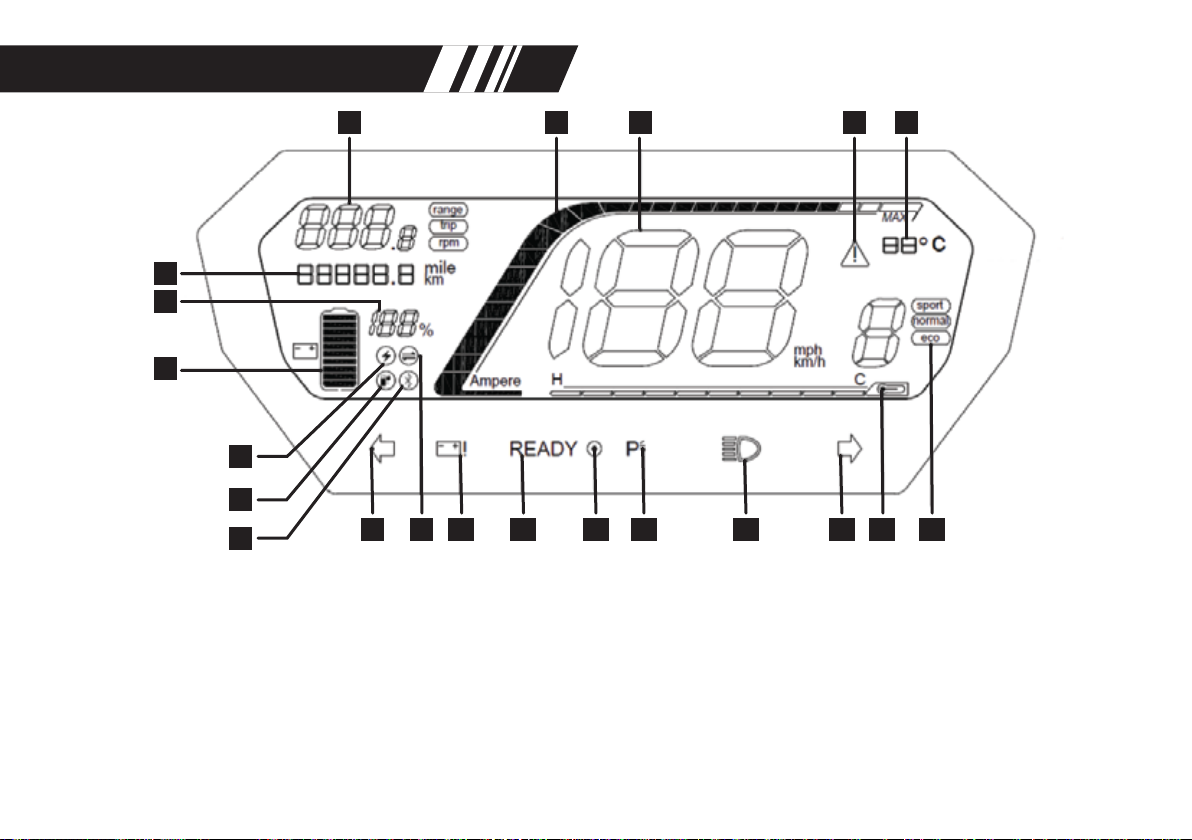

Description of Speedometer
1 Ambient Temperature
2 Fault Code
3 Speed Display
4 Real Time Current
5 Mileage/ Trip/ RPM
6 Total Mileage
7 Battery Percentage
8 Battery Status
9 Short Circuit
10 Charging
11 Bluetooth
12 Data Connection
13 Ready
14 Ambient Light
Sensor
15 Temperature
16 Mode Display
17 Left Indicator
18 Right Indicator
19 Battery Fault
20 Parking Signal
21 High Beam
Know Your Revolt

Lock Key
Push Start
Unlock Key
Locate my motorcycle
7
Smart Remote Control
Know Your Revolt

8
Handlebar Switch Gear - Left
Know Your Revolt
Horn Switch
Direction Indicators
High/Low
Beam Switch

9

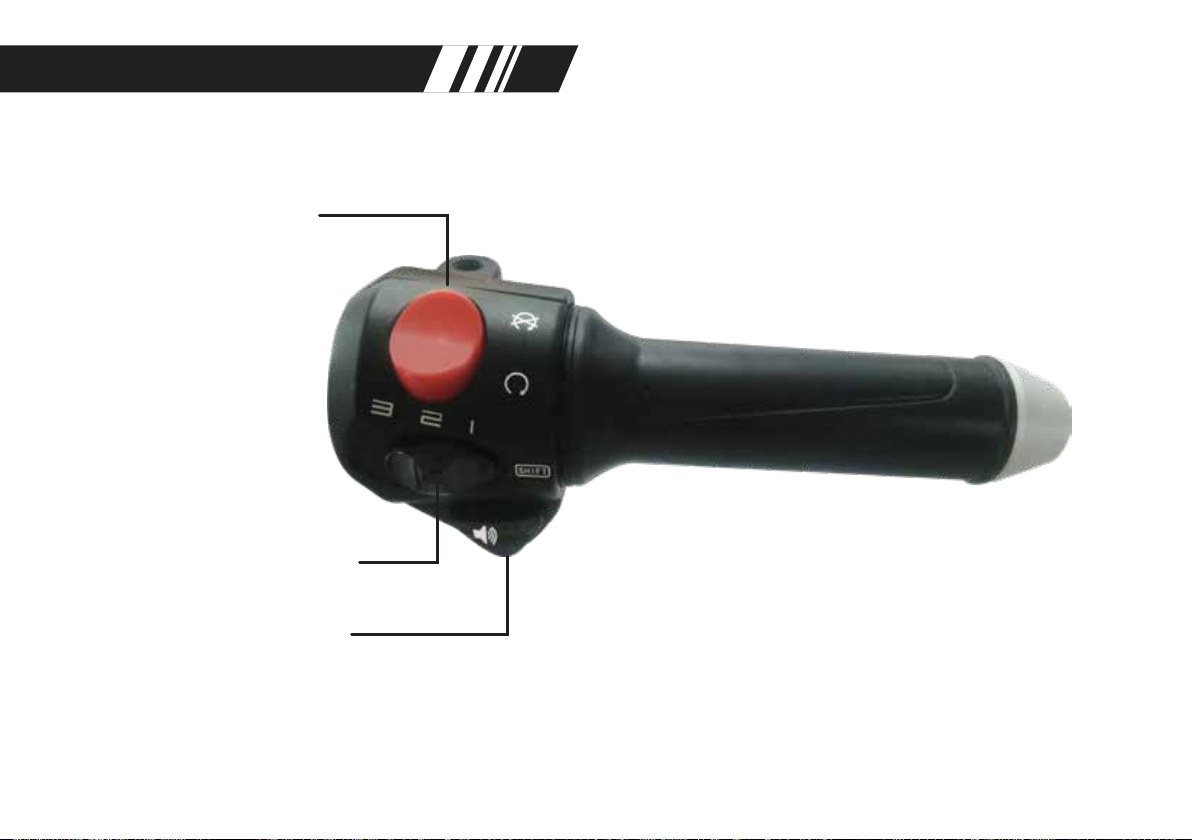

Handlebar Switch Gear - Right
Know Your Revolt
Parking Switch
Mode Switch
Sound on/off
Switch

10
Handlebar Lock / Unlock
Know Your Revolt
Put your motorcycle in parking mode
using the parking switch and turn the
handlebar to extreme left side
Insert the key in handlebar lock
and turn the key clockwise
LOCK
Insert the key in handlebar lock
and turn the key anticlockwise
UNLOCK

11

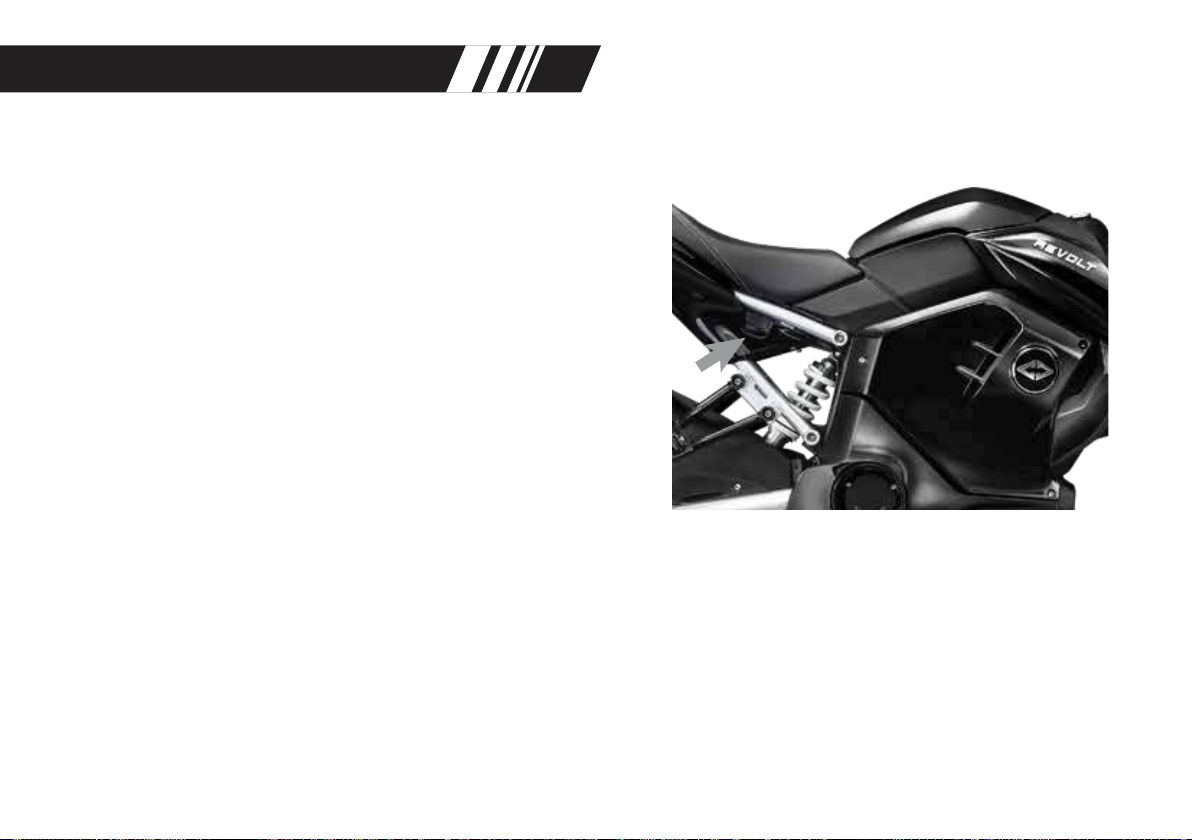

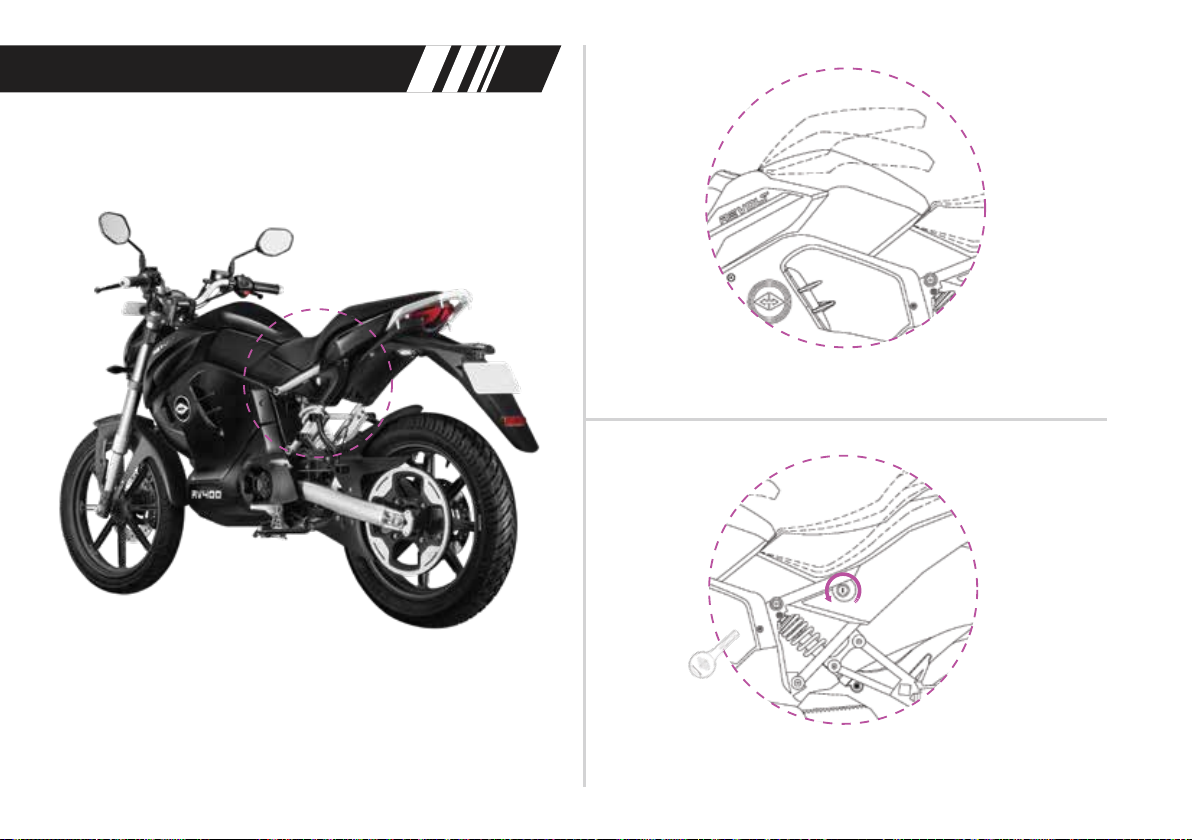

Seat and Battery Cover Lock
Know Your Revolt
OPEN BATTERY COVER
Insert the key in storage seat lock, turn
it clockwise until you hear a ‘click’ sound
OPEN SEAT
Insert key in storage seat lock, turn it
anticlockwise affirmative sound.

12

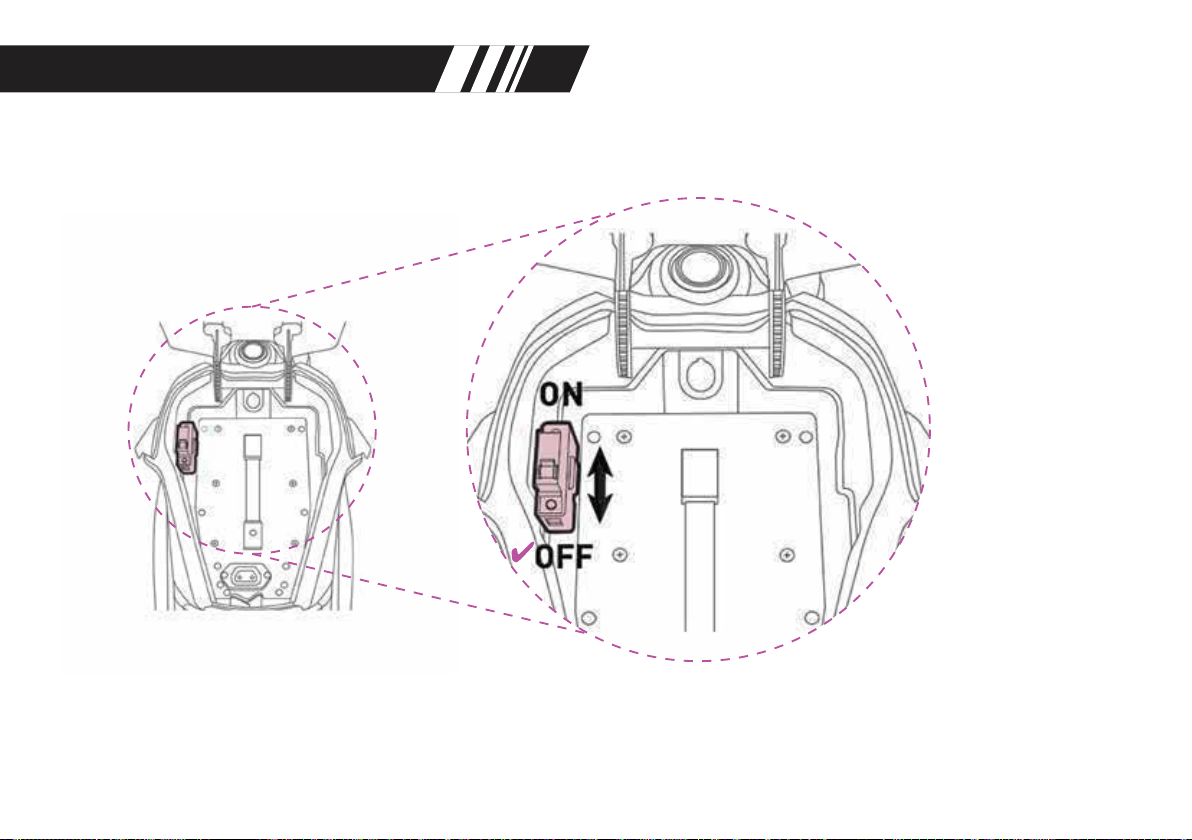

MCB - Modular Circuit Breaker
In case the current goes over the set range due to an abnormal situation or short circuit, the MCB
will trip automatically to disconnect the current flow between the battery and the motorcycle’s
wiring system.
TIPS: For your own safety, put MCB at ‘OFF’ position:
A. Before taking out the battery pack.
B. Before cleaning and washing.
C. Long time storage.
Know Your Revolt
TIPS: For your own safety, put MCB at ‘OFF’ position:
A. Before taking out the battery pack.
B. Before cleaning and washing.
C. Long time storage.

Press ‘UNLOCK’ on
remote Smart Key
Press ‘Power’ button Toggle the parking switch to
switch from parking mode
to ready mode
Turn accelerator
gently to ride
Put on your helmet Get on the motorcycle,
remove the side stand
13
Ready to Ride – Power On
Know Your Revolt
POWER

14
Battery On-Boarding Charging
Know Your Revolt
1. Connect the charger to the motorcycle charging port.
2. Connect the charger with power supply, during
normal charging the red light will glow.
Note : Ensure that the charger is kept safe from any debris
or water infusions.
CHARGING INDICATORS
Charging: Red light will glow.
Full Charged: Green light will glow.
Error: Red and green lights will blink alternatively.

EXTERNAL CHARGING
1. Open the storage, take out the storage cover, switch off the safety switch (MCB). The safety
switch is mounted on the battery storage box.
2. Disconnect the battery power plug.
3. Insert the key in battery lock, turn it clockwise, then take out the battery pack from the motorcycle.
4. Connect charger with battery, then connect charger with power supply. The red light will
glow indicating that the charger is working.
15
Battery Use Instruction
Know Your Revolt
TIPS:
– Keep the battery pack away from water
– You must take out the battery pack from the motorcycle, and should be kept safely in room temperature
if don’t intent to use it for a long time.
– Children should not be allowed to touch the battery pack.
– Battery pack should not be put into fire.
– Always use genuine Revolt recommended charger, use of any other charger may damage the battery pack.
– All battery packs are checked for quality before delivery, under no circumstances the
battery pack should be opened.

STORAGE, MAINTENANCE, TRANSPORT
1. In case the battery is not being used for a long time, please charge it until 50%
(in case the battery is empty, charge it for 4.5 hours). Disconnect the battery
from the motorcycle when storing them. Store in a dry ventilated place,
at least charge it for 4 hours every month.
2. Battery pack and charger need to be stored in a clean, dry ventilated place,
avoid contact with corrosive material, keep it away from power, fire and heat.
3. Battery storage condition: temperature -20 to 45 ºC, humidity 65+-20%RH.
16
Battery Use Instruction
Know Your Revolt

Using MyRevolt
App

18
MyRevolt app will help you to connect with your motorcycle and obtain near real time information about your
motorcycle. The built-in Artificial Intelligence in the app will show the battery charge information and allows
you to swap the battery and get it delivered to your location. It also provides a way to secure your motorcycle
through the use of its geofencing feature.
USER ONBOARDING
User onboarding will be done using mobile OTP
based login. Please ensure that you have provided
the same mobile number that was provided during
motorcycle registration at your dealer.

19
User Onboarding
Using the Revolt App
PHONE NUMBER
VERIFICATION PROCESS

20
HomeScreen
Using the Revolt App
This is the Home Screen of our App. The User
will come on this screen everytime on opening
the App or after successful login.
