rge 1000 User manual
Introduction
This sinewave UPS is specially aimed for use with multi function PC and small server. It is
equipped with boost & buck AVR to stabilize the wide input voltage range. It also comes with
high-efficient switch-mode battery charger. This charger design minimizes power loss to save
charging time. The built-in DC start function enables the UPS to be started up without a supply of
AC power. The main features of this UPS are listed below:
Pure sinewave output
Microprocessor control guarantees high reliability
Built-in enhanced boost & buck AVR
Fast charger
DC start function
Auto restart during AC recovery
Provide Modem and phoneline surge production
Built-in USB communication port
Compact size, light weight
Important Safety Instructions
To safely operate this uninterruptible power supply system, please read and follow all instructions
carefully. Please read this manual thoroughly before attempting to unpack, install, or operate UPS,
and keep this manual for further reference.
This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit.
The unit contains no user replaceable parts. Only authorized service personnel may
perform repairs.
Internal battery voltage is 12V DC. Sealed, lead-acid, 6 cells battery.
Connection to any other type of receptacle other than a two-pole, three-wire grounded
receptacle may result in shock hazard as well as violate local electrical codes.
In the event of an emergency, press the “OFF” button and disconnect the power cord from
the AC power supply to properly disable the UPS.
DO NOT allow liquids or any foreign object to enter the UPS. Do not place beverages or
any other liquid-containing vessels on or near the unit.
This unit intended for installation in a controlled environment (temperature controlled,
indoor area free of conductive contaminants). Avoid installing the UPS in location where
there is standing or running water, or excessive humidity.
DO NOT plug the UPS input into its own output.
DO NOT attach a power strip or surge suppressor to the UPS.
DO NOT attach non-computer-related items, such as medical equipment, life-support
equipment, microwave ovens, or vacuum cleaners to UPS
To reduce the risk of overheating the UPS, do not cover the UPS cooling vents and avoid
exposing the unit to direct sunlight or installing the unit near heat emitting appliances such
as space heaters or furnaces.
Unplug the UPS prior to cleaning and do not use liquid or spray detergent.
DO NOT dispose of batteries in a fire as they may explode.
DO NOT open or mutilate the battery or batteries. Released electrolyte is harmful to the
skin and eyes. It may be toxic.
A battery can present a risk of electrical shock and high short circuit current. The following
precautions should be observed when working on batteries :
1) Remove watches, rings, or other metal objects from the hands.
2) Use tools with insulated handles.
3) Wear rubber gloves and boots.
4) Do not lay tools or metal parts on top of batteries.
5) Disconnect charging source prior to connecting or disconnecting battery terminal.
Servicing of batteries should be performed or supervised by personnel knowledgeable of
batteries and the required precautions should be taken. Keep unauthorized personnel
away from batteries.
When replacing batteries, replace with the same number of the sealed lead-acid batteries.
The socket-outlet shall be installed near the equipment and easily accessible.
With the installation of the UPS, it should be prevented that the sum of (UPS and) the
connected (load) leakage current exceeds 3.5mA.
This pluggable type A equipment with battery installed by the supplier is operator installable
and may be operated by laymen.
Attention!! Hazardous through electric shock. Also with disconnection of this unit from the
mains, hazardous voltage still may be accessible through supply from battery. The battery
supply should be therefore disconnected in the plus and minus pole at the connectors of the
battery when maintenance or service work inside of the UPS is necessary.
System Description
Installation & Operation
1. Placement
Install the UPS in a protected area that is
1. AC Input & AC fuse
2. Output receptacles
3. USB com. port
4. Modem/Phone/Network surge
protection
LP120 Series
User’s Manual
1.
2.
3.
4.
5.
6.
7.
8.
9.
free of excessive dust and has adequate air flow. Please place the UPS away from other units at
least 20 cm to avoid interference. DO NOT operate the UPS where the temperature and humidity is
outside the specific limits. (Please check the specs for the limitations.)
Plug in the AC input cord to the wall outlet. For the best results,
suggest charging the battery at least 4 hours before initial use. The
unit charges its battery while connecting to the utility.
Plug in the loads to output receptacles on the rear panel of the UPS.
Simply turn on the power switch of UPS unit, then devices
connected to the UPS will be protected by UPS unit.
To surge protect a network connection, connect a network cable from the wall jack outlet to the IN
jack of the UPS. Then connect a network cable from the OUT jack of the UPS to the network
device.
UPS equipped with communication port allows monitoring and controlling from computer screen.
Connect one end of a communication cable to your PC and the other to the com port at the rear of
the UPS.

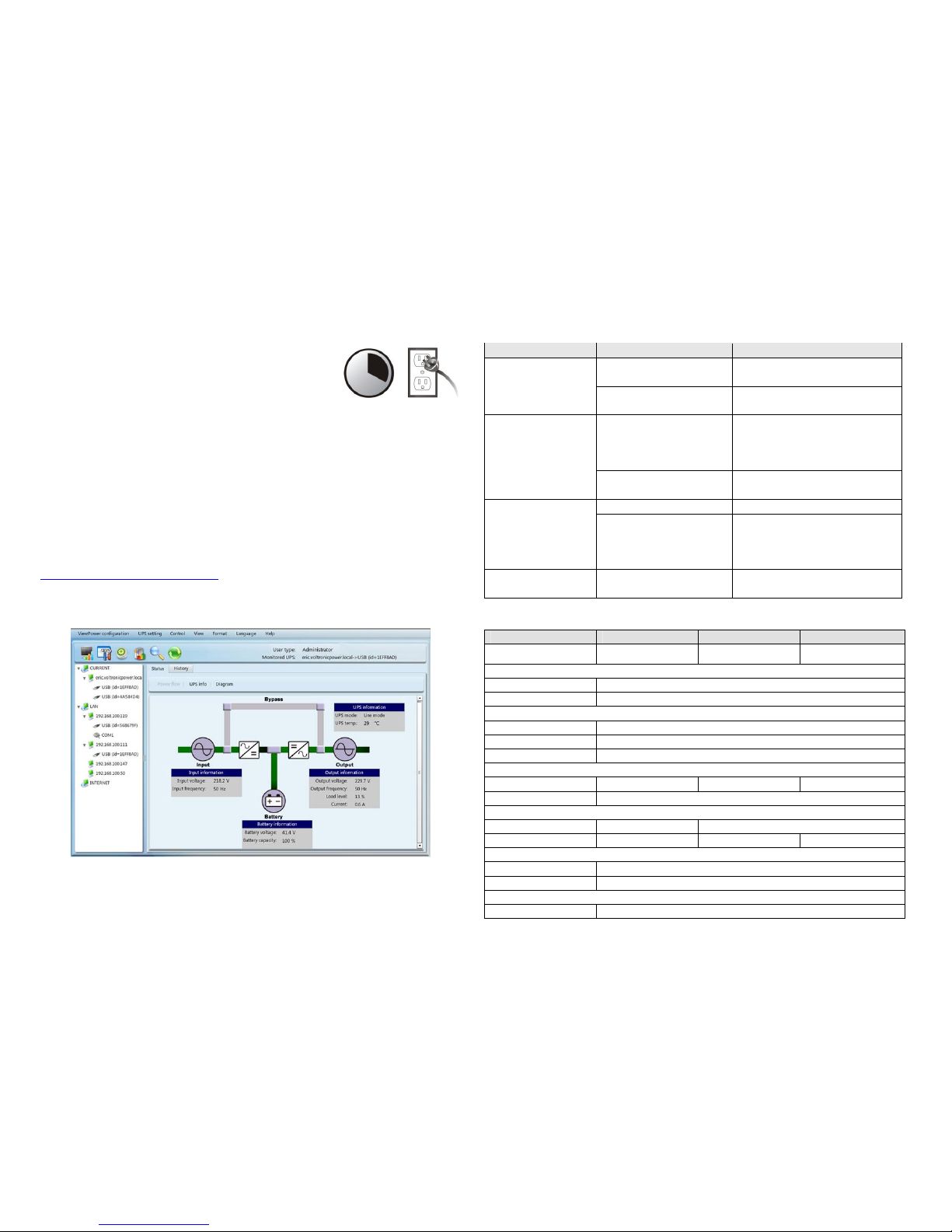

ViewPower is an UPS power management software, allowing users to control and monitor UPS
straightly from PC monitor. Insert ViewPower software CD or download ViewPower software from
http://www.power-software-download.com to your hard drive. Follow on-screen instructions to
complete the software installation.
After computer is restarted, ViewPower is geared and presents as an orange plug icon located in
the system tray at the right-bottom corner.
To turn on the UPS, press power switch lightly. To turn off the UPS, please press power switch
again.
Trouble-shooting
Use the table below to solve minor problems. If any abnormal situations occur that are not listed
above, please call service technician for assistance.
Problem Possible Cause Solutions
AC input is not connected well. Check if the input power cord is firmly
connected to the mains.
No words display on the
front panel even though the
mains is normal.
AC input is connected to the UPS
output.
Plug AC input power cord to AC input
correctly.
Batteries are not fully charged. Charge the batteries at least 6 hours and
then check the capacity again.
If the problem still persists, please consult
your dealer.
Battery backup time is
shorter than nominal value.
Batteries defect.
Contact your dealer to replace the
batteries.
Fan is locked or not working. Check fans and notify your dealer.Warning or fault icon is
shown and alarm is
continuously sounding.
The UPS is overload.
Remove some loads first. Before
reconn
ecting devices, please verify the
total loads match the UPS capability
specified in the spec.
Low battery icon is shown
on the LCD screen.
Low battery Charge the batteries at least 6 hours.
Specifications
Model 1000 1500 2000
CAPACITY 1000VA/
600W 1500VA/
900W 2000VA/
1200W
INPUT
Voltage 110/120 VAC or 220/230/240 VAC
Voltage Range 81-145 VAC / 162-290 VAC
OUTPUT
Voltage Regulation +/-10%
Transfer Time Typical 2-6 ms, 10 ms max.
Waveform Pure Sine Wave
BATTERY
Type & Number 12V/7AHx2 12V/9AHx2 12V/10AHx2
Charging Time 6 hours recover to 90% capacity
PHYSICAL
Dimension, DxWxH, (mm)
350x146x 160 397x146x205
Net Weight (kgs) 9.00 11.60 12.25
Environment
Humidity 0-90 % RH @ 0-40°C (non-condensing)
Noise Level Less than 40 dB
MANAGEMENT
USB Supports Windows 98 SE/ME/NT 4.x/2000/2003/XP/Vista/2008
* Product specifications are subject to change without further notice.
