CRITERION®II PLUS 2 LXE
TWO STAGE 80% A.F.U.E.✝
UPFLOW/HORIZONTAL
GAS FURNACES
The Rheem®Criterion II Plus 2 LXE line of upflow/horizontal
gas furnaces are designed for utility rooms, closets,
alcoves, or attics. Because of the Criterion’s low-profile
34 inch [864 mm] height, the upflow model installed
vertically can also be used to satisfy most applications
that traditionally call for a horizontal furnace.
The design is certified by CSA International.
Features
■Patented Heat Exchanger, constructed of both stainless and
aluminized steel for the maximum in corrosion resistance.
■Low profile “34 inch” [864 mm] design is lighter and easier
to handle, and leaves room for optional equipment.
■Energy efficient and quiet ECM 2+ motor.
■Improves cooling efficiency when matched with rated con-
densing unit and coil.
■Constant CFM.
■Dip switch settings for selectable heating temperature rise
and cooling airflow.
■On-demand dehumidification terminal for improved com-
fort in cooling mode.
■Convertible from upflow to horizontal left or right without
field conversion.
■Left or right side gas and electric inlet connections.
■All models equipped with remote sense feature, an inte-
grated board with humidifier and electronic air cleaner
hookups.
■Insulated blower compartment, a slow-open gas valve, a
specially designed draft inducer motor and blower motor
make it one of the quietest furnaces on the market today.
■Pre-paint galvanized steel cabinet.
■Molded permanent filter.
■Grab-holes in doors to aid in easy door removal and
replacement.
■Compatible with single or two-stage thermostat. (For opti-
mal performance, two-stage thermostat recommended.)
A variety of cooling coils and plenums designed to use with
Rheem Criterion II Plus 2 LXE gas furnaces are available as
optional accessories.
✝A.F.U.E. (Annual Fuel Utilization Efficiency) calculated in accordance with Department of
Energy test procedures.
FORM NO. G11-473 REV. 5
Supersedes Form No. G11-473 Rev. 4
GAS FURNACES
ISO 9001:2000
Annual Fuel Utilization Efficiency - AFUE
THIS MODEL
ENER UIDE
97%78%
HIGH
MID
82% 88%
80.0%
RGPL- SERIES
ECM Equipped
Models with Input Rates from
50,000 to 125,000 BTU/HR
[15 to 37 kW]
(U.S. & Canadian Models)

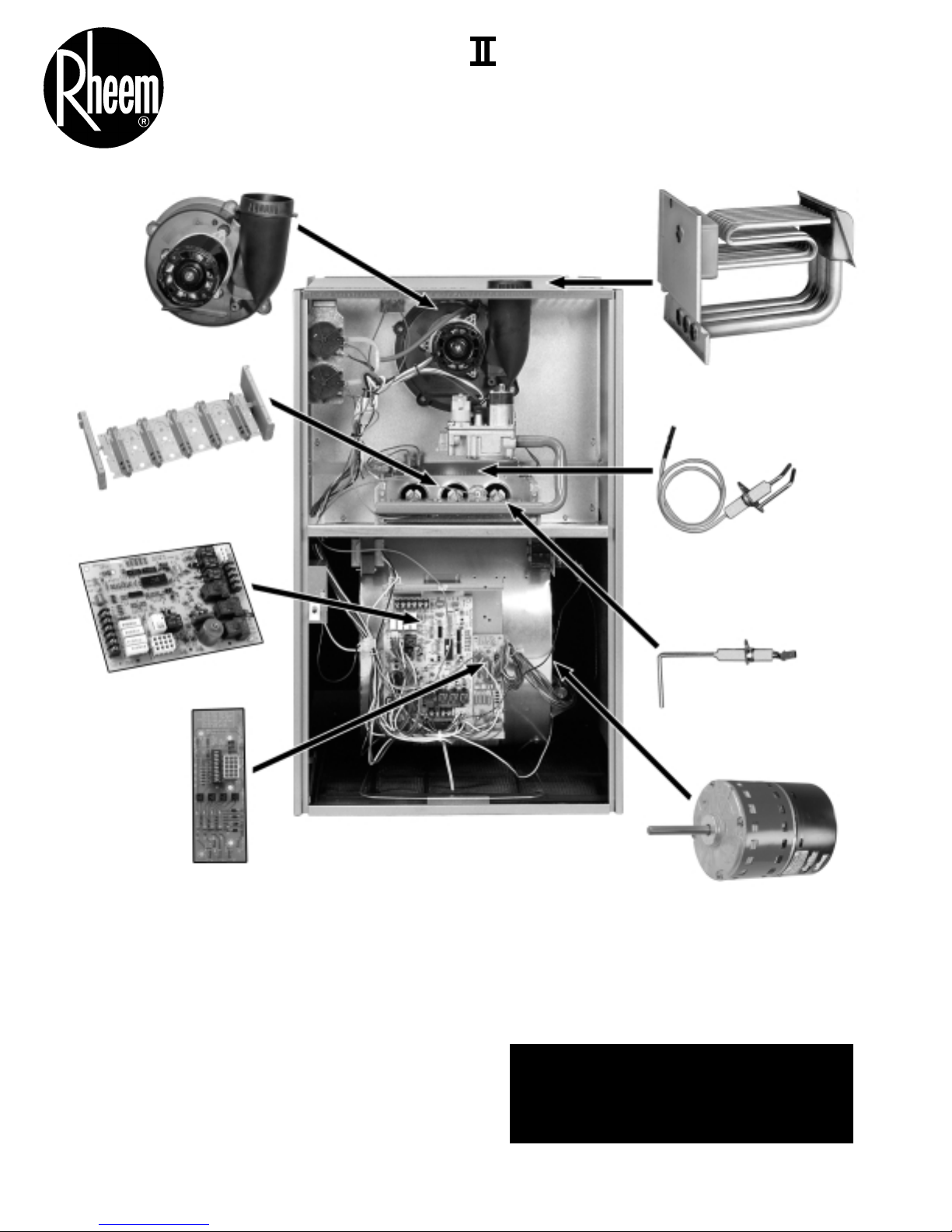

2 Rheem Manufacturing Company
Direct Spark Ignitor
Remote Sensor
In-Shot Burners
Integrated
Furnace Controls
Heat Exchanger
Two-Speed Draft
Inducer Motor
ECM Motor
The complete terms of limited and other warranties are available at our
sales office, or through local installer.
All models can be converted by a qualified Rheem distributor or local service
dealer to use L.P. (propane) gas without changing burners. Factory approved
kits must be used to convert from natural to L.P. (propane) gas and may be
ordered as optional accessories from a Rheem parts distributor.
For L.P. (propane) operation, refer to Conversion Kit Index Form.
WARNING
THIS FURNACE IS NOT APPROVED
OR RECOMMENDED
FOR USE IN MOBILE HOMES
STANDARD EQUIPMENT
Completely assembled and wired; 2 speed draft inducer; high and low pressure
switches; redundant 2 stage main gas control; blower compartment door safety
switch; solid state time on/time off blower control; limit control; transformer;
direct drive multi-speed blower motor. Furnaces are equipped with
cooling/heating relay and transformer (40VA) ready for air conditioning
applications. (Please note: a thermostat is not included as standard equipment.)
Flame sensor diagnostics; fused protection (secondary), 3rd speed fan option
for continuous fan.
OPTIONAL EQUIPMENT
Side filter frame assembly. Return air cabinet for all sizes. (See Page 6)
NOTE: Furnace is not listed for use with fuels other than natural or L.P.
(propane) gas.
RHEEM CRITERION II PLUS 2 LXE
TWO STAGE 80%
UPFLOW/HORIZONTAL GAS FURNACE

Rheem Manufacturing Company 3
BEFORE PURCHASING THIS APPLIANCE, READ IMPORTANT ENERGY COST AND EFFICIENCY INFORMATION AVAILABLE
FROM YOUR RETAILER.
PHYSICAL DATA AND SPECIFICATIONS (UPFLOW)
U.S. AND CANADA MODELS
GENERAL TERMS OF LIMITED WARRANTY
Rheem will furnish a replacement for any part of this product
which fails in normal use and service within the applicable
period stated, in accordance with the terms of the limited
warranty.
For Complete Details of the Limited Warranty, Including Applicable Terms
and Conditions, See Your Local Installer or Contact the Manufacturer for
a Copy.
Gas Heat Exchanger Limited Warranty .......Twenty (20) Years
*Any Other Part..............................................Five (5) Years
*This five year limited warranty is applicable only to single-phase products
installed in residential applications on or after January 1, 2001.
MODEL IDENTIFICATION—UPFLOW MODELS
[ ] Designates Metric Conversions
MODEL NUMBERS
RGPL- SERIES
05EBMKR
05NBMKR
07EBRKR
07NBRKR
10EBRMR
10NBRMR
12EARMR
12NARMR
Temperature Rise Range °F
[°C]
25-55
[13.9-30.6]
30-60
[17-33]
40-70
[22.2-38.9]
35-65
[19.4-36.1]
High Input–BTU/Hr [kW] ➁50,000 [15] 75,000 [22] 100,000 [29] 125,000 [37]
Heating Capacity–BTU/Hr [kW] ➀40,900 [12] 61,280 [18] 81,470 [24] 101,660 [29]
Low Input–BTU/Hr [kW] 35,000 [10] 52,500 [15] 70,000 [20] 87,500 [25]
Heating Capacity–BTU/Hr [kW] 28,000 [8] 41,600 [12] 56,000 [16] 70,080 [20]
Heating–Ext. Static Pressure [kPa] .10 [.025] .12 [.029] .15 [.037] .20 [.05]
Blower (D x W) [mm] 11 x 7
[279 x 178]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
ECM Motor H.P. [W] 3/4[559] 1/2[373] 1 [746] 1 [746]
Motor Full Load Amps. 9.6 7.7 12.8 12.8
Heating Speed CFM–High Fire [L/s] 860 [405] 1060 [500] 1320 [623] 1890 [892]
Heating Speed CFM–Low Fire [L/s] 648 [306] 700 [330] 942 [445] 1296 [573]
Cooling CFM @ .5" [kPa] E.S.P.
(Nominal) [L/s]
1200
[566]
1200
[566]
2000
[944]
2000
[944]
Max. E.S.P. (In. W.C.) [kPa] 0.5 [.12] 0.5 [.12] 0.5 [.12] 0.5 [.12]
Max. Outlet Air Temp. °F [°C] 155 [68.3] 170 [76.6] 170 [76.6] 180 [82.2]
Standard Filter Size–Inches
[mm]
153/4x 25
[400 x 635]
191/4x 25
[489 x 635]
191/4x 25
[489 x 635]
223/4x 25
[578 x 635]
Return Air Cabinets
(Opt.) RXGR-
Filter Size [mm]
C17B
(2) 12 x 16
[305 x 406]
C21B
(2) 20 x 16
[508 x 406]
C21B
(2) 20 x 16
[508 x 406]
C24B
(2) 24 x 16
[610 x 406]
AFUE ➀80.5% 80.3% 80.0% 80.0%
07EBRQR
07NBRQR
30-60
[17-33]
75,000 [22]
61,280 [18]
52,500 [15]
41,600 [12]
.12 [.029]
11 x 10
[279 x 254]
3/4[559]
9.6
1060 [500]
700 [330]
1600
[755]
0.5 [.12]
170 [76.6]
191/4x 25
[489 x 635]
C21B
(2) 20 x 16
[508 x 406]
80.3%
115 [52]Approx. Shipping Weight (Lbs.) [kg] 110 [50] 115 [52] 120 [54] 140 [63]
15Maximum Overcurrent Protection 15 15 15 15
12.0Unit Amps 8.7 8.7 12.0 12.0
➀ In accordance with D.O.E. test procedures.
➁ See Conversion Kit Index Form for high altitude derate.
RG P L
—07E
Furnace
BR K R
Rheem Gas Upflow/ Design Heating Input Designation
Horizontal Series
Variations Blower Heating & Cooling Fuel Type
M= 11 x 7
[279 x 178 mm]
R= 11 x 10
[279 x 254 mm]
K= 600-1200 CFM
[283-566 L/s]
M= 1200-2000 CFM
[566-944 L/s]
Q= 1000-1600 CFM
[566-944 L/s]
Electric
Ignition
05E
07E
10E
12E
A= Std.
Cabinet
B= Wide
Cabinet
Designation Designation R= Natural Gas,
U.S. and
Canadian
Standard
Furnace
Input
BTU/HR
50,000 [15 kW]
75,000 [22 kW]
100,000 [29 kW]
125,000 [37 kW]
NOx
Model
05N
07N
10N
12N

4 Rheem Manufacturing Company
NOTES: ➀May require a 3" [76 mm] to 4" [102 mm] or 3" [76 mm] to 5" [127 mm] adapter.
➁ May be 0" [0 mm] with type B vent.
➂May be 1" [25 mm] with type B vent.
Furnaces must be vented in accordance with the National Fuel Gas Code, ANSI Z223.1 and/or Can/CGA-B149 Installation Codes and in accordance with
local codes.
[ ] Designates Metric Conversions

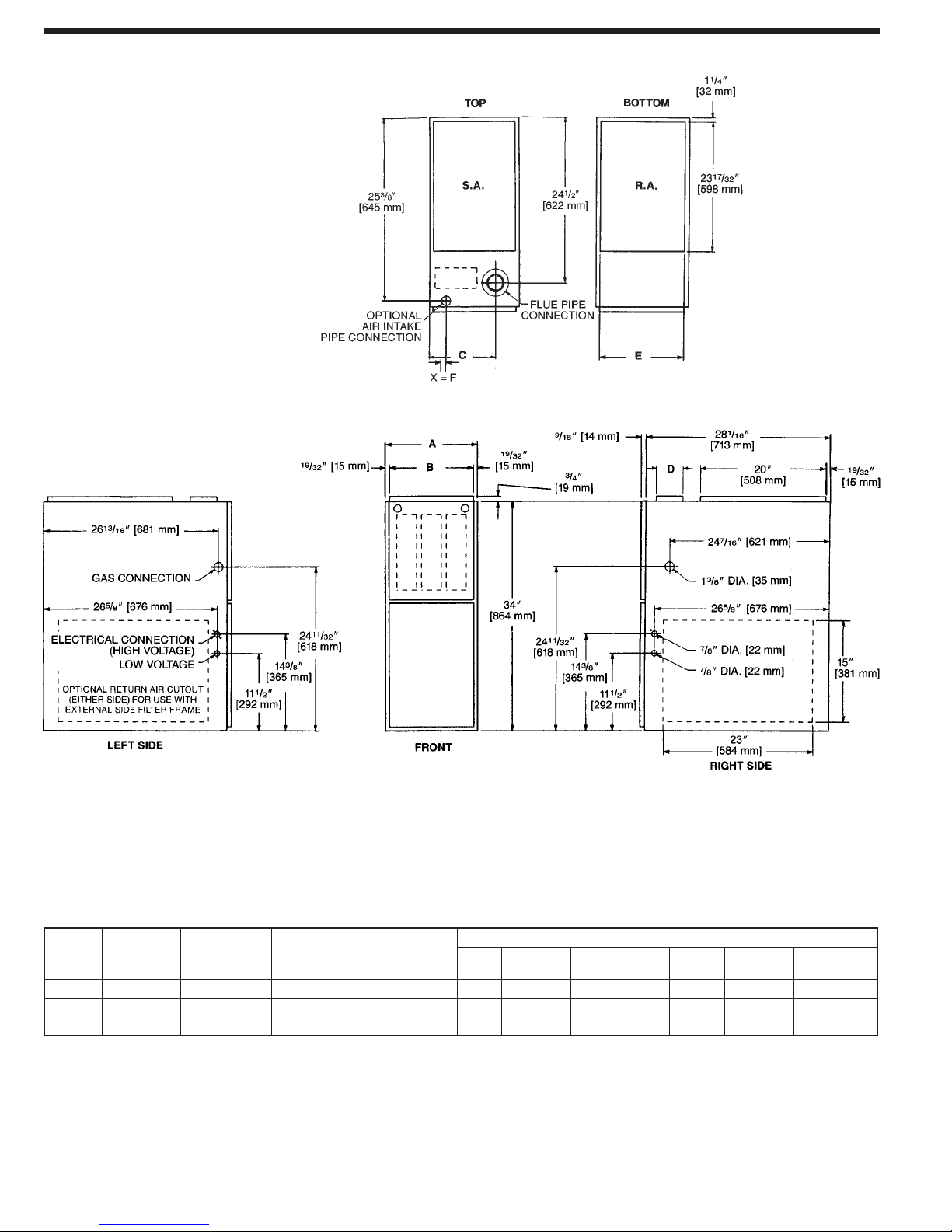

UPFLOW DIMENSIONS
UPFLOW DIMENSIONS AND CLEARANCE TO COMBUSTIBLE MATERIAL (INCHES) [mm]
MODEL
RGPL- A B C D E
REDUCED CLEARANCES (IN.) [mm]
05 171/2[445] 1611/32 [415] 121/8[308] ➀151/2[381] 03 [76] ➁01 [25] 3 [76] 6 [152] ➂
LEFT
SIDE
RIGHT
SIDE BACK TOP FRONT VENT SHIP. WGTS. (LBS.) [Kg]
105 [47.6]
07, 10 211/2[533] 1927/32 [504] 137/8[352] ➀181/2[470] 0 0 0 1 [25] 3 [76] 6 [152] ➂120 [54.4]
12 241/2[622] 2311/32 [593] 155/8[397] ➀221/2[559] 0 0 0 1 [25] 3 [76] 6 [152] ➂140 [63.5]

Rheem Manufacturing Company 5
NOTES: ➀May require a 3" [76 mm] to 4" [102 mm] or 3" [76 mm] to 5" [127 mm] adapter.
➁ May be 0" [0 mm] with type B vent.
➂May be 1" [25 mm] with type B vent.
Furnaces must be vented in accordance with the National Fuel Gas Code, ANSI Z223.1 and/or Can/CGA-B149 Installation Codes and in accordance with
local codes.
[ ] Designates Metric Conversions
HORIZONTAL DIMENSIONS
HORIZONTAL DIMENSIONS AND CLEARANCE TO COMBUSTIBLE MATERIAL (INCHES) [mm]
WARNING
THIS FURNACE IS NOT APPROVED
OR RECOMMENDED FOR INSTALLATION
ON ITS BACK, WITH ACCESS DOORS
FACING UPWARDS.
MODEL
RGPL- A B C D E
REDUCED CLEARANCES (IN.) [mm]
05 171/2[445] 1611/32 [415] 121/8[308] ➀15 [381] 03 [76] ➁01 [25] 3 [76] 6 [152] ➂
LEFT
SIDE
RIGHT
SIDE BACK TOP FRONT VENT SHIP. WGTS. (LBS.) [Kg]
10 21 [533] 1927/32 [504] 137/8[352] ➀181/2[470] 0 0 0 1 [25] 3 [76] 6 [152] ➂120 [54.4]
110 [49.9]
07 21 [533] 1927/32 [504] 137/8[352] ➀181/2[470] 0 0 0 1 [25] 3 [76] 6 [152] ➂
12 241/2[622] 2311/32 [593] 155/8[397] ➀22 [559] 0 0 0 1 [25] 3 [76] 6 [152] ➂140 [63.5]
115 [52.2]

6 Rheem Manufacturing Company
ACCESSORIES—UPFLOW
SIDE RETURN FILTER RACK: RXGF-CA
BOTTOM MOUNT: RXGF-CB
†Filter racks are shipped without filters.
Filters shipped with furnace may be used or a suitable 1" [25.4 mm] filter.
RXPF-F01 and F02
FOSSIL FUEL KIT—is for use with Rheem Heat Pumps and
Criterion II Plus 2 LXE warm air furnaces. RXPF-F02 meets
TVA requirements.

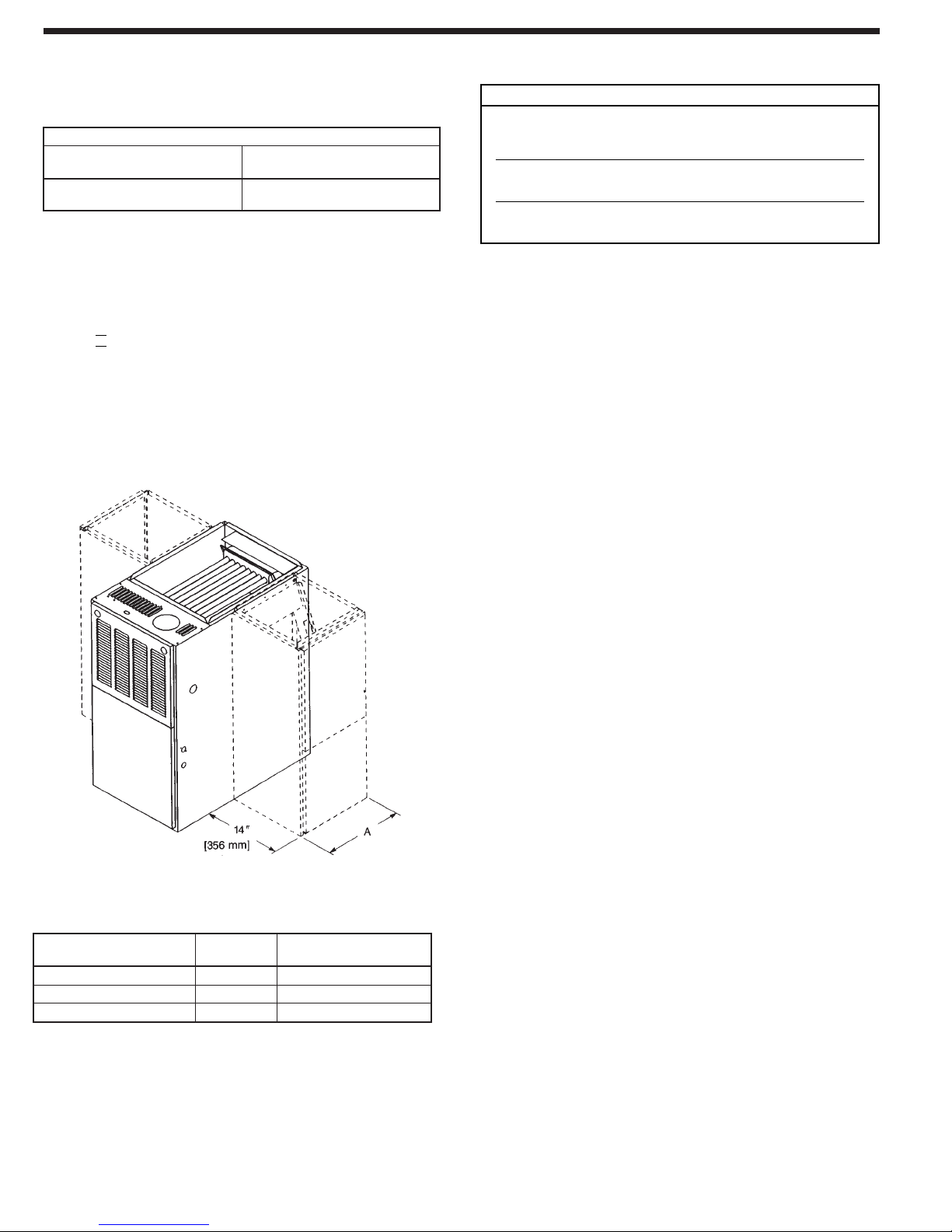

ACCESSORY RETURN
AIR CABINETS
Return Air Cabinets may be
installed on either side
application except RXGR-C24B
(side application must be on
side opposite gas and electrical
connections).
THE RXGR-C24B MAY ONLY BE INSTALLED ON THE SIDE OPPOSITE THE
GAS AND ELECTRICAL CONNECTIONS.
WARNING: IMPORTANT NOTICE
A SOLID METAL BASE PLATE (SEE TABLE) MUST BE IN PLACE WHEN THE FURNACE
IS INSTALLED WITH SIDE RETURN DUCTS. FAILURE TO INSTALL A BASE PLATE
COULD CAUSE PRODUCTS OF COMBUSTION TO BE CIRCULATED INTO THE LIVING
SPACE AND CREATE POTENTIALLY HAZARDOUS CONDITIONS.
FURNACE BASE
WIDTH SOLID BOTTOM BASE PLATE SIZE
IN. [mm] KIT NO. PLATE NO. IN. [mm]
171/2[445] RXGB-D17 AE-61874-02 151/8x 239/16 [384 x 598]
211/2[533] RXGB-D21 AE-61874-03 185/8x 239/16 [473 x 598]
241/2[622] RXGB-D24 AE-61874-04 255/8x 239/16 [651 x 598]
FILTER RACK FILTER SIZES† INCHES [mm]
MODEL
RGPL-
RXGF-CA
(SIDE)
05, 07, 10, 12 153/4x 25
[400 x 635]
RETURN AIR CABINETS A
IN. [mm]
FILTER SIZE
IN. [mm]
RXGR-C17B 171/2[445] (2) 12 x 16 [305 x 406]
RXGR-C21B 211/4[533] (2) 20 x 16 [508 x 406]
RXGR-C24B 241/2[622] (2) 24 x 16 [610 x 406]
FOR HIGH ALTITUDES
HIGH ALTITUDE KIT—Required for all models at altitudes of 5,000
ft. and above. Use kit # RXGY-F13 for all -GPL models.
OPTION CODE FOR HIGH ALTITUDE:
U.S. & Canada – 278
NOTE: High altitude kits and options do NOT include additional
burner orifices. If a burner orifice change is necessary, they
must be ordered through PROSTOCK®. See Installation
Instructions for more information.
Option – 278 furnaces are shipped with #51 DMS orifices installed.
This is one drill size smaller than standard furnaces to account for
expected average elevations and heating values typically seen in
these areas.
CAUTION: Always follow National Fuel Gas Code (NFGC) guidelines
when converting furnaces for high altitudes.
For all installations above 2000 ft. (including all option – 278
models), the burner orifice size needs to be recalculated and
verified. A burner orifice change may still be required. See
Installation Instructions for more information.
NOTE: For Canadian installations only, an optional derate (manifold
gas pressure reduction) method may be used to adjust the
furnace for altitude. See Installation Instructions for more
information. This optional method may NOT be used for
U.S. installations.
*HUMIDISTAT FOR ON-DEMAND DEHUMIDIFICATION:
41-25066-01
*Available through PROSTOCK®.
[ ] Designates Metric Conversions

Rheem Manufacturing Company 7
BLOWER PERFORMANCE DATA—UPFLOW/HORIZONTAL MODELS
MODEL RGPL-
BLOWER SIZE
(D X W)
INCHES [mm]
ECM
MOTOR H.P.
[W]
BLOWER
SPEED
CFM [L/s] AIR DELIVERY
EXTERNAL STATIC PRESSURE
INCHES WATER COLUMN [kPa]
12 11 x 10
[279 x 254]
1
[746]
HIGH
MED-HI
MED
LOW
2000 [944]
1600 [755]
1400 [661]
1200 [566]
.1 [.025]–.5 [.12]
05 11 x 7
[279 x 178]
3/4
[559]
HIGH
MED-HI
MED
LOW
1200 [566]
1000 [472]
800 [378]
600 [283]
07 11 x 10
[279 x 254]
1/2
[373]
HIGH
MED-HI
MED
LOW
1200 [566]
1000 [472]
800 [378]
600 [283]
10 11 x 10
[279 x 254]
1
[746]
HIGH
MED-HI
MED
LOW
2000 [944]
1600 [755]
1400 [661]
1200 [566]
07 11 x 10
[279 x 254]
3/4
[559]
HIGH
MED-HI
MED
LOW
1600 [755]
1400 [661]
1200 [566]
1000 [472]
Note: See Form Number C11-206 for MultiFlex®coil data.
[ ] Designates Metric Conversions

Before proceeding with installation, refer
to installation instructions packaged
with each model, as well as complying
with all Federal, State, Provincial, and
Local codes, regulations, and practices.
RHEEM
AIR CONDITIONING
DIVISION
5600 Old Greenwood Road, Fort Smith, Arkansas 72908
“In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.”
PRINTED IN U.S.A. 8-05 DC FORM NO. G11-473 Rev. 5
Supersedes Form No. G11-473 Rev. 4
