Rheem RGPS series User manual

Rheem Value Series
Upflow/Horizontal Gas Furnace
FORM NO. G11-520 REV. 1
RGPS- Series
80% A.F.U.E.†
Input Rates 50-150 kBTU
• The Rheem Value Series line of upflow/horizontal gas
furnaces are designed for utility rooms, closets, alcoves,
or attics. Because of the model’s low-profile 34 inch
[864 mm] height, the upflow model can also be used to
satisfy most applications that traditionally call for a
horizontal furnace.
• The design is certified by CSA International.
• Unique solid door design leads to quiet operation.
• Patented heat exchanger, constructed of aluminized steel for the
maximum in corrosion resistance and thermal fatigue reliability.
• Low profile “34 inch” [864 mm] design is lighter and easier to
handle, and leaves room for optional equipment.
• Convertible from upflow to horizontal left or right without field
conversion.
• Left or right side gas and electric inlet connections allow
quick and simple change.
• Direct spark ignition with remote sense, features a integrated
board with an electronic air cleaner hookup.
• Prepaint galvanized steel cabinet.
• A slow-open gas valve and a specially designed draft inducer
motor make it one of the quietest furnaces on the market
today.
• Grab-holes in doors to aid in easy door removal and
replacement.
• A variety of cooling coils and plenums designed to use with
Rheem Value Series gas furnaces are available as optional
accessories.
Air Gas Furnaces
RGPS Series
Annual Fuel Utilization Efficiency - AFUE
THIS MODEL
ENER UIDE
97%78%
HIGH
MID
82% 88%
80.0%
✝A.F.U.E. (Annual Fuel Utilization Efficiency) calculated in accordance with
Department of Energy test procedures.

Air Table of Contents
RGPS Series
2
TABLE OF CONTENTS
Standard & Optional Equipment ......................................................................3
Model Features/Physical Data & Specifications..................................................4
Model Number Identification ............................................................................5
Dimensional Data ........................................................................................6-7
Blower Performance Data ................................................................................8
Accessories....................................................................................................9
Limited Warranty ..........................................................................................10

Air Standard & Optional Equipment
RGPS Series
3
WARNING
THIS FURNACE IS NOT APPROVED
OR RECOMMENDED
FOR USE IN MOBILE HOMES
DIRECT SPARK IGNITOR
IN-SHOT BURNERS
DRAFT INDUCER MOTOR
PATENTED HEAT EXCHANGER
INTEGRATED
FURNACE
CONTROL
STANDARD EQUIPMENT
Completely assembled and wired; induced draft; pressure switch;
redundant main gas control; blower compartment door safety switch;
solid state time on/time off blower control; limit control; manual shut-
off valve, pressure regulator for natural and L.P. (propane) gas;
transformer; direct drive multi-speed blower motor. Furnaces are
equipped with cooling/heating relay and transformer (40VA) ready for
air conditioning applications. (Please note: a thermostat is not
included as standard equipment.) Flame sensor diagnostics.
OPTIONAL EQUIPMENT
Twinning Kit
Side and bottom filter frame assembly. Return air cabinet for all sizes.
NOTE: Furnace is not listed for use with fuels other than natural or L.P.
(propane) gas.
The complete terms of limited and other warranties are available at our
sales office, or through local installer.
All models can be converted by a qualified Rheem distributor or local
service dealer to use L.P. (propane) gas without changing burners.
Factory approved kits must be used to convert from natural to L.P.
(propane) gas and may be ordered as optional accessories from a
Rheem parts distributor.
For L.P. (propane) operation, refer to Conversion Kit Index Form.
NOTE: For natural and L.P. (propane) gas models, standard hot surface
ignition is 100% safety lockout type.

Air Model Features/Physical Data & Specifications
RGPS Series
4
Physical Data and Specifications
MODEL NUMBERS
RGPS- SERIES
05EAUER
05NAUER
07EAMER
07NAMER
07EAMGR
07NAMGR 10EAMER 10EBRGR 10EBRJR 10NBRJR 12EARJR 15EARJR
Input-BTU/Hr [kW] ➁50,000 [15] 75,000 [22] 75,000 [22] 100,000 [29] 100,000 [29] 100,000 [29] 125,000 [37] 150,000 [44]
Heating Capacity BTU/Hr [kW] ➀41,000 [12] 60,000 [18] 60,000 [18] 80,000 [23] 80,000 [23] 80,000 [23] 99,000 [29] 119,000 [35]
Heat Ext. Static Pressure [kPa] .10 [.025] .12 [.029] .12 [.029] .15 [.037] .15 [.037] .15 [.037] .20 [.05] .20 [.05]
Blower (D x W) [mm] 11 x 6
[279 x 152]
11 x 7
[279 x 178]
11 x 7
[279 x 178]
11 x 7
[279 x 178]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
Motor H.P.–Speed–
PSC Type [W]
1/2-4-PSC
[373]
1/2-3-PSC
[373]
1/2-3-PSC
[373]
1/2-3-PSC
[373]
1/2-3-PSC
[373]
3/4-3-PSC
[560]
3/4-3-PSC
[560]
3/4-3-PSC
[560]
Motor Full Load Amps 6.8 5.8 7.9 7.1 7.9 9.5 9.5 9.5
Heating Speed Med-Low Med Med Med Med Low Low Low
Cooling Speed High High High High High Med Med Med
Cooling CFM @ .5" E.S.P.
(Nominal) [L/s]
1200
[566]
1200
[566]
1600
[755]
1200
[566]
1845
[871]
2060
[922]
2115
[998]
2080
[982]
Max. E.S.P. (In. W.C.) [kPa] 0.5 [.12] 0.5 [.12] 0.5 [.12] 0.5 [.12] 0.5 [.12] 0.5 [.12] 0.5 [.12] 0.5 [.12]
Temperature Rise Range °F
[°C]
25-55
[13.9-30.6]
35-65
[19.4-36.1]
25-55
[13.9-30.6]
45-75
[250-41.7]
30-60
[16.7-33.3]
30-60
[16.7-33.3]
35-65
[19.4-36.1]
50-80
[27.8-44.4]
Max. Outlet Air Temp. °F
[°C]
155
[68.3]
165
[73.8]
155
[68.3]
190
[87.7]
170
[76.6]
170
[76.6]
180
[82.2]
190
[87.7]
Standard Filter (In.)
[mm]
153/4x 25
[400 x 635]
153/4x 25
[400 x 635]
153/4x 25
[400 x 635]
153/4x 25
[400 x 635]
191/4x 25
[489 x 635]
191/4x 25
[489 x 635]
223/4x 25
[578 x 635]
223/4x 25
[578 x 635]
Return Air Cabinets
(Opt.) RXGR-
Filter Size [mm]
C14B
(2) 12 x 16
[305 x 406]
C17B
(2) 12 x 16
[305 x 406]
C17B
(2) 12 x 16
[305 x 406]
C17B
(2) 12 x 16
[305 x 406]
C21B
(2) 20 x 16
[508 x 406]
C21B
(2) 20 x 16
[508 x 406]
C24B
(2) 24 x 16
[610 x 406]
C24B
(2) 24 x 16
[610 x 406]
AFUE–H.S.I. Models ➀80.0% 80.0% 80.0% 80.0% 80.0% 80.0% 80.0% 80.0%
Approx. Shipping Weight (Lbs.)
[kg]
85
[39]
105
[48]
105
[48]
115
[52]
120
[54]
120
[54]
140
[63]
150
[68]
NOTES: All models are 115V, 60HZ, 1 Ph. Gas connection size for all models is 1/2" [12 mm] N.P.T.
➀In accordance with D.O.E. test procedures.
➁See Conversion Kit Index Form for high altitude derate.
[ ] Designates Metric Conversions
• The design is certified by CSA International.
• Unique solid door design leads to quiet operation.
• Patented heat exchanger, constructed of aluminized steel for the
maximum in corrosion resistance and thermal fatigue reliability.
• Low profile “34 inch” [864 mm] design is lighter and easier to
handle, and leaves room for optional equipment.
• Convertible from upflow to horizontal left or right without field
conversion.
• Left or right side gas and electric inlet connections allow
quick and simple change.
• Direct spark ignition with remote sense, features a integrated
board with an electronic air cleaner hookup.
• Prepaint galvanized steel cabinet.
• A slow-open gas valve and a specially designed draft inducer
motor make it one of the quietest furnaces on the market
today.
• Grab-holes in doors to aid in easy door removal and
replacement.
Model Features

GA07ESGR
Heating & Cooling
Designation
E= 1100-1300(3R)
G= 1500-1700(4R)
J= 1900-2100(5R)
Variations
A= Standard
Cabinet
B= Wide
Cabinet
Heating Input DesignationDesign Series
S= 2nd
Design Series
Gas
Furnace
Rheem
Electric
Ignition
05E
07E
10E
12E
15E
Input
BTU/HR [kW]
50,000 [15]
75,000 [22]
100,000 [28]
125,000 [37]
150,000 [44]
P
P= Upflow/
Horizontal
Multi-
Positional
Tier III
Electric
Ignition
NOx
05N
07N
10N
12N
15N
M
Blower Designation [mm]
U= 11 x 6 [279 x 152]
M= 11 x 7 [279 x 178]
R= 11 x 10 [279 x 254]
R
Fuel
R= Natural Gas -
CSA -
United States
& Canada
(North American)
—
Air Model Number Identification
RGPS Series
5
Model Number Identification
[ ] Designates Metric Conversions

Air Dimensional Data
RGPS Series
6

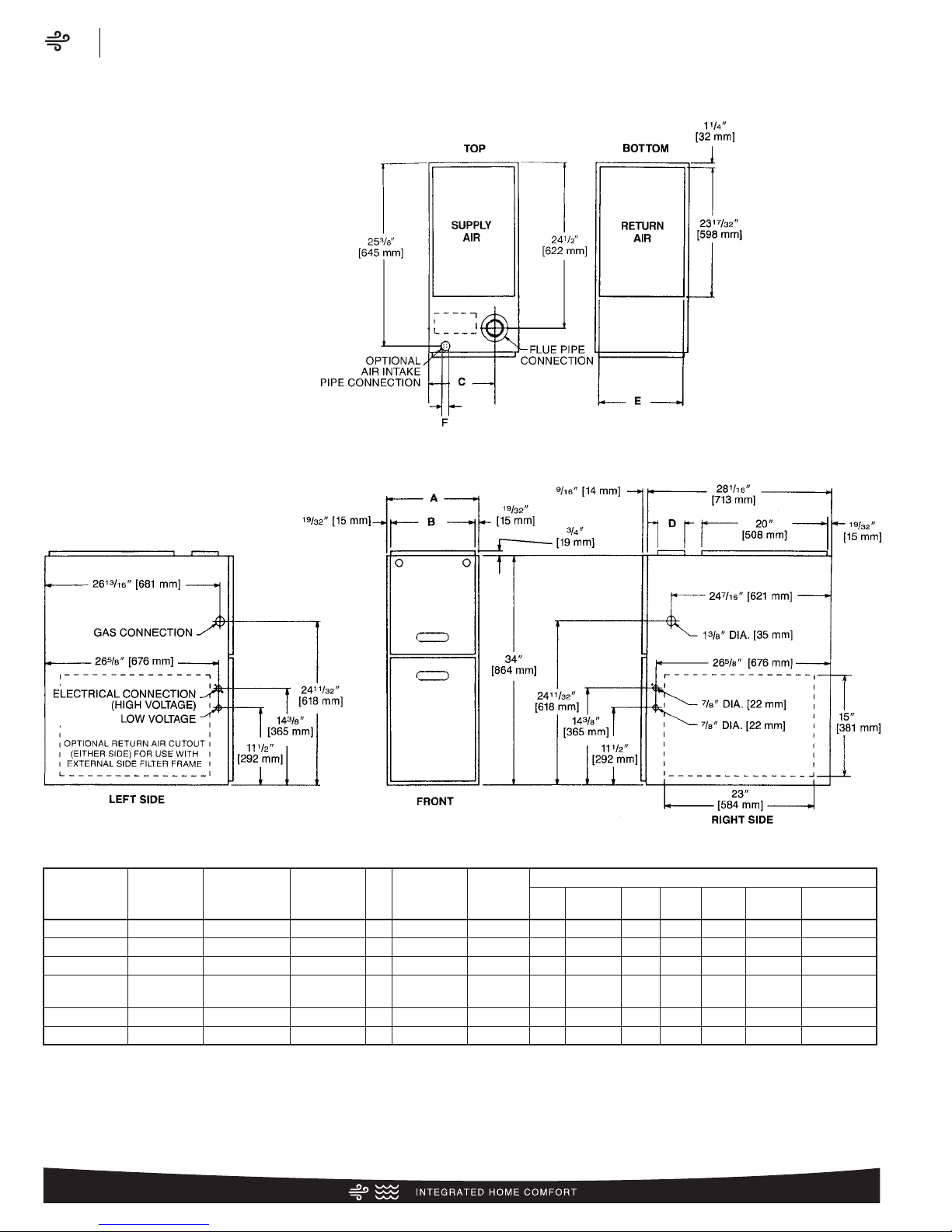

Upflow Application
Dimensional Data: Upflow Model
MODEL
RGPS- A B C D E
REDUCED CLEARANCE (IN.) [mm]
07 171/2[445] 1611/32 [415] 123/8[314] ➀151/2[381] 03 [76] ➁01 [25] 3 [76] 6 [152] ➂
LEFT
SIDE
RIGHT
SIDE BACK TOP FRONT VENT SHIP. WGTS. (LBS.) [Kg]
05 141/2[356] 1227/32 [326] 105/8[270] ➀111/2[292] 04 [102] ➁01 [25] 3 [76] 6 [152] ➂85 [38.6]
105 [47.6]
10BRGR &
10EBRJR 211/2[533] 1927/32 [504] 141/8[359] ➀181/2[470] 0 0 0 1 [25] 3 [76] 6 [152] ➂
10EA 171/2[445] 1611/32 [415] 123/8[314] ➀151/2[381] 03 [76] ➁01 [25] 3 [76] 6 [152] ➂115 [52.2]
120 [54.4]
15 241/2[622] 2311/32 [593] 157/8[403] ➀221/2[559] 0 0 0 1 [25] 3 [76] 6 [152] ➂
12 241/2[622] 2311/32 [593] 157/8[403] ➀221/2[559] 0 0 0 1 [25] 3 [76] 6 [152] ➂140 [63.5]
150 [68] .
F
21/2[64]
17/8[48]
21/2[64]
21/2[64]
21/2[64]
21/2[64]
NOTES: ➀May require a 3" [76 mm] to 4" [102 mm] or 3" [76 mm] to 5" [127 mm] adapter.
➁May be 0" [0 mm] with type B vent.
➂May be 1" [25 mm] with type B vent.
Furnaces must be vented in accordance with the National Fuel Gas Code, ANSI Z223.1 and/or Can/CGA-B149 Installation Codes and in accordance with
local codes.
[ ] Designates Metric Conversions

WARNING
THIS FURNACE IS NOT APPROVED
OR RECOMMENDED FOR HORIZONTAL
APPLICATION OR INSTALLATION
ON ITS BACK, WITH ACCESS DOORS
FACING UPWARDS.
NOTES: ➀May require a 3" [76 mm] to 4" [102 mm] or 3" [76 mm] to 5" [127 mm] adapter.
➁May be 0" [0 mm] with type B vent.
➂May be 1" [25 mm] with type B vent.
Furnaces must be vented in accordance with the National Fuel Gas Code, ANSI Z223.1 and/or Can/CGA-B149 Installation Codes and in accordance with
local codes.
[ ] Designates Metric Conversions
Air Dimensional Data
RGPS Series
7
Horizontal Application
Dimensional Data: Horizontal Model
MODEL
RGPS- A B C D E
REDUCED CLEARANCE (IN.) [mm]
07 171/2[445] 1611/32 [415] 123/8[314] ➀151/2[381] 03 [76] ➁01 [25] 3 [76] 6 [152] ➂
LEFT
SIDE
RIGHT
SIDE BACK TOP FRONT VENT SHIP. WGTS. (LBS.) [Kg]
05 141/2[356] 1227/32 [326] 105/8[270] ➀111/2[292] 04 [102] ➁01 [25] 3 [76] 6 [152] ➂85 [38.6]
105 [47.6]
10BRGR &
10EBRJR 211/2[533] 1927/32 [504] 141/8[359] ➀181/2[470] 0 0 0 1 [25] 3 [76] 6 [152] ➂
10EA 171/2[445] 1611/32 [415] 123/8[314] ➀151/2[381] 03 [76] ➁01 [25] 3 [76] 6 [152] ➂115 [52.2]
120 [54.4]
15 241/2[622] 2311/32 [593] 157/8[403] ➀221/2[559] 0 0 0 1 [25] 3 [76] 6 [152] ➂
12 241/2[622] 2311/32 [593] 157/8[403] ➀221/2[559] 0 0 0 1 [25] 3 [76] 6 [152] ➂140 [63.5]
150 [68] .
F
21/2[64]
17/8[48]
21/2[64]
21/2[64]
21/2[64]
21/2[64]

Air Blower Performance Data
RGPS Series
8
Blower Performance Data
MODEL
NUMBER
RGPS-
SERIES
BLOWER
SIZE
[mm]
MOTOR
H.P.
[W]
BLOWER
SPEED
CFM [L/s] AIR DELIVERY
EXTERNAL STATIC PRESSURE INCHES [kPa] WATER COLUMN
10EBRJR
10NBRJR
11 x 10
[279 x 254]
3/4
[559]
LOW
MED
HIGH
1645 [776]
2045 [965]
2320 [1095]
1615 [762]
2000 [944]
2260 [1067]
1580 [746]
1955 [923]
2200 [1038]
1550 [732]
1905 [899]
2130 [1005]
1510 [713]
1845 [871]
2060 [972]
1465 [691]
1785 [842]
1985 [937]
.1 [.02] .2 [.05] .3 [.07] .4 [.10] .5 [.12] .6 [.15] .7 [.17]
05EAUER
05NAUER
11 x 6
[279 x 152]
1/2
[373]
LOW
MED-LO
MED-HI
HIGH
675 [319]
950 [448]
1115 [526]
1270 [599]
655 [309]
930 [439]
1090 [514]
1250 [590]
635 [300]
905 [427]
1070 [505]
1225 [578]
610 [288]
880 [415]
1040 [491]
1200 [566]
585 [276]
860 [406]
1015 [479]
1165 [550]
555 [262]
830 [392]
985 [465]
1130 [533]
520 [245]
800 [380]
945 [446]
1085 [512]
07EAMER
07NAMER
11 x 7
[279 x 178]
1/2
[373]
LOW
MED
HIGH
1093 [563]
1241 [586]
1393 [657]
1066 [503]
1212 [572]
1359 [642]
1039 [490]
1183 [558]
1326 [626]
1008 [476]
1150 [543]
1293 [610]
977 [461]
1118 [528]
1259 [594]
941 [444]
1076 [508]
1214 [573]
905 [427]
1033 [487]
1169 [552]
07EAMGR
07NAMGR
11 x 7
[279 x 178]
1/2
[373]
LOW
MED
HIGH
1245 [588]
1555 [734]
1810 [854]
1220 [576]
1515 [715]
1755 [828]
1195 [564]
1475 [696]
1705 [805]
1165 [550]
1435 [677]
1645 [776]
1135 [536]
1395 [658]
1585 [748]
1105 [522]
1350 [637]
1530 [722]
1065 [503]
1300 [614]
1470 [694]
10EAMER 11 x 7
[279 x 178]
1/2
[373]
LOW
MED
HIGH
1050 [496]
1220 [576]
1410 [665]
1040 [491]
1195 [564]
1380 [651]
1030 [486]
1160 [547]
1345 [635]
990 [467]
1140 [538]
1300 [614]
960 [453]
1105 [522]
1255 [592]
920 [434]
1065 [503]
1205 [569]
890 [420]
1020 [481]
1150 [543]
1425 [673]
1720 [812]
1910 [901]
10EBRGR 11 x 10
[279 x 254]
1/2
[373]
LOW
MED
HIGH
1295 [611]
1645 [776]
2045 [965]
1275 [602]
1615 [762]
2000 [944]
1250 [590]
1580 [746]
1955 [923]
1225 [578]
1550 [732]
1905 [899]
1195 [564]
1510 [713]
1845 [871]
1165 [550]
1465 [691]
1785 [842]
1135 [536]
1425 [673]
1720 [812]
12EARJR 11 x 10
[279 x 254]
3/4
[559]
LOW
MED
HIGH
1645 [776]
2050 [967]
2365 [1116]
1635 [772]
2015 [951]
2310 [1090]
1615 [762]
1980 [934]
2250 [1062]
1590 [750]
1935 [913]
2185 [1031]
1560 [736]
1885 [890]
2115 [998]
1520 [717]
1835 [866]
2035 [960]
1470 [694]
1775 [838]
1950 [920]
15EARJR 11 x 10
[279 x 254]
3/4
[559]
LOW
MED
HIGH
1620 [765]
2010 [949]
2340 [1104]
1595 [753]
1985 [937]
2275 [1074]
1570 [741]
1960 [925]
2215 [1045]
1545 [729]
1915 [904]
2145 [1012]
1515 [715]
1850 [873]
2080 [982]
1480 [698]
1800 [850]
2010 [949]
1440 [680]
1730 [816]
1940 [916]
Note: Recommended blower speeds are in bold.
[ ] Designates Metric Conversions

Air Accessories
RGPS Series
9
RETURN AIR CABINETS A
IN. [mm]
FILTER SIZE
IN. [mm]
RXGR-C14B 141/4[356] (2) 12 x 16 [305 x 406]
RXGR-C17B 171/2[445] (2) 12 x 16 [305 x 406]
RXGR-C21B 211/4[533] (2) 20 x 16 [508 x 406]
RXGR-C24B 241/2[622] (2) 24 x 16 [610 x 406]
FILTER RACK FILTER SIZES† INCHES [mm]
10EBRGR & 10EBRJR
MODEL
RGPS-
RXGF-CA
(SIDE)
05, 07, 10EA 153/4x 25
[400 x 635]
153/4x 25
[400 x 635]
12, 15 153/4x 25
[400 x 635]
†Filter racks are shipped without filters.
A 1" [25.4 mm] filter may be used.
*Designates “E” or “N”.
THE RXGR-C24B MUST ONLY BE INSTALLED ON THE SIDE
OPPOSITE THE GAS AND ELECTRICAL CONNECTIONS.
WARNING: IMPORTANT NOTICE
A SOLID METAL BASE PLATE (SEE TABLE) MUST BE IN PLACE WHEN THE FURNACE IS
INSTALLED WITH SIDE AIR RETURN DUCTS. FAILURE TO INSTALL A BASE PLATE COULD
CAUSE PRODUCTS OF COMBUSTION TO BE CIRCULATED INTO THE LIVING SPACE AND
CREATE POTENTIALLY HAZARDOUS CONDITIONS.
FURNACE BASE
WIDTH SOLID BOTTOM BASE PLATE SIZE
IN. [mm] KIT NO. PLATE NO. IN. [mm]
141/2[356] RXGB-D14 AE-61874-01 115/8x 239/16 [295 x 598]
171/2[445] RXGB-D17 AE-61874-02 151/8x 239/16 [384 x 598]
211/2[533] RXGB-D21 AE-61874-03 185/8x 239/16 [473 x 598]
241/2[622] RXGB-D24 AE-61874-04 255/8x 239/16 [651 x 598]
FOR HIGH ALTITUDES:
OPTION CODE FOR HIGH ALTITUDE: U.S. & Canada
None required for high altitudes.
HIGH ALTITUDE CONVERSION KITS: U.S. & Canada
None required for high altitudes.
80+ HIGH ALTITUDE INSTRUCTIONS
CAUTION: Always follow National Fuel Gas Code (NFGC) guidelines
when converting for high altitudes.
High altitude option codes are not required for these models.
However, the burner orifice size needs to be recalculated and verified
at elevations above 2000 ft. See Installation Instructions for more
information.
NOTE: For Canadian installations only, an optional derate (manifold
gas pressure reduction) method may be used to adjust the
furnace for altitude. See Installation Instructions for more
information. This optional method may NOT be used for U.S.
installations.
[ ] Designates Metric Conversions
INTERNAL FILTER RACK FOR BOTTOM
OR SIDE RETURN: RXGF-DA*
Each order contains (1) one box of 10 filter racks supplied without
filters.
*Filters available through PROSTOCK®.
SIDE RETURN FILTER RACK: RXGF-CA
BOTTOM RETURN FILTER RACK FOR
UPFLOW APPLICATION: RXGF-CB
ACCESSORY RETURN
AIR CABINETS
Return Air Cabinets may
be installed on either side
application except RXGR-C24B
(side application must be
on side opposite gas and
electrical connections).
RXPF-F01 and F02
FOSSIL FUEL KIT—is for use with Rheem Value Series Heat Pumps
and air furnaces. RXPF-F02 meets TVA requirements.
RXGP-F03
TWINNING KIT—is for parallel operation requirements.

Air Limited Warranty
RGPS Series
10
GENERAL TERMS OF LIMITED WARRANTY*
Rheem will furnish a replacement for any part of this product
which fails in normal use and service within the applicable
period stated, in accordance with the terms of the limited
warranty.
*For complete details of the Limited and Conditional Warranties,
including applicable terms and conditions, contact your local contractor
or the Manufacturer for a copy of the product warranty certificate.
Conditional Parts* (Registration Required) ......Ten (10) Years
Heat Exchanger ......................................Twenty (20) Years

Air Notes
RGPS Series
11

The new degree of comfort.
™
Rheem Heating, Cooling & Water Heating • P.O. Box 17010
Fort Smith, Arkansas 72917 • www.rheem.com
In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.
PRINTED IN U.S.A 10/13 QG FORM NO. G11-520 REV. 1
Rheem Canada Ltd./Ltée • 125 Edgeware Road, Unit 1
Brampton, Ontario • L6Y 0P5
