RIDGID R84015 User manual

1
This new drill has been engineered and manufactured to our high standards for dependability, ease of operation, and opera-
tor safety. When properly cared for, the drill will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
Thank you for buying a RIDGID product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR’S MANUAL
1/2 in. 18 VOLT DRILL-DRIVER
R84015
X

2
TABLE OF CONTENTS
nIntroduction......................................................................................................................................................................2
nGeneral Safety Rules ................................................................................................................................................... 3-4
nSpecific Safety Rules.......................................................................................................................................................4
nImportant Safety Instructions for Charger .......................................................................................................................5
nSymbols ...........................................................................................................................................................................6
nSpecifications ..................................................................................................................................................................7
nUnpacking........................................................................................................................................................................7
nApplications .....................................................................................................................................................................7
nFeatures ....................................................................................................................................................................... 8-9
nOperation ................................................................................................................................................................. 10-16
nMaintenance ............................................................................................................................................................ 17-18
nWarranty.........................................................................................................................................................................19
nCustomer Service Information .......................................................................................................................................20
INTRODUCTION
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have
been given top priority in the design of this product making it easy to maintain and operate.
WARNING:
Do not attempt to use this product until you read thoroughly and understand completely the operator’s manual.
Pay close attention to the safety rules, including Dangers, Warnings, and Cautions. If you use your product properly
and only as intended, you will enjoy years of safe, reliable service.
Look for this symbol to point out important safety precautions. It means
attention!!! Your safety is involved.
WARNING:
The operation of any tool can result in foreign objects being thrown into your eyes, which can result
in severe eye damage. Before beginning operation, always wear safety goggles or safety glasses with
side shields and a full face shield when needed. We recommend Wide Vision Safety Mask for use over
eyeglasses or standard safety glasses with side shields. Always wear eye protection which is marked to
comply with ANSI Z87.1.

3
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below, may
result in electric shock, fire and/or serious personal
injury.
SAVE THESE INSTRUCTIONS
WORK AREA
nKeep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
n Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases,
or dust. Power tools create sparks which may ignite the
dust or fumes.
n Keep bystanders, children, and visitors away while
operating a power tool. Distractions can cause you to
lose control.
ELECTRICAL SAFETY
n A battery operated tool with integral batteries or a
separate battery pack must be recharged only with
the specified charger for the battery. A charger that
may be suitable for one type of battery may create a risk
of fire when used with another battery.
n Use battery operated tool only with specifically
designated battery pack. Use of any other batteries
may create a risk of fire.
n Use battery only with charger listed.
MODEL BATTERY PACK CHARGER
R84015 130254003, 140276002,
130252004 140276001
n Do not abuse the cord. Never use the cord to carry
the charger. Keep cord away from heat, oil, sharp
edges, or moving parts. Replace damaged cords im-
mediately. Damaged cords may create a fire.
PERSONAL SAFETY
n Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use tool
while tired or under the influence of drugs, alcohol,
or medication. A moment of inattention while operating
power tools may result in serious personal injury.
n Dress properly. Do not wear loose clothing or jewelry.
Contain long hair. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
n Avoid accidental starting. Be sure switch is in the
locked or off position before inserting battery pack.
Carrying tools with your finger on the switch or inserting
the battery pack into a tool with the switch on invites
accidents.
n Remove adjusting keys or wrenches before turning
the tool on. A wrench or a key that is left attached to a
rotating part of the tool may result in personal injury.
n Do not overreach. Keep proper footing and balance
at all times. Proper footing and balance enable better
control of the tool in unexpected situations.
n Use safety equipment. Always wear eye protection.
Dust mask, non-skid safety shoes, hard hat, or hearing
protection must be used for appropriate conditions.
nDo not wear loose clothing or jewelry. Contain long
hair. Loose clothes, jewelry, or long hair can be drawn
into air vents.
nDo not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
tool in unexpected situations.
TOOL USE AND CARE
n Use clamps or other practical way to secure and sup-
port the workpiece to a stable platform. Holding the
work by hand or against your body is unstable and may
lead to loss of control.
n Do not force tool. Use the correct tool for your appli-
cation. The correct tool will do the job better and safer
at the rate for which it is designed.
n Do not use tool if switch does not turn it on or off.
A tool that cannot be controlled with the switch is dan-
gerous and must be repaired.
n Disconnect battery pack from tool or place the switch
in the locked or off position before making any adjust-
ments, changing accessories, or storing the tool. Such
preventive safety measures reduce the risk of starting the
tool accidentally.
n Store idle tools out of reach of children and other
untrained persons. Tools are dangerous in the hands
of untrained users.
n When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys, nails,
screws, or other small metal objects that can make
a connection from one terminal to another. Shorting
the battery terminals together may cause sparks, burns,
or a fire.
n Maintain tools with care. Keep cutting tools sharp
and clean. Properly maintained tools with sharp cutting
edges are less likely to bind and are easier to control.
n Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the tool's operation. If damaged, have the tool
serviced before using. Many accidents are caused by
poorly maintained tools.
n Use only accessories that are recommended by the
manufacturer for your model. Accessories that may
be suitable for one tool may create a risk of injury when
used on another tool.
n Keep the tool and its handle dry, clean and free from
oil and grease. Always use a clean cloth when clean-
ing. Never use brake fluids, gasoline, petroleum-based
products, or any strong solvents to clean your tool. Fol-
lowing this rule will reduce the risk of loss of control and
deterioration of the enclosure plastic.

4
SERVICE
n Tool service must be performed only by qualified
repair personnel. Service or maintenance performed
by unqualified personnel may result in a risk of injury.
n When servicing a tool, use only identical replace-
ment parts. Follow instructions in the Maintenance
section of this manual. Use of unauthorized parts or
failure to follow Maintenance Instructions may create a
risk of shock or injury.
nHold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden
wiring. Contact with a "live" wire will also make exposed metal parts of the tool "live" and shock the operator.
ADDITIONAL RULES FOR SAFE OPERATION
nKnow your power tool. Read operator's manual care-
fully. Learn its applications and limitations, as well
as the specific potential hazards related to this tool.
Following this rule will reduce the risk of electric shock,
fire, or serious injury.
n Always wear safety glasses with side shields. Everyday
glasses have only impact resistant lenses. They are NOT
safety glasses. Following this rule will reduce the risk of
eye injury.
IMPORTANT RULES FOR BATTERY TOOLS
nBattery tools do not have to be plugged into an elec-
trical outlet; therefore, they are always in operating
condition. Be aware of possible hazards when not
using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock,
fire, or serious personal injury.
n Do not place battery tools or their batteries near fire
or heat. This will reduce the risk of explosion and pos-
sibly injury.
n Batteries vent hydrogen gas and can explode in the pres-
ence of a source of ignition, such as a pilot light. To reduce
the risk of serious personal injury, never use any cordless
product in the presence of open flame. An exploded bat-
tery can propel debris and chemicals. If exposed, flush
with water immediately.
n Do not charge battery tool in a damp or wet location.
Following this rule will reduce the risk of electric shock.
n For best results, your battery tool should be charged in
a location where the temperature is more than 50°F but
less than 100°F. Do not store outside or in vehicles.
n Under extreme usage or temperature conditions, bat-
tery leakage may occur. If liquid comes in contact with
your skin, wash immediately with soap and water, then
neutralize with lemon juice or vinegar. If liquid gets
into your eyes, flush them with clean water for at least
10 minutes, then seek immediate medical attention.
Following this rule will reduce the risk of serious personal
injury.
GENERAL SAFETY RULES
SPECIFIC SAFETY RULES

5
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below, may
result in electric shock, fire and/or serious personal
injury.
n Before using battery charger, read all instructions and
cautionary markings in this manual, on battery charger,
battery, and product using battery to prevent misuse of
the products and possible injury or damage.
n CAUTION: To reduce the risk of electric shock or damage
to the charger and battery, charge only nickel-cadmium
rechargeable batteries as specifically designated on your
charger. Other types of batteries may burst, causing
personal injury or damage.
n Never use a battery that has been dropped or received a
sharp blow. A damaged battery is subject to explosion.
Properly dispose of a dropped or damaged battery
immediately.
n Do not expose charger to wet or damp conditions. Water
entering charger will increase the risk of electric shock.
n Do not use any attachment or accessory not recommended
by the battery charger manufacturer. Attachments and
accessories that may be suitable for one tool may become
hazardous when used on another tool.
n Do not abuse cord or charger. Never use the cord to carry
the charger. Do not pull the charger cord rather than the
plug when disconnecting from receptacle. Damage to the
cord or charger could occur and create an electric shock
hazard. Replace damaged cords immediately.
n Make sure cord is located so that it will not be stepped
on, tripped over, come in contact with sharp edges or
moving parts or otherwise subjected to damage or stress.
This will reduce the risk of accidental falls, which could
cause injury, and damage to the cord, which could result
in electric shock.
n Keep cord and charger from heat to prevent damage to
housing or internal parts.
n Do not let gasoline, oils, petroleum-based products, etc.
come in contact with plastic parts. They contain chemicals
that can damage, weaken, or destroy plastic.
n An extension cord should not be used unless absolutely
necessary. Use of improper extension cord could result
in a risk of fire and electric shock. If extension cord must
be used, make sure:
a. That pins on plug of extension cord are the
same number, size and shape as those of
plug on charger.
b. That extension cord is properly wired and in
good electrical condition; and
c. That wire size is large enough for AC ampere
rating of charger as specified below:
Cord Length (Feet) 25' 50' 100'
Cord Size (AWG) 16 16 16
Note: AWG = American Wire Gage
n Do not operate charger with a damaged cord or plug,
which could cause shorting and electric shock. If
damaged, have the charger replaced by an authorized
serviceman.
n Do not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way. Take
it to an authorized serviceman for electrical check to
determine if the charger is in good working order.
n Do not disassemble charger. Take it to an authorized
serviceman when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
n Unplug charger from outlet before attempting any
maintenance or cleaning to reduce the risk of electric
shock.
n Disconnect charger from the power supply when not in
use. This will reduce the risk of electric shock or damage
to the charger if metal items should fall into the opening.
It also will help prevent damage to the charger during a
power surge.
n Save these instructions.Refer to them frequently and use
them to instruct others who may use this tool. If you loan
someone this tool, loan them these instructions also to
prevent misuse of the product and possible injury.
IMPORTANT SAFETY INSTRUCTIONS FOR CHARGER
SAVE THESE INSTRUCTIONS
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure
to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust
masks that are specially designed to filter out microscopic particles.

6
SYMBOLS
Important: Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
n
o
No Load Speed Rotational speed, at no load
Class II Construction Double-insulated construction
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
Safety Alert Precautions that involve your safety
To reduce the risk of injury, the user must read and understand
the operator’s manual before using this product.
Eye Protection Always wear safety goggles or safety glasses with side shields
and a full face shield when operating this product.
Wet Conditions Alert Do not expose to rain or use in damp locations.
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the explanations
with them, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any
danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices that may cause property damage.
Note: Advises you of additional information concerning the operation or maintenance of the equipment.
SYMBOL MEANING
Read The Operator’s Manual
---

7
Chuck .................................................................................................................................................1/2 in. (13 mm) Keyless
Motor......................................................................................................................................................................18 Volt DC
Switch..............................................................................................................................................................Variable Speed
Gear Train ...................................................................................................................................................................2 Speed
No Load Speed ......................................................................................................................................... 0-400/0-1600/min.
Clutch .................................................................................................................................................................. 24 Positions
Charger Input ....................................................................................................................................... 120 V, 60 Hz, AC only
Charge Rate .......................................................................................................................................................... 30 minutes
Torque...................................................................................................................................................... Maximum 510 in.lb.
SPECIFICATIONS
UNPACKING
INSTRUCTIONS
When unpacking the tool:
nCarefully remove the tool and accessories from the
box.
nMake sure that all items listed in the packing list are
included.
nInspect the tool carefully to make sure no breakage or
damage occurred during shipping.
nDo not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
nIf any parts are damaged or missing, please call
1-866-539-1710 for assistance.
PACKING LIST
1/2 in. (13 mm) Two Speed Drill
Charger
Battery Pack (2)
Auxiliary Handle
Double-ended Bit
Operator’s Manual
Case
WARNING:
If any parts are missing do not operate the tool until
the missing parts are replaced. Failure to do so
could result in possible serious personal injury.
APPLICATIONS
You may use the two speed drill for the purposes listed below:
nDrilling in wood
nDrilling in ceramics, plastics, fiberglass, and laminates
nDrilling in both hard and soft metals
nUsing driving accessories, such as driving screws with screwdriver bits
nMixing paints

8
FEATURES
Before using this tool, familiarize yourself with all operat-
ing features and safety requirements. However, do not let
familiarity with the tool make you careless.
This new drill-driver is equipped with the following features.
See Figure 1.
KEYLESS CHUCK
The drill-driver has a keyless chuck that allows you to hand
tighten or release drill bit in the chuck jaws.
SWITCH
The drill-driver has a conveniently located variable speed
switch.
SWITCH LOCK
The switch trigger can be locked in the OFF position. This
feature helps reduce the possibility of accidental starting
when not in use.
TWO SPEED GEAR TRAIN
The drill-driver has a two-speed gear train designed for
drilling or driving at LO (1) or HI (2) speeds. A slide switch
is located on top of your drill to select either LO (1) or HI
(2) speed.
FORWARD/REVERSE SELECTOR
(DIRECTION OF ROTATION SELECTOR)
The drill-driver has a forward/reverse selector located above
the switch trigger.
AUXILIARY HANDLE
This drill is equipped with an auxiliary handle for ease of
operation and to prevent loss of control.
BIT STORAGE
When not in use, bits provided with the drill-driver can be
placed in the storage area located on the rear of the motor
housing.
CHARGER
The dual port charger fast-charges two batteries at once. It
is equipped with a fan that brings hot batteries to optimum
charging temperature for more efficient charging and longer
battery life. The charger has a "key hole" hanging feature for
convenient, space saving storage. Screws should be installed
so that center distance is 4-1/8 in.

9
??

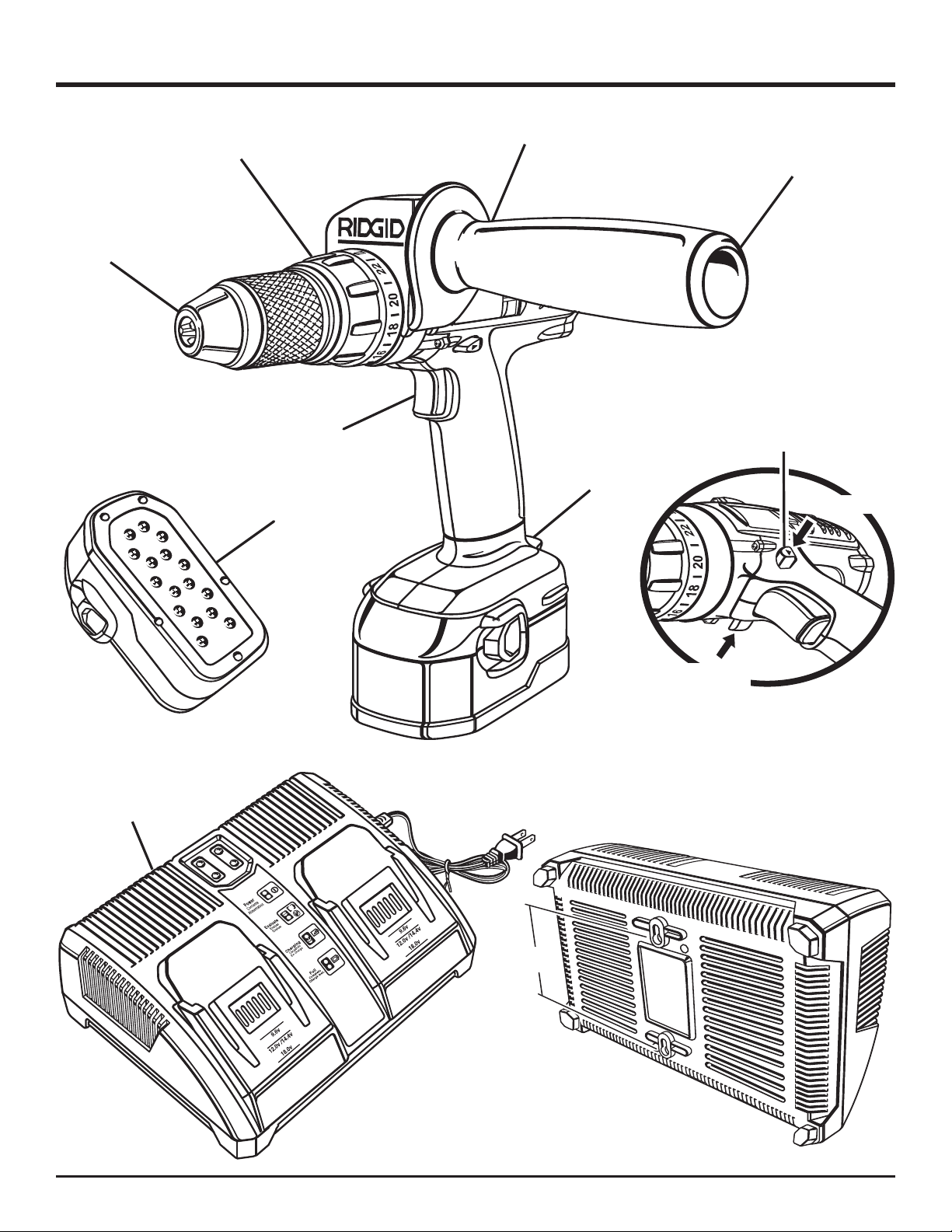

Fig. 1
TWO-SPEED
GEAR TRAIN (HI-LO)
BIT
STORAGE
DIRECTION OF
ROTATION SELECTOR
(FORWARD/REVERSE/LOCK OFF)
FEATURES
KEYLESS
CHUCK
BATTERY
PACK
DUAL PORT
CHARGER
4-1/8 in.
TORQUE
ADJUSTMENT RING AUXILIARY
HANDLE ASSEMBLY
REVERSE
FORWARD
SWITCH

10
OPERATION
Fig. 2
WARNING:
Do not allow familiarity with the tool to make you
careless. Remember that a careless fraction of a
second is sufficient to inflict severe injury.
CHARGING BATTERY PACK
The battery pack for this tool has been shipped in a low
charge condition to prevent possible problems. Therefore,
you should charge it until the light on front of charger
changes from flashing green to continuous green.
Note: Batteries will not reach full charge the first time they
are charged. Allow several cycles (operation followed by
recharging) for them to become fully charged. This is normal
for nickel-cadmium batteries.
TO CHARGE
n Charge battery pack only with the charger provided.
nMake sure power supply is normal house voltage, 120
volts, 60 Hz, AC only.
n Connect the charger to a power supply.
nAttach battery pack to charger by aligning raised ribs on
battery pack with grooves in charger, then slide battery
pack onto charger. See Figure 2.
n After normal usage, 30 minutes of charging time is
required to be fully charged.
n The battery pack will become slightly warm to the touch
while charging. This is normal and does not indicate a
problem.
n Do not place charger in an area of extreme heat or cold.
It will work best at normal room temperature.
n When the batteries become fully charged, unplug your
charger from power supply and remove the battery
pack.
IMPORTANT INFORMATION FOR RECHARGING
HOT BATTER Y PACK
When using this tool continuously, the batteries in the bat-
tery pack will become hot. The battery pack for this tool
will charge more rapidly and efficiently when at a cooled
temperature.
The internal fan for this charger will automatically turn on
when a battery pack is inserted. Air circulates through the
battery, bringing it to optimum charging temperature, de-
creasing the time required to begin fast charging the pack,
and extending the life of the battery.
Note: The fan will start to run and continue to run until the
battery pack is removed from the charger.
When the battery pack becomes discharged and is hot, the
green LED will be off and the red LED will begin flashing.
When the battery pack cools down to approximately 104°F
(40°C), the charger will automatically begin fast charge
mode.
If the Red LED continues to flash for more than 90 minutes,
and the green LED remains off, this may indicate a damaged
battery that will not charge.
IMPORTANT INFORMATION FOR RECHARGING
COOL BATTERY PACK
If battery pack is below normal temperature range, the red
LED will begin flashing and the green LED will be off. When
the battery warms to a temperature of more than 41°F (5°C),
the charger will automatically begin fast charge mode.
Note: Refer to "CHARGING BATTERY PACK" for normal
recharging of batteries. If the charger does not charge your
battery pack under normal circumstances, return both the
battery pack and charger to your nearest repair center for
electrical check. For the location of your nearest repair cen-
ter, please call 1-866-539-1710.
CAUTION:
To prevent damage to battery pack, remove battery
pack from charger immediately if no LED comes
on. Return battery pack and charger to your
nearest service center for checking or replacing.
Also, if you are removing battery pack from
charger and no LEDs are on, return both battery
pack and charger to your nearest service center.
Do not insert another battery pack into charger. A
damaged charger may damage a battery pack.

11
Fig. 3
??
POWER
INDICATOR
EVALUATE
INDICATOR
CHARGING
INDICATOR
FULL
INDICATOR
Note: The 9.6 volt, 12 volt, and 14.4
volt battery packs will not slide all the
way down onto the charger port. Insert
9.6 volt, 12 volt, and 14.4 volt battery
packs until they click into place and
are aligned with the line on the charger,
shown at left.
Allow up to 5 seconds for the “charge”
light to come on after the battery pack
is inserted.
OPERATION
Ready to charge battery pack
When battery pack reaches cooled
temperature, charger begins fast
charge mode
When battery pack reaches
warmed temperature, charger
begins fast charge mode
Charger pre-charges battery until
normal voltage is reached, then
begins fast charge mode
If red LED continues flashing for
more than 90 minutes, and green
LED remains off, this may
indicate a damaged battery
Fast charges in 30 minutes
Fast charging is complete.
Charger maintains charge mode.

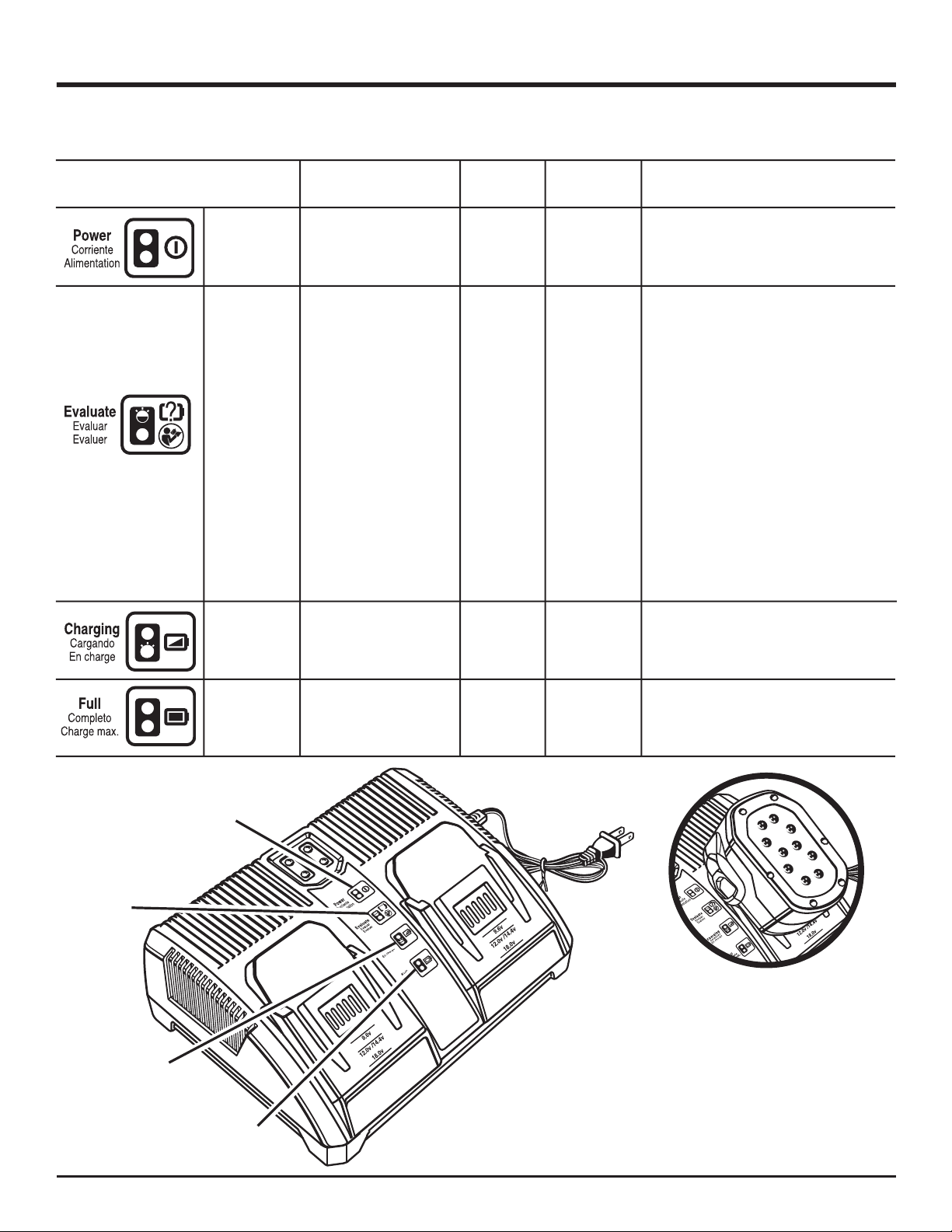

LED FUNCTION OF CHARGER
See Figure 3.
LED
INDICATOR
BATTERY
PACK
RED
LED
GREEN
LED
ACTION
Power
Evaluate
Evaluate
Evaluate
Evaluate
Charging
Full
Without battery pack
Hot battery pack
Cold battery pack
Deeply discharged
Thermistor shorted
or open
Fast charging
Slow charging
ON
Flashing
Flashing
Flashing
Flashing
ON
OFF
OFF
OFF
OFF
OFF
OFF
Flashing
ON

12
22
20
18
16
14
OPERATION
TO INSTALL BATTERY PACK
n Lock the switch trigger on the drill by placing the
direction of rotation (forward-reverse) selector in center
position. See Figure 4.
n Place battery pack in the drill. Align raised rib on battery
pack with the groove inside the drill. See Figure 5.
n Make sure the latches on each side of your battery pack
snap in place and battery pack is secured in the drill
before beginning operation.
CAUTION:
When placing battery pack in the tool, be sure
raised rib on battery pack aligns with the slide on
the bottom of the drill and latches snap into place
properly. Improper assembly of the battery pack
can cause damage to internal components.
TO REMOVE BATTERY PACK
n Lock the switch trigger on the drill by placing the
direction of rotation selector in center position.
See Figure 4.
n Locate latches on side of battery pack and depress to
release battery pack from the drill. See Figure 5.
n The battery pack will automatically disconnect in
direction to be removed when buttons are depressed.
n Remove the battery pack from your drill.
SWITCH
See Figure 6.
To turn your drill ON, depress the switch trigger. To turn it
OFF, release the switch trigger.
VARIABLE SPEED
See Figure 6.
This tool has a variable speed switch that delivers higher
speed and torque with increased trigger pressure. Speed is
controlled by the amount of switch trigger depression.
This drill has an electric brake. When the trigger switch
is released, the chuck stops turning. When the brake is
functioning properly, sparks will be visible through the vent
slots on the housing. This is normal and is the action of
the brake.
Note: You might hear a whistling or ringing noise from the
switch during use. Do not be concerned, this is a normal
part of the switch function.
Fig. 4
Fig. 5
DEPRESS LATCHES TO
RELEASE BATTERY PACK
Fig. 6
VARIABLE SPEED
SWITCH TRIGGER
SELECTOR WITH CENTER
LOCK POSITION
FORWARD
REVERSE

13
REVERSIBLE
See Figure 4.
This tool has the feature of being reversible. The direction of
rotation is controlled by a selector located above the switch
trigger. With the drill held in normal operating position, the
direction of rotation selector should be positioned to the left
of the switch for drilling. The drilling direction is reversed
when the selector is to the right of the switch. When the
selector is in center position, the switch trigger is locked.
CAUTION:
To prevent gear damage, always allow chuck to
come to a complete stop before changing the
direction of rotation or the two speed gear train
(hi-lo).
To stop, release switch trigger and allow the chuck to
come to a complete stop.
TWO-SPEED GEAR TRAIN
See Figure 7.
Your drill has a two-speed gear train designed for drilling or
driving at LO (1) or HI (2) speeds. A slide switch is located on
top of your drill to select either LO (1) or HI (2) speed. When
using drill in the LO (1) speed range, speed will decrease and
unit will have more power and torque. When using drill in the
HI (2) speed range, speed will increase and unit will have
less power and torque. Use LO (1) speed for high power
and torque applications and HI (2) speed for fast drilling or
driving applications.
AUXILIARY HANDLE
See Figure 8.
An auxiliary handle is packed with the drill for ease of op-
eration and to help prevent loss of control.
To use the auxiliary handle:
n Open the clamping ring by turning the handle counter-
clockwise.
n Slide the ring of the auxiliary handle onto the spindle col-
lar of the machine behind the torque adjustment ring.
n Tighten the auxiliary handle at the desired angle by turn-
ing the handle clockwise.
Note: For convenience the screw has been trapped inside
the auxiliary handle.
To prevent thread damage and possible loss of control, the
auxiliary handle should be checked periodically for tightness.
Do not operate the drill with the handle loose.
OPERATION
HI
SPEED
LO
SPEED
TWO SPEED
GEAR TRAIN (HI-LO)
Fig. 7
Fig. 8
21
TO
TIGHTEN
AUXILIARY
HANDLE ASSEMBLY
TO
LOOSEN

14
INSTALLING BITS
See Figure 9-10.
n Lock the switch trigger by placing the direction of rota-
tion selector in center position. See Figure 4.
n Open or close chuck jaws to a point where the opening
is slightly larger than the bit size you intend to use. Also,
raise the front of the drill slightly to keep the bit from
falling out of the chuck jaws.
n Insert drill bit straight into chuck the full length of the
jaws as shown in figure 9. The drill bit must be inserted
past the first set of carbide inserts, to a depth of 7/8
in.
n Tighten the chuck jaws on the drill bit.
Note: Rotate the chuck body in the direction of the arrow
marked LOCK to tighten chuck jaws.
n Do not use a wrench to tighten or loosen the chuck
jaws.
WARNING:
Make sure to insert drill bit straight into chuck jaws.
Do not insert drill bit into chuck jaws at an angle
then tighten, as shown in Figure 10. This could
cause drill bit to be thrown from drill, resulting in
possible serious personal injury or damage to the
chuck.
REMOVING BITS
See Figure 9.
n Lock the switch trigger by placing the direction of ro-
tation selector in center position. See Figure 4.
n Loosen the chuck jaws from the drill bit.
Note: Rotate the chuck body in the direction of the arrow
marked UNLOCK to loosen chuck jaws.
n Do not use a wrench to tighten or loosen the chuck
jaws.
n Remove the drill bit from the chuck jaws.
OPERATION
Fig. 9
UNLOCK
(RELEASE)
LOCK
(TIGHTEN)
Fig. 10
WRONG

15
OPERATION
ADJUSTABLE TORQUE CLUTCH
This drill is equipped with an adjustable torque clutch for
driving different types of screws into different materials. The
proper setting depends on the type of material and the size
of screw you are using.
TO ADJUST TORQUE
nIdentify the twenty four torque indicator settings located
on the front of the drill. See Figure 11.
nRotate adjusting ring to the desired setting.
• 1 - 4 For driving small screws.
• 5 -8 For driving screws into soft material.
• 9 -12 For driving screws into soft and hard
materials.
• 13 -16 For driving screws in hard wood.
• 17 - 20 For driving large screws.
• 21 - For heavy drilling.
BIT STORAGE
See Figure 12.
When not in use, the bit provided with this drill can be placed
in the storage area located on the rear of the drill.
WARNING:
Always wear safety goggles or safety glasses with
side shields when operating this tool. Failure to do
so could result in dust, shavings, or loose particles
being thrown into your eyes, resulting in possible
serious injury.
Fig. 12
Fig. 11
TO DECREASE
TORQUE
TO INCREASE
TORQUE
ADJUSTING
RING
BIT STORAGE AREA SCREWDRIVER BIT

16
DRILLING
See Figure 13.
When drilling hard smooth surfaces use a center punch to
mark desired hole location. This will prevent the drill bit from
slipping off center as the hole is started. However, the low
speed feature allows starting holes without center punching
if desired. To accomplish this, simply operate the drill at a
low speed until the hole is started.
The material to be drilled should be secured in a vise or with
clamps to keep it from turning as the drill bit rotates.
Hold tool firmly and place the bit at the point to be drilled.
Depress the switch trigger to start tool.
Move the drill bit into the workpiece applying only enough
pressure to keep the bit cutting. Do not force or apply side
pressure to elongate a hole.
WARNING:
Be prepared for binding or bit breakthrough. When
these situations occur, drill has a tendency to grab
and kick opposite to the direction of rotation and
could cause loss of control when breaking through
material. If not prepared, this loss of control can
result in possible serious injury.
When drilling metals, use a light oil on the drill bit to keep it
from overheating. The oil will prolong the life of the bit and
increase the drilling action.
If the bit jams in workpiece or if the drill stalls, release switch
trigger immediately. Remove the bit from the workpiece and
determine the reason for jamming.
OPERATION
Fig. 13

17
CHUCK REMOVAL
See Figures 14, 15, and 16.
The chuck must be removed in order to use some acces-
sories. To remove:
nLock the switch trigger by placing the direction of ro-
tation selector in center position. See Figure 4.
nInsert a 5/16 in. or larger hex key into the chuck of the
drill and tighten the chuck jaws securely.
n Tap the hex key sharply with a mallet in a clockwise
direction. See Figure 14. This will loosen the screw in
the chuck for easy removal.
nOpen the chuck jaws and remove the hex key. Remove
the chuck screw by turning it in a clockwise direction.
See Figure 15.
Note: The screw has left hand threads.
n Insert the hex key in the chuck and tighten chuck jaws
securely. Tap sharply with a mallet in a counterclockwise
direction. This will loosen the chuck on the spindle. It
can now be unscrewed by hand. See Figure 16.
TO RETIGHTEN A LOOSE CHUCK
The chuck may become loose on spindle and develop a
wobble. Periodically check chuck screw for tightness.
To tighten, follow these steps:
n Lock the switch trigger by placing the direction of ro-
tation selector in center position. See Figure 4.
n Open the chuck jaws.
n Insert the hex key into the chuck and tighten chuck
jaws securely. Tap the hex key sharply with a mallet in
a clockwise direction. This will tighten the chuck on the
spindle. See Figure 14.
n Open the chuck jaws and remove the hex key.
n Tighten the chuck screw.
Note: The chuck screw has left hand threads.
MAINTENANCE
Fig. 15
Fig. 16
Fig. 14
CHUCK JAWS
HEX KEY
MALLET
KEYLESS
CHUCK
SCREWDRIVER

18
KEEPING THE CHARGER VENTS CLEAN
The fan in this charger will perform more efficiently if the air
vents and ports are kept clean and dust-free. Periodically
check the air vents for dust or other debris.
To clean the vents, unplug the charger. Using a fine nylon-
bristle brush, whisk dust or debris away from the air vents
and ports.
The battery pack has intake and exhaust vents that should
also be kept free of dust and debris. Clean the battery pack
vents by using a fine nylon-bristle brush to whisk away dust
or debris.
When cleaning, do not allow metal to come into contact with
any of the vents or ports of the charger or battery pack.
MAINTENANCE
WARNING:
When servicing use only identical RIDGID®
replacement parts. Use of any other parts may
create a hazard or cause product damage.
Do not abuse power tools. Abusive practices can damage
tool as well as workpiece.
GENERAL
Use clean cloths to remove dirt, carbon dust, etc.
WARNING:
Do not at any time let brake fluids, gasoline,
petroleum-based products, penetrating oils, etc.
come in contact with plastic parts. They contain
chemicals that can damage, weaken or destroy
plastic.
WARNING:
Do not attempt to modify this tool or create
accessories not recommended for use with this
tool. Any such alteration or modification is misuse
and could result in a hazardous condition leading
to possible serious personal injury.
WARNING:
Always wear safety goggles or safety glasses with
side shields when using compressed air to clean
tools. If the operation is dusty, also wear a dust
mask.
BATTERIES
The battery pack for this tool is equipped with nickel-cadmium
rechargeable batteries. Length of service from each charging
will depend on the type of work you are doing.
RIDGID slide batteries have been designed to provide
maximum trouble free life. However, like all batteries, they
will eventually wear out. Do not disassemble battery pack
and attempt to replace the batteries. Handling of these
batteries, especially when wearing rings and jewelry, could
result in a serious burn.
To obtain the longest possible battery life, we suggest the
following:
n Store and charge your batteries in a cool area.
Temperatures below 50°F or above 100°F will shorten
battery life.
n Never store batteries in a discharged condition. Recharge
them immediately after they are discharged.
n All batteries gradually lose their charge. The higher the
temperature the quicker they lose their charge. If you
store your tool for long periods of time without using it,
recharge the batteries every month or two. This practice
will prolong battery life.
BATTERY PACK REMOVAL AND
PREPARATION FOR RECYCLING
WARNING:
Upon removal, cover the battery pack's terminals
with heavy duty adhesive tape. Do not attempt to
destroy or disassemble battery pack or remove
any of its components. Nickel-cadmium batteries
must be recycled or disposed of properly. Also,
never touch both terminals with metal objects
and/or body parts as short circuit may result. Keep
away from children. Failure to comply with these
warnings could result in fire and/or serious injury.
To preserve natural resources, please
recycle or dispose of batteries properly.
This product contains nickel-cadmium
batteries. Local, state or federal laws
may prohibit disposal of nickel-cadmium
batteries in ordinary trash.
Consult your local waste authority for information regarding
available recycling and/or disposal options.

19
WARRANTY
Proof of purchase must be presented when requesting war-
ranty service.
Limited to RIDGID® hand held and stationary power tools
purchased 2/1/04 and after. This product is manufactured
by One World Technologies, Inc. The trademark is licensed
from RIDGID, Inc. All warranty communications should be
directed to One World Technologies, Inc., attn: RIDGID Hand
Held and Stationary Power Tool Technical Service at (toll
free) 1-866-539-1710.
90-DAY SATISFACTION GUARANTEE POLICY
During the first 90 days after the date of purchase, if you are
dissatisfied with the performance of this RIDGID® Hand Held
and Stationary Power Tool for any reason you may return
the tool to the dealer from which it was purchased for a full
refund or exchange. To receive a replacement tool you must
present proof of purchase and return all original equipment
packaged with the original product. The replacement tool
will be covered by the limited warranty for the balance of
the 3 YEAR service warranty period.
WHAT IS COVERED UNDER THE 3 YEAR
LIMITED SERVICE WARRANTY
This warranty on RIDGID® Hand Held and Stationary Power
Tools covers all defects in workmanship or materials and nor-
mal wear items such as brushes, chucks, motors, switches,
cords, gears and even cordless batteries in this RIDGID®
tool for three years following the purchase date of the tool.
Warranties for other RIDGID® products may vary.
HOW TO OBTAIN SERVICE
To obtain service for this RIDGID® tool you must return it;
freight prepaid, or take it in to an authorized service center
for RIDGID® branded hand held and stationary power tools.
You may obtain the location of the authorized service center
nearest you by calling (toll free) 1-866-539-1710 or by log-
ging on to the RIDGID® website at www.ridgid.com. When
requesting warranty service, you must present the original
dated sales receipt. The authorized service center will re-
pair any faulty workmanship, and either repair or replace
any part covered under the warranty, at our option, at no
charge to you.
One World Technologies, Inc.
Hwy. 8
Pickens, SC 29671
RIDGID® HAND HELD AND STATIONARY POWER TOOL
3 YEAR LIMITED SERVICE WARRANTY
WHAT IS NOT COVERED
This warranty applies only to the original purchaser at retail
and may not be transferred. This warranty only covers de-
fects arising under normal usage and does not cover any
malfunction, failure or defect resulting from misuse, abuse,
neglect, alteration, modification or repair by other than an
authorized service center for RIDGID® branded hand held
and stationary power tools. Consumable accessories pro-
vided with the tool such as, but not limited to, blades, bits
and sand paper are not covered.
RIDGID, INC. AND ONE WORLD TECHNOLOGIES, INC.
MAKE NO WARRANTIES, REPRESENTATIONS OR
PROMISES AS TO THE QUALITY OR PERFORMANCE
OF ITS POWER TOOLS OTHER THAN THOSE SPECIFI-
CALLY STATED IN THIS WARRANTY.
ADDITIONAL LIMITATIONS
To the extent permitted by applicable law, all implied war-
ranties, including warranties of MERCHANTABILITY or FIT-
NESS FOR A PARTICULAR PURPOSE, are disclaimed. Any
implied warranties, including warranties of merchantability
or fitness for a particular purpose, that cannot be disclaimed
under state law are limited to three years from the date of
purchase. One World Technologies, Inc. and RIDGID, Inc.
are not responsible for direct, indirect, incidental or conse-
quential damages. Some states do not allow limitations on
how long an implied warranty lasts and/or do not allow the
exclusion or limitation of incidental or consequential dam-
ages, so the above limitations may not apply to you. This
warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.

20
Customer Service Information:
For parts or service, contact your nearest RIDGID authorized service center. Be
sure to provide all relevant information when you call or visit. For the location of the
authorized service center nearest you, please call 1-866-539-1710 or visit us online
at www.ridgid.com.
The model number of this tool is found on a plate attached to the motor housing.
Please record the serial number in the space provided below. When ordering repair
parts, always give the following information:
Model No.
Serial No.
R84015
983000-304
9-05
OPERATOR’S MANUAL
1/2 in. 18 VOLT DRILL-DRIVER
R84015
