Rinnai RO-M3411-ST User manual

Operation / Installation Manual
Microwave Oven
RO-M3411-ST
Rinnai Corporation
English

English Page 1 - 16
TABLE OF CONTENTS

1
Safety warnings --------------------------------------------------------------------------------------------------------------------------2
Appliance specifications ---------------------------------------------------------------------------------------------------------------6

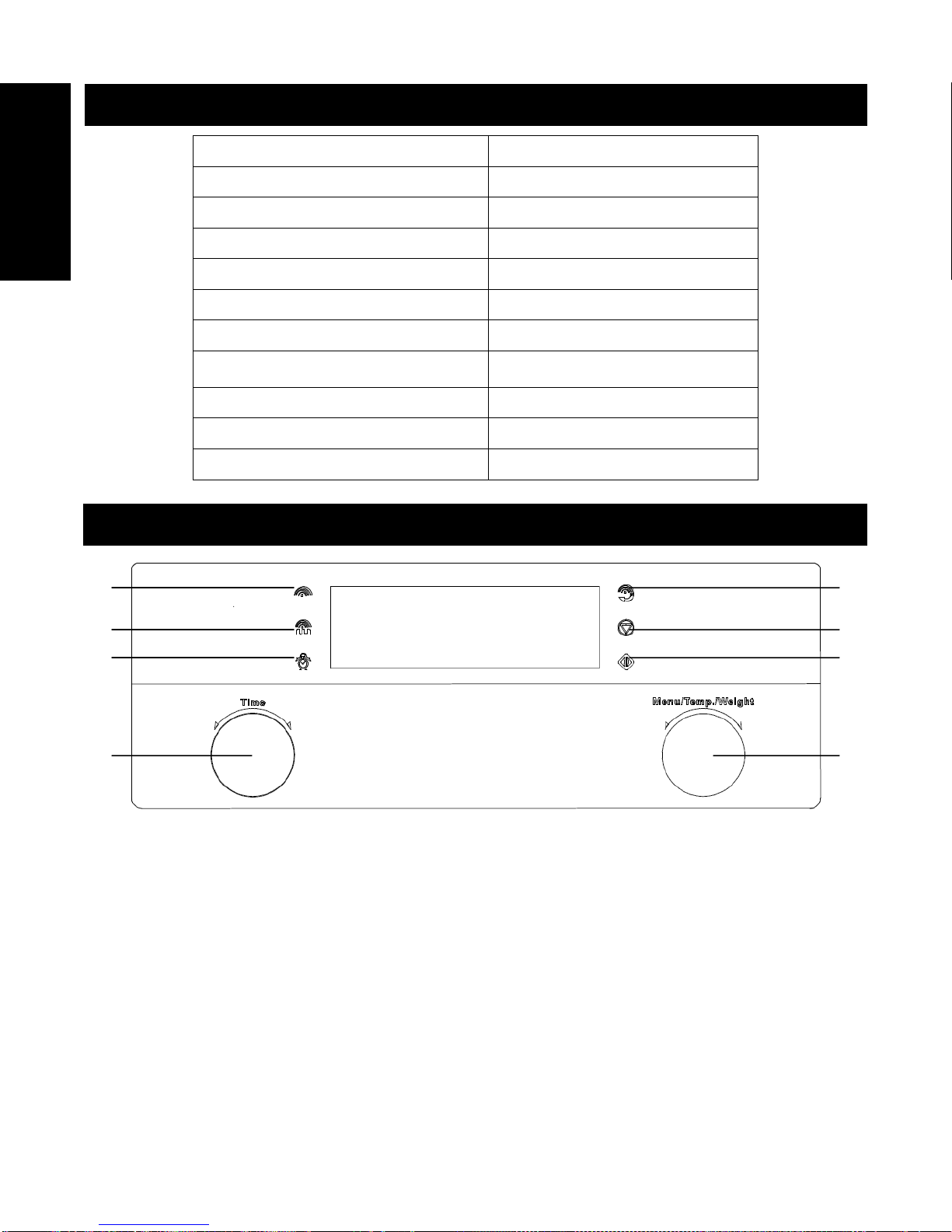

Control panel -----------------------------------------------------------------------------------------------------------------------------6
Guide to the appliance -----------------------------------------------------------------------------------------------------------------7
Microwave functions --------------------------------------------------------------------------------------------------------------------8
Using for the first time ------------------------------------------------------------------------------------------------------------------8
Operation ----------------------------------------------------------------------------------------------------------------------------------9
Maintenance and Care-----------------------------------------------------------------------------------------------------------------13
Troubleshoot -----------------------------------------------------------------------------------------------------------------------------14

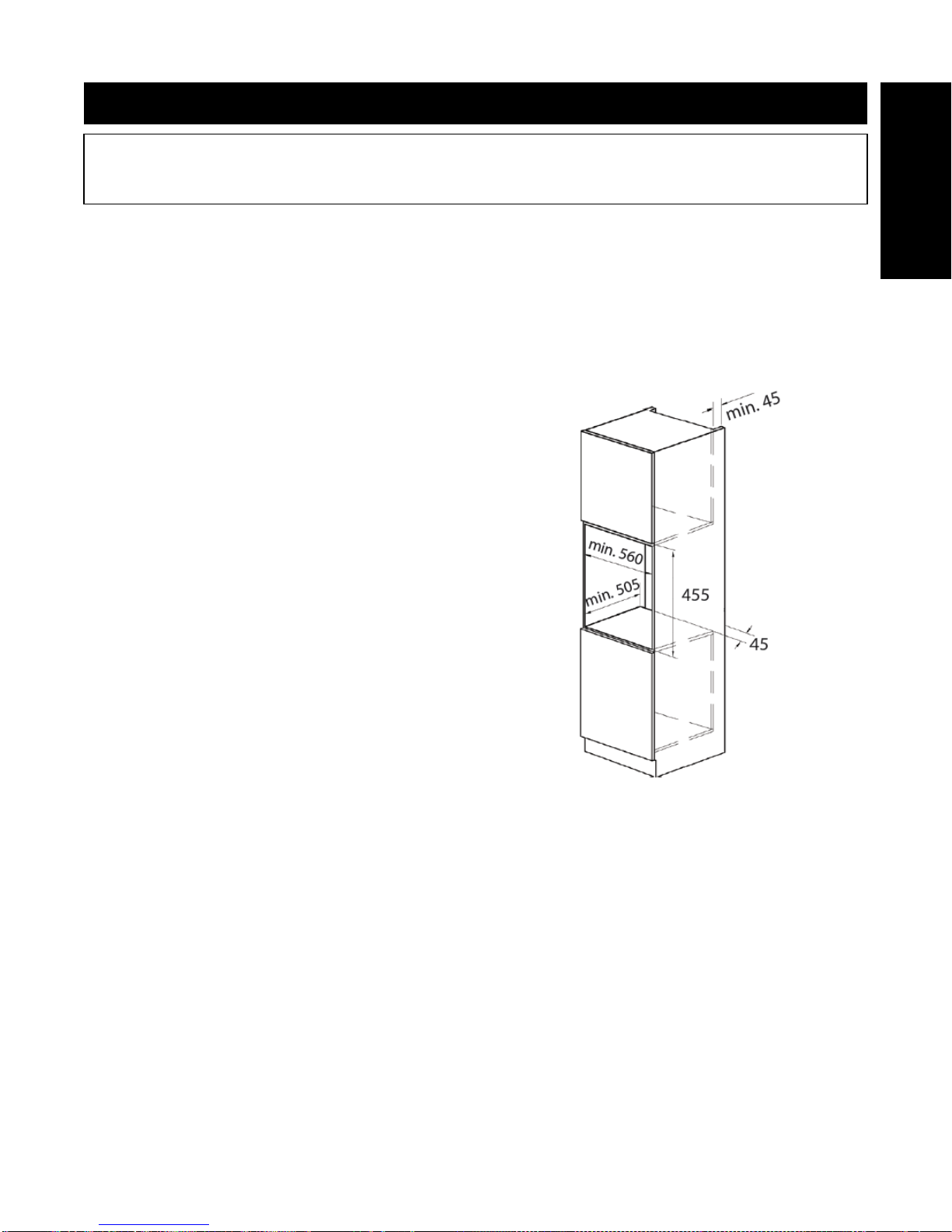

Installation --------------------------------------------------------------------------------------------------------------------------------15
Version: 2013 03
CONTENTS
IMPORTANT
Please paste the serial number labels enclosed with the
packaging on your warranty card to register your product
warranty.
Please contact your local Rinnai Customer Care Centre
should you require further assistance.
English

2
Unpacking
Do not use the appliance if there are obvious
signs of transportation damage.
If the power supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or qualified technician to avoid hazard.
Ensure that young children do not play with
plastic bag packaging.
For the user
This appliance is for home food preparation only
and should be used only for heating, cooking
and defrosting food and beverage. It is not
suitable for commercial, laboratory use or
heating therapeutic devices.
This appliance is not intended for use by young
children.
Older children or infirm persons may use the
appliance without supervision when adequate
instructions are given and they are able to use
the microwave in a safe way and understand
the hazards of improper use.
The door safety lock prevents the microwave
oven from operating when the door is open. Do
not tamper with them, or operate this appliance
with the door open as this can result in
microwave leakage and cause hazard to the
user.
It is particularly important that the oven door
closes properly. Do not operate the microwave if
a) door is warped
b) door hinges and latches are loose or broken
c) door seals and oven cavity are buckled or
deformed
d) holes and cracks are visible in the door or
oven interior walls
Warning: Operating the appliance with this type
of damage will result in microwave leakage and
present a hazard to user.
Always open the microwave oven door carefully
as hot steam may escape.
Accessible surfaces may become hot when in
grill mode with or without microwave function.
Cookware, grilling rack and turntable may
become hot during use. Always use heat-
resistant oven gloves to avoid burns.
Be careful when removing a lid or cover from
cookware to avoid steam burns.
Do not use full power to warm empty cookware.
Do not force the turntable to rotate by hand. This
may cause malfunctioning.
Do not use the oven cavity for storage purposes.
Do not obstruct air vents located on the ovens.
Never use a high pressure cleaner or steam
cleaner to clean the appliance. The steam could
reach the electrical components and result in a
short circuit.
To reduce the risk of fire in the oven cavity:
a) Do not overcook food.
b) Do not heat oil or fat for deep frying. Do not
leave the food unattended when cooking with
oils as these can be a fire hazard if overheat.
c) Do not leave the oven unattended when
reheating or cooking food in disposable
containers made of plastic, paper or other
combustible materials.
d) Remove wire twist-ties from paper or plastic
bags before placing bag in the oven.
e) Do not heat undiluted alcohol in the
microwave oven as this can easily ignite.
f) If smoke or ignition is observed inside the
cooking compartment, keep oven door
closed. Switch off and unplug the appliance
immediately. Do not open the door until the
smoke has dispersed.
g) Always keep the inside of the oven clean.
Build-up grease may overheat and cause
smoke or ignite.
SAFETY WARNINGS
Please read this user manual thoroughly before attempting to use appliance for the first time. This manual
contains important information on safe installation, use and care of the appliance. Do keep these instructions
for reference and pass them on to future user.
English

3
Technical safety
Before setting up the appliance, check it for
external visible damage. Do not install or
attempt to use a damaged appliance.
Do not operate the microwave if the door,
hinges or door seals are damaged. Operating
the appliance will result in microwave energy
leakage and may cause hazard to the user.
Ensure that the power supply cord does not run
under the oven and is free from heat source or
sharp objects.
The appliance is a high voltage appliance.
Never remove the casing as this will result in
microwave energy leakage and may cause
hazard to the user.
Before connecting the appliance to the power
mains, make sure that the voltage and
frequency corresponds to the rating as shown
on the rating plate attached to the appliance.
The electrical safety of this appliance can only
be guaranteed if the appliance is correctly
earthed. Use an electrical connector with earth
that is correct for your location. The electrical
connection of this appliance must be connected
to earth (where applicable): Green &
Yellow=EARTH; Blue=NEUTRAL; Brown=LIVE.
The basic safety requirement should be tested
and inspected by a qualified technician. The
manufacturer cannot be held liable for any
damages due to inadequate earthing system.
Installation and repair should only be attempted
by qualified technician.
It is dangerous to modify any part of this
appliance. Tampering with electrical connections
or mechanical parts can cause operation faults
and may put the user at risk.
Multiple plugs and extension cables must not be
used. Overloading is dangerous and may cause a
fire hazard.
Always disconnect the power supply cord before
carrying out any cleaning or maintenance work
on the appliance.
Disposal
This appliance and its packaging are
environmentally friendly and recyclable. Please
help us to care for the environment by disposing
the packaging in a proper manner and recycling
any old appliances.
Before disposing an old appliance, disconnect it
from the power supply and cut the power supply
cord to prevent hazards.
Microwave Cooking Advice
GENERAL NOTES
DO NOT
DO
Eggs
Do not cook eggs in shells, hard
or soft-boiled eggs in the
microwave oven as they may
explode.
Puncture the egg yolks before
cooking, cover and allow standing
time of at least one minute before
removing utensil cover.
Foods with peel or skin
Foods with peel or skins such as
potatoes, tomatoes, sausages,
apples may burst during cooking.
Pierce skins before cooking. This
will allow steam to escape and
prevent the food from bursting.
Baby food
Do not heat baby food in original
jars.
Do not overheat baby bottles.
Only heat till warm.
Transfer baby food to small dish
and heat carefully, stirring often.
Remove the screw cap and teat
before warming the baby bottles.
After warming, shake bottle
thoroughly.
Do check the temperature before
serving to prevent burns.
The manufacturer will not be held liable for any
damages resulting from improper installation nor
failure to adopt proper safety measures during
installation and operational use of the appliance.
English

4
Canned foods
Do not cook or heat up food and
liquids in sealed containers/cans
as pressure can build up and they
may explode posing a severe risk
of injury.
Remove food from sealed
containers/cans. Transfer to
suitable utensil/dish.
Popcorn
Do not use regular brown bags,
plastic bags or glass bowl to pop
popcorn.
Do not exceed the maximum time
indicated on popcorn package.
Use specially bagged popcorn for
the microwave oven.
Liquids and beverages
Do not heat longer than the
recommended time.
Microwave heating of liquids such
as soups, beverages, sauces etc
can result in delayed eruptive
boiling. The boiling point of the
liquid may be reached without
evident production of bubbles.
The liquid does not boil evenly
throughout. “Boiling delay” can
cause a sudden build-up of
bubbles when the container is
removed from the microwave or
shaken. This could lead to
sudden boil over of the hot liquid
resulting in danger of burning.
Select the appropriate cooking time
and power level. If you are unsure,
begin with low power level and
cooking time, slowly increase the
setting until the food is sufficiently
heated throughout.
Stir the liquid before and during
cooking.
After heating, allow to stand in the
oven for a short time.
Exercise caution when handling the
container.
Turntable
Do not operate the microwave
oven without the turntable in
place.
Do not cook, reheat or defrost
food directly on the turntable for
cooking.
Always place food in suitable
utensil/dish.
Check that the utensil/dish is not
larger in size than the turntable.
Utensils
Do not use containers made from
metal, aluminium foil, lead crystal
glassware or bowls with metallic
trim. These items could be
damaged or cause a fire hazard.
Avoid using containers with
restrictive openings (narrow
necks).
Check that utensils are suitable for
microwave cooking before using
them.
Aluminium foil
Do not use too much aluminium
foil or sparkling may occur.
Narrow strips of aluminum foil may
be used to shield food from
overheating. Keep to smaller pieces
of aluminium foil.
Keep aluminium foil clear of cavity
walls (minimum 1” between foil and
cavity to avoid sparks.
English

5
Suitable cooking utensils for microwave ovens
To cook or defrost food in a microwave oven, the microwave energy must be able to pass through the cooking
utensils to penetrate the food.
The material and shape of containers affect cooking results and durations. Heat distribution is more even in
round/oval shaped containers than in square/oblong containers as the food in the corners tend to overcook.
Below is a general guide to selecting suitable utensil:
Utensil
Microwave
Grill
Convection
Combination
Heat–Resistant Glass
Yes
Yes
Yes
Yes
Non Heat–Resistant Glass
No
No
No
No
Heat–Resistant Ceramics
Yes
Yes
Yes
Yes
Microwave–Safe Plastic Dish
Yes
No
No
No
Kitchen Paper
Yes
No
No
No
Metal Tray
No
Yes
Yes
No
Metal Rack
No
Yes
Yes
No
Aluminum Foil & Foil Container
No
Yes
Yes
No
Note: Always check manufacturer’s instructions on utensils/cookware before using them.
Microwave cooking tips
Place the thickest parts of food towards the outside of the dish.
Use a microwave-safe lid or microwave-safe cling wrap to cover the food during cooking. Covering the food
speeds up the cooking process and prevents food from drying out. Note: Do not use a cover if cooking food
coated with breadcrumbs, or cooking food with a crisp finish.
It is advisable to turn, rearrange or stir food during cooking to ensure even heating. Always stir or turn food
from the outside towards the middle, as food heats more quickly from the outside.
Food with thick peel or skin must be pierced before cooking to allow steam to escape and prevent the food
from bursting.
Standing time is necessary after cooking to enable the heat to disperse evenly throughout the food.
Chilled food will take longer to cook than food at room temperature. Always ensure that food is sufficiently
cooked or reheated. If in doubt that a sufficiently high temperature has been reached, continue reheating for a
little longer.
The cooking time must be increased with increased amount of food placed. Example, four sausages will take
longer to cook than two.
Defrosting
Remove the food from its packaging and place in a microwave-safe utensil/dish. Do not cover the food.
To defrost meat, unpack the frozen food and place it on an upturned utensil/dish so that the meat juice can
run off and be collected. Turn halfway through defrosting.
Fish does not need to be fully defrosted before cooking. Defrost so that the surface is sufficiently soft to take
herbs and seasoning.
English

6
Voltage and frequency of power supply
220V –240V / 50Hz
Fuse
13A
Power consumption (Microwave)
1400W
Power consumption (Grill)
1250W
Power consumption (Convection)
2050W
Microwave Power output
900W
Operation Frequency
2450MHz
Appliance dimension
595(W) x 527(D) x 460(H) mm
Cut-out dimension
560 (W) x 505(D) x 455(H) mm
Volume
34 litres
Weight
Approximately 25.4 kg
APPLIANCE SPECIFICATIONS
CONTROL PANEL
❶Power
Press key to select microwave power level
❷Grill
Press key to set a grill cooking program
❸Clock
Press key to set oven clock
❹Display Screen
Electronic cooking time, power level, indicators and time of
day display
❺Convection
Press key to program convection cooking
❻Pause/Cancel
Press key to clear current settings before next programme.
Press once to pause cooking. Press twice to cancel current
program. Press and hold to set child lock.
❼Start/Quick Start
Press key to start cooking program or set quick start
cooking program
❽Time Selector
Rotary selector to enter cooking time.
❾Menu/Temp./ Weight Selector
Rotary selector to set the weight, temperature or select
auto-menu
❶
❷
❸
❺
❻
❼
❹
❽
❾
English

7
GUIDE TO THE APPLIANCE
①Door safety lock
②Oven window
③Turntable support / roller ring
④Turntable
⑤Grilling rack
⑥Universal pan
⑦Control panel
Accessories provided:
Turntable (one pc)
Turntable support (one pc)
Grilling rack (one pc)
Universal pan (one pc)
Fixing the turntable
Turntable
Turntable support / roller ring
Turntable shaft
1. Place the turntable support on the cavity bottom.
2. Place the turntable on the turntable support. Check
that the turntable hub is well secured in the turntable
shaft (see arrow).
Notes:
Do not place the turntable upside down.
Do not turn the turntable manually as this could
damage the drive motor.
Both turntable and turntable support must be used
during cooking. Utensils and dishes must be placed
on this turntable during cooking.
Waveguide cover (Warning: Do not remove)
English

8
Microwave solo mode
Suitable for defrosting, reheating and cooking.
Grill mode
Suitable for grilling thin cuts of meat.
Convection mode
Heated air is circulated throughout the oven cavity to brown and crisp food evenly and quickly.
Combination mode (Microwave & Grill)
Suitable for browning dishes with toppings. The microwave cooks the food, the grill browns it.
Combination mode (Preheat & Convection)
This function combines preheating and convection cooking operations.
Combination mode (Microwave & Conection)
Suitable for fast cooking via microwave function while giving the food a brown outer crisp.
Remove packaging material
Ensure that all packaging material is removed before
using the appliance for the first time.
Pre-cleaning the oven cavity and accessories
Clean the oven cavity and supplied accessories
thoroughly before use.
Check the appliance for externally visible
damage
Do not operate the microwave oven if
a) door is warped
b) door hinges and latches are loose or broken
c) door seals and oven cavity are buckled or
deformed
d) holes and cracks are visible in the door or
oven interior walls
Warning: Operating the appliance with this type of
damage will result in microwave leakage and present
a hazard to user.
USING FOR THE FIRST TIME
MICROWAVE FUNCTIONS
When the microwave oven with grill function is
first used, it may produce slight burning smell.
This is a normal phenomenon.
We recommend you to operate the grill without
food for 20 minutes when using the oven for
the first time. This phenomenon will disappear
after a period of using.
English

9
Setting the clock
This oven can be set in a 12 hour or 24 hour mode.
Press and hold CLOCK key for approximately 3
seconds to set 12 hour mode. “Hr12” is
displayed on the screen.
Press CLOCK key again to set 24 hour mode.
“Hr24” is displayed on the screen.
Rotate TIME selector to set present hour. Press
CLOCK key to enter.
Rotate TIME selector to set present minute.
Press CLOCK key to enter.
Microwave solo mode
Microwave cooking allows you to customize cooking
power and time. Select a power level by pressing the
POWER key. See the table below.
The maximum cooking time is 95 minutes.
Suppose you want to cook at 80% power Level for 5
minutes.
Open the door and place the utensil/dish on the
turntable. Close the door.
Press POWER key to set the desired power
level (P-80 is displayed in the window).
Press
POWER key
Power level
Power
range
1 time
100%(P100)
High
2 times
80%(P-80)
Med-High
3 times
60%(P-60)
Medium
4 times
40%(P-40)
Low-Med
5 times
20%(P-20)
Low
6 times
0%(P-00)
Nil
Set the cooking time using the TIME selector
(05 :00 is displayed in the window)
Press START/QUICK START key to start
operation.
After the cooking time ends, beep signal sounds
and ‘End’ is displayed.
Note :
Press PAUSE/CANCEL key to stop programme
during operation.
Clear the display setting before starting a new
programme. Press PAUSE/CANCEL key to reset
current setting.
Grill mode
Grill cooking is suitable for thin slices of meat, steaks,
chops, kebabs, sausages and small pieces of chicken.
It is also suitable for sandwiches and au gratin
dishes. The maximum cooking time is 95 minutes.
Suppose you want to program grill cooking for 12
minutes.
Open the door and place the food onto the Grill
rack. Close the door.
Press GRILL key.
Rotate TIME selector to set the cooking time
(12 :00 is displayed in the window).
Press START/QUICK START key to start
operation.
After the cooking time ends, beep signal sounds
and ‘End’ is displayed.
Note :
Press PAUSE/CANCEL key to stop programme
during operation.
Clear the display setting before starting a new
programme. Press PAUSE/CANCEL key to reset
current setting.
Tip :
Preheat the grill before use.
Use the universal pan as a drip pan to food juices
and fat drip from food.
OPERATION
Each time cooking programme ends, the oven
produces a beep signal sound and ‘End’ is
displayed on the screen. The signal continues to
sound every two minutes.
Open the oven door or press PAUSE/CANCEL key
to cancel the signal sound.
English

10
Combination mode (Microwave and Grill)
This program uses a combination of grill and
microwave power. The maximum cooking time is 95
minutes. Suppose you want to set combination
cooking for 15 minutes.
Open the door and place food onto the Grill
rack. Close the door.
Press GRILL key to select desired combination
programme.
Press
GRILL
key
Combi
Cooking
period
Suitable dishes
Micro
Grill
2 times
COMB1
30%
70%
fish, potatoes or
au gratin
3 times
COMB2
55%
45%
pudding,
omelette, baked
potatoes, poultry
Rotate TIME selector to set the cooking time.
(15:00 is displayed in the window)
Press START/QUICK START key to start
operation.
After the cooking time ends, beep signal sounds
and ‘End’ is displayed.
Note:
Press PAUSE/CANCEL key to stop programme
during operation.
Clear the display setting before starting a new
programme. Press PAUSE/CANCEL key to
reset current setting.
Preheating the grill during Combination mode
(Microwave and Grill) cooking is not required.
Convection mode
Hot air is circulated throughout the oven cavity to
brown and crisp food evenly and quickly. The oven
can be programmed from 110℃~200℃.
The maximum cooking time is 95 minutes.
Suppose you want to set convection cooking for 30
minutes at 180℃.
Open the door and place the utensil/dish on the
turntable. Close the door.
Press CONVECTION key once. ‘CONV’ appears
in display screen.
Press START/QUICK START key to enter.
Rotate MENU/TEMP./WEIGHT selector to set
the temperature (180℃is displayed in the
window)
Rotate TIME selector to set the cooking time
(30:00 is displayed in the window)
Press START/QUICK START key to start
operation.
After the cooking time ends, beep signal sounds
and ‘End’ is displayed.
Combination mode (Preheat + Convection)
Your oven can be programmed to combine preheating
and convection cooking operations.
Suppose you want to preheat to 170 ℃ and set convection
cooking for 20 minutes.
Press CONVECTION key. ‘CONV’ appears in
display screen.
Press START/QUICK START key to enter.
Rotate MENU/TEMP./WEIGHT selector to set the
temperature (170℃is displayed in the window)
Press START/QUICK START key to start
operation. The default auto preheat time is 30
minutes. Beep alert sounds when the set
temperature is reached.
Open the door and place the utensil/dish on the
turntable. Close the door.
Rotate TIME selector to set the cooking time
(20:00 is displayed in the window)
Press Start/Quick Start key to start operation.
After the cooking time ends, beep signal sounds
and ‘End’ is displayed.
Note :
The default auto preheat time is 30 minutes.
When the temperature reaches the set preheat
temperature, the countdown in the display stops
and a signal sounds every 5 seconds.
If the oven door is not opened within 30 minutes,
the programme stops automatically and ‘End’ is
displayed.
English

11
Combination mode (Microwave + Convection)
This oven has three pre-programmed settings
making it easy to cook automatically with both
convection heat and microwave.
Suppose you want to set cooking for 25 minutes on
170 ℃ .
Press CONVECTION key twice. ’CONV’
appears in display screen.
Press START/QUICK START key to enter.
Rotate MENU/TEMP./WEIGHT selector to set
cooking temperature: 110℃,140℃or 170℃
Use TIME selector to set the cooking time
(24:00 is displayed in the window)
Press START/QUICK START key to start
operation.
After the cooking time ends, beep signal sounds
and ‘End’ is displayed.
Quick Start
This feature starts the oven at full power. You can
add cooking time during cooking. The maximum time
is 10minutes.
Open the door and place the utensil/dish on the
turntable. Close the door.
Press START/QUICK START key to set the
cooking time. Each press increases the cooking
time by 1 minute. The default setting is 30
seconds.
The oven auto-start at full power.
Menu Cook
You can choose from 9 automatic programmes.
These programmes are weight dependent. You enter
the weight or quantity of the food, and the cooking
duration is automatically calculated.
Open the door and place the utensil/dish on the
turntable. Close the door.
Rotate MENU/TEMP./WEIGHT selector to
select menu.
Press START/QUICK START key to enter.
Rotate MENU/TEMP./WEIGHT selector to enter
units.
Press START/QUICK START key to start
operation.
Menu
Cooking mode
Potato (230g/each)
Microwave
Coffee (200ml/cup)
Microwave
Popcorn (99g)
Microwave
Auto Reheat (g)
Microwave
Spaghetti (g)
Microwave
Pizza (g)
Convection
Chicken (g)
Microwave +
Convection
Cake (475g)
Convection
Speed Defrost
Microwave
Note :
During ‘Chicken’ menu cooking, the oven pauses
and produces beep alerts to signal users to turn
food over. Press START/QUICK START key to
resume.
We recommend you to preheat the oven before
baking the cake.
Weight Defrost
Weight Defrost can defrost food according to the
weight you entered. The weight range is 100g to
1800g.
Suppose you want to set the oven to Weight Defrost
for 200g food.
Open the door and place the utensil/dish on the
turntable. Close the door.
Rotate MENU/TEMP./WEIGHT selector to select
WEI. ADJ.
Press START/QUICK START key to enter.
Rotate MENU/TEMP./WEIGHT selector to select
weight.
Press START/QUICK START key to start
operation.
After the cooking time ends, beep signal sounds
and ‘End’ is displayed.
Note:
During defrosting process, the oven pauses and
produces reminder alerts to turn food over.
Press START/QUICK START key to resume.
English

12
Multi-stage Cooking
Your oven can be programmed up to 3 stages.
Suppose you want to set the following cooking
program.
Microwave cooking (100%) Grill cooking
Open the door and place the utensil/dish on the
turntable. Close the door.
Press POWER key to set power 100%. ‘1S’ is
displayed in the window.
Rotate TIME selector to set the cooking time
Press GRILL key. ‘2S’ is displayed in the
window.
Rotate TIME selector to set the cooking time
Press START/QUICK START key to start
operation.
After the cooking time ends, beep signal sounds
and ‘End’ is displayed.
Note:
1S, 2S or 3S will be displayed in window
according to different stage setting.
Quick start, menu cook, speed defrost, weight
defrost, preheat and convection cooking mode
cannot be set in a multi-stage cooking program.
Child Lock
The child lock can be activated to prevent the oven
being switched off intentionally by young children.
All controls are disabled when the child lock is
activated.
To activate the child lock, press and hold
PAUSE/CANCEL key for approximately 3
seconds. The oven beeps and the child lock
symbol appears in display screen.
To deactivate the child lock, press and hold
PAUSE/CANCEL key for approximately 3
seconds. The oven beeps and the child lock
symbol goes off.
Speed Defrost
Speed defrost can defrost food according to the time
you entered. The maximum time is 95 minutes.
Suppose you want to defrost food for 20 minutes.
Open the door and place the utensil/dish on the
turntable. Close the door.
Rotate MENU/TEMP./WEIGHT selector and
select JET. DEFROST.
Press START/QUICK START key to enter.
Rotate MENU/TEMP./WEIGHT selector and
select time.
Press START/QUICK START key to start
operation.
Note:
During defrosting process, the oven pauses and
produces reminder alerts to turn food over.
Press START/QUICK START key to resume.
After the cooking time ends, beep signal sounds
and ‘End’ is displayed.
To stop the oven during operation
i) Press PAUSE/CANCEL key
You can restart the oven by pressing
START/QUICK START key.
Press PAUSE/CANCEL key to reset the current
programme.
ii) Open the door
You can restart the oven by closing the door and
pressing START/QUICK START key.
Press PAUSE/CANCEL key to reset the current
programme.
Cooling Feature
This appliance is equipped with an integral fan
which turns on automatically when the oven is hot.
The fan switches off automatically when the oven is
sufficiently cooled down.
English

13
Cleaning the Oven Interior
Keep the oven cavity, door and door seal
surfaces clean. Food residues, spill overs and
grease splatters stained on the oven walls, door
seal and door surface reduce the efficiency of
the oven and may cause hazards to user.
The oven interior and door can be cleaned
using a damp cloth. Mild detergent may be used
if the oven gets very dirty. Avoid the use of
abrasive cleaners as they may stain, streak or
dull the door surface.
To loosen stubborn deposits, boil a cup of water
in the microwave oven for 2 –3 minutes.
To remove odors from the oven interior, boil a
cup of water with a few spoonful of lemon juice
for 5-minutes.
Stains on the grill element may cause smoke or
unpleasant odor. Ensure that the oven cavity
has cooled down sufficiently and then wipe off
the stains before the next use.
The door should be kept clean at all times and
checked regularly for any damage.
Avoid water or small particles penetration into
small vents in the appliance.
Cleaning the Oven Exterior
The outside can be easily cleaned with mild
detergent and warm water. Wipe dry with a lint-
free cloth. Avoid using corrosive or abrasive
products that could damage the surface.
For stainless steel surfaces, always wipe in the
direction of the grain so as not to scratch the
surface. For tougher stains, use a specific non-
abrasive product (please observe the
manufacturer’s instructions).
Clean the front and knobs using non-abrasive
cleaning agents and sponges. Wipe dry with a
soft cloth after cleaning.
Open the door before cleaning to deactivate the
control panel. Keep the control panel dry. Wipe
the panel with a soft, damp cloth. Avoid using
excessive amount of water.
Keep the ventilation openings free from water
seepage and small particles.
Oven light
Do not attempt to replace the oven light by a non-
qualified person. Please contact your local Rinnai
Customer Care Service for service.
Cleaning the Accessories
Turntable and support
Always keep the roller ring clean so that the
turntable can turn smoothly and avoid excessive
noise.
Wash with mild soapy water and dry thoroughly.
Fit the turntable in proper position after cleaning.
See “Fixing the Turntable” in this manual.
To avoid the turntable from breaking:
Before cleaning the turntable with water, leave
the turntable to cool.
Do not place anything hot on a cold turntable.
Do not place anything cold on a hot turntable.
Grilling rack
Wash and dry the grilling rack after each use. It
can be washed by hand or dishwasher. Soak in
hot soapy water to remove stubborn grease.
Clean with brush or sponge.
Disconnect the power supply cord before
carrying out any cleaning or maintenance
activities.
Warning: Do not remove the waveguide cover
inside the oven cavity.
Never use a high pressure cleaner or steam
cleaner to clean the appliance. The steam could
reach the electrical components and result in a
short circuit.
MAINTENANCE AND CARE
The oven interior can get hot during use. Ensure
that the oven has sufficiently cooled down before
carrying out cleaning activities.
For purchase of spare parts, please check with
your local Rinnai Customer Care Centre.
English

14
In case of minor faults or problems with the appliance
operation, please check the following instructions to
see if you could resolve the problem before calling for
technician service.
The appliance does not work
Check that the main switch is turned on and the
plug is properly inserted in the electrical outlet.
Check if the circuit breaker is in working order.
Check that the appliance door is closed properly.
Check that the START/QUICK START key has
been pressed.
The display does not light up
Check that the control panel is programmed
correctly.
The turntable does not turn smoothly
Check that the contact area between the
turntable and the turntable support are clean.
Food is not properly cooked, heated or defrosted
Check if the correct power level was correctly
selected and suitable for the food quantity.
Check if the programme was interrupted and was
not completed.
Oven switches off during a programme
Check if the ventilation openings are blocked.
Remove any objects if necessary.
Do not attempt to repair the appliance or remove
the casing as this will result in microwave energy
leakage and may cause hazard.
Please contact your local Rinnai Customer Care
Centre for service.
Oven light is not working
Do not attempt to replace the oven light by a non-
qualified technician. Please contact your local
Rinnai Customer Care Service for service.
Condensation build-up on oven door
Steam or water droplets may form on the door
during the cooking cycle. This is due to
condensation from the heat of the food. This is
not a problem or fault with your oven and does
not affect the safety of the appliance.
TROUBLESHOOT
If the problem persists despite observing the
above checks, please contact your local Rinnai
Customer Care Centre for assistance.
For service calls under warranty, please note that
it is necessary to product your proof of purchase
and valid warranty card.
English

15
Remove all packing materials and accessories
supplied.
Check that the appliance is free from damage.
Do not operate the microwave oven if:-
a) door is warped
b) door hinges and latches are loose or broken
c) door seals and oven cavity are buckled or
deformed
d) holes and cracks are visible in the door or oven
interior walls
If there is any damage, do not operate the
appliance. Please contact your local Rinnai
Customer Service for assistance.
Fit the appliance in appropriate cabinet
This appliance is designed to be built into a
column unit.
Ensure that the air vents are not obstructed or
blocked by objects. If air vents are blocked
during operation, the oven may overheat and
this may lead to malfunctioning.
The oven should be installed on a flat, level
surface able to withstand the weight of the
appliance and its contents. The oven must be in
a stable position to avoid the possibility of
causing noise vibration.
The panels of the adjacent cabinets must be
made of heat-resistant material.
Keep the oven away from heat and water
source. Exposure to heat and water can lower
the oven efficiency and lead to malfunctioning.
Operation of the oven may cause interference to
your radio, TV or similar equipment. Place the
oven as far away possible from these electronic
equipment.
The column unit must have the following
dimension:
Ventilation
To ensure adequate ventilation, a minimum
ventilation gap of 45mm is required from the back
of appliance to cabinet wall.
INSTALLATION
Installation must be performed by qualified personnel only. The manufacturer declines all responsibility for
improper installation and does not accept responsibility for appliance warranty in the event of damage caused
by incorrect installation.
English

16
Securing the appliance
Fit the appliance into column unit until the front
frame of the oven is aligned to the cupboard
opening. Ensure the appliance is stable and not
leaning. Do not crush the power supply cord.
Fix the oven in position with 4(four) 3 x 20mm
screws provided. The fixing points are located
on the top and bottom corners of the oven. Do
not over tighten screws.
Check that it is correctly aligned.
Check that the door is free to open and close.
Connect the power supply cord.
Turn on the power mains. The appliance must
only be operated when it has been built in to
avoid electric shock hazard.
Connecting the supply cable to the power mains
Install a standardized plug corresponding to the
load indicated on the rating label attached to the
appliance.
If the appliance is being directly connected to the
power mains supply, an omnipolar circuit breaker
must be installed with a minimum gap of 3mm
between the contacts, suitable for the load
indicated and complying with current electrical
regulations (the earthing wire must not be
interrupted by the circuit breaker). The supply
cable must not come into contact with surfaces
with temperatures higher than 500C.
The installer must ensure that the correct
electrical connection has been made and that it is
compliant with local safety regulations.
Before connecting to the power supply, ensure
that:
The appliance is correctly and efficiently earthed.
The socket can withstand the maximum power of
the appliance, and voltage within the value range
indicated on the rating label attached to the
appliance.
The basic safety requirement should be tested by
a qualified technician. Multiple plugs and
extension cables must not be used. Overloading
is dangerous and may cause a fire hazard.
Once the appliance has been installed, the power
supply and electrical socket must be easily
accessible.
Secure appliance to
housing unit using
4(four) Screws
ST3x20 mm.
The installer must ensure that the correct electrical
connection has been made and that it is compliant
with local safety regulations.
The manufacturer declines any liability should
these safety measures not be observed.
English

Rinnai Customer Care Centres
China |中国
Guangzhou Rinnai Gas & Electric
Room 2805, No.31 Jianghe Building,
Tianshou Road, Guangzhou, China
广州林内燃具电器有限公司
中国广州天河区天寿路 31 号江河大厦 2805 室
Tel 电话 : [phone]
Email 邮箱 : [email protected]
URL 网址 : www.gzrinnai.com.cn
Philippines
Mitsui Industia Corporation
10 Buenaventura St., Cor MacArthur
Highway, Dalandan Valenzuela City,
Philippines
Tel : [phone]
Fax : [phone]
Indonesia
Customer Care of PT. Rinnai Indonesia
Jl. Raya Pejuangan No.21,
Komp. Ruko Sastra Graha No.11 -13
Jakarta 11530
Tel : [phone] (toll free) /
0815 112 99999 (SMS Center)
Email : [email protected]
URL : www.rinnai.co.id
Singapore
Rinnai Holdings (Pacific) Pte Ltd
47 Tannery Lane #05-01/02,
Elite Industrial Building II, Singapore 347794
Tel : [phone]
Fax : [phone]
Email : [email protected]
URL : www.rinnai.sg
Macau |澳門
Fu Lei (Leong Si) Trading Limited
Avenida do Almirante Lacerda No. 14-14C,
Edf. Industrial Iao Son 11-And-A, Macau
冨利（粱氏）貿易有限公司
澳門提督馬路 14-14C,祐順工業大厦 11 樓A
Tel 电话 : [phone]
Fax 传真 : [phone]
URL 网址 : www.rinnai.com.hk/mo
Thailand | ประเทศไทย
Rinnai (Thailand) Co., Ltd.
61/1 Soi Kingkaew 9, Kingkaew Rd.
Racha Thewa, Bangphli, Samutprakarn 10540, Thailand



 
Tel : [phone]
Email : [email protected]
URL : www.luckyflame.co.th
Malaysia
Rinnai (M) Sdn Bhd
D2-3-G & D2-3-1, Block D2, Pusat Perdagangan Dana 1,
Jalan PJU 1A/46, 47301 Petaling Jaya,
Selangor Darul Ehsan, Malaysia
Tel : [phone]
Fax : [phone]
URL : www.rinnai.com.my
Vietnam | Việt Nam
Rong Viet Commerce Company Limited
120 3/2 Street, Ward 12, District 10,
Ho Chi Minh City, Vietnam
Công Ty TNHH Thương Mại Rồng Việt
120 Đường 3/2, Phường 12, Quận 10,
TP. HồChí Minh, Việt Nam
Tel : [phone]
Fax : [phone]
Email : [email protected]
URL : www. rongviet-rinnai.com
Myanmar | ျမန္မာ
Myanmar Kowa International Co., Ltd
No.199, Ground Floor, 34th Street (Upper Block),
Kyauktada Township, Yangon, Myanmar
အမွတ္ (၁၉၉)၊ ၃၄ လမ္း ()
ေက်ာက္တံတားၿမိဳ႕နယ္၊ ရန္ကုန္ၿမိဳ႕။
Tel ဖုန္း : (95-1) 245925 / 246304 / (95-9) 7300 7773
Fax ဖက္(စ္) :(95-1) 245925
Email အီးေမးလ : [email protected]
