Rockpals YCD50P User manual

MODEL-YCD50P
Read user manual before operating your fridge/freezer.
Fridge/Freezer
USER MANUAL

1
WARNING
● This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
● Children should be supervised that they do not play with the appliance.
● Cleaning and user maintenance shall not be carried out by children without supervision.
● Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
● Do not use this appliance near direct heat sources, for example, a cooker, radiator or exposing it to
direct sunlight.
● The appliance shall not be exposed to rain. Place the refrigerator on a dry, protected surface, away
from edges.
● Do not use an extension cord.
NOTICE
● No responsible for the damage by ignoring the safety instructions by manufacturer.
● The use of accessories that are not recommended by manufacturer can cause injuries and will
invalidate any warranty that you may have.
● Place the products so that they do not collide against each other or break when the appliance is in
motion.
● If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
● Disconnect the power cable from the plug before carrying out any maintenance.
INTENDED TO USE
This appliance is intended to be used in household and similar applications such as:
● Staff kitchen areas in shops, offices and other working environments;
● Farm houses and by clients in hotels, motels and other residential type environments;
● Bed and breakfast type environments;
● Catering and similar non-retail applications.
CAUTION
● Keep ventilation openings, clear of obstruction in the appliance enclosure or in the built-in structure.
● Do not use electrical appliances inside the food storage compartments of the appliance, unless they
are of the type recommended by manufacturer.
● Do not place ice or liquids which are not sealed in containers within the refrigerator.
● Do not place hot products or hot food in this appliance.
CORRECT DISPOSAL OF THIS PRODUCT:
To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources. To return your used device, please
use the recovery systems or contact the retailer that they can take this product for environmental safe
recycling.
● Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
● Take off the doors.
● Leave the shelves in place so that children may not easily climb inside.
DANGER:
SAFETY INFORMATION:

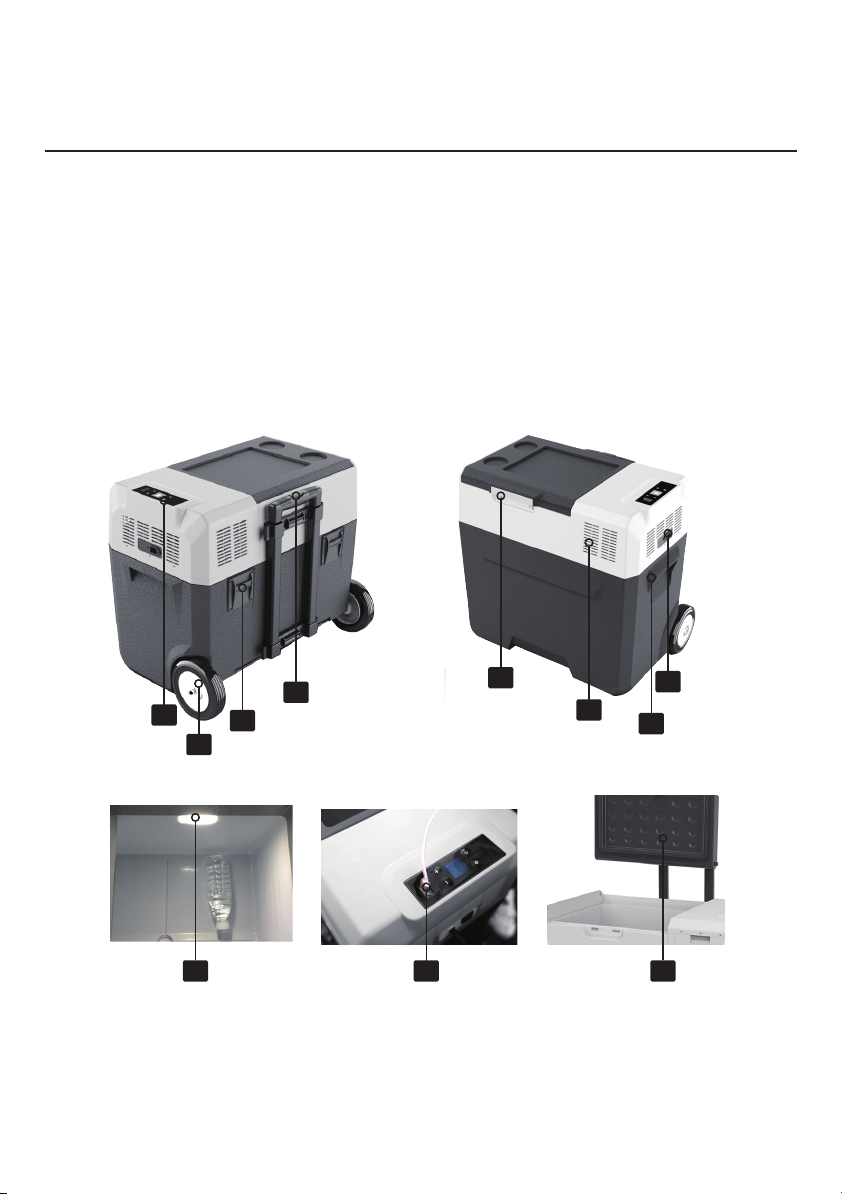

1、Lid handle
2、Control Panel
3、Carry Handle
4、Air flow vent
5、Sturdy Durable Wheels
6、Accessory holders
7、Telescoping Handle
8、LED light
9、USB
10、Power input panel
11、Removable insulating lid
12、12/24V DC Power Cable (not shown)
2
PARTS LIST:
4
2
5
6
7
811
9
3
10
1

628mm
583mm
409mm
Voltage
MODEL
Dimensions LxWxH
Net Weight
Storage Volume
Refrigerant Gas
DC 12/24V
R134a-CFC Free
47 L
Temperature Range -20°C to +20°C
(-4°F to 68°F)
Rated Current 5.5A/3.3A
3
YCD50P
SPECIFICATIONS:
USB 5V/2A
628 x 409 x 583 mm
14.5Kg

4
INSTALLATION:
● Place the refrigerator on a dry, sheltered, flat surface and away from any edges. The refrigerator must
not beused unsheltered, in the open air or exposed to splashing or rain.
● Your refrigerator requires good ventilation, especially around the back of the refrigerator, allow a gap of
at least 15 cm around the sides, back and top. Never use your refrigerator in the boot of a car or against.
● Avoid introducing liquids or ice not inserted in containers.
● Do not put hot food items into the refrigerator.
● Avoid using the refrigerator under the rain or in presence of water.
● Do not install the refrigerator near heat sources, sunlight.
● Should you need to leave the device under the sun for long periods, eg. in a car or in other vehicles,
make sure you protect it, to prevent the cover plastic materials from getting damaged or warped.
● To fix it inside the car and to avoid damages during transport, we suggest to secure the fridge through
metal brackets placed on the sides.
CONNECT POWER CABLE
1. Connect the DC power cable with car refrigerator power supply.
2. Put the car refrigerator well in the car (Car Boot or , auto seat ).
3. Put the power cable well according to the interior decorated of car, and connect the cigarette lighter
plug to the cigarette lighter hole.
4. Press the button ON/OFF for 3 seconds., then the refrigerator starts to work.
DC Power cable Connect the car cigarette lighter Connect the car refrigerator

USB
Temperature Down
Temperature UPPower Button
5
POWER MANAGEMENT
OPERATION
“SET”Button
Power off, press and hold the " " key for 3 seconds, and the refrigerator will enter the working state;
Power on, press and hold the " " key for 3 seconds, the system will enter the standby mode;
● Power on, short press " " or " " button to display the set temperature value and flash, then
press " " or " " again, key to set temperature up or down; press for a long time to adjust the set
value linearly at 4 ℃per second;
● Factory default temperature is 0℃.
Power On/Off:
Temperature Setting::
The Fridge/Freezer is designed to operate on DC voltage inputs.
For optimum performance and efficiency, it is important that the appliance has a reliable 15A fuse protected
DC supply in good condition. Direct connection to the battery is recommended and reduces the risk of voltage
dropping to the appliance.
DC input 12V or 24V
DC cable 2.5m,16AWG
Remark:
● You can refer to the above pictures to connect the power cable.
● 12V/24V DC power cable.

6
Code Description Action
E1 Battery Voltage is low.
as required.
E2 Fan failure / Frequent start-stop. Contact point of sale to arrange further action.
Check battery voltage and adjust Low Voltage Cut-Off
E3 Compressor startup problems.
Check air vents are clear.
Move fridge to cooler location (ambient temperature
may be too high).
E4 Compressor’s running speed fails
to reach the requirements.
E5 The model is overloading.
E6 NTC failure(open circuit or short
circuit)
TROUBLESHOOTING:
LOW
MED
HIGH
9.6
10.4
11.1
10.9
11.7
12.4
21.3
22.8
24.3
22.7
24.2
25.7
● Battery protection Level
Battery protection(SWITCH POSITION) Cut-out 12V Cut-in 12V Cut-out 24V Cut-in 24V
Power on, short press the " " button to switch the "Max" and "eco" modes (the default mode max).
Cooling Mode Control:
● In standby mode, press and hold the key " " and " " for 3 seconds to display the current
corresponding battery protection status and flash. At this time, short press " " or " " to switch
the protection gears (the default is high gear).
Battery Protection:
In standby mode, press and hold the " " key for 3 seconds to display the current corresponding
display mode, and short press the " " key for "C" and "F" to switch. The default value is "C" and it
will return to standby mode after 3 seconds of no operation.
Switch between Centigrade "C" and "Fahrenheit" F "
