Rocksteady XS User manual

Thank you for purchasing a Rocksteady XS
Bluetooth Speaker.
I hope you enjoy it, please use it every day.
*** READ FIRST ***
1. For best results, please fully charge your
Rocksteady XS battery fully prior to storing it for a
long periods of time. Please do not store it with the
battery fully drained.
2. Charge the battery fully while the unit is off
before first use (see Charging your Rocksteady XS
on Page 5).
3. When pairing for the first time to a new device,
you must wait for the tones after 30 seconds (see
Bluetooth® Pairing on Page 6).

FEATURES
Side blasting stereo speakers
Reverse-air technology channeling
compressed air through a
subwoofer. A true center channel
2.1 sound
Memory of the last 4 Bluetooth
connected devices
Connect up to 2 devices
simultaneously (Party Mode)
Built in Speakerphone
LED status Indicator on Base
Long lasting, rechargeable Lithium
Ion battery
Easily replace the battery or charge
it
Multiple input support, including
stereo Bluetooth, Line-in (3.5mm
cable), MP3 playback via USB

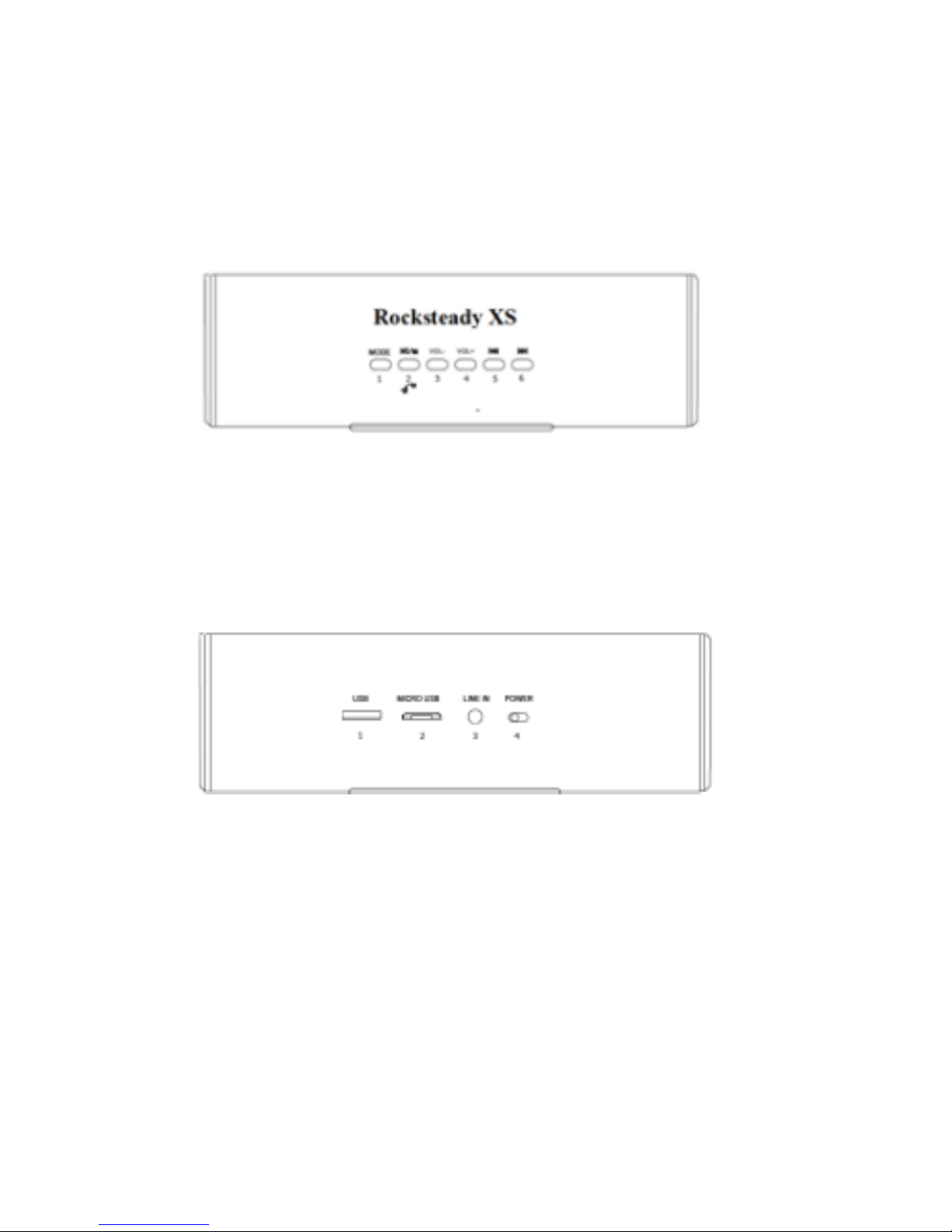

FRONT
BACK
3

FRONT
1. Mode –Switches from Bluetooth®*,
Line-in, USB
2. Play, pause, answer incoming
phone call, hang up phone call
3. Volume down
4. Volume up
5. Previous track
6. Next track
BACK
1. USB –Insert your USB thumb drive
to play your MP3 music or use to
charge your cell phone
2. MICRO USB –Charging port
(charger included)
3. LINE IN –3.5mm input to play
audio from virtually any device (via
headphone jack or audio output)
4. POWER –Switch power on/off to
your Rocksteady XS
4

Charging Your Rocksteady XS
It is extremely important to fully charge your
Rocksteady XS before initial use. The Rocksteady
XS charges via the Micro-USB port. 5.0-5.3 volt
chargers operating up to 2.1 Amps are supported
(car or wall chargers).
1. For best results, always use the charger
supplied.
2. Connect charger to Rocksteady XS and allow
sufficient time to fully charge.
3. Charging is complete when LED light on the
base turns off completely.
LED Light
The base of the Rocksteady XS contains LED lights
which communicates the status of the device.
Solid Blue –Rocksteady XS is on and ready to play
Flashing Blue –Rocksteady XS is on and is in
Bluetooth®* mode (fast flash is reconnection
mode, slower flash is in search mode)
5

Solid Red –Rocksteady XS is OFF, plugged in and
charging
Solid Purple –The Rocksteady XS is charging and is
on, ready to play.
Plugged in, OFF, and No Light –Rocksteady XS is
done charging
How to Connect to Bluetooth®
First time or new device:
1. Ensure that no other previously paired device is
in range or has Bluetooth enabled.
2. Turn on the Rocksteady XS and wait for the
tone after 30 seconds.
3. On your source device, enable Bluetooth and
under settings, scan for available devices.
4. Select the Rocksteady XS from the list of
available devices.
6

Reconnecting your device:
1. Turn on the Rocksteady XS.
2. Most devices will automatically reconnect (The
Rocksteady XS recalls the last 4 paired devices).
3. If your device does not connect automatically,
select Rocksteady XS from the Bluetooth settings
menu of available devices.
How to Play Music from USB Drive
1. Turn on Rocksteady XS.
2. Press mode once to enter into USB play mode.
3. Music will play. Control track from the buttons
on the Rocksteady XS
How to Play Music via 3.5mm Cable
1. Plug in 3.5mm cable (included) from your device
to “Line In” on back of Rocksteady XS.
2. Turn on Rocksteady XS.
7

3. Press mode once to enter into Line In mode.
4. Play Music. Control music from your source
device.
Speakerphone
1. While connected to the Rocksteady XS via
Bluetooth, answer an incoming call by tapping the
Play/Pause button on the front of the Rocksteady
XS.
2. Control the volume from the Rocksteady XS and
from the source device for best results.
2. To hang up, press the Play button again.
Simultaneous Bluetooth® Connectivity
The Rocksteady XS is able to connect 2 source
devices simultaneously.
Following the connecting instructions on pages 6 of
this manual, turn on the Rocksteady XS with your 2
devices on and in Bluetooth mode.
8

On both devices, follow the reconnecting
instructions on page 7 of this manual.
The Rocksteady XS will play music from one device
at a time. Pausing the stream from one device and
playing from the other device will act as a toggle to
the Rocksteady XS.
The Rocksteady XS can recall the last 4 devices
paired to it. The order they were paired will
determine it priority in reconnecting.
Troubleshooting Bluetooth®
Unable to Pair to Bluetooth® device
1. Make sure the source device has Bluetooth®*
capability.
2. If pairing with multiple devices present, connect
only one device at a time with other paired devices
out of range or disabled.
3. Make sure the Rocksteady XS is powered to the
“On” position.
4. Reboot your Bluetooth® source device, and
power off and on your Rocksteady XS.
5. Newer Bluetooth® devices will not require a pin.
Should a pin be prompted, enter 0000.
9

Party Mode
Party Mode is when two devices are connected to
the Rocksteady XS at the same time. To do this,
turn the Rocksteady XS on. If it detects two
previously paired devices, it will connect to both.
From there, the Rocksteady XS can switch from one
device to the other seamlessly and quickly. Give it a
go!
Troubleshooting Bluetooth®
Unable to Pair to Bluetooth® device
1. Make sure the source device has Bluetooth®*
capability.
2. If pairing with multiple devices present, connect
only one device at a time with other paired devices
out of range or disabled.
3. Make sure the Rocksteady XS is powered to the
“On” position.
4. Reboot your Bluetooth® source device, and
power off and on your Rocksteady XS.
5. Newer Bluetooth® devices will not require a pin.
Should a pin be prompted, enter 0000.
FOR MORE INFO, VISIT US AT:
www.RocksteadyAudio.com
10

Safety Information
Please read these safety warnings and cautions carefully to
ensure your personal safety and to prevent property damage.
Fire and Electric Shock Hazard
• Do not expose your Rocksteady XS speaker to liquid, moisture,
high levels of humidity, or rain. Do not use the Rocksteady XS
speaker near a bathtub, sink, sauna, pool, or steam room.
Exposure of the Rocksteady XS speaker to moisture could result
in electric shock or product failure.
• Do not drop, disassemble, open, crush, bend, deform,
puncture, shred, microwave, incinerate, paint, or insert foreign
objects in to the Rocksteady XS speaker.
Such actions could result in electric shock or product failure.
• Clean the Rocksteady XS speaker only with a dry cloth.
• Do not expose your Rocksteady XS speaker to extremely high
or low temperatures.
• Do not leave your Rocksteady XS speaker in direct sunlight for
extended periods of time.
• Do not leave your Rocksteady XS speaker near open flames
such as cooking burners, candles, or fireplaces.
Battery/Charger Hazard
• Do not dispose of your Battery/Charger in the trash. Please
dispose at a certified recycling center.
• Do not dispose of your Rocksteady XS in a fire. The battery
could explode causing injury or death.
• Only charge the battery in accordance with the user
instructions supplied with the Rocksteady XS.
• Do not attempt to disassemble the Rocksteady XS charger or
force open the built-in battery.
• Do not charge the Rocksteady XS in damp areas or in
extremely high or low temperatures.
• Do not clean the Rocksteady XS when it is being charged.
Always unplug the charger pryor to cleaning.
FCC STATEMENT

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
• Reorient or relocate the Rocksteady XS.
• Increase the separation between the Rocksteady XS and the
receiver.
• Connect the Rocksteady XS into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
FCC NOTICE: This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
FCC CAUTION
• Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate this equipment.
• This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter.
FCC ID:
To locate the FCC identification number, please look underneath
the battery of the Rocksteady XS.

Limited 365 Day Warranty
Killer Concepts, LLC, warrants this product to be
free from defects in workmanship and materials,
under normal use and conditions, for a period of
365 days from the date of original purchase.
All service and warranty requests must be made by
contacting us at: [e-mail]
Disclaimer of Warranty.
NOTE: This warranty is valid only if the product is used for the purpose
for which it was designed. It does not cover (i) products which have been
damaged by negligence or willful actions, misuse or accident, or which
have been modified or repaired by unauthorized persons; (ii) cracked or
broken cabinets, or units damaged by excessive heat; (iii) damage to
digital media players, CD’s or tape cassettes (if applicable); (iv) the cost
of shipping this product to the Factory Service Center and its return to the
owner.
This warranty is valid only in the United States of America and Canada
and does not extend to owners of the product other than to the original
purchaser. In no event will Killer Concepts, LLC or any of its affiliates,
contractors, resellers, their officers, directors, shareholders, members or
agents be liable to you or any third party for any consequential or
incidental damages, any lost profits, actual, exemplary or punitive
damages. (Some states do not allow limitations on implied warranties or
exclusion of consequential damages, so these restrictions may not apply
to you.) This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Your acknowledgement and agreement to fully and completely abide by
the above mentioned disclaimer of warranty is contractually binding to
you upon your transfer of currency (money order, cashier's check, or
credit card) for purchase of your Killer Concepts, LLC product.
