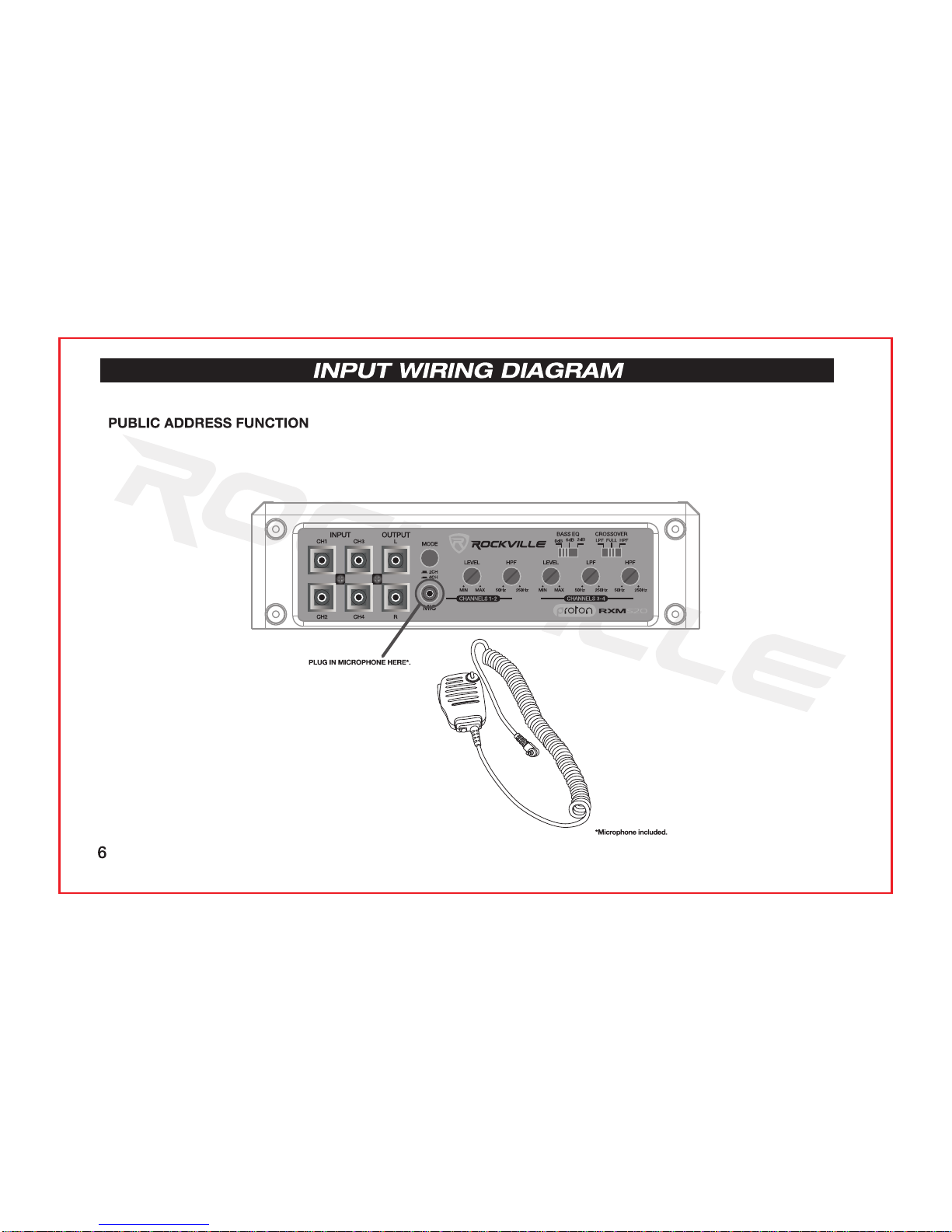

The RXM-S20 and RXM-S30 feature a marine pubic address system with microphone. Simply plug the microphone in to the 3.2mm jack and you are ready to to. The
amplifier features talk-over functionality. When microphone is keyed music will fade to the background. When microphone is unkeyed, music slowly fades back in.

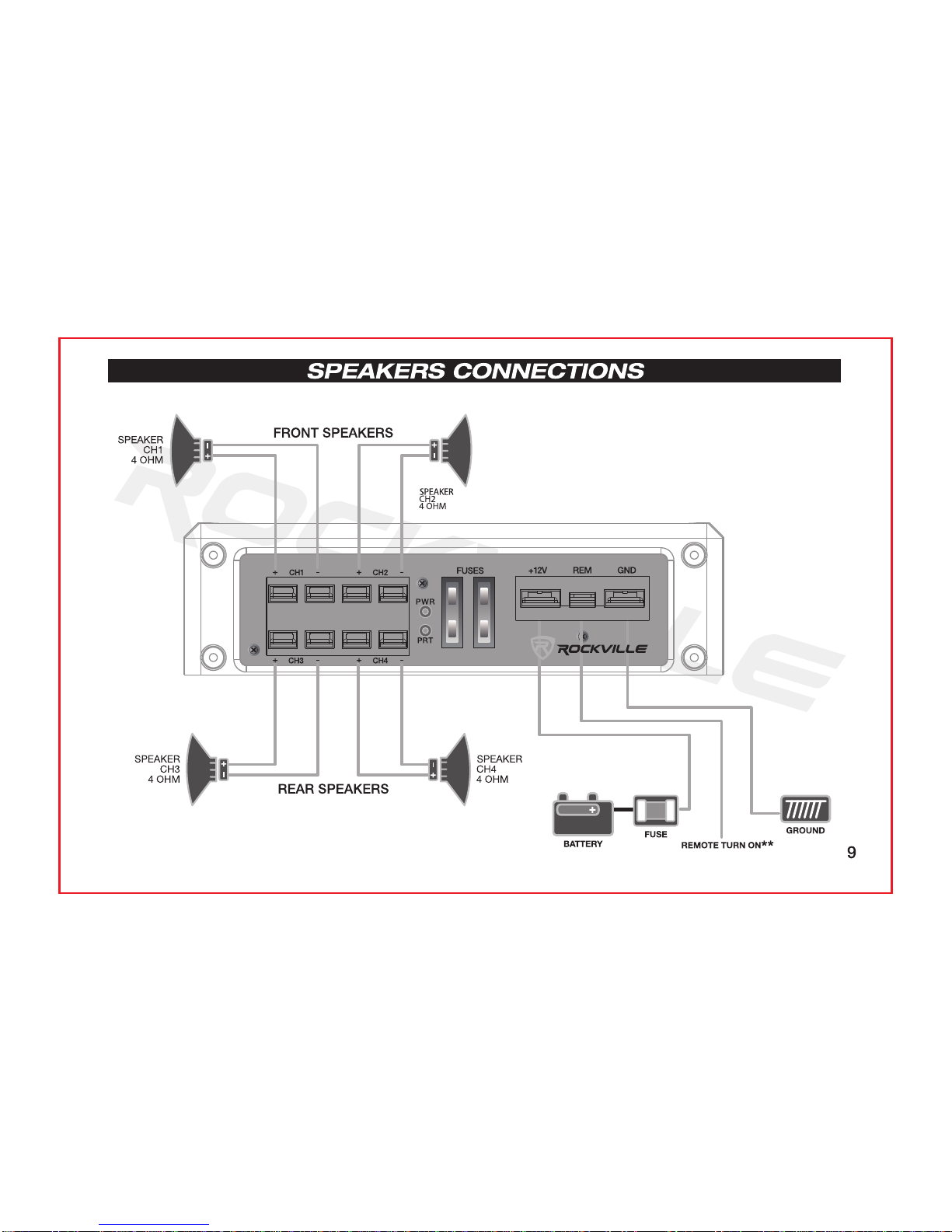

4 CHANNEL AMP WITH 2 CHANNEL INPUT

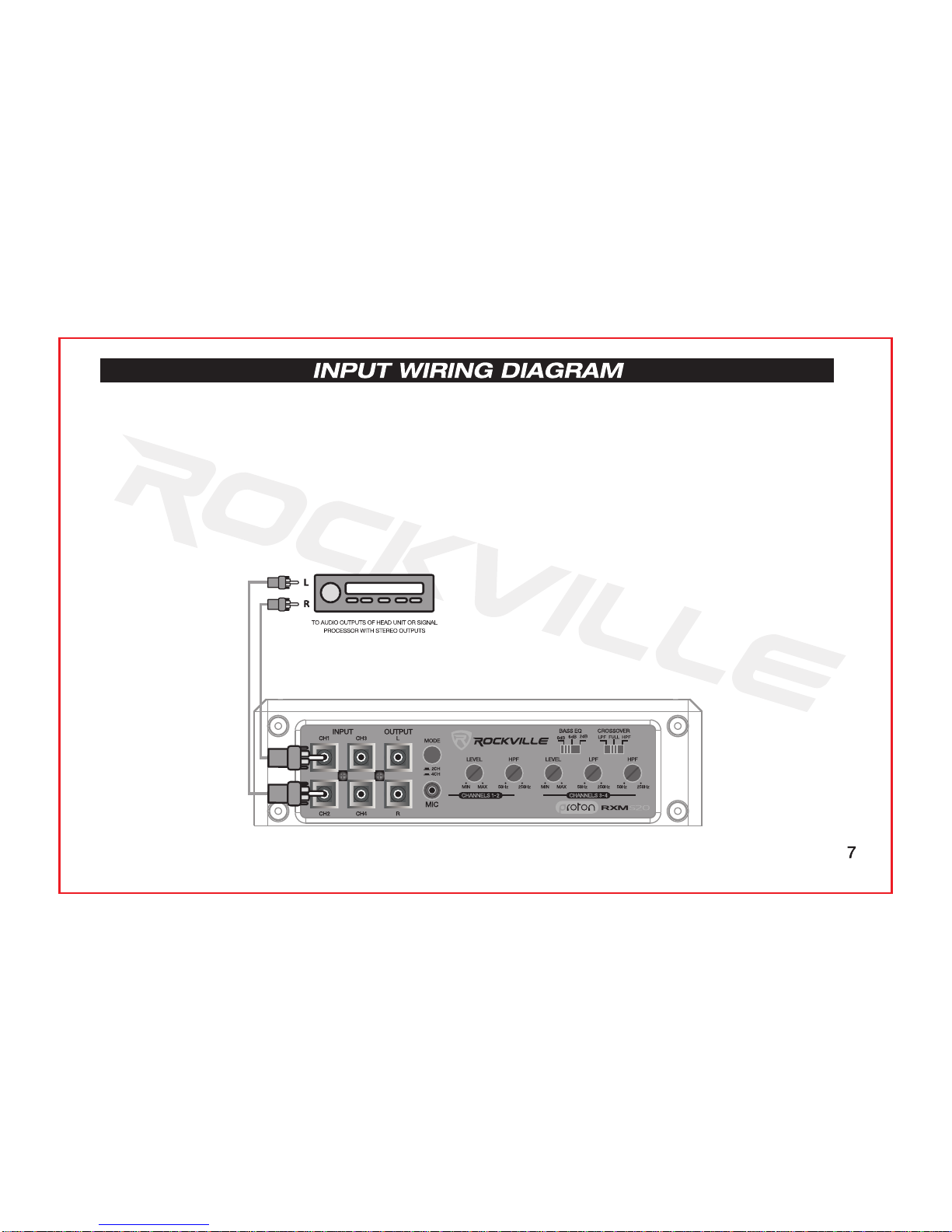

If your head unit has one pair of Left and Right RCA out put jacks, plug them in to RCA input Jacks 1 and 2 of the amplifier and set the input model switch to the 2CH
position.
The amplifier preamp circuit will automatically mix the signals to channels 3 and 4 thereby preserving your Left and Right Balance control but with no Fade control
Front to Rear.

4 CHANNEL AMP WITH 2 CHANNEL INPUT

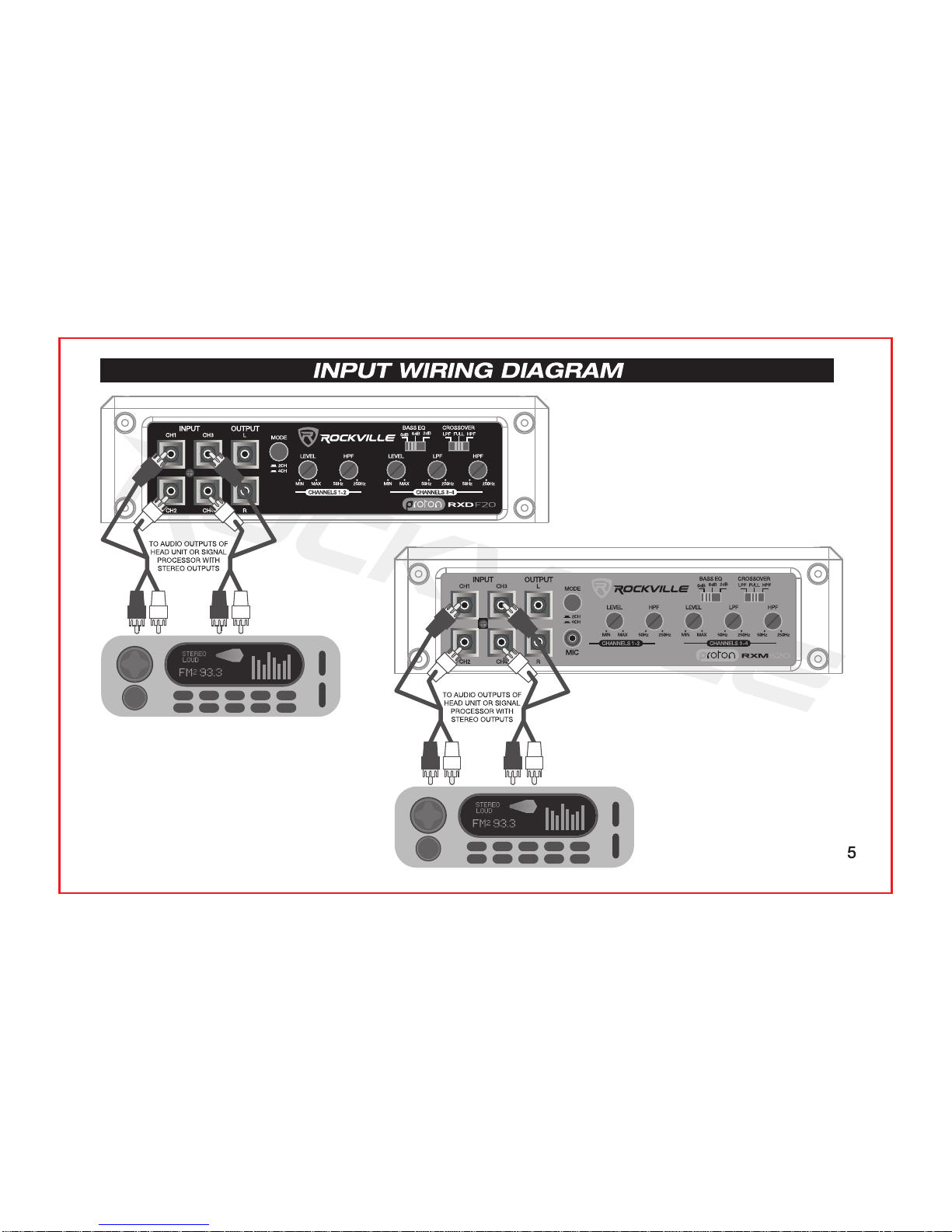

If your head unit has 2 pairs of RCA ouput jacks, input Front Left and Front Right in to Channels 1 and 2. Then attach radio output Rear Left and Rear Right to
Channels 3 and 4. Set the input Mode Switch to 4CH position. The pre amp circuitry will not mix any signals thereby preserving full Left to Right Balance and
Front to Rear fader control.
Should your head unit have an additional subwoofer RCA output, that typically needs to be attached to a separate subwoofer amplifier.
When configuring a 4 channel amplifier to a 3 channel system, you can use an RCA Y adaptor to send the subwoofer proamp signal to channels 3 and 4 and bridge
those channels to the subwoofer. Use Y adaptors to mix channels 1 and 3 and input them in to RCA Channel 1, then mix channels 2 and 4 and input the min to RCA
Channel 2. The result will be preserved Left and Right balance with constant subwoofer output.

RXD-F20
• RMS Power Ratings:
600 Watts(4 x 150 Watts RMS) @ 2 Ohms
800 Watts(2 x 400 Watts RMS) @ 4 Ohms Bridged
800 Watts(4 x 200 Watts RMS) @ 4 Ohms
• Peak Power: 1600Watts (2 x 800 @ 2 Ohms or 1 x 1600 @ 4 Ohms)
• Frequency Response: 15Hz - 20KHz
• Sensitivity: 100dB @ 1w/1m
• Damping Factor:> 200 @ 100Hz
• Dual 25 Amp Fuses
• Dimensions:(W x H x L)6.7˝ x 1.98˝ x 10.7˝
• High-Speed MOSFET Power Supply
• Studio-Grade Bipolar Output Stage Transistors
• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
• CH1 & CH2 High Pass 50Hz - 250Hz
• CH3 & CH4 Low pass 50Hz - 250Hz
• CH3 & CH4 High Pass 50Hz -250Hz
• 2 Ohm Stable Stereo
• 4 Ohm Mono Bridgeable
• 3 Channel Mixed-Mono Capable
• Selectable +6dB/+12dB Bass Equalizer
• Mute and Delay Soft Start System
• Double Sided Surface Mount (SMD) PCB Design
• Full IC-Controlled Protection Circuitry
• 2 CH / 4 CH input Mode Switch
• RCA Preamp Line Output
• 8 Volt Preamp Circuitry
• Status Mode LED Indicator
• 4 Gauge Lucite Encapsulated Power/Ground Terminals
• 12 Gauge Lucite Encapsulated Speaker Terminals
RXD-F30
• RMS Power Ratings:
800 Watts(4 x 200 Watts RMS) @ 2 Ohms
1200 Watts(2 x 600 Watts RMS) @ 4 Ohms Bridged
1200 Watts(4 x 300 Watts RMS) @ 4 Ohms
• Peak Power: 2400Watts (2 x 1200 @ 2 Ohms or 1 x 2400 @ 4 Ohms)
• Frequency Response: 15Hz - 20KHz
• Sensitivity: 100dB @ 1w/1m
• Damping Factor:> 200 @ 100Hz
• Dual 30 Amp Fuses
• Dimensions:(W x H x L)6.7˝ x 1.98˝ x 12.28˝
• High-Speed MOSFET Power Supply
• Studio-Grade Bipolar Output Stage Transistors
• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
• Ch1 & CH2 High Pass 50Hz - 250Hz
• CH3 & CH4 Low pass 50Hz - 250Hz
• CH3 & CH4 High Pass 50Hz -250Hz
• 2 Ohm Stable Stereo
• 4 Ohm Mono Bridgeable
• 3 Channel Mixed-Mono Capable
• Selectable +6dB/+12dB Bass Equalizer
• Mute and Delay Soft Start System
• Double Sided Surface Mount (SMD) PCB Design
• Full IC-Controlled Protection Circuitry
• 2 CH / 4 CH input Mode Switch
• RCA Preamp Line Output
• 8 Volt Preamp Circuitry
• Status Mode LED Indicator
• 4 Gauge Lucite Encapsulated Power/Ground Terminals
• 12 Gauge Lucite Encapsulated Speaker Terminals

RXM-S20
• RMS Power Ratings:
600 Watts(4 x 150 Watts RMS) @ 2 Ohms
800 Watts(2 x 400 Watts RMS) @ 4 Ohms Bridged
800 Watts(4 x 200 Watts RMS) @ 4 Ohms
• Peak Power: 1600Watts (2 x 800 @ 2 Ohms or 1 x 1600 @ 4 Ohms)
• Frequency Response: 15Hz - 20KHz
• Sensitivity: 100dB @ 1w/1m
• Damping Factor:> 200 @ 100Hz
• Dual 25 Amp Fuses
• Dimensions:(W x H x L)6.7˝ x 1.98˝ x 10.7˝
• High-Speed MOSFET Power Supply
• Studio-Grade Bipolar Output Stage Transistors
• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
• Ch1 & CH2 High Pass 50Hz - 250Hz
• CH3 & CH4 Low pass 50Hz - 250Hz
• CH3 & CH4 High Pass 50Hz -250Hz
• 2 Ohm Stable Stereo
• 4 Ohm Mono Bridgeable
• 3 Channel Mixed-Mono Capable
• Selectable +6dB/+12dB Bass Equalizer
• Mute and Delay Soft Start System
• Double Sided Surface Mount (SMD) PCB Design
• Full IC-Controlled Protection Circuitry
• 2 CH / 4 CH input Mode Switch
• RCA Preamp Line Output
• 8 Volt Preamp Circuitry
• Status Mode LED Indicator
• 4 Gauge Lucite Encapsulated Power/Ground Terminals
• 12 Gauge Lucite Encapsulated Speaker Terminals
RXM-S30
• RMS Power Ratings:
800 Watts(4 x 200 Watts RMS) @ 2 Ohms
1200 Watts(2 x 600 Watts RMS) @ 4 Ohms Bridged
1200 Watts(4 x 300 Watts RMS) @ 4 Ohms
• Peak Power: 2400Watts (2 x 1200 @ 2 Ohms or 1 x 2400 @ 4 Ohms)
• Frequency Response: 15Hz - 20KHz
• Sensitivity: 100dB @ 1w/1m
• Damping Factor:> 200 @ 100Hz
• Dual 30 Amp Fuses
• Dimensions:(W x H x L)6.7˝ x 1.98˝ x 12.28˝
• High-Speed MOSFET Power Supply
• Studio-Grade Bipolar Output Stage Transistors
• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
• CH1 & CH2 High Pass 50Hz - 250Hz
• CH3 & CH4 Low pass 50Hz - 250Hz
• CH3 & CH4 High Pass 50Hz -250Hz
• 2 Ohm Stable Stereo
• 4 Ohm Mono Bridgeable
• 3 Channel Mixed-Mono Capable
• Selectable +6dB/+12dB Bass Equalizer
• Mute and Delay Soft Start System
• Double Sided Surface Mount (SMD) PCB Design
• Full IC-Controlled Protection Circuitry
• 2 CH / 4 CH input Mode Switch
• RCA Preamp Line Output
• 8 Volt Preamp Circuitry
• Status Mode LED Indicator
• 4 Gauge Lucite Encapsulated Power/Ground Terminals
• 12 Gauge Lucite Encapsulated Speaker Terminals
