SET-UP

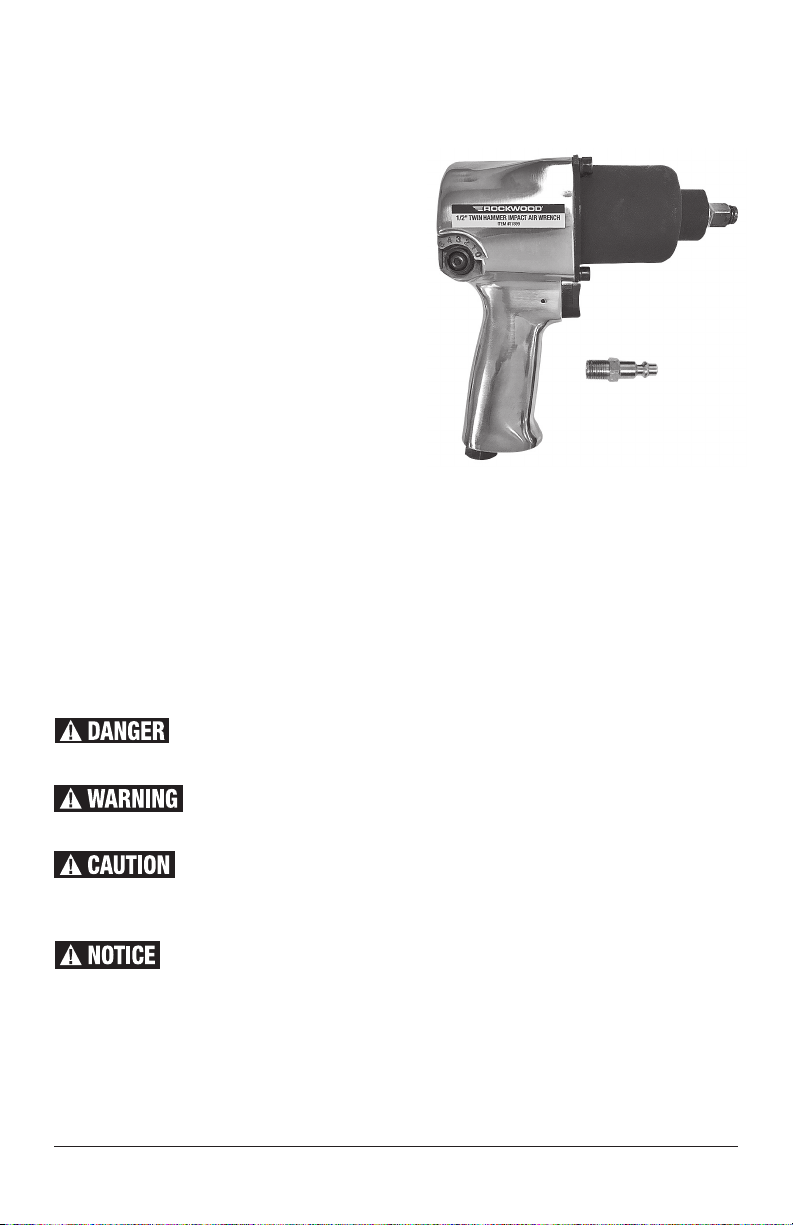

• Using a good quality Teflon sealing tape (not included), thread the 1/4” MNPT, Male quick
disconnect inlet fitting into the air inlet.
CONNECTION
• Be sure that the air supply to the tool is clean and dry. Moisture in the supply line will
quickly damage the motor and valves.
• A minimum 3/8” I.D. air line should be used for optimal performance.
OPERATION
• With air supply disconnected,
snap selected socket or accessory
over the retaining ring nested in
the square drive.
• Connect air supply, hold tool
securely and depress Trigger to
begin rotating action.

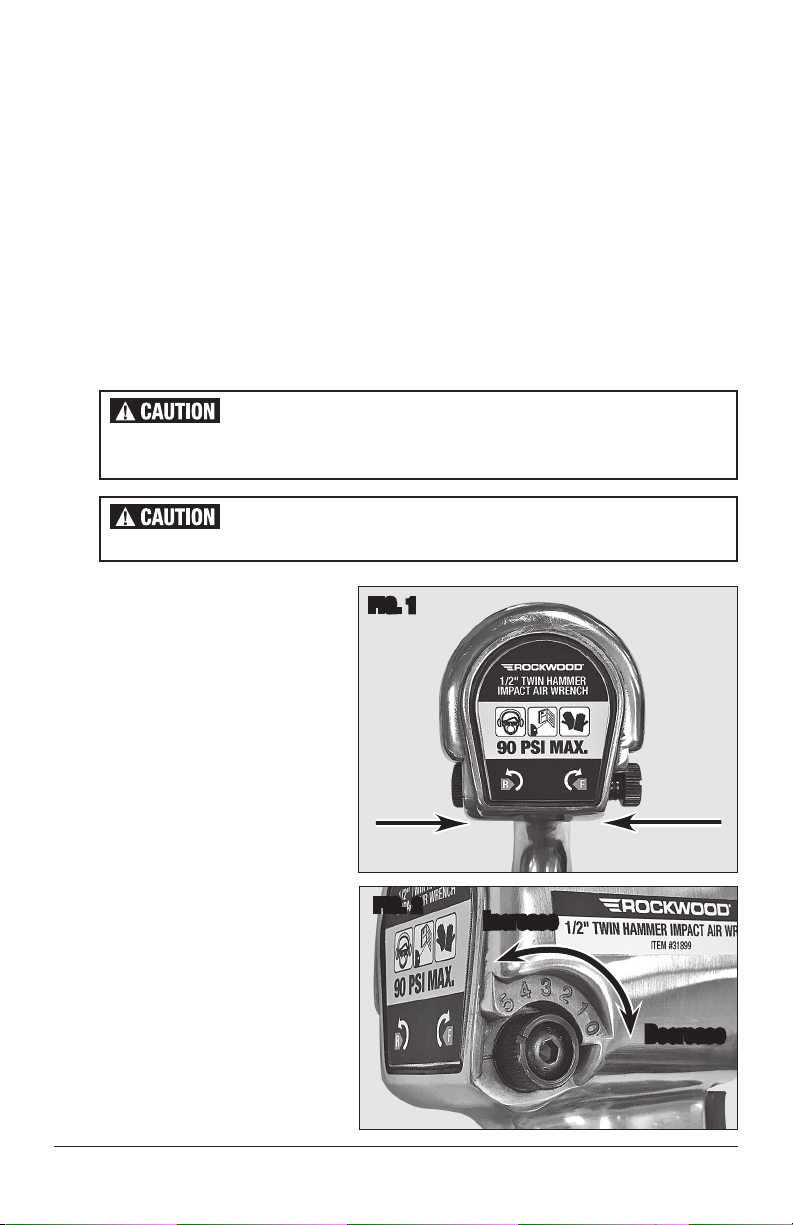

- To loosen fasteners:
Shift the rotary knobs to the
left side of the Wrench body
by pushing in on the right side
(FIG 1).
- To tighten fasteners:
Push in the left side of the
rotary knob assembly shifting
it to the right (FIG 1).
• Speed is regulated by pressure
applied to the trigger while torque
is limited by rotating either control
knob located at the lower left and
right corners of the Wrench Body.
0 is lowest, 5 is highest (FIG 2).
INJURY HAZARD!
To avoid injury, always disconnect air supply to Wrench when attaching or
removing sockets or accessories.
INJURY HAZARD!
To avoid injury, only use sockets and accessories rated for “Impact” use.
Reverse
(Loosen)
FIG. 1
FIG. 2
Forward
(Tighten)
Increase
Decrease
