The Judge 2.0
Radar and Laser Detector
Radar and Laser Scrambler
Owner’s Manual
Rocky Mountain Radar

1
Specifications:
Radar & Laser Detector:
Frequencies: 10.525 GHz
24.125 GHz
33-36 GHz
904 Nano-meter
Sensitivity: X - 110 Dbm
K -124 Dbm
Ka wide - 124 Dbm
Laser < 200 nano-watt
Alarm: Separate for each Band
Variable alarm for Range
Controls:Menu, Volume, On/Off, Voice,
Language, Tone, Dim, Mute,
City/Highway, Test, Scrambler,
Factory Reset
Spectre: 100% Undetectable [Spectre I, II
VG-2: III; VG-2, 3]
Size: 1.4” x 3.7” x 4.6”

2
INTRODUCTION
Dear Owner,
Congratulations on your purchase of the world’s most
sophisticated radar and laser detector and scrambler. The
Judge 2.0 is a completely integrated radar and laser
detector which responds not only to all the radar guns in
use today, but to the other latest development in speed
monitoring devices-laser guns.
The Judge 2.0 is the result of Rocky Mountain Radar’s
commitment to provide you, our valued customer, with
the most innovative technologically advanced radar and
laser detectors on the market. The Judge 2.0 was created
for drivers who will not settle for anything less than the
best.

3
Features:
5 Mile Detection Range:
Full 360° Radar and Laser Detection Full, 5 mile
detection of all bands and frequencies used by police,
including X, K, Ka, super wide bands and all laser. This
radar detector uses micro-scan. It enables our detectors to
scan 2-4 times faster than any other detector, which gives
you a 100% probability of detecting POP Radar. This
technology is unique to Rocky Mountain Radar detectors.
Early Warning Discriminator: (EWD)
The EWD filter prevents false alarms emitted by safety
sensors in newer vehicles and over the road drivers.
Traffic Sensor Rejection: (TSR)
The TSR prevents false alerts transmitted by sensors that
monitor the traffic flow on roadways around major cities.
Super Clear OLED Display:
The screen is clearly visible in all lighting conditions, so
you don’t lose focus in any way from the road.
Undetectable to Police: (detector detectors)
The Judge 2.0 radar detector and laser detector
incorporates a Monolithic Microwave Integrated Circuit
(MMIC), which reduces internal signals from leaking out
of the antenna by up to 1/1,000,000 (one millionth) of
previous levels which makes the unit totally undetectable
to police.

4
Radar/Laser Scrambling:
Police radar/LIDAR guns needs to get multiple readings
sequentially in order to display a valid speed to the
officer. When The Judge 2.0 detects a speed detection
device, it floods the signal with additional signals
making it impossible for the speed detection device to
get an accurate reading.
WARRANTY:
This unit (The Judge 2.0) comes with a 3-year (36 month)
warranty. Must Have Proof of Purchase
Speeding ticket rebate:
This unit comes with a 1 year of the Speeding Ticket
Protection Program. If you get a speeding ticket while
using our product, we’ll pay your ticket.
This product has been designed and certified to
comply with part 15 of the FCC rules. Any changes or
modifications not expressly approved by Rocky
Mountain Radar may void your authority to use this
product.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.

5

6

7
Installation
Best place to mount the unit:
You will get the best performance from your detector if
you mount it approximately in the center of the
windshield, as close as possible to the rear view mirror
without obstructing the unit’s view of the road either to
the front or rear. Make sure unit is level with the road.
Dash mount is not recommended. The unit’s Laser lens
must not be blocked and the Laser Lens should have a
clear view out of the back window to allow 360° Laser
detection.
Radar and laser signals pass through glass but not
through other materials and objects such as:
•Windshield wipers
•Sun shades
•Metallic tinting on the windshield
•Heated windshields
(Instaclear for Ford, Electriclear for GM.)
Mounting the Unit:
1.) Place the suction cups on the windshield bracket.
2.) Place the windshield bracket into The Judge 2.0.
Align the edge of the bracket with the slot opening on the
front of the case. Gently slide the bracket into the case
while pressing the bracket release button until it locks
into place. To release bracket, press the bracket release
button as you slide out the bracket.

8
To prevent damage to the unit you must press the
release button to release windshield mount before
pulling it out.
3.) Clean the windshield before you mount the unit for
better results. Place the windshield bracket in the upper
center portion of the windshield. The ideal position will
be right below the rear view mirror. Make sure the unit
has an unobstructed view of the road. Then Press firmly
to seat suction cups.
4.) Carefully bend the windshield bracket mount to a
level position.

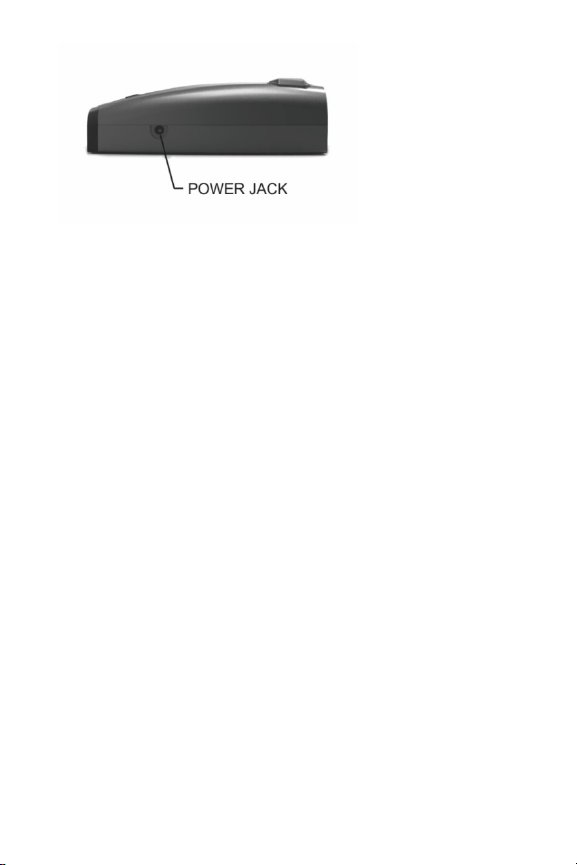

5.) Insert the small end of the power cord gently into the
power jack on the right side of the unit and the large end
into the cigarette lighter receptacle.

9
Remote-mounting is not recommended
Dash Mounting is not recommended
Hardwire: Remove cigarette lighter plug. Connect the
red wire to +12 Volts, and connect the white wire to
ground.
Settings:
When changing the Settings on your detector, please
keep in mind:
•Buttons have multiple functions.
•All current settings will be stored in memory.
Controls: There are 4 buttons on top of The Judge 2.0,
Menu, Dim, Mute and City.

10
Menu: Press and hold the Menu button down for an
extended period of time (approximately 3 to 5 seconds)
to go into Menu Mode. Display will show “Menu” with
one beep. When Menu Mode is displayed, press and
release the Menu button in step increments to scroll up or
the Dim button to scroll down on menu items, once the
desired menu item is reached press the Mute or City
button to change the setting.
Note: If no button is pressed for approximately 10
seconds The Judge 2.0 will automatically “Exit” the
Menu mode.
The Menu items are:
1.) Voice On/Off
2.) Language Mode English/ Spanish
3.) Alarm Tone High/Low
4.) X Band On/Off
5.) K Band On/Off
6.) Ka Band On/Off
7.) Laser On/Off
8.) K Wide/Narrow
9.) Ka Wide/Narrow

11
10.) K Filter (EWD) On/Off
11.) TSRF (TSF) On/Off
12.) Voltage Meter On/Off
13.) Scrambler On/Off
14.) Self-Test On/off
15.) Factory Reset
16.) Exit
Rocky Mountain Radar does not condone the use of
excessive speed on the highways, nor does it endorse
breaking the speed limit laws of the United States of
America. Please drive safely when using this or any
other electronic device in your car.
Dim: To adjust brightness press the Dim button for a
split second (momentary contact) to select between
Bright, Dim, Dimmer, Dark. To brighten the alarm light,
press the Dim button again until you reach desired
setting. In Dark mode there will be a small dot moving
from left to right on the display, letting you know that
the unit is still powered on. If using Dark Mode the unit
will alert with audio of the presence of radar or laser, but
not visually.
Warning: It is your responsibility to be familiar
with all laws applicable to the possession and use of
Radar Detectors in your locality. The manufacturer
and retailer assume no liability or responsibility for
use or application of this product in Violation of
any applicable law. Please checkyour state and
local laws and regulations of this product.

12
Note: If the unit is in Dark mode the Mute mode
cannot be engaged.
Mute: Press the Mute button for a split second
(momentary contact) to select “Mute On”, “Auto Mute”,
or “Mute Off”. Mute On mode disables voice and
beeping sounds for quiet operation. “Auto Mute” mode
will alarm 4 times then go into Mute mode, the display
will keep alerting with no sound unless a new signal is
received.
City: Engage the city function to reduce false alarms in
high RF noise areas. City function reduces the X band
sensitivity by 50%. Highway mode has all bands at
100% sensitivity.
Reminder: If you forget the settings you last used on the
unit use the “Factory Reset?” found on the Menu. Unit
will reset to factory default.
Factory Default Mode Settings: Bright, Mute off,
Highway, Voice on, English Voice, High tone, K filter
on, Scrambler on, Self-Test on, Voltage meter on, TSRF
on, X Band on, K Band on, Ka Band on, Laser on, K
Wide, Ka Wide.
Self-Test Mode: Begins right after the start message
“Rocky Mountain Radar” detection alarms with signal
strength will be displayed along with the user preferred
activated settings-scrambler test, voice, language and

13
alarm tone. Self-test mode can be de-activated through
the Menu selection.
Reminder! The Judge 2.0 will memorize the settings
of the features above when the unit is powered off. Be
sure to re-adjust the settings to your normal
preferences!
Caution!
Note: To prevent possible heat damage or theft, do not
leave the unit in direct sunlight or plain sight when not in
use.
Alarms: A separate alert tone will sound for each band
of radar encountered with frequency band displayed X,
K, Ka or Laser. For X, K and Ka band the signal strength
indicators are displayed with arrows and numerically.
Tone frequency will increase as signal strength becomes
stronger.
Signal Strength: Signal Strength will be first indicated
by the display of arrows followed by a number 1-5.
When all 5 arrows and the number 5 are displayed the
signal is at the strongest level.
VG-2, VG-3 and Spectre: The Judge 2.0 is 100%
Undetectable. On The Judge 2.0 the new MMIC
prevents detection of the radar detector completely.
Auto Memory: The Judge 2.0 has an automatic
memory. Any setting enabled when the unit is turned off

14
will still be enabled when the unit is turned back on. If
you have set the unit on Mute or have Dimmed the
display be sure to readjust the settings to your normal
preference.
The Judge 2.0 gives you the option to
de-activate X, K, Ka and Laser.
Caution must be used when
deactivating the radar bands, if you do
not know the type of speed monitoring
device used by police in your area.
The Judge 2.0 features K Narrow and K wide mode. K
Wide operates at full detection strength. K Narrow is a
very useful feature, where the frequency range swept in
the K-band region is reduced and more centered around a
tuned police radar gun.
The Judge 2.0 features Ka Narrow and Ka wide mode.
Ka Wide operates at full detection strength. Ka Narrow
focuses the detector on the police radars frequencies used
in the USA, 33.8 Ghz, 34.7 Ghz, and 35.5 Ghz .
The Judge 2.0 has a built in Voltage Meter that checks
and displays vehicle battery voltage when the mode is
activated.
Tamper Fee: Tampering with, disassembly, or
modification of this product voids the warranty and a fee
of $150.00 will be charged to repair it.

15
Radar ScramblerSpecifications:
Frequencies: 8.0-38.2 GHz
Antenna: Dual Ridge cast waveguide
Mixer: Custom MM wave Schottky
Doppler: Pseudo Random Digital Noise
Generator
Lidar Scrambler:
Full Laser coverage using asynchronous pulse position
modulation to confuse the lidar computer.
How does it work?
The Rocky Mountain Radar scramblers are full-featured
radar and laser scramblers combining active laser and
passive radar scrambling capabilities.
The radar scrambling circuit mixes Pseudo Random
Digital Noise Generator (PRDNS) with the incoming
police radar signal and reflects it back to the radar gun.
The computer in the radar gun must receive eight
identical, consecutive readings before it will display your
speed. All the different speeds contained in the White

16
Noise confuse the computer in the radar gun so it does
not display any speed. This effect duplicates the normal
operation that the officer often observes.
Since it is normal to occasionally lose the target speed,
the officer is not suspicious. Reasonable care should be
used as flagrant violators could still be caught with an
estimated speed.
The laser scrambling circuit transmits a series of pulses
at the same wavelength used by the police laser guns
(Lidar), which are electronically timed at about 100 feet
apart. When the pulses pass through the windshield they
will lose up to 50% of their power. The power output is 6
to 10 times that needed to trigger the detector in the laser
gun. Lidar sends out laser pulses and measures how long
it takes to hit your car and come back. From the speed of
light, it can determine your range. It sends out several
more pulses and calculates your speed from the change
in distance over time. The Rocky Mountain Radar
scramblers only allow the Lidar to see up to 100 feet so it
is unable to calculate your speed.

17
Scrambler Activation:
All Scramblers are factory set to the off Position:
Scrambler: To turn the scrambler on/off:
Note: If no button is pressed for approximately 10
seconds The Judge 2.0 will automatically “Exit” the
Menu mode.
1. Press and hold the Menu button approximately 3-5
seconds or until “MENU” is displayed.
2. Press the Menu button in increments until “Scrambler”
is displayed
3. Press the Mute or City button to turn scrambler on/off.
If the scrambler is on, “Scrambler Test” will be
displayed in the startup sequence. When the unit’s
scrambler setting is set to off, then “Scrambler off” will
be displayed in the startup sequence. During the startup
sequence the current menu settings are displayed. If
“Self-Test mode” setting is de-activated the unit will
only show current se
ttings on the display.
To activate or de-activate scrambler quickly press
and hold the City button for an extended period of
time (3 to 5 seconds)

18
Limited Warranty
The manufacturer warrants The Judge 2.0 against all
defects in materials and workmanship for the period of
36 months from the date of the original purchase, subject
to the following terms and conditions: The sole
responsibility of the manufacturer under the Warranty
period is limited to either repair or, at the option of the
manufacturer, replacement of The Judge 2.0. There are
no expressed or implied warranties, including those of
fitness for a particular purpose of merchantability, which
extend beyond the face hereof. Some states do not allow
limitation on how long an implied warranty lasts, so the
above Limitations may not apply to you.
Returns should be sent with an explanation of the
problem including your physical address (no PO Boxes),
proof of purchase, and telephone number. If the
information is not included there will be a delay in the
repair or replacement of your unit. If the unit is out of
warranty, there is a $62.00 Service fee.
Send to:
ROCKY MOUNTAIN RADAR
6469 Doniphan Drive
El Paso TX 79932
Phone: [phone] Fax: [phone]

19
Accessories:
The following accessories and parts are available:
Windshields mount
Suction Cups (set of 3)
2 amp fuses (two each)
Power Cord
Replacement Owner’s Manual
Carrying Case
(Free manual online download from our website)
A $10.00 shipping and handling fee will be added to the
total of each order.
PayPal, VISA, MasterCard, AMEX and
Discover Accepted
