HEARD, NOT SEEN

3

3
A twig cracks in the background as the
heroine stumbles through the woods. Chills creep down
your spine and the back of your neck tingles. You’re in it.
At AudioSource, we know the power sound holds. We also know that when it comes
to producing sound clarity, the smallest things matter most.
That’s why every AudioSource product is created to produce amazing sound, and
designed in ways that are easy to install and blend with the environment. Our engineers
spend months in product development — working on the perfect crossovers, speakers
and tweeters for unique home environments. Our designers focus on the materials and
features that make our products as functional as they are great sounding. That way we
know you’re getting the best possible sound for the price.
Because what you hear matters most to us.
CLEAR SOUND ANYWHERE
Turn the entire home into a living theater
with AudioSource’s affordable solutions.
Modular amps deliver flexibility, and with
our in-ceiling, in-wall and indoor/outdoor
speakers, there’s a speaker solution for
every need.
Volume Control
Pg. 9
Amplifiers and
Equalizers
Pg. 20
In-Ceiling
LCRs Pg. 6
Powered Subs
Pg. 6 Indoor/Outdoor
Speakers
Pg. 16 Home Theater Pg. 5
In-Wall
LCRs
Pg. 6
In-Wall
Speakers
Pg. 14
In-Ceiling
Speakers
Pg. 12
In-Wall Subs
Pg. 7

Home Theatre Intro

5
For more detail on optimum speaker placement see page 9.
A big screen TV puts you at the
50-yard line for every game. That means you can
see better from home than in person.
But can you hear the fans screaming all around you? Or the “oomph” of the
quarterback being sacked? Immersing yourself in the experience is what having
a home theater is all about.
AudioSource products not only deliver amazing sound quality, they’re designed
to be flexible enough to adapt to unique room configurations.
Take our in-wall speakers. Their adjustable, swiveling tweeters direct the higher
frequencies toward listeners, surrounding them with sound. And their unique
dog-leg mounts make them easier to install wherever they need to go.
Designed for function, created to perform.
home theater
IN-CEILING LCR
The unique 15 degree speaker angle
directs sound toward the listener,
excellent sound quality and directional
versatility without using any floor space.
These speakers can be used in a left,
center, right (LCR) configuration, as
stereo pairs, rear channel speakers,
or anywhere high quality sound needs
to be directed from the ceiling.

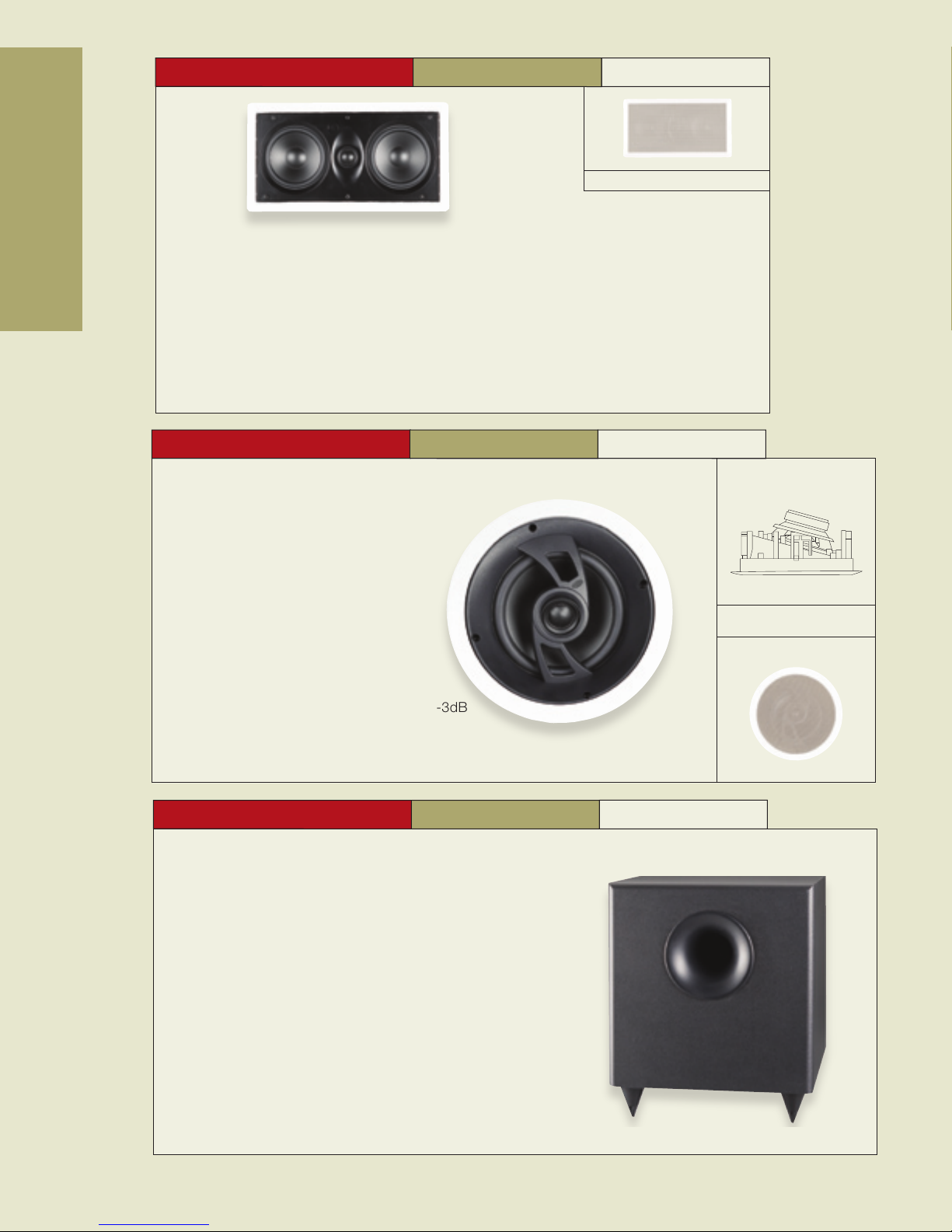

IN-WALL LCR
The AS515 delivers maximum flexibility
in home theater design. Use them for
the center channel in combination with
our 2-way in-wall speakers. Or for a
killer sound experience, install three in
the configuration featured below.

6
home theater
SPECIFICATIONS
Power Handling: 25 - 150 Watts
Impedance: 8 Ω
Frequency Response: 60Hz - 20kHz +/-3dB
Sensitivity 2.83V/1m: 90dB
Cut-Out Dimension: 13 15/16 x 6 7/8"
(354 x 175mm)
Mounting Depth: 3 1/2" (89mm)
FEATURES
Dual 5.25" Polypropylene Woofers
25mm Silk Dome Swivel Tweeter
Mid-Tweeter-Mid Configuration (MTM)
Butyl Rubber Surround
Dog-Leg Mounting System
Integrated Rear Dust Shield
Spray Paintable Frame & Grill
Left, Center, Right Application
WITH GRILL
IN-WALL 2-WAY LCR AS 51 5 Quantity: one
AS LC R6 C Quantity: one
IN-CEILING 2-WAY 6.5 LCR
SPECIFICATIONS
Power Handling: 25 - 150 Watts
Impedance: 8 Ω
Frequency Response: 55Hz - 18kHz +/-3dB
Sensitivity 2.83V/1m: 91dB
Cut-Out Diameter: 8 1/8" (206mm)
Mounting Depth: 5" (127mm)
FEATURES
6.5" Polypropylene Woofer
25mm Silk Dome Swivel Tweeter
15 Degree Speaker Inclination
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
Left, Center, Right Application WITH GRILL
PS W1 00 Q u a n t i t y: o n e
POWERED SUB
SPECIFICATIONS
Low-Pass Frequency Adjustment: 30Hz - 180Hz
Dimensions: 13 1/4 x 11 1/4 x 14"D (336 x 286 x 355mm)
FEATURES
10" Down Firing with Front Port
100 Watt Powered Subwoofer
Volume Level Control
Includes Isolation Spikes
Flat Matte Black
Low Level and Speaker Level

8
home theatre
7
home theater
AS T SU B1 0 Quantity: one
AS10SW Quantity: one
IN -WALL PASSIVE SUB
AS 8S W Quantity: one
IN-WALL PASSIVE SUB
SPECIFICATIONS
Power Handling: 25 - 125 Watts
Impedance: 8 Ω
Frequency Response: 40Hz - 200Hz +/-3dB
Sensitivity 2.83V/1m: 87dB
Cut-Out Dimension: 8 3/4 x 8 3/4" (222 x 222mm)
Mounting Depth: 3 5/8" (92mm)
FEATURES
8" Polypropylene Subwoofer
Butyl Rubber Surround
Dog-Leg Mounting System
Integrated Rear Dust Shield
Spray Paintable Frame & Grill
SPECIFICATIONS
Power Handling: 25 - 150 Watts
Impedance: 8 Ω
Frequency Response: 40Hz - 200Hz +/-3dB
Sensitivity 2.83V/1m: 86dB
Cut-Out Dimension: 10 5/8 x 10 5/8" (272 x 272mm)
Mounting Depth: 3 3/4" (95mm)
FEATURES
10" Polypropylene Subwoofer
Butyl Rubber Surround
“Easy In” Mounting Bracket
Integrated Rear Dust Shield
Spray Paintable Frame & Grill
POWERED SUB
SPECIFICATIONS
Low-Pass Frequency Adjustment:
50Hz - 180Hz
Dimensions:
8 1/4 x 19 3/4 x 15"D (210 x 489 x 381mm)
FEATURES
10" Down Firing ‘Low Boy’ with Side Port
150 Watt Powered Subwoofer
Volume Control and Phase Shift
Auto-On Signal Sensing
Crossover By-Pass Switch for LFE Input
Includes Adjustable Isolation Spikes
Unique Gloss Lacquer Finish
Low Level and Speaker Level Inputs
WITH GRILL
WITH GRILL

8
home theater

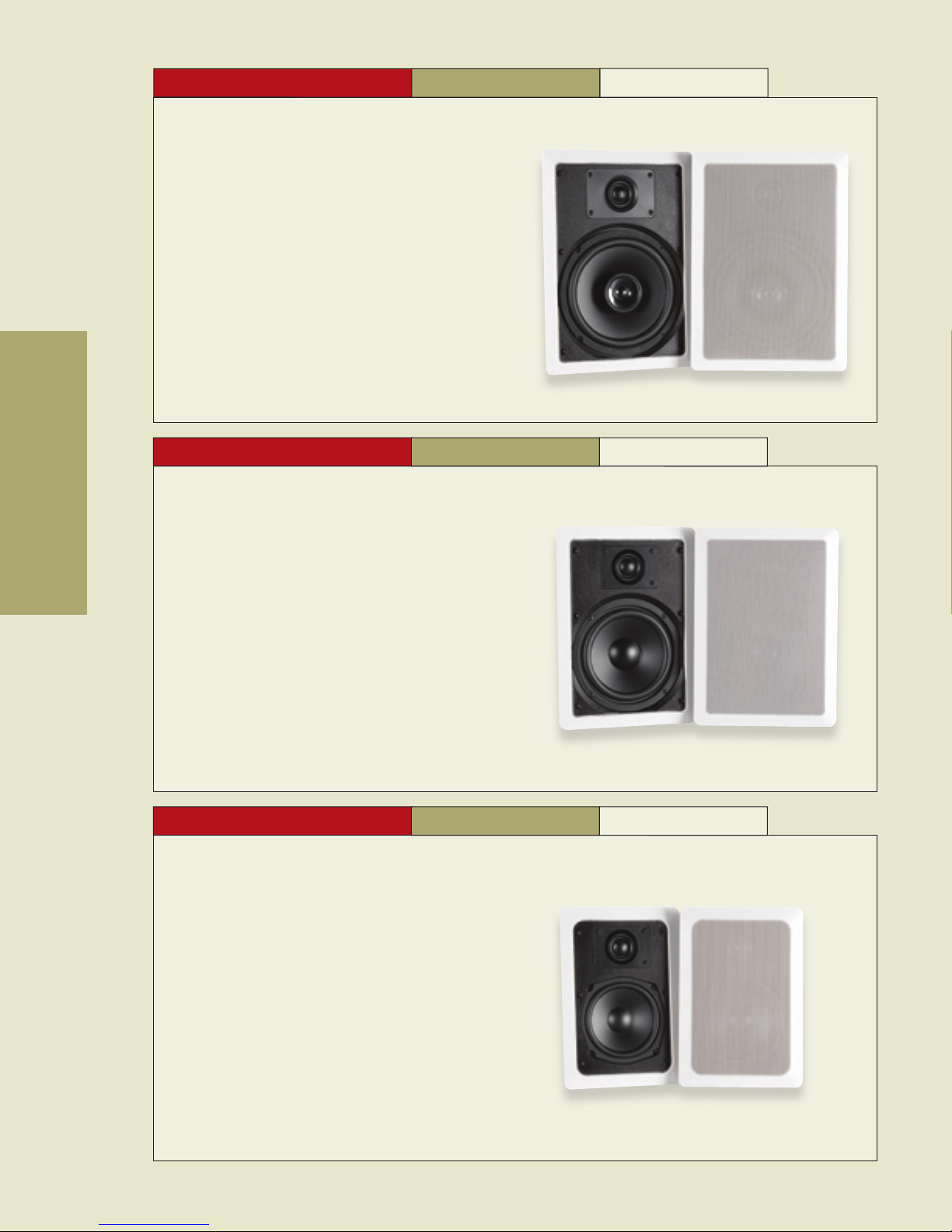

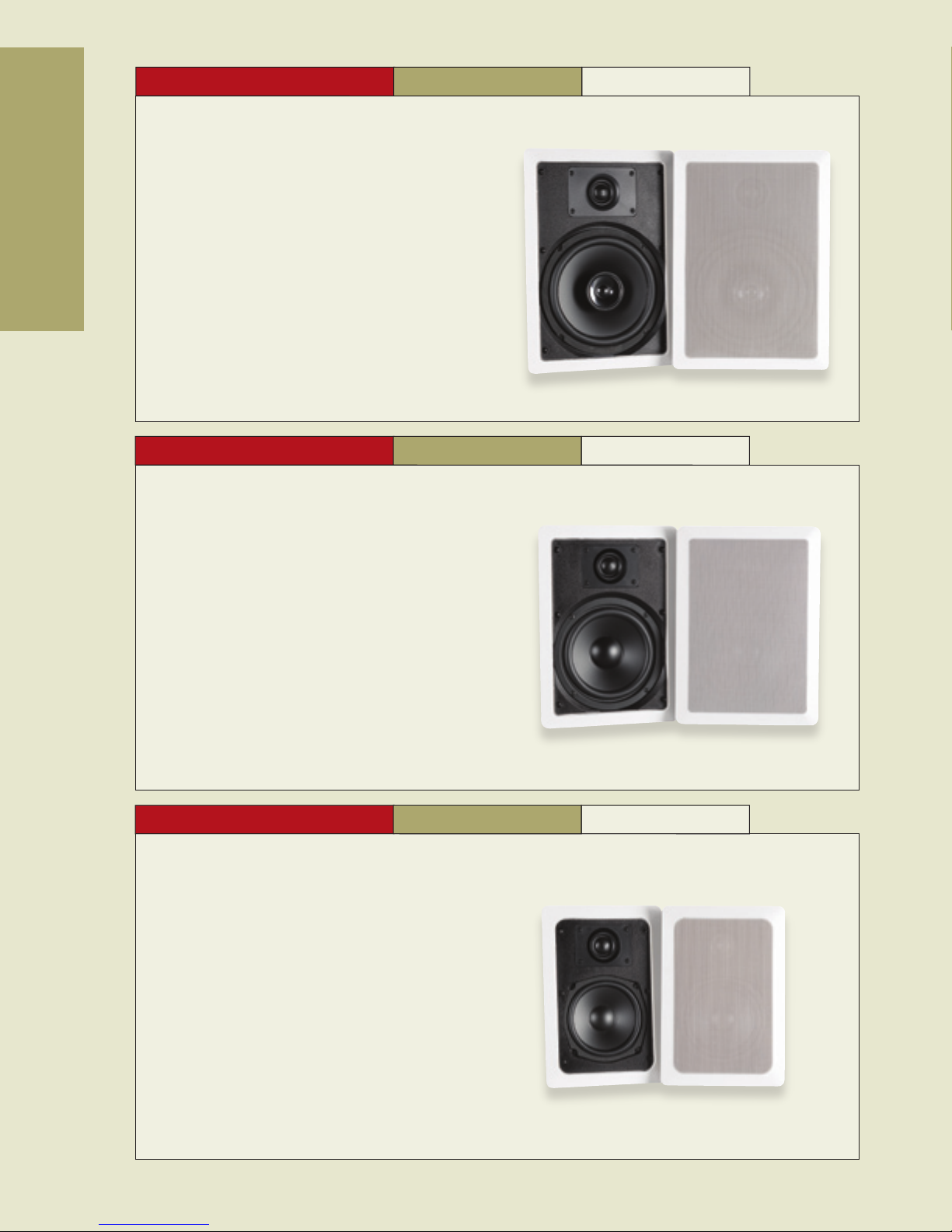

AS 5S Q u a n t i t y: pa i r
IN-WALL 2-WAY
AS 6S Q u a n t i t y: pa i r
IN-WALL 2-WAY
AS 8S Q u a n t i t y: pa i r
IN-WALL 3-WAY
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 70Hz - 22kHz +/-3dB
Sensitivity 2.83V/1m: 87dB
Cut-Out Dimension: 6 1/8 x 9 5/8" (155 x 143mm)
Mounting Depth: 2 1/2" (63mm)
FEATURES
5.25" Polypropylene Woofer
25mm Silk Dome Swivel Tweeter
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 50Hz - 20kHz +/-3dB
Sensitivity 2.83V/1m: 87dB
Cut-Out Dimension: 7 5/16 x 10 11/16" (186 x 276mm)
Mounting Depth: 3 1/8" (79mm)
FEATURES
6.5" Polypropylene Woofer
25mm Silk Dome Swivel Tweeter
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 40Hz - 20kHz +/-3dB
Sensitivity 2.83V/1m: 90dB
Cut-Out Dimension: 8 3/4 x 12 3/4" (222 x 324mm)
Mounting Depth: 3 5/8" (92mm)
FEATURES
8" Polypropylene Woofer
50mm Pole Mounted Midrange
25mm Silk Dome Swivel Tweeter
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill

9
home theater

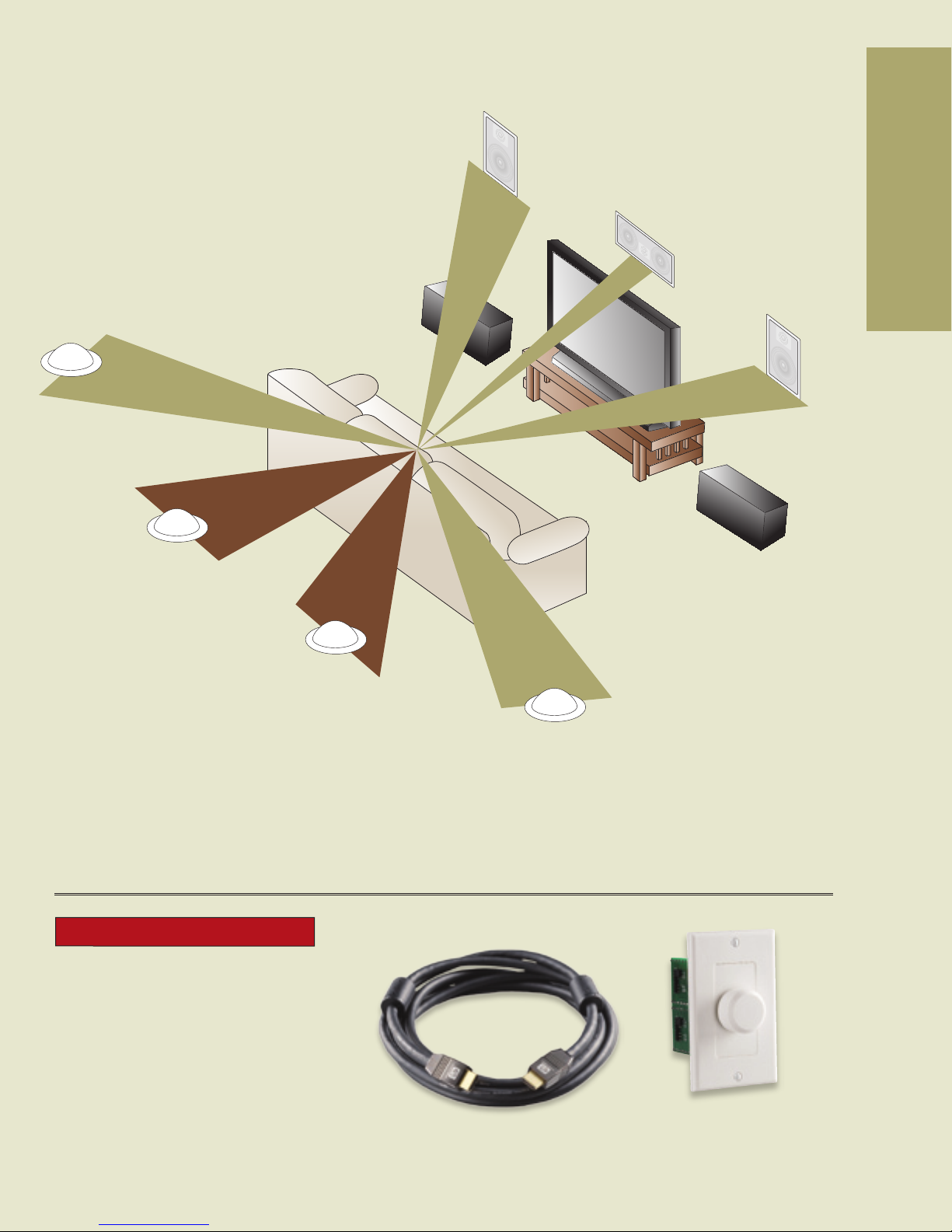

OPTIMAL HOME THEATER
SPEAKER PLACEMENT
For best home theater sound, place the front
left and right speakers within an angle of 45
to 60 degrees from the center-most viewing
position. Think of the center-most viewing
position as the top of an angle whose sides
join the front left and right speakers at an
angle of 45 to 60 degrees.
Phoenix Gold Volume Control
VMT100W
Phoenix Gold HDMI Cable
HDMX930
Five Point (Green) Speaker Set up for Optimum Sound.
Seven Point Speaker Set up for Optimum Sound.
Phoenix Gold has a complete line of speaker
selectors, wall plate controls and cabling to
complement the AudioSource product line.
Ask your sales representative for details.
PHOENIX GOLD ACCESSORIES

From the kitchen, where you can rock
out to your favorite artist, to the den, where you can relax
to Beethoven. AudioSource speakers deliver music the way
it was meant to be heard.
Our deep understanding of every aspect of acoustic design, from drivers to crossovers,
materials to installation, means we can optimize each speaker’s design to create a
premium sound.
Like our unique summed stereo in-ceiling speaker. With two independent tweeters
and one woofer with two separate voice coils, this single unit is a perfect solution
for use in space-challenged rooms like the bathroom.
Full-frequency performance, wherever you want it.

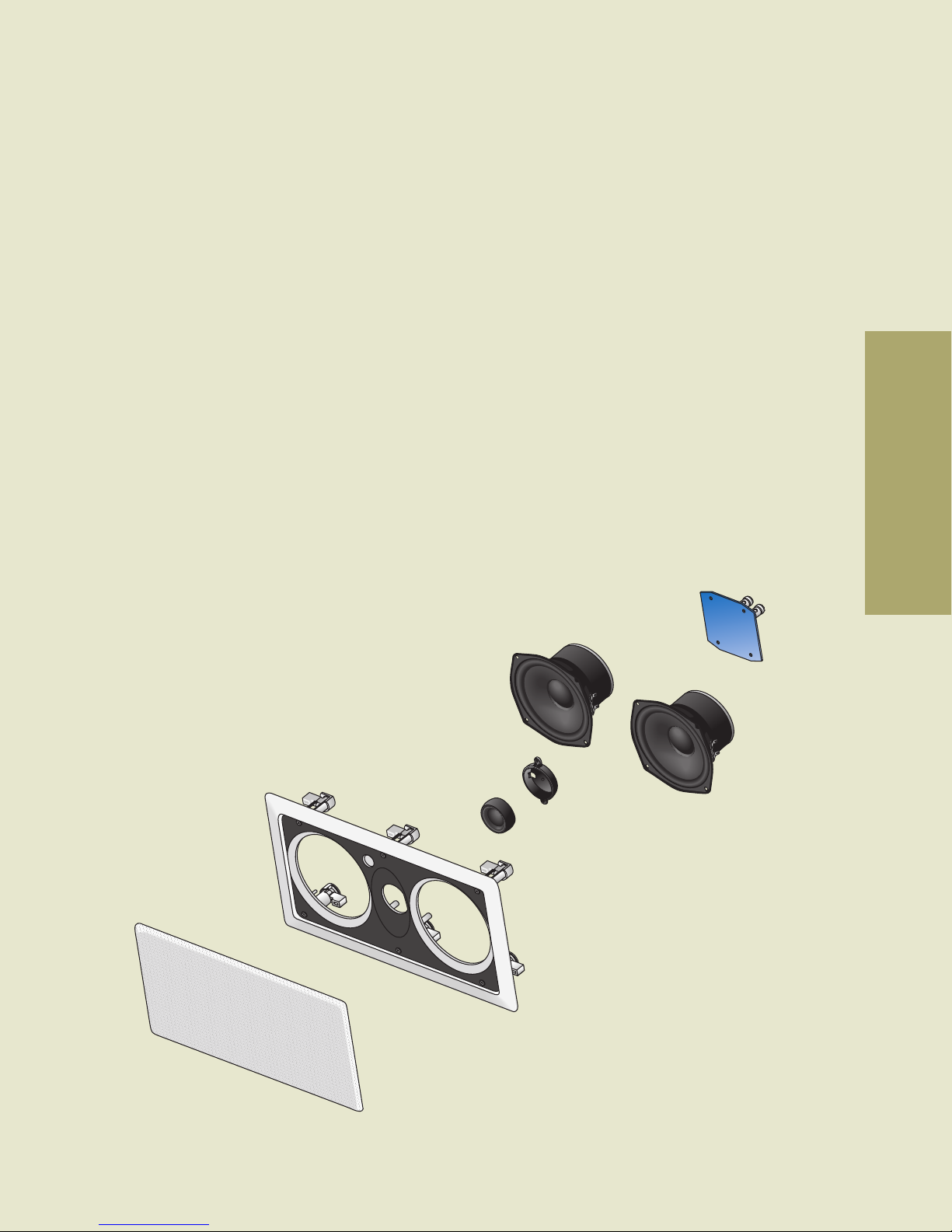

In Wall 2 Way AS515 LCR
11
speakers
IN-WALL SPEAKERS
All AudioSource in-wall speakers
feature paintable metal grills,
polypropylene woofers, butyl
rubber surrounds, silk dome
swivel tweeters and carefully
engineered crossovers.

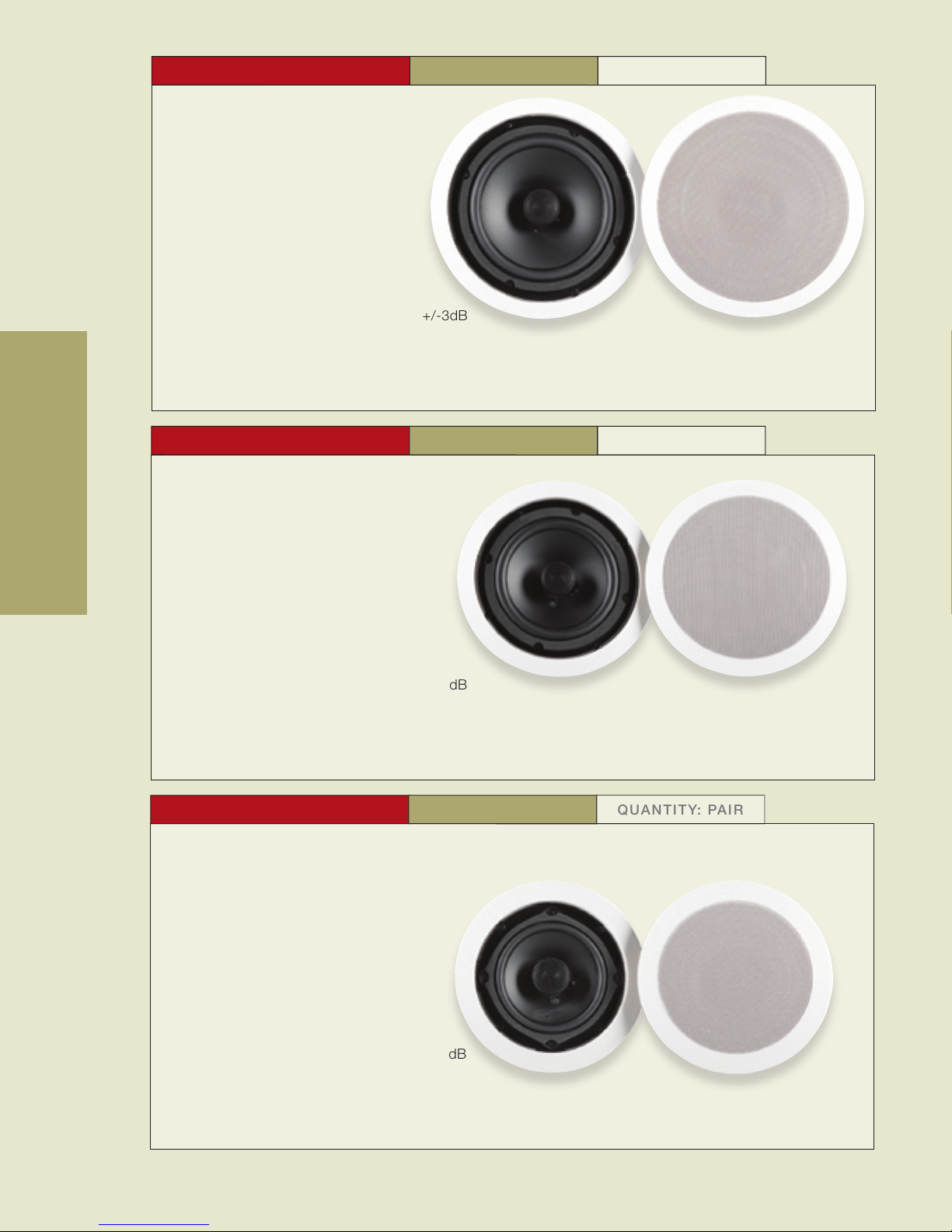

AS 8C Q u a n t i t y: pa i r
IN-CEILING 2-WAY
AS 6C Q u a n t i t y: pa i r
IN-CEILING 2-WAY
AS 5C Q u a n t i t y: pa i r
IN-CEILING 2-WAY
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 60Hz - 20kHz +/-3dB
Sensitivity 2.83V/1m: 88dB
Cut-Out Diameter: 7 3/4" (197mm)
Mounting Depth: 2 7/8" (73mm)
FEATURES
6.5" Polypropylene Woofer
25mm Silk Dome Swivel Tweeter
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 40Hz - 20kHz +/-3dB
Sensitivity 2.83V/1m: 88dB
Cut-Out Diameter: 9 5/8" (236 mm)
Mounting Depth: 3 5/8" (92mm)
FEATURES
8" Polypropylene Woofer
25mm Silk Dome Swivel Tweeter
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 70Hz - 22kHz +/-3dB
Sensitivity 2.83V/1m: 87dB
Cut-Out Diameter: 6 5/8" (203mm)
Mounting Depth: 2 3/4" (70mm)
FEATURES
5.25" Polypropylene Woofer
25mm Silk Dome Swivel Tweeter
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
12
speakers

AS7C Quantity: one
IN -C EI LI NG SUMMED STEREO
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 45Hz - 20kHz +/-3dB
Sensitivity 2.83V/1m: 88dB
Cut-Out Diameter: 7 3/4" (197mm)
Mounting Depth: 2 7/8" (73mm)
FEATURES
6.5" Polypropylene Woofer with Dual Voice Coils
Dual 19mm Balanced Drive Tweeters
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
WITH GRILL
13
speakers
AS LC R6 C Quantity: one
IN-CEILING 2-WAY 6.5 LCR
SPECIFICATIONS
Power Handling: 25 - 150 Watts
Impedance: 8 Ω
Frequency Response: 55Hz - 18kHz +/- 3dB
Sensitivity 2.83V/1m: 91dB
Cut-Out Diameter: 8 1/8" (206mm)
Mounting Depth: 5" (127mm)
FEATURES
6.5" Polypropylene Woofer
25mm Silk Dome Swivel Tweeter
15 Degree Speaker Inclination
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
Left, Center, Right Application WITH GRILL
Phoenix Gold Speaker Selector
IH DSSM6
Phoenix Gold Volume Control
VMT100W
Phoenix Gold has a complete line of speaker
selectors, wall plate controls and cabling to
complement the AudioSource product line.
Ask your sales representative for details.
PHOENIX GOLD ACCESSORIES

14
speakers
AS 5S Q u a n t i t y: pa i r
IN-WALL 2-WAY
AS 6S Q u a n t i t y: pa i r
IN-WALL 2-WAY
AS 8S Q u a n t i t y: pa i r
IN-WALL 3-WAY
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 70Hz - 22kHz +/-3dB
Sensitivity 2.83V/1m: 87dB
Cut-Out Dimension: 6 1/8 x 9 5/8" (155 x 143mm)
Mounting Depth: 2 1/2" (63mm)
FEATURES
5.25" Polypropylene Woofer
25mm Silk Dome Swivel Tweeter
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 50Hz - 20kHz +/-3dB
Sensitivity 2.83V/1m: 87dB
Cut-Out Dimension: 7 5/16 x 10 11/16" (186 x 276mm)
Mounting Depth: 3 1/8" (79mm)
FEATURES
6.5" Polypropylene Woofer
25mm Silk Dome Swivel Tweeter
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 40Hz - 20kHz +/-3dB
Sensitivity 2.83V/1m: 90dB
Cut-Out Dimension: 8 3/4 x 12 3/4" (222 x 324mm)
Mounting Depth: 3 5/8" (92mm)
FEATURES
8" Polypropylene Woofer
50mm Pole Mounted Midrange
25mm Silk Dome Swivel Tweeter
Butyl Rubber Surround
Dog-Leg Mounting System
Spray Paintable Frame & Grill

15
speakers
SPECIFICATIONS
Power Handling: 25 - 150 Watts
Impedance: 8 Ω
Frequency Response: 60Hz - 20kHz +/-3dB
Sensitivity 2.83V/1m: 90dB
Cut-Out Dimension: 13 15/16 x 6 7/8"
(354 x 175mm)
Mounting Depth: 3 1/2" (89mm)
FEATURES
Dual 5.25" Polypropylene Woofers
25mm Silk Dome Swivel Tweeter
Mid-Tweeter-Mid Configuration (MTM)
Butyl Rubber Surround
Dog-Leg Mounting System
Integrated Rear Dust Shield
Spray Paintable Frame & Grill
Left, Center, Right Application
WITH GRILL
IN-WALL 2-WAY LCR AS 51 5 Quantity: one
OPTIMAL CEILING SPEAKER PLACEMENT
Place your ceiling speaker along the longest
centerline of the room for best sound results.
They should be located between 1/6 and
1/3 of the length of the ceiling in from the
end. The closer the speakers are placed
to the side wall, the better the low
frequency (bass) response.
7
OPTIMAL IN-WALL SPEAKER PLACEMENT
To attain highest in-wall speaker fidelity, place
your speakers on the long wall of the room
between 1/8 and 1/4 of the length of the
wall in from the end. The closer the speakers
are to the side wall, the better the low
frequency (bass) response.

16
speakers

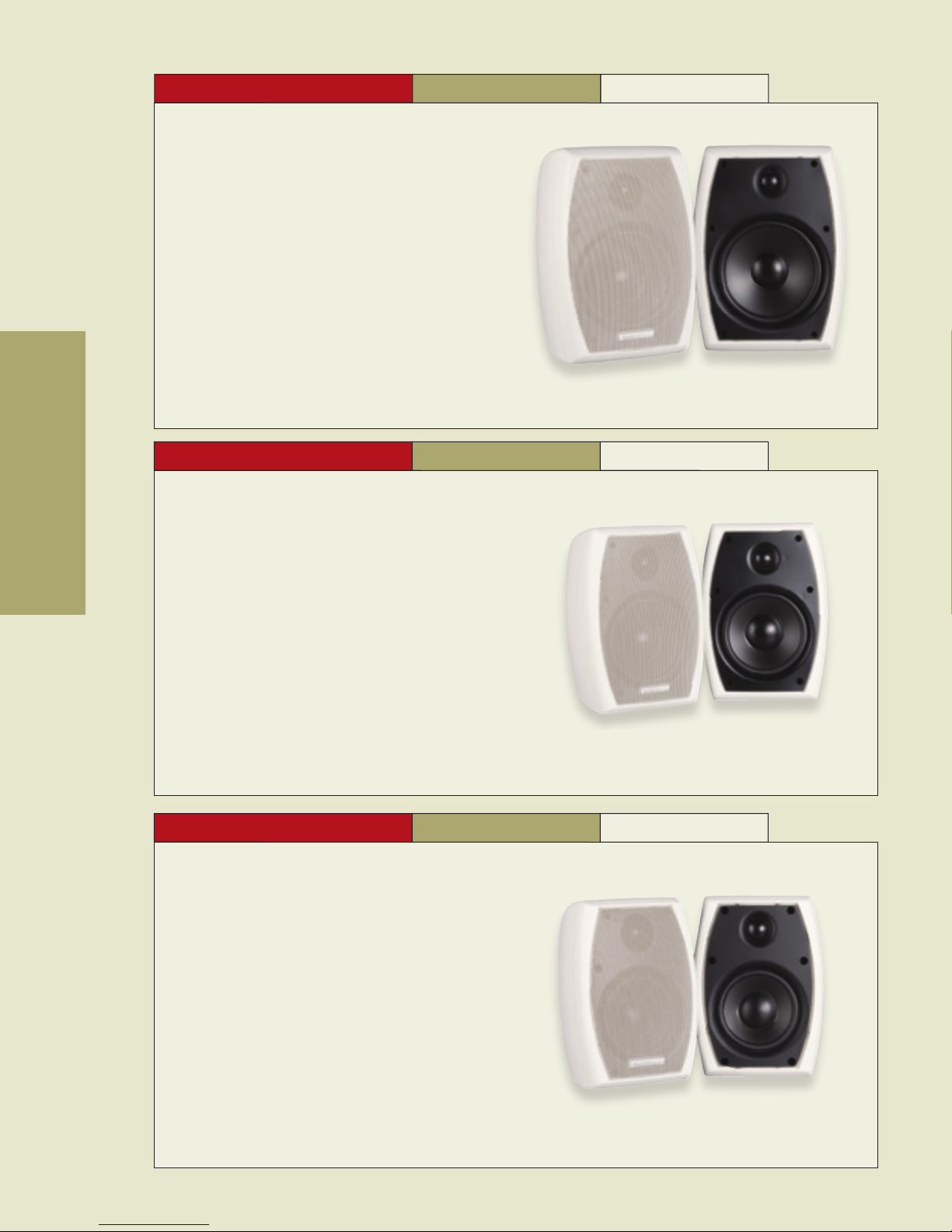

LS 52 W Q u a n t i t y: pa i r
INDOOR/OUTDOOR 2-WAY
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 85Hz - 20kHz +/-3dB
Sensitivity 2.83V/1m: 89dB
Weight: 4.2lbs (1.9 kg)
Dimensions: 6 3/4 x 9 1/2 x 6 3/8" (170 x 240 x 160mm)
FEATURES
5.25" Polypropylene Woofer
1" Silk Dome Tweeter
Weather Resistant Speaker System
Butyl Rubber Surround
CAD/CAE Designed, Phase Compensated Crossover
Mounting Brackets and Hardware Included
Rustproof Alumninum Grill
LS 42 W Q u a n t i t y: pa i r
INDOOR/OUTDOOR 2-WAY
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 100Hz - 20kHz +/-3dB
Sensitivity 2.83V/1m: 85dB
Weight: 2.2lbs (1 kg)
Dimensions: 5 11/16 x 8 x 5" (145 x 203 x 127mm)
FEATURES
4" Polypropylene Woofer
1" Silk Dome Tweeter
Weather Resistant Speaker System
Butyl Rubber Surround
CAD/CAE Designed, Phase Compensated Crossover
Mounting Brackets and Hardware Included
Rustproof Alumninum Grill
LS 62 W Q u a n t i t y: pa i r
INDOOR/OUTDOOR 2-WAY
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 65Hz - 20kHz +/-3dB
Sensitivity 2.83V/1m: 87.5dB
Weight: 5.5lbs (2.3 kg)
Dimensions: 8 x 11 x 7 1/4" (203 x 280 x 184mm)
FEATURES
6.5" Polypropylene Woofer
1" Silk Dome Tweeter
Weather Resistant Speaker System
Butyl Rubber Surround
CAD/CAE Designed, Phase Compensated Crossover
Mounting Brackets and Hardware Included
Rustproof Alumninum Grill
Also Available in Black
(LS62B)
Also Available in Black
(LS52B)
Also Available in Black
(LS42B)

17
speakers
LS 54 5 Q u a n t i t y: pa i r
INDOOR/OUTDOOR 2-WAY
SPECIFICATIONS
Power Handling: 25 - 100 Watts
Impedance: 8 Ω
Frequency Response: 60Hz to 20kHz +/-3dB
Sensitivity 2.83V/1m: 89dB
Weight: 5.5lbs (2.3 kg)
Dimensions: 9 1/2 x 7 x 6 5/8" (241 x 178 x 169mm)
FEATURES
5.25" Polypropylene Woofer
3/4" Polycarbonate Tweeter
Weather Resistant Speaker System
Mounting Brackets and Hardware Included
White Powder Coated Microperf Grill
INDOOR/OUTDOOR
SPEAKER PLACEMENT
Like all speakers, the LS series
of Indoor/Outdoor speakers sound
best when placed in the line of
sight of the listener, with no
obstructions. They can be
mounted vertically or horizontally
and will pivot 180˚.
The LS series of Indoor/Outdoor
speakers are manufactured to
resist a variety of weather
conditions. However, they are
not waterproof, so if you decide
to place your speakers outdoors,
position them so they are not
directly exposed to the elements.
The undersides of most eaves
and overhangs provide the
best protection.
These illustrations provide a visual
guide for optimally placing your
speakers.

19
Our company started designing
and building amps over 20 years ago. During this time,
we’ve continually refined our products to balance power,
sound clarity and long-lasting performance.
All our amps — 100, 200, 300, One/A — are full-bandwidth capable, bridgeable,
and feature A-B switching, providing a repertoire of flexible configurations. They boast
a robust power supply and bipolar output devices.
With source override, our amps can accommodate necessary interruptions, such
as PA systems, game consoles, phone calls or even doorbells. They’re designed
so users can set the master levels for volume and balance on the back of the
system, then make fine adjustments on the front.
All AudioSource electronics, including amplifiers, equalizers, volume controls and more,
are easy to install and torture-tested during development to ensure years of use.
Experience you can trust, performance you can count on.
electronics
FLEXIBILITY FOR
ANY APPLICATION
The automatic “smart” source
switchers recognize line 1 as a
master and line 2 becomes active
when line 1 is off, or in the case
of the amp 200/300 this can be
set with a priority override with
a 3-15 second variable delay.
An independent 12v trigger allows
the amp 200/300 to be powered
on by other electronics or to power
on other electronics via a 3.5mm
mini phone plug.
Each amplifier also has special
speaker in ports to allow you
to use speaker wire to daisy
chain amps.
++
AMP300

20
AM P3 00
2-CHANNEL AMPLIFIER
SPECIFICATIONS
Power Output: 8 Ω stereo 150W x 2
4
Ω stereo 235W x 2
8
Ω bridged 470W x 1
Frequency Response: 20Hz - 20kHz +0dB/-0.5dB
Signal to Noise Ratio: 103dBA at 4
Ω , 1% THD+N
Weight: 44lbs (20 kg)
Dimensions: 5 1/4 x 16 1/2 x 14"D (135 x 422 x 355mm)
FEATURES
2 Pair Stereo RCA Inputs
1 Pair Stereo RCA Outputs
Auto-On, 12V Trigger,
and Manual Power Switching
1 Pair Speaker Level Inputs
Line 1 Input Priority Switching
Line 2 Delay Time Adjustment
SPECIFICATIONS
Power Output: 8 Ω stereo 50W x 2
4
Ω stereo 61W x 2
8
Ω bridged 150W x 1
Frequency Response: 20Hz - 20kHz +1dB/-0.5dB
Signal to Noise Ratio: 101dBA at 8
Ω , 1% THD+N
Weight: 12lbs (5.45 kg)
Dimensions: 3 x 16 1/2 x 9 1/4"D (76 x 422 x 235mm)
FEATURES
2 Pair Stereo RCA Inputs
1 Pair Stereo RCA Outputs
Auto-On Signal Sensing
A and B Speaker Switching
Bridgeable to Mono Operation
Balance and Volume Controls
AM P2 00
2-CHANNEL AMPLIFIER
SPECIFICATIONS
Power Output: 8 Ω stereo 80W x 2
4
Ω stereo 125W x 2
8
Ω bridged 250W x 1
Frequency Response: 20Hz - 20kHz +0dB/-0.5dB
Signal to Noise Ratio: 103dBA at 4
Ω , 1% THD+N
Weight: 30lbs (13.6 kg)
Dimensions: 3 1/2 x 16 1/2 x 14"D (89 x 422 x 355mm)
FEATURES
2 Pair Stereo RCA Inputs
1 Pair Stereo RCA Outputs
Auto-On, 12V Trigger,
and Manual Power Switching
1 Pair Speaker Level Inputs
Line 1 Input Priority Switching
Line 2 Delay Time Adjustment
AM P1 00
2-CHANNEL AMPLIFIER
electronics
