Rohde & Schwarz GB4000V User manual

PAD
-
T
-
M
:
3
57
4
.
32
5
9
.
02
/
01
.
01
/CI/1/EN
R&S®GB4000V
A
udio Unit
User Manual
User Manual
Radiocommunications Systems
6174.7514.02 – 03

The User Manual describes the following R&S®GB4000V models and options:
●6148.3073.02
●6148.3073.03
●6148.3073.12
●6148.3467.04 (SW 04.0x)
The firmware of the instrument makes use of several valuable open source software packages. The most
important of them are listed below, together with their corresponding open source license. The verbatim
license texts are provided on the user documentation CD-ROM (included in delivery).
Package Link License
Linux http://www.kernel.org GPL v.2
Mongoose http://www.code.google.com/p/mongoose MIT
Rohde & Schwarz would like to thank the open source community for their valuable contribution to
embedded computing.
The source code of the open source packages is available on request.
© 2015 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Munich, Germany
Phone: [phone] - 0
Fax: [phone]
E-mail: [email protected]
Internet: http://www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S
®is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
The following abbreviations are used throughout this manual:
R&S
®GB4000V is abbreviated as R&S GB4000V

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 1
CE Marking
The marking by the CE symbol means that the R&S GB4000V audio unit fulfills the
EMC guideline and the low-voltage guideline of the European Union.
Furthermore it points out that the following technical standards are fulfilled:
●DIN EN 60950–1:2006
●EN 55022:2006 (ancillary equipment)
●ETSI EN 301 489–1 V1.8.1
●ETSI EN 301 489–22 V1.3.1

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 2
Table of Contents
1 User Information...................................................................................................... 9
1.1 General Features ............................................................................................. 9
1.2 Required Personnel........................................................................................ 10
1.3 Required Power Supply.................................................................................. 10
1.4 Design ............................................................................................................ 11
1.5 Technical Data ............................................................................................... 12
2Getting Started ...................................................................................................... 14
2.1 Unpacking and Checking ............................................................................... 14
2.2 Packing, Transport and Storage .................................................................... 14
2.3 Installation ...................................................................................................... 15
2.4 Cabling ........................................................................................................... 18
3Operation............................................................................................................... 24
3.1 General........................................................................................................... 24
3.2 Control Elements and Interfaces.................................................................... 25
3.3 Indication via LEDs......................................................................................... 29
3.4 Switching On and Off ..................................................................................... 29
3.5 Headset Volume Control................................................................................ 30
3.6 Speaker Volume Control................................................................................ 30
3.7 IP Reset and VoIP Mode via SETUP Button.................................................. 30
3.8 Firmware Update............................................................................................ 31
3.9 Device Configuration via Web Interface......................................................... 32
3.9.1 Factory Default Settings.......................................................................... 32
3.9.2 Device Configuration............................................................................... 35
3.9.2.1 Content of the Web Interface .............................................................. 35
3.9.2.2 Setting Up Connection to the Web Server .......................................... 39
3.9.3 Meaning of Parameters........................................................................... 40
3.9.3.1 Website Configuration......................................................................... 40
3.9.3.2 Website Configuration GB2PP............................................................ 41
3.9.3.3 Website Configuration VoIP ................................................................ 41
3.10 Device Status ................................................................................................. 43
3.11 Operation Modes............................................................................................ 44
3.11.1 Analog Audio Mode................................................................................. 44
3.11.1.1 Cabling in the Analog Audio Mode...................................................... 44
3.11.1.2 Operation in the Analog Audio Mode .................................................. 45
3.11.2 VoIP Mode .............................................................................................. 46
3.11.2.1 Introduction/Overview.......................................................................... 46
3.11.2.2 Cabling in the VoIP Mode.................................................................... 46
3.11.2.3 Operation in the VoIP Mode................................................................ 47
3.11.3 PTT Configuration................................................................................... 48
3.11.4 Sidetone.................................................................................................. 51
4Malfunction ............................................................................................................ 54
4.1 Visual Inspection ............................................................................................ 54
4.2 Other Troubleshooting Measures................................................................... 54

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 3
5Maintenance.......................................................................................................... 56
5.1 Cleaning ......................................................................................................... 56
6Appendix................................................................................................................ 57
A Technical Information..................................................................................... 57
A.1 Connector Specifications ........................................................................ 57
B Drawings......................................................................................................... 65
C References..................................................................................................... 66

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 4
List of Figures
Figure 1: The R&S GB4000V audio unit, front view (VAR03). ....................................... 9
Figure 2: The R&S GB4000V audio unit, rear view...................................................... 11
Figure 3: Dimensions of panel cutout (VAR02/03). ...................................................... 16
Figure 4: Dimensions of panel cutout (VAR12). ........................................................... 16
Figure 5: Bore holes for fixture of the R&S GB4000V.................................................. 17
Figure 6: Location of external interfaces, rear view of the R&S GB4000V. ................. 19
Figure 7: External interface, front view of the R&S GB4000V (VAR02)....................... 20
Figure 8: External interface, front view of the R&S GB4000V (VAR12)....................... 21
Figure 9: External interface, front view of the R&S GB4000V (VAR03)....................... 22
Figure 10: Front view of the R&S GB4000V (VAR02).................................................. 25
Figure 11: Front view of the R&S GB4000V (VAR12).................................................. 26
Figure 12: Front view of the R&S GB4000V (VAR03).................................................. 27
Figure 13: Rear view..................................................................................................... 28
Figure 14: Status page. ................................................................................................ 36
Figure 15: Configuration page. ..................................................................................... 37
Figure 16: Configuration ACL page.............................................................................. 38
Figure 17: Configuration VoIP page. ............................................................................ 38
Figure 18: Connector pin assignment of the R&S GB4000V analog connector cable. 44
Figure 19: Network structure of the R&S GB4000V in VoIP mode .............................. 46
Figure 20: Configuration of PTT Mode. ........................................................................ 48
Figure 21: Local sidetone functionality. ....................................................................... 52
Figure 22: Remote sidetone functionality. ................................................................... 52
Figure 23: Headset Controller X1, recessed socket, 7-way, NF7. ............................... 57
Figure 24: Headset Instructor X2, recessed socket, 7-way, NF7................................. 58
Figure 25: Audio interface X3, DSUB female (25pins). ................................................ 59
Figure 26: Ethernet –LAN remote control X4, RJ-45 (8 pins) MDI connector............. 61
Figure 27: Audio interface X5, RJ-48 (10 pins). ........................................................... 62
Figure 28: External speaker X6, 3-way female connector............................................ 63
Figure 29: USB X7, USB-B-S-S-B-TH (4 pins)............................................................. 63
Figure 30: Power connector X8.................................................................................... 64

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 5
List of Tables
Table 1: Summary of technical data. ............................................................................ 12
Table 2: Connections on the rear panel of the R&S GB4000V. ................................... 19
Table 3: Connections on the front panel of the R&S GB4000V (VAR02)..................... 20
Table 4: Connections on the front panel of the R&S GB4000V (VAR12)..................... 21
Table 5: Connections on the front panel of the R&S GB4000V (VAR03)..................... 22
Table 6: Control elements of the R&S GB4000V (VAR02). ......................................... 25
Table 7a: Control elements of the R&S GB4000V (VAR12). ....................................... 26
Table 7: Control elements of the R&S GB4000V (VAR03). ......................................... 27
Table 8: Connections and control elements of the R&S GB4000V.............................. 28
Table 9: Meaning of the LED display............................................................................ 29
Table 10: HTTP page “Configuration”. ......................................................................... 33
Table 11: HTTP page “Configuration ACL”. ................................................................. 33
Table 12: HTTP page “Configuration VoIP”.................................................................. 34
Table 13: Description of configuration interface of the R&S GB4000V........................ 35
Table 14: Meaning of settings of the Network group.................................................... 40
Table 15: Meaning of settings of the Info group........................................................... 40
Table 16: Meaning of settings of the Parameter group. ............................................... 41
Table 17: Meaning of settings of the ACL group. ......................................................... 41
Table 18: Meaning of settings of the VoIP Configuration group................................... 42
Table 19: Meaning of information of General Status group.......................................... 43
Table 20: Meaning of information of Network group..................................................... 43
Table 21: Meaning of information of Information group................................................ 43
Table 22: Instructor microphone logic for the PTT instructor. ...................................... 49
Table 23: Controller microphone logic for the PTT controller....................................... 49
Table 24: Controller microphone logic for the external PTT......................................... 49
Table 25: Instructor microphone logic for the PTT instructor. ...................................... 50
Table 26: Controller microphone logic for the PTT controller....................................... 50
Table 27: Controller microphone logic for the external PTT......................................... 50
Table 28: Troubleshooting............................................................................................ 55

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 6
Documentation Overview
This user manual is part of the product. We recommend keeping it close to the product
for reference. You can find information on the following topics:
●User Information
●Getting Started
●Operation
●Malfunction
●Maintenance
●Technical Information
Conventions Used in the Documentation
The following conventions are used throughout the R&S GB4000V User Manual:
Typographical conventions
Convention
Description
"Links"
Links that you can click are displayed in blue font.
"References"
References to other parts of the documentation are enclosed by
quotation marks.
For safety signs refer to the Basic Safety Instructions (part of the front matter of this
Manual).

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 7
Abbreviations
A
Ampere
AC
Alternating Current
ATC
Air Traffic Control
ACL
Access Control List
AUX
Auxiliary
BNC
Bayonet Neill-Concelman Connector
CD
Compact Disc
CE
European Certificate of Conformity
CMOS
Complementary Metal Oxide Semiconductor
COM
Communication
CWP
Controller Working Position
D
Depth
dB
Decibel
dBm
Decibel referred to 1 mW
dBμV
Decibel above μV
DC
Direct Current
DIN
Deutsches Institut für Normung (German Institute for Standardization)
DNS
Domain Name System
DSCP
Differentiated Services Code Point
ED
EUROCAE Documents
E&M
Earth & Magnet / Ear & Mouth
EMC
Electromagnetic Compatibility
EMI
Electromagnetic Interference
EN
European Norm
EUROCAE
European Organization for Civil Aviation Equipment
ETSI
European Telecommunications Standards Institute
EXT
External
EXT SP
External Speaker
GO
Go
GUI
Graphical User Interface
GPL
General Public License
HTTP
Hypertext Transfer Protocol
HU
Height Unit
HS CONTR
Headset Controller
HS INSTR
Headset Instructor
IEC
International Electrotechnical Commission
IP
Internet Protocol
KG
Kilogram
kHz
Kilo Hertz
LAN
Local Area Network
LED
Light Emitting Diode
M3SR
Multiband, Multimode and Multirole Surface Radio

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 8
MAX
Maximum
MAC
Media Access Control
MHz
Mega Hertz
MIN
Minimum
MM
Millimeter
MIL-STD
The United States Military Standard
MIT
Massachusetts Institute of Technology
MTBF
Mean Time Between Failures
N
Coaxial RF connector standard N
Nm
Newton meters
PC
Personal Computer
PTT
Push To Talk
RFC
Request for Comments
RMS
Root Mean Square (effective value)
RTP
Real-time Transport Protocol
RX
Receiver
R&S
Rohde and Schwarz
SELV
Safety Extra Low Voltage
SETUP
Setup
SIP
Session Initiation Protocol
SP
Speaker
SQL
Squelch
SW
Software
TCP
Transmission Control Protocol
TX
Transmitter
URI
Uniform Resource Identifier
USB
Universal Serial Bus
VA
Volt Ampere
VAC
Volt Alternating Current
Vcc
Operating Voltage
VCCS
Voice Communication Control System
VCS
Voice Communication System
VDC
Volt Direct Current
VoIP
Voice over IP
W
Width
WAN
Wide Area Network
μs
Microsecond

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 9
1User Information
1.1 General Features
The R&S®GB4000V provides audio, PTT and squelch to and from radios in a remote
location. The unit is compact and fits into any console. The R&S®GB4000V can be
connected to the radios using 4-wire E & M (analog line) or voice over IP (VoIP). When
connected using an analog line, either 4-wire E & M lines (PTT, SQ) or in-band tones
for E & M can be used. The available tones are 2040 Hz (PTT) and 2440 Hz (SQ). In-
band signaling is handled by the R&S®GB4000V, thus eliminating the need for other
external devices.
When used with the R&S®GB4000T touchscreen control unit, the R&S®GB4000V can
be connected to any of up to nine channels using R&S®Series4200 radios via VoIP.
Key facts:
Compact design to minimize the space required in operator consoles
Analog connection for use with all Rohde & Schwarz radios
In-Band PTT and SQ signaling for use with the R&S®Series 4200 radios
EUROCAE ED137-1 compliant VoIP connection to the R&S®Series 4200,
R&S®Series4400 and R&S®Series4100 radios
Built-In loudspeaker with the volume control
Configurable minimum volume setting to ensure safety
LEDs indicate the status of the radios (PTT, SQ, VoIP)
Available with an additional headset connector for instructor operation
External loudspeaker connection for monitoring
Can be mounted in a 19" rack or in operator consoles
Two independent DC connections for redundant power supply
Easily configurable via a web browser
Splash-proof front panel
Figure 1: The R&S GB4000V audio unit, front view (VAR03).

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 10
1.2 Required Personnel
Installation, start-up and maintenance of the R&S GB4000V audio unit require qualified
personnel.
Qualified personnel in the sense of this Manual and the safety references contained
herein are trained specialists who have the authorization to install devices, systems
and electric circuits in accordance with the standards of safety engineering.
The personnel must be familiar with this Manual.
1.3 Required Power Supply
The R&S GB4000V operates on an external supply voltage of +19 V DC to +32 V DC
(for details on current consumption refer to chapter “1.5”). Additionally, for a backup
supply another power supply may be connected.
The used power supply (SELV) must fulfill the requirements for reinforced/double
insulation for main supply circuits in accordance to DIN/EN/IEC 61010 (UL 61010B-1,
CSA 22.2 No. 1010.1) or DIN/EN/IEC 60950 (UL 1950, CSA 22.2 No. 950).

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 11
1.4 Design
The R&S GB4000V is accommodated in a non-magnetic metal case of 19”/4, 3 HU.
The R&S GB4000V is switched on and off via the power supply.
The main assemblies of the R&S GB4000V are a mounting plate with single board
electronic, headset connectors (NF7), loudness control potentiometers and power
supply.
Interfaces at the front:
- 1x Headset Connector (VAR02/VAR12)
- 2x Headset Connector (VAR03)
- 2x Volume Control (VAR02/VAR12)
- 3x Volume Control (VAR03)
- 6x LED indicators
Interfaces at the rear:
- 1x DC Power
- 1x Auxiliary Interface
- 1x Ethernet
- 1x Audio Interface
- 1x External Speaker
- 1x USB (reserved)

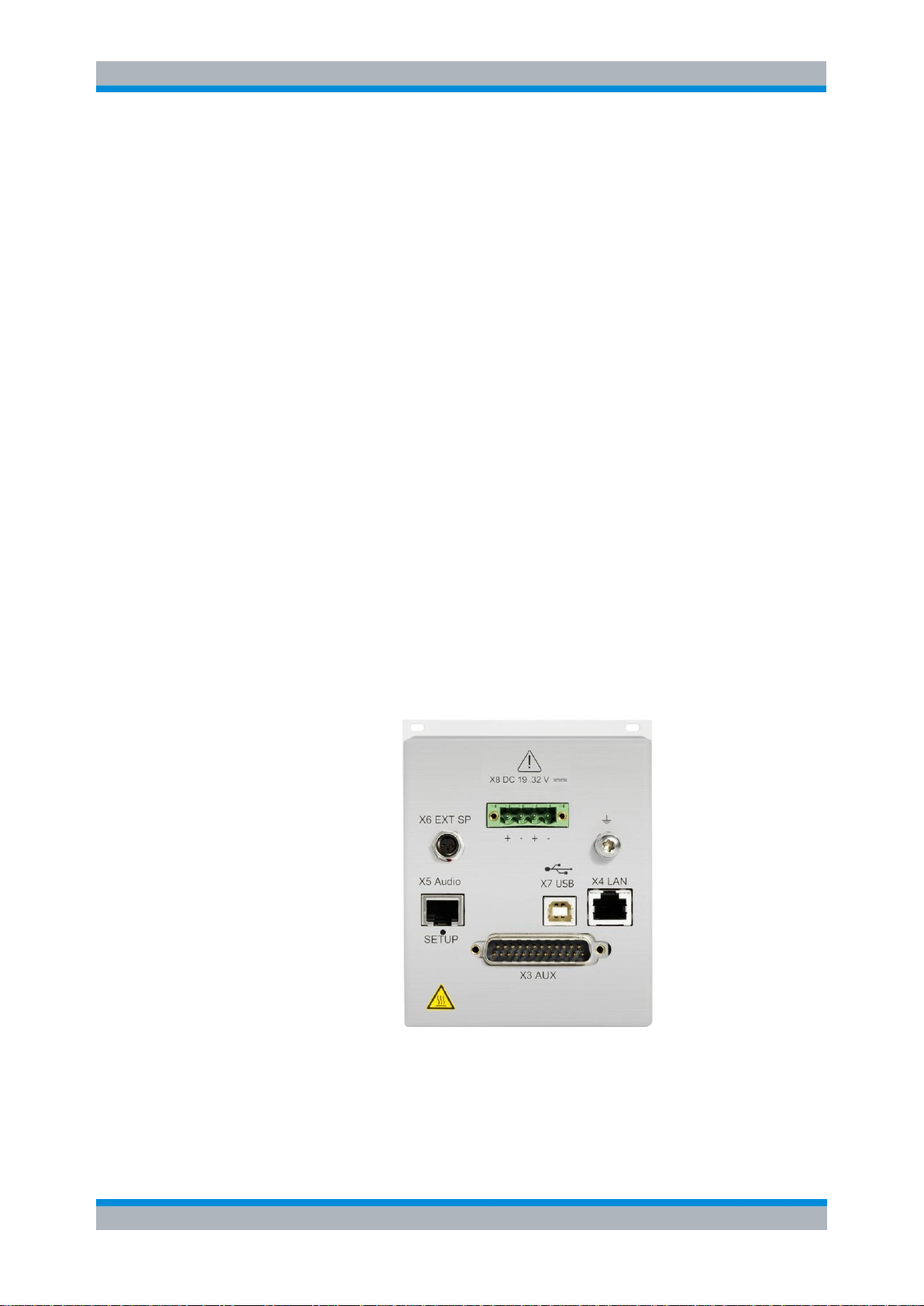

Figure 2: The R&S GB4000V audio unit, rear view.

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 12
1.5 Technical Data
Designation/Type
R&S GB4000V audio unit
Part No.
6148.3073.02 (1 headset version)
6148.3073.03 (2 headset version)
6148.3073.12 (1 headset version)
Front Panel (W x H)
VAR02 / 03 (mounting in line with IEC 60297): 19”/4,
3 HU, 106.4 mm x 128.7 mm (4.2. in x 5.1 in)
VAR12: 100.6 mm x 131 mm (4.0 in x 5.2 in)
Body (W x H x D)
93 mm x 103 mm x 120 mm (3.7 in x 4.1 in x 4.7 in)
Weight
<0.8 kg (<1.8 lb)
Temperature
–20 °C to +55 °C (operation),
acc. to DIN EN 60068-2-1 / DIN EN 60068-2-2
–40 °C to +70 °C (storage)
Humidity
≤95 % rel. at 55 °C, non-condensing
acc. to DIN EN 60068-2-30
Vibration
1.3 grms; 5 to 500 Hz (random, operating)
acc. to EN 60068-2-64
Shock
15 g peak/11 ms acc. to EN 60068-2-27
Altitude
5000 m above sea level operation
acc. to DIN EN60068-2-13
10 000 m above sea level transport
Ingress protection
IPx4 for front panel
Supply voltage
+19 to +32 V DC main and backup supply
Power estimation
typ. 0.4 A at +28 V DC; max. 1 A at +28 V DC
EMC emissions
in line with ETSI EN 301 489-1/-22;
in line with MIL-STD-461F
CE101 figure CE101-4, curve 2,
CE102 figure CE102-1,
RE101 figure RE101-2, RE102 figure RE102-1,
RE102-3 fixed wing > 25 m (nose to tail),
RE102-4 navy fixed and air force
EMC immunity
in line with ETSI EN 301 489-1/-22;
in line with MIL-STD-461F
CS101 figures CS101-1 and CS101-2, curve 2,
CS114 ships (metallic, below decks), curve 2,
RS101 figure RS101-2 (max. field strength
160 dBpT),
RS103 ships ( metallic, below decks),
RS103 navy (2 MHz to 1 GHz, field strength 10 V/m)
Table 1: Summary of technical data.

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 13

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 14
2Getting Started
2.1 Unpacking and Checking
1. Check the packaging for damage.
2. Unpack the delivered goods.
3. Check the delivered goods (including accessories) against the delivery note.
4. Check the delivered goods for signs of transport damage.
5. Contact the shipping agent immediately, if damage is found.
Keep the packing material for re-use e.g. if the unit is to be sent to the nearest
Rohde & Schwarz representative (refer to www.rohde-schwarz.com) for service.
2.2 Packing, Transport and Storage
Prior to any transport carry out the following steps:
1. Use the original package (box, etc.) and packaging material, if possible, to prevent
mechanical and electrical damage. Make sure that the stability of the packaging is
adequate to the contents.
2. Put the unit in the plastic bag (protection against moisture and dust).
3. Put the unit in the package by using the packaging material. Avoid direct lateral
contact between unit and packaging.
4. Seal the package.
5. Affix a HANDLE WITH CARE label on the package.
6. Remove the old address and shipment labels from the package and affix the new
ones.

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 15
If the unit is exposed to climate fluctuations, condensation may occur.
Precipitation of humidity (condensation) on and within the unit may be the cause of
damage or even destruction.
After storage or transport in cold weather or if extreme variations in temperature occur,
the R&S GB4000V must be slowly adapted to the ambient temperature of the
installation site.
With condensation, allow at least 12 hours of temperature adjustment before starting
up.
For storage observe the environmental data specified in chapter “1.5”.
2.3 Installation
The sequence of installation and cabling depends on the installation site (panel, rack)
and the accessibility of the interfaces when the unit is installed.
For dimensions of the R&S GB4000V refer to the Installation Drawing in
“Appendix”.
Preparation for installation into a control panel
►Prepare the control panel to accommodate the R&S GB4000V. For dimensions of
the panel cutout refer to “Figure 3”and “Figure 4”.

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 16
Figure 3: Dimensions of panel cutout (VAR02/03).
Figure 4: Dimensions of panel cutout (VAR12).

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 17
1. Insert the R&S GB4000V into the control panel or rack at its designated position.
2. Secure the unit by means of four screws passed through the bore holes in the
corners of the front panel.
The unit is to be mounted according to IEC 60297 (VAR02/03).
Figure 5: Bore holes for fixture of the R&S GB4000V.
When installing the unit ensure that existing sealing profiles are not damaged.
To prevent overheating damages make sure the ventilation holes on both sides of the
audio unit are not covered.
Make sure the environmental conditions specified in “1.5” are complied with.

R&S GB4000V Audio Unit
User Manual 6174.7514.02 - 02 18
Avoid strong magnetic fields which can have influence on the audio signals.
Avoid strong interfering voltage on the supply lines. This interfering voltage can have
influence on the audio signals.
2.4 Cabling
Read the relevant documentation for the equipment before attaching external devices.
Always take hold of the plug when pulling or connecting cables. Do not pull on the
cables. All connections and cables must have a sufficient electric and voltage strength.
It is recommended to use shielded cables.
Danger of burns on the rear panel. The rear of the unit becomes hot. Do not directly
touch the body during or soon after an operation.
