Roland JUNO-G User manual

Juno-G
1023
298
102
Micro Manual
Artemiy Pavlov
www.sinevibes.com

Contents
System and settings 3
Internal structure 3
Making settings 4
Expanding the memory 5
System settings 6
Working with eects 8
Processing an external signal 8
Patch eect settings in performance mode 9
Working with audio 10
Importing audio les 10
Recording a song into an audio le 11
Exchanging data with a computer 13
USB MIDI connection 13
USB storage connection 13
Using the Juno-G Librarian software 15
2

System and settings
Internal structure
To have a clear understanding of how the Juno-G works, please have a
look at it’s internal structure diagram:
Synthesizer
Flash RAM
PC card
Eects
ROM
SRX
Sequencer
Arpeggiator
Rhythm machine
Keyboard
Controllers
USB MIDI IN
RAM
DIMM
AB
The keyboard and controllers send MIDI messages to the synthesizer
and this information can also be recorded into the sequencer.
The synthesizer has 16 instrument parts and 128-voice polyphony. The
sounds it produces are based on waveforms from the static memory, ROM (64
MB standard, expandable to 128 MB with one SRX series card), and dynamic
sample memory, RAM (4 МB standard, expandable to 516 MB with a DIMM
memory module).
The eects units can process both the internal synthesizer sounds and
sound from the external line/mic input. Juno-G has 3 multi-eect processors,
chorus and reverb processors and a dedicated input processor. There are two
independent stereo outputs (A and B). The sound Juno-G produces can be
recorded into the sampler or the sequencer’s audio tracks.
3

The sequencer includes 16 MIDI tracks and 4 audio tracks. Also, the Juno-
G has an arpeggiator and a rhythm machine, both are programmable.
The compositions (songs) and audio samples are stored in ash RAM (16
MB standard). This memory can be expanded with a card like Compact Flash or
Secure Digital using a PC card adaptor.
The USB port can work in two dierent modes. In USB MIDI mode you
can use the Juno-G with your computer as a MIDI controller keyboard or a
sound module. In USB storage mode, your computer will access it as a USB ash
drive, this is how you can import and export sound banks, songs and samples.
Making settings
In all instructions given here, we will use the following text style to
designate dierent actions you need to make:
•BUTTON (bold font, capital letters) stands for a real physical button on
the front panel.
•SOFT KEY (italic font, capital letters) is a virtual button at the bottom of
the LCD screen which is accessible with a physical “F” button below it.
•Some parameter (italic font) means an onscreen menu item or parame-
ter which you need to select with the Juno-G’s cursor buttons.
4

Expanding the memory
The sample memory (RAM) is used for working with audio data in real
time. It has a high speed which allows to play a big number of samples
simultaneously. However, when the power is switched o, the RAM looses it’s
data.
Juno-G’s ash memory (ash RAM) is like a hard drive, it is used for
saving the data, and it can keep it when the power is o. However, ash RAM is
not fast enough for working in realtime.
Thus, keyboards like the Juno-G use both RAM and ash RAM, and to be
able to work with more data you need to expand them both.
The sample RAM can be expanded using a standard DIMM module with
a size of 64 to 512 MB and the following specications: PC100 or PC133, 3.3 V,
168 pin, non-buered, non-EEC. The memory module slot can be reached
under a small lid at the bottom of the Juno-G.
To expand the ash memory, you need a ash card like Compact Flash or
Secure Digital, and a corresponding PC card adaptor. For example, this can be a
Compact Flash card and a Compact Flash to PC card adaptor: the card is
inserted into the adaptor, and the adaptor goes into the PC card slot on the
back of the Juno-G.
After you have installed any new memory, you can check if it works in the
Information →Memory system settings section.
5

System settings
To enter the system settings mode, in the main PATCH or PERFORMANCE
screen, press MENU, select System and press ENTER.
All settings are divided into several sections and screens (see the table
below). To select the needed section and screen, use the “F” soft keys below the
display. Press the WRITE soft key to save the system settings.
Section
Screen
Description
GENERAL
COMMON
General system settings
AUTO LD
Auto-load settings
SOUND
Global tuning
USB
Default USB mode
KBD/CTRL
KBD
Keyboard settings
PEDAL
Control pedal settings
CONTROL
Realtime controller settings
MIDI
GENERAL
General MIDI settings
TX
Data transmission
RX
Data reception
MMC MTC
External synchronization settings
6

Section
Screen
Description
METRO/SYNC
METRO
Metronome
SYNC
Internal synchronization settings
D-BEAM
GENERAL
D-Beam sensitivity
ASSIGN
“Assignable” mode
ATV EXP
“Active Expression” mode
SYNTH
“Solo Synth” mode
INFORMATION
MEMORY
Information about RAM and ash RAM
SRX
Information about the SRX card
VERSION
Operating system version
7

Working with e!ects
Processing an external signal
With the Juno-G it’s possible to process sound from an external source
(microphone, audio player, guitar or another synthesizer) using it’s internal
eects processors. This can be used both during recording and for realtime
applications.
To send the external audio into one or more eects processors:
1. Connect the external source to the Juno-G’s input jacks.
2. Set the AUDIO IN mixer slider to the lowest position.
3. In the main PATCH or PERFORMANCE screen, press MENU, choose
Input Setting and press ENTER.
4. Set the Input Select parameter to the value which correspond to
what and how you have connected:
•LINE IN L/R: stereo line input (L and R jacks)
•LINE IN L: mono line input (L jack)
•MICROPHONE: microphone input (L jack)
5. Play something using the external sound source (instrument) and
use the AUDIO IN slider to set a normal signal level.
6. On the screen, the Audio Input Assign parameter denes where the
external signal goes:
•MFX 1, 2 or 3: will be processed using the respective MFX unit
•DRY: will not go into the MFX
8

7. You can adjust the Chorus and Reverb processor sends with the
Audio Input Cho Send and Audio Input Rev Send parameters,
respectively.
8. Next, press EFFECTS and adjust the eects processors as you like.
You can save these settings as a patch or as a performance. When
you save your song (press WRITE and select Save Song), these
settings are saved within it as well.
Patch e!ect settings in performance mode
Part of the Juno-G patches actively use the eects processors to produce
the nal sound. However, when you call up such patches in performance mode,
these eects settings are not loaded by default. In order for a patch to load it’s
eects settings, you need to do the following:
1. Select a performance part and assign a patch to it.
2. Press EFFECTS.
3. Set the OUTPUT parameter on the screen (marked “2” on the image
below) to “MFX”.
4. Set the MFX SEL parameter (marked “3”) to one of the free MFX
processors (1, 2 or 3).
5. Then, set the MFX settings source (marked “1”) to the number of the
performance part you are working with (see step 1).
6. If needed, set the Chorus and Reverb processor settings sources to
the same part number as well.
9
1
2
3

Working with audio
Importing audio files
Using the USB storage connection with a computer, you can load audio
les in AIFF and WAVE formats (16 bit, 44.1 kHz) and use them as patches,
phrases and insert into audio tracks.
The procedure for importing audio les is as follows:
1. Enter the USB storage mode (see the Exchanging data with a
computer section below).
2. Copy the audio les into the /TMP/AUDIO_IMPORT folder.
3. Exit the USB storage mode by pressing EXIT.
4. Press the AUDIO button twice to enter the Juno-G’s sample list.
5. Press MENU, select Import Audio and press ENTER.

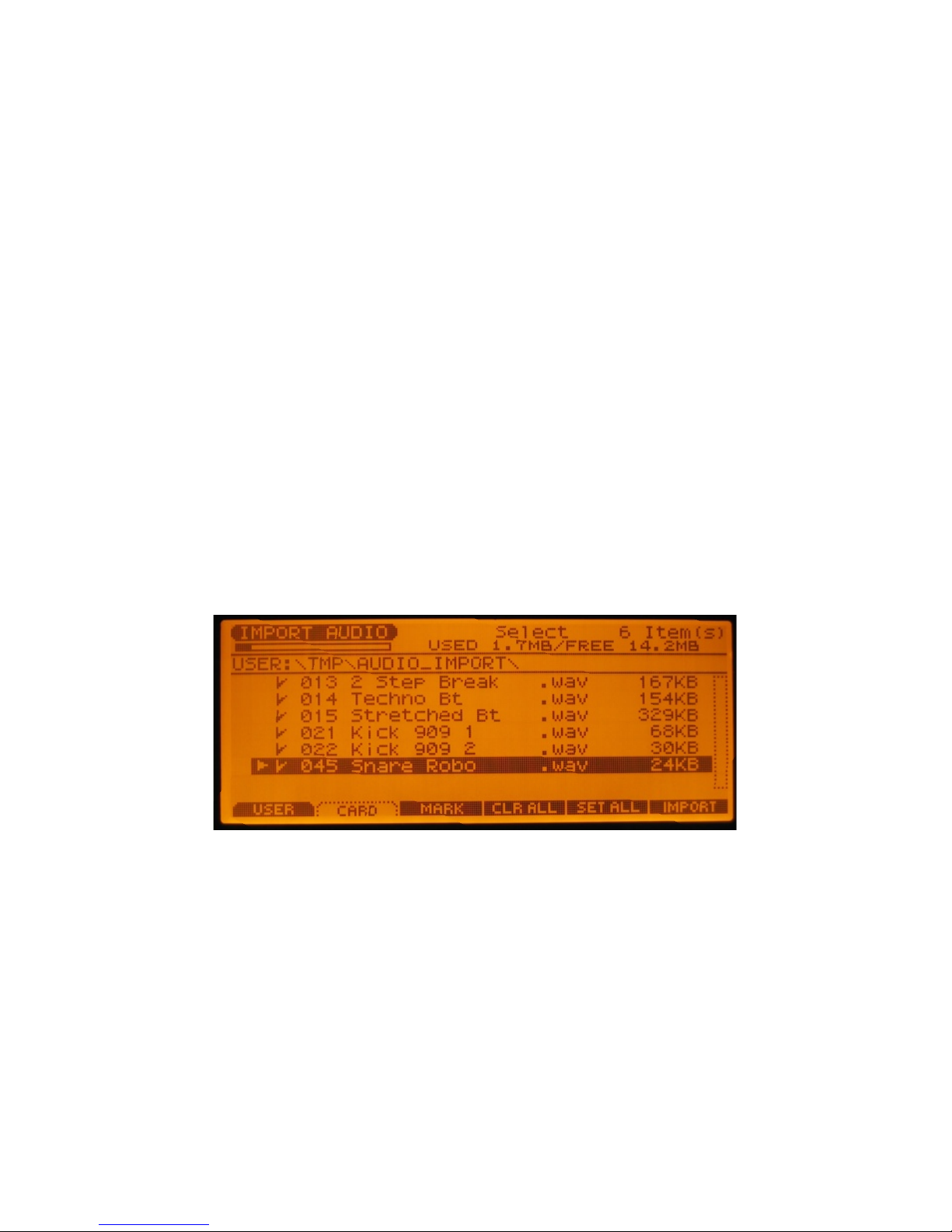

6. You will see a le selection window. Select the USER or CARD area
depending on where you put the samples.
7. With the MARK soft key, choose the les you’d like to import, or
press SET ALL to select them all.
8. Press IMPORT. The les will be imported into the Juno-G’s sample
memory.
9. Press SONG, then press WRITE and select Save All Samples to save
the imported samples into the ash memory.
10. In the USB storage mode, delete the original les from the /TMP/
AUDIO_IMPORT folder.
10

Now you can access these samples from the patch list (“User Sample” and
“Card Sample” groups), as well as insert them into the sequencer’s audio track
using it’s INSERT function.
Recording a song into an audio file
Right within the Juno-G, you can record your composition (or part of it)
into an AIFF or WAVE audio le (the Default File Type is set in the General →
Common system screen), and use it to burn an audio CD or share on the
Internet.
To record into an audio le, you need to have one free audio track and
perform the following operation:
1. Set the sequencer to the place you want to start recording from.
2. Press AUDIO TRACK.
3. Select a free audio track.
4. Set the Audio Rec Mode parameter to RE-SAMPLING:
5. Press PLAY.
6. Press STOP when you want to end recording.
7. In the newly-appeared menu, choose CANCEL.
8. The new recording will appear in sample edit mode.
9. Press WRITE, and save the le into the ash memory (USER or
CARD). Remember the number you saved the sample under(for
example, 0120).
11

10. Now, switch to USB storage mode (see the Exchanging data with a
computer section below) and copy the audio sample of your song
to your computer (the le will be named. SMPL0120.AIF or
SMPL0120.WAV depending on the selected default format).
12

Exchanging data with a computer
USB MIDI connection
Juno-G can send and receive MIDI data through it’s USB port: you can use
it as a USB MIDI keyboard controller for software instruments and as a sound
module for a software sequencer.
To be able to work in USB MIDI mode, you need to:
1. Install the latest Juno-G driver from Roland.
2. Connect the Juno-G to your computer with a USB cable.
3. Press the USB button and select the USB MIDI mode. You can then
exit this screen and Juno-G will continue working in USB MIDI
mode.
4. On your computer, launch the desired application (software
instrument or a sequencer).
5. Select the Juno-G as a MIDI input device (for a software instrument)
or a MIDI output device (for a sequencer).
USB storage connection
When Juno-G is connected in USB storage mode, your computer can
access it as an external USB drive. You can import and export songs, sound
banks and audio samples.
To enter the USB storage mode:
1. Connect the Juno-G to your computer with a USB cable.
13

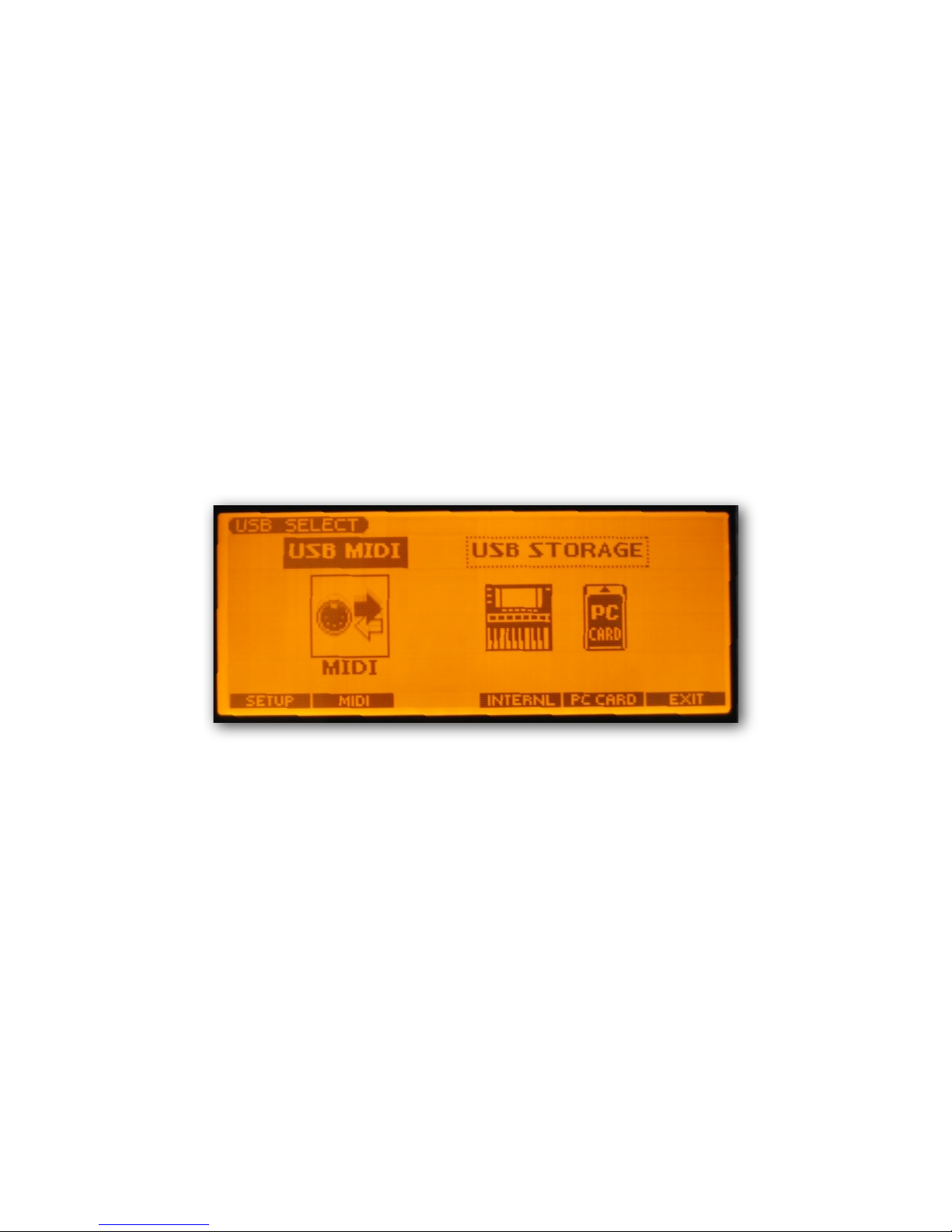

2. Press the USB button and select which ash memory area will be
accessed from the computer: INTERNL (internal ash memory) or PC
CARD (if you have a ash memory card):
3. On your computer’s desktop or in the storage device list you will see
a new external drive named “JUNO-G USER” or “JUNO-G CARD”,
depending on which memory area you have selected:
4. Perform the needed operations with the les.
5. Select the “eject” option in the external drive’s icon menu.
6. Press EXIT soft key on the Juno-G.
The Juno-G memory folder structure is as follows:
▶ROLAND
▶SEQ
▶SNG songs and MIDI les
▶SND sound bank
▶SMPL samples
▶TMP
▶AUDIO_IMPORT samples to be imported
▶TXT text les
14

Using the Juno-G Librarian software
The Juno-G comes with it’s own Juno-G Librarian application which
allows you to easily manage multiple sound libraries using your computer and
select which patches, rhythm kits, arpeggiator and rhythm machine patterns
you want to load in the internal ash memory.
For example, to load several patches from a Librarian le:
1. Connect the Juno-G to your computer in USB MIDI mode (see the
USB MIDI connection above).
2. Launch the Juno-G Librarian application. You will see a window
named “Main” which represents the USER bank of the Juno-G.
3. In the “Setup” menu option, choose “Set Up MIDI Devices” and make
sure that both“Input” and “Output” are set to “Juno-G”:
4. In order to load the Juno-G’s internal patches into the Librarian,
press the “All” button in the “Read” toolbar group.
5. Open any sound bank in the Juno-G Librarian format. You will see it
open in another Librarian window.
6. Select the patches you want to load in your Juno-G:
15

7. Copy these patches (“Copy” command in the “Edit” menu) and paste
them (“Paste” command in the “Edit” menu) in the desired location
of the USER bank (“Main” Librarian window):
8. To load these patches into the Juno-G, press the “Selected” button
in the “Write” toolbar group.
16
