Rollei SafetyCam-10 HD User manual

SafetyCam-10 HD
www.rollei.com
User Guide
in English

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
1. Contents of box
Carefully unpack the surveillance camera and check that all parts listed below are present:
1. IP Surveillance camera ROLLEI SafetyCam 10 HD
2. Mains adapter
3. Wall xing
4. LAN cable
5. Alarm terminals
6. Software CD
7. Instruction manual
8. Warranty documents
Note:
• Caution! Keep plastic foil and bags away from babies and small children as danger of suffocation.
Dear customer,
Congratulations on purchasing a high-quality ROLLEI product.
You have chosen a modern surveillance camera with excellent technical equipment and
respective accessory, which is particularly easy to operate.
Please study all notices carefully and diligently. Please study this information in detail observing, in particular, the safety
instructions. The device comes with a 3-year warranty. In case of a defect in the surveillance camera
you require the enclosed warranty card and proof of purchase. Keep these in a safe place together with the Instruction
Manual. Please include the Instruction Manual when passing the camera on to a third party.

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
4
User data supplied with camera
User name: admin
Password: there is no default password!
New password: _______________________
Note:
• Please make sure that when first using the surveillance camera to create a password for the user account
“admin“!
2. Contents
1. CONTENTS OF BOX 1
2. CONTENTS 2
3. HAZARD, SAFETY AND WARNING NOTICES 4
4. PREPARATION 6
4.1. Part names 6
4.2. Views of surveillance camera 7
4.3. Assembly of surveillance camera 8
5. INSTALLATION OF SURVEILLANCE CAMERA 9
5.1. Hardware installation 9
5.2. System requirements 10
5.3. Software installation 10
5.4. Cloud installation“Rollei Cloud” 11
5.5. Manual set up of surveillance camera 16
5.6. Setting up the router 20
5.7. Setting up the domain name 23
5.8. Setting up an app 24
5.9. Installation on Mac OS X. 25
5.10. Installation tips 28
6. THE PROGRAM ROLLEI SAFETYCAM CONFIG 30

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
7. USE OF SURVEILLANCE CAMERA 32
7.1. Activating the surveillance camera 32
7.2. Controlling the surveillance camera 33
8. SETTINGS 36
8.1. Device status 36
8.2. Camera name 37
8.3. Date and time 38
8.4. User account 39
8.5. Network settings 40
8.6. Wireless settings 42
8.7. UPNP settings 44
8.8. DDNS settings 45
8.9. Mail settings 47
8.10. FTP settings 49
8.11. Alarm settings 50
8.12. Camera head settings 53
8.13. Resetting 54
8.14. Restarting the camera 54
9. POTENTIAL LEGAL INFRINGEMENTS 55
10. LICENSE DECLARATION 56
11. CONFORMITY 57
12. DISPOSAL 57
13. WARRANTY AND SERVICE 57
14. TECHNICAL SPECIFICATION 58
15. INDEX 59

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
6
3. Hazard, safety and warning notices
Incorrect use of the surveillance camera and accessories can be dangerous for you and others and can damage or destroy the
surveillance camera. We therefore ask you to read and strictly observe the following Hazard, safety and warning notices.
Intended use
˚This IP Security Camera is solely designed for the surveillance of internal areas.
˚It is your responsibility to ensure that you do not infringe any third-party rights when using the camera.
˚The surveillance camera is only suitable for private and not for commercial use.
Hazards for children and persons with limited ability to operate electronic
equipment
˚The camera, accessory and packaging are not toys for children. These should therefore always be kept away from
children. Danger of electrocution, poisoning and suffocation.
˚The camera and accessory may not be used by children and persons with limited abilities. This device is not designed
to be used by persons (including children) with limited physical, sensory or mental capacity or lack of experience and/or
know-how.
The camera and the power supply may only be used by persons, that are physically and mentally able to operate it safely
unless they are supervised by a person responsible for their safety or are instructed in the use of the device by this person.
Children should be supervised to ensure that they do not play with the device.
Electrocution hazard in wet and humid conditions
˚Do not expose camera and its components to dripping or spraying water. Also do not place any containers filled with liquid,
such as vases or glasses on top or immediately next to the device. Danger of fire and electrocution.
˚Do not use the camera and its components near water and protect it against wetness and moisture. Danger of fire and
electrocution.
Electrical hazard
˚In case of ingress of foreign bodies or liquid, switch off camera. Let all parts dry thoroughly. Otherwise danger of fire
or electrocution
˚When the camera has been dropped or the housing is damaged , switch off camera. Otherwise danger of fire or
electrocution
˚The camera and its components may not be taken apart, modified or repaired. Danger of fire and electrocution.

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
˚Only use the suppliedpower supply or a power supply with the same specifications. Only connect the power supply to a
power supply corresponding with the ratings on the rating plate.
˚Damaged power supplies or output cables may not be used. Replace it with a power supply of the same type.
˚Ensure that all sockets used are always freely accessible so that the power supply can be quickly disconnected, when neces-
sary. Disconnect from mains only by pulling out plug from mains socket.
˚Ensure adequate ventilation and do not cover power supply to prevent overheating.
˚The power supply may not be used during athunderstorm. Otherwise danger of electrocution.
Damage from heat – re hazard
˚Do not leave camera in places that are susceptible to considerable increases in temperature (e.g. a vehicle).The
housing and internal parts may be damaged, which in turn could cause a fire.
˚Do not wrap up camera or place on textiles.This could produce a build-up of heat in the camera that can cause defor-
mation of the housing and may represent a fire hazard.
Injuries and material damage
˚When installing and assembling the camera ensure that a 10 cm gap is maintained on all sides in order to provide adequa-
te ventilation. Ensure, in particular, that ventilation slots are not covered by newspaper, table clothes or curtains.
˚Never place open fire sourceson or near the camera.
˚Damage to the electronics, lens or accessory caused by external influences such as impacts, falls or others are not
covered by the warranty and are chargeable.

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
8
4. Preparation
4.1. Part names
2.
1.
3.
4.
5.
1. IP Surveillance camera ROLLEI SafetyCam 10 HD
2. Wall fixing
3. LAN cable
4. Mains adapter
5. Alarm terminals
6. Assembly material (not shown)
7. Software CD (not shown)
8. Operating Instructions (not shown)
9. Warranty documents (not shown)

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
4.2. Views of surveillance camera
1. Lens
2. Infrared LED
3. Sensor
4. Focus ring
5. WLAN aerial
6. Audio connection (no function)
7. Network connection (LAN)
8. Power supply connection (DC 5V)
9. Alarm connection (In/Out)
10.Reset button
11.Microphone
Note:
• The focus ring (4) allows setting of the camera focus.
1
6
5
3
2
89
90°
330°
7
4
11 10

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
10
4.3. Assembly of surveillance camera
Using the supplied wall xing, the surveillance camera can be installed at a xed location.
Note:
• Do not place surveillance camera directly next to electronic devices as this could produce interference. In case of
picture interference, test camera at another location.
• Select the installation site for the surveillance camera so that the lens is not exposed to sun light.
4.3.1. Install wall xing
Hold the plate of the wall xing containing holes against the surface of the selected installation site and mark the holes on
the surface, using a pencil.
To drill suitable holes, use a 6 mm masonry drill for dowels in stone or concrete surfaces or a 3 mm wood drill for timber
surfaces. After drilling the holes insert supplied wall plugs into holes so that they are ush with the surface. Secure wall
xings with supplied bolts.
4.3.2. User data supplied with camera
Place the tripod socket of the surveillance camera on the mounting plate of the wall bracket and screw the camera with the
tripod screw. Align the surveillance camera as desired.
4.3.3. Complete camera assembly
Connect the supplied mains unit rst into the surveillance camera and then into the socket

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
5. Installation of surveillance camera
5.1. Hardware installation
In order to carry out the rst settings in the IP surveillance camera, the network cable must be connected to the router. A
wireless connection via WLAN is only available once this has been set up in the surveillance camera using the cable connec-
tion.
Plug the suppliednetwork cable into camera and router as shown in the illustrations.
The network connection of the surveillance camera contains two control LEDs.
• Yellow: Indicates that network activity is taking place.
• Green: Indicates that the surveillance camera is connected to a network.
Note:
• If your router does not contain a port for connecting the network cable, the surveillance camera can also be set up
without a router.
• For this purpose deactivate all networks existing on your computer and plug the network cable of the surveillance
camera directly into the computer. You can also access the surveillance camera via the program Rollei SafetyCam
Config (see section 5.4).

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
12
5.2. System requirements
Operating system:The software provided on the enclosed CD is only suitable forWindows operating systems. Using the
Browser access, the surveillance camera can also be set up using Mac OS, Linux or other operating systems.
Operating systems: Windows 2000 (SP 4), Windows XP (SP 2),Vista, 7, 8
Processor: 2.0 GHz or higher
RAM memory: 512 MByte or higher
Network card: 10MBit/s or higher
RAM memory: 512 MByte or higher
Internet-Browser: Internet Explorer (from version 9), Firefox (from version 3),Google Chrome, Safari,
Opera (latest version)
Screen resolution: 1024x768 or higher
5.3. Software installation
The supplied software is only suitable forWindows systems. For installation on Mac systems, please read section 5.9.,
Installation on Mac OS X.
The software must installed on a computer connected to the same router as the surveillance camera.
Place supplied software CD into CD/DVD drive of your computer. The below selection menu should then appear automatically.
If the menu does not start automatically, select drives from your computer and open the CD/DVD drive named“Rollei IP
Camera”by clicking on it with the mouse. Start program by double clicking on CDMenu/CDMenu.exe.

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
Click on “Rollei SafetyCam“ to install the program Rollei SafetyCam Cong. Follow on-screen information until software
installation is completed.
Once installed, the program can be found under All programs and Rollei SafetyCam Cong.
By clicking on the option“Operating Instructions”in the Start menu of the Software CD, the Operating Instructions can be
opened on screen in the system language of the computer.
In the event of your computer not containing a suitable program to open pdf les, you cal also install the program "Adobe
Acrobat Reader“.
5.4. Cloud installation “Rollei Cloud”
Your Rollei SafetyCam10 HD has been set up for simple camera installation. For this purpose we have provided a Cloud soluti-
on that can be quickly and easily set up. After installation you can at any time access the camera directly via the“Rollei Cloud”.
A Cloud is a platform on the Internet producing the connection between camera and your end device (computer, mobile,
TabletPC) Only the connecting data required for the camera are stored at Rollei Cloud but not camera images.
Below the few steps for setting up your Rollei SafetyCam10 HD for use via the Cloud are explained.

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
14
5.4.1. Implement Setup assistant
1. In the program IPCam Config call up the Setup assistant under“Settings”.
2. Select “Rollei SafetyCam 10 HD“ as camera model and click on“OK”. This calls up the existing settings of the camera.
3. In order to set up the camera for use via Rollei Cloud, select the third option“Camera with Rollei Cloud during the next step
(recommended)“.
4. Enter any name for the camera in the next window,
describing, for instance, the location.
5. In the next step select Wireless network and set
region to“Europe”and enter the key.

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
6. Now enter the registration data for logging on to Rollei Cloud. Select any user name and a password consisting of at least 8
characters. Also enter a valid email address. Note down this log-on information.
7. The last step repeats again the implemented settings.
8. Click on“Continue”to carry out the camera set-up.

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
16
5.4.2 Select “Rollei Cloud”
Next open the start page of Rollei Cloud. in the Internet Browser using link http://rollei-cloud.de or http://rollei-cloud.com
Enter user name specied in the Set-up assistant. The overview now lists all products of your IP camera. Select these to call up
your camera.The following page then appears.

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
5.4.3. Use camera via Rollei Cloud
Select symbol to call up the image of your Rollei SafetyCam 10 HD.
Using call up the Web surface of your camera. Log on with user name“admin”and without a password.You then have
access to all settings of your Rollei SafetyCam10 HD.
5.4.4. Use of the App
The app“Rollei SafetyCam“ is available for your camera from the App Store
and from Google Play. Load the App onto a Smartphone or a TabletPC and
start App.
Use symbol to log onto Rollei Cloud. Use the log-on information used in
the Setup Assistant.
After logging on, the camera is immediately available from a list under the
chosen camera name. Select it from the display in order to view the camera
image.

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
5.5. Manual set up of surveillance camera

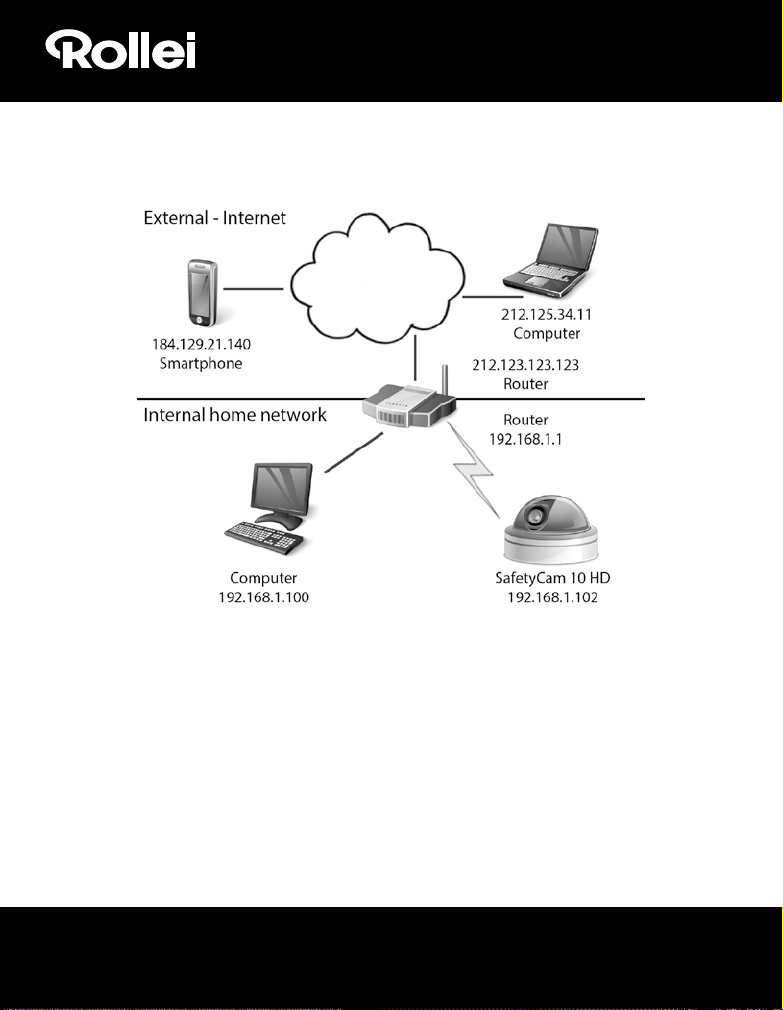

In the subsequent graphics it is schematically shown how the surveillance camera is integrated in your existing home network
and how it is accessed from the Internet.
The router is central to this operation. The router is the connection between your home network and the Internet. The router is
thus connected to two networks at the same time, the Internet and your home network.The router is accessed via a dierent
address ( IP address ) from each of the networks.
The IP surveillance camera is directly connected to the router, either via a network cable or wireless viaWLAN. This allows
access to the surveillance camera from the home network and the Internet.

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
19
As the router is, however, protected from Internet access via so-called Firewall a separate access must be set up for the sur-
veillance camera.This is referred to as Port forwarding.The following installation steps are required to set up the surveillance
camera in the home network and via the Internet:
1. The surveillance camera must be connected to the router using the supplied network cable (see section 5.1. Hardware
Installation).
2. Install the supplied software (see section 5.3. Software installation).
3. Set up surveillance camera automatically or manually in home network:
for Windows systems: See section 5.5. Manual set up of surveillance camera
for Mac systems: See section 5.9. Installation on Mac OS X.
4. Where desired, a wireless connection can be set up between the surveillance camera and the router using WLAN (see
section 5.5. Manual set up of surveillance camera.
5. Set up a Port forwarding in the router to allow access to the surveillance camera via the Internet (see section 5.6.,
Router settings).
6. Set up a fixed Internet address (see section 5.7. Setting up the domain name )
7. Installation of Apps for Smartphones and TabletPCs (see section 5.8. Set up App).
8. The standard set-up of the surveillance camera is described from section 5.4. onwards. Further information relating to the
use and settings are provided from chapter 7 onwards.

Rollei GmbH & Co. KG, In de Tarpen 42, D-22848 Norderstedt
Service Hotline [phone]
Ensure that the surveillance camera is connected to the router via the network cable and is connected to the mains (see
section 5.1., Hardware Installation). A network connection between the computer and the router must also exist. Open the
program Rollei SafetyCam Cong.
In the program select ”Start search“, to open a list of available surveillance cameras.
From the list select the surveillance camera to be set up or called up. This is also necessary if only one camera exists.
At the top of the menu click on “Browser“. The log-on page of the surveillance camera then appears in the window of the
Internet browser.
Select the desired language and then enter the following in the text window:
User name: admin
Password: Leave empty
Click on“Log on”.
