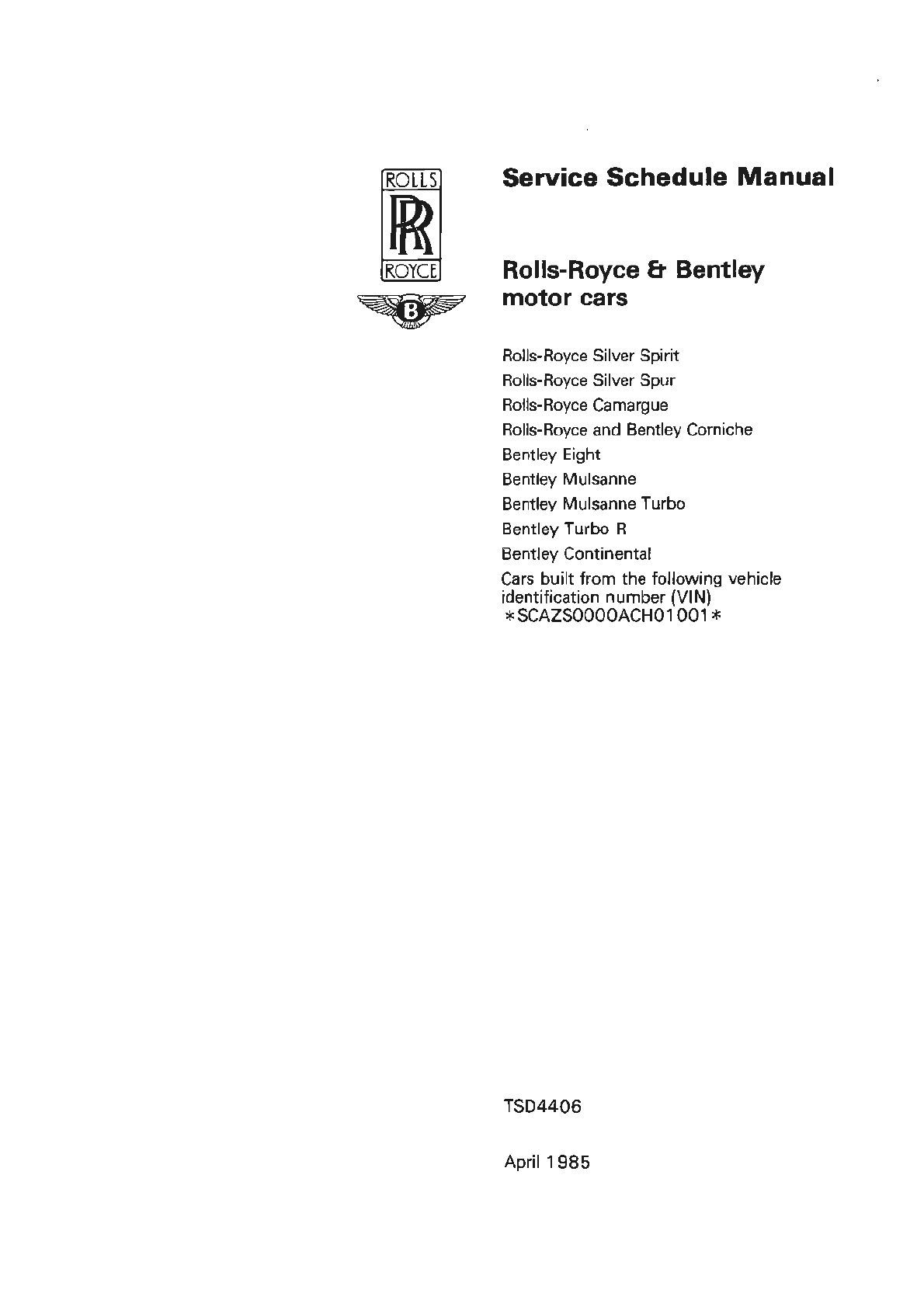

Rolls-Royce Silver Spur 1985 Service manual

ROLLS
JR
ROYCE
_./
Service Schedule Manual
Rolls-Royce & Bentley
motor cars
Rolls-Royce Silver Spirit
Rolls-Royce Silver Spur
Rolls-Royce Camargue
Rolls-Royce and Bentley Corniche
Bentley Eight
Bentley Mulsanne
Bentley Mulsanne Turbo
Bentley
Turbo R
Bentley Continental
Cars
built from the following vehicle
identification number (VIN)
*SCAZS0000ACH01001*
TSD4406
April 1985

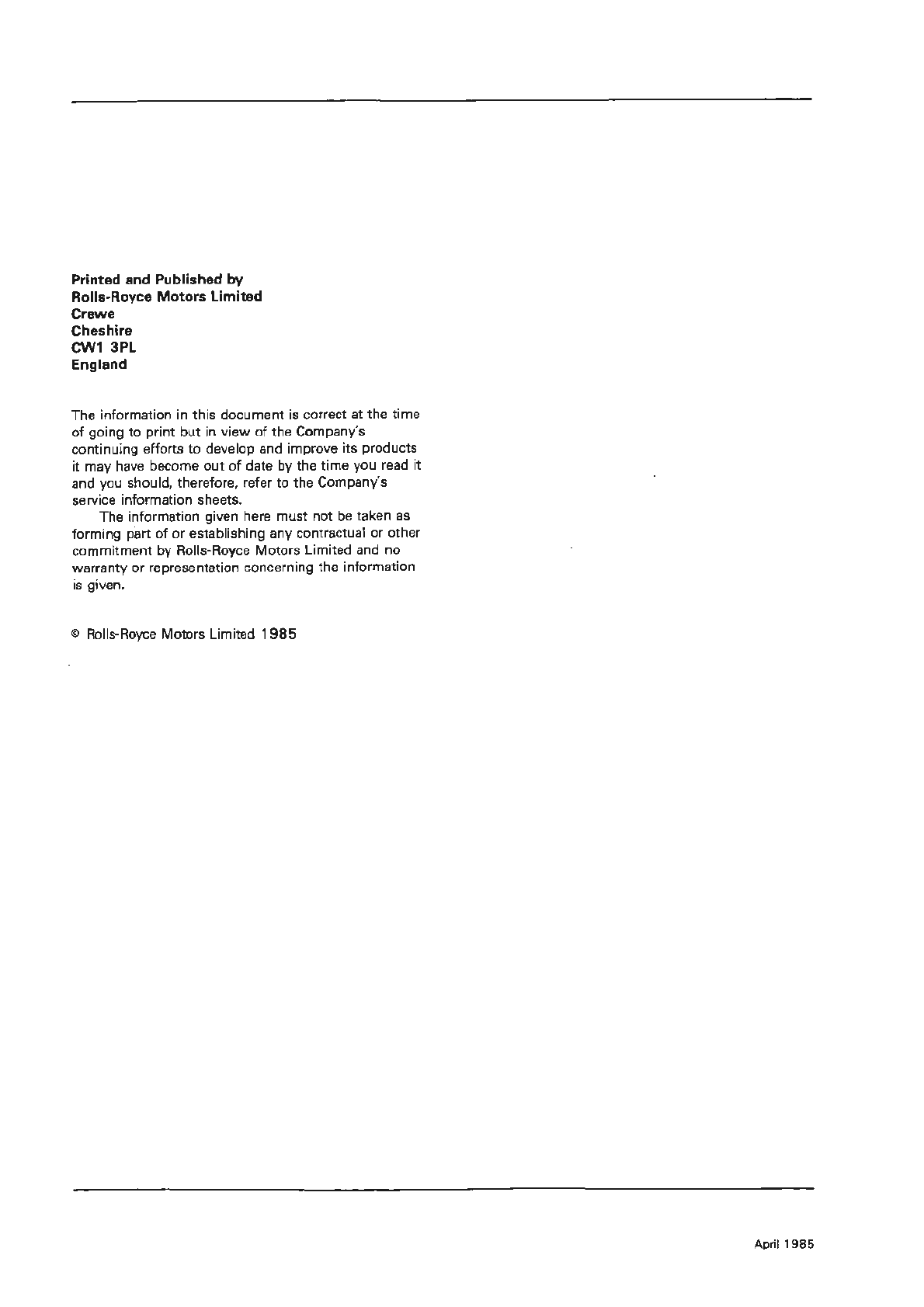

Printed and Published by
Rolls-Royce Motors limited
Crewe
Cheshire
CW1 3PL
England
The information in this document is correct at the time
of going to print but in view of the Company's
continuing efforts to develop and improve its products
it may have become out of date by the time you read it
and you should, therefore, refer to the Company's
service information sheets.
The information given here
must not be taken as
forming part of or establishing any contractual or other
commitment by Rolls-Royce Motors Limited and no
warranty or representation concerning the information
is given.
© Rolls-Royce Motors Limited 1985
_)
April 1985

SERVICi: SCHEDULE MANUAL
This manual has been compiled to assist Service
Personnel responsible
tor the maintenance of Rolls·
Royce and Bentley
motor cars (except Rolls-Royce
Phantom VI)
built from vehicle identification number
(VIN)°*SCAZSOOOOACHO
1001* . For information
relating
to Phantom VI motor cars reference should be
made
to Service Schedule Manual publication number
TSD 4117.
Information relating to any subsequent
modification
will be circulated by the issue of either
amended pages
or service information sheets.
publication
number TSO 4446.
At the beginning of each chapter is an issue
record sheet showing the issue
of sections and
amended pages.
When a section or amended page is
issued a
new issue record sheet will also be attached.
This record sheet
will record the amendment. thus
providing an up-to-date record of sections and pages.
Chapter contents page
Contents
Cars other than those conforming
to an Australian, Japanese,
North American,
or Middle East
Sections
Silver Spirit Mulsanne
Mulsanne
Turbo
Silver Spur
Countries specification B1
81/1
Cars conforming to an Australian
specification
Cars conforming to a Japanese
specification
Cars conforming to a North
American specification
Cars conforming to a Middle
East Countries specification
Section contents page
Contents
B2
B3
84
85
B5/1
Pages
Introduction
Throughout the manual reference is made to the
right-hand and left·hand side of the car, this is
determined
when sitting in the driver's seat.
In order
to identify the two banks of engine
cylinders,
it should be noted that 'A' bank of cylinders
is on the right-hand side and
·a· bank on the left-hand
side
when viewed from the driver's seat.
Service Personnel at Rolls-Royce
Motors Limited
are always prepared
to answer queries or give advice
on individual servicing problems. When making an
enquiry it is essential that the full vehicle identification
number {VIN) is quoted.
Important
When obtaining information for a particular model
always refer
to the appropriate Chapter and/or Section
contents page (see samples).
Bentley
Eight
B1
85
Bentley
Turbo R
81/1
B2
85/1
Corniche/ Camargue
Continental
81
81
B2
82
B3
83
84
84
85
85
Silver Spirit Mulsanne Bentley
Eight Bentley
Turbo R
Corniche/ Camargue
Continental
Cars from vehicle identification
number SCAZSOOOOACH01001
April 1985
Mulsanne Turbo
Silver
Spur
B1·3 81-3 B1·3
81·3
TSD 4406
Printed in England
© Rolls·Royce Motors Limited 1985

All communications should be addressed to one of
the following depending upon the car's domicile.
Rolls-Royce Motors Limited
Crewe Cheshire CWt 3PL England
Telephone:
0270 255155
Telex: 36121
Telegraphic address: Roycru Crewe
Rolls-Royce Motors International SA
39 Boulevard de Graney
1006 Lausanne Switzerland
Telephone: Lausanne
(021} 275363
Telex: 454216 RRM CH
Telegraphic address: Rollsint Lausanne
Rolls-Royce Motors Inc.
P.O. Box 476 ,Lyndhurst
New Jersey 07071 USA
Telephone:
(201} 460-9600
Telex: 427788
Telegraphic address: RRM Inc LYND
Rolls-Royce Motor Cars Limited
3870 Griffith Street St-Laurent
Quebec
H4T 1 A7 Canada
Telephone:
[phone]
Telex: 05 824130
Rolls-Royce Motor Cars Limited
Suite 165 10551 Shellbridge Way
Richmond
BC V6X 2W8. Canada
.Telephone: [phone]
Telex: 04 355815
November 1985

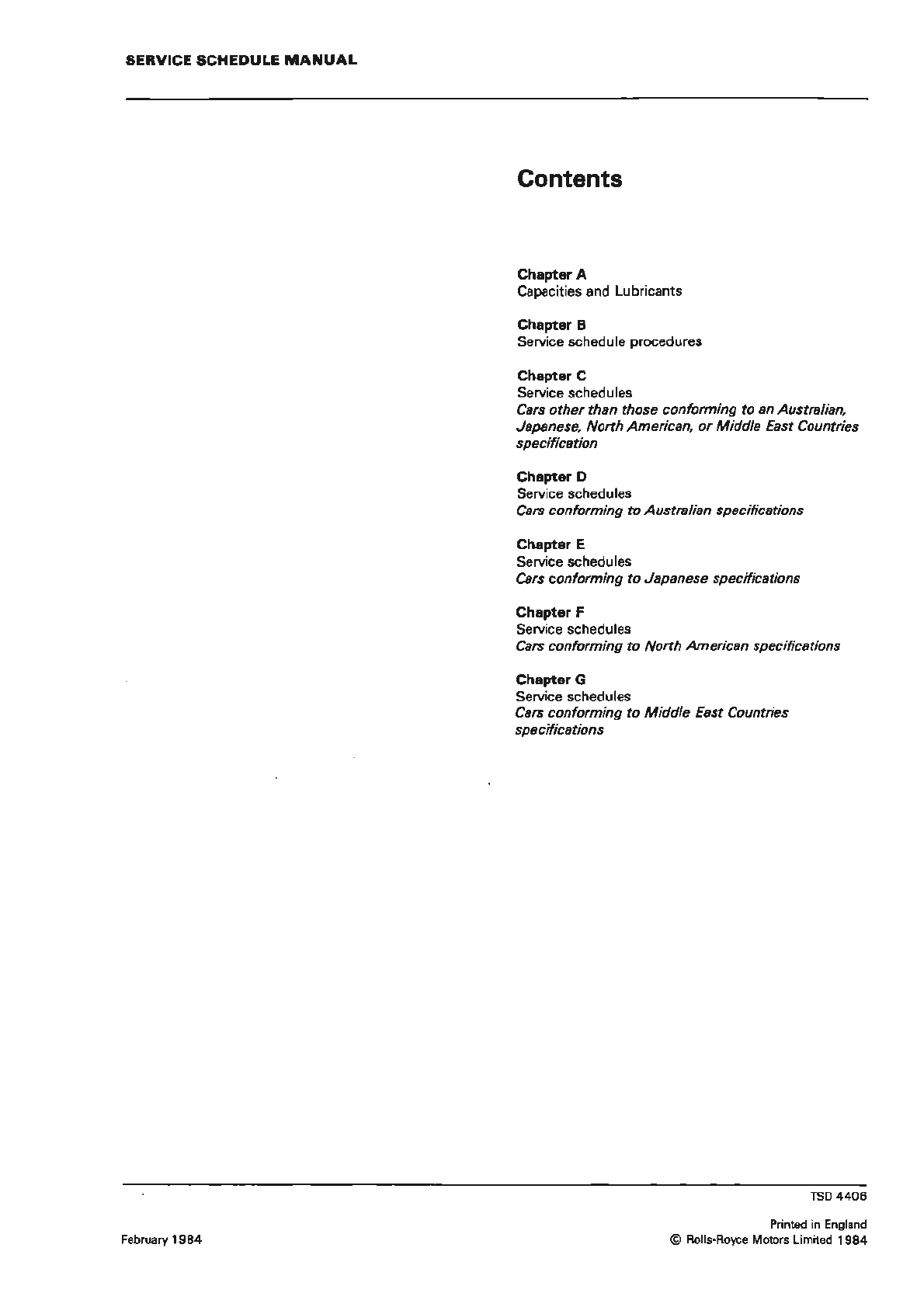

SERVICE SCHEDULE MANUAL
February 1984
Contents
ChapterA
Capacities and Lubricants
Chapter B
Service schedule procedures
Chapter C
Service schedules
Cars otherthan those conforming to an Australian,
Japanese, North American, or Middle East Countries
specification
Chapter D
Service schedules
Cars conforming to Australian specifications
Chapter E
Service schedules
Cars conforming to Japanese specifications
Chapter F
Seivice schedules
Cars conforming to North American specifications
ChapterG
Service schedules
Cars conforming to Middle East Countries
specffications
TSO 4406
Printed in England
© Rolls•Royce Motors Limited 1984

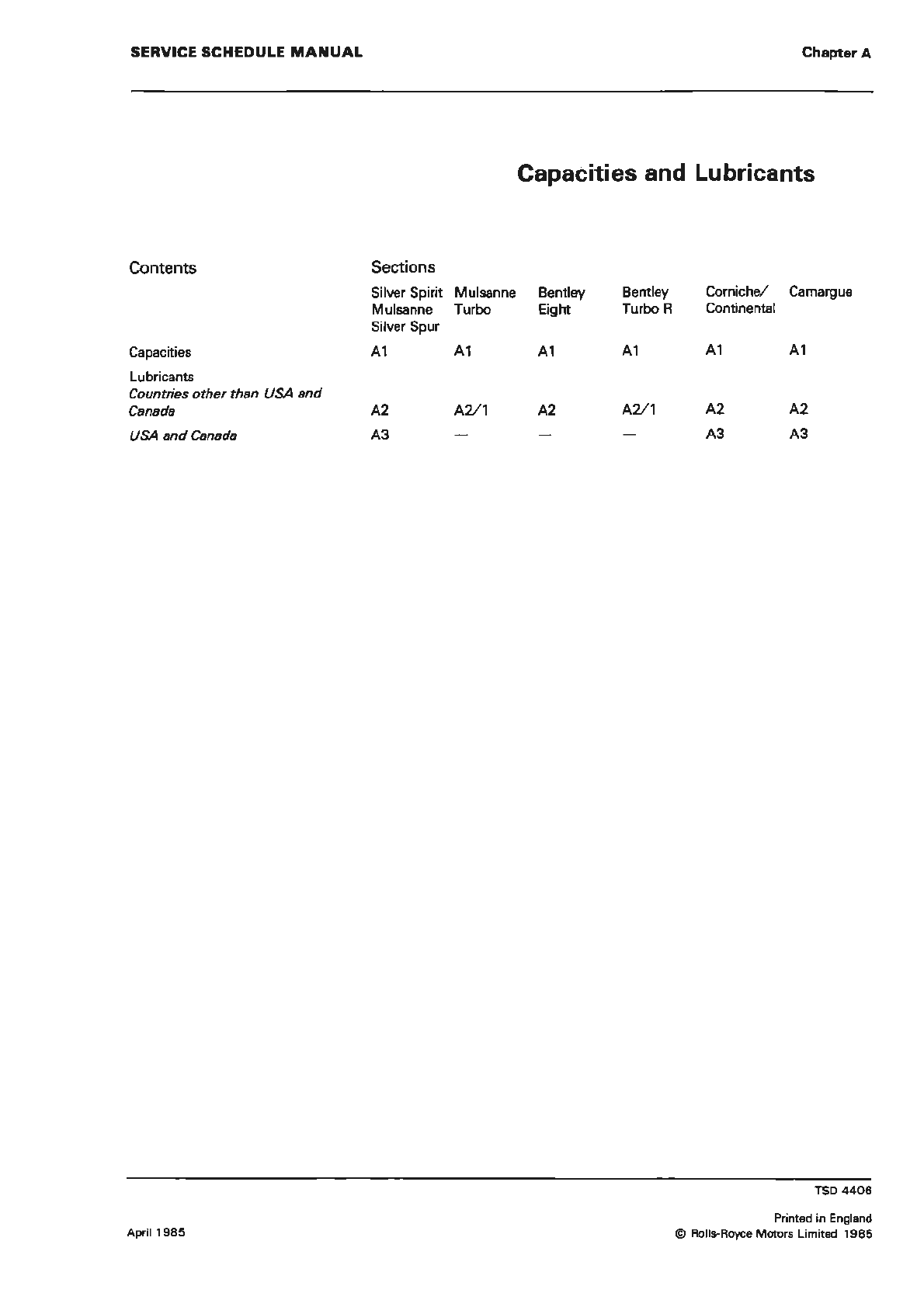

SERVICE SCHEDULE MANUAL
Contents Sections
Silver Spirit Mulsanne
Mulsanne Turbo
Silver Spur
Capacities
Al Al
Lubricants
Countries other than USA and
Canada
A2 A2/1
USA and Canada A3
April 1985
ChapterA
Capacities and Lubricants
Bentley Bentley
Eight Turbo R
A1
A1
A2
A2/1
Corniche/ Camargue
Continental
A1 A1
A2
A2
A3 A3
TSD4406
Printed in England
© Rolls-Royce Motors Limited 1985

SERVICE SCHEDULE MANUAL
Sections
Page No.
Contents
1
2
3
4
Nov 85 Apr 85
Apr 85
Apr85
Apr85
Nov85
Nov85
Issue record sheet 1
November 1 985
ChapterA
The dates quoted below refer to the issue date of
individual pages within this chapter.
5 -------- ----- ----------- - ----- -- -----
6
7
8
9
,o ----------- ----------- -.----- --- ---- ---
11
12
13
14
,s - ------- --------------- --- -----------
16
17
18
19
________________________ __ __________ ~
20
21
22
23
24
25 --------------------- --- ----- ---- ---~
26
27
28
29
30 ---------- ------------- ---- - ------- - ~
31
32
33
34 _________ _ __ _____ ___ ________________ ~
35
36
37
38
39 ____ __ _ _ _________________ _ _ _________ ~
40
41
42
43
44 _ _ ____ _ __ _ ____________ __ ____ ______ _ _ ~
45
46
47
48
TSO 4406
Printed in England
© Rolls-Royce Motors Limited 1985

SERVICE SCHEDULE MANUAL

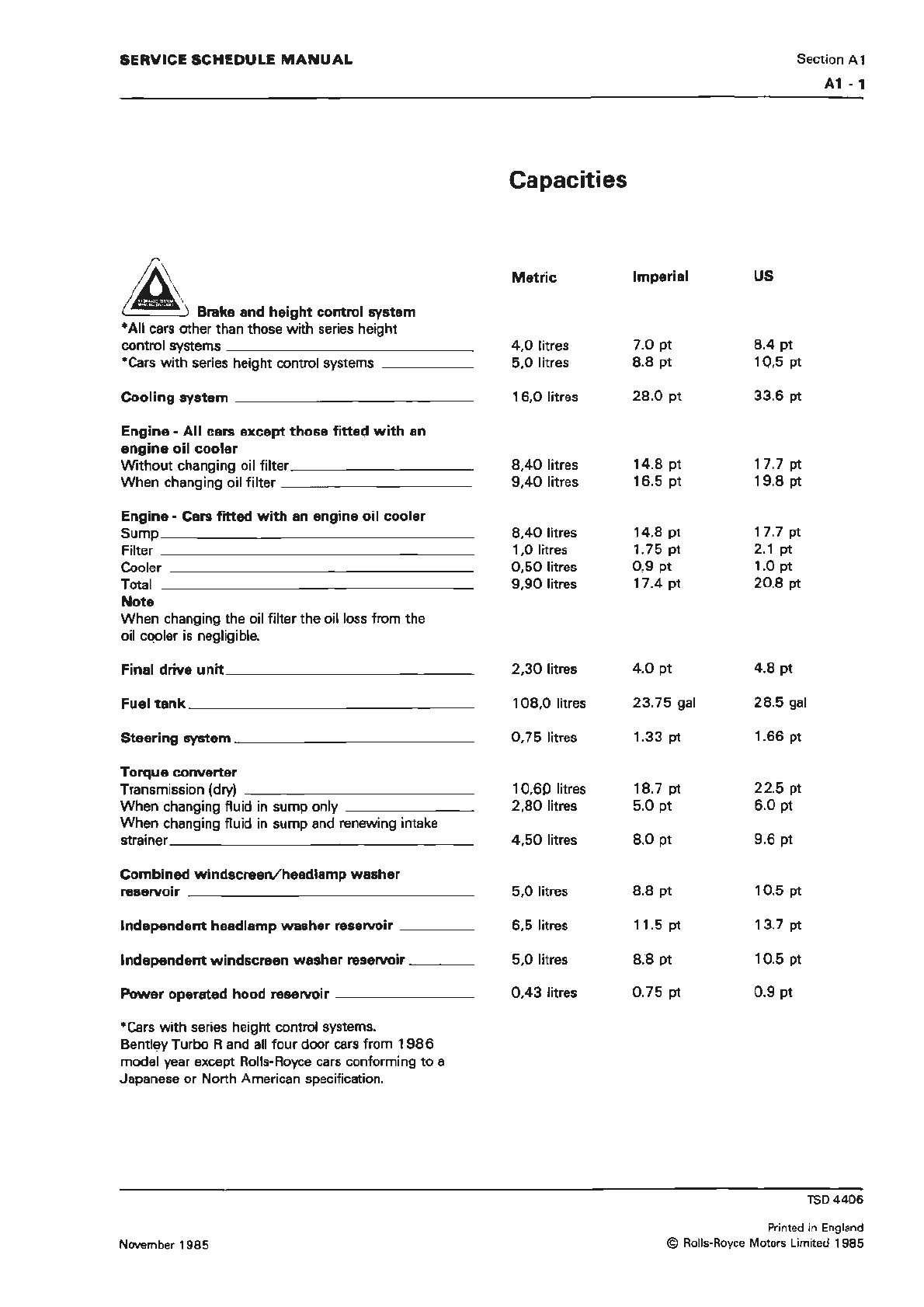

A Brake ' and ho;ght control system
• All cars other than those with series height
control systems
•
Cars with series height control systems
Cooling system
Engine -All cars except those fitted
with an
engine oil cooler
Without changing oil filter
When changing oil filter
Engine -Cars frtted with an engine oil cooler
Sump
Filter
Cooler
Total
Note
When changing the oil filterthe oil loss from the
oil
cQOler is negligible.
Final drive unit
Fuel tank
Steering system
Torque converter
Transmission (dry)
When changing fluid in sump only
When changing fluid in sump and renewing intake
strainer
Combined windscreen/headlamp washer
reservoir
Independent headlamp washer reservoir
Independent windscreen washer reservoir
Power operated hood reservoir
•ears with series height control systems.
Bentlli!Y Turbo Rand all four door cars from 1986
model year except Rolls-Royce cars conforming to a
Japanese
or North American specification.
November 1 985
Capacities
Metric
4,0 litres
5.0 litres
16,0 litres
8,40 litres
9,40 litres
8.40 litres
1,0 litres
0,50 litres
9,90 litres
2,30 litres
108,0 litres
0,75 litres
10,6P litres
2.80 litres
4,50 litres
5,0 litres
6.5 litres
5,0 litres
0,43 litres
Imperial
7.0 pt
8.8 pt
28.0 pt
14.8 pt
16.5 pt
14.8 pt
1. 75 pt
0,9 pt
17.4 pt
4.0 pt
23.75 gal
1.33 pt
18.7 pt
5.0 pt
8.0 pt
8.8 pt
11.5 pt
8.8
pt
0.75 pt
us
8.4 pt
Section A1
A1 - 1
10,5 pt
33.6 pt
17.7 pt
19.8 pt
17.7 pt
2.1 pt
1.0 pt
20.8
pt
4.8 pt
28.5 gal
1.66 pt
22.5 pt
6.0 pt
9.6 pt
10.5 pt
13.7 pt
10.5 pt
0.9 pt
TSO 4406
Printed in England
© Rolls-Royce Motors Limited 1985

SERVICE SCHEDULE MANUAL
tEngine, tSU Carburetter dampers, Hand
oiling points
BP
BP Super Viscostatic
BP Visco
2000
BP Visco-Nova
BP Visco Route
BP Visco Coranda
BP Pilote 2500
BP Pilote 3000
BP Strato
Castro!
Castrol GTX
Castrol GTX-2 Turbo Tested
Castrolite
Duckhams
Duckhams Hypergrade
Esso
UNI
FLO+
Esso SUPERLUBE +
Mobil
Mobil Super
Shell
Shell Super Motor Oil (20W/50)
Shell Super Motor Oil (1 5W/50)
Shell Super Motor Oil (1 SW/40)
Shell Super Motor Oil (1 OW/ 40)
Shell Gemini
Silkolene
Chatsworth 20W/30
tRecommended engine oil grades for cars operating in
low temperatures.
For constant operation
in ambient temperatures of
between 0°C and -23"C (32"F and -1 O"F) use a
1 OW/30 grade oil.
For constant operation in ambient temperatures
of
-23°C. (-10°F) and below, use a SW/20 grade oil.
*Torque converter transmission, *Steering
pump
BP
BP Autran DXII
April 1985
Lubricants
Section A2
A2·1
All cars except BeRtley Mulsanne Turbo
and Bentley Turbo R
Castro! ®
Castrol TO Dexron 11
Duckhams
D·Matic ATF (Dexron II}
Esso
Esso ATF Dexron II
Gulf
Gulf Automatic Transmission Fluid (Dexron)
Mobil
Mobil ATF 220 (Dex,on)
Shell
Shell Automatic Transmission Fluid Dexron II
Texaco
Texamatic Fluid 9226 (Dexron II)
*Also approved any Dexron Transmission Fluid.
Drive-shaft ball and trunnion joints (if fitted),
Final drive unit, Rack and pinion steering
unit
BP
BP Gear Oil EP 90
BP Multigear FE SOW/90
BP Multigear FE 85W/140
Castrol
Castrol Hypoy EP 90
Castro! Hypoy B EP 90
Castrol Hypoy C
Duckhams
Hypoid 90 S
Esso
Esso Gear Oil GX 85W/90
Esso Gear Oil GX SOW
Gulf
Gulf Multi Purpose Gear Lubricant SOW/90
Mobil
Mobilube HD 90
Shell
Shell Spirax 90 EP
TSO 4406
Printed in England
© Rolls-Royce Motors Limited 1985

A2-2
Front and rear hubs, Drive-shaft outer
universal joints (if fitted), Propeller shaft
universal joints (if applicable)
BP
BP Energrease L2
Castrol
Castrol LM Grease
Duckhams
LB 10 Grease
Esso
Multi-purpose Grease
Gulf
Gulfcrown Grease No. 2 EP
Mobil
Mobilgrease MP
Shell
;Shell Retinax A
fFirst preference

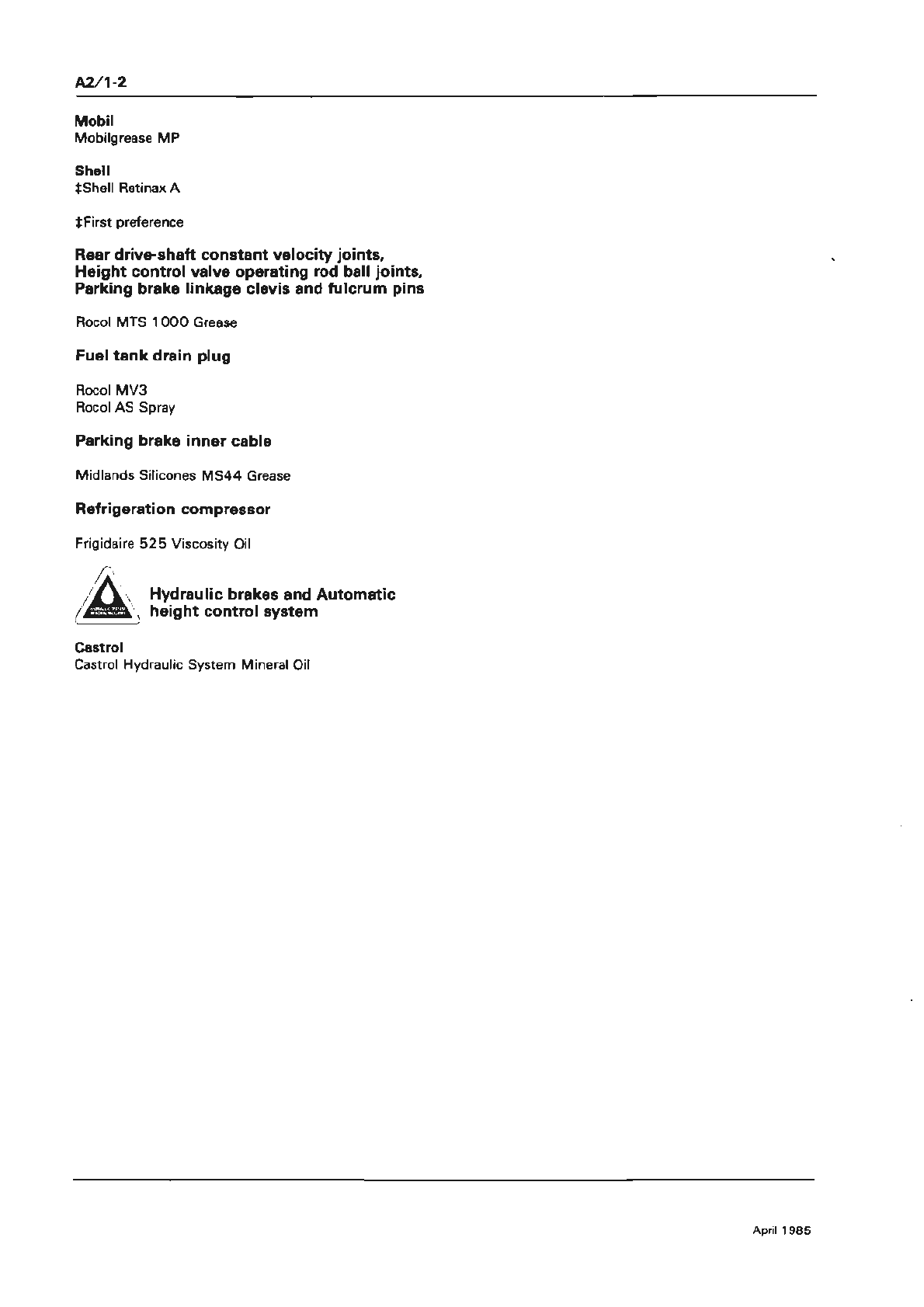

Rear drive-shaft constant velocity joints (if
fitted), Height control valve operating rod ball
joints, Steering joints (if applicable), Parking
brake linkage clevis and fulcrum pins
Rocol MTS 1000 Grease
Fuel tank drain plug
Rocol MV3
Rocol AS Spray
Parking brake inner cable
Midland Silicones MS44 Grease
Refrigeration compressor
Frigidaire 525 Viscosity Oil
~ Hydraulic Brakes and Automatic
~ height control system
Castro!
Castro! Hydraulic System Mineral Oil
Power operated hood reservoir
BP
BP Energol HLP22
Castro!
Castrol Hyspin
VG22
Esso
Esso Nuto H22
Mobil
Mobil DTE 11
Mobil DTE 12
Mobil DTE 13
Shell
Shell Tellus Oil 22
Shell Tellus Oil 23
Gulf
Gulf Hydrasil 22
April 1985

SERVICE SCHEDULE MANUAL
tEngine, Hand oiling po!nts
BP
BP Super Viscostatic
BP Visco 2000
Castrot
Castrol GTX
Castrol GTX-2 Turbo Tested
Duckhams
Duckhams Hypergrade
Esso
Esso SUPERLUBE +
Mobil
Mobil Super
Shell
Shell Super Motor Oil (20W/50}
Shell Super Motor Oil (15W/50}
Shell ~uper Motor Oil (15W/40)
Shell'Gemini
tRecommended engine oil grades for cars operating
in
low temperatures.
For constant operation in ambient temperatures
of
between o·c and -23°C (32°F and-10°F) use a
1 OW/30 grade oil.
For constant·operation in ambient temperatures
of
-23°C {-10°F) and below, use a 5W/20 grade oil.
*Torque converter transmission, •steering
pump
BP
BP Autran DX II
Castrol ®
Castrol TO Oextron 11
Duckhams
D-Matic ATF (Dexron II)
Esso
Es~o ATF (Dexron II)
Gulf
Gulf Automatic Transmission Fluid Dexron
Mobil
Mobil ATF 220 (Dexron)
April 1985
Lubricants
Bentley Mulsanne Turbo and
Bentley Turbo R
Shell
Section A2/1
A2/1·1
Shell Automatic Transmission Fluid Dexron II
Texaco
Texamatic Fluid 9226 (Dexron II)
•Also approved any Dexron Transmission Fluid
Final drive unit, Rack and pinion steering unit
BP
BP Gear Oil 90 EP
BP Multigear FE SOW/90
BP Multigear FE 85W/140
Castrol
<;astrol Hypoy EP 90
Castrol Hypoy B EP 90
Castrol Hypoy C
Duckhams
Hypoid 90 S
Esso
Esso Gear Oil GX 85W/90
Esso Gear Oil GX SOW
Gulf
Gulf Multi Purpose Gear Lubricant SOW/90
Mobil
Mobilube HD 90
Shell
Shell Spirax 90 EP
Front and rear hubs, Propeller shaft universal
joints
BP
BP Energrease L2
Castrol
Castro! LM Grease
Duckhams
LB 10 grease
Esso
Multi-purpose Grease
Gulf
Gulfcrown Grease No. 2 EP
TSD 4406
Printed in England
© Rolls-Royce Motors Limited 1985

A2/1-2
Mobil
Mobilgrease MP
Shell
tShell Retinax A
*First preference
Rear drive-shaft constant velocity joints,
Height control valve operating rod ball joints,
Parking brake linkage clevis and fulcrum pins
Rocol MTS 1 000 Grease
Fuel tank drain plug
Rocol MV3
Rocol AS Spray
Parking brake inner cable
Midlands Silicones MS44 Grease
Refrigeration compressor
Frigidaire 525 Viscosity Oil
&.. Hydraulic brakes and Automatic
~ height control system
Castro!
Castrol Hydraulic System Mineral Oil
)
•,
i
April 1985

SERVICE SCHEDULE MANUAL
tEngine, Hand oiling points
BP
BP Super Viscostatic 1 OW/ 40
Castrol
Castrol GTX (USA)
Castrol XLR
(Canada)
Duckhams
Duckhams Hypergrade
Exxon/Imperial
UNIFLO
Mobil
Mobil Super
Shell
Fire and Ice (USA)
Super Plus
(Canada)
tRecornmended engine oil grades for cars operating in
low temperatures.
For constant operation in ambient temperatures
of
between o·c and-23"C {32°.f and-tO"F). use a
10W/30 grade oil.
For constant operation in ambient temperatures
of
-23°C (-1 O"F) and below. use a SW/20 grade oil.
•Torque converter transmission, *Steering
pump
BP
BP Autran DX II
Castrol ®
Castro! TQ Oexron 11
Ouckhams
l;)-Matic ATF (Dexron II)
Exxon/Imperial
Esso ATF Dexron II
Guff
Gulf Automatic Transmission Fluid Dexron
Mobil
Mobil ATF 220 (Dexron)
November 1985
Lubricants
Section A3
A3·1
All cars except Bentley Mulsanne Turbo
and Bentley Turbo R
Shell
Shell Donax T6
ATF Dexron
Texaco
Texamatic Fluid 9226 (Dexron II)
*Also approved any Oexron Transmission Fluid
Final drive unit, Rack and pinion steering unit
BP
BP Gear Oil 90 EP
BP Multigear FE BOW/90
BP Multig~ar FE 85W/140
Castrol
Castrol Hypoy SOW/90
Castrol HypoyC SOW/90
Duckhams
Duckhams Hypoid Gear Oil 80W/90 EP
Exxon/Imperial
Esso Gear Oil GX 85W/140
Esso Gear Oil GX SSW/90
Esso gear Oil GX SOW/90
Esso Gear Oil GX SOW
Esso Gear Oil GX 90W
Gulf
Gulf Multi Purpose Lubricant 80W/90
Mobil
Mobilube HD 90
Shell
Shell Spirax 90 EP
Front and rear hubs,
Propeller shaft universal joints
(if applicable)
BP
BP Energrease L2
Castrol
Castrol MP Grease
Castrol LM
Grease
Castro! Wheel Bearing Grease {Canada)
Ouckhams
Duckhams LB 10
TS04406
Printed in England
© Rolls-Royce Motors Limited 1985

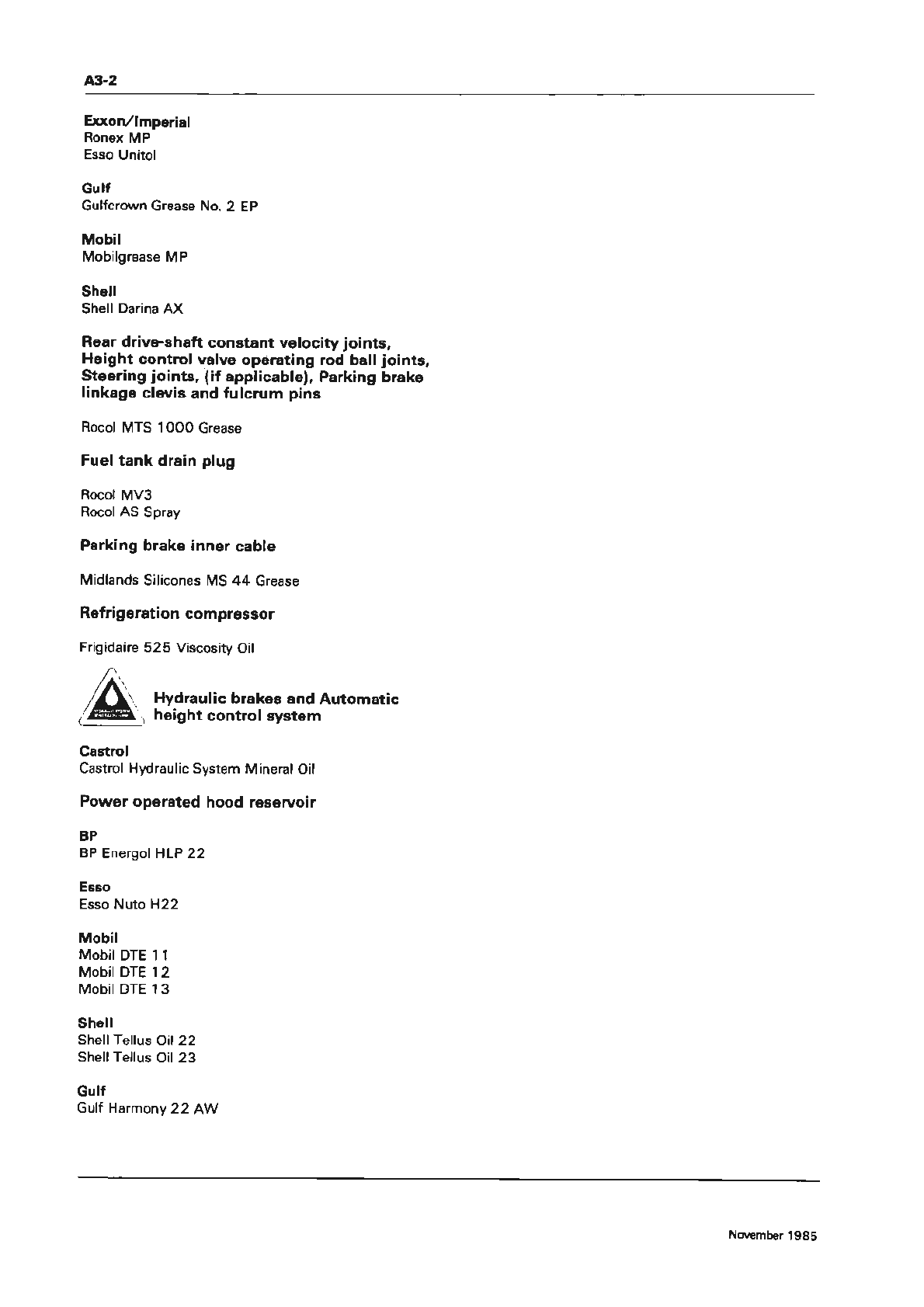

A3·2
Exxon/(mperial
Ronex MP
Esso Unitol
Gulf
Gulfcrown Grease No. 2 EP
Mobil
Mobilgrease MP
Shell
Shell Darina AX
Rear drive-shaft constant velocity joints,
Height control valve operating rod ball joints,
Steering joints, (if applicable), Parking brake
linkage clevis and fulcrum pins
Rocol MTS 1000 Grease
Fuel tank drain plug
Rocol MV3
Rocol AS Spray
Parking brake inner cable
Midlands Silicones MS 44 Grease
Refrigeration compressor
Frigidaire 525 Viscosity Oil
~ Hydraulic brakes and Automatic
~ height control system
Castro!
Castrol Hydraulic System Mineral Oil
Power operated hood reservoir
BP
BP Energol HLP 22
Esso
Esso
Nuto H22
Mobil
Mobil DTE 11
Mobil
DTE 12
Mobil DTE 13
Shell
Shell Tellus Oil 22
Shell Tellus Oil 23
Gulf
~ulf Harmony 22 AW
November 1985

SERVICE SCHEDULE MANUAL
·tEngine, Hand oiling points
BP
BP Super Viscostatic
Castro!
Castrol GTX
Castro! GTX·2 Turbo Tested
Duckhams
Duckhams 'Q' Motor Oil
Esso
Esso SUPERLUBE
Mobil
Mobil Super
Shell
Shell Super Motor Oil (20W/50)
Shell Super Motor Oil (1 5W/50) ·
Shell Super
Motor Oil (15W/40)
tRecommended engine oil grades for cars operating in
low temperatures.
For constant operation in ambient temperatures of
between 0°C and -23°C use a 1 OW/30 grade oil.
For constant operation in ambient temperatures
of
-23°C and below. use a 5W/20 grade oil.
•Torque converter transmission, *Steering
pump
BP
BP Autran DX II
Castro!
Castrol TO Dexron ® II
Duckhams
D-Matic ATF (Dexron II)
Esso
Esso Automatic Transmission Fluid (Dexron)
Mobil
Mobil ATF 220 (Oexron)
Shell
Shell Automatic Transmission Fluid Dexron II
Texaco
Texamatic Fluid 9226 {Dexron II)
·Also approved any Oexron Transmission Fluid.
April 1982
Lubricants
Bentley Mulsanne Turbo
Section A4
A4 • 1
Final drive unit, Rack and Pinion steering unit
BP
BP Gear Oil 90 EP
BP Gear Oil FE SOW/90 EP
BP Gear Oil FE 85W/140 · EP
Castrol
Castrol Hypoy EP 90
Castrol Hypoy B EP 90
Castrol Hypoy C
Duckhams
Hypoid 90 S
Esso
Esso Gear Oil GX 85W/140
Esso Gear Oil GX 80W/90
Mobil
Mobilube HD 90
Shell
Shell Spirax 90 EP
Front and rear hubs. Propeller shaft universal
joints
BP
BP Energrease L2
Castro!
Castrol LM Grease
Duckhams
LB 10 Grease
Esso
Multi-purpose Grease H
Mobil
"-'.'lobilgrease MP
Shetl
t:Shell Retinax A
t:First preference
Rear drive-shaft constant velocity joints,
Height control valve operating rod ball
joints,Parking brake linkage clevis and
fulcrum pins
Aocol MT$ 1000 Grease
TSD 4406
Printed in England
© Rolls-Royce Motors Limited 1982

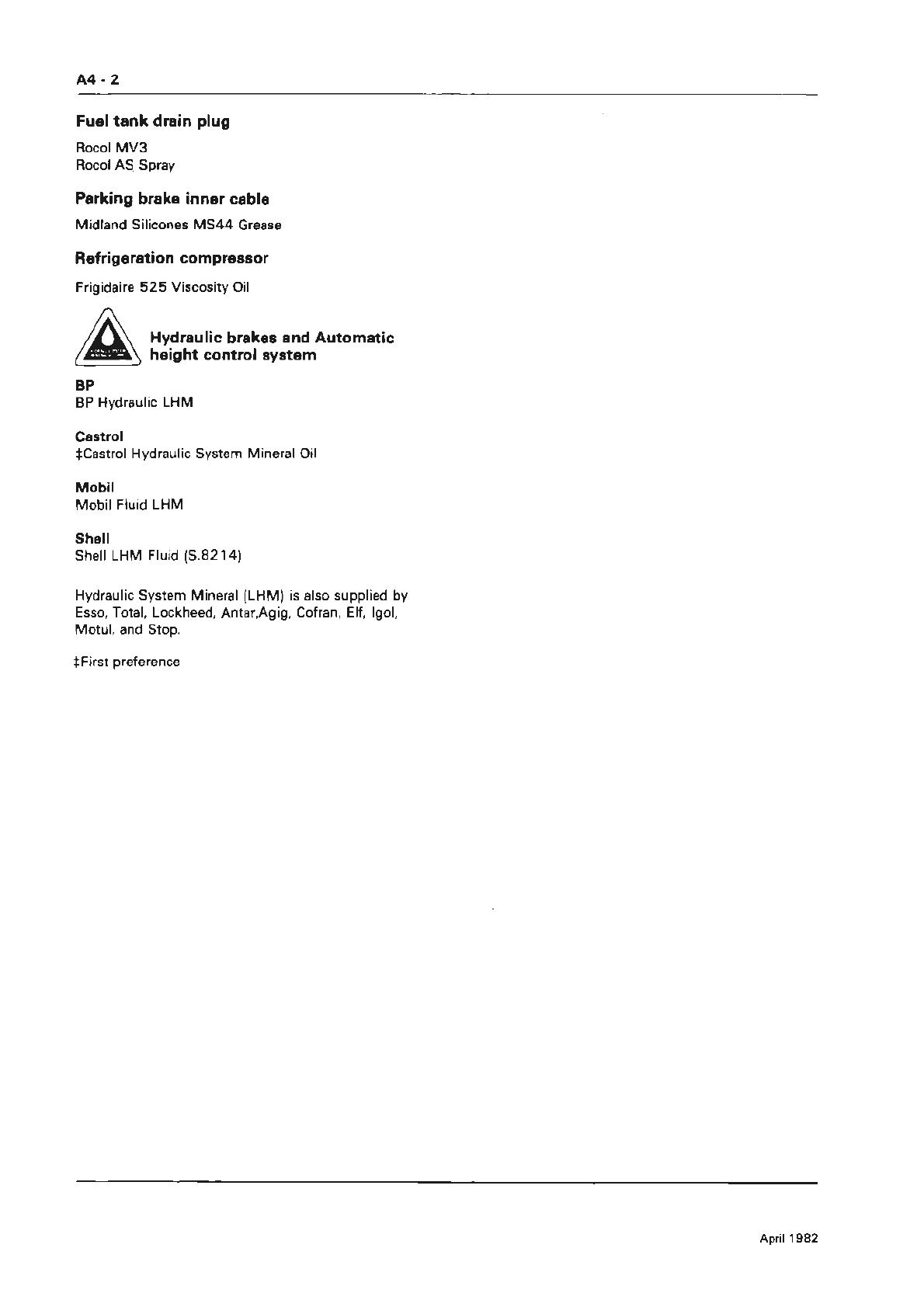

A4· 2
Fuel tank drain plug
Rocol MV3
Rocol AS. Spray
Parking brake inner cable
Midland Silicones MS44 Grease
Refrigeration compressor
Frigidaire 525 Viscosity Oil
& Hydraulic brakes and Automatic
~ height control system
BP
BP Hydraulic LHM
Castro!
;Castrol Hydraulic System Mineral Oil
Mobil
Mobil Fluid LHM
Shell
Shell LHM Fluid (S.8214)
Hydraulic System Mineral (LHM) is also supplied
by
Esso, Total, Lockheed, Antar,Agig. Cofran, Elf, lgol,
Motul.
and Stop.
;First preference
April 1982

SERVICE SCHEDULE MANUAL
Contents Sections
Silver Spirit
Mulsanne
Silver
Spur
Cars other than those conforming
to an Australian, Japanese,
North American,
or Middle East
specification
B1
Cars conforming to an Australian
specification.
1981/85
model year
82
Cars conforming to an Australian
specification.
1986 model year 82/1
Cars conforming to a Japanese
specification
B3
Cars conforming to a North
Americanspecification
B4
Cars conforming to a Middle East
specification prior
to 1 984 model
year
B1
Cars conforming to a Middle East
specification.
1984 model year 85
Cars conforming to a Middle East
specification from
1985 model
year
85
July 1985
Mulsanne
Turbo
81/l
B1/1
B1/1
B5/1
Chapter B
Service schedule procedures
Bentley Bentley
Eight Turbo R
81
Bl/1
B5 B5/1
Corniche/ Camargue
Continental
B1 81
82 82
B3 B3
B4 84
B1 B1
B1 B1
B5 B5
TSO 4406
Prinied in England
© Rolls-Rovce Motors Limited 1 985

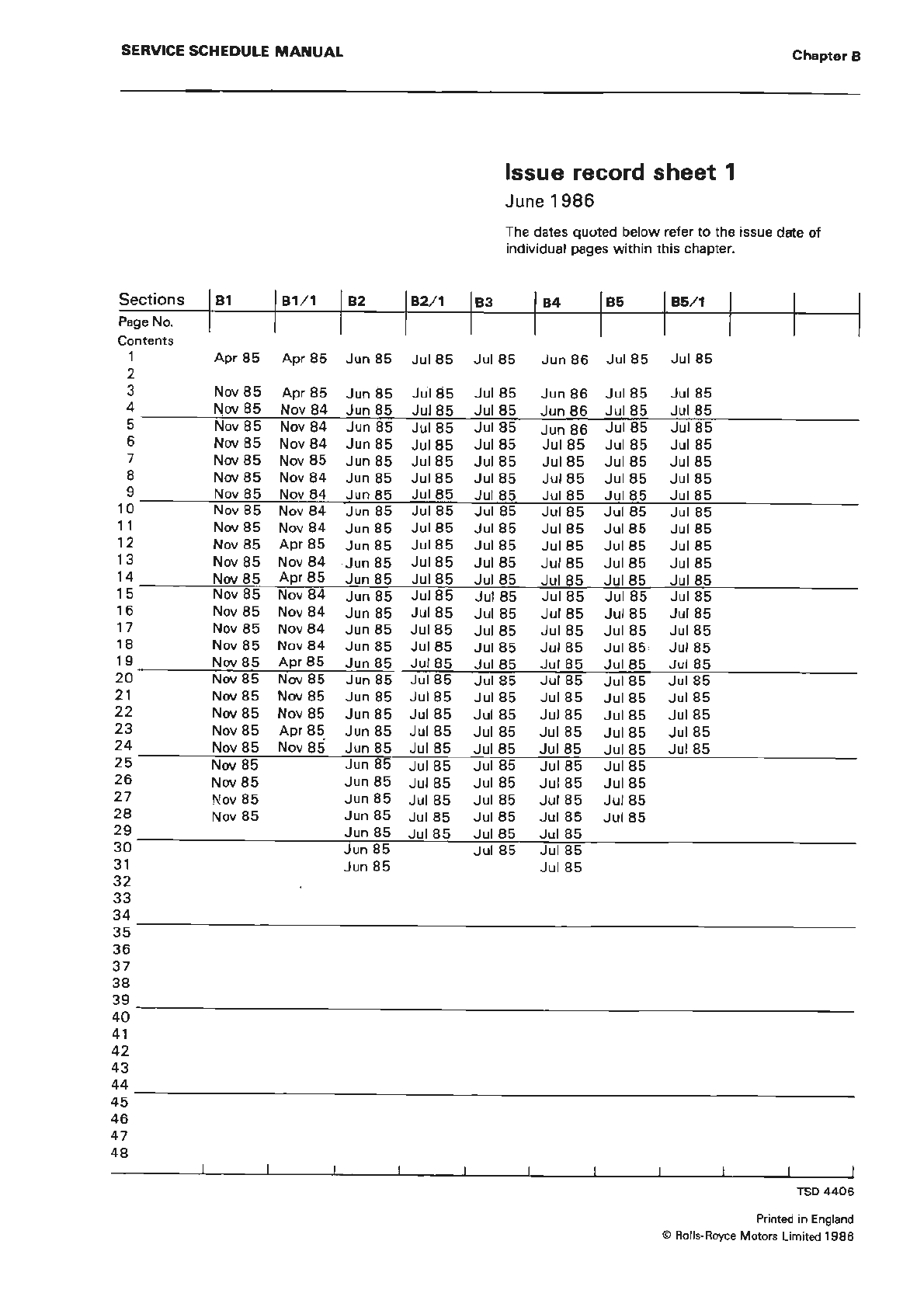

SERVICE SCHEDULE MANUAL
Chapter B
Issue record sheet 1
June 1986
The dates quoted below refer to the issue date of
individual pages within this chapter.
Sections 81
B1/1
B2 82/1
B3
84
B5 85/1
Page No.
Contents
1
Apr 85
Apr 85
Jun 85
Jul 85 Jul 85 Jun 86
Jul 85 Jul 85
2
3
Nov85
Apr 85
Jun 85
Ju185 Jul 85
Jun 86
Jul 85 Jul85
4
Nov85
Nov84 Jun 85
Jul 85 Jul 85 Jun 86 Jul 85
Jul 85
5 Nov
85 Nov 84
Jun 85
Jul 85
Jul85
Jun 86
Jul85 Jul85
6 Nov
85
Nov84 Jun 85
Jul 85 Jul85 Jul 85 Jul 85 Jul 85
7
Nov85 Nov85
Jun 85 Jul 85 Jul 85
Jul 85 Jul 85 Jul 85
8
Nov85 Nov 84 Jun 85 Jul 85
Jul 85 Jul85 Jul 85 Jul 85
9 Nov
85 Nov 84
Jun 85 Jul
85
J ut 85
Jul 85 Jul 85 Jul 85
10
Nov 85
Nov 84 Jun 85
Jul 85
Jul85
Jul 85 Jul 85 Jul85
11
Nov85 Nov 84
Jun 85
Jul 85
Jul 85
Jul 85 Jul 85 Jul 85
12
Nov85
Apr 85
Jun 85
Jul 85
Jul 85
Jul 85 Jul 85 Jul 85
13
Nov85
Nov84
Jun 85
Jul 85
Jul85 Ju/85 Jul 85
Jul 85
14
Nov85
Apr 85
Jun 85 Jul 85
Jul 85 Jul 85
Jul 85
Jul 85
15 . Nov 85
Nov 84
Jun 85
Jul8 5
Jul85
Jul 85 Jul 85 Jul 85
16
Nov85
Nov 84
Jun 85
Jul 85
Jul 85 Jul85 Jul 85 Jul85
17
Nov85
Nov84
Jun 85 Jul 85
Jul 85 Jul 85 Jul 85 Jul 85
18
Nov85 Nov84
Jun 85 Jul 85
Jul 85
Jul85
Jul 85
Jul85
19
Nov85
Apr 85
Jun 85 Jul 85
Jul 85 Juf85 Jul 85 Jul 85
20
Nov85 Nov 85
Jun 85 Jul 85
Jul 85 Jul85
Jul 85
Jul 85
21
Nov85 Nov85
Jun 85 Jul 85
Jul 85 Jul 85
Jul 85
Jul 85
22
Nov85 Nov85
Jun 85 Jul 85
Jul 85 Jul85
Jul 85
Jul 85
23
Nov85
Apr 85
Jun 85 Jul 85
Jul 85 Jul 85
Jul 85
Jul 85
24
Nov85 ·Nov 85 Jun 85
Jul 85 Jul 85
Jul 85 Jul 85
Jul 85
25
Nov85
Jun 85
Jul 85 Jul 85 Jul 85
Jul 85
26
Nov85
Jun 85
Jul 85 Jul85 Jul85
Jul 85
27
Nov 85
Jun 85
Jul 85
Jul 85 Jul85
Jul 85
28
Nov 85
Jun 85
Jul 85 Jul 85 Jul 85 Jul 85
29
Jun 85
Jul 85 Jul 85
Jul 85
30
Jun 85 Jul
85 Jul 85 .
31
Jun 85
Jul 85
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
TS04406
Printed in England
©
Rolls-Royce Motors Limited 1986

_)
SERVICE SCHEDULE MANUAL
Contents
Cars from vehicle identification
number
*SCAZSOOOOACH01001 *
April 1985
Pages
Silver Spirit Mulsanne
Mulsanne Turbo
Silver Spur
B1·3
Section Bl
81-1
Service schedule procedures
Bentley
Eight
B1·3
Bentley Corniche/ Camargue
Turbo R Continental
B1-3 B1-3
TS04406
Printed in England
© Rolls-Royce Motors Limited 1985

SERVICE SCHEDULE MANUAL
/JJ. wA RNI NG
Use only Hydraulic System Mineral Oil (LHM) to
replenish the braking and levelling systems.
Do not use Brake Fluids {Castro! RR363,
Universal, or any othertype). The use
of any type of
brake fluid, even in very small amounts, will cause
component failure necessitating extensive rectification
to the braking and levelling systems of the car.
Always ensure before fitting any seals, hoses,
pipes, etc. that they are suitable for a mineral oil
system. For details
of correct component identification
reference should be made to Chapter G
of the
Workshop Manual.
Always ensure that a sealed container of
Hydraulic System Mineral Oil (LHM) is fitted
adjacent to the battery.
Always ensure that no foreign matter enters the
systems when
work is being carried out.
General information
The information contained in this chapter should be
used
in conjunction with the Service Schedule Charts
and Workshop Manuals.
The following
are the Workshop Manual
publications
to which reference should be made.
Silver Spirit, Silver Spur, Bentley Eight, and
Mulsanne,
from vehicle identification number (VIN)
*SCAZSOOOOACHO
1001* and Corniche/Continental
from (VIN)
*SCAZD0006CCH05037* publication
numberTSD
4400.
Corniche prior to vehicle identification number
(VJN)-.¥SCAZD0006CCH05037:¥and Camargue,
publication numberTSD
4200.
Where reference is made to 1985 model year
cars the information is applicable to Silver Spirit. Silver
Spur, and Mulsanne from vehicle identification number
(VIN)'>t-SCAZS42A3FCX12001* and Bentley Eight
from (VIN) *SCB2S800XFCH12013*.
Car protection
Prior to commencing a service schedule, the car
should be suitably protected. For this purpose car
protection
kit RH 2662, wing covers RH 2684, and
wing cover liners RH 2685 should be used.
Regular maintenance
In addition to the service schedules listed, the
following maintenance should be carried
out
November 1985
Section 81
81-3
Service schedule procedures
From vehicle identification number
*SCAZS0000ACH01001*
Fig. B1 -1 Engine oil filter location
{right-hand drive cars}
Engine
Weekly or every 800 kilometres (500 miles)
whichever is the earlier; check the engine oil
by means
of the dipstick; top-up if necessary.
Lamp units
Weekly; check the lamp units for 9peration; rectify any
faults.
Tyre pressures
Weekly; check the tyre pressures including the spare;
adjust
if necessary.
Windscreen and headlamp washer reservoirs
Weekly; check the washer fluid level; top-up if
necessary.
Hydraulic reseTVoirs
Monthly; check the level of hydraulic mineral oil in the
reservoirs.
Depressurize the hydraulic systems
by pumping
the brake pedal until the
low brake pressure warning
panels on the facia illuminate. Continue
to pump the
pedal
tor at least a further 20 applications to ensure
complete depressurization. Start and run the engine
for
four minutes with the car unladen, prior to
checking the level. Top-up if necessary to the indicated
maximum level.
Use only Hydraulic System Mineral
Oil (LHM). Refer to page 81-17 for further
information before carrying
out this operation.
Engine cooling system
Every three months; check the coolant level. If
necessary top-up with the correct anti-freeze/water
mixture (see page B1·9)
TSO 4406
Printed in England
© Rolls-Royce Motors Limited 1985
