Rosen Aviation 0602-001 User manual

Document Number: 102900 Rev F
ELECTRONIC REVISION
CONTROLLED

Rosen Aviation Blu-ray DVD Player
Document Number: 102900
Revision: F
Date: 10/29/10
Template: 4.2.3-6-FM; Revision A; 16 April, 2009
Page 2 of 16
Technical Manual, 0602-001 Blu-ray DVD Player
© 2009, 2010 by Rosen Aviation, LLC
All Rights Reserved
The information contained herein is proprietary to Rosen Aviation, LLC. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form by any means without written authorization from Rosen Aviation, LLC, except
as allowed under copyright laws.
Trademarks
RosenView is a registered trademark of Rosen Aviation, LLC.
Disclaimer of Liability
The information contained in this document is subject to change without notice. Because we are
continually improving and adding features to our products, Rosen Aviation, LLC reserves the right to
change specifications without prior notice. Rosen Aviation, LLC shall not be liable for technical or
editorial errors or omissions contained herein.
Rosen Aviation, LLC
1020 Owen Loop South
Eugene, OR 97402
541.342.3802
888.668.4955
Fax: [phone]
www.rosenaviation.com

Rosen Aviation Blu-ray DVD Player
Document Number: 102900
Revision: F
Date: 10/29/10
Template: 4.2.3-6-FM; Revision A; 16 April, 2009
Page 3 of 16
Contents
1. WIRING EXAMPLES, TECHNICAL SPECIFICATIONS, INPUTS AND OUTPUTS...........4
1.1. Technical Specifications / Pinout Information ...............................................................4
1.2. Wiring Examples...........................................................................................................4
1.2.1. Wiring Example for Video Connection............................................................................... 4
1.2.2. Wiring Example for 2.1 or 2-Channel Audio...................................................................... 5
1.2.3. Wiring Example for 5.1 Audio ........................................................................................... 5
1.2.4. Wiring Example for 7.1 Audio ........................................................................................... 6
1.3. Control Inputs / Outputs................................................................................................6
1.4. Audio/Video Outputs.....................................................................................................7
1.4.1. Four CVBS (Composite) Out ............................................................................................ 7
1.4.2. One Component (YPbPr) Out........................................................................................... 7
1.4.3. DVI/HDMI Out................................................................................................................... 7
1.4.4. Stereo analog Audio Out (fixed volume) ........................................................................... 7
1.4.5. 7.1 Analog Audio Out (volume controlled)......................................................................... 7
1.4.6. SPDIF Digital Audio Out ................................................................................................... 7
2. SETUP MENU.....................................................................................................................7
2.1. Setup Menu Access......................................................................................................7
2.2. Setup Menu Options.....................................................................................................7
3. INDICATORS, CONTROLS AND CONNECTIONS..........................................................11
3.1. Front Case Interfaces .................................................................................................11
3.1.1. Button Controls............................................................................................................... 11
3.1.2. LED Indicators................................................................................................................ 12
3.1.3. USB Inputs..................................................................................................................... 13
3.1.4. Ethernet.......................................................................................................................... 13
3.1.5. Reset.............................................................................................................................. 13
3.2. Blu-ray DVD Control Setup.........................................................................................13
3.2.1. IR Control....................................................................................................................... 13
3.2.2. RS-485........................................................................................................................... 14
3.2.3. RS-232........................................................................................................................... 15
3.2.4. Restore Defaults............................................................................................................. 15
3.3. Communication Protocol.............................................................................................15
4. REVISION HISTORY ........................................................................................................16

Rosen Aviation Blu-ray DVD Player
Document Number: 102900
Revision: F
Date: 10/29/10
Template: 4.2.3-6-FM; Revision A; 16 April, 2009
Page 4 of 16
1. WIRING EXAMPLES, TECHNICAL SPECIFICATIONS, INPUTS AND OUTPUTS
1.1. Technical Specifications / Pinout Information
The Blu-ray DVD Player Outline and Installation drawing is located
on the Rosen Aviation website: www.rosenaviation.com
Click on the Support tab. Select Drawings & Pinouts, and then
choose the Blu-ray DVD Player link listed under the Source
Equipment heading.
1.2. Wiring Examples
Audio line-level control is available through the setup menu. See below for wiring information.
1.2.1. Wiring Example for Video Connection
Rosen
Blu-ray DVD Player
DVI/HDMI HD video
Component HD video
Composite video (x4)
Component/Digital
Connector
HD Bulkhead
Display
CVBS/SPDIF
Connector
HD Bulkhead
Display
Personal
Display
Personal
Display
Personal
Display
Personal
Display

Rosen Aviation Blu-ray DVD Player
Document Number: 102900
Revision: F
Date: 10/29/10
Template: 4.2.3-6-FM; Revision A; 16 April, 2009
Page 5 of 16

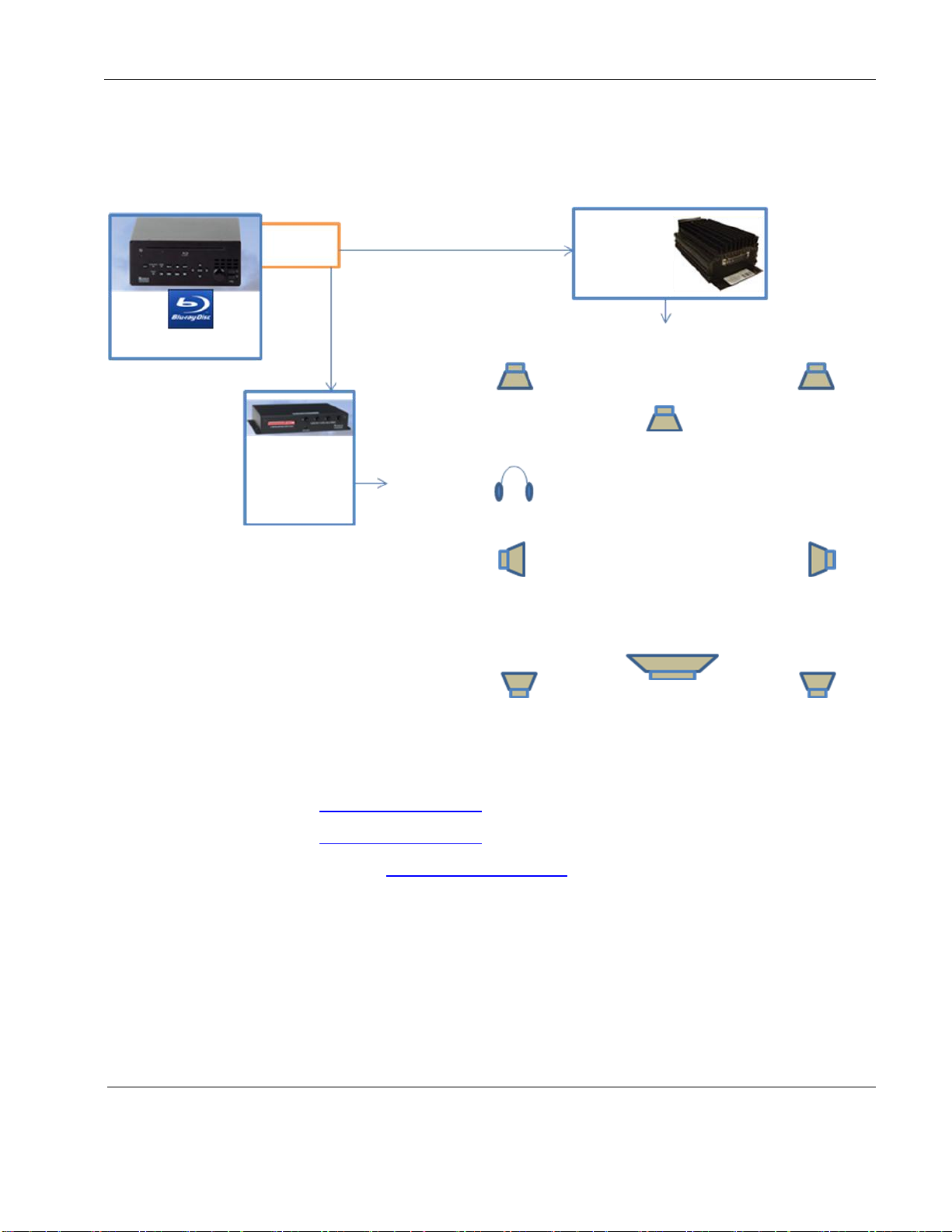

1.2.2. Wiring Example for 2.1 or 2-Channel Audio
1.2.3. Wiring Example for 5.1 Audio
Volume-controlled Audio:
Left Front and Right Front
Bass subwoofer for 2.1
Left Speakers
Right Speakers
Audio
Amplifier
2.1 or Stereo Speakers
Headphones (x5)
Main
Connector
Rosen
Blu-ray DVD Player
Rosen
Headphone
Distribution
Amplifier
Volume-controlled Audio:
Left Front and Right Front
Center
Left Surround and Right Surround
Bass Subwoofer
Fixed-level Audio:
Left and Right
Left Speakers
Right Speakers
Audio
Amplifier
5.1 Speakers
Headphones (x5)
Main
Connector
Rosen
Blu-ray DVD Player
Rosen
Headphone
Distribution
Amplifier
Bass Subwoofer for 2.1
Bass Subwoofer
Left Surround
Speaker
Center Speaker
Right Surround
Speaker
Fixed-level Audio:
Left and Right
