ROSENLEW RJKL3001 User manual

GETTING
STARTED?
EASY.
User Manual
RJKL3001
RJKL3001V
EN User Manual
Refrigerator

VISIT OUR WEBSITE TO:
Get usage advice, brochures, trouble shooter, service and repair information:
www.rosenlew.fi/support
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damage that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible
location for future reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards involved.
•Children aged from 3 to 8 years are allowed to load and unload
the appliance provided that they have been properly instructed.
•This appliance may be used by persons with very extensive and
complex disabilities provided that they have been properly
instructed.
•Children of less than 3 years of age should be kept away from
the appliance unless continuously supervised.
•Do not let children play with the appliance.
•Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
•Keep all packaging away from children and dispose of it
appropriately.
GENERAL SAFETY
•This appliance is intended to be used in household and similar
applications such as:
–Farm houses; staff kitchen areas in shops, offices and other
working environments;
2

–By clients in hotels, motels, bed and breakfast and other
residential type environments.
•To avoid contamination of food respect the following
instructions:
–do not open the door for long periods;
–clean regularly surfaces that can come in contact with food
and accessible drainage systems;
–store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto other
food.
•WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
•WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•WARNING: Do not damage the refrigerant circuit.
•WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
•When the appliance is empty for long period, switch it off,
defrost, clean, dry and leave the door open to prevent mould
from developing within the appliance.
•Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
SAFETY INSTRUCTIONS
INSTALLATION
WARNING! Only a qualified person
must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with
the appliance.
• Always take care when moving the appliance as
it is heavy. Always use safety gloves and
enclosed footwear.
3

• Make sure the air can circulate around the
appliance.
• At first installation or after reversing the door
wait at least 4 hours before connecting the
appliance to the power supply. This is to allow
the oil to flow back in the compressor.
• Before carrying out any operations on the
appliance (e.g. reversing the door), remove the
plug from the power socket.
• Do not install the appliance close to radiators or
cookers, ovens or hobs.
• Do not expose the appliance to the rain.
• Do not install the appliance where there is direct
sunlight.
• Do not install this appliance in areas that are too
humid or too cold.
• When you move the appliance, lift it by the front
edge to avoid scratching the floor.
• The appliance contains a bag of desiccant. This
is not a toy. This is not food. Please dispose of it
immediately.
ELECTRICAL CONNECTION
WARNING! Risk of fire and electric
shock.
WARNING! When positioning the
appliance, ensure the supply cord is
not trapped or damaged.
WARNING! Do not use multi-plug
adapters and extension cables.
• The appliance must be earthed.
• Make sure that the parameters on the rating
plate are compatible with the electrical ratings
of the mains power supply.
• Always use a correctly installed shockproof
socket.
• Make sure not to cause damage to the electrical
components (e.g. mains plug, mains cable,
compressor). Contact the Authorised Service
Centre or an electrician to change the electrical
components.
• The mains cable must stay below the level of the
mains plug.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure that
there is access to the mains plug after the
installation.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
USE
WARNING! Risk of injury, burns,
electric shock or fire.
The appliance contains flammable gas,
isobutane (R600a), a natural gas with a high level
of environmental compatibility. Be careful not to
cause damage to the refrigerant circuit containing
isobutane.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g. ice cream
makers) in the appliance unless they are stated
applicable by the manufacturer.
• If damage occurs to the refrigerant circuit, make
sure that there are no flames and sources of
ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of
the appliance.
• Do not store flammable gas and liquid in the
appliance.
• Do not put flammable products or items that are
wet with flammable products in, near or on the
appliance.
• Do not touch the compressor or the condenser.
They are hot.
INTERNAL LIGHTING
WARNING! Risk of electric shock.
• Concerning the lamp(s) inside this product and
spare part lamps sold separately: These lamps
are intended to withstand extreme physical
conditions in household appliances, such as
temperature, vibration, humidity, or are intended
to signal information about the operational
status of the appliance. They are not intended to
be used in other applications and are not
suitable for household room illumination.
CARE AND CLEANING
WARNING! Risk of injury or damage
to the appliance.
• Before maintenance, deactivate the appliance
and disconnect the mains plug from the mains
socket.
• This appliance contains hydrocarbons in the
cooling unit. Only a qualified person must do the
maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance
and if necessary, clean it. If the drain is blocked,
4

defrosted water collects in the bottom of the
appliance.
SERVICE
• To repair the appliance contact the Authorised
Service Centre. Use original spare parts only.
• Please note that self-repair or non-professional
repair can have safety consequences and might
void the guarantee.
• The following spare parts will be available for 7
years after the model has been discontinued:
thermostats, temperature sensors, printed
circuit boards, light sources, door handles, door
hinges, trays and baskets. Please note that
some of these spare parts are only available to
professional repairers, and that not all spare
parts are relevant for all models.
• Door gaskets will be available for 10 years after
the model has been discontinued.
DISPOSAL
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to
be closed inside of the appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas.
Contact your municipal authority for information
on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling
unit that is near the heat exchanger.
INSTALLATION
WARNING! Refer to Safety chapters.
5

DIMENSIONS
H1
H2
W1
D1
W2
D2
W3
D3
Overall dimensions ¹
H1 * mm 1860
W1 mm 595
D1 mm 635
¹ the height, width and depth of the appliance
without the handle and feet
* including the height of the top hinge (10 mm)
Space required in use ²
H2 mm 1900
W2 mm 600
D2 mm 706
² the height, width and depth of the appliance
including the handle, plus the space necessary for
free circulation of the cooling air
Overall space required in use ³
H2 mm 1900
W3 mm 660
D3 mm 1213
³ the height, width and depth of the appliance
including the handle, plus the space necessary for
free circulation of the cooling air, plus the space
necessary to allow door opening to the minimum
angle permitting removal of all internal equipment
LOCATION
Refer to the installation instructions for
the installation.
6

This appliance is not intended to be used as a built-
in appliance.
In case of different installation from freestanding
respecting space required in use dimensions, the
appliance will function correctly but energy
consumption might increase slightly.
To ensure appliance's best functionality, you should
not install the appliance in the nearby of the heat
source (oven, stoves, radiators, cookers or hobs) or
in a place with direct sunlight. Make sure that air
can circulate freely around the back of the cabinet.
This appliance should be installed in a dry, well
ventilated indoor position.
To ensure best performance, if the appliance is
positioned below an overhanging wall unit, the
minimum distance between the top of the cabinet
shall be maintained. Ideally, however, the appliance
should not be positioned below overhanging wall
units. One or more adjustable feet at the base of
the cabinet ensure that the appliance stands level.
CAUTION! If you position the
appliance against the wall, use back
spacers provided or keep the minimum
distance indicated in the installation
instructions.
CAUTION! If you install the appliance
next to a wall, refer to the installation
instructions to understand the
minimum distance between the wall
and the side of the appliance where
door hinges are to provide enough
space to open the door when the
internal equipment is removed (e.g.
when cleaning).
This appliance is intended to be used at ambient
temperature ranging from 10°C to 43°C.
The correct operation of the appliance
can only be guaranteed within the
specified temperature range.
If you have any doubts regarding
where to install the appliance, please
turn to the vendor, to our customer
service or to the nearest Authorised
Service Centre.
It must be possible to disconnect the
appliance from the mains power
supply. The plug must therefore be
easily accessible after installation.
ELECTRICAL CONNECTION
• Before plugging in, ensure that the voltage and
frequency shown on the rating plate correspond
to your domestic power supply.
• The appliance must be earthed. The power
supply cable plug is provided with a contact for
this purpose. If the domestic power supply
socket is not earthed, connect the appliance to
a separate earth in compliance with current
regulations, consulting a qualified electrician.
• The manufacturer declines all responsibility if
the above safety precautions are not observed.
• This appliance complies with the E.E.C.
Directives.
REAR SPACERS
You can find the two spacers in the bag with
documentation.
1. Release the screw.
2. Engage the spacer below the screw.
3. Turn the spacer to the right position.
4. Tighten again the screws.
2
43
1
DOOR REVERSIBILITY
Please refer to the separate document with
instructions on installation and door reversal.
CAUTION! At every stage of reversing
the door protect the floor from
scratching with a durable material.
CONTROL PANEL
SWITCHING ON
1. Insert the plug into the wall socket.
2. Turn the temperature regulator clockwise to a
medium setting.
SWITCHING OFF
To turn off the appliance, turn the temperature
regulator to the "O" position.
7

TEMPERATURE REGULATION
The temperature is regulated automatically.
However, you can set a temperature inside the
appliance yourself.
Choose the setting keeping in mind that the
temperature inside the appliance depends on:
• room temperature,
• frequency of opening the door,
• quantity of food stored,
• appliance location.
A medium setting is generally the most suitable
one.
To operate the appliance:
1. Turn the temperature regulator clockwise to
obtain a lower temperature inside the
appliance.
2. Turn the temperature regulator
counterclockwise to obtain a higher
temperature inside the appliance.
DAILY USE
CAUTION! This refrigerating
appliance is not suitable for freezing
foodstuffs.

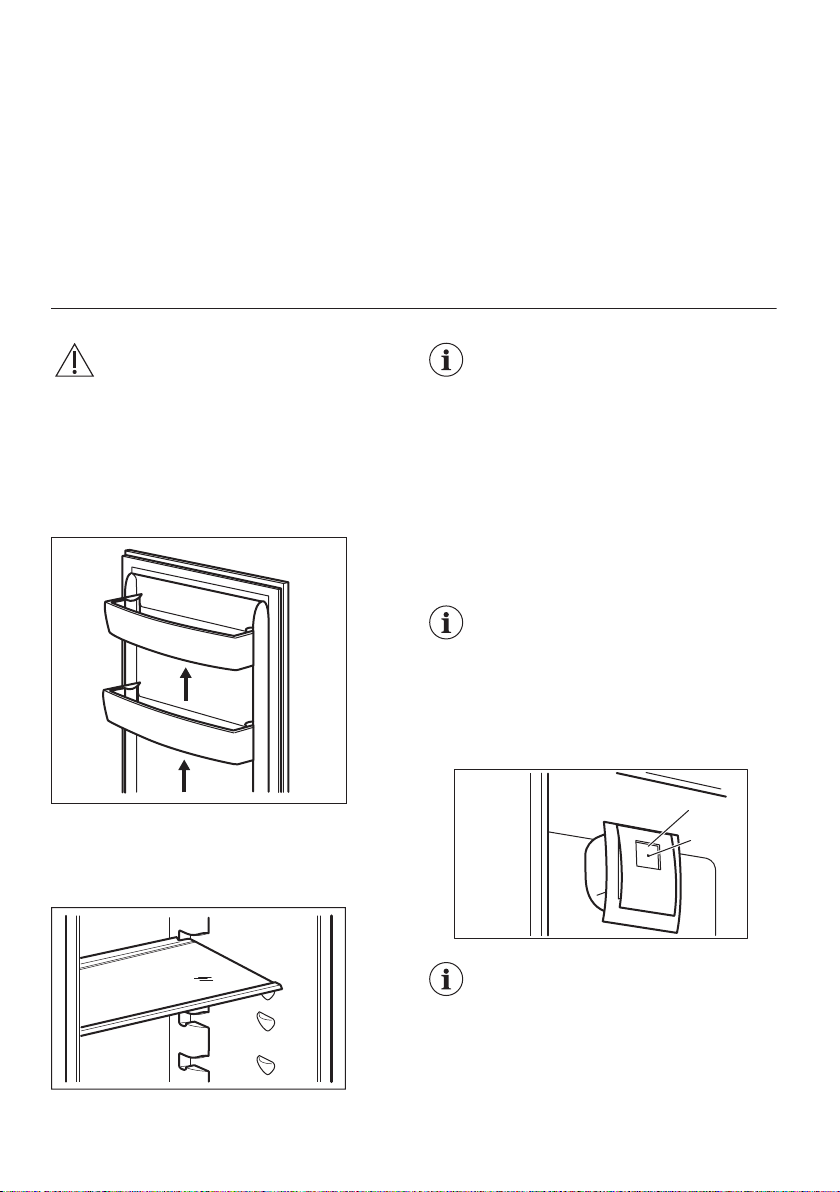

POSITIONING THE DOOR SHELVES
To permit storage of food packages of various
sizes, the door shelves can be placed at different
heights.
1. Gradually pull the shelf up until it comes free.
2. Reposition as required.
MOVABLE SHELVES
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be
positioned as desired.
Do not move the glass shelf above the
vegetable drawer to ensure correct air
circulation.
VEGETABLE DRAWERS
There are special drawers in the bottom part of the
appliance suitable for storage of fruits and
vegetables.
DYNAMICAIR
The refrigerator compartment is equipped with a
device that allows rapid cooling of foods and keeps
more uniform temperature in the compartment.
Switch on the device when you have
to cool down a big amount of food or
when the room temperature is higher
than 35°C to guarantee a greater
homogenization of internal
temperature.
Press the button (A) to switch ON the fan. The
green light (B) appears.
A
B
Before switching off the appliance,
remember to turn off the fan by
pressing the button (A). The green
light (B) disappears.
8

HINTS AND TIPS
HINTS FOR ENERGY SAVING
• Most efficient use of energy is ensured in the
configuration with the drawers in the bottom
part of the appliance and shelves evenly
distributed. Position of the door bins does not
affect energy consumption.
• Do not open the door frequently or leave it open
longer than necessary.
• Do not set too high temperature to save energy
unless it is required by the characteristics of the
food.
• If the ambient temperature is high and the
temperature control is set to low temperature
and the appliance is fully loaded, the
compressor may run continuously, causing frost
or ice formation on the evaporator. In this case,
set the temperature control toward higher
temperature to allow automatic defrosting and
to save energy this way.
• Ensure a good ventilation. Do not cover the
ventilation grilles or holes.
HINTS FOR FRESH FOOD REFRIGERATION
• The medium temperature setting ensures good
preservation of fresh food.
Higher temperature setting inside the appliance
may lead to shorter shelf life of food.
• Cover the food with packaging to preserve its
freshness and aroma.
• Always use closed containers for liquids and for
food, to avoid flavours or odours in the
compartment.
• To avoid the cross-contamination between
cooked and raw food, cover the cooked food
and separate it from the raw one.
• It is recommended to defrost the food inside the
fridge.
• Do not insert hot food inside the appliance.
Make sure it has cooled down at room
temperature before inserting it.
• To prevent food waste the new stock of food
should always be placed behind the old one.
HINTS FOR FOOD REFRIGERATION
• Fresh food compartment is the one marked (on
the rating plate) with .
• Meat (all types): wrap in a suitable packaging
and place it on the glass shelf above the
vegetable drawer. Store meat for at most 1-2
days.
• Fruit and vegetables: clean thoroughly (eliminate
the soil) and place in a special drawer
(vegetable drawer).
• It is advisable not to keep the exotic fruits like
bananas, mangos, papayas etc. in the
refrigerator.
• Vegetables like tomatoes, potatoes, onions, and
garlic should not be kept in the refrigerator.
• Butter and cheese: place in an airtight container
or wrap in an aluminium foil or a polythene bag
to exclude as much air as possible.
• Bottles: close them with a cap and place them
on the door bottle shelf, or (if available) on the
bottle rack.
• In order to accelerate cooling down of the
goods, it is advisable to turn on the fan. The
activation of DYNAMICAIR allows greater
homogenization of internal temperatures.
• Always refer to the expiry date of the products
to know how long to keep them.
CARE AND CLEANING
WARNING! Refer to Safety chapters.
CLEANING THE INTERIOR
Before using the appliance for the first time, the
interior and all internal accessories should be
washed with lukewarm water and some neutral
soap to remove the typical smell of a brand-new
product, then dried thoroughly.
CAUTION! Do not use detergents,
abrasive powders, chlorine or oil-
based cleaners as they will damage
the finish.
CAUTION! The accessories and parts
of the appliance are not suitable for
washing in a dishwasher.
PERIODIC CLEANING
The equipment has to be cleaned regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral soap.
9

2. Regularly check the door seals and wipe them
clean to ensure they are clean and free from
debris.
3. Rinse and dry thoroughly.
DEFROSTING OF THE REFRIGERATOR
Frost is automatically eliminated from the
evaporator of the refrigerator compartment during
normal use. The defrost water drains out through a
trough into a special container at the back of the
appliance, over the motor compressor, where it
evaporates.
It is important to periodically clean the defrost water
drain hole in the middle of the refrigerator
compartment channel to prevent the water
overflowing and dripping onto the food inside.
PERIOD OF NON-OPERATION
When the appliance is not in use for long period,
take the following precautions:
1. Disconnect the appliance from electricity
supply.
2. Remove all food.
3. Clean the appliance and all accessories.
4. Leave the door open to prevent unpleasant
smells.
TROUBLESHOOTING
WARNING! Refer to Safety chapters.
WHAT TO DO IF...
Problem Possible cause Solution
The appliance does not oper-
ate.
The appliance is switched off. Switch on the appliance.
The mains plug is not connec-
ted to the mains socket cor-
rectly.
Connect the mains plug to the
mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains socket.
Contact a qualified electrician.
The appliance is noisy. The appliance is not supported
properly.
Check if the appliance stands
stable.
The compressor operates con-
tinually.
Temperature is set incorrectly. Refer to "Control Panel" chap-
ter.
10

Problem Possible cause Solution
Many food products were put
in at the same time.
Wait a few hours and then
check the temperature again.
The room temperature is too
high.
Refer to "Installation" chapter.
Food products placed in the
appliance were too warm.
Allow food products to cool to
room temperature before stor-
ing.
The door is not closed correct-
ly.
Refer to "Closing the door"
section.
Door is misaligned or interferes
with ventilation grill.
The appliance is not levelled. Refer to installation instruc-
tions.
Door does not open easily. You attempted to re-open the
door immediately after closing.
Wait a few seconds between
closing and re-opening of the
door.
The lamp does not work. The lamp is in stand-by mode. Close and open the door.
The lamp is defective. Refer to "Replacing the lamp"
section.
There is too much frost and
ice.
The door is not closed correct-
ly.
Refer to "Closing the door"
section.
The gasket is deformed or
dirty.
Refer to "Closing the door"
section.
Food products are not wrap-
ped properly.
Wrap the food products better.
Temperature is set incorrectly. Refer to "Control Panel" chap-
ter.
Appliance is fully loaded and is
set to the lowest temperature.
Set a higher temperature. Re-
fer to "Control Panel" chapter.
Temperature set in the appli-
ance is too low and the ambi-
ent temperature is too high.
Set a higher temperature. Re-
fer to "Control Panel" chapter.
Water flows on the rear plate
of the refrigerator.
During the automatic defrost-
ing process, frost melts on the
rear plate.
This is correct.
There is too much condensed
water on the rear wall of the re-
frigerator.
Door was opened too fre-
quently.
Open the door only when nec-
essary.
Door was not closed com-
pletely.
Make sure the door is closed
completely.
Stored food was not wrapped. Wrap food in suitable packag-
ing before storing it in the ap-
pliance.
11

Problem Possible cause Solution
Water flows inside the refriger-
ator.
Food products prevent the wa-
ter from flowing into the water
collector.
Make sure that food products
do not touch the rear plate.
The water outlet is clogged. Clean the water outlet.
Water flows on the floor. The melting water outlet is not
connected to the evaporative
tray above the compressor.
Attach the melting water outlet
to the evaporative tray.
The temperature in the appli-
ance is too low/too high.
The temperature is not set cor-
rectly.
Set a higher/lower tempera-
ture.
The door is not closed correct-
ly.
Refer to "Closing the door"
section.
The food products' tempera-
ture is too high.
Let the food products temper-
ature decrease to room tem-
perature before storage.
Many food products are stored
at the same time.
Store less food products at the
same time.
The door has been opened of-
ten.
Open the door only if necessa-
ry.
There is no cold air circulation
in the appliance.
Make sure that there is cold air
circulation in the appliance.
Refer to "Hints and Tips" chap-
ter.
If the advice does not lead to the
desired result, call the nearest
Authorized Service Centre.
REPLACING THE LAMP
The appliance is equipped with a long-
life LED interior light.
It is strongly recommended to use
original spare parts only.
Use LED bulbs (E14 base) only. The
maximum power is shown on the lamp
unit.
CAUTION! Disconnect the plug from
the mains socket.
1. Pull the left side of the lamp cover with your
fingers to unlock it. Remove the cover by
pulling it towards yourself.
1
2
1
2. Replace the bulb with one of the same power
and shape, specifically designed for household
appliances.
3. Install the lamp cover.
4. Connect the plug to the mains socket.
5. Open the door.
Make sure that the light switches on.
CLOSING THE DOOR
1. Clean the door gaskets.
12

2. If necessary, adjust the door. Refer to
installation instructions.
3. If necessary, replace the defective door
gaskets. Contact the Authorised Service
Centre.
NOISES
SSSRRR!
CLICK!
HISSS!
BRRR!
BLUBB!
TECHNICAL DATA
The technical information is situated in the rating
plate on the internal side of the appliance and on
the energy label.
The QR code on the energy label supplied with the
appliance provides a web link to the information
related to the performance of the appliance
in the EU EPREL database. Keep the energy label
for reference together with the user manual and all
other documents provided with this appliance.
It is also possible to find the same information in
EPREL using the link https://eprel.ec.europa.eu
and the model name and product number that you
find on the rating plate of the appliance.
See the link www.theenergylabel.eu for detailed
information about the energy label.
INFORMATION FOR TEST INSTITUTES
Installation and preparation of the appliance for any
EcoDesign verification shall be compliant with EN
62552. Ventilation requirements, recess
dimensions and minimum rear clearances shall be
as stated in this User Manual at Chapter 3. Please
contact the manufacturer for any other further
information, including loading plans.
13

ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the
packaging in relevant containers to recycle it. Help
protect the environment and human health by
recycling waste of electrical and electronic
appliances. Do not dispose of appliances marked
with the symbol with the household waste.
Return the product to your local recycling facility or
contact your municipal office.
14
*

280158724-D-192021
