Rosslare SA-90 User manual

SA-90/91
Piezo Siren & Strobe January 2013
Installation Manual
1
1. Introduction
The SA-90 and SA-91 are members of Rosslare’s family of wireless and
hardwired sirens that work with all intrusion and fire control panels.
Table 1 describes the different available models.
Table 1: Model Description
Model Functions
SA-91 Hardwired Piezo Siren & Strobe
SA-90G 433.92 MHz Wireless Piezo Siren & Strobe
SA-90H 868.35 MHz Wireless Piezo Siren & Strobe
These are large, inexpensive sirens, with three piezoelectric sounders and
an ultra bright strobe LED array ideal for residential, commercial, and
institutional applications. The featured and stylish design is intended for
indoor and outdoor installation, and is perfect for locations where both
aesthetics and performance are required, such as private homes, store
fronts, medical facilities, and financial or manufacturing institutions.
The SA-90 and SA-91 sirens require no separate power supply; they are
powered and activated from the hosting control panel.
The SA-90 is activated when an alarm occurs by a wireless alarm system
or wireless expansion module, after being enrolled to the system.
The SA-91 needs to be connected to the system's siren output to be
activated when an alarm occurs.
The SA-90 and SA-91 sirens come in blue (L) and amber (A) as shown in
Figure 1.

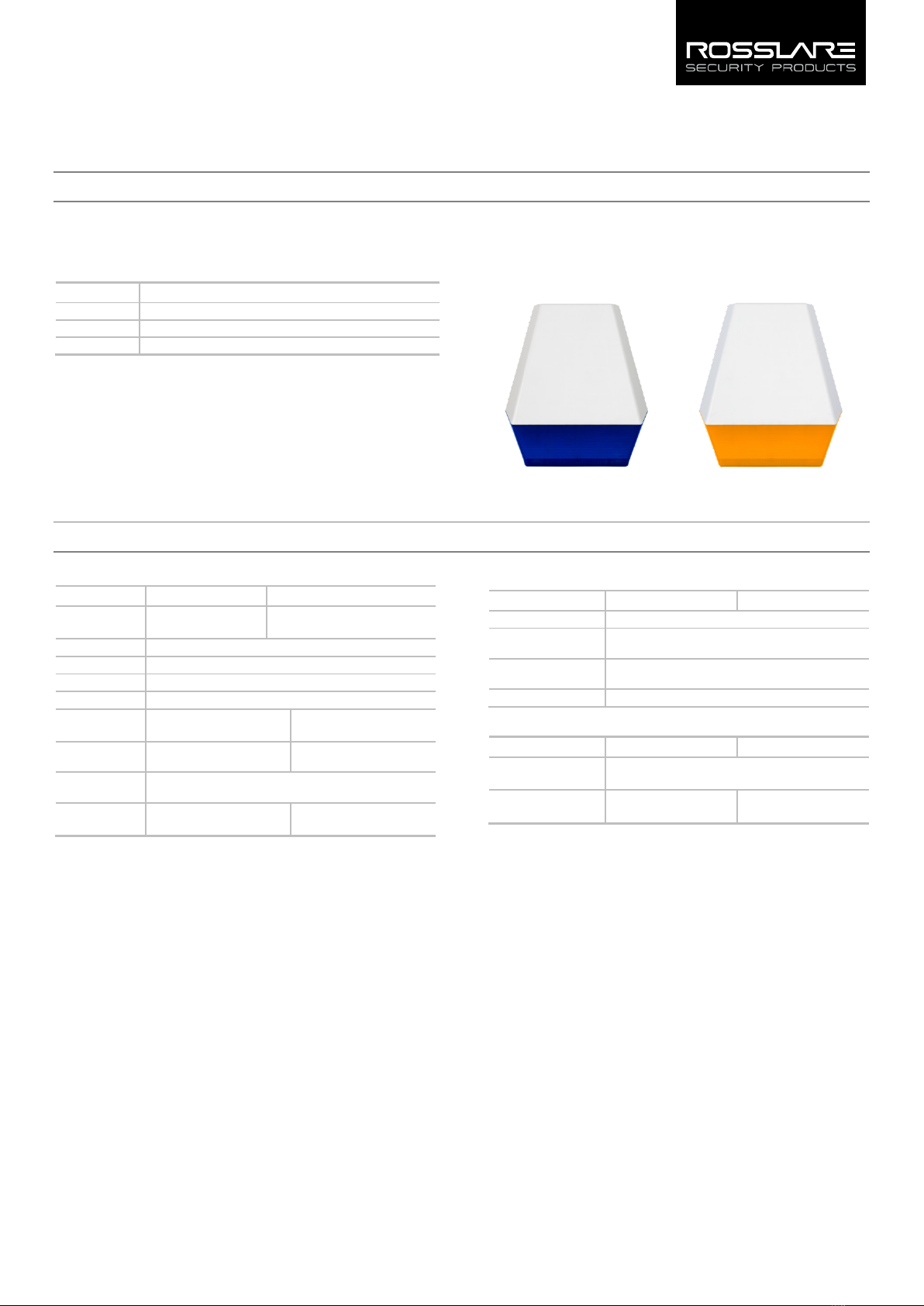

Figure 1: SA-90 and SA-91
SA-90L/91L SA-90A/91A
2. Technical Specifications
2.1 Electrical Specifications
Model SA-91 SA-90
Type Hardwired SA90G: 433.92 MHz Wireless
SA90H: 868.35 MHz Wireless
Siren Type Piezoelectric
SPL 105 dB/100 cm
Strobe Type Ultra bright LED Array
Tamper Cover and Wall
Operating
Voltage
10 VDC ~ 18 VDC
(13.8 VDC from panel)
15 VDC from adaptor
Standby
Current
25 mA 50 mA
Max Battery
Charge Current
150 mA (BT05 12 VDC and 800 mA)
Max. Alarm
Current
180 mA (without sounder)
360 mA (with sounder)
210 mA (without sounder)
390 mA (with sounder)
2.2 Electrical Specifications
SA-91 SA-90
Weatherproof IP65
Operating
Temperature
-20˚C to 50˚C (-4˚F to 122˚F)
Storage
Temperature
-40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity 0% to 95% (non-condensing)
2.3 Physical Specifications
SA-91 SA-90
Dimensions 280.4 x 244.8 x 59.0 mm
(10.9 x 9.6 x 2.4 in.)
Weight (without
battery)
650 g
(23 oz.)
670 g
(24 oz.)

2
3. Installing the SA-90/91
3.1 Mounting the SA-90/91
The SA-90/91 can be easily mounted onto the wall (Figure 2).
To mount the siren on the wall:
1. Open the SA-90/91 case and remove the back plane.
2. Mark the desired location.
3. Drill four holes in the wall accordingly and insert the anchors
provided.
4. Mount and fasten the siren with the screws provided. Ensure that it
is fastened and level.
5. Reassemble the unit after the power and terminals are well
connected.
6. Replace the top cover and make sure the screws are tightened.
7.Mount and fasten the siren with the screws provided. Ensure that it
is fastened and level.
8. Reassemble the unit.
Figure 2: SA-90/91 Mounting Dimensions
4. Setting the SA-91*
* The settings for the SA-90 wireless siren are adjusted using the wireless panel.
Switch (S1) Status Function
SW1 OFF (default) SIREN-INPUT-1 [NO] normal open
ON SIREN-INPUT-1 [NC] normal close
SW2 OFF (default) Intrusion Siren
ON Fire Siren
SW3/SW4 OFF/OFF (default) Siren always ON when activated from SIREN-INPUT-1
ON/OFF Siren ON for 15 minutes when activated from SIREN-INPUT-1
OFF/ON Siren ON for 5 minutes when activated from SIREN-INPUT-1
ON/ON Siren ON for 3 minutes when activated from SIREN-INPUT-1
SW5 OFF (default) STROBE-INPUT-2 [NO] normal open
ON STROBE-INPUT-2 [NC] normal close
SW6 OFF (default) Strobe is activated by SIREN-INPUT-1
ON Strobe is activated by STROBE-INPUT-2
SW7 OFF (default) LED-9 flashes when STROBE-INPUT-2 is activated
ON LED-9 flashes – cycle of 1 second ON and 1 second OFF during Standby mode
SW8 OFF (default) LED-10 flashes for STROBE-INPUT-2 being activated
ON LED-10 flashes for any alerts
5. Wiring Method
The SA-90 wireless siren needs to be wired to a 15 VDC power supply only.
Terminals:
1 2 3 4 5 6 7 8
+Vin Tamper Siren Strobe
(+13.8 V) (-) GND Out (-) GND IN (-) GND IN (-)GND

3
