Rover DEFENDER 300Tdi Instruction manual

This file was downloaded from www.RepairMyLandrover.co.uk
The ONLY site you will ever need when maintaining your Landrover.
AMENDMENT INSTRUCTION SHEET
DEFENDER WORKSHOP MANUAL
Publication Number LRL0097ENG
Amendment Number: LD003.97 Date: 09/97
To ensure that this manual is kept up to date and that a record of amendments to this manual is available, an
Amendment Instruction Sheet will be issued with each set of revised pages.

The Title page of the Manual is re-issued, and the Part No. has been raised to the next edition. Except for the
Contents pages, all revised and new pages have the issue date at the foot of each page, together with an
indication of whether the pages are revised or new.

This Amendment Instruction Sheet must be inserted at the front of the manual to indicate that the amendment
has been incorporated. Do not discard previous Amendment Instruction sheets.

Your manual is only complete to this issue providing all prior Amendments are included.

The filing instructions give section and page numbers affected. Additional pages or complete new sections may
be issued, insert the pages as instructed.
FILING INSTRUCTIONS
Section Discard Existing
Pages Insert New Pages Reason for Amendment
51 - Rear Axle and
Final Drive - Repairs Pages 1 to 5 Pages 1 to 5 Clarification of wheel nut torque figures.
54 - Front Axle and
Final Drive - Repairs Pages 1, and 3 Pages 1, and 3 Clarification of wheel nut torque figures.
57 - Steering - Repairs Page 5 Page 5 Clarification of wheel nut torque figures.
60 - Front Suspension -
Repairs Pages 1, and 3 Pages 1, and 3 Clarification of wheel nut torque figures.
64 - Rear Suspension -
Repairs Page 1 Page 1 Clarification of wheel nut torque figures.
70 - Brakes - Repairs Pages 7, 11, and
13 Pages 7, 11, and
13 Clarification of wheel nut torque figures.
74 - Wheels and Tyres
- Repairs Page 5 Pages 5, and 7 Clarification of wheel nut torque figures.
01
04
05
07
09
10
12
17
19
26
30
33
37
41
47
51
54
57
60
64
74
70
75
76
80
82
84
86
88
Workshop manual
DEFENDER 300Tdi
This manual covers vehicles from
1996 model year
01 INTRODUCTION
04 GENERAL SPECIFICATION DATA
05 ENGINE TUNING DATA
07 GENERAL FITTING REMINDERS
09 LUBRICANTS, FLUIDS AND CAPACITIES
10 MAINTENANCE
12 ENGINE Tdi
19 FUEL SYSTEM Tdi
26 COOLING SYSTEM Tdi
30 MANIFOLD AND EXHAUST SYSTEM
33 CLUTCH
37 MANUAL GEARBOX
41 TRANSFER GEARBOX
47 PROPELLER SHAFTS
51 REAR AXLE AND FINAL DRIVE
54 FRONT AXLE AND FINAL DRIVE
57 STEERING
60 FRONT SUSPENSION
64 REAR SUSPENSION
70 BRAKES
74 WHEELS AND TYRES
76 CHASSIS AND BODY
80 HEATING AND VENTILATION
82 AIR CONDITIONING
84 WIPERS AND WASHERS
86 ELECTRICAL
88 INSTRUMENTS
Publication Part No. LRL 0097 ENG
Published by Rover Technical Communication
1996 Rover Group Limited
INTRODUCTION
1
INFORMATION
INTRODUCTION
This workshop manual covers vehicles from 1996
model year onwards. Amendments and additional
pages will be issued to ensure that the manual covers
latest models. Amendments and additions will be
identified by the addition of a dated footer at the
bottom of the page.
This Workshop Manual is designed to assist skilled
technicians in the efficient repair and maintenance of
Land Rover Defender 300Tdi vehicles.
Individuals who undertake their own repairs should
have some skill and training, and limit repairs to
components which could not affect the safety of the
vehicle or its passengers. Any repairs required to
safety critical items such as steering, brakes,
suspension or supplementary restraint system should
be carried out by a Land Rover Dealer. Repairs to
such items should NEVER be attempted by untrained
individuals.
WARNINGS, CAUTIONS and NOTES are given
throughout this Manual in the following form:
WARNING: Procedures which must be
followed precisely to avoid the possibility
of personal injury.
CAUTION: This calls attention to
procedures which must be followed to
avoid damage to components.
NOTE: This calls attention to methods
which make a job easier or gives helpful
information.
DIMENSIONS
The dimensions quoted are to design engineering
specification. Alternative unit equivalents, shown in
brackets following the dimensions, have been
converted from the original specification.
REFERENCES
References to the left or right hand side in the manual
are made when viewing the vehicle from the rear.
With the engine and gearbox assembly removed, the
crankshaft end of the engine is referred to as the front.
To reduce repetition, some operations covered in this
Manual do not include reference to testing the vehicle
after repair.
It is essential that work is inspected and tested after
completion and if necessary a road test of the vehicle
is carried out, particularly where safety related items
are concerned.
REPAIRS AND REPLACEMENTS
When replacement parts are required it is essential
that Land Rover parts are used.
Attention is particularly drawn to the following points
concerning repairs and the fitting of replacement parts
and accessories: Safety features embodied in the
vehicle may be impaired if other than Land Rover
parts are fitted. In certain territories, legislation
prohibits the fitting of parts not to the vehicle
manufacturer’s specification. Torque spanner values
given in the Workshop Manual must be strictly
adhered to. Locking devices, where specified, must be
fitted. If the efficiency of a locking device is impaired
during removal it must be replaced with a new one.
Certain fasteners must not be re-used. These
fasteners are specified in the Workshop Manual.
POISONOUS SUBSTANCES
Many liquids and other substances used are
poisonous and therefore must not be consumed. It is
also advisable to keep all substances away from open
wounds. These substances among others include
anti-freeze, brake fluid, fuel, windscreen washer
additives, air conditioning refrigerant, lubricants and
various adhesives.
01 INTRODUCTION
2INFORMATION
FUEL HANDLING PRECAUTIONS
The following information provides basic precautions
which must be observed if fuel is to be handled safely.
It also outlines the other areas of risk which must not
be ignored.
This information is issued for basic guidance only, and
in any case of doubt, appropriate enquiries should be
made of your local Fire Officer or Fire Department.
Fuel vapour is highly flammable and in confined
spaces is also very explosive and toxic and when
diluted with air becomes a readily ignitable mixture.
The vapour is heavier than air and will always fall to
the lowest level. It can readily be distributed
throughout a workshop by air current, consequently,
even a small spillage of fuel is very dangerous.
Always have a fire extinguisher containing FOAM CO2
GAS, or POWDER close at hand when handling fuel,
or when dismantling fuel systems and in areas where
fuel containers are stored.
WARNING: lt is imperative that the battery
is not disconnected during fuel system
repairs as arcing at the battery terminal
could ignite fuel vapour in the atmosphere.
Always disconnect the vehicle battery BEFORE
carrying out work on the fuel system.
Whenever fuel is being handled, transferred or
stored, or when fuel systems are being dismantled
all forms of ignition must be extinguished or
removed, any leadlamps used must be flame proof
and kept clear of spillage.
No one should be permitted to repair components
associated with fuel without first having had fuel
system training.
Hot fuel handling precautions
WARNING: Before commencing any
operation requiring fuel to be drained from
the fuel tank, the following procedure must
be adhered to:
1. Allow sufficient time for the fuel to cool, thus
avoiding contact with hot fuels.
2. Vent the system by removing the fuel filler cap in
a well ventilated area. Refit the filler cap until the
commencement of fuel drainage.
Fuel transfer
WARNING: Fuel must not be extracted or
drained from any vehicle while it is
standing over a pit.
The transfer of fuel from the vehicle fuel tank must be
carried out in a well ventilated area. An approved
transfer tank must be used according to the transfer
tank manufacturer’s instructions and local regulations,
including attention to grounding of tanks.
Fuel tank removal
AFUEL VAPOUR warning label must be attached to
the fuel tank upon removal from the vehicle.
Fuel tank repair
Under no circumstances should a repair to any tank
be attempted.
INTRODUCTION
3
INFORMATION
SYNTHETIC RUBBER
Many ’0’ ring seals, flexible pipes and other similar
items which appear to be natural rubber are made of
synthetic materials called Fluoroelastomers. Under
normal operating conditions this material is safe, and
does not present a health hazard. However, if the
material is damaged by fire or excessive heat, it can
break down and produce highly corrosive Hydrofluoric
acid which can cause serious burns on contact with
skin. Should the material be in a burnt or overheated
condition handle only with seamless industrial gloves.
Decontaminate and dispose of the gloves immediately
after use.
If skin contact does occur, remove any contaminated
clothing immediately and obtain medical assistance
without delay. In the meantime, wash the affected
area with copious amounts of cold water or limewater
for fifteen to sixty minutes.
RECOMMENDED SEALANTS
A number of branded products are recommended in
this manual for use during maintenance and repair
work.
These items include:
HYLOMAR GASKET AND JOINTING COMPOUND
and
HYLOSIL RTV SILICONE COMPOUND.
They should be available locally from garage
equipment suppliers. If there is any problem obtaining
supplies, contact the following company for advice
and the address of the nearest supplier.
MARSTON LUBRICANTS LTD.
Hylo House,
Cale Lane,
New Springs,
Wigan WN2 1JR
Tel 01942 824242
USED ENGINE OIL
WARNING: Prolonged and repeated
contact with engine or motor oil will result
in the removal of natural fats from the
skin, leading to dryness, irritation and dermatitis.
Used engine oil contains potentially harmful
contaminants which may cause skin cancer.
Adequate means of skin protection and washing
facilities should be provided.
Handling precautions
1. Avoid prolonged and repeated contact with oils,
particularly used engine oils.
2. Wear protective clothing, including impervious
gloves where applicable.
3. Do not put oily rags in pockets.
4. Avoid contaminating clothes, particularly
underwear, with oil.
5. Overalls must be cleaned regularly. Discard
unwashable clothing and oil impregnated
footwear.
6. First aid treatment must be obtained immediately
for open cuts and wounds.
7. Use barrier creams, before each work period, to
help the removal of oil from the skin.
8. Wash with soap and water to ensure all oil is
removed (skin cleansers and nail brushes will
help). Preparations containing lanolin replace the
natural skin oils which have been removed.
9. Do not use gasoline, kerosene, diesel fuel,
petrol, thinners or solvents for washing the skin.
10. If skin disorders develop, obtain medical advice.
11. Where practicable, degrease components prior
to handling.
12. Where there is a risk of eye contact, eye
protection should be worn, for example, goggles
or face shields; in addition an eye wash facility
should be provided.
Disposing of used oils
Environmental protection precaution
It is illegal to pour used oil onto the ground, down
sewers or drains, or into waterways.
Dispose of used oil through authorised waste disposal
contractors. If in doubt contact your Local Authority for
advice on disposal facilities.
01 INTRODUCTION
4INFORMATION
ACCESSORIES AND CONVERSIONS
DO NOT FIT unapproved accessories or conversions,
as they could affect the safety of the vehicle.
Land Rover will not accept liability for death, personal
injury, or damage to property which may occur as a
direct result of the fitting of non-approved conversions
to the vehicle.
WHEELS AND TYRES
WARNING: DO NOT replace the road
wheels with any type other than genuine
Land Rover wheels which are designed for
multi-purpose on and off road use and have very
important relationships with the proper operation
of the suspension system and vehicle handling.
Replacement tyres must be of the make and sizes
recommended for the vehicle, and all tyres must
be the same make, ply rating and tread pattern.
STEAM CLEANING
To prevent consequential rusting, any steam cleaning
within the engine bay MUST be followed by careful
re-waxing of the metallic components affected.
Particular attention must be given to the steering
column, engine coolant pipes and hose clips.
SPECIFICATION
The specification details and instructions set out in
this Manual apply only to a range of vehicles and not
to any one. For the specification of a particular vehicle
purchasers should consult their Dealer.
The Manufacturer reserves the right to vary
specifications with or without notice, and at such times
and in such manner as it thinks fit. Major as well as
minor changes may be involved in accordance with
the Manufacturer’s policy of constant product
improvement.
Whilst every effort is made to ensure the accuracy of
the particulars contained in this Manual, neither the
Manufacturer or Dealer, by whom this Manual is
supplied, shall in any circumstances be held liable for
any inaccuracy or the consequences thereof.
SPECIAL SERVICE TOOLS
The use of approved special service tools is
important. They are essential if service operations are
to be carried out efficiently, and safely. Where special
tools are specified, only these tools should be used
to avoid the possibility of personal injury or
damage to the components. Also, the amount of
time which they save can be considerable.
Special tools bulletins will be issued periodically giving
details of new tools as they are introduced.
All orders and enquiries from the United Kingdom
should be sent direct to V. L. Churchill. Overseas
orders should be placed with the local V. L. Churchill
distributor, where one exists. Countries where there is
no distributor may order direct from:
V. L. Churchill Limited,
PO Box 3,
Daventry, Northants,
England, NN11 4NF.
The tools recommended in this Workshop Manual are
listed in a multi-language illustrated catalogue,
obtainable from:
Messers. V. L. Churchill at the above address,
or from:
Land Rover Publications,
Character Mailing,
Heysham Road,
Bootle,
Merseyside, L70 1JL
COPYRIGHT
1996 Rover Group Limited
All rights reserved. No part of this publication may be
produced, stored in a retrieval system or transmitted
in any form, electronic, mechanical, recording or other
means without prior written permission of Rover
Group.
INTRODUCTION
5
INFORMATION
JACKING
The following instructions must be carried out before
raising the vehicle off the ground.
1. Use a solid level ground surface.
2. Apply parking brake.
3. Select 1st gear in main gearbox.
4. Select Low range in transfer gearbox.
CAUTION: To avoid damage occurring to
the under body components of the vehicle
the following jacking procedures must be
adhered to.
DO NOT POSITION JACKS OR AXLE STANDS
UNDER THE FOLLOWING COMPONENTS.
Body structure
Bumpers
Fuel lines
Brake lines
Front radius arms
Panhard rod
Steering linkage
Rear Trailing links
Fuel tank
Engine sump
Gearbox bell housing
Jack or support vehicle by axles only.
Vehicle jack
The jack provided with the vehicle is only intended to
be used in an emergency, for changing a tyre. Do
NOT use the jack for any other purpose. Refer to
Owner’s Manual for vehicle jack location points and
procedure. Never work under a vehicle supported by
the vehicle jack.
Hydraulic jack
A hydraulic jack with a minimum 1500 kg, 3,300 lbs
load capacity must be used, see J6083.
CAUTION: Do not commence work on the
underside of the vehicle until suitable axle
stands have been positioned under the
axle, see J6084.
Raise the front of the vehicle
1. Position cup of hydraulic arm under differential
casing.
NOTE: The differential casing is not
central to the axle. Care should be taken
when raising the front road wheels off the
ground as the rear axle has less sway stiffness.
2. Raise front road wheels to enable an axle stand
to be installed under left hand axle tube.
01 INTRODUCTION
6INFORMATION
3. Position an axle stand under right hand axle
tube, carefully lower jack until axle sits securely
on both axle stands, remove trolley jack.
4. Before commencing work on underside of
vehicle re-check security of vehicle on stands.
5. Reverse procedure when removing vehicle from
stands.
Raise rear of vehicle
1. Position cup of hydraulic arm under differential
casing.
2. Raise vehicle to enable axle stands to be
installed under left and right hand axle tubes.
3. Lower jack until axle sits securely on axle
stands, remove trolley jack.
4. Before commencing work on underside of
vehicle re-check security of vehicle on stands.
5. Reverse procedure when removing vehicle from
stands.
HYDRAULIC VEHICLE RAMP (FOUR POST)
Use only a ’drive on’ type ramp which supports vehicle
on its road wheels. If a ’wheel-free’ condition is
required, use a ’drive on’ ramp incorporating a
’wheel-free’ system providing support beneath axle
casings. Alternatively, place vehicle on a firm, flat floor
and support on axle stands.
TWO POST VEHICLE RAMPS
The manufacturer of LAND ROVER VEHICLES
DOES NOT recommend using ’Two Post’ ramps
that employ four adjustable support arms. These
are NOT considered safe for Land Rover vehicles.
If vehicle is installed on a Two Post ramp
responsibility for safety of vehicle and personnel
performing service operations is in the hands of
the Service Provider.
DYNAMOMETER TESTING
The front and rear axles cannot be driven
independently.
WARNING: DO NOT attempt to drive
individual wheels with vehicle supported
on floor jacks or stands.
Four wheel dynamometers
Provided that front and rear dynamometer rollers are
rotating at identical speeds and that normal workshop
safety standards are applied, there is no speed
restriction during testing except any that may apply to
the tyres.
Two wheel dynamometers
IMPORTANT: Use a four wheel dynamometer for
brake testing if possible.
If brake testing on a single axle rig is necessary it
must be carried out with propeller shaft to rear axle
removed, AND neutral selected in BOTH main
gearbox and transfer gearbox. When checking brakes,
run engine at idle speed to maintain servo vacuum.
If checking engine performance, the transfer box must
be in high range and propeller shaft to stationary axle
must be removed.
INTRODUCTION
7
INFORMATION
TOWING
CAUTION: The vehicle has permanent
four-wheel drive. The following towing
instructions must be adhered to:
Towing the vehicle on all four wheels with driver
operating steering and brakes.
1. Turn ignition key to position ’1’ to release
steering lock.
2. Select neutral in main gearbox and transfer
gearbox.
3. Secure tow rope, chain or cable to front towing
eyes (alternative types shown).
4. Release the parking brake.
CAUTION: The brake servo and power
assisted steering system will not be
functional without the engine running.
Greater pedal pressure will be required to apply
the brakes, the steering system will require
greater effort to turn the front road wheels.
The vehicle tow connection should be used only
in normal road conditions, ’snatch’ recovery
should be avoided.
Rear suspended tow by breakdown vehicle
1. If the front axle is to be trailed turn ignition key to
position ’1’ to release steering lock.
2. Select neutral in main gearbox and transfer box.
CAUTION: The steering wheel and/or
linkage must be secured in a straight
ahead position. DO NOT use the steering
lock mechanism for this purpose.
TRANSPORTING THE VEHICLE BY TRAILER
Lashing/towing eyes are provided on front and rear of
the chassis side members, see J6085, to facilitate the
securing of the vehicle to a trailer or other means of
transportation.
CAUTION: Underbody components must
not be used as lashing points.
Install vehicle on trailer and apply park brake. Select
neutral in main gearbox.
01 INTRODUCTION
8INFORMATION
JUMP STARTING
WARNING: Hydrogen and oxygen gases
are produced during normal battery
operation. This gas mixture can explode if
flames, sparks or lighted tobacco are brought
near battery. When charging or using a battery in
an enclosed space, always provide ventilation and
shield your eyes.
Keep out of reach of children. Batteries contain
sulphuric acid. Avoid contact with skin, eyes, or
clothing. Also, shield eyes when working near
battery to protect against possible splashing of
acid solution. In case of acid contact with skin,
eyes, or clothing, flush immediately with water for
a minimum of fifteen minutes. If acid is swallowed,
drink large quantities of milk or water, followed by
milk of magnesia, a beaten egg, or vegetable oil.
SEEK MEDICAL AID IMMEDIATELY.
To Jump Start - Negative Ground Battery
WARNING: To avoid any possibility of
injury use particular care when connecting
a booster battery to a discharged battery.
1. Position vehicles so that jump leads will reach,
ensuring that vehicles DO NOT TOUCH,
alternatively a fully charged slave battery may be
positioned on floor adjacent to vehicle.
2. Ensuring that ignition and all electrical
accessories are switched off, that parking brake
is applied and neutral is selected, connect the
jump leads as follows;
A. Connect one end of first jumper cable to positive
(+) terminal of booster battery.
B. Connect other end of first jumper cable to positive
(+) terminal of discharged battery.
C. Connect one end of second jumper cable to
negative terminal of booster battery.
D. Connect other end of second jumper cable to a
good earth point on the disabled vehicle (eg. engine
front lifting eye, as shown in J6086), NOT TO
NEGATIVE TERMINAL OF DISCHARGED
BATTERY. Keep jumper lead away from moving
parts, pulleys, drive belts and fan blade assembly.
WARNING: Making final cable connection
could cause an electrical arc which if
made near battery could cause an
explosion.
3. If booster battery is installed in another vehicle,
start engine and allow to idle.
4. Start engine of vehicle with discharged battery,
following starting procedure in Owners’ Manual.
CAUTION: If vehicle fails to start within a
maximum time of 12 seconds, switch
ignition off and investigate cause. Failing
to follow this instruction could result in
irrepairable damage to catalyst, if fitted.
5. Remove negative (-) jumper cable from the
engine and then terminal of booster battery.
6. Remove positive (+) jumper cable from positive
terminals of booster battery and discharged
battery.
INTRODUCTION
9
INFORMATION
ABBREVIATIONS AND SYMBOLS USED IN THIS
MANUAL
Across flats (bolt size) AF............................................
After bottom dead centre ABDC...................................
After top dead centre ATDC.........................................
Alternating current a.c..................................................
Ampere amp................................................................
Ampere hour amp hr....................................................
Before bottom dead centre BBDC................................
Before top dead centre BTDC......................................
Bottom dead centre BDC.............................................
Brake horse power bhp................................................
British Standards BS....................................................
Carbon monoxide CO..................................................
Centimetre cm.............................................................
Centigrade (Celsius) C................................................
Cubic centimetre cm3
...................................................
Cubic inch in3
...............................................................
Degree (angle) deg or °...............................................
Degree (temperature) deg or °.....................................
Diameter dia................................................................
Direct current d.c..........................................................
Electronic Control Unit ECU........................................
Fahrenheit F.................................................................
Feet ft...........................................................................
Feet per minute ft/min..................................................
Fifth 5th........................................................................
First 1st........................................................................
Fluid ounce fl oz..........................................................
Foot pounds (torque) lbf ft............................................
Fourth 4th.....................................................................
Gramme (force) gf........................................................
Gramme (mass) g........................................................
Gallons gal...................................................................
High tension (electrical) H.T.........................................
Internal diameter I.D....................................................
Inches of mercury in. Hg..............................................
Inches in......................................................................
Kilogramme (force) kgf.................................................
Kilogramme (mass.) kg................................................
Kilogramme centimetre (torque) kgf.cm.......................
Kilogramme per square millimetre kgf/mm2
.................
Kilogramme per square centimetre kgf/cm2
.................
Kilogramme metres (torque) kgf.m..............................
Kilometres km..............................................................
Kilometres per hour km/h.............................................
Kilovolts kV...................................................................
Left-hand LH................................................................
Left-hand steering LHStg.............................................
Left-hand thread LHThd...............................................
Litres litre.....................................................................
Low tension l.t..............................................................
Maximum max.............................................................
Metre m........................................................................
Millilitre ml....................................................................
Millimetre mm...............................................................
Miles per gallon mpg....................................................
Miles per hour mph......................................................
Minute (angle) ’............................................................
Minus (of tolerance) -...................................................
Negative (electrical) -...................................................
Newton metres (torque) Nm........................................
Number No..................................................................
Ohms ohm...................................................................
Ounces (force) ozf.......................................................
Ounces (mass) oz........................................................
Ounce inch (torque) ozf.in...........................................
Outside diameter O.D..................................................
Part number Part No....................................................
Percentage %...............................................................
Pints pt.........................................................................
Plus (tolerance) +.........................................................
Positive (electrical) +....................................................
Pound (force) lbf..........................................................
Pounds inch (torque) in.lbf...........................................
Pound (mass) lb...........................................................
Pounds per square inch P.S.I......................................
Ratio :...........................................................................
Reference ref...............................................................
Revolution per minute rev/min.....................................
Right-hand RH.............................................................
Second (angle) "...........................................................
Second (numerical order) 2nd......................................
Specific gravity sp.gr....................................................
Square centimetres cm2
...............................................
Square inches in2
.........................................................
Standard wire gauge s.w.g..........................................
Synchroniser/Synchromesh synchro...........................
Third 3rd.......................................................................
Top dead centre TDC..................................................
United Kingdom UK......................................................
Vehicle Identification Number VIN...............................
Volts V.........................................................................
Watts W.......................................................................
SCREW THREADS
British Standard Pipe BSP...........................................
Unified Coarse UNC....................................................
Unified Fine UNF.........................................................
01 INTRODUCTION
10 INFORMATION
CROSS REFERENCE OF EMISSION SYSTEM
TERMINOLOGY
NEW TERM (ACRONYM)
Accelerator pedal (AP).................................................
Air cleaner (ACL)..........................................................
Air conditioning (AC)....................................................
Battery positive voltage (B+)........................................
Closed loop (CL)..........................................................
Closed throttle position (CTP)......................................
Canister purge valve (CANPV)....................................
Data link connector (DLC)...........................................
Diagnostic trouble code (DTC).....................................
Distributor ignition (DI).................................................
Engine control module (ECM)......................................
Engine coolant level (ECL)...........................................
Engine coolant temperature (ECT)..............................
Engine coolant temperature sensor (ECTS)................
Engine speed (RPM)....................................................
Evaporative emission system (EVAP)..........................
Engine fuel temperature sensor (EFTS)......................
4th gear, 3rd gear etc. (4GR, 3GR)..............................
Fuel pump (FP)............................................................
Fan control module (FCM)...........................................
Generator (GEN)..........................................................
Ground (GND)..............................................................
Heated oxygen sensor (H02S)....................................
Idle air control (IAC)......................................................
Idle air control valve (IACV).........................................
Ignition control module (ICM).......................................
Intake air temperature (IAT).........................................
Manifold vacuum zone (MVZ)......................................
Mass air flow sensor (MAFS).......................................
Open loop (OL)............................................................
Relay module (RM)......................................................
Solid state relay module (SSRM).................................
Three way catalytic converter (TWC)..........................
Throttle body (TB)........................................................
Throttle position sensor (TPS)......................................
Transmission range (TR)..............................................
Wide open throttle (WOT)............................................
OLD TERM (ACRONYM)
Throttle pedal (-)..........................................................
Air cleaner (-)...............................................................
Air conditioning (AC)....................................................
Battery plus, bat +, bat feed (B+).................................
Closed loop (-).............................................................
Closed throttle, idle position (-)....................................
Charcoal canister purge valve (-).................................
Serial link (-)................................................................
Fault code (-)...............................................................
Electronic ignition (-)....................................................
Electronic control unit (ECU)........................................
Coolant level (-)...........................................................
Coolant temperature (temp).........................................
Coolant temperature thermistor (-)..............................
Engine speed (rev/min)................................................
Evaporative loss system (ELC)...................................
Fuel temperature thermistor (-)....................................
Fourth gear, 3rd gear (-)..............................................
Fuel pump (-)...............................................................
Condenser fan timer (-)................................................
Alternator (-)................................................................
Ground, earth (B-)........................................................
Lambda (02) sensor (-)................................................
Idle speed control (ISC)................................................
Stepper motor (-).........................................................
Ignition module (-)........................................................
Intake temperature/ambient temperature (-)................
Manifold depression, vacuum (-).................................
Air flow meter (-)..........................................................
Fault code display unit (-)............................................
Open loop (-)...............................................................
Relay (-).......................................................................
Control unit (-)..............................................................
Catalyst, catalytic converter (CAT)..............................
Throttle housing (-)......................................................
Transmission gear (-)...................................................
Full throttle, wide open throttle (WOT).........................
INTRODUCTION
11
INFORMATION

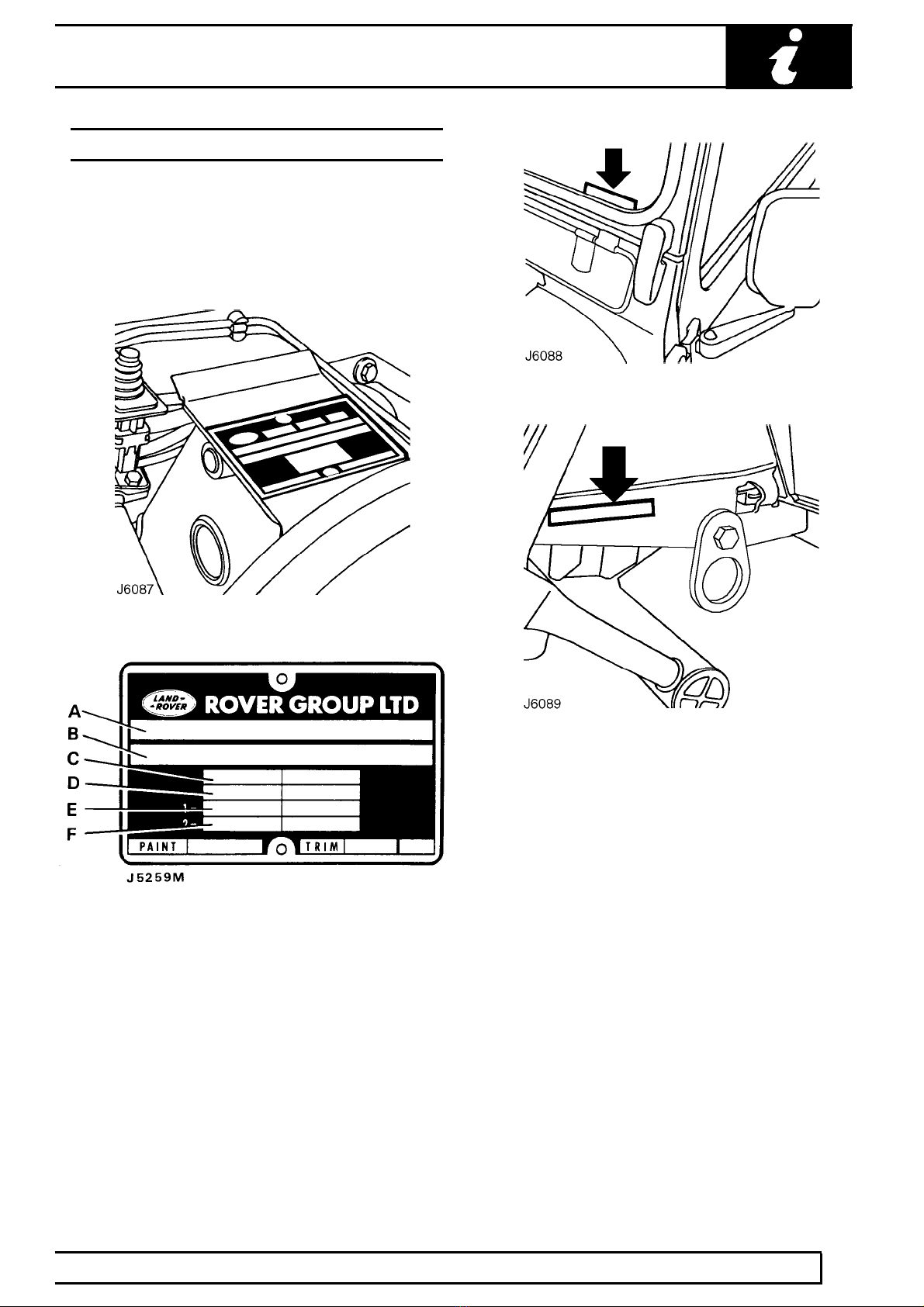

VEHICLE IDENTIFICATION NUMBER (VIN)
The Vehicle Identification Number and the
recommended maximum vehicle weights are stamped
on a plate riveted to the brake pedal box in the engine
compartment. The VIN is also stamped on a plate
visible through the LH side of the windscreen, see
J6088.
A. Type approval
B. Identification
C. Maximum permitted laden weight for vehicle
D. Maximum vehicle and trailer weight
E. Maximum road weight-front axle
F. Maximum road weight-rear axle
The number is also stamped on the RH side of the
chassis to the rear of the front lashing eye, see J6089.
The Vehicle Identification Number identifies the
manufacturer, model range, wheel base, body type,
engine, steering, transmission, model year and place
of manufacture. The following example shows the
coding process.
SAL LD HMF7TA
SAL = World manufacturer identifier
LD = Land Rover Defender
H= 110 inch, V= 90inch, K= 130 inch
M= 4 door Station Wagon, A= 90 Soft Top, Hard Top,
Pick-up, B= 2 door Station Wagon, E= 2 door 130
Crew cab, F= 4 door 130 Crew cab, H= 130 High
Capacity Pick-up
F= 2.5L (300Tdi)
7= RH drive, 5 speed manaul, 8= LH drive, 5 speed
manual
T= 1996 MY, volume build, N= 1996 MY, non-volume
build
A= Solihull build, F= CKD, assembled locally from kit
01 INTRODUCTION
12 INFORMATION
LOCATION OF IDENTIFICATION NUMBERS
Engine serial number - 300Tdi Engine
The 300Tdi engine number is stamped on the cylinder
block on the RH side of the engine above the
camshaft front cover plate.
Main gearbox R380 serial number
Stamped on a cast pad on the bottom RH side of the
gearbox.
Transfer gearbox LT230 serial number
The serial number is stamped on the LH side of the
gearbox casing below the mainshaft rear bearing
housing adjacent to the bottom cover, see J6092.
Front axle serial number
Stamped on the front of LH axle tube, inboard of
radius arm mounting bracket.
Rear axle serial number
Stamped on the rear of LH axle tube, inboard of
spring mounting.
INTRODUCTION
13
INFORMATION

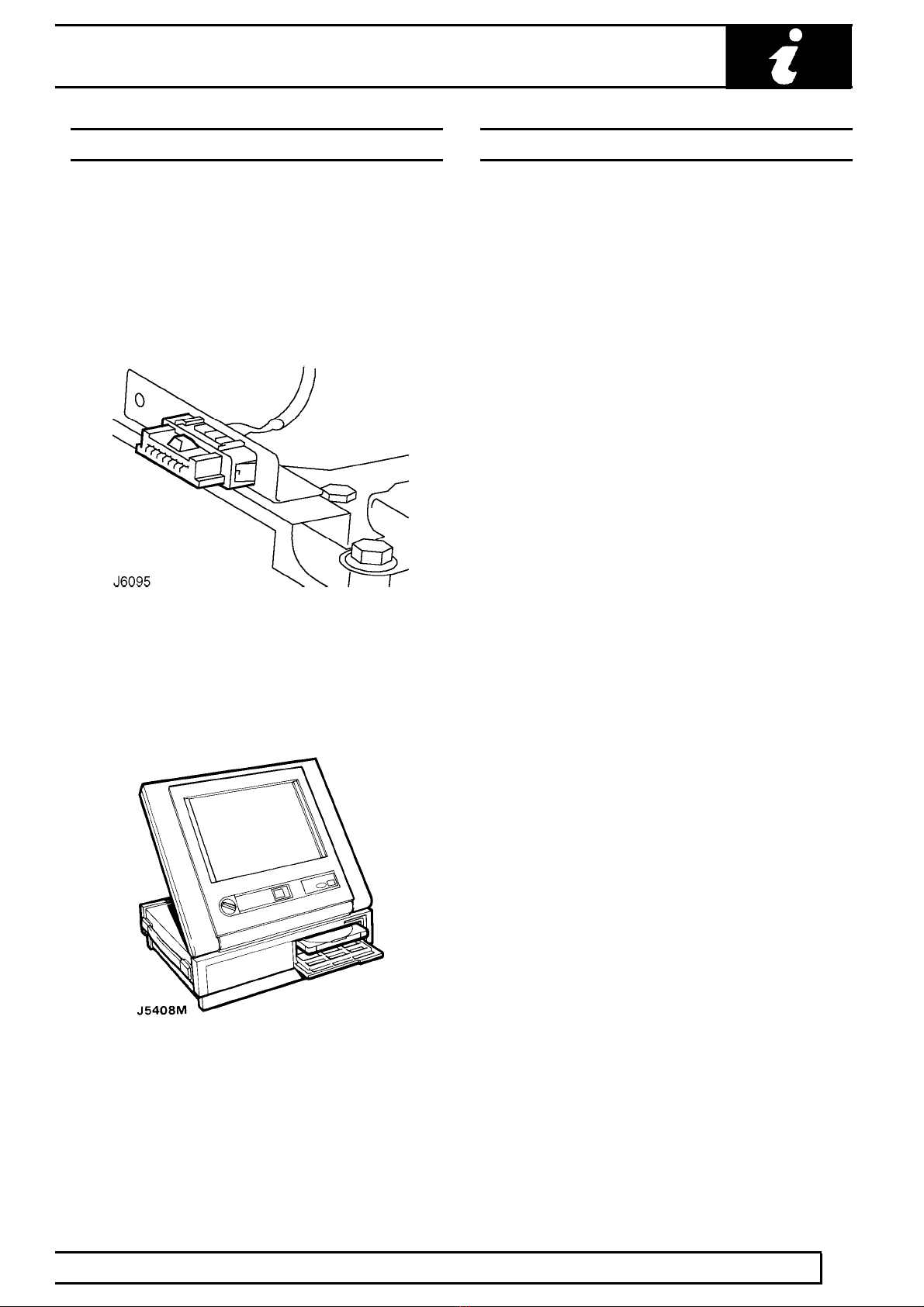

FAULT DIAGNOSTIC EQUIPMENT
TESTBOOK
For Defender models fitted with the vehicle Anti-theft
Immobilisation and Alarm System, diagnostic
equipment, named TestBook, is available to assist in
the diagnostic and fault finding abilities of the Dealer
workshop. A diagnostic connector, located under the
front centre seat, or cubby box, as shown below, is
provided to facilitate the procedures.
If an exhaust gas recirculation (EGR) system is fitted,
this too can be checked using TestBook. A diagnostic
connector, also located under the front centre seat or
cubby box, is provided.
Features of Testbook include :-
Fully upgradable support for the technician.
Structured diagnostics to accommodate all skill levels.
Touch screen operation.
Direct print out of screen information and test results.
READING THIS MANUAL
This manual is divided into sections shown on the
contents page, alongside a range of icons, familiar to
service technicians.
Relevant information is contained within each of these
sections. These are further divided into the following
sub-sections which appear at the foot of each page :-
Description and operation.
Fault diagnosis.
Adjustment.
Repair.
Overhaul.
Specifications, Torque.
To avoid repeating information through the sections,
where part of the repair operation impacts on another
section, a cross reference is given to direct the reader
to where the information is sited.
For example:
The maintenance section states the need to renew
drive belt. A cross reference sites this information in:
Section 12 Engine
- Sub-section: Repairs
- Heading: Drive belt renew.
GENERAL SPECIFICATION DATA
1
INFORMATION
300Tdi ENGINE
Type Direct injection, turbocharged, intercooled.................................................................................
Number of cylinders 4.........................................................
Bore 90,47 mm.................................................................................
Stroke 97,00 mm...............................................................................
Capacity 2495 cc...........................................................................
Compression ratio 19.5:1 ±0.5:1............................................................
Valve operation O.H.V. pushrod operated................................................................
Crankshaft
Main bearing journal diameter 63,475 - 63,487 mm..........................................
Regrind dimensions 63,233 - 63,246 mm.........................................................
Crankpin journal diameter 58,725 - 58,744 mm................................................
Regrind dimensions 58,471 - 58,490 mm.........................................................
Crankshaft end thrust Taken on thrust washers at centre main bearing.......................................................
Crankshaft end float 0,05 - 0,15 mm.........................................................
Main bearings
Number and type 5 halved shells with oil grooves..............................................................
Diametrical clearance 0,0792 - 0,0307 mm.......................................................
Connecting rods
Length between centres 175,38 - 175,43 mm...................................................
Diametrical clearance (big-end bearings) 0,025 - 0,075 mm........................
End float on crankpin 0,15 - 0,356 mm.......................................................
Pistons
Type Aluminium alloy, combustion chamber in crown.................................................................................. Graphite coating on sidewalls.
Skirt diametrical clearance (at r/angle to gudgeon pin) 0,025 - 0,05 mm....
Maximum height above combustion face 0,8 mm.........................
Gudgeon pins
Type Fuly floating.................................................................................
Fit in piston Hand push fit.......................................................................
Diameter 30,156 - 30,163 mm..........................................................................
Clearance in connecting rod 0,003 - 0,016 mm............................................
Piston rings
Type:- Top Barrel edge, chrome plated........................................................................
- Second Taper faced..................................................................
- Oil control Expander and rails..............................................................
Gap in bore:
- Top 0,40 - 0,60 mm........................................................................
- Second 0,30 - 0,50 mm..................................................................
- Oil control 0,30 - 0,60 mm..............................................................
Clearance in piston grooves:
- Second 0,050 - 0,085 mm..................................................................
- Oil control 0,050 - 0,085 mm..............................................................
04 GENERAL SPECIFICATION DATA
2INFORMATION
Camshaft
Drive 30 mm wide dry toothed belt.................................................................................
Location Right hand side (thrust side)...........................................................................
End float 0,1 - 0,2 mm...........................................................................
Number of bearings 4..........................................................
Material Steel shell, white metal lined............................................................................
Valves
Tappet clearance:
- Inlet and exhaust 0,20 mm...................................................
Seat angle:
- Inlet 30°.......................................................................
- Exhaust 45°.................................................................
Head diameter:
- Inlet 38,75 - 39,05 mm.......................................................................
- Exhaust 36,35 - 36,65 mm.................................................................
Stem diameter:
- Inlet 7,960 - 7,975 mm.......................................................................
- Exhaust 7,940 - 7,960 mm.................................................................
Valve lift:
- Inlet 9,67 mm.......................................................................
- Exhaust 9,97 mm.................................................................
Cam lift:
- Inlet 6,81 mm.......................................................................
- Exhaust 7,06 mm.................................................................
Valve head stand down:
- Inlet 0,81 - 1,09 mm.......................................................................
- Exhaust 0,86 - 1,14 mm.................................................................
Valve springs
Type Single coil.................................................................................
Length, free 46,28 mm......................................................................
Length, under 21 kg load 40,30 mm.................................................
Lubrication
System Wet sump, pressure fed.............................................................................
Pressure, engine warm at normal operating speeds 1,76 - 3,87Kgf/cm2(25 - 55 Ibf/in2)........
Oil pump:
- Type G-rotor integral with front cover.......................................................................
- Drive off crankshaft nose.....................................................................
Oil pressure relief valve Non-adjustable....................................................
Relief valve spring:
- Full length 51,6mm......................................................................
- Compressed length at 7.71Kg load 31mm................................
Oil filter Screw-on disposable canister.............................................................................
Engine oil cooler Combined with coolant radiator and intercooler...............................................................
GENERAL SPECIFICATION DATA
3
INFORMATION
FUEL SYSTEM
Fuel lift pump type Mechanical with hand primer............................................................
Fuel lift pump pressure 42 - 55 Kgf/cm2(3 - 4 lbf/in2) at 1800 rpm.....................................................
Fuel filter Paper element in disposable canister..........................................................................
Air cleaner Paper element type........................................................................
COOLING SYSTEM
System type Pressurised, spill return, thermostatically controlled..................................................................... water and anti freeze mixture. Pump assisted thermo
syphon. Coolant radiator combined with oil cooler and
turbo intercooler.
Cooling fan 11 blade axial flow 433 mm diameter, 1.29:1 drive....................................................................... ratio, with viscous coupling.
Pump type Centrifugal, impellor, belt driven........................................................................
Thermostat opening 88°C.........................................................
Expansion tank cap pressure 1,06 Kgf/cm2(15 Ibf/in2) (system pressure)...........................................
CLUTCH
Type Valeo diaphragm spring.................................................................................
Centre plate diameter 235 mm.......................................................
Facing material Verto F202 grooved.................................................................
Release bearing Ball journal...............................................................
TRANSMISSION
Main gearbox
Type R380 Single helical constant mesh.......................................................................
Speeds 5 forward, 1 reverse, all synchromesh.............................................................................
Transfer box
Type LT230 Two speed reduction on main gearbox output. Front...................................................................... and rear drive permanently engaged via a lockable
differential
Rear axle
Type Spiral bevel, fully floating shafts.................................................................................
Ratio 3.54:1.................................................................................
04 GENERAL SPECIFICATION DATA
4INFORMATION
Front axle
Type Spiral bevel, enclosed constant velocity joints, fully................................................................................. floating shafts, 32°angularity of universal joint on full
lock
Ratio 3.54:1.................................................................................
Propeller shafts
Type, front and rear Tubular 51 mm dia...........................................................
Universal joints Open type Hookes O3EHD.................................................................
STEERING
Power steering box
Make/type Adwest Varamatic - worm and roller box........................................................................
Ratio Variable: straight ahead 19.3:1 on lock 14.3:1.................................................................................
Steering wheel turns, lock-to-lock 3.375....................................
Steering pump
Make/type Hobourn-Eaton series 500........................................................................
Steering geometry
Steering wheel diameter 412 mm (16.22 in)..................................................
Toe-out measurement 0 to 2 mm toe out......................................................
Toe-out included angle 0°to 0°20’.....................................................
Camber angle 0°*..................................................................
Castor angle 3°*.....................................................................
Swivel pin inclination static 7°*............................................... * Check with vehicle on level ground, in unladen
condition and five gallons of fuel. Rock the front of the
vehicle up and down to allow it to take up a normal
static position.
Turning circle between kerbs
90 models:
265/75 x 16 tyres 12,65 m (41.5 ft)..............................................................
All other tyres 11,70 m (38.4 ft)...................................................................
110 models:
750 x 16 tyres 13,41 m (44 ft)..................................................................
130 models:
750 x 16 tyres 15,24 m (50 ft)..................................................................

Other Rover Automobile manuals

Rover Seventy Five User guide

Rover

Rover Seventy Five User guide

Rover CityRover User manual

Rover

Rover CityRover User manual

Rover 75 Saloon User guide

Rover

Rover 75 Saloon User guide

Rover Mini 1997 User manual

Rover

Rover Mini 1997 User manual

Popular Automobile manuals by other brands

CITROEN AMI 2021 Handbook

CITROEN

CITROEN AMI 2021 Handbook

Ferrari Mondial T owner's manual

Ferrari

Ferrari Mondial T owner's manual

Mercedes-Benz 2011 SL-Class Specifications

Mercedes-Benz

Mercedes-Benz 2011 SL-Class Specifications

Subaru 2001 Forester Service manual

Subaru

Subaru 2001 Forester Service manual

Buick 2004 Rendezvous owner's manual

Buick

Buick 2004 Rendezvous owner's manual

Mercedes-Benz 2008 C-Class Operator's manual

Mercedes-Benz

Mercedes-Benz 2008 C-Class Operator's manual

Chevrolet sonic 2017 owner's manual

Chevrolet

Chevrolet sonic 2017 owner's manual

Cadillac 2007 Escalade EXT owner's manual

Cadillac

Cadillac 2007 Escalade EXT owner's manual

Chery SQR7240T user manual

Chery

Chery SQR7240T user manual

BMW 5 series sedan owner's manual

BMW

BMW 5 series sedan owner's manual

Mercedes-Benz GLA Series Operator's manual

Mercedes-Benz

Mercedes-Benz GLA Series Operator's manual

Audi 2014 A4 owner's manual

Audi

Audi 2014 A4 owner's manual

Mercedes-Benz 240 D 1980 owner's manual

Mercedes-Benz

Mercedes-Benz 240 D 1980 owner's manual

Alfa Romeo Stelvio 2019 user guide

Alfa Romeo

Alfa Romeo Stelvio 2019 user guide

Hyundai Genesis 2009 Quick reference guide

Hyundai

Hyundai Genesis 2009 Quick reference guide

Mitsubishi Montero 1984 Service manual

Mitsubishi

Mitsubishi Montero 1984 Service manual

GMC TAHOE 4WD PURSUIT 2018 manual

GMC

GMC TAHOE 4WD PURSUIT 2018 manual

Cupra Ateca 2020 owner's manual

Cupra

Cupra Ateca 2020 owner's manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
