Rowe ADCP User manual

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 1of 45
Vessel Mount (VM) ADCP
Operation Manual
PN: 70045
Information included herein is controlled by the Export Administration Regulations (EAR) and may require an export license, license exception
or other approval from the appropriate U.S. Government agency before being exported from the United States or provided to any foreign person.
Diversion contrary to U.S. law is prohibited.

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 2of 45
Desc
Date
Rev
Initial Writing
06/11/2019
A
Add additional examples
01/21/2020
B
Added metric images and environmental info
02/24/2020
C
Added Drawings to package
07/01/2020
D
Update ICD drawing. Updated Cable Information
07/29/2020
E

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 3of 45
CONTENTS
Vessel Mount Overview...........................................................................................................5
Interfaces Overview..............................................................................................................6
Quick Start...............................................................................................................................8
ADCP......................................................................................................................................9
ADCP Mounting...................................................................................................................9
Bronze Ring.......................................................................................................................9
ADCP Cable Mounting.......................................................................................................13
Cable Bend Radius..............................................................................................................19
Pole Mount.........................................................................................................................15
ADCP Interface ..................................................................................................................17
Underwater Cable...................................................................................................................18
Falmat FM020712-6 ...........................................................................................................18
Deckbox ................................................................................................................................22
Interfaces............................................................................................................................24
Power..............................................................................................................................24
ADCP..............................................................................................................................25
RS-232 (DB-9) ................................................................................................................25
RS-485 (GREEN)............................................................................................................26
RS-485 (DB-9) ................................................................................................................27
Trigger.............................................................................................................................27
Connections........................................................................................................................28
Maintenance...........................................................................................................................29
ADCP.................................................................................................................................29
ADCP Underwater Cable ....................................................................................................29
Handling..........................................................................................................................29
Greasing and Mating Above Water (Dry Mate).................................................................30
Greasing and Mating Under Water (Wet Mate).................................................................31
Cleaning ..........................................................................................................................31
ADCP Batteries ..................................................................................................................32
Deckbox.............................................................................................................................32
Software ................................................................................................................................33
Pulse VM Setup..................................................................................................................33
1. GPS 1 Serial Port .........................................................................................................34

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 4of 45
2. GPS 2 Serial Port .........................................................................................................34
3. NMEA 1 Serial Port.....................................................................................................34
4. NMEA 2 Serial Port.....................................................................................................34
5. Heading Source............................................................................................................35
6. Magnetic Heading Offset..............................................................................................35
7. Alignment Heading Offset............................................................................................35
8. Fixed Heading..............................................................................................................35
9. Tilt Source...................................................................................................................35
10. Pitch Offset................................................................................................................35
11. Roll Offset .................................................................................................................35
12. Fixed Pitch.................................................................................................................35
13. Fixed Roll..................................................................................................................35
Power Requirements...............................................................................................................36
ADCP.................................................................................................................................36
ADCP Power Supply........................................................................................................36
ADCP Batteries ...............................................................................................................36
Deckbox.............................................................................................................................37
Grounding ..........................................................................................................................37
Heat Dissipation.....................................................................................................................38
ADCP.................................................................................................................................38
Deckbox.............................................................................................................................38
Environmental Rating.............................................................................................................39
ADCP.................................................................................................................................39
Deckbox.............................................................................................................................39
Factory Acceptance Testing....................................................................................................39
Test Commands..................................................................................................................40
i. ADCP Communication.............................................................................................40
ii. GPS Communication ................................................................................................41
iii. Run Test...............................................................................................................41

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 5of 45
VESSEL MOUNT OVERVIEW
The Vessel Mount ADCP is an ADCP intended to be mounted to a large vessel. The ADCP will
contain a bronze mounting ring and a deckbox. The bronze mounting ring is used as a stronger
support to mount the ADCP to the vessel, either within the hull or on a pole. The deckbox is an
interface box to allow communication with the ADCP.
Figure 1 ADCP with Bronze ring and Deckbox

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 6of 45
INTERFACES OVERVIEW
Figure 2 Ship Diagram

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 7of 45
Figure 3 Vessel Mount ADCP Flow Chart
The basic interface of a Vessel Mount system is an ADCP connected to a deckbox. The deckbox
is connected to a computer system. Peripheral devices like GPS, Gyro, and MRU are connected
to the computer. The computer is used to display the ADCP data and record the ADCP data.
You also have the option to connect the GPS directly to the ADCP through the Deckbox. The
GPS can then be used as a heading source. This will fix the magnetic interference issues caused
by the ship.

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 8of 45
QUICK START
•Connect the ADCP to the deckbox
•Connect the GPS to the RS-232 port
•Connect the Power to the AC outlet
•Connect the RS-485-to-USB cable to the computer
oEnsure the RS-485 adapter is found on the computer
•Start Pulse software and go to terminal
•Turn on the Power switch on the Deckbox
•Click BREAK and verify you see the BREAK Statement
•Set the RS-232 port on the ADCP to match the GPS baud rate with the C232B command
oC232B 19200
•Click the “START PING” button in Pulse
•Click the Record button in Pulse at the top to begin recording the data
•Click on the VM menu button at the top to configure the other peripheral devices like
Gyro and MRU.
•Verify the data is good in the Graphical View in Pulse

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 9of 45
ADCP
The ADCP must be mounted on the vessel so that the face of the ADCP is below the water
surface and clears the hull. If the ADCP is not installed deep enough the hull can block the
ADCP’s beams. The ADCP can be mounted directly into the hull, in a moon pool or attached to
a pole and set over the side of the vessel. The best solution will depend on the vessel and the
user. You also want to make sure no bubbles or water cavitation will pass over the ADCP. The
bubbles will cause issues with the data.
An underwater cable will be attached to the ADCP. This underwater cable will then be plugged
into the deckbox. It is assumed the deckbox will be within the vessel near a computer to
interface with the ADCP. The underwater cable length will vary based on the vessel.
Figure 4 ADCP with Bronze Plate
ADCP MOUNTING
Typically, there are 2 options to mount the ADCP: permanently or temporarily. Permanent
installs are typically done by mounting the ADCP directly into the hull of the vessel. Temporary
installs are typically done by mounting the ADCP to a pole that can be pulled out of the water.
BRONZE RING
The ADCP will ship with a bronze mounting ring. This bronze mounting ring can be used to
mount the ADCP into the hull of the ship or onto a pole.

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 10 of 45
Figure 5 Bronze Mounting Ring
Figure 6 Bronze Mounting Ring (Metric)

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 11 of 45
The mounting holes in the mounting plate can handle a ½” or M12 bolt or smaller.
Figure 7 Mounted to Ship Hull
Figure 8 VM-ADCP Installation

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 12 of 45
Figure 9 ADCP in Sea Chest

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 13 of 45

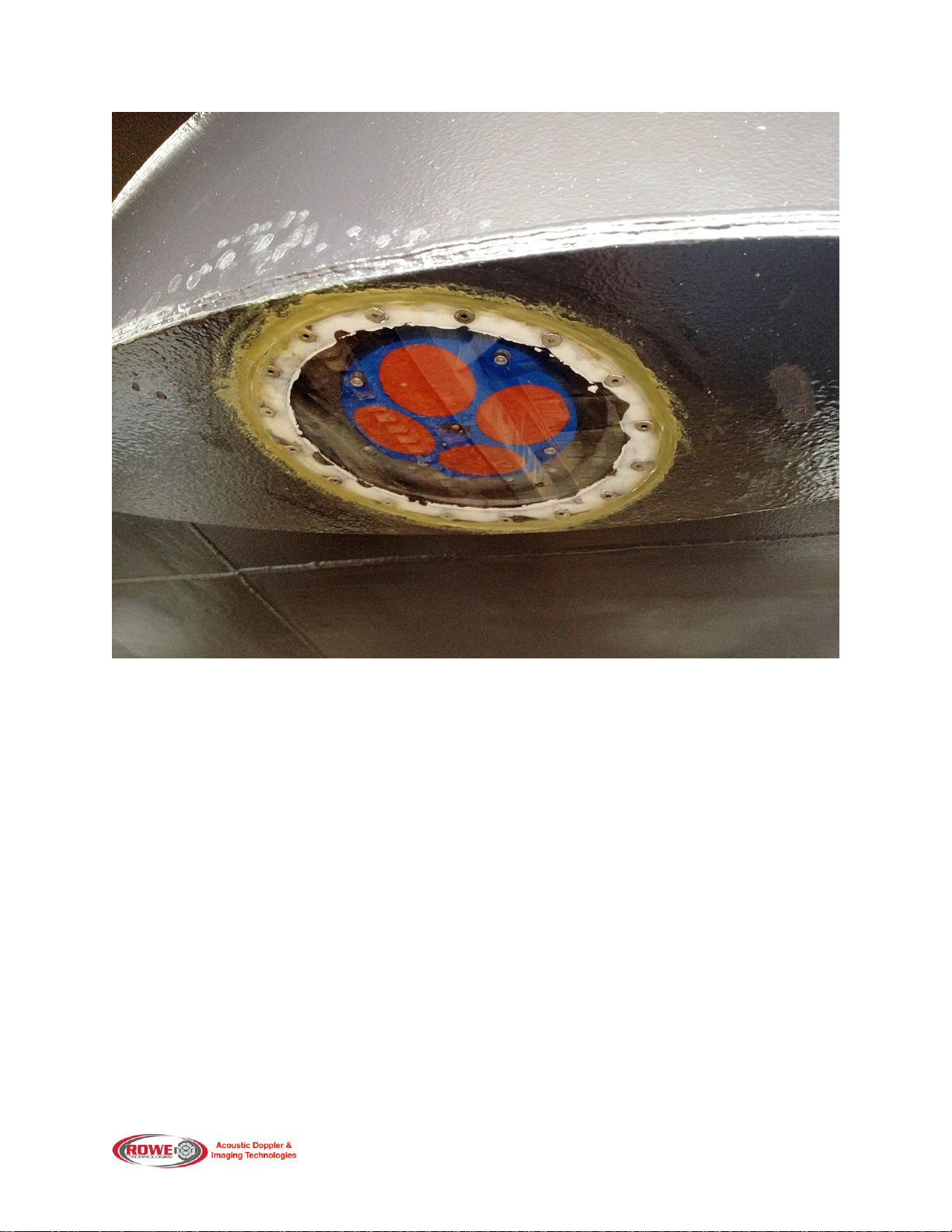

Figure 10 ADCP Mounted into a Hull
ADCP CABLE MOUNTING
The ADCP cable will be routed from the side of the ADCP housing. The ADCP can sit flush on
the backside against a flat surface. The underwater cable connection is inserted into by a rubber
connector and a locking sleeve. The underwater cable is connected, the underwater cable is
connected to the deckbox. You may need to pass the cable through the hull of the ship. There
are different rubber glands that can be purchased to seal the underwater cable when penetrating
the ship’s hull.

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 14 of 45
Figure 11 ROXTEC Cable Gland
You also have the option to have the underwater connector on the ADCP pointed vertically.
This could eliminate a bend in the underwater cable for installation but will increase the overall
height of the ADCP. When ordering the ADCP, you can specify this option. The ADCP can
also be retrofitted to using this connector location later if the customer decides to change the
location.
Figure 12 Perpendicular Connector Top View (Standard)
Figure 13 Vertical Connector Top View
Figure 14 Perpendicular Connector Side View (Standard)
Figure 15 Vertical Connector Side View

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 15 of 45
POLE MOUNT
The ADCP can also be mounted on a pole and set on the side of the vessel. This application is
typically used as a non-permanent installation. The ADCP can be raised in lowered into the
water as needed.
Figure 16 Pole Mount
Figure 17 Mount to Ship

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 16 of 45
Figure 18 Mount on Ship
You can also move the mounting plate to the bottom of the ADCP and use the mounting plate as
a plate to mount to a pole.

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 17 of 45
Figure 19 Mounting Plate on Bottom
Figure 20 Mounting Plate on Bottom
ADCP INTERFACE
To interface with the ADCP, the ADCP is connected to the deckbox with an underwater cable.
There is one connector on each side. A Seaconn MCIL-8-F wet mateable connector and a dry
Amphenol Aerospace TP06E-12-8S(SR) connector.
Connect the underwater connector from the ADCP to the deckbox. The ADCP connector will be
a Seaconn MCIL-8-F connector. Make sure to plug the underwater connector on the ADCP
properly or it will damage the ADCP.
.
https://youtu.be/S35BkVQgsUA
Figure 21 Underwater cable pinout

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 18 of 45
Figure 22 Underwater connection
UNDERWATER CABLE
For underwater cables 50m and longer, we use a Falmat FM020712-6 cable. Any underwater
cable shorter than 50m will use a Southwire 570359xx underwater cable. The Falmat cable is
used for long runs because it uses shielded twisted pairs. But the Southwire has a greater bend
radius.
The underwater cable has a connector on each side. The wetside will have a Seaconn MCIL-8-F
wet mateable connector. This connector connects to the ADCP. The dryside will have a
Amphenol Aerospace PT06E-12-8S(SR) connector. This side will connect to the deckbox.
FALMAT FM020712-6 [CABLE LENGTH: 50M OR GREATER]
Used when the cable length is 50m or longer.
Part
Number
# of
Pairs
Nominal
Cap
Nominal
Imped.
# of
Single
Cond.
Overall
Shield
Min
Bend
Rad.
Fin Dia.
(Inches)
Weight (LBS/1,000ft)
(Air)
(Sea)
FM020712-
6
3 TSP
18
AWG
33 pf/ft
46 ohms
3 x 18
AWG
Alum +
drain
5.5
0.486”
138
55
SOUTHWIRE 570359XX [CABLE LENGTH: LESS THAN 50M]
Used when the cable length is less than 50m.

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 19 of 45
Southwire
Stock #
Conductor
Size
# of
Conductors
# of
Strands
Insulation
Thickness
(mils)
Jacket
Thickness
(mils)
Nominal
Cable
Diameter
(mils)
Nominal
Cable
Weight
(lbs/MFT)
570359xx
20 AWG
8
26
20
40
385
94
FALMAT CABLE BEND RADIUS
The bend radius will vary based on the connector position. The vertical connector will have no
bend radius if the cable will be installed directly above the ADCP.
Perpendicular Connector
5.5 inches
13 mm
Vertical Connector
7.5 inches
19 mm
Figure 23 Perpendicular Conn Bend Radius (13mm or 5in)
Figure 24 Vertical Conn Bend Radius (19mm or 7.5in)

Vessel Mount (VM) Operation Manual July 2020 - Rev: E
Page 20 of 45
SEACONN MCIL-8-F CONNECTOR
8 Pin Seaconn cable. Please ensure to properly insert the cable. If the cable is inserted in the
wrong orientation, it will cause damage to the ADCP. Hole the rubber connector. Align the
pings with the ADCP. Push the underwater connector into the ADCP connector. Then hold on
the locking collar and thread the locking collar into the ADCP.
The locking sleeve is removeable. Inside the locking sleeve is a slip ring. The slip ring can be
removed and the locking sleeve can then be removed from the cable. Once the cable is run
through the ship, the locking ring can then be installed again.
Refer to the maintenance section before installing the connector.
[Greasing and Mating Under Water (Wet Mate)]
Figure 25 Seaconn MCIL-8-F Connector Face
Figure 26 Seaconn Locking Sleeve
Nominal Cable Outside Diameter (OD):
0.363’’, 9.2 mm
Cable Diameter with Locking Sleeve (OD):
0.891”, 22.63mm
