Royal garden YJAF-038G-CAFE User manual

Model # YJAF-038G-CAFE
Model # YJAF-038G-CHILI
USE AND CARE GUIDE
10 FT X 12 FT SQUARE OFFSET UMBRELLA
Questions, problems, missing parts? Before returning to the store
call Royal Garden Customer Service.
6 a.m. - 9 p.m., EST, 9 a.m. - 5 p.m., PST, Monday - Friday
[phone]
WWW.ROYALGARDEN.COM
THANK YOU
We appreciate the trust and condence you have placed in Royal Garden through the purchase of this umbrella. We strive to continually create-
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Royal Garden!

2
Table of Contents
Table of Contents...................................................... . 2.
Warranty .................................................................... ..
What is Covered......................................................................
2
2
What is Not Covered................................................................ 2
Assembly.........................................................................5
Operation........................................................................
Care and Cleaning.........................................................
14
17
Pre-Assembly...........................................................................3
Planning Assembly...................................................................
3
Hardware Included................................................................... 3
Package Contents...................................................................... 4
Warranty
1 YEAR LIMITED WARRANTY
WHAT IS COVERED
We warrant the frame and fabric to be free of manufacturing defects to the original purchaser for one year.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover
commercial use, hardware, acts of nature, fire, freezing and abusive use. In addition, purchased parts are not covered under this warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
Contact the Customer Service Team at [phone] or visit www.HamptonBay.com.
Safety Information
PRODUCT CAUTION
This umbrella was made for the explicit purpose of providing outdoor functions and is not to be used as a toy. This product is intended for
normal outdoor use; however, the manufacturer recommends storing and / or covering this umbrella when any formidable / severe weather
is approaching. Do not locate this product near open ames. Do not use this product as a support. Do not shake, lean or climb on the
product. Children under the age of 10, near the product, should be supervised by a competent adult at all times. This product is NOT
intended for commercial use and will void the warranty.
SAFETY WARNINGS
Safety Information ................................................................ 2
Product Caution ...
...................................................................
2
Safety Warnings ...................................................................... 2
WARNING: Please keep children out of the assembly area
before assembly.
CAUTION:
a
!
CAUTION: Do not locate the product near any heat source.
!
CAUTION: When not in use, secure the product in a cool
and covered location.
!
CAUTION: Always close and secure the product when
not in use.
!
CAUTION: Never use the umbrella in high wind conditions.
Damage to the umbrella can occur.
!
CAUTION: Umbrella should not be used in the event of wind,
rain, hail, sleet, snow or any other inclement weather.

3
Pleasecontact [phone] for further assistance.
WWW.ROYALGARDEN.COM
Pre-Assembly
PLANNING ASSEMBLY
Read all instructions before assembly.
To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
Part Description Quantity
BB M10x22 combination bolt
M10x25 combination bolt
4+1
CC M6x15 bolt 1+1
DD M6x10 bolt 1+1
EE M6 hex wrench 1
FF
M10 hex wrench 1
AA 4+1
AA
BB CC DD
FF
NOTE: More than one person may be required to
assemble this product.
NOTE: Hardware not shown to actual size.

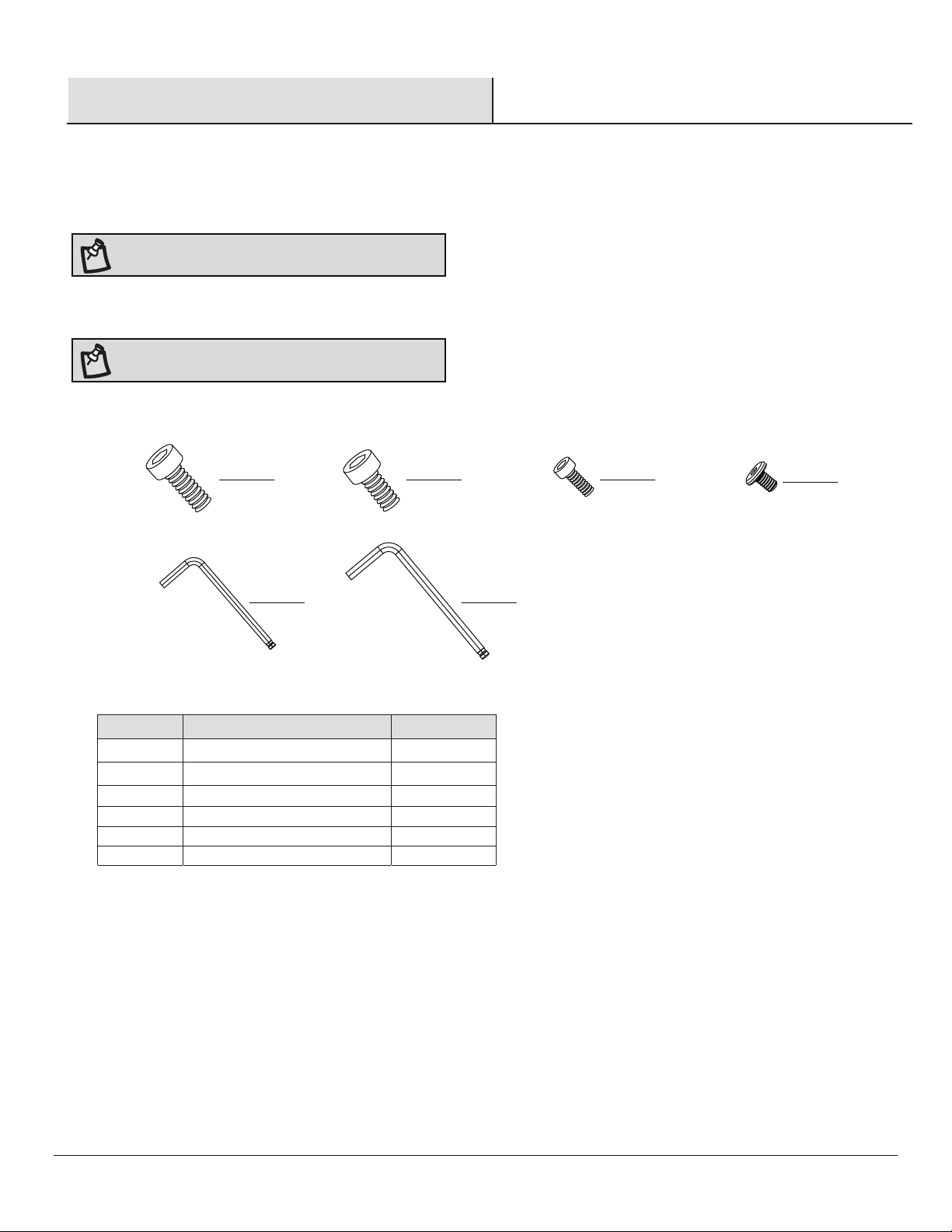

HARDWARE INCLUDED
EE

4
Pre-Assembly (continued)
PACKAGE CONTENTS
Part Description Quantity
1
1
1
D Upper base cover 1
E Lower base cover 1
F Pedal 1
A
B
C
Lower bracket
Upper bracket
Lower umbrella pole
1
2
2
1
J Crank
K Umbrella shade 1
G
H
I
Turn plate
Side base
Middle base
B
A
F
E
D
G
H
C
I
I
H
J
K

6
Assembly
1Pouring sand and water into the bases
Open the sidebases (H) and themiddlebases (I) in the counterclockwise direction.
Pour sand and water intothe side bases (H) and the middle bases (I).
Close the side bases (H) and themiddle bases (I) in the clockwise direction.
SAND
OPEN
WATER
CLOSE

7
Pleasecontact [phone] for further assistance.
WWW.ROYALGARDEN.COM
Assembly (continued)
2Separating the lower umbrella pole from the umbrella shade
Separate the lower umbrella pole (C) from theumbrella shade (K).
KEE
C
CC

8
Assembly (continued)

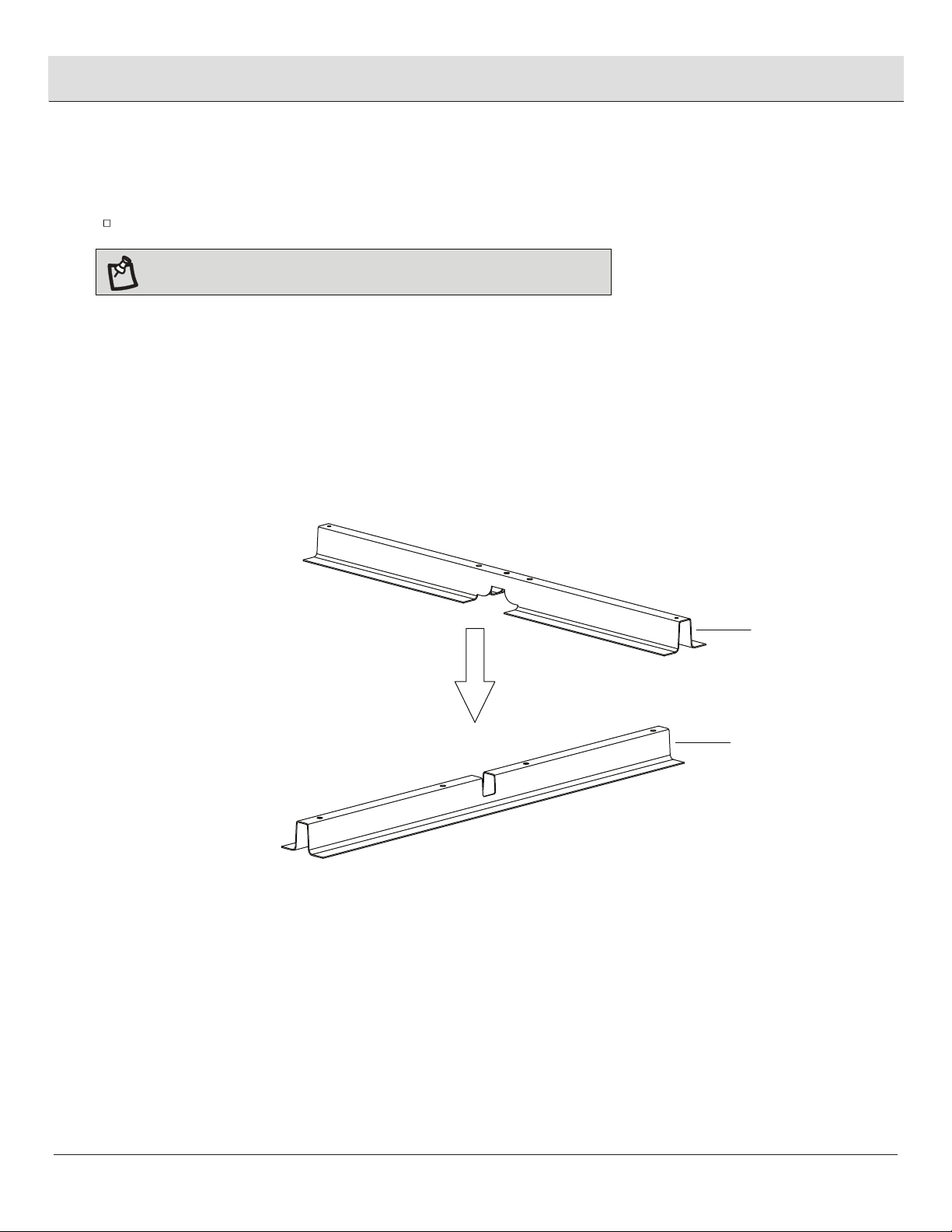

3Attaching the brackets
Attach the upper bracket (B) ontothelower bracket (A).
B
A
NOTE:This umbrella should be set up in its desired location to avoid
moving it after assembly

9
Pleasecontact [phone] for further assistance.
WWW.ROYALGARDEN.COM
Assembly (continued)
4Attaching the lower umbrella pole to the turn plate
Attach the pedal (F) to the turn plate(H).
Attach the turn plate (H) tothebrackets(A & B) using M10x25 combination bolts (AA).
Attach the lower umbrellapole(C) to theturn plate (H) using M10x22 combination bolts (BB) and theM10 hex wrench (FF).
FF
G
DD
EE
F
C
BB
AA

Assembly (continued)
10
5
Attaching the middle bases to the brackets
Attach the middle bases (I) onto the brackets (A & B).
A
B
I

Assembly (continued)
11
Pleasecontact [phone] for further assistance.
WWW.ROYALGARDEN.COM
6Attaching the side bases to the brackets
Attach the sidebases (H) tothe bracket (A & B).
A
B
H

Assembly (continued)
12

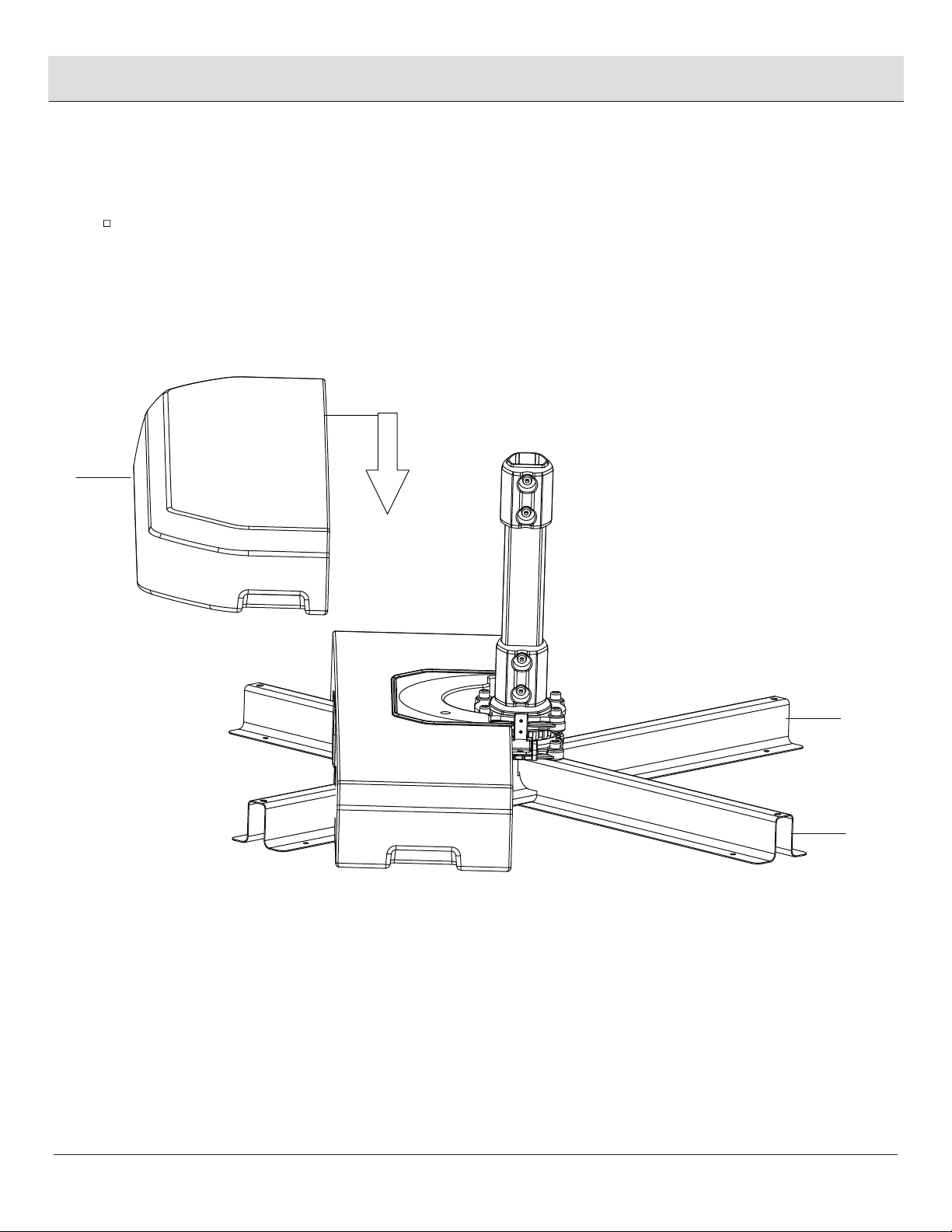

7Inserting the lower base cover and the upper base cover into the lower
umbrella pole
Insert thelower base cover (E) and theupper base cover (D) intothelower umbrellapole(C).
C
D
E

Assembly (continued)
13
Pleasecontact [phone] for further assistance.
WWW.ROYALGARDEN.COM
8Connecting the umbrella shade to the ower umbrella pole
Connect theumbrella shade (K) to thelower umbrellapole(C) using M6x15 bolts(CC) and M6 hex wrench (EE).
C
K
CC
EE

Assembly (continued)
14

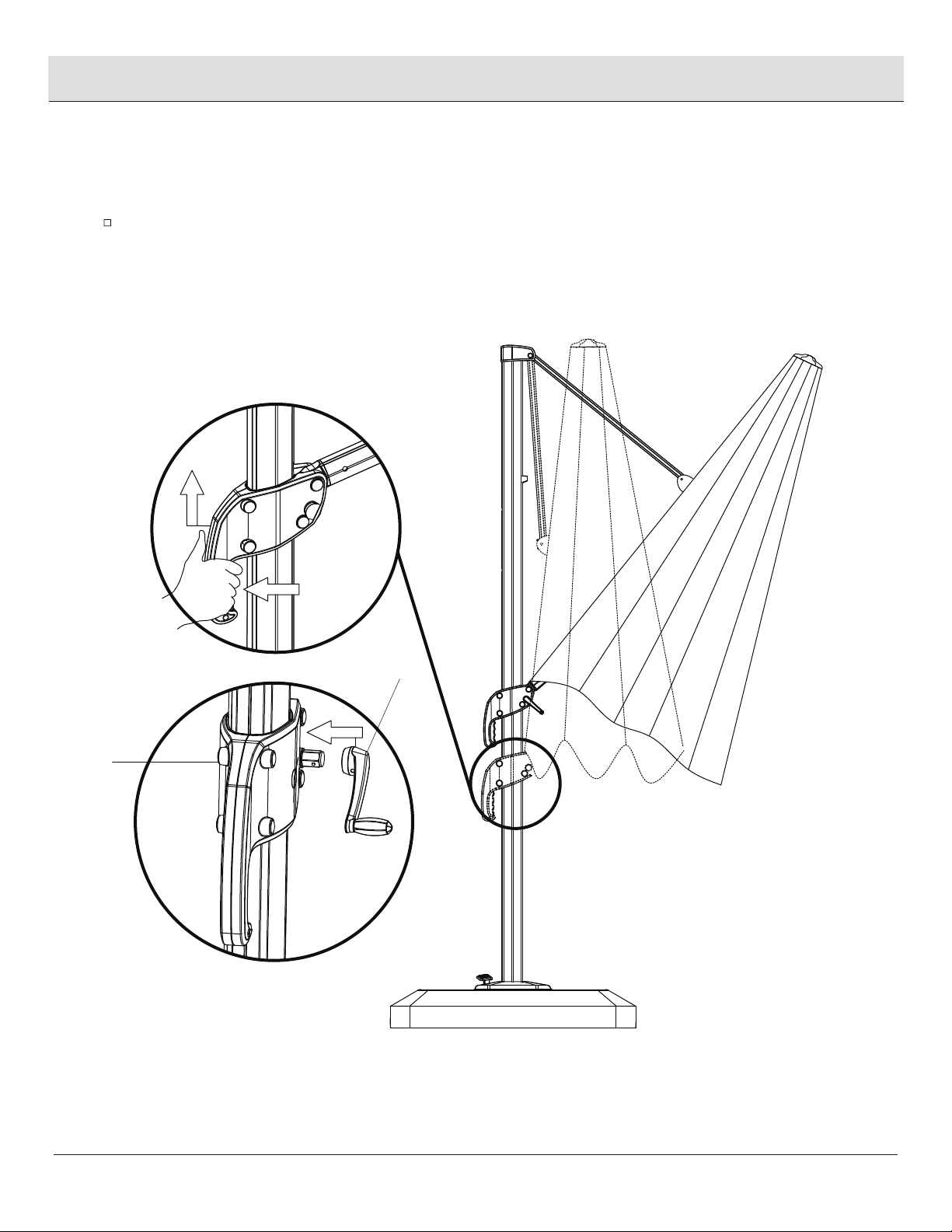

9Attaching the crank to the umbrella shade
Attach the crank (J) tothe umbrella shade (K).
J
K

Operation (continued)
15
Pleasecontact [phone] for further assistance.
WWW.ROYALGARDEN.COM

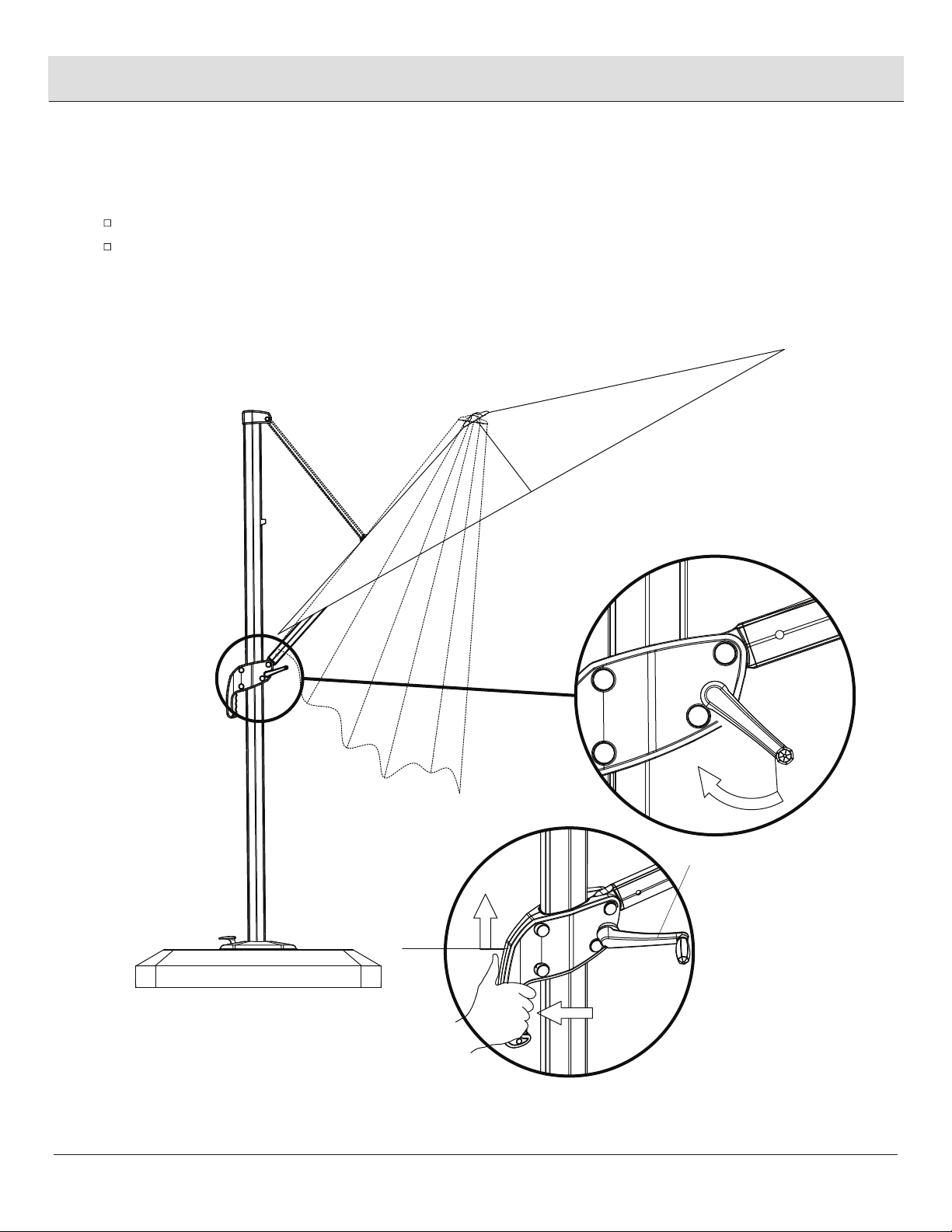

1Opening the umbrella
Shake theumbrellafabric beforeopening theumbrella.
Press the button on the umbrellashade (K) and slowly turn thecrank (J) clockwise to open theumbrella.
J
K

Operation (continued)
16
2Rotating the umbrella
Hold thepedal (F) with one foot and rotate theumbrellapole (Theumbrellacan rotate up to360 degrees).
F

Operation (continued)
17
Pleasecontact [phone] for further assistance.
WWW.ROYALGARDEN.COM

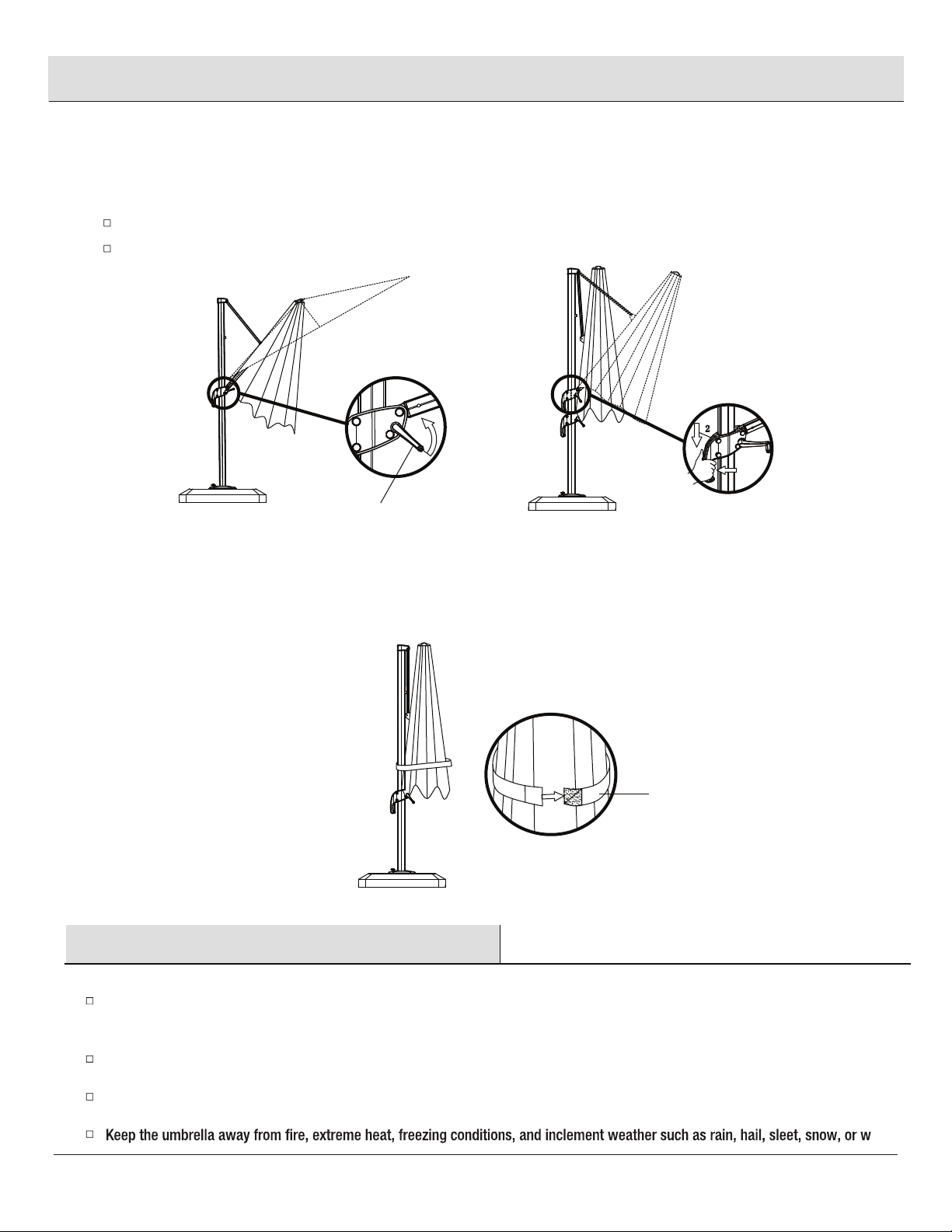

3Tilting the umbrella
To tilt theumbrella, push thebutton located on thetop oftheumbrella shade (K).
K

Operation (continued)
18
4Closing the umbrella
Slowlyturn the crank (J) in a counterclockwise direction to close the umbrella.
Tie theumbrellato the umbrellapole with the Velcro belt when not in use, as shown below.
J
Velcro
Care and Cleaning
For best results, clean the umbrella with damp cloth and dry thoroughly. This will help prevent mildew by removing dirt
particles that may accumulate.
Do not clean with abrasive materials, bleach, or solvents.
Store the umbrella, sheltered place when not in use.
ind.

Retain this manual for future use.
