Royale RY50SGW User manual

Royale
Installation and Operating Instructions
MODEL: RY50SGW
Free-Standing 50cm x 60cm Gas Oven
Please read these instructions carefully before attempting to install or use this appliance. It is
advisable to keep these instructions in a safe place for future reference.
N.B. Should your appliance require attention, our service agents will not be able to
book a service call without your unique serial number which can be found on the
last page of this manual.
(Model shown for indicative purposes only)

2
In
t
roduc
t
ion
Thank you for choosing this Royale branded appliance. It
has been designed to give years of trouble-free use provided
it is installed and maintained correctly.
Please read these instructions carefully before installing or
using your appliance. It is advisable to keep your purchase
and
installation receipts with these instructions in a safe place for
future reference. Included is some important safety informat
ion
in addition to guidelines and recommendations that will enab
le
you to take full advantage of all the functions available.
This quality appliance has been tested and certified to meet all
applicable UK electrical and safety standards.
This appliance must be installed and connected in
accordance with current regulations.
After unpacking the appliance ensure that there is no visible
damage. If the appliance has been damaged during transit, do
not use it, contact your retailer immediately.

3
Your 1 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new Royale appliance carries a free guarantee which protects you against
the cost of repairs during the first 12 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial
number and proof of purchase, such as a Sales Receipt, showing that the
appliance was purchased within the 12 months prior to the date of claim.
What is not covered under the Guarantee:
Any appliance not correctly installed and operated in accordance with the
manufacturer's instructions.
Any appliance that is used for anything other than domestic purposes.
Any defect caused by accident, misuse, unauthorized modification or
inexpert repair.
Cost of Call-out where a fault cannot be found with the appliance.
Cost of Call-out for work covering routine maintenance, such as, but not
exclusively, cleaning of filters or defrosting.
Cost of Call-out for work required to correct the alignment of doors
following door reversal procedures carried out by you.
Use of the appliance by anyone other than the Householder.
Use in any commercial environment.
Consumable items, such as, but not exclusively, fuses in plugs, bulbs and
breakable items which require routine replacement.
Repair costs incurred that have not been authorised by Repairtech and/or
carried out by a non-approved Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and return it
with a stamp affixed or Alternatively you can Register online at www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model number,
serial number, date of purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.

4

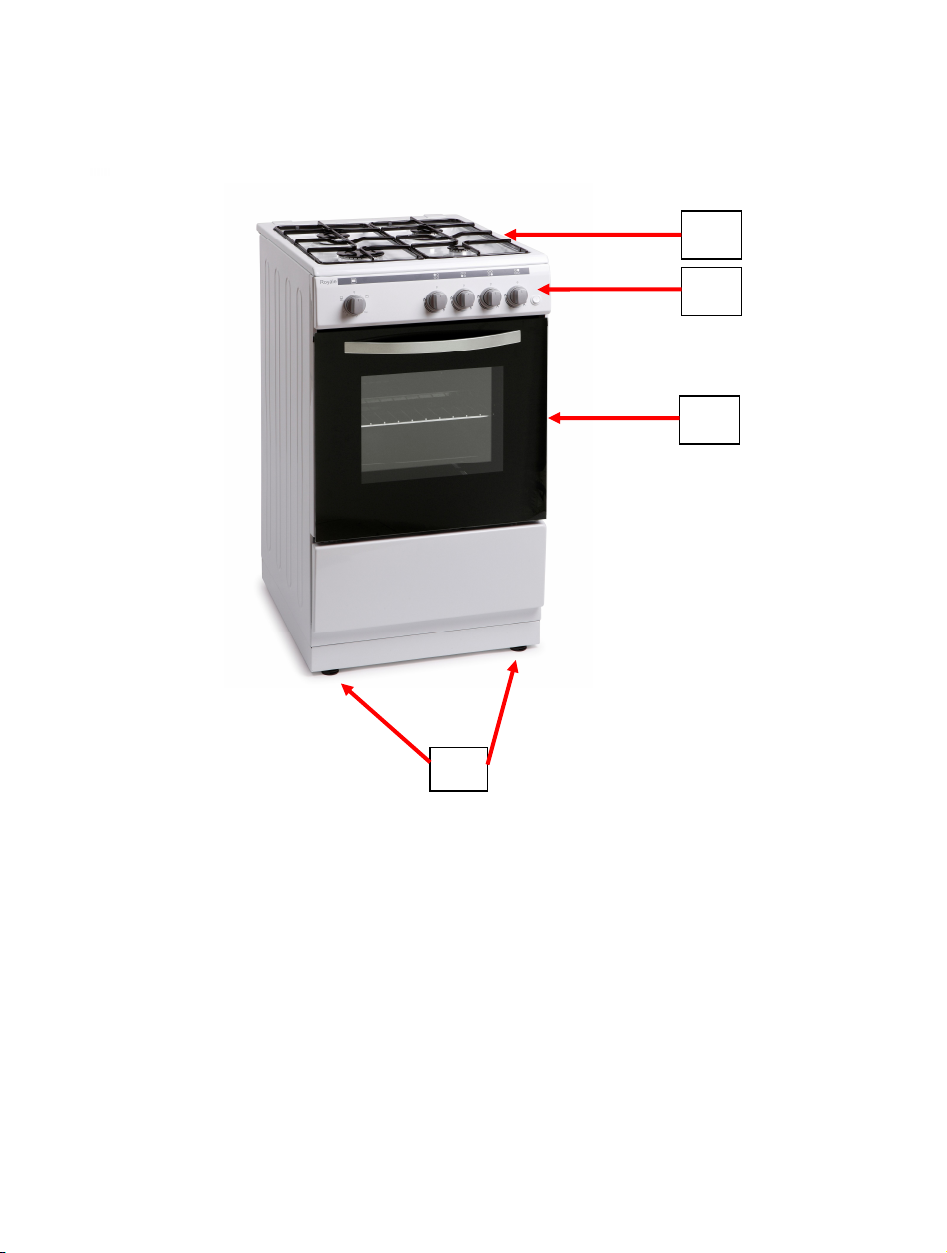

Description
Of
The
Appliance
1. Hotplate with 4 x Burners
2. Control Panel
3. Oven/Grill with Glass Door
4. Adjustable Feet
(Picture indicative of model supplied)
(N.B. Model supplied my not have all features shown in this User Manual).
2.
1.
3.
4
.

5
CONTENTS:
Section 1. Installation
Sect
i
o
n 2.
S
afety
A
d
v
i
ce
Section 3. Operating the Appliance
Section 4. Maintenance

6
Section 1. Installation
-This appliance must be installed by a ‘Gas Safe’ gas engineer.
-Remove all packaging, protective film and securing tape from
the appliance.
-Position the appliance in a dry atmosphere.
- The following dimensions are provided as a guide for
installation – your installer will carry out the installation in
accordance with the current regulations.
- Your ‘Gas Safe’ gas engineer will connect the cooker in
accordance with the current regulations.
To install this appliance, please proceed as follows:

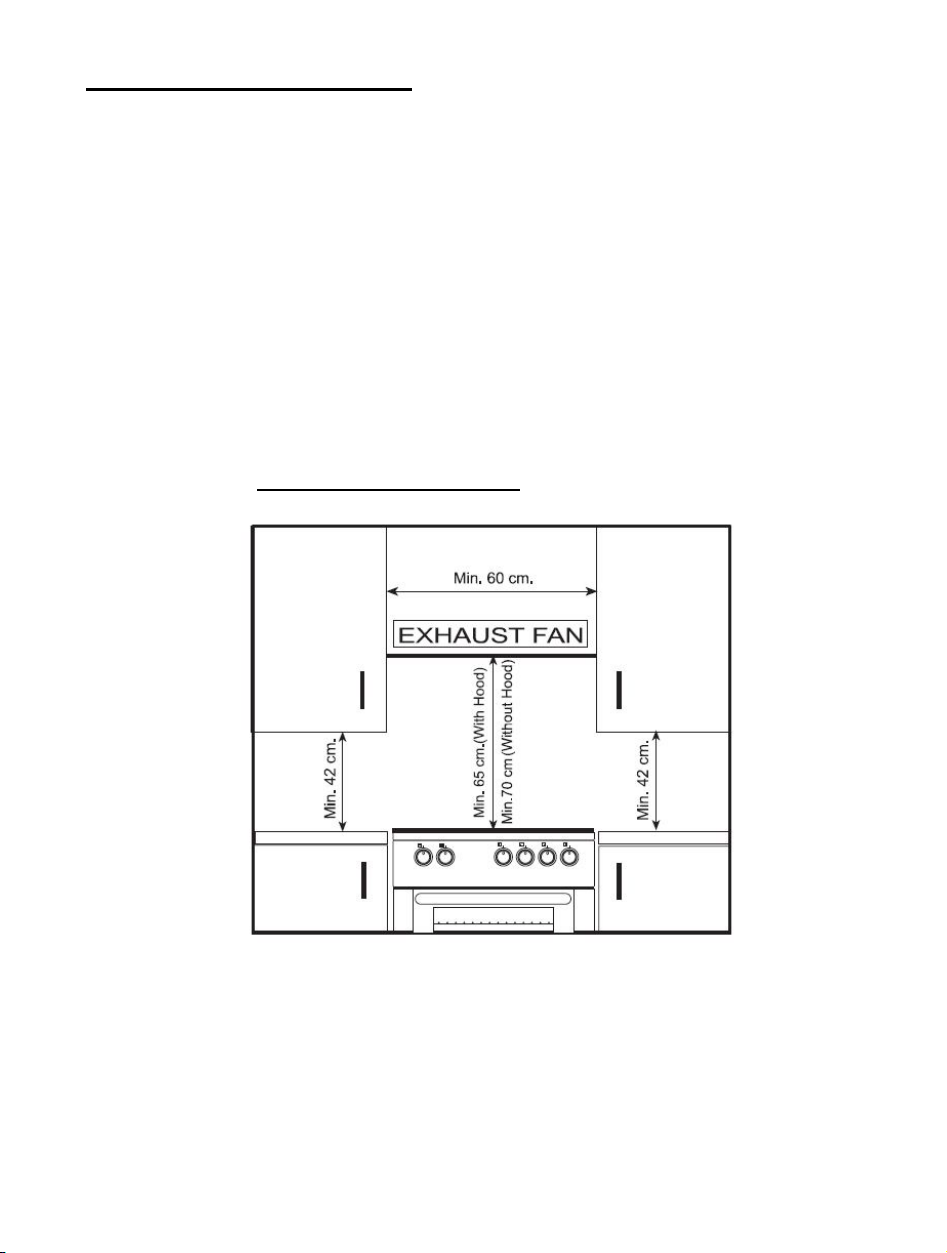

1.1. Positioning the Cooker
You must ensure a minimum gap of 2cm between the back
of the appliance and the rear wall to allow for ventilation. You
must ensure a minimum distance of 70cm between the
hotplate and overhanging cupboards or a cooker hood (as
shown above).

7

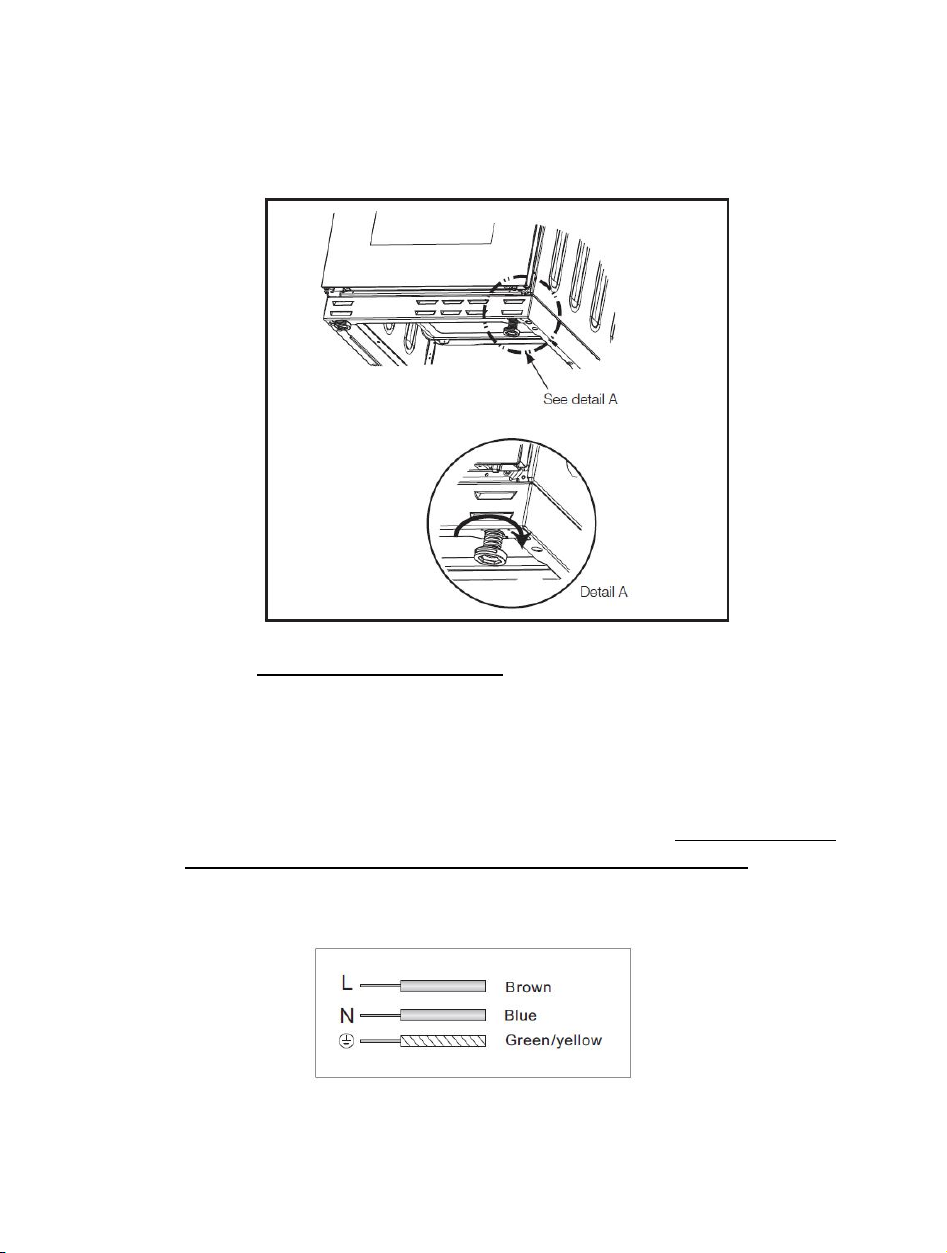

Adjust the height and stability of the cooker by adjusting the
two front feet as shown below. Rotate in a clockwise direction
to decrease the height and in an anti-clockwise direction to
increase the height.
1.2. Electrical Connection
This appliance can be fitted with a 13 Amp plug and plugged
into a standard, switchable 13 Amp socket.
Alternatively, the product can be ‘hard wired’ into a suitable
fused spur adjacent to the appliance housing. In this case the
product must be installed by a Qualified Electrician.
Please note that a switchable spur should be accessible
above the work surface in order that the power can be turned
off.

8
1.3. Gas Connection
THE GAS CONNECTION MUST BE CARRIED OUT BY A
‘GAS-SAFE’ REGISTERED GAS ENGINEER!
Connection to the gas supply should be with either rigid or
semi-rigid pipe, i.e. steel or copper. The connection should be
suitable for connecting to RC 1/2 (1/2 BSP male thread).
When the final connection has been made, it is essential that
a thorough leak test is carried out on the cooker and
installation. Ensure that the main connection pipe does not
exert any strain on the cooker. When a flexible tube is used,
make sure that it does not come into contact with hot areas or
adjacent housing units.
It is important to install the elbow correctly, with the shoulder
on the end of the thread, fitted to the cooker connecting pipe.
Failure to ensure the correct assembly will cause leakage of
gas.

9
1.4. Technical Specifications
Power supply: 230v – 50Hz
Maximum Power: 10.3 kW
Oven Volume: 52.5 lt

10
Section 2. Safety Advice
-This appliance must be installed by a ‘Gas Safe’
approved gas engineer.
-Please read this booklet thoroughly before installing and
switching on the appliance. The manufacturer accepts no
responsibility for incorrect installation and usage.
-This appliance is guaranteed for Domestic Use Only.
-The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the
appliance.
-This appliance must only be used for cooking/heating food
items. Do not use it for any other purpose.
-Do not twist or bend the connection/power cable, and keep it
away from hot surfaces.
-Following installation make sure that the power cable is not
trapped underneath the appliance.
-Keep the appliance surfaces clean. Failure to do this could
lead to the appliance malfunctioning.
-The surface of this appliance will get extremely hot during use.
Take care when using the appliance and keep children well
away.
-The interior and surface of this appliance will remain hot after
it has been turned off. Do not touch or clean the appliance
until it has completely cooled down.
-Never lift this appliance using the door handle or ‘open’ door.
-If the power supply cord is damaged, it must be replaced by
the manufacturer, it’s service agent or similarly qualified
persons in order to avoid a hazard.

11
Section 3. Operating the Appliance
3.1. Control Panel (N.B. Model supplied my not have all features shown in this User Manual).
1. Oven/Grill/Thermostat Control Knob
2. Left Hand Rear Burner Control Knob
3. Left Hand Front Burner Control Knob
4. Right Hand Front Burner Control Knob
5. Right Hand Rear Burner Control Knob
6. Push Button Ignition
3.2. Using the Hotplate & Oven
3.2.1. Using The Hotplate Burners
Push & turn the required burner control knob (2, 3, 4 or 5)
to the maximum heat setting whilst pressing the ignition
button. Release the control knob once the burner has lit. Once
the burner has lit, turn the control knob to the required heat level.
When you have finished, turn the control knob back to the off
position.
1.
3.
2.
4.
5.
6.

12
3.2.2. Operating the Oven/Grill
Push and turn the oven control knob (1) to the Oven Ignition
position whilst pressing the ignition button. Release the control
knob once the burner has lit. Now set the oven control knob to the
required heat level. For the grill, turn the control knob to the grill
position and continue as described above. When you have
finished using the oven or grill, turn the control knob back to the
off position.

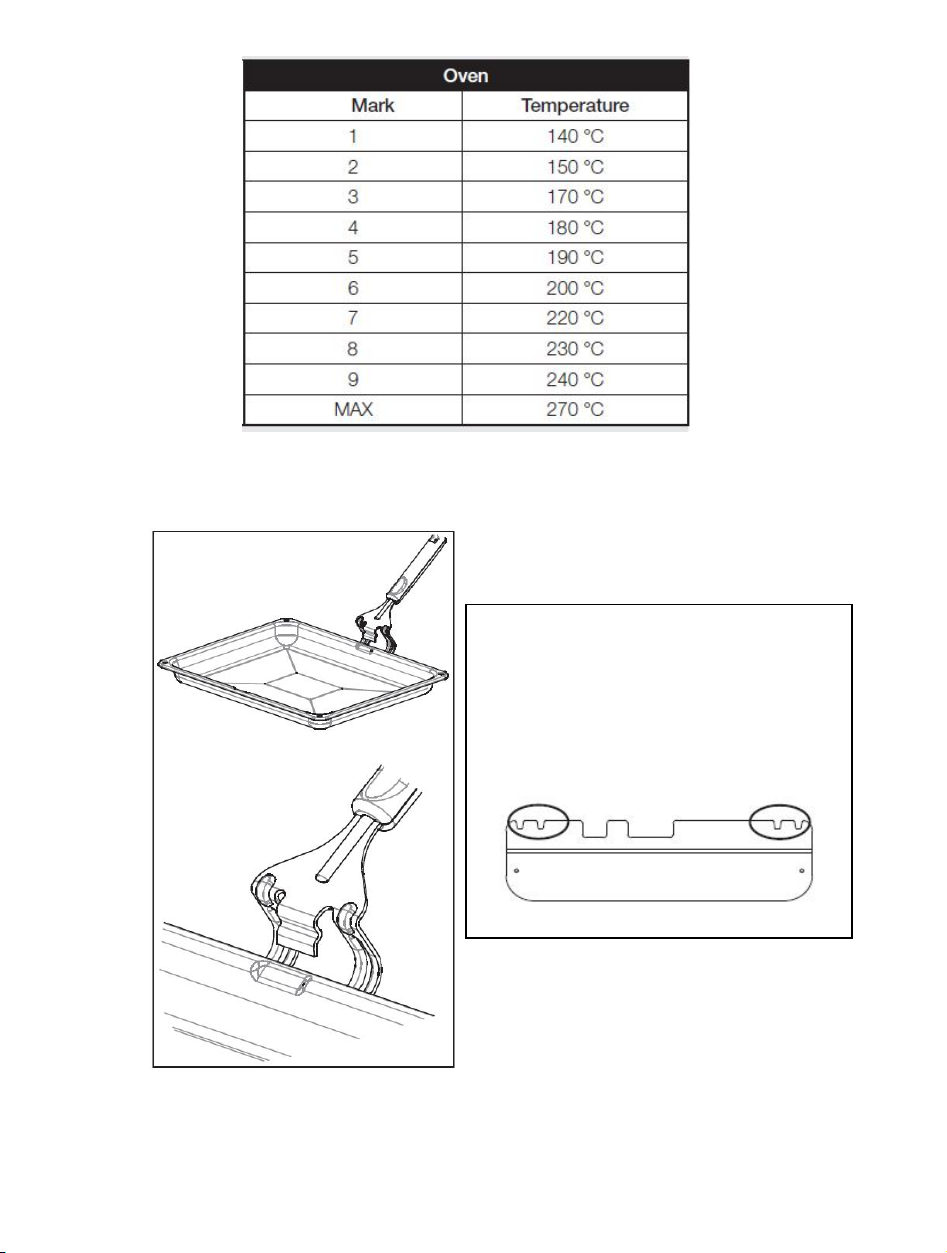

To set the temperature of the oven, turn the control knob between
1 and maximum noting the approximate temperature guide shown
in the table below.
Also note that the Grill only has one heat setting – the
temperature cannot be varied!
When using either the Oven or Grill, you are strongly advised to
use Oven Gloves!

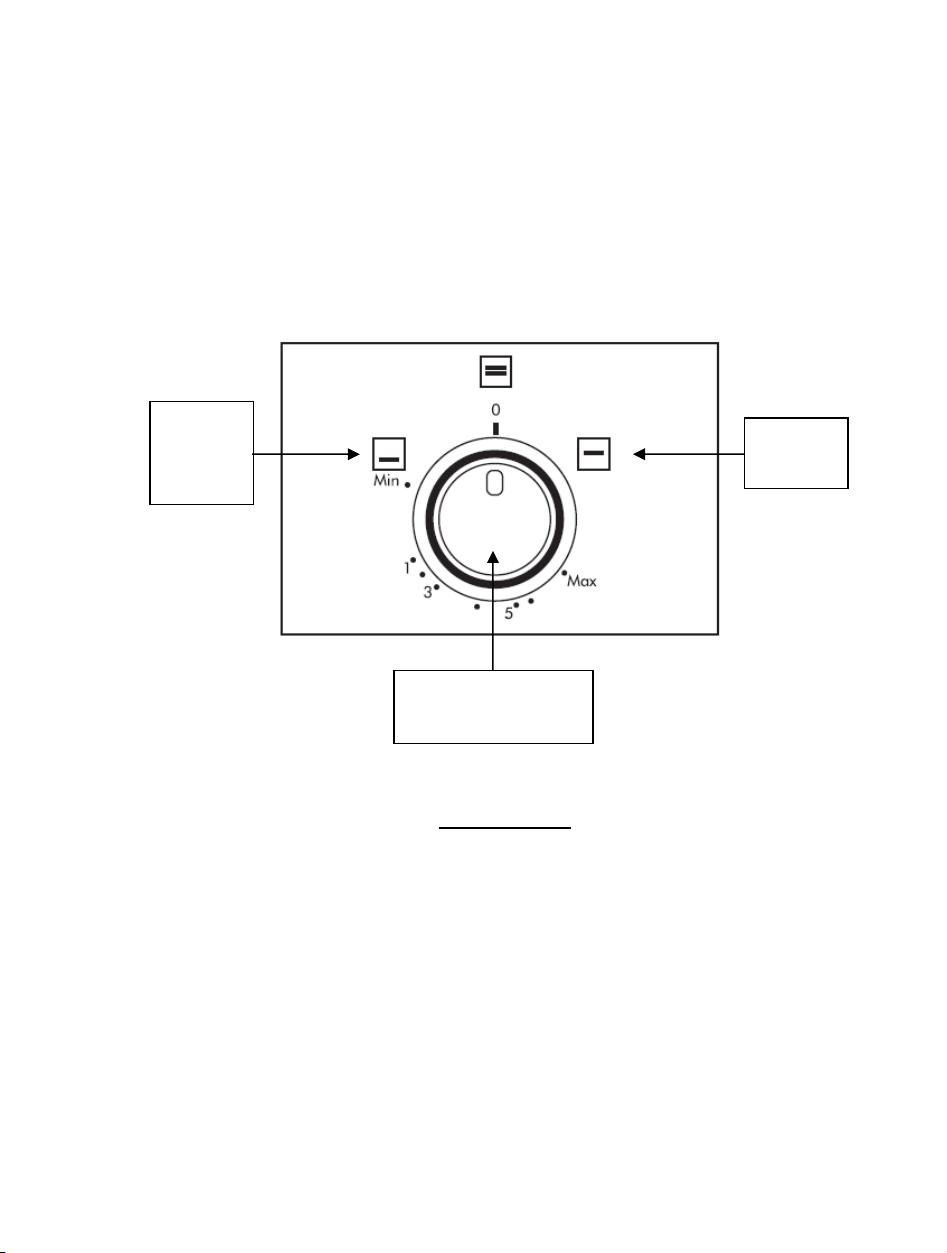

Oven
Ignition
Position
Grill
Position
Oven Thermostat
Control Knob

13
When using the grill, you must fit the handle to the grill pan. You
must also fit the heat shield as shown in the pictures below.
Hold the heat shield so that the fold in
the metal is facing upwards. Now slide
the heat shield into the two protruding
screw heads between the top of the
oven door and the bottom of the control
panel – push the shield firmly into place.

14
Section 4. Maintenance
Before any maintenance or cleaning work is carried out,
DISCONNECT the appliance from the ELECTRICITY supply and
ensure that the appliance is completely cool.
4.1. Cleaning the Oven
Clean spillages from inside the oven as soon as possible after use.
Always ensure that the surfaces have cooled down before cleaning.
Use a cloth with warm soapy water to clean the surface. If the
spillage has dried on the surface you may need to use a specialist
oven cleaner, available from all good supermarkets.
Clean the glass door with warm soapy water – always ensure the
glass is cool before you clean it!
4.2. Cleaning the Hob
Clean spillages from the hob surface as soon as possible after use.
Always ensure that the surface has cooled down before cleaning.
Use a soft cloth or kitchen paper to clean the surface. If the spillage
has dried on the surface you may need to use a mild paste cleaner.
Do not use other abrasive cleaners and/or wire wool etc as this may
scratch the surface of the hob.
Remove and wash the pan supports with warm soapy water and dry
before placing back onto the hob, making sure that they are level
prior to placing any pans on the surface.
The burner caps and crowns can be removed for washing. Wash the
burner caps and crowns using hot soapy water, and remove marks
with a mild cream cleaner. A well moistened soap impregnated steel
wool pad can be used with caution, if the marks are particularly

15
difficult to remove.
After cleaning, be sure to wipe dry with a soft cloth and ensure they
are refitted correctly prior to igniting the burner.
The electric ignition is obtained through a ceramic "electrode" and a
metal electrode. Keep these components very clean, to avoid lighting
difficulties, and check that the burner crown holes are not obstructed.
4.3. What to do if something goes wrong
There is no power to the appliance:
-Check there is not a power cut
-Check there is power to the electric socket/appliance
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and
return it with a stamp affixed or Alternatively you can Register online at
www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model
number, serial number, date of purchase and your retailer’s details before
registering a fault.
Your service call cannot progress without this information.

16
Important Note:
This appliance is marked according to the European directive
2002/96/EC on Waste Electrical and Electronic Equipment
(WEEE). By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents
accompanying the product, the Crossed Out Wheelie Bin,
indicates that this appliance may not be treated as household
waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance with local
environmental
regulations for waste disposal. For more detailed information
about treatment, recovery and recycling of this product, please
contact your local authority, your household waste disposal service
or the retailer where you purchased the product.
We continuously try to improve our products for the benefit of our
customers.
For this reason we reserve the right to make changes to any product
at any time, without notice
Issue: 02/25-09-2014
