RS PRO AFG-31000 Series User manual

Instruction Manual
AFG-31000 Series
Arbitrary Function Generator
EN FR DE IT SP

Table of Contents
22/11/2016 Version No. 002 1
Table of Contents
SAFETY INSTRUCTIONS ............................................................................... 4
GETTING STARTED......................................................................................11
Main Features...........................................................................................11

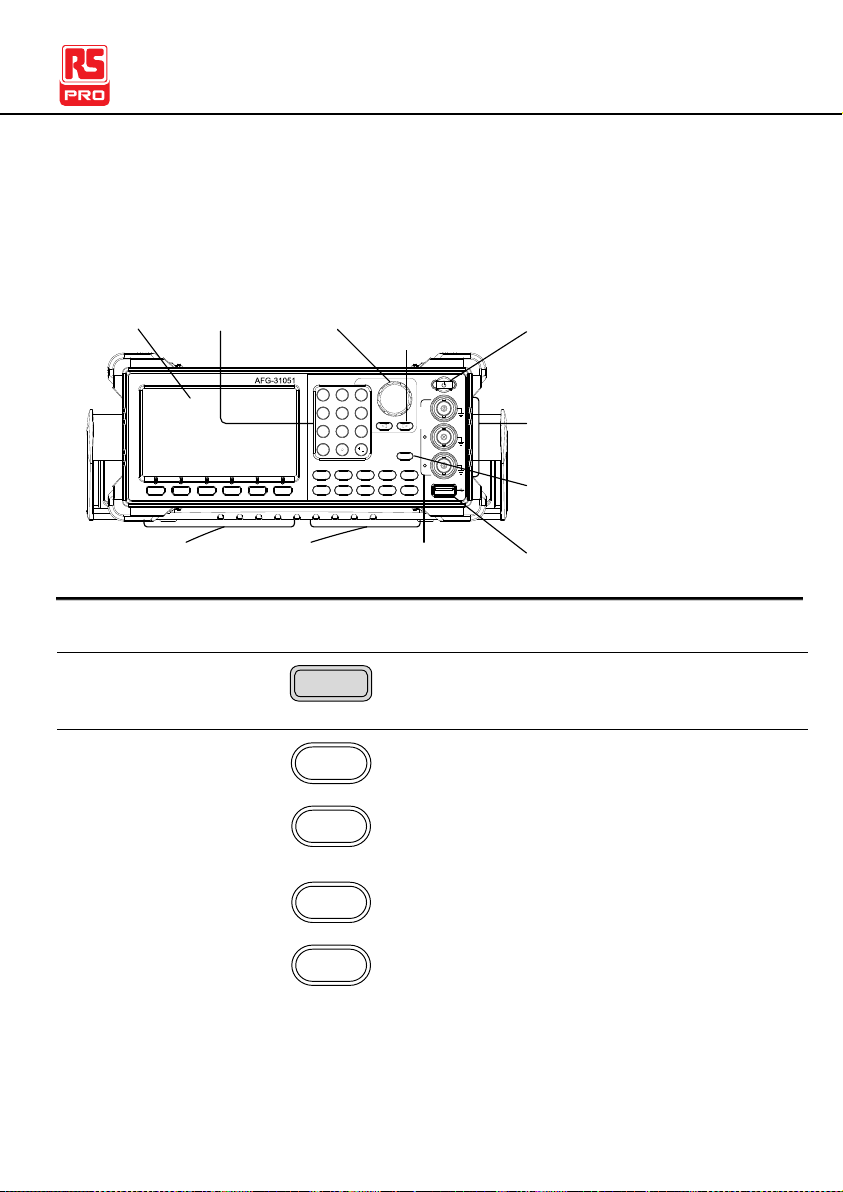

Panel Overview........................................................................................ 13
Setting up the Function Generator ............................................................ 19
QUICK REFERENCE.................................................................................... 21
How to use the Digital Inputs .................................................................... 23
How to use the Help Menu........................................................................ 25
Selecting a Waveform .............................................................................. 28
Modulation............................................................................................... 30
Sweep ..................................................................................................... 35
Burst ....................................................................................................... 36
ARB ........................................................................................................ 38
Utility Menu ............................................................................................. 43
Menu Tree ............................................................................................... 45
Default Settings ....................................................................................... 57
OPERATION................................................................................................ 60
Select a Waveform................................................................................... 61
MODULATION ............................................................................................. 70
Amplitude Modulation (AM)....................................................................... 73
Frequency Modulation (FM) ...................................................................... 84
Frequency Shift Keying (FSK) Modulation ................................................. 94
Pulse Width Modulation.......................................................................... 103

AFG-31000 Series Instruction Manual/English
2 22/11/2016 Version No. 002
Frequency Sweep ...................................................................................111
Burst Mode.............................................................................................123
SECONDARY SYSTEM FUNCTION SETTINGS ..............................................138
Save and Recall .....................................................................................139
Selecting the Remote Interface................................................................143
System and Settings ...............................................................................148
ARBITRARY WAVEFORMS ..........................................................................156
Inserting Built-In Waveforms....................................................................158
Display an Arbitrary Waveform.................................................................174
Editing an Arbitrary Waveform .................................................................185
Output an Arbitrary Waveform..................................................................195
Saving/Loading an Arbitrary Waveform.....................................................202
REMOTE INTERFACE................................................................................. 211
Establishing a Remote Connection ..........................................................212
Command Syntax....................................................................................218
Command List ........................................................................................223
System Commands .................................................................................228
Status Register Commands .....................................................................233
Interface Configuration Commands ..........................................................237
Apply Commands....................................................................................238
Output Commands ..................................................................................246
Pulse Configuration Commands...............................................................257
Amplitude Modulation (AM) Commands....................................................260
AM Overview ..........................................................................................260
Frequency Modulation (FM) Commands ...................................................265
FM Overview ..........................................................................................265

Table of Contents
22/11/2016 Version No. 002 3
Frequency-Shift Keying (FSK) Commands............................................... 271
FSK Overview........................................................................................ 271
Pulse Width Modulation (PWM) Commands ............................................. 275
PWM Overview ...................................................................................... 275
Frequency Sweep Commands................................................................. 280
Sweep Overview .................................................................................... 280
Burst Mode Commands .......................................................................... 292
Burst Mode Overview ............................................................................. 292
Arbitrary Waveform Commands............................................................... 305
Arbitrary Waveform Overview ................................................................. 305
Save and Recall Commands ................................................................... 318
Error Messages ..................................................................................... 320
SCPI Status Registers............................................................................ 336
APPENDIX.................................................................................................344
Fuse Replacement ................................................................................. 344
AFG-31000 Series Specifications............................................................ 345
EC Declaration of Conformity ................................................................. 355
INDEX .......................................................................................................356

AFG-31000 Series Instruction Manual/English
4 22/11/2016 Version No. 002
SAFETY INSTRUCTIONS
This chapter contains important safety instructions that should be followed when operating
and storing the function generator. Read the following before any operation to ensure your
safety and to keep the function generator in the best condition.
Safety Symbols
These safety symbols may appear in this manual or on the instrument.
WARNING
Warning: Identifies conditions or practices that could result in injury or
loss of life.
CAUTION
Caution: Identifies conditions or practices that could result in damage
to the function generator or to other objects or property.
DANGER High Voltage
Attention: Refer to the Manual
Protective Conductor Terminal
Earth (Ground) Terminal
DANGER Hot Surface
Double Insulated

SAFETY INSTRUCTIONS
22/11/2016 Version No. 002 5
Do not dispose electronic equipment as unsorted municipal waste.
Please use a separate collection facility or contact the supplier from
which this instrument was purchased.
Safety Guidelines
General Guideline
CAUTION
Do not place heavy objects on the instrument.
Do not place flammable objects on the instrument.
Avoid severe impact or rough handling that may damage the
function generator.
Avoid discharges of static electricity on or near the function
generator.
Use only mating connectors, not bare wires, for the terminals.
The instrument should only be disassembled by a qualified
technician.

AFG-31000 Series Instruction Manual/English
6 22/11/2016 Version No. 002
(Measurement categories) EN 61010-1:2001 specifies the
measurement categories and their requirements as follows. The AFG-
31000 falls under category II.
Measurement category IV is for measurement performed at the
source of a low-voltage installation.
Measurement category III is for measurement performed in a
building installation.
Measurement category II is for measurement performed on circuits
directly connected to a low voltage installation.
Measurement category I is for measurements performed on
circuits not directly connected to Mains.
Power Supply
WARNING
AC Input voltage: 100 ~ 240VAC, 50 ~ 60Hz.
Connect the protective grounding conductor of the AC power cord
to an earth ground to prevent electric shock.
Fuse
WARNING
Fuse type: T1A/250V.
Only qualified technicians should replace the fuse.
To ensure fire protection, replace the fuse only with the specified
type and rating.
Disconnect the power cord and all test leads before replacing the
fuse.
Make sure the cause of fuse blowout is fixed before replacing the
fuse.

SAFETY INSTRUCTIONS
22/11/2016 Version No. 002 7
Cleaning the function
generator
Disconnect the power cord before cleaning the function generator.
Use a soft cloth dampened in a solution of mild detergent and
water. Do not spray any liquid into the function generator.
Do not use chemicals containing harsh products such as benzene,
toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free, almost non-
conductive pollution (Note below) and avoid strong magnetic
fields.
Relative Humidity: < 80%
Altitude: < 2000m
Temperature: 0°C to 40°C
(Pollution Degree) EN 61010-1:2001 specifies pollution degrees and their
requirements as follows. The function generator falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized
gases), that may produce a reduction of dielectric strength or surface
resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive pollution
occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution occurs.
Occasionally, however, a temporary conductivity caused by condensation
must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-conductive
pollution occurs which becomes conductive due to condensation which is
expected. In such conditions, equipment is normally protected against
exposure to direct sunlight, precipitation, and full wind pressure, but neither
temperature nor humidity is controlled.

AFG-31000 Series Instruction Manual/English
8 22/11/2016 Version No. 002
Storage environment
Location: Indoor
Relative Humidity: < 70%
Temperature: -10°C to 70°C
Disposal
Do not dispose this instrument as unsorted municipal waste. Please
use a separate collection facility or contact the supplier from which
this instrument was purchased. Please make sure discarded
electrical waste is properly recycled to reduce environmental impact.
Power cord for the United Kingdom

SAFETY INSTRUCTIONS
22/11/2016 Version No. 002 9
When using the function generator in the United Kingdom, make sure the power cord meets
the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with the coloured marking
identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the Earth terminal marked
with either the letter E, the earth symbol or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal which is marked with the
letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal marked with the letter L
or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or contact the supplier.
This cable/appliance should be protected by a suitably rated and approved HBC mains fuse:
refer to the rating information on the equipment and/or user instructions for details. As a guide,
a cable of 0.75mm2should be protected by a 3Aor 5A fuse. Larger conductors would
normally require 13A types, depending on the connection method used.

AFG-31000 Series Instruction Manual/English
10 22/11/2016 Version No. 002
Any exposed wiring from a cable, plug or connection that is engaged in a live socket is
extremely hazardous. If a cable or plug is deemed hazardous, turn off the mains power and
remove the cable, any fuses and fuse assemblies. All hazardous wiring must be immediately
destroyed and replaced in accordance to the above standard.

GETTING STARTED
22/11/2016 Version No. 002 11
GETTING STARTED
The Getting started chapter introduces the function generator’s main features, appearance,
set up procedure and power-up.
Main Features
Model name
Frequency bandwidth
AFG-31081
80MHz
AFG-31051
50MHz
Performance
DDS Function Generator series
1μHz high frequency resolution maintained at full range
1ppm frequency stability
Full Function Arbitrary Waveform Capability
200 MSa/s sample rate
100 MSa/s repetition rate
1 M-point waveform length
16-bit amplitude resolution
Ten 1M waveform memories
True waveform output to display
User define output section
User defined marker output section
D W R (Direct Waveform Reconstruction) capability
Waveform editing capability sans PC

AFG-31000 Series Instruction Manual/English
12 22/11/2016 Version No. 002
N Cycle and Infinite output mode selectable
-60dBc low distortion sine wave
Features
Sine, Square, Ramp, Pulse, Noise, Sinc standard waveforms
Internal and external LIN/LOG sweep with marker output
Int/Ext AM, FM, PWM, FSK modulation
Modulation/sweep signal output
Burst function with internal and external triggers without marker
output
Store/recall 10 groups of setting memories
Output overload protection
Interface
GPIB, RS232, USB standard interfaces
4.3 inch Color TFT LCD (480 × 272) Graphical User Interface.
AWES (Arbitrary Waveform Editing Software) PC software

GETTING STARTED
22/11/2016 Version No. 002 13
Panel Overview
Front Panel
OUTPUT
50 W
50 W
MOD
SYNC
Waveform FREQ/Rate AMPL DC Offset UTIL
Preset
0
789
456
123
/
Output
F 1 F 2 F 3 F 4 F 5 F 6 ARB MOD Sweep Burst
LCD Display Number pad Scroll
Wheel
Output
Terminals
Function
keys USB portOutput indicators
Output key
Selection
keys Power Switch
Operation
keys
LCD display
TFT color LCD display, 480 x 272 resolution.
Function keys:
F1~F6
F 1
Activates the functions which appear in the
bottom of the LCD display.
Operation keys
Waveform
Waveform is used to select a waveform type.
FREQ/Rate
The FREQ/Rate key is used to set the
frequency or sample rate
AMPL
AMPL sets the waveform amplitude.
DC Offset
Sets the DC offset.

AFG-31000 Series Instruction Manual/English
14 22/11/2016 Version No. 002
UTIL
The UTIL key is used to access the save and
recall options, set the remote interface (USB,
GPIB, RS232), use DSO link, update and view
the firmware version, access the calibration
options, output impedance settings, set the
language and access the help menu.
ARB
ARB is used to set the arbitrary waveform
parameters.
MOD
Sweep
Burst
The MOD, Sweep and Burst keys are used to
set the modulation, sweep and burst settings
and parameters.
Preset
Preset
The preset key is used to recall a preset state.
Output key
Output
The Output key is used to turn on or off the
waveform output.
Output indicators
OUTPUT
When an Output indicator is green, it indicates
that the output is active.

GETTING STARTED
22/11/2016 Version No. 002 15
USB host connector
The USB Host connector is used to save and
restore waveform data and images, as well as
update the firmware.
Output terminals
MOD
Modulation output terminal.
SYNC
50 W
The SYNC output terminal. 50Ω output
impedance.
50 W
The primary output terminal. 50Ω output
impedance.
Standby key
The standby key is used to turn the function
generator on (green) or to put the function
generator into standby mode (red).
Selection keys
Used to select digits when editing parameters.
Scroll Wheel
The scroll wheel is used to edit values and
parameters.
Decrease Increase
Keypad
0/
321
4
7 8
5
9
6
The digital keypad is used to enter values and
parameters. The keypad is often used in
conjunction with the selection keys and
variable knob.

AFG-31000 Series Instruction Manual/English
16 22/11/2016 Version No. 002
Rear Panel
Trigger input
Trigger
External trigger input. Used to receive external trigger
signals.
MARK output
MARK
Mark output signal. Used for Sweep and ARB mode
only.
Fan
Power Socket
Input and fuse
Power input: 100~240V AC
50~60Hz.
Fuse: T1A/250V
For the fuse replacement procedure, see page 344.
Power Switch
Main power switch.
USB port
The Mini-B type USB connector is used to connect the
function generator to a PC for remote control.
QUALIFIED PERSONNEL.
PROTECTIVE GROUNDING CONDUCTOR MUST BE
TO AVOID ELECTRIC SHOCK THE POWER CORD
DO NOT REMOVE COVERS. REFER SERVICING TO
NO OPERATOR SERVICEABLE COMPONENTS INSIDE.
WARNING
CONNECTED TO GROUND.
ONLY WITH SPECIFIED TYPE AND RATED FUSE.
FOR CONTINUED FIRE PROTECTION. REPLACE
AC 250V T 0.63A
FUSE RATING
RS232
SER.NO. LABEL
INPUT
Trigger
MOD Trigger
MARK
OUTPUT
100 240V
50 60Hz 65VA
AC
AND TEST LEADS BEFORE
DISCONNECT POWER CORD
REPLACING FUSE
GPIB
Trigger
Input
USB port
Trigger output RS232
Power socket and
fuse Power Switch
GPIB
Fan
Modulation input
Mark output

GETTING STARTED
22/11/2016 Version No. 002 17
RS232 port
RS232
9 pin female RS232 socket used for PC remote control.
GPIB
GPIB
24 pin female GPIB connector for PC remote
control.
Trigger output
Trigger
Trigger output terminal.
MOD input
MOD
Modulation input terminal.

AFG-31000 Series Instruction Manual/English
18 22/11/2016 Version No. 002

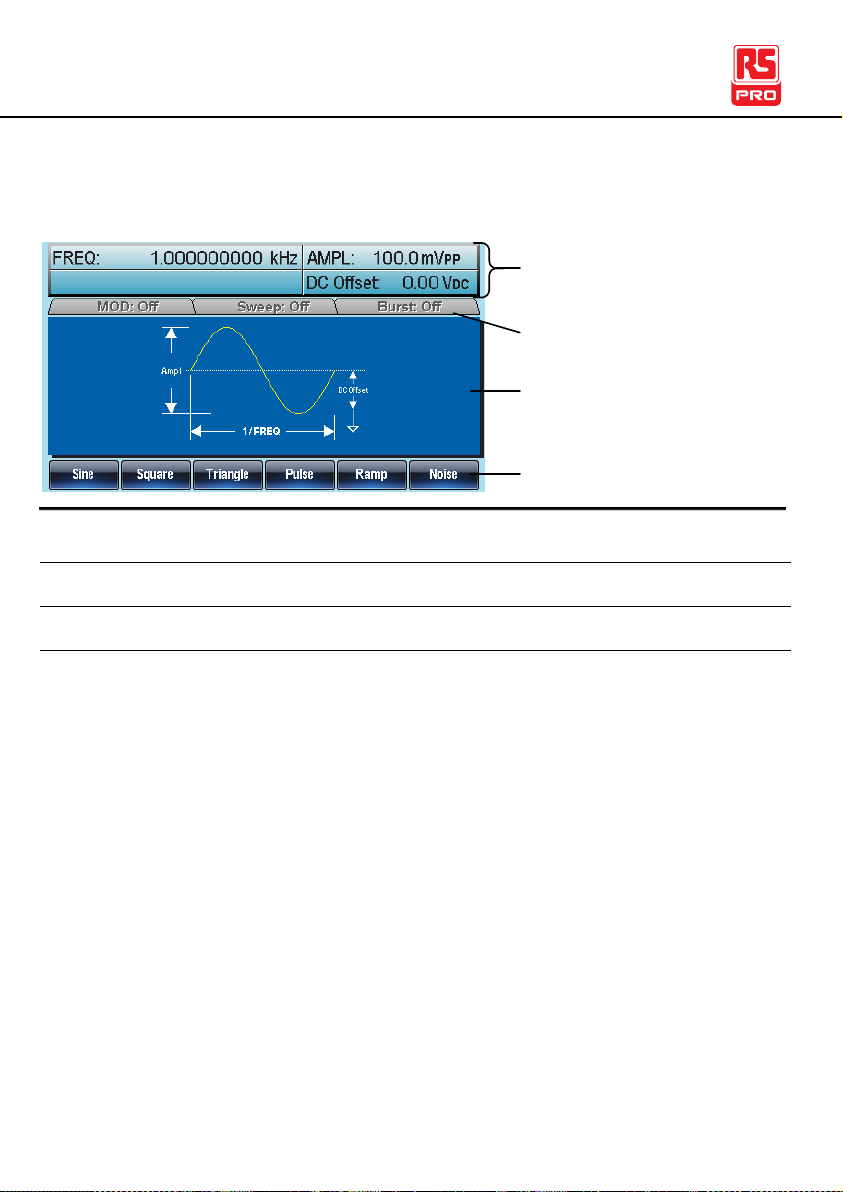

Display
Soft Menu Keys
Waveform Display
Status Tabs
Parameter Windows
Parameter Windows
The Parameter display and edit window.
Status Tabs
Shows the status of MOD, Sweep and Burst modes.
Waveform Display
The Waveform Display is used to output the waveform on the display.
Soft Menu Keys
The function keys (F1~F6) below the Soft Menu keys correspond to
the soft keys.
