Russell Hobbs RHM1701B-MR User manual

Model Number:
RHM1701B-MR
Compact Manual Microwave
User Guide
PLEASE RETAIN FOR FUTURE
REFERENCE
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at mda.russellhobbs.com

Page(s)
SAFETY INSTRUCTIONS 3-10
ABOUT YOUR MICROWAVE 11-12
PRODUCT INFORMATION 13
UNPACKING THE MICROWAVE 14
PRODUCT OVERVIEW 15
MICROWAVE OVEN INSTALLATION 16-17
TURNTABLE INSTALLATION 18-19
CONTROL PANEL 20
HOW TO USE THE MICROWAVE 21
COOKING TIPS 22
CLEANING THE MICROWAVE 23
PROBLEM SOLVING 24-27
GUARANTEE & CUSTOMER SERVICES 28
SPARE PARTS 29
CONNECTION TO THE MAINS SUPPLY 30-31
DISPOSAL 32
CONTENTS
2

SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•This appliance is intended to be used in the household and
general domestic applications. It is not intended to be used in
industrial or commercial applications.
•Do not attempt to operate this appliance with the door open, as
open door operation can result in harmful exposure to
microwave energy.
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
•If the door or door seals are damaged, or the hinges and latches
are broken or loosened, the oven must not be operated until it
has been repaired by a competent person.
•It is hazardous for anyone other than a competent person to
carry out any service or repair operation that involves the
removal of a cover which gives protection against exposure to
microwave energy.
•Liquids and other foods must not be heated in sealed containers
since they are liable to explode.
3

SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:

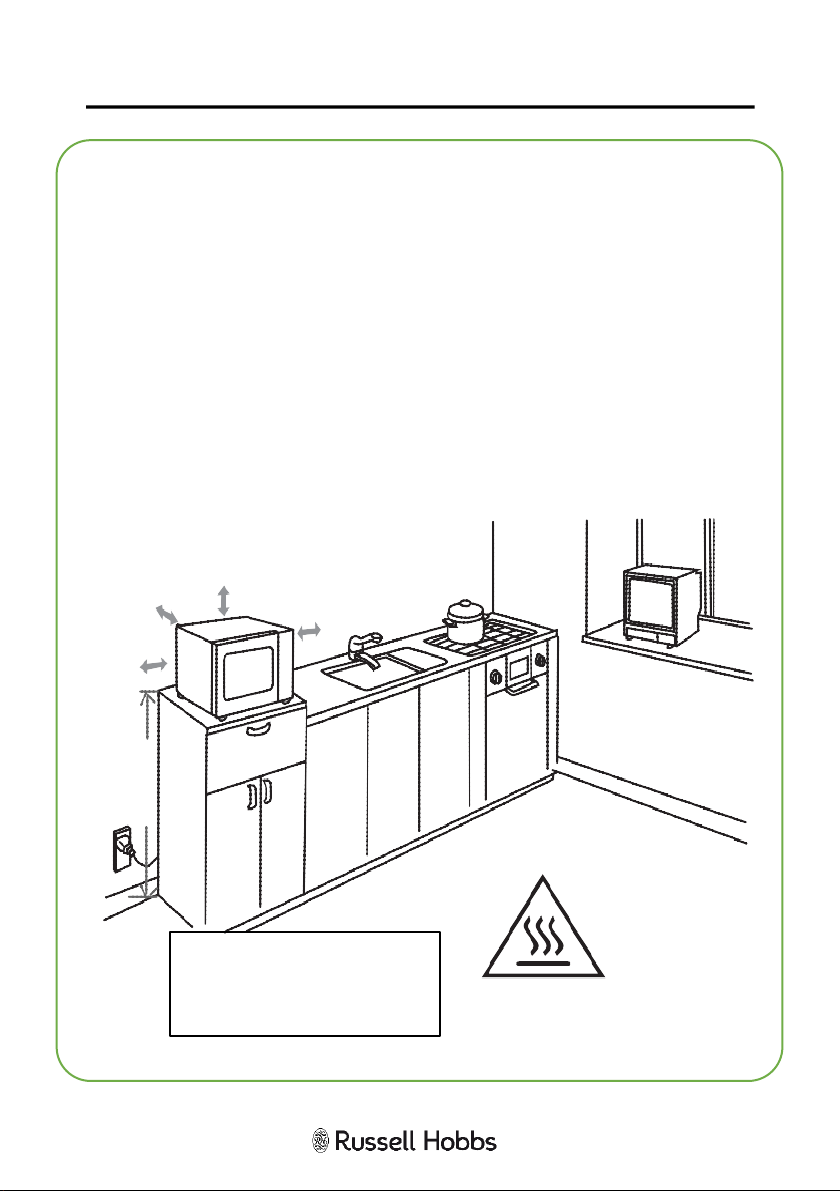

•A minimum clearance of 7.5cm is required between the
oven and any adjacent walls. Leave a minimum clearance
of 30cm above the oven.
•Use only cookware and utensils that are approved for
use in a microwave oven.
•When heating food in plastic or paper containers, keep
an eye on the oven due to the possibility of ignition.
•This microwave is intended for heating food and
beverages only. The drying of food or clothing and
heating of warming pads, wheat bags, slippers, sponges,
damp cloth and similar is extremely dangerous and may
lead to risk of injury, ignition or fire.
•If materials inside the oven smoke or catch fire, keep the
oven door closed to stifle the flames, turn the oven off at
the wall switch, or shut the power off at the fuse or
circuit-breaker panel. If smoke is emitted , switch off or
unplug the appliance and keep the door closed in order
to stifle any flames.
•Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when
handling the container.
4

SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked
before consumption, in order to avoid burns. Do not
heat baby bottles with the teat left on. Remove it if
replacing the bottle back into the oven.
•Eggs in their shell and whole hard-boiled eggs should not
be heated in microwave ovens since they may explode,
even after microwave heating has ended.
•The oven should be cleaned regularly and any food
deposits removed.
•Failure to maintain the oven in a clean condition,
especially if liquid is left under the turntable, could lead
to deterioration of the surface that will adversely affect
the life of the appliance that may result in a hazardous
condition.
•The appliance shall not be cleaned with a steam cleaner.
•Metallic containers for food and beverages are not
allowed during microwave cooking.
•The microwave oven should be used freestanding only
and must not be built-in or used in a cabinet.
5

SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•Use this appliance only for its intended use as described in the
manual. Do not use corrosive chemicals or vapors in this
appliance. This type of oven is specifically designed to heat,
cook or dry food. It is not designed for industrial or laboratory
use.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
•To avoid fire, electric shock, or injury, never immerse the
microwave, cord, or plug in water or liquid.
•Do not use attachments not recommended by the manufacturer.
Only use thermometers approved for use in microwaves.
•The appliance and its accessible parts may become hot during
use. Care should be taken to avoid touching heating elements.
•Do not leave the microwave oven unattended while you are
using it.
•Do not use the microwave when it is empty. This could damage
the oven.
•Do not use metal pans, dishes with metal handles or anything
with a metal trim inside the microwave. Do not use paper
covered wire twist-ties on plastic bags.
•Never put objects into the openings on the outer case.
6

SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•Food containing a mixture of fat and water (for example,
stock) should stand for 30 to 60 seconds in the oven
after it has been turned off. This is to allow the mixture
to settle and to prevent it from bubbling when a spoon is
placed in it, or a stock cube is added.
•When heating or cooking food or liquid, remember that
there are certain foods (such as, jam, Christmas pudding,
and mincemeat) which heat up very quickly.
•Do not cook any food surrounded by a membrane, such
as egg yolks, potatoes, chicken livers, sausages, ready
meals and so on without piercing them several times
with a fork.
•Do not try to deep-fry foods in this microwave oven.
•Do not overcook food.
•Please remember that as food or liquids heat up, they
will release steam or may be spitting. Never cover any
container fully, always leave a gap for steam to escape.
•Do not use plastic containers when heating or cooking
foods that contain a lot of fat or sugar.
7

SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•Always have the glass tray and turntable support in place
when usingthemicrowave oven.
•Do not cook fooddirectly on theglass tray. Put food on a
suitable plate or in a bowl before puttingit in the oven.
•Please use suitable oven gloves when removing items from the
oven to avoid burning yourself.
•Do not use melamine dishes as they contain a material which
will absorbmicrowave energy. This may cause thedishes to
crack or burn, and will slow down the cookingspeed.
•Do not usethemicrowave oven for heatingutensils, plates or
dishes.
•Do not cook using a container with a restricted opening, such
as bottles, as they may explode.
•Before you clean your microwave oven, turn it off and unplug it.
•If smoke is observed, switch off or unplug the appliance and
keep the door closed in order to stifle any flames.
•Do not use the cavity for storage purposes. Do not leave paper
products, cooking utensils, or food in the cavity when not in
use.
8

SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•Keep the inside of the oven clean. When food or liquids stick to
the oven walls, wipe with a damp cloth. We recommend that
you do not use harsh detergent or abrasives.
•On the right hand wall of the cavity is the wave guide cover,
microwaves are passed through this to enable your food to
cook. It is important that this wave guide cover is kept clean
at all times. To do this wipe with mild detergent and water,
then dry.
•You should clean the outside of the oven with a damp cloth. Do
not allow water to seep into the ventilation openings.
•Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
•If steam builds up insideor aroundtheoutsideof the oven
door, wipe with asoftcloth. This may happenwhen the
microwave oven is usedin humid conditions.
•Pierce foods with heavy skins such as potatoes, whole
squashes, apples and chestnuts before cooking.
•The appliance is not intended to be operated by means of an
external timer or separate remote-control system.
•Please secure the turntable before you move the appliance to
avoid damages.
9

SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•Regularly remove the glass turntable to clean it, wash it
in warm soapy water or a dishwasher. Regularly clean
the turntable support and oven floor. Simply wipe the
bottom surface of the oven with mild detergent and
water, then dry. You can wash the turntable support in
mild soapy water.
•This appliance is a Group 2 Class B equipment. Group 2
equipment: group 2 contains all ISM RF equipment in
which radio-frequency energy in the frequency range 9
kHz to 400 GHz is intentionally generated and used or
only used locally, in the form of electromagnetic
radiation, inductive and/or capacitive coupling, for the
treatment of material, for inspection/analysis purposes,
or for transfer of electromagnetic energy. Class B
equipment is equipment suitable for use in locations in
residential environments and in establishments directly
connected to a low voltage power supply network which
supplies buildings used for domestic purposes.
10

ABOUT YOUR MICROWAVE
Thank you for purchasing your Russell Hobbs microwave
oven.
The Russell Hobbs RHM1701B-MR has been designed with
style and practicality in mind. This attractive appliance is
simple and easy to use with its 700 watts of microwave
power, providing you quick and convenient cooking in your
home. With two simple control dials, you simply set your
desired power level & time, and the microwave cooks your
food to perfection.
The Russell Hobbs RHM1701B-MR has a 17 litre cavity
capacity, which comfortably fits a standard dinner plate
and the glass turn-table is removable for easy cleaning, and
is dishwasher safe.
Additional features of the RHM1701B-MR Russell Hobbs
microwave include 5 microwave power levels to choose
from, so you can ensure all your food is cooked to the
perfect temperature. It also has a useful defrost setting, so
your frozen foods can be defrosted quick and easy.
11

ABOUT YOUR MICROWAVE
How do microwaves work?
Microwaves are high-frequency electromagnetic waves
similar to radio waves. While radio waves may vary in
length from one metre to many kilometres, microwaves are
very short (less than 12.5 centimetres.)
Microwaves do not make any heat themselves but cause
water molecules in food to vibrate.
This vibration produces heat that cooks the food. This is
why your food will come out of the microwave piping hot,
when your utensils inside the oven stay much cooler. The
microwaves do not stay in the air or in the food when you
open the microwave oven door.
The microwave oven will work using an ordinary household
electrical socket. Inside the microwave oven is the
magnetron, which turns the electrical energy into
microwaves.
Microwaves cannot travel through metal, so the inside of
the oven is lined with metal. The door is lined with a fine
metal mesh which stops microwaves getting through. This
means that when the microwave oven door is shut, there is
no possibility that microwaves can be released.
12

PRODUCT INFORMATION
13
Rated Voltage 230-240V/50Hz
Rated Input Power
(Microwave) 1100W
Rated Output Power
(Microwave) 700W
Oven Capacity (litres) 17*
Turntable Diameter 24.5cm
External Dimensions
(H x W x D) 24.3 x 44.6 x 33.8 (cm)
Net Weight; Approx 9.4Kg
Number of Power Levels 5 + defrost
Accessories Included
Turntable coupling
Turntable roller ring
Glass turntable
Spec code RHM1701B-MR
MIN code 111943301
*Internal volume is calculated by measuring maximum width,
depth and height. Actual capacity for holding food is less.

UNPACKING THE MICROWAVE
Before you use your microwave oven
1. Remove all the packaging. Do not remove the large piece
of mica board from the right hand side of the cavity wall
(Refer to the below image). This is called a wave-guide
cover and allows the microwaves to pass through to cook
the food.
14
Please ensure you keep this cover clean at all times by
wiping with adamp cloth.Do not remove/place in a
dishwasher.
2. Check the oven after unpacking for any visual damage
such as:
Amisaligned door
Damage to the door
Dents or holes in the door window and screen
Dents in the inside
If you can see any damage do not use the oven, please
contact Customer Service team on 03452097461.
This microwave oven must be put on a horizontal surface
that is strong enough to support its weight.
The oven must be placed away from high temperatures and
steam.
Do not put anything on the top of the microwave oven.

PRODUCT OVERVIEW
1. Door safety lock system
2. Oven window
3. Oven cavity
4. Wave guide cover (do
not remove)
5. Control panel -dials
6. Turntable coupling
7. Roller ring
8. Glass turntable
15
1
234
5
7
8
6

MICROWAVE OVEN INSTALLATION
•Place the oven as far away from radios and televisions as
possible. Using the oven may cause interference with the
reception.
•Plug the oven into a suitable 13 amp mains socket, make
sure the voltage is the same as on the rating label (do
not use extension cables or mains socket adaptors.)
16
•The microwave oven should be used freestanding only
and must not be built-in or used in acabinet.
•Select alevel surface that provides enough space for the
outlet vents.

MICROWAVE OVEN INSTALLATION
The minimum installation height is 85cm.
A minimum clearance of 7.5cm is required between the
oven and any adjacent walls. Leave a minimum clearance of
30cm above the oven.
WARNING:
DO NOT install the oven over a cooker or other heat or
steam producing appliance as this will damage the
microwave oven.
17
30cm
7.5cm
7.5cm
7.5cm
Min 85cm
DO NOT obstruct
the ventilation
from themicrowave

TURNTABLE INSTALLATION
•Before first use, check that any securing tape and all
packaging has been removed from the glass tray and
turntable ring assembly.
•These parts must never be restricted from rotating.
•Never place the glass tray upside down.
•To assemble the turntable, follow the steps below in
number order.
18
STEP 1) The turntable coupling should slot into the centre
of microwave
STEP 2) The turntable ring slots into the indents in the
microwave base
STEP 3) The glass tray should align with the turntable
coupling

TURNTABLE INSTALLATION
Theglass tray, turntable ring, and turntable coupling
assembly must always be used during cooking(as
shown below).
19
•Do not place the food directly onto the glass tray,
always place on or in suitable microwaveable cookware.
Please check that crockery is microwave safe before
using.
•If the glass tray or turntable ring assembly has been
damaged in any way, please contact Customer Service
team on 03452097461.

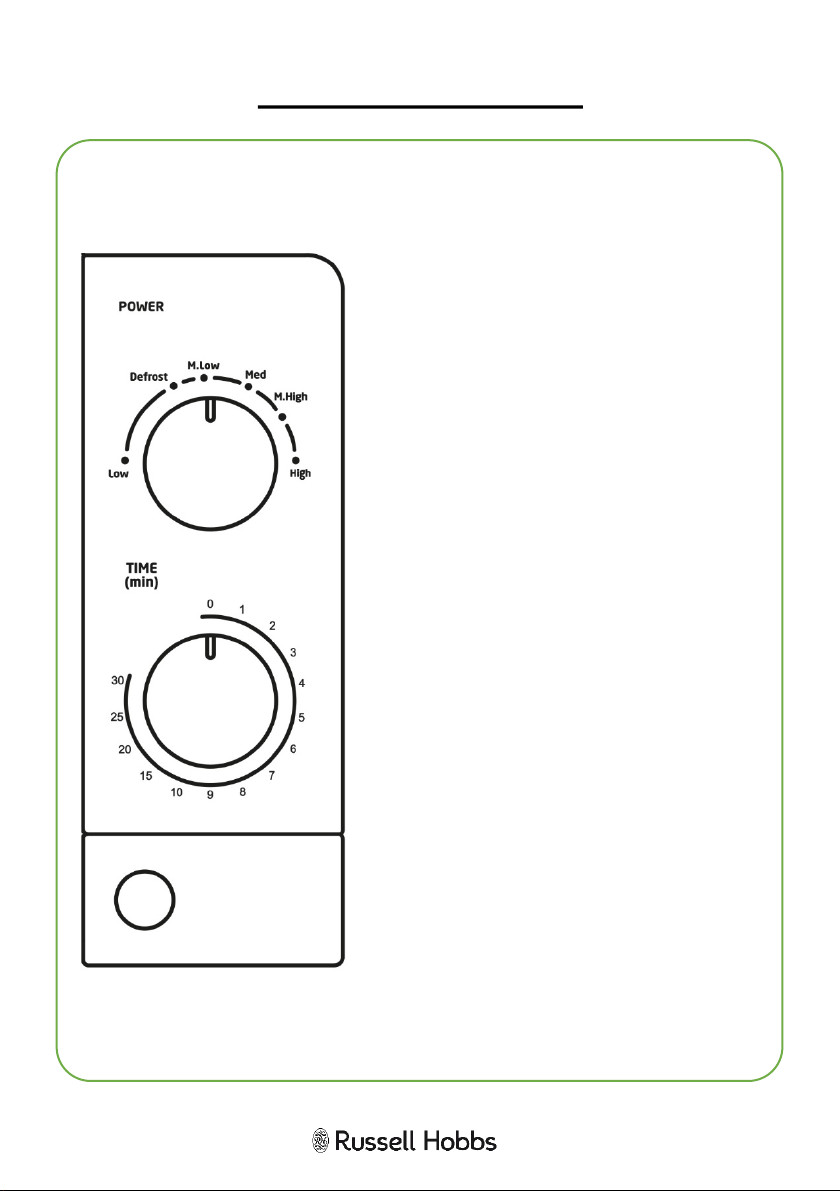

CONTROL PANEL
POWER DIAL
There are 6 power levels including a
defrost function, selected using the
power control dial.
The lower the power setting, the
slower the microwave will heat the
food. Make sure you follow
guidelines on packaging when
selecting a setting.
To defrost food, set the arrow on the
dial to ‘DEFROST’.
TIME DIAL
Turn the dial clockwise to increase
the time set.You can set your
cooking time for up to 30 minutes.
The line on the dial will indicate how
many minutes you have selected.
When the time has ran out, the
microwave will produce a ‘ping’
noise to alert you that cooking has
completed.
Important note:
To cook for less than 2 minutes, turn
the TIMER dial past 2 minutes and
then return it to the time required
20
