Russell Hobbs RHMD804 User manual

Model Number:
RHMD804 (CP)
Compact Digital Microwave
User Guide
PLEASE RETAIN FOR FUTURE
REFERENCE
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at http://mda.russellhobbs.com

Page(s)
Safety instructions
3-9
About your microwave
10-11
Product information
12
Unpacking the microwave
13
Product overview
14
Microwave
oven installation 15-16
Turntable
installation 17-18
Control
panel 19
How to use the microwave
20-26
Cooking tips
27
Cleaning the microwave
28
Problem solving
29-32
Guarantee &
customer services 33
Spare parts
34
Connection to the mains supply
35-36
Notes
37-39
Disposal information
40
CONTENTS
2

3
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•If the door or door seals are damaged, the oven must not be
operated until it has been repaired by a competent person.
•It is hazardous for anyone other than a competent person to
carry out any service or repair operation that involves the
removal of a cover which gives protection against exposure to
microwave energy.
•Liquids and other foods must not be heated in sealed containers
since they are liable to explode.
•The appliance and its accessible parts may become hot during
use. Care should be taken to avoid touching heating elements.
•Do not leave the microwave oven unattended while you are
using it.
•Do not use the microwave when it is empty. This could damage
the oven.
•This appliance is intended to be used in the household and
general domestic applications. It is not intended to be used in
industrial or commercial applications.

4
SAFETY INSTRUCTIONS
WARNING:
•This microwave is intended for heating food and beverages only.
The drying of food or clothing and heating of warming pads,
wheat bags, slippers, sponges, damp cloth and similar is
extremely dangerous and may lead to risk of injury, ignition or
fire.
•Do not use metal pans, dishes with metal handles or anything
with a metal trim inside the microwave. Do not use paper
covered wire twist-ties on plastic bags.
•Never put objects into the openings on the outer case.
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, only if they
are being supervised or have been given instruction in the safe
use of the appliance and understand the hazards involved.
Children should not play with the appliance.
•Food containing a mixture of fat and water (for example, stock)
should stand for 30 to 60 seconds in the oven after it has been
turned off. This is to allow the mixture to settle and to prevent it
from bubbling when a spoon is placed in it, or a stock cube is
added.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

5
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•When heating or cooking food or liquid, remember that
there are certain foods (such as, jam, Christmas pudding, and
mincemeat) which heat up very quickly.
•Microwave heating of beverages can result in delayed eruptive
boiling, therefore care must be taken when handling the
container.
•The contents of feeding bottles and baby food jars shall be
stirred or shaken and the temperature checked before
consumption, in order to avoid burns. Do not heat baby
bottles with the teat left on. Remove it if replacing the bottle
back into the oven.
•Eggs in their shell and whole hard-boiled eggs should not be
heated in microwave ovens since they may explode, even after
microwave heating has ended.
•Do not cook any food surrounded by a membrane, such as egg
yolks, potatoes, chicken livers, sausages, ready meals and
so on without piercing them several times with a fork.
•Do not try to deep-fry foods in this microwave oven.
•Do not overcook food.
•When heating foodin plastic or paper containers, keep an eye
on the oven due to the possibility of ignition.

6
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•If materials inside the oven smoke or catch fire, keep the oven
door closed to stifle the flames, turn the oven off at the wall
switch, or shut the power off at the fuse or circuit-breaker
panel. If smoke is emitted , switch off or unplug theappliance
and keep the door closed in order to stifle any flames.
•Please remember that as food or liquids heat up, they will
release steam or may be spitting. Never cover any container
fully, always leave a gap for steam to escape.
•Do not use plastic containers when heating or cooking foods
that contain a lot of fat or sugar.
•Always have the glass tray and turntable support in place
when using the microwave oven.
•Do not cook fooddirectly on theglass tray. Put food on a
suitable plate or in a bowl before puttingit in the oven.
•When using the grill rack and baking tray, be aware that these
will become HOT during cooking as they aren’t heatproof.
Please use suitable oven gloves when removing these.

7
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•Do not use melamine dishes as they contain a material
which will absorb microwave energy. This may cause the
dishes to crack or burn, and will slow down the cooking speed.
•Use only cookware and utensils that are approved for use in a
microwave oven.
•Do not usethe microwave oven for heating utensils, plates or
dishes.
•Do not cook using a container with a restricted opening,
such as bottles, as they may explode.
•Before you clean your microwave oven, turn it off and unplug it.
•Keep the inside of the oven clean. When food or liquids
stick to the oven walls, wipe with a damp cloth. We
recommend that you do not use harsh detergent or abrasives.

8
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•On the right hand wall of the cavity is the waveguide
cover, microwaves are passed through this to enable your
food to cook. It is important that this waveguide cover is
kept clean at all times. To do this wipe with mild detergent
and water, then dry.
•The oven should be cleaned regularly and any food deposits
removed. Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a
hazardous situation.
•You should clean the outside of the oven with a damp
cloth. Do not allow water to seep into the ventilation
openings.
•Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
•If steam builds up insideor around the outsideof the oven
door, wipe with a soft cloth. This may happen when the
microwave oven is used in humid conditions.

9
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•Regularly remove theglass turntable to clean it, wash it in
warm soapy wateror a dishwasher. Regularly clean the
turntable support and oven floor. Simply wipe the bottom
surface of the oven with mild detergent and water, then dry.
You can wash the turntable support in mild soapy water.
•Failure to maintain the oven in a clean condition, especially if
liquid is left under the turntable, could lead to deteriorationof
the surface that will adversely affect thelife of the
appliance that may result in a hazardous condition.

ABOUT YOUR MICROWAVE
10
Thank you for purchasing your Russell Hobbs microwave oven.
The RHMD804 combines the convenience of a stylish and compact
microwave with the added functionality of a digital oven. This means your
oven will compliment any space in your kitchen, as well as facilitating a
variety of cooking needs.
First, all you need to do is pick the perfect spot on your countertop, then,
follow the simple steps for installation, and within minutes you’re ready to
start cooking.
To operate, simply use the sleek control panel with chrome accents to
choose from a number of cooking functions. If you’re in a hurry and just need
a quick reheat, the Express function is the ideal programme for you. Pressing
the ‘Express’ button will automatically add 30 seconds of full power to the
display. Hit ‘Start’ and you’re cooking.
If you want to choose your own cooking power and time this is also
extremely easy – press the ‘Power’ button, turn the time dial and the ‘Start’
button will commence the process.
With the RHMD804 there’re added features to enhance your cooking
experience. As well as simple microwaving and defrosting, you can choose
from 8 pre-set cooking menus that make your life easier. Cook anything
from popcorn to pizza, potatoes and even fish.
Russell Hobbs understand that not all recipes are best cooked at one power.
That’s why the RHMD804 features a multi sequence function that can allow
you to cook one dish at different power levels for desired times. What’s
more, you can set your food to cook whenever is convenient using the
handy pre-set programme.
For added peace of mind, the RHMD804 enables a child lock to be set,
meaning cooking cannot be started or interrupted.
Cleaning is straight forward, simply wipe the exterior, interior and
waveguide cover with a damp soft cloth to maintain peak performance.
In the unlikely event that you experience any issues with your product,
please make our friendly Customer Service team your first point of call.

ABOUT YOUR MICROWAVE
How do microwaves work?
Microwaves are high-frequency electromagnetic waves similar to radio
waves. While radio waves may vary in length from one metre to many
kilometres, microwaves are very short (less than 12.5 centimetres.)
Microwaves do not make any heat themselves but cause water molecules in
food to vibrate.
This vibration produces heat that cooks the food. This is why your food will
come out of the microwave piping hot, when your utensils inside the oven
stay much cooler. The microwaves do not stay in the air or in the food when
you open the microwave oven door.
The microwave oven will work using an ordinary household electrical
socket. Inside the microwave oven is the magnetron, which turns the
electrical energy into microwaves.
Microwaves cannot travel through metal, so the inside of the oven is lined
with metal. The door is lined with a fine metal mesh which stops
microwaves getting through. This means that when the microwave oven
door is shut, there is no possibility that microwaves can be released.
11

12
PRODUCT INFORMATION
Rated Voltage 220-240V/50Hz
Rated Input Power (Microwave) 1150 -1280W
Rated Output Power
(Microwave) 800W
Oven Capacity 17L
Turntable Diameter 27cm
External Dimensions (H x W x D) 25.6 x 45.1 x 33.8cm
Net Weight; Approx 11Kg
Number of Power Levels 5 + Defrost
Accessories Included
Turntable coupling
Turntable ring
Glass turntable
Produced for:
G2S Limited
Wigan
WN2 4AY

UNPACKING THE MICROWAVE
Before you use your microwave oven

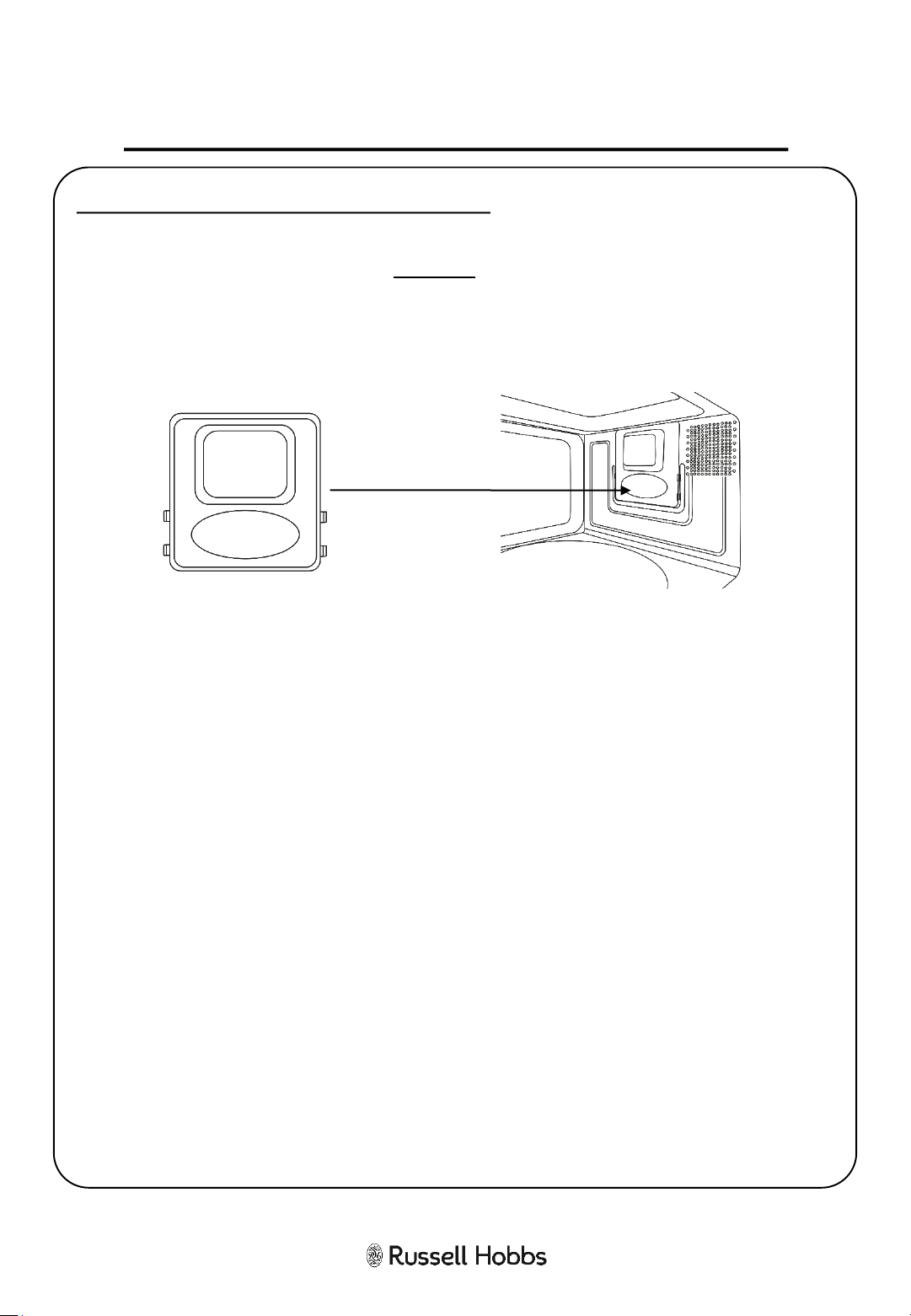

1. Remove all the packaging. Do not remove the large piece of card
from the right hand side of the cavity wall (Refer to the below
image). This is called a waveguide cover and allows the microwaves
to pass through to cook the food.
Please ensure you keep this cover clean at all times by wiping with
a damp cloth. Do not remove/place in a dishwasher.
2. Check the oven after unpacking for any visual damage such as:
●A misaligned door
●Damage to the door
●Dents or holes in the door window and screen
●Dents in the inside
If you can see any damage do not use the oven, please call 0345 209
7461.
This microwave oven weighs approximately 11Kg so you must put it
on a horizontal surface that is strong enough to support this weight.
The oven must be placed away from high temperatures and steam.
Do not put anything on the top of the microwave oven.
13

14
PRODUCT OVERVIEW
1. Safety interlock latches
2. Door assembly and window
3. Glass turntable
4. Microwave top
5. Screen display
6. Turntable coupling
7. Turntable ring
8. Control panel - buttons and dial
9. Plastic waveguide cover (do not remove)
1
2 3 4
679
5
8

15
MICROWAVE OVEN INSTALLATION
•Place the oven as far away from radios and televisions as
possible. Using the oven may cause interference with the
reception.
•Plug theoven into a suitable 13 amp mains socket, make
sure the voltage is the same as on the rating label (do not use
extension cables or mains socket adaptors.)
•The microwave oven should be used freestanding only and must
not be built-in or used in a cabinet.
•Select a level surface that provides enough space for the outlet
vents.

16
MICROWAVE OVEN INSTALLATION

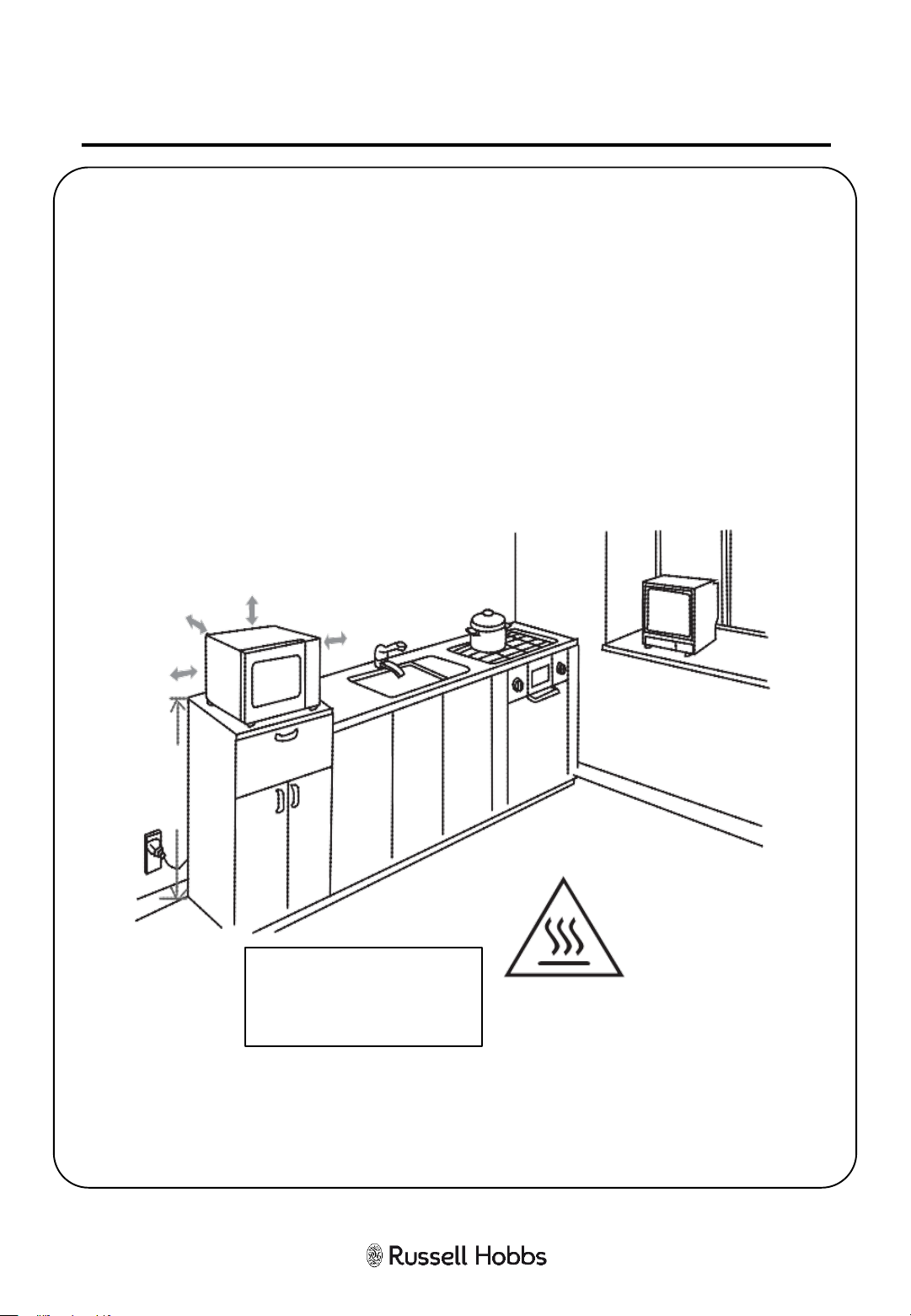

DO NOT obstruct
the ventilation
from themicrowave
30cm
7.5cm 7.5cm
7.5cm
Min 85cm
WARNING:
DO NOT install the oven over a cooker or other heat or steam
producing appliance as this will damage the microwave oven.
The minimum installation height is 85cm.
Aminimum clearance of 7.5cm is required between theoven and
any adjacent walls. Leave a minimum clearance of 30cmabovethe
oven.

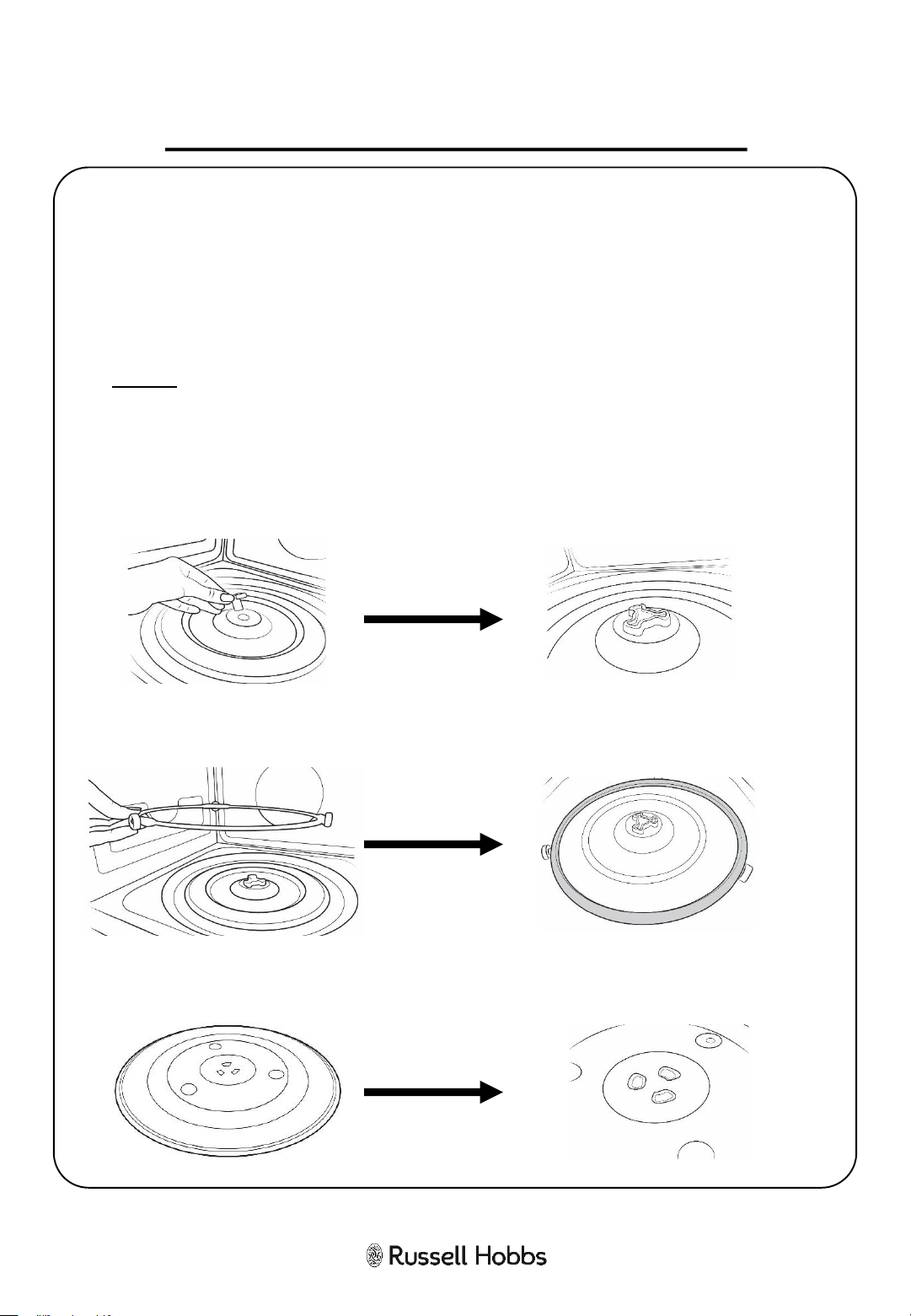

STEP 1) The turntable coupling should slot into the centre of microwave
STEP 2) The turntable ring slots into the indents in the middle
STEP3) The glass tray should align with the turntable coupling
17
TURNTABLE INSTALLATION
•Before first use, check that any securing tape and all packaging
has been removed from the glass tray and turntable ring
assembly.
•These parts must never be restricted from rotating.
•Never place the glass tray upside down.
•To assemble the turntable, follow the steps below in number
order.

18
TURNTABLE INSTALLATION

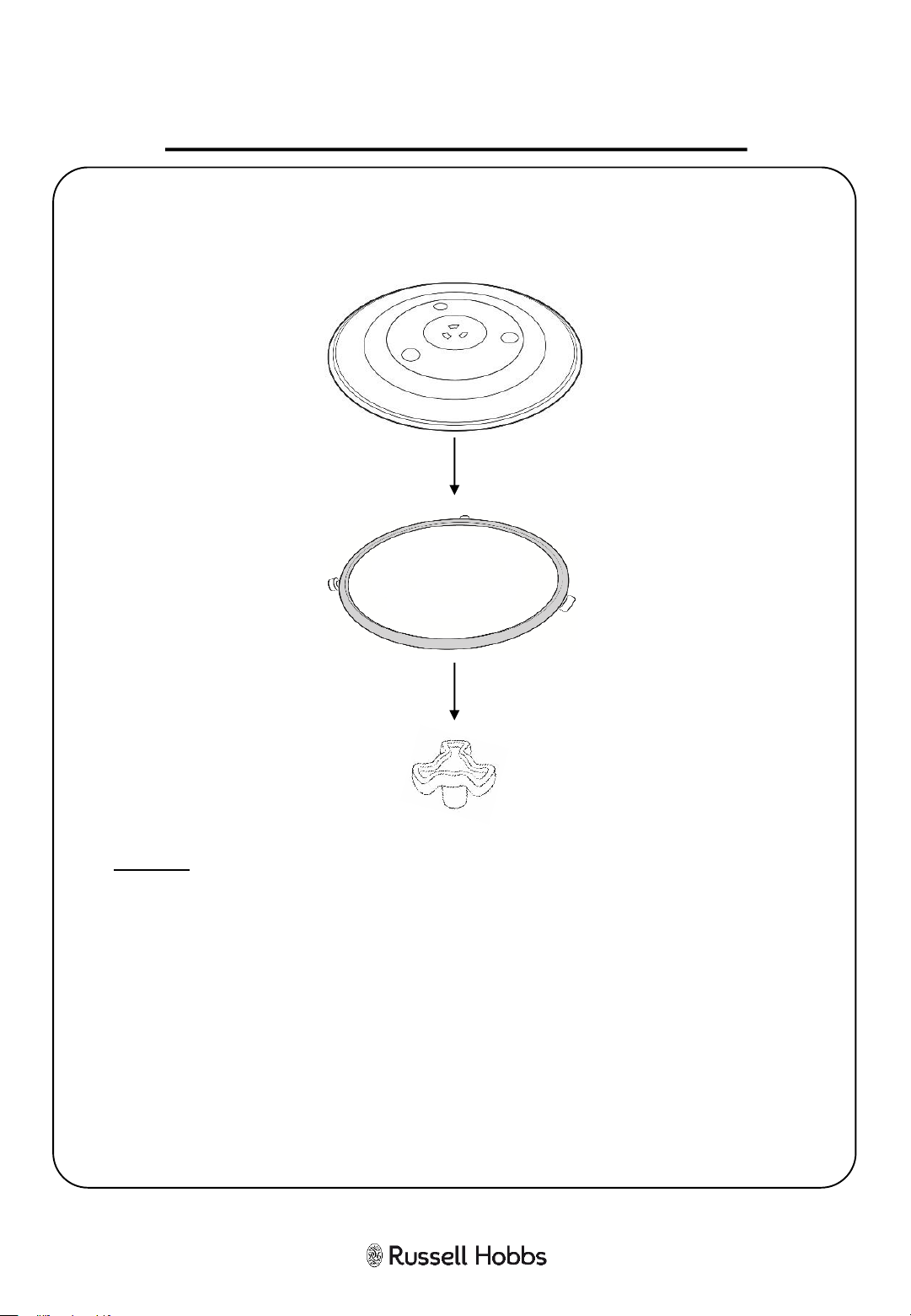

The glass tray, turntable ring, and turntable coupling assembly
must always be used during cooking (as shown below).
•Do not place the food directly onto the glass tray, always place
on or in suitable microwaveable cookware.
Please check that crockery is microwave safe before using.
•If the glass tray or turntable ring assembly has been
damaged in any way, please call our Customer Service team on
0345 209 7461.

19

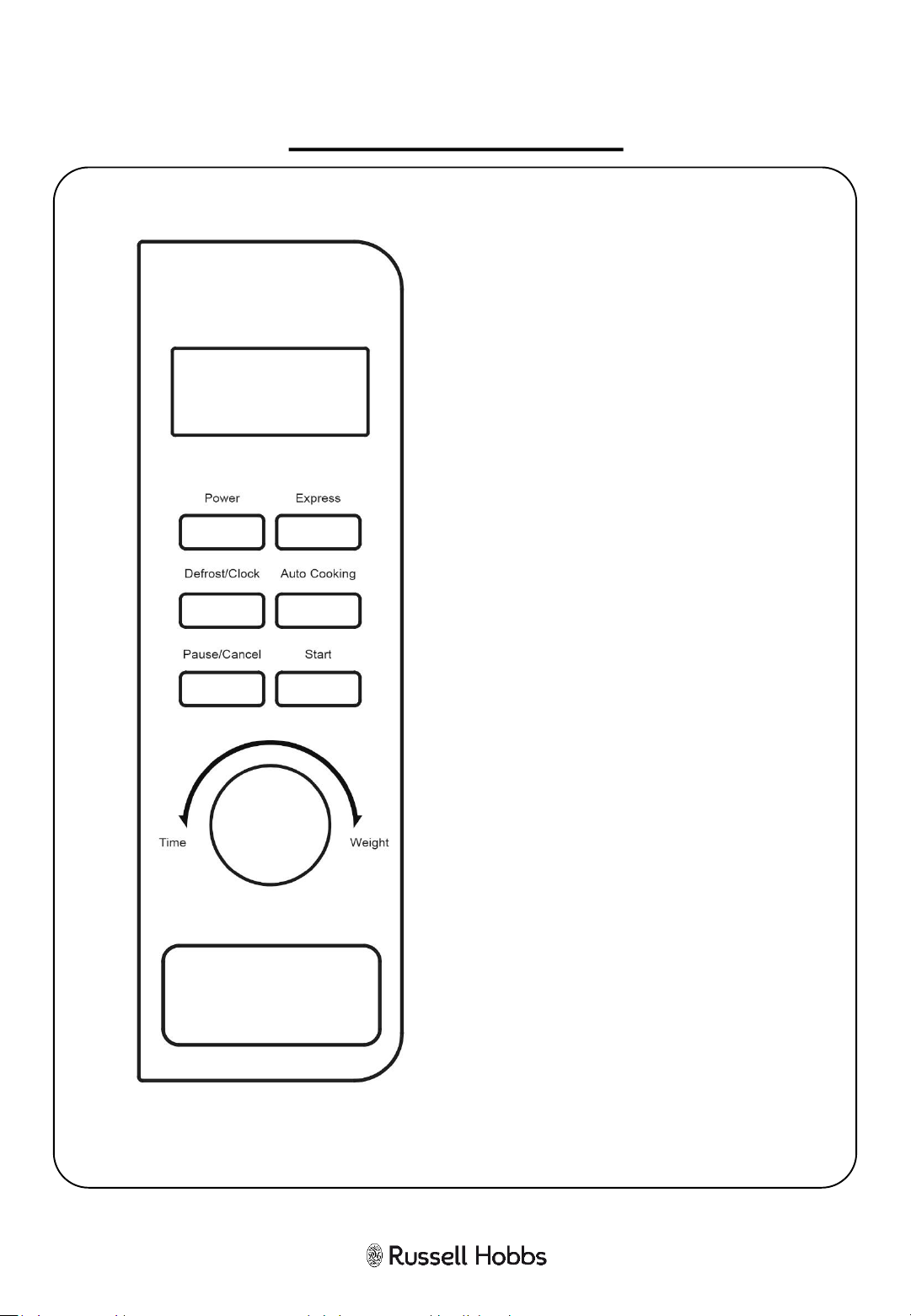

CONTROLPANEL
Screen Display
Cooking time, power, action
indicators, and clock time are
displayed.
Power
Press this button a number of times
to set a cooking power level.
Express
Press to automatically add 30
seconds to the cooking time until 5
minutes, and then increases by 1
minute until 10 minutes.
Defrost/Clock
Press to set a pre-set defrost or
to set clock.
Auto Cook
Press to select food you want to cook
from the auto menu
Pause/Cancel
Press once to pause a cooking cycle or
twice to cancel and clear it.
Start
Press to start the cooking process
once you have selected a setting.
Time, Weight Dial
Turn to select food you want to cook
from the auto menu, or to select
weight for defrost, or time for normal
microwave power cooking. Confirm
using the ‘Start’ button.

20
HOWTOUSETHEMICROWAVE
Turn on the power
Connect the main plug into a suitable 13amp mains socket.
Note: Make sure the voltage is the same as on the rating label located on
the back of the microwave (do not use extension cables or mains socket
adaptors.)
The microwave oven will flash and beep once. The display will flash until
you set the time.
Setting the clock (24 hour)
For example, if you want to set the time to 08:30 am:
1. Keep pressing the 'Defrost/Clock' button till the display shows
'1:00', and the clock symbol will be displayed.
2. Turn the 'Time, Weight' dial clockwise until the display shows
'8:'. Press the 'Defrost/Clock' button to confirm.
3. The display will show '8:00' and the clock symbol will continue
to flash.
4. Set the minutes by turning the 'Time, Weight' dial clockwise until
the display shows '08:30'. Press the 'Defrost/Clock' button to
confirm.
The clock is now set, the colon will continue to flash and the clock
symbol will stay lit.
Note: If you do not turn the dial and press the Clock button to confirm
the time fairly quickly, the microwave will default to the time currently
set on the screen.
