Russell Hobbs RHM2563 User manual

Microwave
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit
us at www.productcareuk.com
IMPORTANT: RETAIN FOR FUTURE
REFERENCE
USER’S GUIDE
Model No: RHM2563

Contents
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit
us at www.productcareuk.com
Page
Safety instructions …………………………….……….. 3
Product Overview ………………………………....….. 12
About this microwave oven ……………………………….…….. 13
Unpacking the microwave ……………………………………… 14
Microwave oven installation ……………………………………… 15
Turntable installation ……………………………………… 16

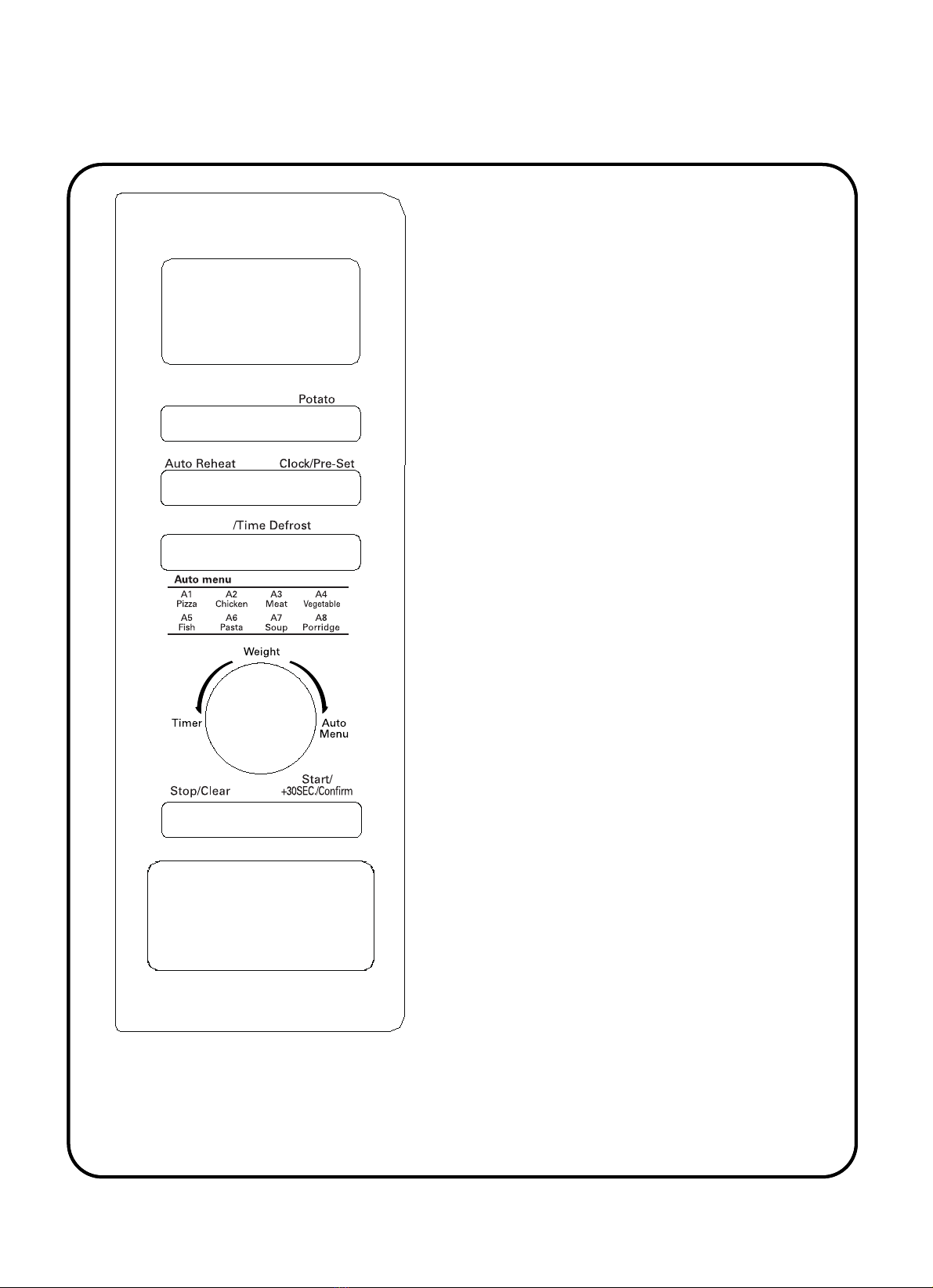

Control panel ……………………………………… 17
Using the microwave oven ……………………………………… 18
Cleaning and care ……………………………………… 25
Important utensil information ……………………………………… 26
Connection to the mains supply ……………………………………… 27
Problem solving & plug ……………………………………… 29
Guarantee ………………………………….….. 30
Technical specification ……………………………………... 31
Spare parts ……………………………………… 32
2

Safety instructions
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING: This appliance can be used by children aged
from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the
glass.
Cleaning and user maintenance shall not be made by
children unless they are aged from 8 years and above
and supervised.
WARNING: Do not use the microwave when it is empty.
This could damage the oven.
For Grill and combination models
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
3

Safety instructions
WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
WARNING: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
WARNING: Only allow children to use the oven without
supervision when adequate instructions have been given
so that the child is able to use the oven in a safe way and
understands the hazards of improper use.
4

Safety instructions
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard. When heating food in
plastic or paper containers, keep an eye on the oven due
to the possibility of ignition.
Only use utensils that are suitable for use in microwave
ovens.
You should clean the outside of the oven with a damp
cloth. Do not allow water to seep into the ventilation
openings.
Do not allow the control panel to become wet. Clean
with a soft, damp cloth. Do not use detergents, abrasives
or spray-on cleaners on the control panel.
If steam builds up inside or around the outside of the
oven door, wipe with a soft cloth. This may happen when
the microwave oven is used in humid conditions.
Regularly remove the glass turntable to clean it, and
wash it in warm soapy water. Regularly clean the
turntable support and oven floor. Simply wipe the
bottom surface of the oven with mild detergent and
water, then dry. You can wash the turntable support in
mild soapy water.
5

Safety instructions
The rear surface of appliance may be placed against a
wall. Leave a minimum clearance of 30cm above the
oven, a minimum clearance of 20cm is required between
the oven and any adjacent walls.
The microwave oven should be used freestanding only
and must not be built-in or used in a cabinet.
If smoke is emitted , switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when
handling the container.
6

Safety instructions
Eggs in their shell and whole hard-boiled eggs should not
be heated in microwave ovens since they may explode,
even after microwave heating has ended.
The oven should be cleaned regularly and any food
deposits removed. Failure to maintain the oven in a clean
condition could lead to deterioration of the surface that
could adversely affect the life of the appliance and
possibly result in a hazardous situation.
Before you clean the oven, turn it off and unplug it.
Keep the inside of the oven clean. When food or liquids
stick to the oven walls, wipe with a damp cloth. We
recommend that you do not use harsh detergent or
abrasives.
The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked before
consumption in order to avoid burns.
7

Safety instructions
Do Not obstruct the ventilation
from the microwave
Only use thermometers that are approved for microwave
ovens.
8

Safety instructions
•Food containing a mixture of fat and water (for example, stock) should
stand for 30 to 60 seconds in the oven after it has been turned off. This
is to allow the mixture to settle and to prevent it from bubbling when a
spoon is placed in it, or a stock cube is added.
•When heating or cooking food or liquid, remember that there are
certain foods (such as, jam, Christmas puddings and mincemeat) which
heat up very quickly.
•When heating or cooking foods that contain a lot of fat or sugar, do not
use plastic containers.
•Always have the glass tray and turntable support in place when using
the oven.
•Never remove parts from the oven such as the feet, screws and so on.
•Do not cook food directly on the glass tray. Put food on a suitable plate
or in a bowl before putting it in the oven.
To reduce the risk of fire in the oven cavity:
•Do not overcook food.
•Do not leave the microwave oven unattended while you are using it
and if using paper or plastic containers check regularly to ensure they
do not ignite.
•Remove wire twist-ties from bags before putting the bag in the oven.
•If materials inside the oven smoke or catch fire, keep the oven door
closed to stifle the flames, turn the oven off at the wall switch, or shut
the power off at the fuse or circuit-breaker panel.
9

Safety instructions
•The microwave is intended for heating food and beverages. Drying of
food or clothing and heating of warming pads, wheat bags, slippers,
sponges, damp cloth and similar may lead to risk of injury, ignition or
fire.
•Heat from the contents of a container may be transmitted to the
container itself, so please be careful when removing it from the oven.
Please remember that the food or liquid inside may be releasing some
steam or may be spitting. Never cover any container fully, always leave
a gap for steam to escape.
•Cooking utensils may become hot because of heat transferred from the
heated food. This is especially true if plastic wrap has been covering the
top and handles of the utensil. You may need oven gloves to handle
the utensil.
•Ensure you do not use any corrosive chemicals or vapours in the
appliance. It is not designed for industrial or laboratory use.
•Never put any objects into the openings on the outer case.
•On the right hand side wall of the cavity is the wave guide cover,
microwaves are passed through this to enable your food to cook. It is
important that this wave guide cover is kept clean at all times. To do
this wipe with mild detergent and water, then dry.
•When removing the turntable support of the oven, make sure you put
it back properly.
•If the inside of the oven smells, put a cup of water with the juice and
skin of one lemon in a deep microwave bowl. Microwave it for three
minutes, wipe thoroughly and then dry with a soft cloth.
•Do not try to deep-fry foods in this oven.
10

•Do not use metal pans or dishes with metal handles.
•Do not use anything with a metal trim.
•Do not use paper covered wire twist-ties on plastic bags.
•Do not use melamine dishes as they contain a material which will
absorb microwave energy. This may cause the dishes to crack or burn,
and will slow down the cooking speed.
•Use only cookware that is approved to be used in a microwave oven.
•Do not cook using containers with restricted openings, such as bottles,
as they may explode.
•Do not heat baby bottles with the teat left on. Remove it if replacing
the bottle back into the oven.
•Do not use the microwave oven for heating utensils.
•Do not use the oven for any reason other than preparing food, such as
for drying clothes, paper or any other non-food items, or for sterilising
purposes.
•Do not store anything in the oven, such as paper, or cook books .
•Do not cook any food surrounded by a membrane, such as egg yolks,
potatoes, chicken livers, sausages, ready meals and so on without
piercing them several times with a fork.
•Never put any objects into the openings on the outer case.
•You should use microwave utensils only in line with these instructions.
•Only use the accessories supplied by the manufacturer.
This appliance is intended to be used in the household and similar
applications. It is not intended to be used in the following:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential environments;
• bed and breakfast type environments.
Safety instructions
11

Product overview
A. Control panel (including door release button)
B. Turntable shaft
C. Turntable ring assembly
D. Glass turntable
E. Observation window
F. Door assembly
G. Safety interlock latches
H. Waveguide cover
I. Oven cavity
J. Ventilation slots
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
H
I
J
F
G
A
CB
ED
12

About this microwave oven
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
Microwaves are high-frequency electromagnetic waves similar to radio waves. While
radio waves may vary in length from one metre to many kilometres, microwaves are
very short (less than 12.5 centimetres). Microwaves do not make any heat
themselves but only cause water molecules in food to vibrate. This vibration produces
heat that cooks the food. This is why your food will come out of the microwave piping
hot, when your utensils inside the oven stay much cooler. The microwaves do not stay
in the air or in the food when you open the microwave oven door.
The microwave oven will work using an ordinary household electrical socket. Inside
the microwave oven is the magnetron, which turns the electrical energy into
microwaves.
Microwaves cannot go through metal, so the inside of the oven is lined with metal.
The door is lined with a fine metal mesh which stops microwaves getting through.
This means that when the microwave oven door is shut, there is no possibility that
microwaves can be released. This is why the microwave oven has been made so that
it will not work when the door is open.
13

Unpacking the microwave
Before you use your microwave oven
1. Remove all the packaging. Do not remove the small piece of card from
the right hand side of the cavity wall. This is called a wave-guide cover
and allows the microwaves to pass through to cook the food.
Please ensure you keep this cover clean at all times.
2. Check the oven after unpacking for any visual damage such as:
●A misaligned door
●Damage to the door
●Dents or holes in the door window and screen
●Dents in the inside
●If you can see any damage do not use the oven
This microwave oven weighs approximately kg so you must put it on
is strong enough to support this weight.
The oven must be placed away from high temperatures and steam.
Do not put anything on the top of the microwave oven.
17
a horizontal surface that
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
14

For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
Microwave oven installation
•Select a level surface that provides enough space for the outlet vents.
•
A minimum clearance of is required between the oven and any
adjacent walls. Leave a minimum clearance of
20cm
30cm above the oven.
•Place the oven as far away from radios and TV's as possible. Using the
oven may cause interference with the reception.
•Plug the oven into a suitable 13 amp mains socket, make sure the
voltage is the same as on the rating label (do not use extension cables
or mains socket adaptors).
•The microwave oven should be used freestanding only and must not be
built-in or used in a cabinet.
Warning: do not install the oven over a cooker or other heat producing
appliance. This will damage the oven.
The minimum installation height is 85cm.
Do Not obstruct
The ventilation
From the microwave
20cm
30cm
20cm
min85cm
0cm
15

Turntable installation
•Before first use, check that any securing tape has been removed from
the glass tray and turntable ring assembly. These parts must never be
restricted from rotating.
•Never place the glass tray upside down.
•Both the glass tray and turntable ring assembly must always be used
during cooking.
•Do not place the food directly onto the glass tray, always place on or in
a suitable microwaveable cookware.
•If the glass tray or turntable ring assembly has been damaged in
anyway, please contact the spares helpline number detailed on the
back of this instruction manual.
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
Hub (underside)
Glass tray
Turntable ring assembly
Turntable shaft
16

Control panel
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
17
Weight
Power
MenuactionscreenCookingtime,
power,actionindicators,and
clocktimearedisplayed.

PowerPressthisbuttontouse
themicrowavefunction.

PotatoPressthisbuttontouse
thepotatoautocookfunction.

AutoReheatPressthisbutton
tousetheautoreheatfunction.

Weight/TimeDEFROSTPressthis
buttonforthedefrostfunction.

CLOCK/PRE‐SETPressthis
buttontosettheclockanduse
thepresetfunction.

Stop/ClearPresstheStopbutton
tocleareverything.

Start/+30SEC/CONFIRMPress
thisbuttontostartthecooking
processandconfirmwhen
programming.

DoorButtonPushthebuttonto
releasethedoor.



Using the microwave oven
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
Clock Setting
When the microwave oven is first turned on, the oven will display "0:00",
the buzzer will ring once.
1) Press -SET" to choose hours or minutes for alteration. The
hour figures will flash. When altering the hours the "0" on the Left Hand
Side will flash.
2) Turn the dial to adjust the hour figures,
0 - 23(this is a 24-hour clock).
3) Press "CLOCK/PRE-SET" button again and the minute figures will flash.
4) Turn the dial to adjust the minute
0 - 59 (60-minutes).
5) Press "CLOCK/PRE-SET" to finish the clock setting procedure. The ":" will
then flash.
Note:
the input time should be within
figures, the input time should be within
"TIMER/WEIGHT/AUTO MENU"
"TIMER/WEIGHT/AUTO MENU"
"CLOCK/PRE
18
2) During the process of clock setting, if you press " STOP/CLEAR ", the
oven will go back to the previous status.
1) If the clock is not set, some features of the microwave oven will not
operate.

Microwave Cooking
1) Press the button once, and and flash.
2) Turn the to select the microwave
P80", "P50", "P30", "P10" will display in order.
or
Press the button to scroll through the power levels.
3) Press /+30SEC/CONFIRM" to confirm.
4)Turn the dial to adjust the cooking time.
between 0:05- 95:00.)
5) Press "START/+30SEC/CONFIRM" to start the cooking process.
power. "P100", "
(The time setting should be
"POWER"
"TIMER/WEIGHT/AUTO MENU"
"P100" will display
"POWER"
"START
"TIMER/WEIGHT/AUTO MENU"
Using the microwave oven
Press power
button Cooking power Equivalent
power rating
P100 100% 900 W
P80 80% 720W
P50 50% 450W
P30 30% 270W
P10 10% 90W
To stop the cooking process at anytime press the ."STOP/CLEAR" button
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
19

"START/+30SEC/CONFIRM".
The oven will start cooking
desired cooking
to adjust the
Using the microwave oven
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm or visit us at
www.productcareuk.com
Speedy Cooking
Press the "START/+30SEC/CONFIRM" button to microwave cook at 100%
power level for 30 seconds.
The microwave will start cooking immediately.
Each press on the same key will increase the cooking time by 30 seconds.
The maximum cooking time is 95 minutes.
Note: this function does not work for defrost and auto menu
.
or
Turn the dial anti-clockwise
Defrosting by Weight
1) Press " button once, the oven will display
dEF1".
2) Turn the dial to select the weight of the
weight should be set between 100-2000g.
3) Press "START/+30SEC/CONFIRM" button to start defrosting.
Defrosting by Time
1) Press " WEIGHT/TIME DEFROST " button twice, the oven will display
"dEF2".
2) Turn the dial to select the defrosting
time is 95 minutes.
3) Press "START/+30SEC/CONFIRM" button to start defrosting.
The defrosting power is 30%, and cannot be changed.
weig
cooking
ht
for the selected length of time at 100% power.
time, then press
"
"
"TIMER/WEIGHT/AUTO MENU"
food in grams. The
time, the maximum
"TIMER/WEIGHT/AUTO MENU"
"TIMER/WEIGHT/AUTO MENU"
WEIGHT/TIME DEFROST
20
