Ryobi CID183L User manual

OPERATOR’S MANUAL
13 mm 18 VOLT
3-SPEED HAMMER DRILL
CID183L
SAVE THIS MANUAL FOR FUTURE REFERENCE
Your hammer drill has been engineered and manufactured to Ryobi’s high standard for dependability, ease of operation and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using
this product.
Thank you for buying a Ryobi product.
BATTERIES AND CHARGERS
SOLD SEPARATELY

2
n Introduction ..................................................................................................................................................................... 2
n General Safety Rules.................................................................................................................................................... 3-4
n Specific Safety Rules....................................................................................................................................................... 4
n Safety Rules for Charger ................................................................................................................................................. 5
nSymbols........................................................................................................................................................................ 6-7
n Features........................................................................................................................................................................ 8-9
n Assembly ....................................................................................................................................................................... 10
n Operation.................................................................................................................................................................. 10-16
n Maintenance.............................................................................................................................................................17-18
n Parts Ordering / Service ................................................................................................................................................ 20
TABLE OF CONTENTS
INTRODUCTION
This tool has many features for making its use more pleasant and enjoyable. Safety, performance and dependability have
been given top priority in the design of this product making it easy to maintain and operate.

3
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS. Fail-
ure to follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
WORK AREA
n Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
n Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
n Keep bystanders, children and visitors away while
operating a power tool. Distractions can cause you to
lose control.
ELECTRICAL SAFETY
n A battery operated tool with integral batteries or a
separate battery pack must be recharged only with
the specied charger for the battery. A charger that
may be suitable for one type of battery may create a risk
of fire when used with another battery.
n Use battery operated tool only with specifically
designated battery pack. Use of any other batteries may
create a risk of fire.
n Use battery only with charger listed.
MODEL BATTERY PACK CHARGER
CID183L ABP1801/1802/1803/1804 ACR1800
n Do not abuse the cord. Never use the cord to
carry the charger. Keep cord away from heat, oil,
sharp edges or moving parts. Replace damaged cords
immediately. Damaged cords may create a fire.
PERSONAL SAFETY
n Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use tool while tired or under the inuence of drugs,
alcohol or medication. A moment of inattention while
operating power tools may result in serious personal
injury.
n Dress properly. Do not wear loose clothing or jewelry.
Contain long hair. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry or long
hair can be caught in moving parts.
n Avoid accidental starting. Be sure switch is in the
locked or off position before inserting battery pack.
Carrying tools with your finger on the switch or inserting
the battery pack into a tool with the switch on invites ac-
cidents.
n Remove adjusting keys or wrenches before turning
the tool on. A wrench or a key that is left attached to a
rotating part of the tool may result in personal injury.
n Do not overreach. Keep proper footing and balance
at all times. Proper footing and balance enable better
control of the tool in unexpected situations.
n Use safety equipment. Always wear eye protection.
Dust mask, non-skid safety shoes, hard hat or hearing
protection must be used for appropriate conditions.
n Do not wear loose clothing or jewelry. Contain long
hair. Loose clothes, jewelry or long hair can be drawn
into air vents.
n Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
tool in unexpected situations.
TOOL USE AND CARE

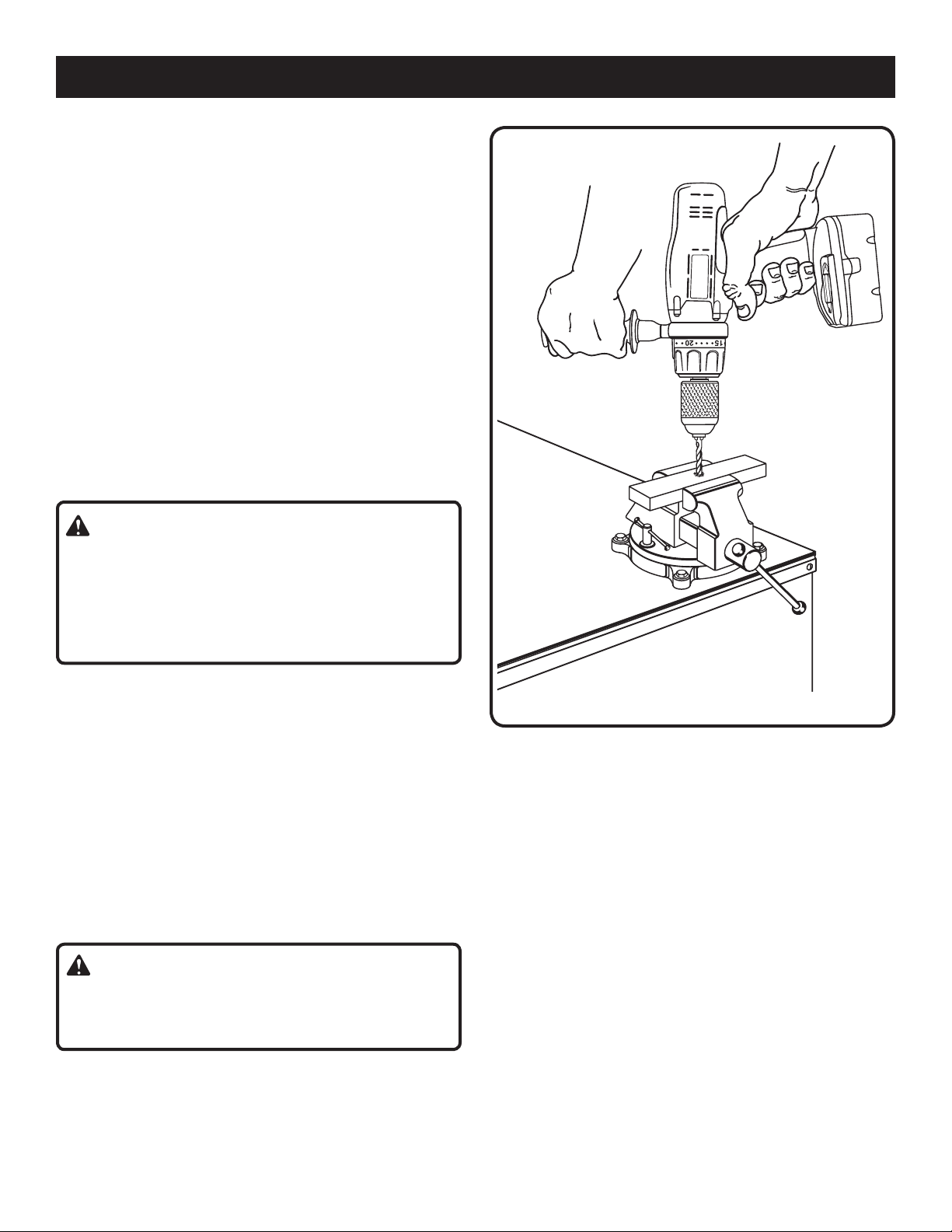

n Use clamps or other practical way to secure and sup-
port the workpiece to a stable platform. Holding the
work by hand or against your body is unstable and may
lead to loss of control.
n Do not force tool. Use the correct tool for your
application. The correct tool will do the job better and
safer at the rate for which it is designed.
n Do not use tool if switch does not turn it on or off.
A tool that cannot be controlled with the switch is
dangerous and must be repaired.
n Disconnect battery pack from tool or place the switch
in the locked or off position before making any adjust-
ments, changing accessories or storing the tool. Such
preventive safety measures reduce the risk of starting the
tool accidentally.
n Store idle tools out of reach of children and other
untrained persons. Tools are dangerous in the hands
of untrained users.
n When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys, nails,
screws or other small metal objects that can make
a connection from one terminal to another. Shorting
the battery terminals together may cause sparks, burns
or a fire.
n Maintain tools with care. Keep cutting tools sharp
and clean. Properly maintained tools with sharp
cutting edges are less likely to bind and are easier to
control.
n Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may
affect the tool’s operation. If damaged, have the tool
serviced before using. Many accidents are caused by
poorly maintained tools.
n Use only accessories that are recommended by the
manufacturer for your model. Accessories that may be
suitable for one tool may create a risk of injury when used
on another tool.
nKeep the tool and its handle dry, clean and free from
oil and grease. Always use a clean cloth when clean-
ing. Never use brake fluids, gasoline, petroleum-based
products or any strong solvents to clean your tool. Fol-
lowing this rule will reduce the risk of loss of control and
deterioration of the enclosure plastic.

4
n Hold tool by insulated gripping surfaces when per-
forming an operation where the cutting tool may con-
tact hidden wiring. Contact with a “live” wire will also
make exposed metal parts of the tool “live” and shock
the operator.
n Know your power tool. Read operator’s manual care-
fully. Learn its applications and limitations, as well
as the specic potential hazards related to this tool.
Following this rule will reduce the risk of electric shock,
fire or serious injury.
n Always wear safety glasses with side shields.
Everyday glasses have only impact resistant lenses. They
are NOT safety glasses. Following this rule will reduce
the risk of eye injury.
n Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the
risk of serious personal injury.
n Protect your hearing. Wear hearing protection during
extended periods of operation. Following this rule will
reduce the risk of serious personal injury.
n Battery tools do not have to be plugged into an elec-
trical outlet; therefore, they are always in operating
condition. Be aware of possible hazards when not
using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock,
fire or serious personal injury.
SERVICE
n Tool service must be performed only by qualied re-
pair personnel. Service or maintenance performed by
unqualified personnel may result in a risk of injury.
n Do not place battery tools or their batteries near re
or heat. This will reduce the risk of explosion and pos-
sibly injury.
n Never use a battery that has been dropped or
received a sharp blow. A damaged battery is subject to
explosion. Properly dispose of a dropped or damaged
battery immediately.
n Batteries vent hydrogen gas and can explode in the
presence of a source of ignition, such as a pilot light.
To reduce the risk of serious personal injury, never use
any cordless product in the presence of open flame. An
exploded battery can propel debris and chemicals. If
exposed, flush with water immediately.
n Do not charge battery tool in a damp or wet
location. Following this rule will reduce the risk of electric
shock.
n For best results, your battery tool should be charged
in a location where the temperature is more than
10°C but less than 38°C. Do not store outside or in
vehicles.
n Under extreme usage or temperature conditions, bat-
tery leakage may occur. If liquid comes in contact with
your skin, wash immediately with soap and water, then
neutralize with lemon juice or vinegar. If liquid gets
into your eyes, ush them with clean water for at least
10 minutes, then seek immediate medical attention.
Following this rule will reduce the risk of serious personal
injury.
n When servicing a tool, use only identical replacement
parts. Follow instructions in the Maintenance section
of this manual. Use of unauthorised parts or failure to fol-
low Maintenance Instructions may create a risk of shock
or injury.
GENERAL SAFETY RULES
SPECIFIC SAFETY RULES

5
n An extension cord should not be used unless
absolutely necessary. Use of improper extension
cord could result in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pins on plug of extension cord are the
same number, size and shape as those of
plug on charger.
b. That extension cord is properly wired and in
good electrical condition;
c. That wire size is large enough for AC ampere
rating of charger.
n Do not operate charger with a damaged cord or plug,
which could cause shorting and electric shock. If dam-
aged, have the charger replaced by an authorised service
agent.
n Do not operate charger if it has received a sharp blow,
been dropped or otherwise damaged in any way. Take
it to an authorised service agent for electrical check to
determine if the charger is in good working order.
n Do not disassemble charger. Take it to an authorised
service agent when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
n Unplug charger from outlet before attempting
any maintenance or cleaning to reduce the risk of
electric shock.
n Disconnect charger from the power supply when
not in use. This will reduce the risk of electric shock or
damage to the charger if metal items should fall into the
opening. It also will help prevent damage to the charger
during a power surge.
n Risk of electric shock. Do not touch uninsulated portion
of output connector or uninsulated battery terminal.
n Save these instructions. Refer to them frequently
and use them to instruct others who may use this
tool. If you loan someone this tool, loan them these
instructions also to prevent misuse of the product and
possible injury.
�n The appliance is not intended for use by young chil-
dren or inrm persons without supervision.
�n Young children should be supervised to ensure that
they do not play with the appliance/charger.
SAFETY RULES FOR CHARGER
WARNING:
Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals
known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints
• crystalline silica from bricks and cement and other masonry products
• arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area and work with approved safety equipment, such as those dust masks
that are specially designed to filter out microscopic particles.
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
n Before using battery charger, read all instructions and
cautionary markings in this manual, on battery charger,
battery and product using battery to prevent misuse of
the products and possible injury or damage.
CAUTION:
To reduce the risk of electric shock or damage to
the charger and battery, charge only nickel-cadmium
rechargeable batteries as specifically designated on your
charger. Other types of batteries may burst, causing per-
sonal injury or damage.
n Do not use charger outdoors or expose to wet or damp
conditions. Water entering charger will increase the risk
of electric shock.
n Use of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of
re, electric shock or injury to persons. Following this
rule will reduce the risk of electric shock, fire or serious
personal injury.
n Do not abuse cord or charger. Never use the cord to
carry the charger. Do not pull the charger cord rather than
the plug when disconnecting from receptacle. Damage
to the cord or charger could occur and create an electric
shock hazard. Replace damaged cords immediately.
n Make sure cord is located so that it will not be stepped
on, tripped over, come in contact with sharp edges
or moving parts or otherwise subjected to damage or
stress. This will reduce the risk of accidental falls, which
could cause injury and damage to the cord, which could
result in electric shock.
n Keep cord and charger away from heat to prevent
damage to housing or internal parts.
n Do not let gasoline, oils, petroleum-based products
etc. come in contact with plastic parts. They contain
chemicals that can damage, weaken or destroy plastic.

6
SYMBOLS
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpreta-
tion of these symbols will allow you to operate the tool better and safer.
Read The Operator’s Manual
Safety Alert
No Hands Symbol
No Hands Symbol
No Hands Symbol
No Hands Symbol
SYMBOL NAME DESIGNATION/EXPLANATION
Voltage
Current
Frequency (cycles per second)
Power
Time
Type of current
Type or a characteristic of current
Rotational speed, at no load
Double-insulated construction
Revolutions, strokes, surface speed, orbits etc., per minute
Do not expose to rain or use in damp locations.
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear safety goggles or safety glasses with side shields
and a full face shield when operating this product.
Precautions that involve your safety.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Wet Conditions Alert
.../min Per Minute
Class II Construction
n
o
No Load Speed
Direct Current
Alternating Current
min Minutes
W Watt
Hz Hertz
A Amperes
V Volts
Hot Surface To reduce the risk of injury or damage, avoid contact with
any hot surface.

7
SYMBOLS
SERVICE
Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. For
service we suggest you return the product to your nearest
AUTHORISED SERVICE CENTRE for repair. When servic-
ing, use only identical replacement parts.
WARNING:
SAVE THESE INSTRUCTIONS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
WARNING:
To avoid serious personal injury, do not attempt to use
this product until you read thoroughly and understand
completely the operator’s manual. Save this operator’s
manual and review frequently for continuing safe opera-
tion and instructing others who may use this product.
The operation of any power tool can result in foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool operation, always wear safety goggles or
safety glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety
Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection
which is marked to comply with ANSI Z87.1.

8
FEATURES
Fig. 1
PRODUCT SPECIFICATIONS
Chuck ...........................................................................................................................................................................13 mm
Motor......................................................................................................................................................................18 Volt DC
Switch..............................................................................................................................................................Variable Speed
Gear Box ...................................................................................................................................................................3-Speed
No Load Speed .......................................................................... Lo (0 - 370/min.), Hi (0-750/min.), Super-Hi (0 - 2200/min.)
Hammer Speed .........................................................Lo (0 - 5,920 BPM*), Hi (0-12,000 BPM*), Super Hi (0 - 35,200 BPM*)
Charger Input ....................................................................................................................................... 240 V, 50 Hz, AC only
Charge Rate .................................................................................................................................................................1 Hour
Torque.......................................................................................................................................................... Maximum 55 Nm
* Blows Per Minute
TRIGGER
SWITCH
THREE SPEED
GEAR TRAIN (SUPER HIGH-HIGH-LOW)
DIRECTION OF
ROTATION SELECTOR
(FORWARD/Centre LOCK/REVERSE)
KEYLESS CHUCK
BIT
STORAGE
AREA
MODE SELECTOR TORQUE
ADJUSTMENT RING
AUXILIARY
HANDLE
DEPTH
GAUGE ROD

9
FEATURES
KNOW YOUR HAMMER DRILL
See Figure 1.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
SWITCH
Your hammer drill has a conveniently located trigger
switch.
THREE-SPEED GEAR TRAIN
This hammer drill has a three-speed gear train. A slide
switch is located on top of the drill to select either LOW (1),
HIGH (2) or SUPER-HIGH (3) speed.
REVERSIBLE
This hammer drill allows you to reverse the bit rotation. You
can control the direction with the lever located on the top
of the tool.
ADJUSTABLE TORQUE CLUTCH
The hammer drill is equipped with an adjustable torque
clutch for driving different types of screws into different
materials.

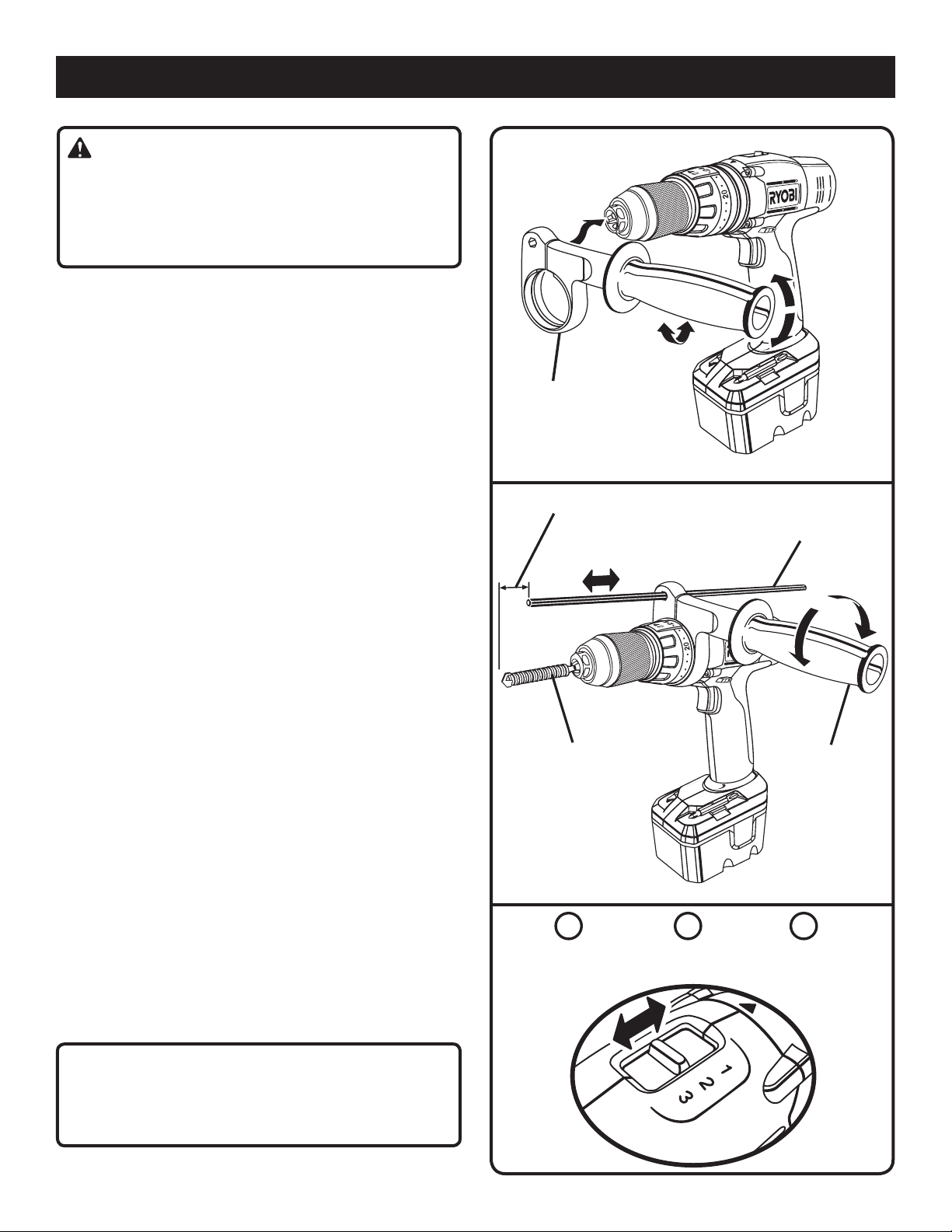

DEPTH GAUGE ROD
A depth gauge rod is installed on the auxiliary handle assembly
to assist you in controlling the depth of drilled holes.
AUXILIARY HANDLE ASSEMBLY
An auxiliary handle is installed on the hammer drill. For ease
of operation, you may use the handle with either the left hand
or the right hand.
HAMMER MODE OPERATION
This tool features a hammer speed of 0-35,200 Blows Per
Minute (BPM) in SUPER-HIGH (3) speed. Blows Per Minute
is the number of impacts per minute when operating in
Hammer Mode.
BIT STORAGE
When not in use, you can place the bits provided with your
hammer drill in the storage area located on the bottom of
the drill.
ERGONOMIC DESIGN
The design of the hammer drill provides for easy handling.
It is designed for comfort and ease of grasp when operating
in different positions and at different angles.

10
ASSEMBLY
UNPACKING
This product has been shipped completely assembled.
n Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list are
included.
n Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
n Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
n If any parts are damaged or missing, please call
1300 361 505 for assistance.
PACKING LIST
Hammer Drill with Auxiliary Handle Assembly
Double Ended Bits (2)
Plug-In Lanyard
Operator’s Manual
WARNING:
If any parts are missing do not operate this tool until the
missing parts are replaced. Failure to do so could result
in possible serious personal injury.
WARNING:
Do not attempt to modify this tool or create accesso-
ries not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always remove the battery pack from the
tool when assembling parts.
OPERATION
CAUTION:
To prevent damage to the battery pack, remove the
battery pack from the charger immediately if no LED
comes on. Return the battery pack and charger to your
nearest service centre for checking or replacing. Also,
if you are removing the battery pack from the charger
and no LEDs are on, return both the battery pack and
the charger to your nearest service centre. Do not insert
another battery pack into the charger. A damaged charger
may damage a battery pack.
LED FUNCTIONS OF CHARGER
LED WILL BE ON TO INDICATE STATUS OF
CHARGER AND BATTERY PACK:
n Red LED on = Fast charging mode.
n Green LED on = Fully charged and in maintenance charge
mode.
n Green LED on = When battery pack is inserted into
charger, indicates hot battery pack or that battery pack
is out of normal temperature range.
n Yellow and Green LEDs on = Deeply discharged or
defective battery pack.
n No LED on = Defective charger or battery pack.
WARNING:
Do not allow familiarity with tools to make you care-
less. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear safety goggles or safety glasses with side
shields when operating tools. Failure to do so could re-
sult in objects being thrown into your eyes, resulting in
possible serious injury.
WARNING:
Do not use any attachments or accessories not recom-
mended by the manufacturer of this tool. The use of at-
tachments or accessories not recommended can result
in serious personal injury.
APPLICATIONS
You may use this tool for the following purposes:
n Hammer drilling in concrete, brick or other masonry
n Drilling in wood
n Drilling in ceramics, plastics, fiberglass and laminates
n Drilling in both soft and hard metals
n Driving screws with screwdriver bits, using driving ac-
cessories
n Mixing paint

11

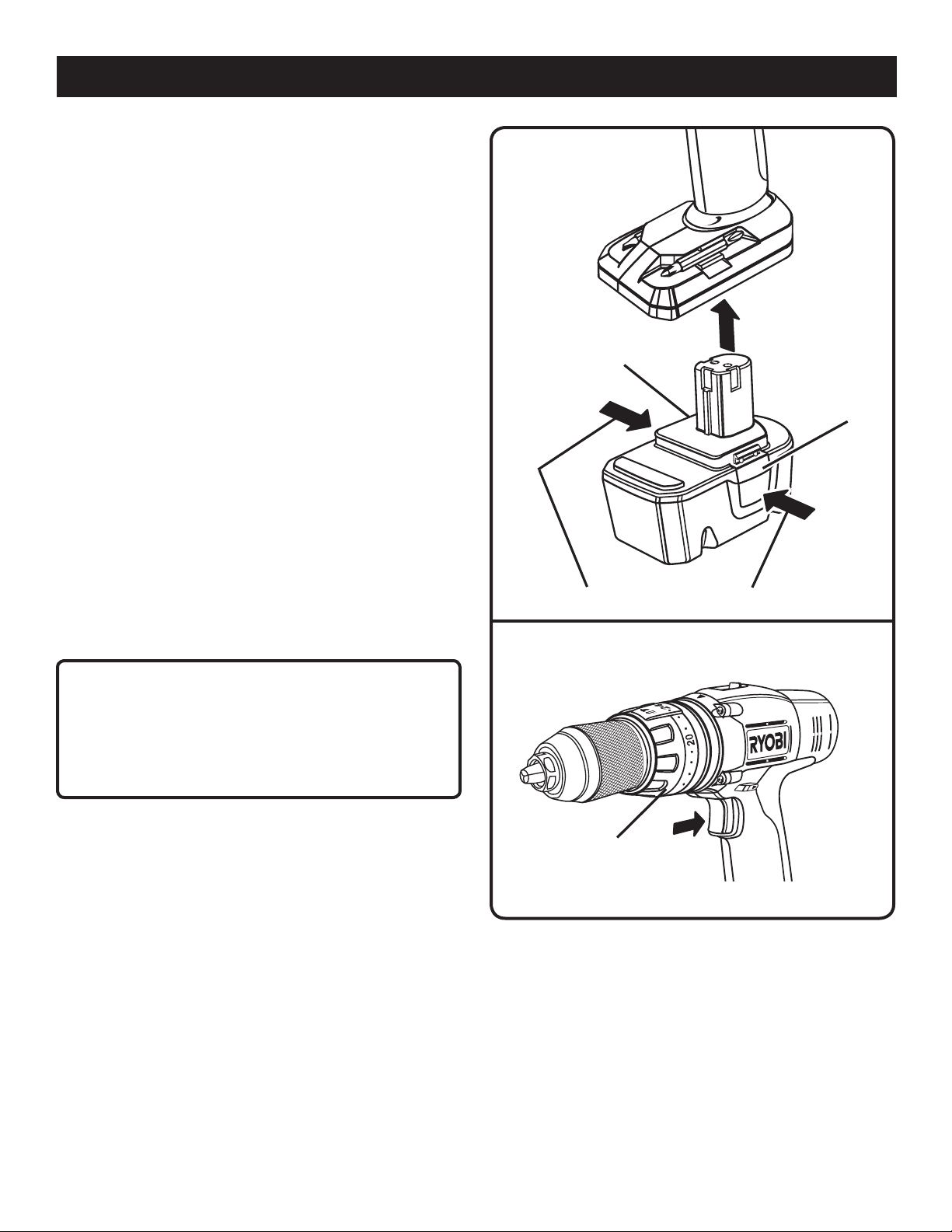

CHARGING THE BATTERY PACK
Battery packs for this tool have been shipped in a low
charge condition to prevent possible problems. Therefore,
you should charge it until the green LED on the front of the
charger comes on.
NOTE: Batteries will not reach full charge the first time they
are charged. Allow several cycles (operation followed by
recharging) for them to become fully charged.
CHARGING A COOL BATTERY PACK
If battery pack is within normal temperature range, the red
LED on charger will come on.
NOTE: If the charger does not charge the battery pack
under normal circumstances, return both the battery pack and
charger to your nearest Ryobi Authorised Service Centre for
electrical check.
n Charge the battery pack only with a recommended charger.
n Make sure the power supply is normal household
voltage, 240 volts, 50 Hz, AC only.
n Connect the charger to the power supply.
n Place the battery pack in the charger aligning raised rib
on the battery pack with the groove in the charger. See
Figure 3.
n Press down on the battery pack to be sure contacts on
the battery pack engage properly with contacts in the
charger.
n Normally the red LED on charger will come on. This
indicates the charger is in fast charging mode.
n Red LED should remain on for approximately 1 hour
then the green LED will come on. Green LED on
indicates battery pack is fully charged and charger is
in maintenance charge mode.
NOTE: The green LED will remain on until the
battery pack is removed from the charger or charger is
disconnected from the power supply.
n If both yellow and green LEDs come on, this indi-
cates a deeply discharged or defective battery pack.
Allow the battery pack to remain in the charger for 15
to 30 minutes. When the battery pack reaches normal
voltage range, the red LED should come on. If the
red LED does not come on after 30 minutes, this may
indicate a defective battery pack and should be
replaced.
n After normal usage, a minimum of 1 hour of charging time
is required to fully recharge battery pack.
n The battery pack will become slightly warm to
touch while charging. This is normal and does not
indicate a problem.
n Do not place the charger and battery pack in an area of
extreme heat or cold. They will work best at normal room
temperature.
NOTE: The charger and battery pack should be placed
in a location where the temperature is more than 10°C
but less than 38°C.
n When batteries become fully charged, unplug the
charger from power supply and remove the battery
pack.
OPERATION
Fig. 2
ACR1800
CHARGER
YELLOW LED
RED LED
Fig. 3
ACR1800
CHARGER
BATTERY
PACK
GREEN LED
BATTERY PACK SHOWN ATTACHED TO CHARGER

12
OPERATION
CHARGING A HOT BATTERY PACK
When using the tool continuously, the batteries in the battery
pack will become hot. You should let a hot battery pack cool
down for approximately 30 minutes before attempting to
recharge. When the battery pack becomes discharged and
is hot, this will cause the green LED to come on instead of
the red LED. After 30 minutes, reinsert the battery pack in
the charger. If the green LED continues to remain on, return
battery pack to your nearest Ryobi Authorised Service Centre
for checking or replacing.
NOTE: This situation only occurs when continuous use of
the tool causes the batteries to become hot. It does not
occur under normal circumstances. Refer to “CHARGING
A COOL BATTERY PACK” for normal recharging of batter-
ies. If the charger does not charge your battery pack under
normal circumstances, return both the battery pack and
charger to your nearest Ryobi Authorised Service Centre
for electrical check.
TO INSTALL BATTERY PACK
See Figure 4.
n Lock the trigger switch by placing the rotation selector
in the centre position.
n Place the battery pack on the tool.
n Make sure the latches on each side of the battery pack
snap into place and the battery pack is secured on the
tool before beginning operation.
CAUTION:
When placing battery pack in the tool, be sure raised
rib on battery pack aligns with the bottom of the drill
and latches into place properly. Improper installa-
tion of the battery pack can cause damage to internal
components.
TO REMOVE BATTERY PACK
See Figure 4.
n Lock the trigger switch by placing the rotation selector
in the centre position.
n Depress the latches on the side of battery pack.
n Remove the battery pack from the tool.
SWITCH
See Figure 5.
n To turn the drill ON, depress the switch trigger.
n To turn the drill OFF, release the switch trigger.
15
Fig. 4
BATTERY PACK
LATCHES

Fig. 5
DEPRESS LATCHES TO
RELEASE BATTERY PACK
TO TURN ON

13
OPERATION

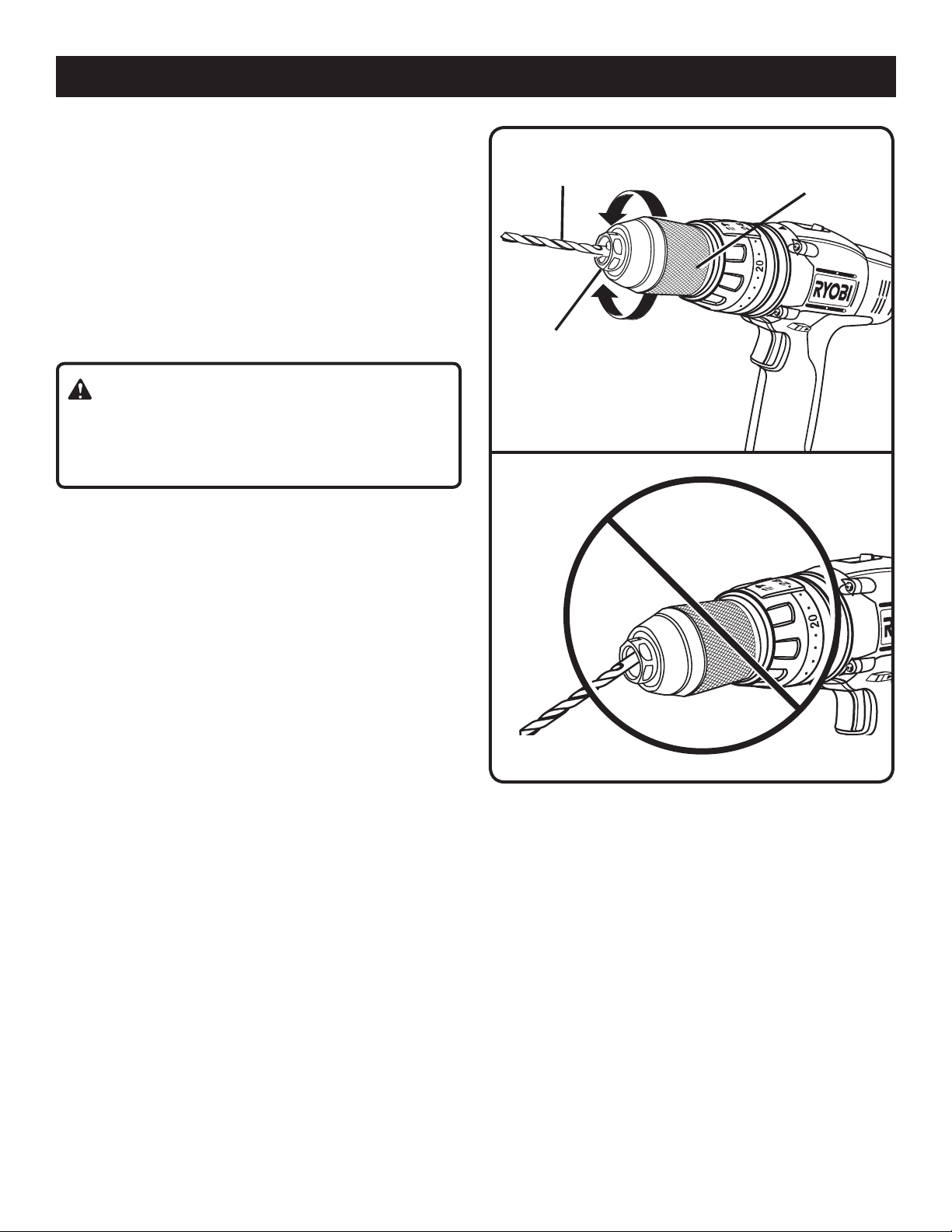

INSERTING BITS
See Figure 6.
n Lock the trigger switch by placing the rotation selector
in the centre position.
n Position the chuck jaws so that the opening is slightly
larger than the drill bit you intend to use.
NOTE: To open the chuck jaws, turn the chuck sleeve
counterclockwise. To close the chuck jaws, turn the
chuck sleeve clockwise.
n Raise the front of the drill to keep the drill bit from falling
out of the chuck jaws.
WARNING:
Do not insert a drill bit into the chuck jaws and tighten
as shown in Figure 7. This could cause the drill bit to be
thrown from the drill resulting possible serious injury or
damage to the chuck.
n Insert the drill bit completely into the chuck.
n Tighten the chuck jaws securely on the drill bit. Do not
use a wrench to tighten or loosen the chuck jaws.
REMOVING BITS
See Figure 6.
n Lock the trigger switch by placing the rotation selector
in the centre position.
n Loosen the chuck jaws.
n Remove the drill bit from the chuck jaws.

Fig. 6
Fig. 7
RIGHT
LOCK
(Tighten)
CHUCK JAWS
CHUCK SLEEVE
DRILL BIT UNLOCK
(Release)

WRONG

14
OPERATION
WARNING:
The hammer drill should never be connected to a
power supply when you are assembling parts, making
adjustments, cleaning, performing maintenance, or when
the tool is not in use. Disconnecting the tool will prevent
accidental starting that could cause serious injury.
ADJUSTING THE AUXILIARY HANDLE
ASSEMBLY
See Figure 8.
n Loosen the auxiliary handle assembly by turning the knob
counterclockwise.
n Rotate the auxiliary handle assembly to the desired loca-
tion.
n Tighten the auxiliary handle assembly securely by turning
the knob clockwise.
ADJUSTING THE DEPTH GAUGE ROD
See Figure 9.
n Lock the trigger switch by placing the rotation selector
in the centre position.
n Loosen the auxiliary handle assembly by turning the knob
counterclockwise.
n Adjust the depth gauge rod so that the drill bit extends
beyond the end of the rod to the required drilling depth.
n Tighten the auxiliary handle assembly by turning the knob
clockwise.
ADJUSTING THE SPEED
See Figure 10.
The hammer drill has a three-speed gear train that provides a
super-high speed of approximately 2,200/min., a high speed
of approximately 750/min. and a low speed of approximately
370/min. (stated speeds are no-load with the trigger switch
in the “Full-on” position).
n For super-high speed: Slide the three-speed gear train
switch to “3.”
n For high speed: Slide the three-speed gear train switch
to “2.”
n For low speed: Slide the three-speed gear train switch
to “1.”
NOTE: If you have difficulty changing from one gear
range to the other, turn the chuck by hand until the gears
engage.
CAUTION:
Never change gears while the tool is running. Failure to
obey this caution could result in serious damage to the
drill.
Fig. 10
HIGH
SPEED
23 1
LOW
SPEED
SUPER-HIGH
SPEED

Fig. 8

Fig. 9
DRILL BIT
DRILLING DEPTH
AUXILIARY
HANDLE
ASSEMBLY
AUXILIARY
HANDLE
ASSEMBLY
DEPTH GAUGE
ROD

15
OPERATION
ADJUSTING THE TORQUE
See Figure 11.
The hammer drill is equipped with an adjustable torque clutch
for driving different types of screws into different materials.
Adjust the torque as necessary. We recommend that you use
carbide-tipped bits and select hammer mode when drilling
in hard materials such as brick, tile, concrete etc.
n Identify the torque indicator settings located on the
front of the hammer drill.
n Rotate the adjusting ring to the desired setting.
• 1 - 4 For driving small screws
• 5 - 8 For driving screws into soft material
• 9 - 12 For driving screws into soft and hard materials
• 13 - 16 For driving screws in hard wood
• 17 - 21 For driving large screws
• For heavy drilling
• For hammer drilling
CHANGING THE BIT ROTATION
See Figure 12.
The direction of the chuck is controlled by the rotation selec-
tor located above the trigger switch.
n For forward rotation: Move the rotation selector to the
left.
n For reverse rotation: Move the rotation selector to the
right.
NOTE: The hammer drill will not run unless the selector
is pushed fully to the left or right.

Fig. 11
Fig. 12
TO DECREASE
TORQUE
TO INCREASE
TORQUE
TORQUE
ADJUSTING RING
FORWARD / REVERSE
SELECTOR
Centre POSITION
(LOCK)
REVERSE
FORWARD
DRILLING MODE
HAMMER MODE

16
OPERATION
USING THE LEVELS
See Figure 13.
Two levels are recessed in the motor housing of the hammer
drill. One is located on top, while the other is located on the
end. They can be used to keep drill bits level during both
horizontal and vertical drilling operations.
DRILLING
See Figure 13.
Follow these steps to drill.
n Secure the material to be drilled in a vise or with clamps
to keep it from turning as the drill bit rotates.
n Hold the tool firmly and place the bit at the point to be
drilled.
n Depress the trigger switch to start the tool.
n Move the drill bit into the workpiece, applying only
enough pressure to keep the bit cutting. Do not force or
apply side pressure to elongate a hole.
WARNING:
Be prepared for binding or breakthrough. When these
situations occur, the drill has a tendency to grab and
kick in the opposite direction and could cause loss of
control when breaking through material. If you are not
prepared, this loss of control could result in possible
serious injury.
HELPFUL TIPS
n When drilling hard, smooth surfaces, use a centre punch
to mark the desired hole location. This prevents the drill
bit from slipping off centre as you start the hole. You may,
however, start holes without centre punching if you use
the lower speed. To accomplish this action, simply oper-
ate the drill at a lower speed until the hole is started.
n When drilling metals, use a light oil on the drill to keep
it from overheating. The oil will prolong the life of the bit
and increase the drilling action.
n If the bit jams in the workpiece or if the drill stalls, stop
the tool immediately. Remove the bit from the workpiece
and determine the reason for jamming.
WARNING:
Do not force the tool. Forcing the tool can result in jam-
ming and loss of balance or footing, which could result
in personal injury.
Fig. 13
MAXIMUM RECOMMENDED CAPACITIES
SPEED 1 SPEED 2 SPEED 3
Bits, Metal Drilling 13 mm 6.35 mm 6.35 mm
Wood, Flat Boring 38.1 mm 15.88 mm 9.53 mm
Bits, Masonry Drilling - 63.5 mm 6.35 mm

17
MAINTENANCE
WARNING:
When servicing, use only identical Ryobi replacement
parts. Use of any other parts may create a hazard or
cause product damage.
WARNING:
Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
WARNING:
To avoid serious personal injury, always remove the
battery pack from the tool when cleaning or performing
any maintenance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts should
be replaced at a Ryobi Authorised Service Centre.

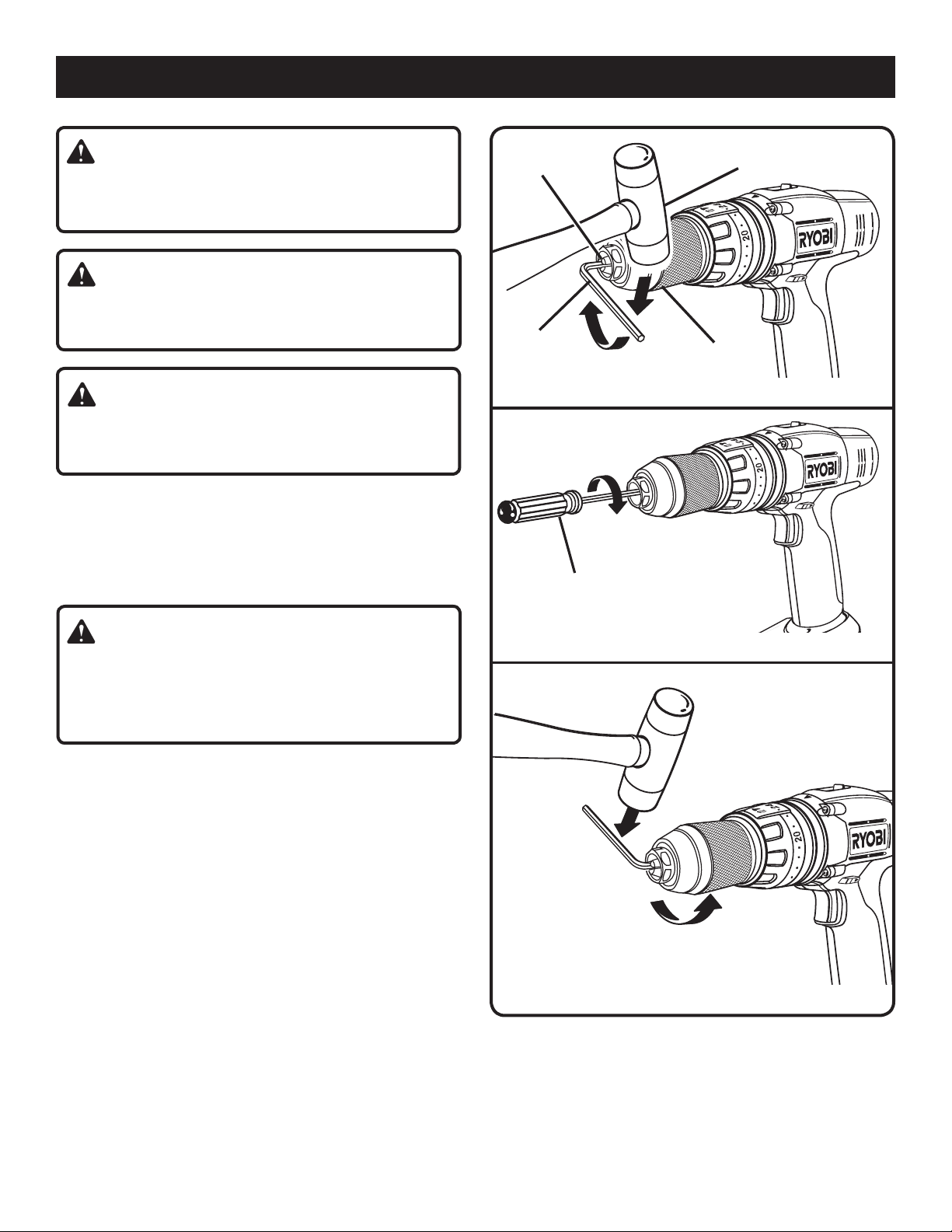

REMOVING THE CHUCK
See Figures 14 - 16.
n Lock the trigger switch by placing the rotation selector
in the centre position.
n Insert a 8 mm or larger hex key wrench into the chuck of
the drill and tighten the chuck jaws securely.
n Tap the hex key wrench sharply with a mallet in a clock-
wise direction. This will loosen the screw in the chuck for
easy removal.
n Open the chuck jaws and remove the hex key wrench.
n Remove the chuck screw by turning it in a clockwise
direction.
NOTE: The screw has left-handed threads.
n Insert the hex key wrench in the chuck and tighten the
chuck jaws securely.
n Tap sharply with a mallet in a counterclockwise direction.
This will loosen chuck on the spindle. It can now be un-
screwed by hand.

Fig. 15

Fig. 16
HEX KEY

CHUCK JAWS
KEYLESS
CHUCK
MALLET
Fig. 14
SCREWDRIVER

18
MAINTENANCE
BATTERIES
The battery pack for this tool is equipped with nickel-cadmium
rechargeable batteries. Length of service from each charging
will depend on the type of work you are doing.
The batteries in this tool have been designed to provide
maximum trouble-free life. However, like all batteries, they
will eventually wear out. Do not disassemble battery pack
and attempt to replace the batteries. Handling of these
batteries, especially when wearing rings and jewelry, could
result in a serious burn.
To obtain the longest possible battery life, we suggest the
following:
n Remove the battery pack from the charger once it is fully
charged and ready for use.
n Store battery pack removed from the tool.
For battery storage longer than 30 days:
n Store the battery pack where the temperature is below
27°C.
n Store battery packs in a "discharged" condition.
WARNING:
Upon removal, cover the battery pack’s termi-
nals with heavy-duty adhesive tape. Do not at-
tempt to destroy or disassemble battery pack or
remove any of its components. Nickel-cadmium
batteries must be recycled or disposed of properly. Also,
never touch both terminals with metal objects and/or
body parts as short circuit may result. Keep away from
children. Failure to comply with these warnings could
result in fire and/or serious injury.
TIGHTENING THE CHUCK
See Figures 14 - 15.
The chuck may become loose on the spindle and begin
to shake when using the drill. Also, the chuck screw may
become loose causing the chuck jaws to bind and prevent
them from closing.
n Lock the trigger switch by placing the rotation selector
in centre position.
n Open the chuck jaws.
n Insert the hex key wrench into the chuck and tighten
the chuck jaws securely.
n Tap the hex key wrench sharply with a mallet in a
clockwise direction. This will tighten chuck on the
spindle.
n Open the chuck jaws and remove the hex key wrench.
n Tighten the chuck screw.
NOTE: The chuck screw has left-handed threads.

19

RYOBI TECHNOLOGIES AUSTRALIA PTY.LTD.
GUARANTEE
RYOBI TECHNOLOGIES AUSTRALIA PTY. LTD.
A.B.N. 98 002 277 509
SYDNEY: 359-361 Horsley Road, Milperra, N.S.W. 2214.
Contact during normal business hours.
RYOBI NEW ZEALAND PTY. LTD.
AUCKLAND: 27 Clemow Drive, Mt Wellington, N.Z.
Contact during normal business hours.
Subject to the guarantee condition below, this Ryobi tool
(hereinafter called “the product”) is guaranteed by Ryobi
(hereinafter called “the Company”) to be free from
defects in material or workmanship for a period of 24
months from the date of original purchase covering
both parts and labour. Under the terms of this
guarantee, the repair or replacement of any part shall
be the opinion of the Company or its authorised agent.
Should service become necessary during the warranty
period, the owner should contact the RYOBI HELPLINE
1300 361 505 or contact the retailer from whom the
product was purchased.
In order to obtain guarantee service, the owner must
