Ryobi EID8102VK Operation manual

CAUTION: Carefully read through this entire owner’s manual before using your
impact drill.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Your new impact drill has been engineered and manufactured to Ryobi’s high standard for dependability,
ease of operation and operator safety. Properly cared for, it will give you years of rugged, trouble free
performance.
DOUBLE
INSULATED
THANK YOU FOR BUYING A RYOBI IMPACT DRILL
SPECIFICATIONS :
Power Input..................... 810 watt
Chuck Capacity............... 13 mm Keyless
Impacts Per Minute
Low ................................. 0 - 17600 min-1
High.................................0 - 44800 min-1
No Load Speed
Low................................ . 0 - 1100 min-1
High................................. 0 - 2800 min-1
DRILLING CAPACITY:
Steel .............................. 10 mm
Masonry ........................ 13 mm
Wood ............. ............... 25 mm
Net Weight ..................... 2.8 kg
Pay close attention to the Rules for Safe Operation, Warnings, and Cautions.
If you use your impact drill properly and only for what it is intended, you will enjoy years of safe, reliable
service.
Thank You again for buying Ryobi tools.
N197
OWNER’S OPERATING MANUAL
810W IMPACT DRILL
MODEL EID8102VK

The purpose of safety rules is to attract your attention to
possible dangers. The safety symbols and the explanations with
them, require your careful attention and understanding. The
safety warnings do not by themselves eliminate any danger.
The instruction or warnings they give are not substitutes for
proper accident prevention measures.
1. KNOW YOUR POWER TOOL. Read owners manual
carefully. Learn its applications and limitations as well as
the specific potential hazards related to this tool.
2. GUARD AGAINST ELECTRICAL SHOCK BY PREVENTING
BODY CONTACT WITH GROUNDED SURFACES. For
example, pipes, radiators, ranges, refrigerator enclosures.
3. KEEP WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
4. AVOID DANGEROUS ENVIRONMENT. Don’t use power
tools in damp or wet locations or expose to rain. Keep work
area well lit.
5. KEEP CHILDREN AND VISITORS AWAY. Visitors should
wear safety glasses and be kept a safe distance from work
area. Do not let visitors contact tool or extension cord.
6. STORE IDLE TOOLS. When not in use, tools should be
stored in a dry and high or locked-up place, out of reach of
children.
7. DON’T FORCE TOOL. It will do the job better and safer at
the rate at which it was designed.
8. USE RIGHT TOOL. Don’t force small tool or attachment to
do the job of a heavy duty tool. Don’t use tool for purpose
not intended.
9. DRESS PROPERLY. Do not wear loose clothing or jewellery.
They can be caught in moving parts. Rubber gloves and
non-skid footwear are recommended when working
outdoors. Also wear protective hair covering to contain
long hair.
10. ALWAYS WEAR SAFETY GLASSES. Everyday eyeglasses
have only impact resistant lenses, they are not safety
glasses.
11. PROTECT YOUR LUNGS. Wear a dust mask if operation
is dusty.
12. PROTECT YOUR HEARING. Wear hearing protection
during extended periods of operation.
13. DON’T OVERREACH. Keep proper footing and balance at
all times. Do not use tool on a ladder or unstable support.
Secure tools when working at elevated levels.
14. MAINTAIN TOOLS WITH CARE. Keep tools sharp and
clean for better and safer performance. Follow instructions
for lubricating and changing accessories.
15. REMOVE ADJUSTING KEYS AND WRENCHES. Form a
habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it on.
16. NEVER USE IN AN EXPLOSIVE ATMOSPHERE. Normal
sparking of the motor could ignite fumes.
17. KEEP HANDLES DRY, CLEAN AND FREE FROM OIL AND
GREASE. Always use a clean cloth when cleaning. Never
use brake fluids, gasoline, petroleum based products, or
any strong solvents to clean your tool.
18. STAY ALERT AND EXERCISE CONTROL. Watch what
you are doing and use common sense. Do not operate tool
when you are tired. Do not rush operation of tool.
19. CHECK DAMAGED PARTS. Before further use of the
tool, a guard or any other part that is damaged should be
carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment
of moving parts, binding of moving parts, breakage of
parts, mounting and any other conditions that may affect
its operation. A guard or any other part that is damaged
should be properly repaired or replaced by an authorised
service centre.
20. DO NOT USE TOOL IF SWITCH DOES NOT TURN IT ON
AND OFF. Have defective switches replaced by authorised
service centre.
21. DO NOT OPERATE THIS TOOL WHILE UNDER
THE INFLUENCE OF DRUGS, ALCOHOL OR ANY
MEDICATION.
22. THE APPLIANCE IS NOT INTENDED FOR USE BY
YOUNG OR INFIRM PERSONS WITHOUT SUPERVISION.
YOUNG CHILDREN SHOULD BE SUPERVISED
TO ENSURE THAT THEY DO NOT PLAY WITH THE
APPLIANCE.
RULES FOR SAFE OPERATION
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Due to continued product
refinement policy, product features
and specifications can and will
change without notice. Check
current features and specifications
with your retailer.
SAFETY ALERT SYMBOL. Indicates caution or
warning. May be used in conjunction with other
symbols or pictures.
WARNING: Failure to obey a safety warning can
result in serious injury to yourself or to others.
Always follow the safety precautions to reduce the
risk of fire, electric shock and personal injury.
WARNING: Do not attempt to operate this tool
until you have read thoroughly and understood
completely, safety rules, etc. contained in this
manual. Failure to comply can result in accidents
involving fire, electric shock or serious personal
injury. Save owners manual and review frequently
for continuing safe operation and instructing
others who may use this tool.
The operation of any tool can result
in foreign objects being thrown
into your eyes, which can result
in severe eye damage. Before
beginning power tool operation,
always wear safety goggles or
safety glasses with side shields
and a full face shield when needed. We recommend Wide
Vision Safety Mask for use over eyeglasses or standard
safety glasses with side shields.
Page 2

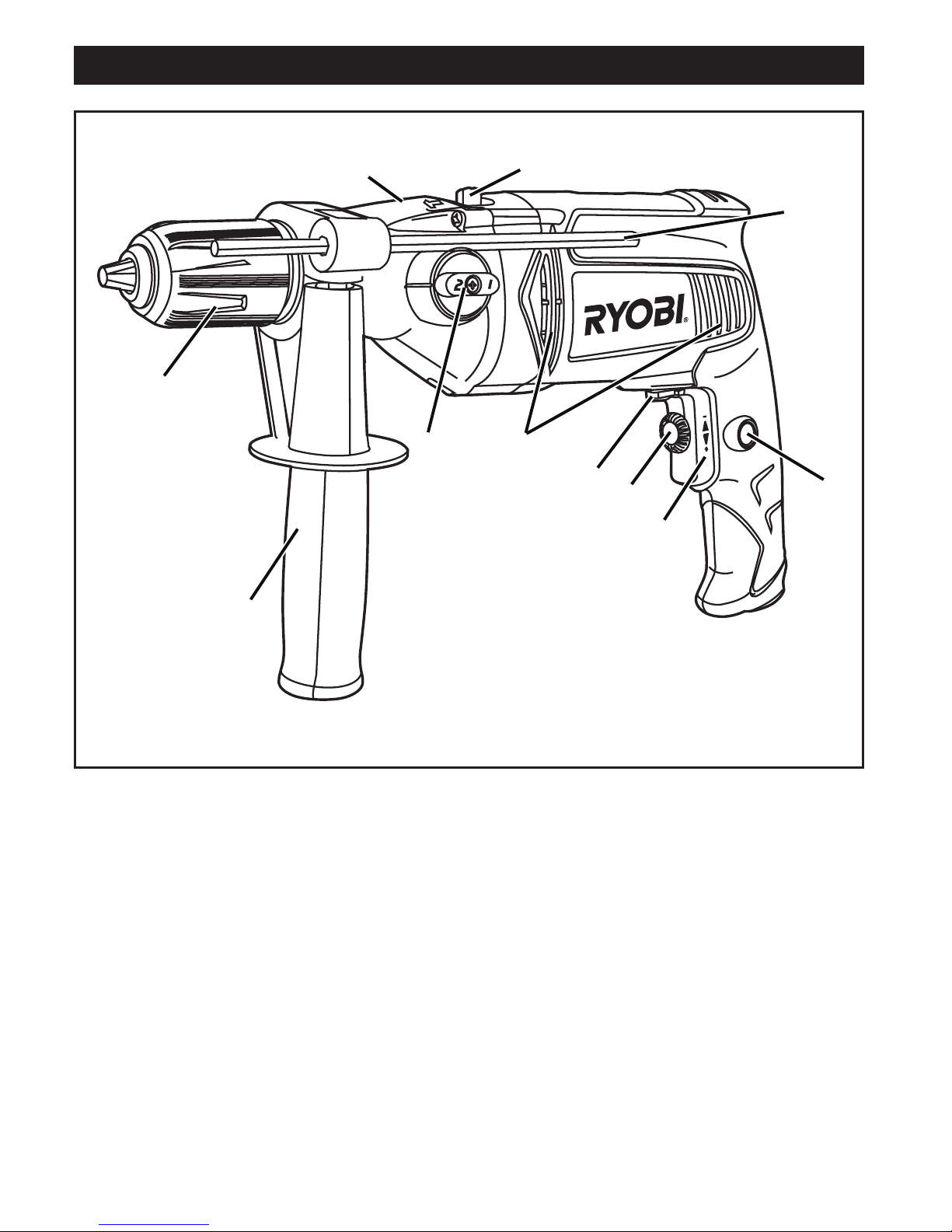

FEATURES
1. Trigger Switch
2. Forward/Reverse Switch
3. Keyless Chuck
4. Variable Speed Dial
5. Lock - On Button
6. Depth Gauge
7. Auxiliary Handle
8. Air Vents
9. Drilling Mode Shift Button
10.Gear Setting Button
11. Spindle Lock Button
9
6
3
10
7
8
24
1
5
Page 3
11

APPLICATIONS
(Use only for the purposes listed below.)
Drilling wood, materials and resin boards.
Drilling concrete (impact drilling only).
Drill metal, steel, brass, aluminum sheets,
stainless steel & pipe.
NOISE BUILD-UP
Noise (sound pressure level) in the workplace
can exceed 85 dB (A). In this case, sound
insulation and hearing protection measures must
be taken by the operator.
SWITCH (Fig. 1)
This tool is started and stopped by pressing and
releasing the trigger switch (1).
The speed can be adjusted in the high gear
or in the low gear, by controlling the trigger
pressing force.
For continuous operation, press the lock button
(5) while pressing the trigger. Press again to
release the lock.
VARIABLE SPEED (Fig. 2)
Your drill has a variable speed control mechanism
designed for speed and torque control.
The speed and torque of the drill can be
increased by rotating the variable speed control
dial.
Turn the dial (4) to the “+” direction to increase
the speed and to the “-” direction to decrease
the speed.
NOTE: Use lower speeds for starting holes without
a centre punch, drilling metals or plastic, driving
screws and drilling ceramics or in applications
requiring a higher torque. Higher speeds are better
for drilling wood, wood compositions and for using
abrasive and polishing accessories.
CHANGING THE ROTATION DIRECTION (Fig. 3)
To change the rotation direction, stop the tool and
push the forward / reverse button (2).
When the forward button is pushed in, the bit
rotates clockwise when viewed from the handle
end of the tool.
When the reverse button is pushed in, the bit
rotates counterclockwise.
MOUNTING AND REMOVING THE BIT (Fig. 4a &4b)
The drill features a keyless chuck (3) and spindle
lock button (11) for greater convenience of use.
To insert a drill bit, press the spindle lock button
with one hand and use your other hand to rotate
the chuck anti-clockwise. Rotate it sufficently for
the chuck to open far enough to accept the bit
or accessory.
Fully insert the bit accessory into the chuck and
tighten securely by rotating the chuck clockwise
with one hand whilst holding the spindle lock
button pressed with the other hand.
Repeat 2nd point to remove the bit.
NOTE: Always be sure the spindle lock button is
released and the spindle lock is disengaged before
turning the drill ON.
Page 4
FEATURES
Fig. 1
1
52Fig. 3
Fig. 2
4

OPERATING
NEVER COVER THE AIR VENTS (8) SINCE
THEY MUST ALWAYS BE OPEN FOR PROPER
MOTOR COOLING.
DRILLING IN WOOD
To prevent ugly splits around the drill hole on
the reverse side of the work piece, put a piece
of scrap timber under the work piece.
DRILLING IN METAL
Metals such as steel, brass, aluminum sheets,
stainless steel and pipe may also be drilled. Mark
the point to be drilled with a nail or punch.
DRILL IN CONCRETE
Rock and masonry are generally drilled in the
impact drilling mode.
When drilling in delicate materials such as wall,
it is essential to start with ordinary drilling and
once the tile is pierced, to continue with impact
drilling.
In deep bore holes the drill bit should be pulled
out occasionally in order to remove the dust and
chips from the hole.

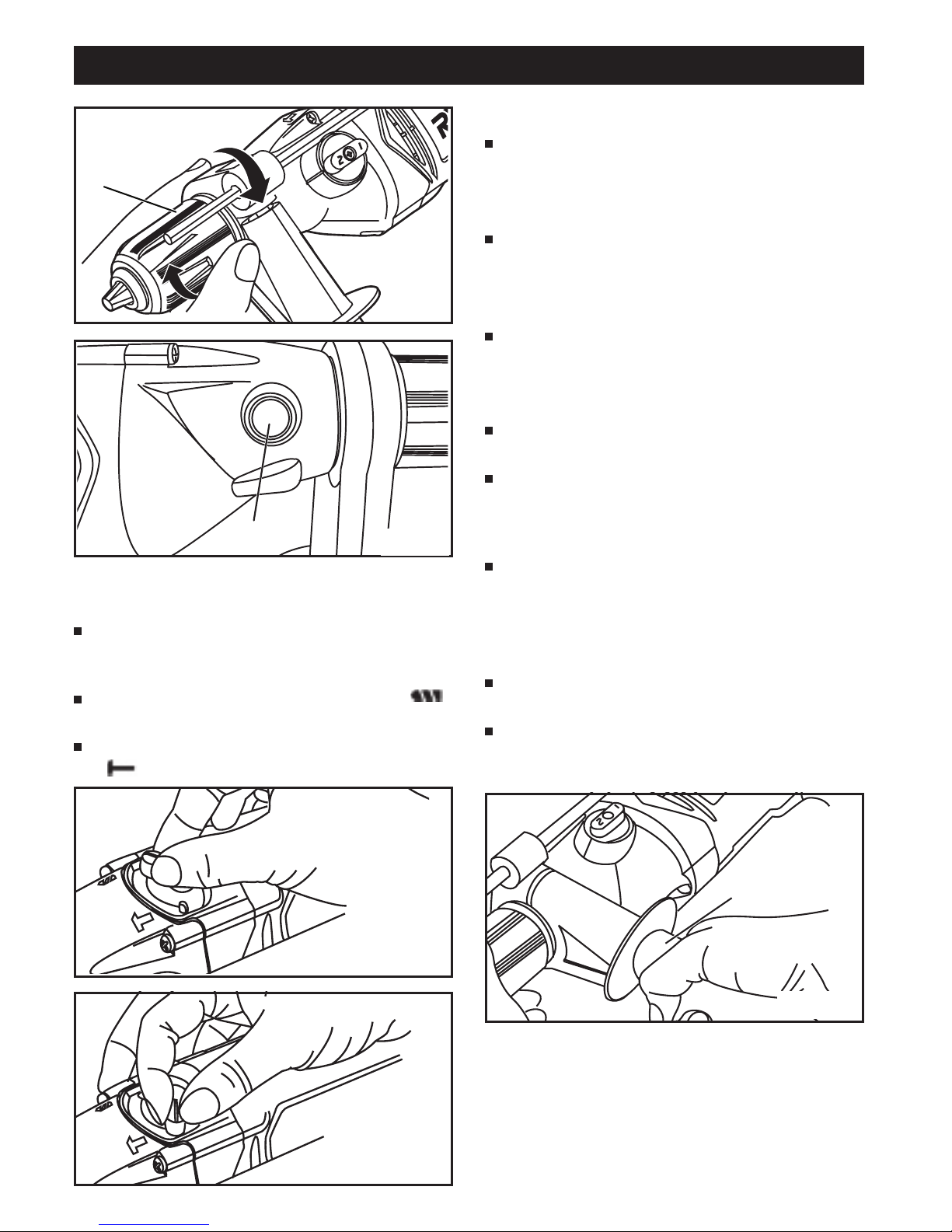

AUXILIARY HANDLE AND DEPTH GAUGE
(FIG. 6)
Turn the handle (7) anti-clockwise to loosen the
collar and slip it over the chuck onto the drill.
Adjust the position of the handle to suit the
application, add the depth gauge (2) if required
and tighten the handle to secure it in place.
CHANGING BETWEEN DRILLING AND IMPACT
DRILLING MODE (Fig. 5a & 5b)
The drilling mode shift button (9) for changing
between the drilling mode and impact drilling
mode is positioned on the top of the tool.
DRILLING MODE: Shift the knob to the “ ”
symbol for rotation without impact action.
IMPACT DRILLING MODE: Shift the knob to the
“ ” symbol for impact drilling.
Page 5
Fig. 5b
FEATURES
Fig. 5a
7
Fig. 6
3
Fig. 4a
11 Fig. 4b

After use, check the tool to make sure that it is
in top condition. It is recommended that you take
this tool to a RYOBI Authorized Service Center
for a thorough cleaning and lubrication at least
once a year.
DO NOT MAKE ANY ADJUSTMENTS WHILE
THE MOTOR IS IN MOTION.
ALWAYS DISCONNECT THE POWER
CORD FROM THE RECEPTACLE BEFORE
CHANGING REMOVABLE OR EXPENDABLE
PARTS (BLADE, BIT, SANDING PAPER ETC.),
LUBRICATING OR WORKING ON THE UNIT.)

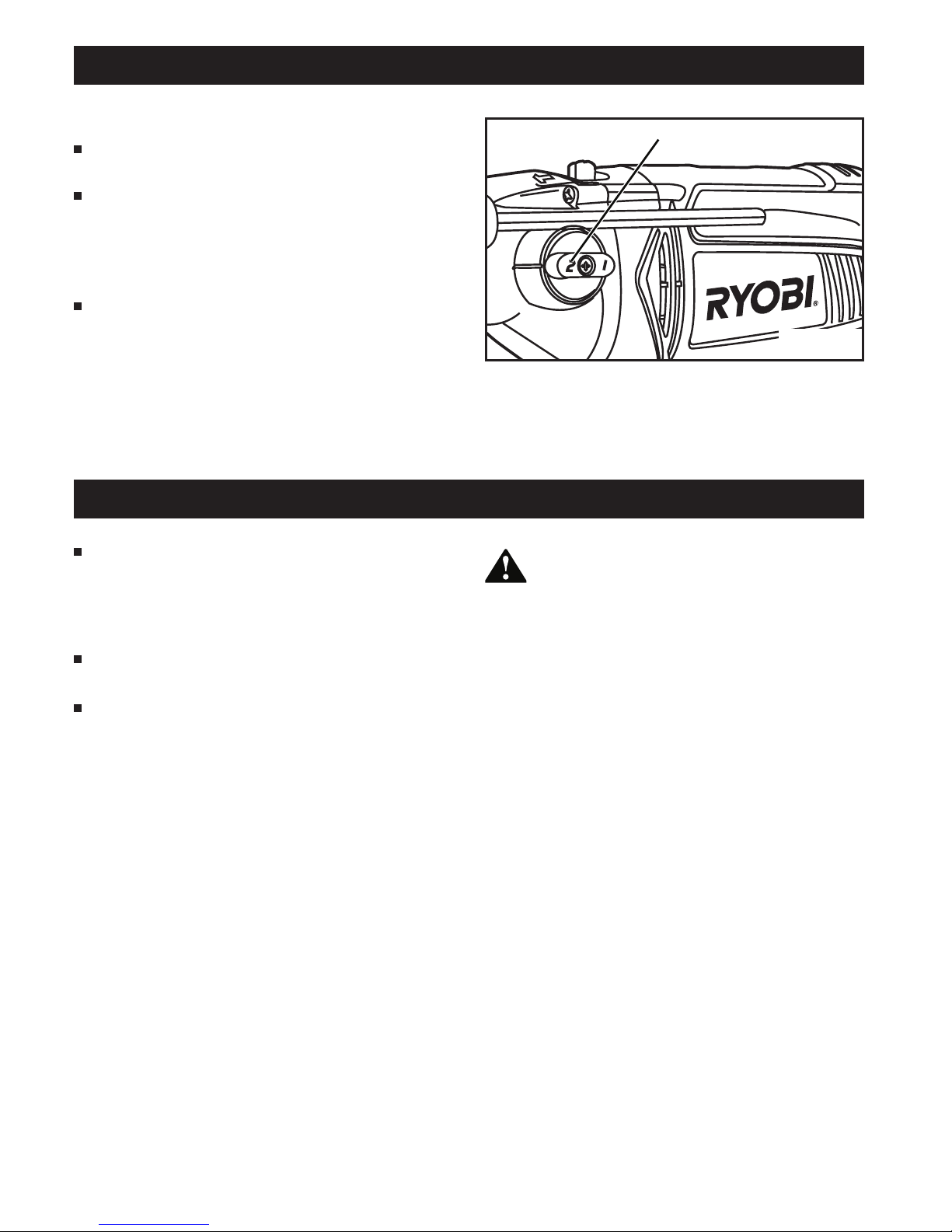

MAINTENANCE
WARNING:
To ensure safety and reliability, all repairs
should be performed by an AUTHORIZED
SERVICE CENTER. Please contact
Ryobi customer service 1300 361 505
for details
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
Fig. 7
10
CHANGING THE ROTATION SPEED (Fig. 7)
The rotation speed can only be changed when
the tool is at a standstill.
The gear setting button (10) is on the left side
of the housing. When the botton is in position
“1”, the tool is in the low gear which is higher
torque for large diameter drilling and high
torque screwdriving.
When the botton is in position “2” the tool is in
the high gear which produces a higher speed
for more efficient drilling.
FEATURES
Page 6

RYOBI TECHNOLOGIES AUSTRALIA PTY.LTD.
GUARANTEE
RYOBI TECHNOLOGIES AUSTRALIA PTY. LTD.
A.B.N. 98 002 277 509
SYDNEY: 359-361 Horsley Road, Milperra, N.S.W. 2214.
Contact during normal business hours.
RYOBI NEW ZEALAND PTY. LTD.
AUCKLAND: 27 Clemow Drive, Mt Wellington, N.Z.
Contact during normal business hours.
Subject to the guarantee condition below, this Ryobi tool
(hereinafter called “the product”) is guaranteed by Ryobi
(hereinafter called “the Company”) to be free from
defects in material or workmanship for a period of 24
months from the date of original purchase covering
both parts and labour. Under the terms of this
guarantee, the repair or replacement of any part shall
be the opinion of the Company or its authorised agent.
Should service become necessary during the warranty
period, the owner should contact the RYOBI HELPLINE
1300 361 505 or contact the retailer from whom the
product was purchased.
In order to obtain guarantee service, the owner must
present the sales docket and Guarantee Certificate
to confirm date of purchase. This product is sold by the
dealer or agent as principal and the dealer has no
authority from the Company to give any additional
guarantee on the Company’s behalf except as herein
containedorhereinreferred to.
Guarantee Conditions
This guarantee only applies provided that the Product
has been used in accordance with the manufacturer’s
recommendations under normal use and reasonable
care (in the opinion of the Company) and such
guarantee does not cover damage, malfunction or
failure resulting from misuse, neglect, abuse, or used
for a purpose forwhich it was not designed or is not
suited and no repairs, alterations or modifications
have been attempted by other than an Authorised
Service Agent.This guarantee will not apply if the tool is
damagedbyaccident or if repairs arise from normal
wear and tear.
The Company accepts no additional liability pursuant to
this guarantee for the costs of travelling or
transportation of the Product or parts to and from the
service dealer or agent - such costs are not included in
this guarantee.
Certain legislation, including the Trade Practices Act,
1974 (as amended) and other state and territorial laws
give rights to the buyer and impose liability on the seller in
certain circumstances. Nothing herein shall have the effect
of excluding, restricting or modifying any condition,
guarantee, right or liability imposed, to the extent only
that such exclusion, restriction or modification
would render any term herein void.
BRISBANE : All enquiries Tel : [phone]
TOWNSVILLE: All enquiries Tel : [phone]
MELBOURNE: 960 Stud Road, Rowville,Vic. 3178
Tel : [phone]
HOBART: All enquiries Tel : [phone]
ADELAIDE: All enquiries Tel : [phone]
PERTH: 33-35 Sorbonne Cres. Canning Vale, W.A. 6155
Address Of Dealer
Present This Form With Your Purchase Docket When Guarantee Service Is Required.
Tel: [phone] - Fax: [phone] - www.ryobi.com.au
Tel: [phone] - Free Call: 0800 279 624 - Fax: [phone] - www.ryobi.co.nz
For your record and to assist in establishing date of purchase (necessary for in-guarantee service)
please keep your purchase docket and this form completed with the following particulars.
This Guarantee Form Should Be Retained By The Customer At All Times
Date Model No Serial No
Tel : [phone]
