Saga Elite Series User manual

6½” 2-Way In-Ceiling Speaker
SAG8026IC USER MANUAL
ELITE SERIES
Elite

INTRODUCTION
Welcome to the Saga Sound experience! We don't call this series "Elite" for nothing.
Our Elite Series audio line boast components and craftsmanship ideal for extraordinary
sound performance. You don’t have to spare design for quality with the Elite Series.
The discrete, compact format of this speaker makes it ideal for many applications where
traditional speakers would be impractical or impossible. In-ceiling speakers are designed
so that the ceiling and the space behind them actually become the speaker cabinet.
Mounted flush to the wall or ceiling, they require absolutely no floor space. The frames and
grilles may be painted to blend with any decor.
Overall Diameter
10.5” (257mm) 8.66” (220mm)
Cutout Depth
3.46” (88mm)
Cutout Diameter
DIMENSIONS
page 2
6 ½” 2-Way In-Ceiling Speaker
Woofer 6.5” Black Kevlar Woven Cone w/ Rubber Surround
Crossover High-End 6dB
Frequency Response 58Hz - 20KHz
Impedance 8Ω ohms
Power Handling RMS: 50W, MAX: 100W
Sensitivity: 88dB
20mm Silk and Titanium Swivel Dome Tweeter
Efficiency
Tweeter
SAG8026ICSAG8026IC
SPECIFICATIONS
Magnetic Steel GrillePressure Fit Grille
10.5" Diameter x 3.7" DepthOverall Dimensions

INSTALLATION
This speaker features classic “dog ear” mounting tabs. Simply screw the tabs down to
keep the speaker in place. Allow at least 1½” of clearance between the cut out and any
studs or joists for the mounting hardware to work properly. A mounting depth of 3.46”
measured from the face of the wall is also required. The speaker location and associated
mounting hardware should not conflict with any existing wires or pipes.
Determine the
desired speaker
placement and trace
around the included
cut-out template.
Using a Phillips
screwdriver tighten
the mounting tabs
until the speaker is
secured in place.
Finish the speaker
installation by
placing the magnetic
grille on the speaker.
Be sure to attach the
speaker wire to the
proper terminals.
Use a drywall saw or
hole saw to cut the
hole for the speaker.
Push the speaker
into place and make
any necessary final
adjustments.
CAUTION: DO NOT OVERTIGHTEN. AVOID USING A DRILL TO PREVENT DAMAGING THE MOUNTING TABS.
page 3

www.sagasound.com

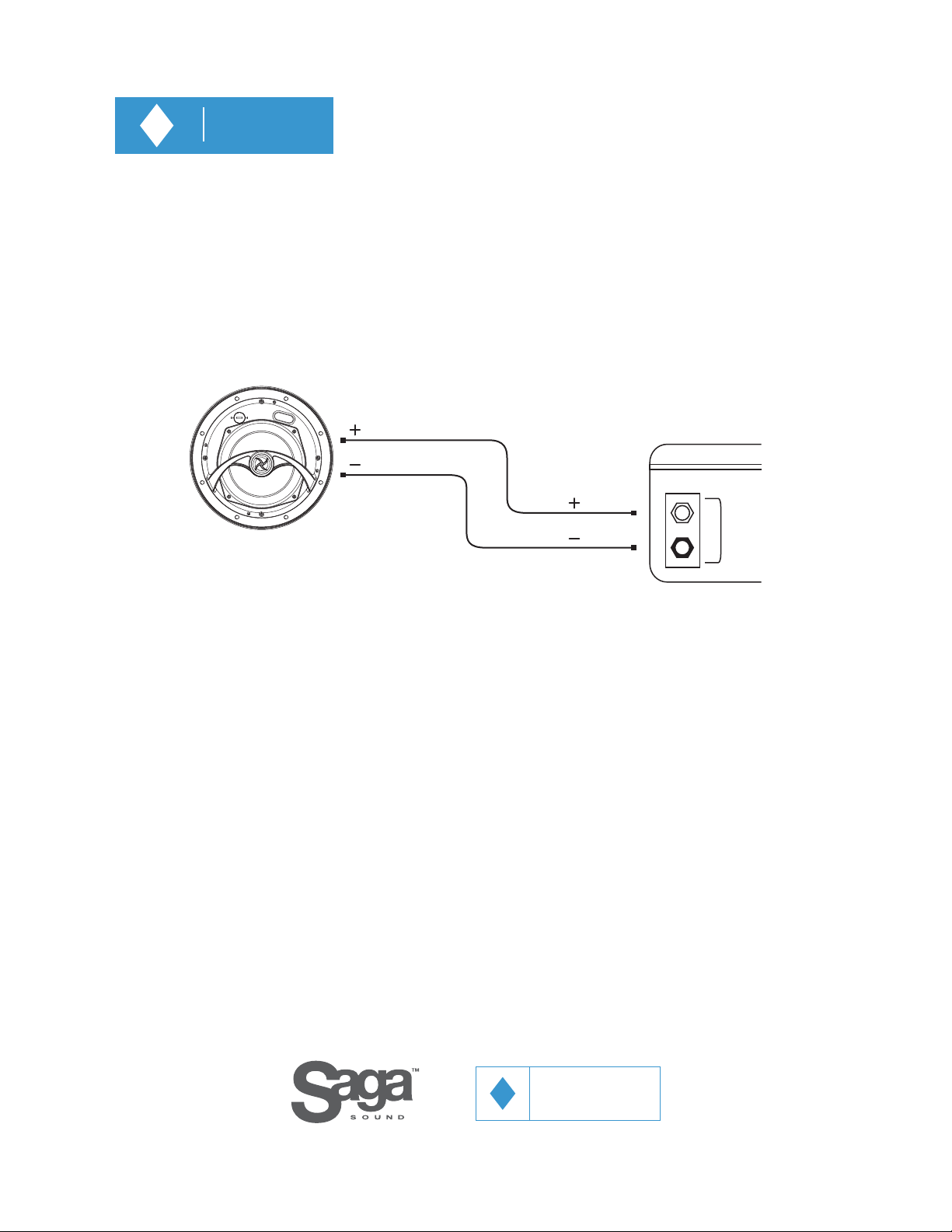

CONNECTION
When connecting your in-ceiling speaker, it is very important to retain the correct polarity.
To do this, be sure that the wire attached to the "+" , red, positive, or hot terminal on
the speaker connects to the "+", red, positive or hot terminal on the source component.
Similarly, the "-", black, negative or ground terminal on the speaker must connect to
the respective "-", black, negative or ground terminal on the source component.
page 4
ELITE SERIES
Elite
RED
BLACK
RED
BLACK
+
R
-
WARRANTY
This Saga product carries a LIMITED LIFETIME WARRANTY on both parts and labor.
Should your Saga component fail to operate properly at any time during the warranty
period, Saga will repair or replace (at our option) the item barring any indication of
misuse or abuse. Freight to a Saga authorized facility is paid by the customer. Return
freight is paid by Saga. Warranty registration occurred automatically at the time your
order was placed. There is no need to complete or mail in additional paperwork. If you
have any questions about the operation or installation of this product, please call our
distributor, Skywalker Communications at [phone] or (636) 272- 8025. Skywalker
Communications hours of operation are from 8am to 5pm CST.
TECHNICAL SUPPORT
800.844.9555
[e-mail]
skywalker.com
Limited Lifetime Warranty
