Sage the Vac Q SBL002 User manual

the Vac Q™
SBL002
EN QUICK GUIDE DE KURZANLEITUNG
FR GUIDE RAPIDE IT GUIDA RAPIDA
NL SNELSTARTGIDS

2
SAGE®RECOMMENDS
SAFETY FIRST
At Sage®we are very safety conscious.
We design and manufacture appliances
with your safety foremost in mind.We also
ask that you exercise a degree of care
when using any electrical appliance and
adhere to the following precautions.
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USE
& SAVE FOR FUTURE REFERENCE
2Sage®Recommends Safety First
9Components
10 Functions
14 Care & Cleaning
Contents

3
EN
• A downloadable version of this document is also
available at sageappliances.com
• Remove and discard any packaging materials
safely, before rst use.
• This appliance is for household use only. Do
not use the appliance for anything other than its
intended purpose. Do not use in moving vehicles
or boats. Do not use outdoors. Misuse may
cause injury.
• Do not operate on or near a heat source such
as a hot plate, oven or gas hob.
• Always ensure the appliance is turned o before
cleaning, removing or replacing batteries or storing.
• Always turn the appliance o when not in use.
• Do not use the appliance if it becomes damaged
in any way. If damaged and maintenance other
than cleaning is required please contact Sage®
Customer Service or go to sageappliances.com
• Any maintenance other than cleaning should be

4
performed by an authorised Sage®service centre.
• Children should not play with the appliance.
• Cleaning the appliance should not be carried
out by children unless they are 8 years or older
and supervised.
• The appliance should be kept out of reach
of children aged 8 years and younger.
• Do not immerse the appliance in water
or any liquid.
• Always ensure the appliance is properly
assembled and suitable batteries are inserted
correctly before use.The appliance will not
operate unless properly assembled with suitable
batteries. Batteries are to be inserted with the
correct polarity.
• Use 4 x AA (1.5V alkaline) batteries only. Do not
use rechargeable batteries.
• Always remove the batteries if the Vacuum Pump
will not be used for six (6) months or longer.

5
EN
• Batteries can contain ammable substances, and
if handled improperly may leak, heat up, ignite
or explode.
• The supply terminals are not to be short-circuited.
• Do not dismantle, open or shred secondary cells
or batteries.
• Do not put batteries in or near re, the batteries
can explode in a re.
• Exhausted batteries are to be removed immediately
from the appliance and safely disposed of.
• Do not incinerate this appliance even if it is
severely damaged.
• Dierent types of batteries, or new and used
batteries, are not to be used together.
• Do not use the appliance on a sink drain board.
• Do not use the appliance for anything other than
food and/or beverage preparation.
• Carefully read all instructions before operation
and save for future reference.

6
• The appliance can be used by persons with
reduced physical or mental capabilities, or a lack
of experience and knowledge, only if they have
been given supervision or instruction concerning
use of the appliance in a safe way and understand
the hazards involved.
• Do not blend any ingredients while the Vacuum
Pump is operating.
• Always apply vacuum before blending.
• Do not blend without having the vacuum
valve assembled.
• Do not place anything on top of the Vacuum Pump
when stored.
• The Vacuum Pump is only intended for use with
Sage®blenders which come with a
Vacuum Blend Lid.
• Do not use SBL002 inner cap with vacuum valve
to blend hot liquid.
• Never use attachments or accessories that are not
supplied with this product or authorised by Sage®

7
EN
to be used on this product. Failing to follow this
instruction may cause product malfunction, product
damage or even pose safety risk.
• For optional accessories authorised by Sage®to
be used on this product, please read all instructions
supplied with the accessory in conjunction with the
instructions contained in this booklet
The symbol shown indicates that this
appliance should not be disposed of
in normal household waste. It should be
taken to a local authority waste collection
centre designated for this purpose or to a dealer
providing this service. For more information, please
contact your local council oce. Please dispose
of batteries in an environmentally friendly manner.
Do not throw batteries into normal household waste.
Please use the return and collection systems
in your community or contact the retailer where
you purchased the product.

8
Please dispose of batteries in an environmentally
friendly manner. Do not throw batteries into normal
household waste. Please use the return and
collection systems in your community or contact
the retailer where you purchased the product.
To protect against electric shock, do not
immerse the appliance in water or any liquid.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS

9
EN
A. Vacuum Pump Housing
B. Power Button
C. Battery Compartment
D. Vacuum Pump Base
E. 4 x AA Batteries
F. Inner Cap with Vacuum Valve
A
D
B
C
E F
Components

10
Functions
BEFORE FIRST USE
Remove and safely discard any packaging
material or promotional labels before using
the attachment for the rst time.
1. Open the battery compartment cover
by twisting the Vacuum Pump housing
to the right side while holding the
Vacuum Pump Base.
2. Insert the batteries correctly
and press rmly to click into position.
3. Replace the Vacuum Pump Housing.

11
EN
USING THE VACUUM PUMP
Applying a vacuum pressure within the blender jug before
blending green smoothies and vegetable dips can enhance
avours, change the texture and improves the overall taste
experience.
We do not recommend using the Vacuum Pump for all blending
processes. For example, dairy based mixes taste better with
air bubbles.
Also, if your food doesn’t have a liquid
element – herbs, spices, or nuts, for
example - vacuum blending will not
have a noticeable impact.
1. To get started, ll the blender
with ingredients and close
the lid rmly.

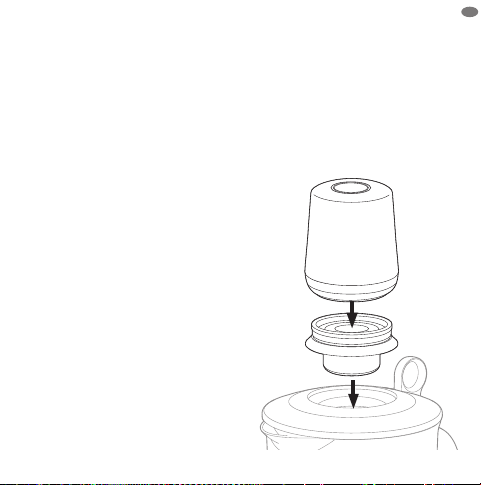

2. Replace the inner cap of the
blender lid with the inner cap
of the vacuum pump.
3. Place the Vacuum Pump
on top of the Inner Cap
with Vacuum Valve.

12

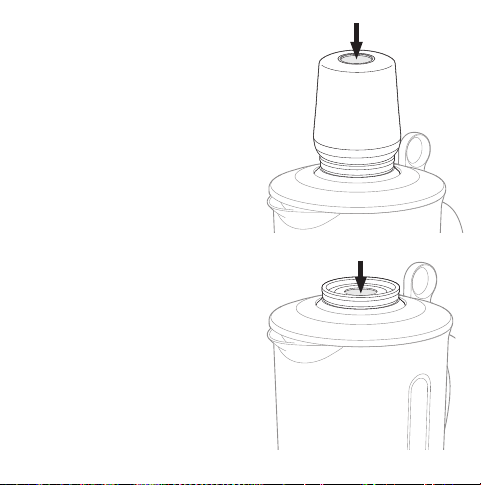

4. Press the POWER Button to turn
on the Vacuum Pump.The Vacuum
Pump will automatically stop once
a vacuum pressure is reached.
5. Remove the Vacuum Pump from
the blender lid.
6. Operate blender as per manual.
7. Press the Vacuum Valve
to release vacuum pressure
from the blender jug.
8. Remove the Inner Cap with
Vacuum Valve for easy
removal of the blender lid.

13
EN
WARNING
• Always wait until the Vacuum Pump has stopped before
turning on the blender. Do not blend any ingredients
while the Vacuum Pump is operating, as this could
cause damage to the pump.
• Do not use the Inner Cap with Vacuum Valve for
non-vacuum blending.
LIGHTS AROUND POWER BUTTON
A white LED ring will be visible around the Power Button
when the Vacuum Pump is in operation.
If the battery becomes low, the LED ring will ash red
for 5 seconds after vacuuming. In this case the Vacuum
Pump won't be able to achieve vacuum pressure anymore.
Please change all 4 batteries and dispose of the old ones.

14
Care & Cleaning
INNER CAP WITH VACUUM VALVE
• Can be cleaned in dishwasher.
• For thorough cleaning remove the Vacuum Valve
from Inner Cap for hand-cleaning.
VACUUM PUMP
• Always ensure the Vacuum Pump is kept clean after each use.
• Wipe the Vacuum Pump with a clean, damp cloth after
each use. Do not use harsh abrasives or caustic cleaning
products when cleaning this attachment.
• Ensure the Vacuum Pump is thoroughly dry after cleaning.
NOTE
Never immerse the Vacuum Pump in water or any other
liquid. Do not place the Vacuum Pump in the dishwasher.

15
EN
STORAGE
Store the Vacuum Pump on a at, dry surface.
Always remove the batteries if the Vacuum Pump will
not be used for six months or longer.
WARNING
KEEP BATTERIES OUT OF REACH
OF CHILDREN
Dispose of used batteries immediately and safely.
If swallowed, they can be life-threatening. If a battery
has been swallowed, immediately seek medical help.

16
SAGE®EMPFIEHLT
SICHERHEIT GEHT VOR
Bei Sage®sind wir sehr
sicherheitsbewusst. Bei der Entwicklung
und Herstellung von Konsumgütern
steht Ihre Sicherheit, die unserer
geschätzten Kunden, für uns im
Vordergrund. Zusätzlich dazu bitten wir
Sie, einen gewissen Grad von Sorgfalt
16 Sage® empehlt Sicherheit geht vor
25 Komponenten
26 Funktionen
30 Reinigung & Pege
Inhalte

17
DE
walten zu lassen und die folgenden
Sicherheitsvorkehrungen zu beachten.
WICHTIGE
VORSICHTSMASSNAHMEN
LESEN SIE VOR DEM GEBRAUCH
ALLE ANWEISUNGEN DURCH &
BEWAHREN SIE SIE FÜR SPÄTERE
REFERENZZWECKE AUF
• Diese Bedienungsanleitung ist außerdem
auf sageappliances.com verfügbar.
• Entfernen Sie vor dem ersten Gebrauch
alle Verpackungsmaterialien und entsorgen
sie diese sicher.
• Dieses Gerät ist nur für den Hausgebrauch
vorgesehen.Verwenden Sie das Gerät nur für
den angegebenen Zweck. Nicht in fahrenden

18
Fahrzeugen oder Booten verwenden. Nicht
im Freien verwenden. Eine missbräuchliche
Verwendung kann zu Verletzungen führen.
• Nehmen Sie es nicht auf oder in der
Nähe einer Hitzequelle, beispielsweise
einer Grillplatte, einem Ofen oder einem
Gaskochfeld, in Betrieb.
• Vibrationen während des Betriebs können
dazu führen, dass das Gerät sich bewegt.
• Stellen Sie stets sicher, dass das Gerät
abgeschaltet ist und abkühlen konnte,
bevor Sie es reinigen, Batterien entnehmen
oder ersetzen, es anders positionieren
oder es einlagern.
• Schalten Sie das Gerät aus, wenn
Sie es nicht verwenden.
• Nutzen Sie das Gerät nicht, wenn es
in irgendeiner Weise beschädigt ist.

19
DE
Bei Beschädigungen und falls andere
Servicearbeiten abgesehen von Reinigung
erforderlich werden, wenden Sie sich bitte
an den Kundendienst von Sage®oder
besuchen Sie sageappliances.com
• Alle Servicearbeiten mit Ausnahme der
Reinigung sollten von einem autorisierten
Sage®Service Centre durchgeführt werden
• Kinder sollten nicht mit dem Gerät spielen.
• Die Reinigung des Geräts sollte nicht von
Kindern durchgeführt werden, es sei denn,
sie sind 8 Jahre oder älter und werden
beaufsichtigt.
• Das Gerät sollte außerhalb der Reichweite
von Kindern im Alter von 8 Jahren und jünger
aufbewahrt werden.
• Tauchen Sie das Gerät nicht in Wasser
oder andere Flüssigkeiten.

20
• Stellen Sie stets vor dem Gebrauch
sicher, dass das Gerät ordnungsgemäß
zusammengesetzt und die passenden
Batterien korrekt eingelegt wurden.
Das Gerät funktioniert nur, wenn es
ordnungsgemäß zusammengebaut und mit
den passenden Batterien bestückt wurde.
Beim Einsetzen der Batterien ist auf die
richtige Polarität zu achten.
• Verwenden Sie ausschließlich
4 x AA-Batterien (1,5V Alkaline).
Keine wiederauadbaren Batterien.
• Versuchen Sie nicht, Batterien
wiederaufzuladen, wenn sie nicht
wiederauadbar sind.
• Nehmen Sie die Batterie stets heraus, wenn
die Vacuum Pump für sechs (6) Monate oder
länger nicht in Gebrauch sein wird.
