Salamander SEM 800 PDS User manual

G03325
INSTRUCTIONS FOR USE AND INSTALLATION

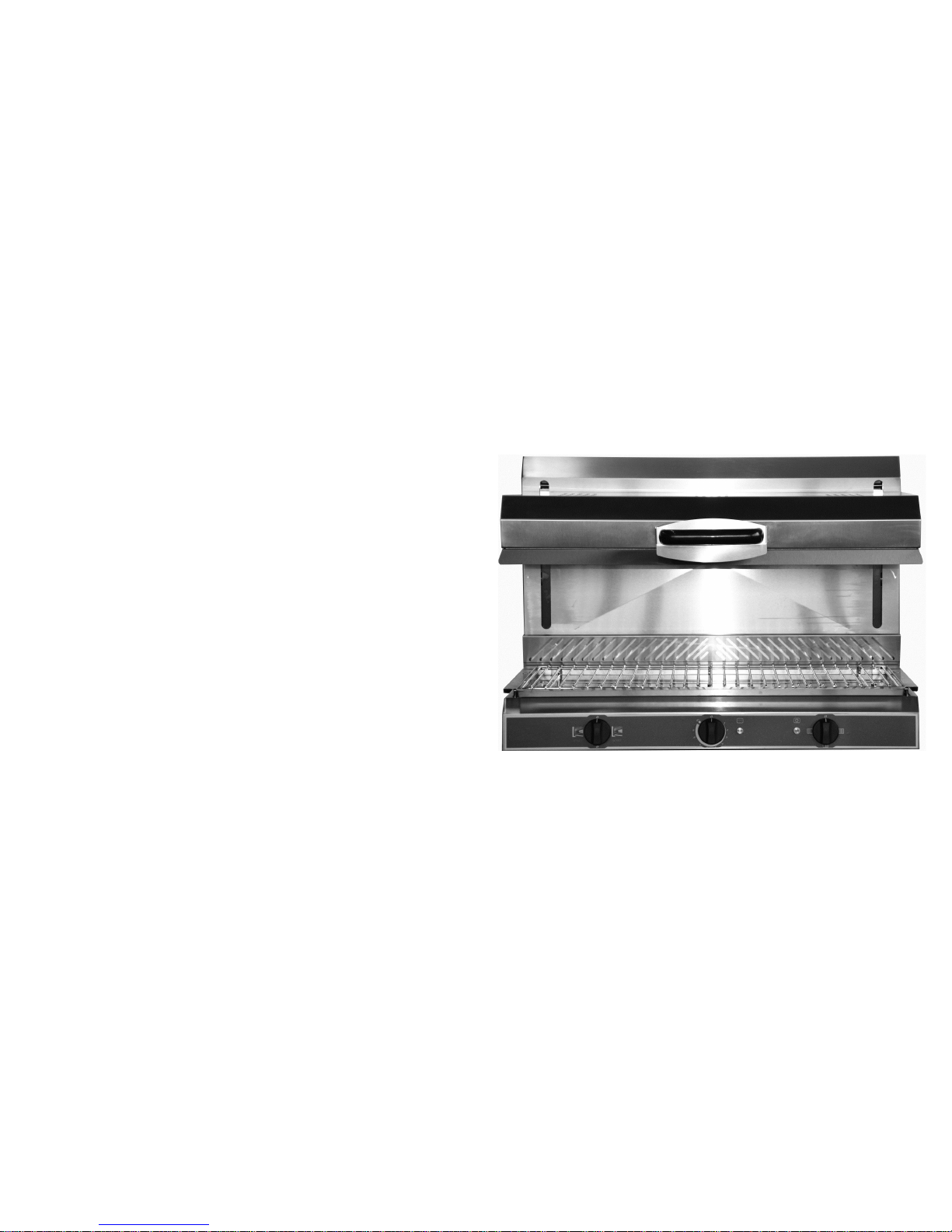

ELECTRIC SALAMANDER
SEM 800 PDS
Made in France
March 2014

11

10
Rep Code Qty Pièce Spare part
1 A15018 1 Poignée Handle
272075 1 Ecarteur de poignée Handle spacer
372076 1 Toit Roof
472094 1 Réflecteur Reflector
5 D06009 3 Foyer Ceramic chamber
6 H01072 1 Glace Glass
772072 1 Casquette Deflector
8 F01068 1 Grille Grid
972065 1 Plat Tray
10 F02007 2 Glissière plat Tray slide
11 72095SE 1 Détecteur de plat Tray sensor
12 72093 1 Socle Base
13 A10032 1 Presse étoupe Cord closer
14 C01018 1 Cable Cord
15 A01016 1 Commutateur PDS PDS commutator
16 A04006 1 Régulateur Régulator
17 A08003 1 Voyant orange Orange pilot light
18 A08009 1 Voyant vert Green pilot light
19 A14078 3 Bouton 12 H Knob 12 H
20 A01001/1 1 Commutateur Commutator
21 72056 1 Fond de socle Bottom casing
22 A13006 4 Pied Foot
23 B06017 10 Roulement Ball bearing
24 TP0010 1 Axe Diam 10 Lg 756 Axle Diam 10 Lg 756
25 B07004 2 Ressort Spring
26 B07028 2 Chaîne Chain
27 B01002 4 Pignon Gear wheel
28 72055 1 Fond arrière Back casing
29 A16010 2 Plaque à borne Terminal plate
30 A07037 1 Microswitch Microswitch
31 A05008 1 Contacteur Contactor
Nomenclature SEM 800 PDS
Spare parts SEM 800 PDS
SALAMANDER SEM 800 PDS
Congratulations for the acquisition of this upmarket appliance made in France. You
chose an appliance which alloys the best technical qualities with a big user-
friendliness. We wish you the biggest contentment
1. SECURITY INSTRUCTIONS
Please respect these instructions scrupulously to avoid any risk of fire, electric shock,
scald or other wounds and damage. During the use of this appliance, fundamental
circumspection of security must always be noticed, such as:
- Take into account the instructions to be systematically kept with the appliance.
- Install the appliance always in instructions respect. A 50 cm distance minimum
with the partition or the wall is necessary.
- Protect the appliance from direct light of the sun, frost and humidity.
- Never leave the appliance within the reach of children or disabled persons with-
out surveillance.
- Never move the appliance when it is working or when the cooking surfaces are
still hot.
- Check that the appliance is definitely off before connecting it up or disconnect-
ing it.
- Do not touch the hot surfaces of the appliance. The temperature of the hot sur-
faces can be very important when the appliance is working. Always use handles
and control knobs.
- Do not use the appliance for other functions than determined use.
- Do not leave the cord of electrical feeding in the contact of hot surfaces.
- The appliance should not be used close to combustible materials.
- During use, look after not to obstruct hearings of aeration of the appliance
- To avoid any electric shock, never plunge the appliance, the cord or plug in wa-
ter or quite other liquid.
- If the cord is harmed, it must be replaced by the producer, his after sale service
or persons of similar skills to avoid any risk.
- Entrust compensations only to a skilled person.
- Use only spare parts of origin.
- At the end of cooking, before cleaning the appliance, do not forget to disconnect
it.
3

2. CONTENTS OF CARDBOARD PACKAGING
Device: a salamander
Accessories: - A tray
- A grid
- The present note

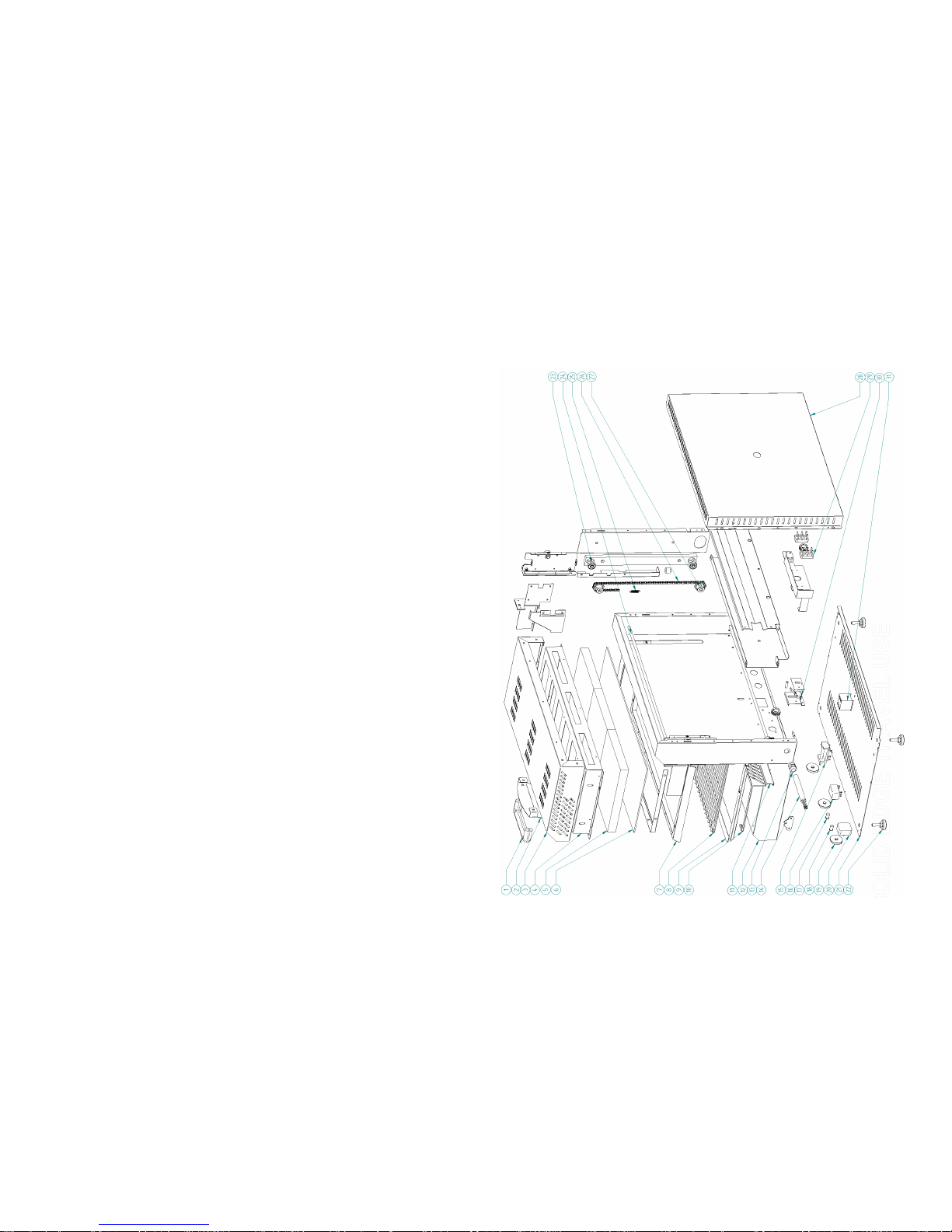

See exploded view at the end of the document.
3. CONFORMITY OF USE
Use the device only to defrost, brown, glaze, grill toasts, gratins, pizzas, onion
soups… without pre-heating.
4. WAY OF FUNCTIONING
This salamander is fitted with three cooking areas, a removable inside tray with grid,
a commutator to select the cooking zone, an energy regulator to set the power and a
plate detection system (PDS)
The top of the salamander is movable and enables you to adapt the cooking position
to grill, glaze or brown your foodstuffs.
To turn on the salamander, just action the commutator (n°5 on picture) on one of the
position according to the desired cooking zone to be used, set the energy regulator
(n°2 on picture) on the desired power (the position C enables to obtain a continuous
heating power).
Your salamander is fitted with a plate detection system ((PDS) n°6 on picture). When
the commutator is on position Start, the heating will automatically works when you
place a plate or tray in contact with the plate detection system (n°6 on picture). To
use this function, the energy regulator (n°2 on picture) has to be set on C position
If the PDS commutator (n°1 on picture) is on position 0, your salamander is running
continuously and is regulated by the energy regulator
The green pilot light (n°4 on picture) indicates the salamander is on. The orange one
(n°3 on picture) indicates the salamander is heating up
Position 1 : Left area
Position 2 : Right area
Position 3 : Complete area.
4
Reach rule
Never put the device among household waste.
The device must be put down in a centre of recycling for the electric equipments.
The materials of the device are indeed reusable. By eliminating correctly the electric
and electronic wastes, the recycling and quite other shape of re-use of worn equip-
ments, you participate in a significant way in the environmental protection.
For any information about the collection of electric and electronic waste, please con-
tact your distributor.
10. GUARANTEE
Conditions of guarantee
The guarantee applicable to any device is the commercial guarantee of the distributor
or the retailer. Please contact the store where you bought your device to know the
precise conditions.
The guarantee grants no right for damages.
The dispositions which follow are not exclusive of the profit of the legal guarantee
planned by articles 1641 and following ones of the Civil code relative to the defects
and the latent defects.
Exclusion clauses of the guarantee
Bad installation and bad maintenance, in particular if they do not respect cur-
rent regulations or instructions appearing in this user guide.
Cannot benefit from the guarantee the repairs required as a result of false operations,
of inappropriate use, of carelessness or of excess loads of the device, as well as
those resulting from variations of the power supply, over tension or from defective in-
stallations.
The damage due to shocks, bad weather is not flatware by the guarantee. The materi-
al travels at the risks of the user; in case of delivery by carrier, the consignee has to
have reservations towards the carrier before any delivery of the device.
The guarantee comes to an end in case of intervention, of repair, of modification by no
qualified persons, or of use in inappropriate purposes.
9

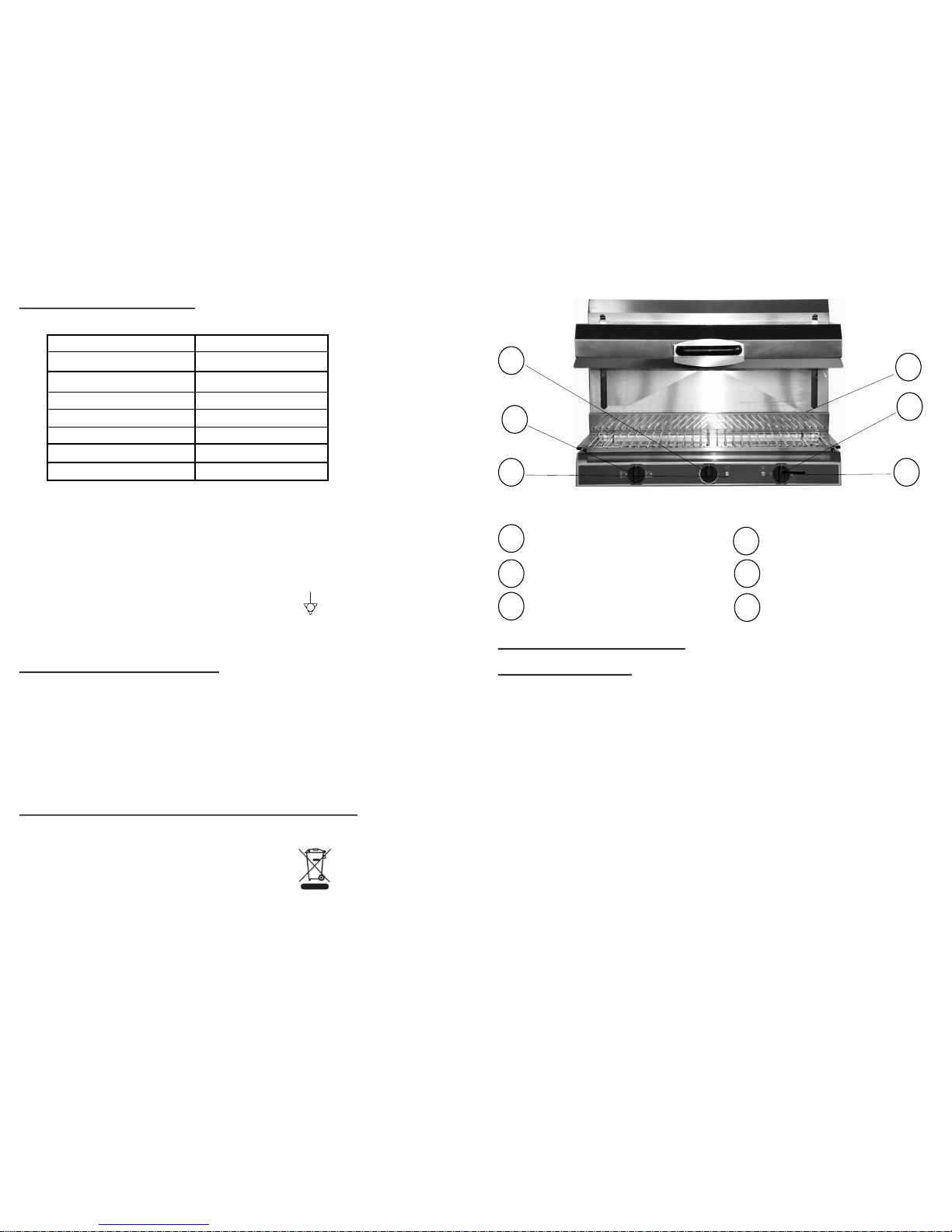

7. TECHNICAL SPECIFICATIONS
Wires colours correspondence Phase 1 Brown
Phase 2 Black
Phase 3 Grey
Neutral Blue
Earth Yellow-Green
The equipotential connection marked by this symbol must be linked with the
equipotential conductive connection of your installation by means of a minimum con-
duction of a 2.5 mm² section.
8. NORMS AND LEGALS DISPOSALS
The device is conform to :
IEC/EN 60335-1
IEC/EN 60335-2-48
EN 55014-1 + 55014-2
EN 61000-3-2 + 61000-3-3
Humidity protection degrees IPX3, in conformity with the norm 60335-2-48 (2008)
9. ELIMINATION OF THE ELECTRIC AND ELECTRONIC WASTE
The device respects the directives:
2002/96/CE (DEEE) N°34270064800021
2002/95/CE (ROHS)
2066/95 CE
2004/108 CE
Model SEM 800 PDS
Voltage 380-415 V 3 N ~
Current 6.5 A/Phase
Power 4500 W
Weight 57 kg
Nb element 3
Cooking surface 740x375 mm
Outside dimensions 800x590x590 mm
8
PDS commutator Energy regulator
Control pilot light On/off pilot light
Commutator Plate detection system (PDS)
5. FUNCTIONING / MANIPULATION
a) Installation / assembly:
- Unpack carefully the device of its packaging.
- Place the salamander on a plane and heatproof surface.
- Never place the device near a wall or near a partition makes of combustible
materials even if it is very well isolated.
- A distance of minimum 50 cm with the partition or the wall is necessary.
- Remove the protective film from the top, the rear, the sides and the tray.
- Unlock the movable top by unscrewing the screw located on the back of the
machine thanks to a 10 pipe key.
- In case of connection directly to the electrical network, a disconnection mode
has to be planned in conformity with the norms.
CAUTION :
During use: never place the machine on surfaces or near walls, partitions or
kitchen furniture and similar— except if they are made with a non combustible
material or recovered with non combustible thermic insulation, and pay atten-
tion to fire preventions rules.
3
1
2
1
3
5
2
5
4
4
56
6

b) First starting:
During the first use, warm your machine up outside to evacuate residual smokes of
manufacturing oil from the metallic parts. This may emit a slight smell for a few mo-
ments.
First cleaning
Clean the device before the first use. (See 6. Cleaning)
Connection of the device
- Check that the tension and the frequency of the electricity network suit to the values
indicated on the descriptive plate.
- Make sure that every control knob is positioned on 0.
- Unwind completely the electric power cable and connect it in a plug connected with
the earth.
- The device is connected.
NB: in case of connection of the device in a plug without earth protection or directly on
the electricity network, confide its connection to a qualified person .
c) Use of device :

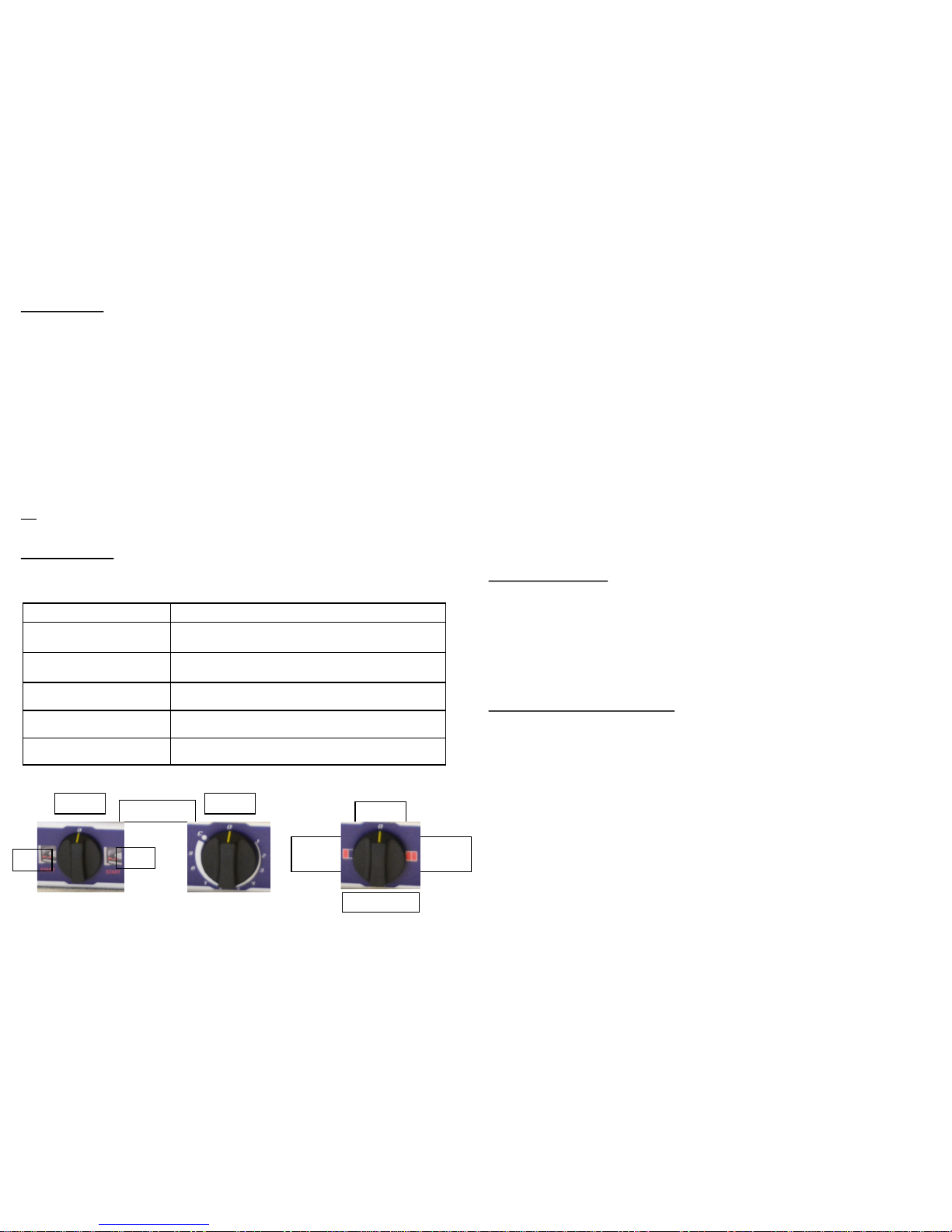

Elements of command and display
6
Command/Display Function
PDS commutator (n°1 on
picture)
Plate detection system on/off
Energy regulator (n°2 on
picture)
Regulate the heating power
Orange pilot light (n°3 on
picture)
Heating up (pilot light on)
Green pilot light (n°4 on
picture)
On/off for each cooking area (pilot light on)
Commutator 4 positions (n°5
on picture
Cooking area selection
Stop
All
Areas
Left
area
Right area
Stop
Continuous
Stop
Start
Start
Putting on
Turn on the commutator control knob (n°5 on picture) on wished position according
to desired cooking zone to be used and the energy regulator (n°2 on picture) on
wished power.
The pilot lights (n°3 and 4 on picture) ignite.
To use the plate detection system (PDS), set the commutator (n°1 on picture) on
Start position and the energy regulator on position C.
The cooking with infrared radiation does not need preheating.
Stopping the appliance
Set the commutator control knob, the PDS commutator and the energy regulator on
0
Disconnect the power cable.
Let the device cool down
Clean the appliance. (see 6. Cleaning)
d) Breakdown / repair:
In case of breakdown or of damaged part, please call your after-sales service and con-
fide any technical operation to qualified person.
When you contact the after-sales service of your distributor or your store, give him the
complete reference of your device (commercial name, type and serial number). This
information appears on the visible descriptive plate behind the device.
6. CLEANING AND MAINTENANCE
Disconnect the device.
- Let cool completely the device before any technical intervention or cleaning.
- Never clean the ceramic glass when it is hot
- Clean regularly the external walls of your device with warm water and wash liquid:
avoid the abrasive towelling. Rinse your device with a wet sponge.
- Never clean the device under a water jet, the infiltrations would risk to damage it in a
irreparable way.
- Never immerse the device, the cord or the plug in the water or quite other liquid to
avoid any electric shock.
- During a prolonged non-use, we recommend you strongly to keep the device shielded
from the humidity.
7
