IQFDA31
Dual Channel 3G/HD/SD-SDI Re-clocking Distribution Amplifier with
Fiber I/O

IQFDA31 Information and Notices
Issue 1 Rev 1 Page 2 © 2016 SAM
Information and Notices
Copyright and Disclaimer
Copyright protection claimed includes all forms and matters of copyrightable material and
information now allowed by statutory or judicial law or hereinafter granted, including without
limitation, material generated from the software programs which are displayed on the screen
such as icons, screen display looks etc.
Information in this manual and software are subject to change without notice and does not
represent a commitment on the part of SAM. The software described in this manual is
furnished under a license agreement and can not be reproduced or copied in any manner
without prior agreement with SAM or their authorized agents.
Reproduction or disassembly of embedded computer programs or algorithms prohibited.
No part of this publication can be transmitted or reproduced in any form or by any means,
electronic or mechanical, including photocopy, recording or any information storage and
retrieval system, without permission being granted, in writing, by the publishers or their
authorized agents.
SAM operates a policy of continuous improvement and development. SAM reserves the right
to make changes and improvements to any of the products described in this document
without prior notice.
Contact Details
Customer Support
For details of our Regional Customer Support Offices please visit the SAM website and
navigate to Support/24/7-Support.
www.s-a-m.com/support/247-support/
Customers with a support contract should call their personalized number, which can be found
in their contract, and be ready to provide their contract number and details.

IQFDA31 Contents
Issue 1 Rev 1 Page 3 © 2016 SAM
Contents
Information and Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Feature Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 Order Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Rear Panel View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.6 Enclosures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.6.1 B-style Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.6.2 A-style Enclosures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Technical Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1 SDI Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2 SDI Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3 SFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 Card Edge LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Operation Using the RollCall Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1 Information Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1.1 Unit Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1.2 SFP Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.2 Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.2.1 Input 1 and 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.2.2 Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.3 SFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.3.1 SFP Transmit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.3.2 SFP Receive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.4 Memory 1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.4.1 Recall Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.4.2 Save Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.4.3 Last Recalled Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.4.4 Save Memory Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.5 Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.5.1 Logging Misc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.5.2 Logging Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.5.3 Logging SFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.5.4 Log Field Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.6 RollTrack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.6.1 Disable All . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.6.2 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.6.3 Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.6.4 Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.6.5 Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.6.6 RollTrack Sending . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.6.7 RollTrack Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.7 Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.7.1 Default Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.7.2 Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.7.3 Restart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.7.4 Input Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.8 SFP Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.8.1 Restart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.8.2 Configure Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

IQFDA31 Introduction
Issue 1 Rev 1 Page 4 © 2016 SAM
1 Introduction
1.1 Description
The IQFDA31 provides dual HD-SDI 3 Gbit/s, 1.5 Gbit/s, or 270 Mbit/s SD-SDI inputs with
both SDI and fiber optic outputs in a single-width package. Flexible routing of inputs and
outputs allows the module to operate as a single- or dual-channel mixing fiber and copper I/O.
Input signal loss detection enables switching from a main feed to a back-up feed
automatically, providing emergency changeover functionality. Its 80m 3G, 170m HD, and
300m SD input equalization performance and non re-clocking distribution of wide-band
signals make it ideal for all distribution applications.
1.2 Block Diagram

IQFDA31 Introduction
Issue 1 Rev 1 Page 5 © 2016 SAM
1.3 Feature Summary
The IQFDA31 provides the following features:
• Dual-channel intelligent 3 Gbit/s SDI, HD-SDI, and SD-SDI re-clocking distribution
amplifier.
• Flexible selection of inputs allows single- or dual-channel operation.
• Input signal monitoring allows auto-changeover emergency switching.
• Provides distribution for DVB-ASI and other wide-band signals.
• Equalizes up to 80 m at 3 Gbit/s, 170 m at 1.5 Gbit/s and 300 m at 270 Mbit/s when
using Belden 1694A cable.
• Standards supported:
• 3G-HD to SMPTE 424M
• HD-SDI to SMPTE 292M
• SD-SDI to SMPTE 259M-C
• DVB-ASI
• SMPTE 297-2006
• 1310 nm, 1550 nm, and CWDM output wavelengths available.
• RollCall monitoring allows all signal paths to be managed.
1.4 Order Codes
The following product order codes are covered by this manual:
The following SFP modules are available for this product:

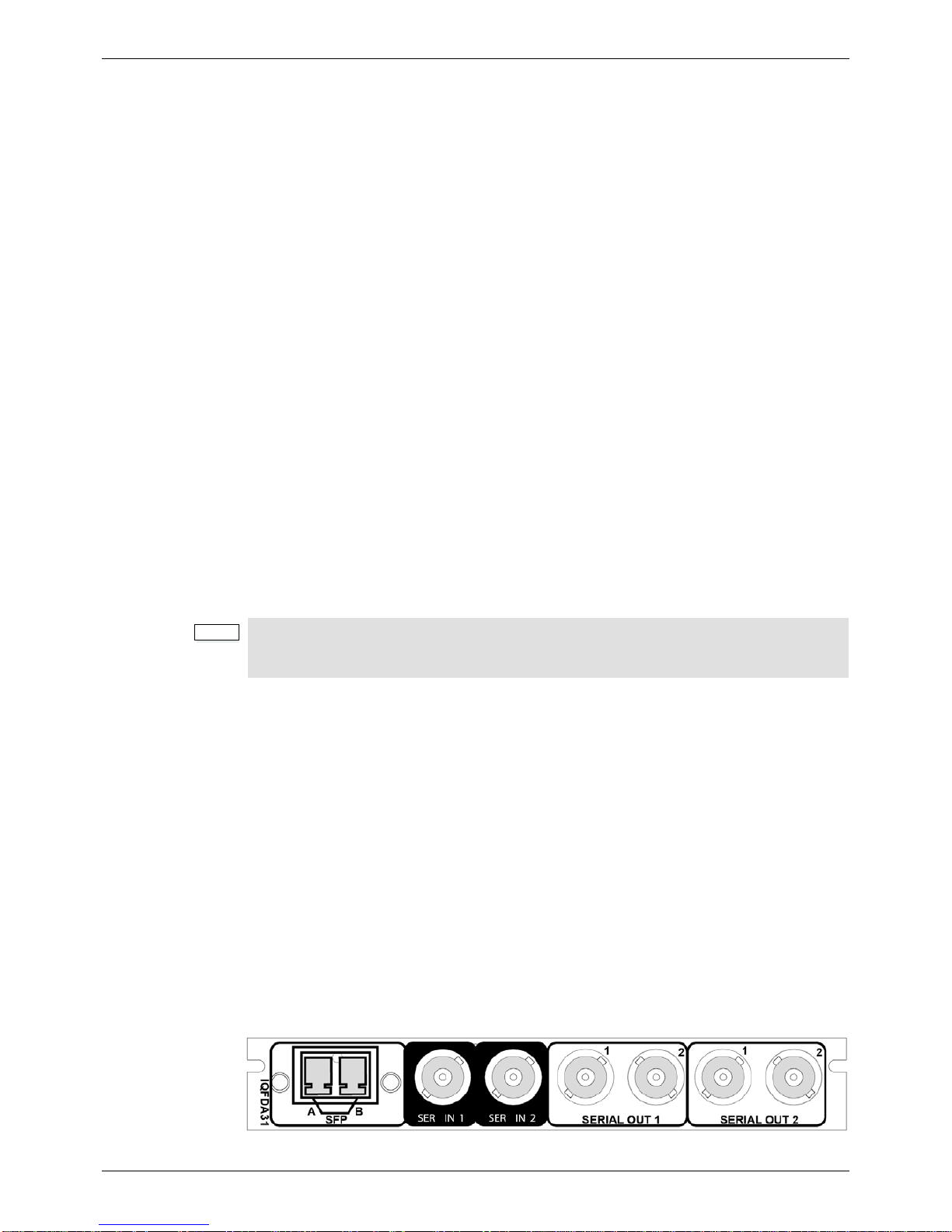

1.5 Rear Panel View
Note:
Modules with “A” order codes (for example, IQFDA3100-1A3) can only be fitted into A-style
enclosures. Modules with “B” order codes (for example, IQFDA3100-1B3) can be fitted into
either A- or B-style enclosures. See page 6.
IQFDA3100-1A3
IQFDA3100-1B3 Dual-channel 3G/HD/SD-SDI re-clocking distribution amplifier with fiber I/O. 2 SDI inputs, 2 optical inputs/outputs, 4 SDI outputs, selectable per
input.
FC1-13T1 1310 nm 1 TX
FC1-13T2 1310 nm 2 TX
FC1-15T1 1550 nm 1 TX
FC1-15T2 1550 nm 2 TX
FC1-R1 1 RX
FC1-TR 1 TX, 1 RX

IQFDA31 Introduction
Issue 1 Rev 1 Page 6 © 2016 SAM
1.6 Enclosures
The module can be fitted into the enclosure types shown.
1.6.1 B-style Enclosure
Enclosure order codes: IQH3B-S-0, IQH3B-S-P
1.6.2 A-style Enclosures
Enclosure order code: IQH1A-S-P
Enclosure order codes: IQH3A-S-0, IQH3A-S-P
Enclosure order codes: IQH3A-E-0, IQH3A-E-P, IQH3A-0-0, IQH3A-0-P
Enclosure order code: IQH1A-S-P
Important:
Although IQ modules are interchangeable between enclosures, their rear panels are
enclosure specific. An IQH3B enclosure accepts modules with either “A” or “B” order
codes. An IQH3A or IQH1A enclosure accepts modules with “A” order codes only. See
page 5.
Note:
The IQH3B enclosure provides two internal analog reference inputs. These inputs are
applicable to modules with “B” order codes only.

IQFDA31 Technical Specification
Issue 1 Rev 1 Page 7 © 2016 SAM
2 Technical Specification
Inputs and Outputs
Signal Inputs
SDI Inputs 2 x 3G/HD/SD-SD
Connector/Format BNC/75 Ohm panel jack on standard SAM connector panel
Input Cable Length Up to 80 m Belden 1694A @ 3 Gbit/s
Up to 170 m Belden 1694A @ 1.5 Gbit/s
Up to 300 m Belden 1694A @ 270 Mbit/s
Note: When using mixed HD and SD inputs, it is recommended that cable lengths do
not exceed the HD specification of 140 m.
Fiber Signal Input*
SDI Inputs Up to 2
Optical 3 Gbit/s HD-SDI
1.485 Gbit/s HD-SDI
270 Mbit/s SD-SDI
Connector/Format LC single mode
Conforms to SMPTE 297-2006
SMPTE 424M (HD level A/B)
SMPTE 292M (HD)
SMPTE 259M-C (SD)
Signal Outputs
SDI Outputs Up to 12, group selectable
Connector / Format BNC/75 Ohm panel jack on standard SAM connector panel
Conforms to video
standards SMPTE 297-2006 SMPTE 424M (HD level A/B)
SMPTE 292M (HD)
SMPTE 259M-C (SD)
Fiber Signal Output*
SDI Outputs Up to 2, selectable per channel
Optical 3 Gbit/s HD-SDI
1.485 Gbit/s HD-SDI
270 Mbit/s SD-SDI
Connector/Format LC single mode
Conforms to SMPTE 297-2006
SMPTE 424M (HD level A/B)
SMPTE 292M (HD)
SMPTE 259M-C (SD)
*Dependant on SFP
fitted
Control Interface
GPI Up to 2 x GPI (I/O configurable)
Electrical TTL compatible, active low driven
Connector/Format BNC/ 75 Ohm panel jack on standard SAM connector panel
Controls
Indicators
Power OK (Green)
CPU OK (Green flashing)
Input 1 OK (Green), Bypass (Orange), Loss (Red)

IQFDA31 Technical Specification
Issue 1 Rev 1 Page 8 © 2016 SAM
Input 2 OK (Green), Bypass (Orange), Loss (Red)
SFP A OK (Green), Bypass (Orange), Loss (Red)
SFP B OK (Green), Bypass (Orange), Loss (Red)
RollCall Functions
Video Controls
Input 1 Format Select SDI, Rx
Input 2 Format Select SDI, Rx
Output 1 Select Serial 1, Serial 2
Output 2 Select Serial 1, Serial 2
Output 3 Select Serial 1, Serial 2
Output 4 Select Serial 1, Serial 2
Laser Disable On/Off
Input 1 (2) Auto, 3G, HD, SD, DVB-ASI, Bypass (re-clocking off), Output
Input Status Present, Loss, Unknown, Data Rate
Other Controls
User Memories Name, save, and recall 16 user memories
Memory Naming User configurable naming of memories 1–16
GPI Input Activates on contact closure – select config 1 or 2
GPI Output Produces an output for: Config 1 selected, Config 2 selected, Input 1 error, Input 2
error
Information Window Unit Status, SFP Status
Logging Input 1(2) Type
Input 1 (2) Data Rate
Input 1 (2) Present
Input 1 (2) Error
Input 1 (2) Loss
Optical Logging Tx Laser Bias High Warning
Tx Power Low Warning
Tx Power High Warning
Laser Wavelength Input 1 (2) Rx Power High Warning
Input 1 (2) Rx Power Low Warning
Input 1 (2) Rx Power Measurement
RollTrack Index Up to 16 RollTrack destinations
RollTrack Controls On/Off, Index, Source, Address, Command, Status, Sending
Roll Track Sources Unused, Input Present (1 & 2, Fiber 1 & 2), Input Loss (1 & 2, Fiber 1 & 2), Output
Rate/Std (1 & 2), Out 1 Selects (In 1 & 2 & Rx 1 & Rx 2), Fiber Rx Power OK (1 & 2),
Fiber Rx Power Fail (1 & 2), Fiber Tx Bias OK (1 & 2), Fiber Tx Bias High (1 & 2), Fiber
Tx Bias Low (1 & 2)
Factory Default Resets all module settings to factory specified default values and clears memories
Default Settings Resets all module settings to factory specified default values but does not clear
memories
Restart Software restart of the module
Module Information Reports the following module information: Software Version, Serial Number, Build
Number, KOS Version, Firmware Version, PCB Version
Specifications
Electrical 3 Gbit/s SDI, SMPTE 424M
1.5 Gbit/s HD-SDI, SMPTE 292M
270 Mbit/s SDI, SMPTE 259M-C / DVB-ASI

IQFDA31 Technical Specification
Issue 1 Rev 1 Page 9 © 2016 SAM
Connector / Format BNC/ 75 Ohm
LC singlemode SFP
Return Loss >-15 dB (270 Mbit/s, 1.5 Gbit/s)
>-10 dB (3 Gbit/s)
Output Jitter SD-SDI 0.2 UI (10 Hz) / 0.2 UI (1 kHz)
3G/HD-SDI 1.0 UI (10 Hz) / 0.2 UI (100 kHz)
Optical 1310 nm Tx
Wavelength 1310 nm
Spectral Width (FWHM) >1.5 nm (typical)
Output Power 0 to -5 dBm (-2 dBm typical)
Rise and Fall Time 135 ps @ 3 Gbit/s
270 ps @ 1.5 Gbit/s
1.5 ns @ 270 Mbit/s
Extinction Ratio >7.5:1 (typical)
Optical Return Loss -27 dB
Link Distance Up to 30 Km @ 3 Gbit/s
Up to 21 Km @ 1.5 Gbit/s
Up to 10 Km @ 270 Mbit/s
Optical Rx
Input Wavelength Range 1260 nm (min.), 1620 nm (max.)
Input Sensitivity -21 dBm
Optical Power Input
Range >0 dBm, <-20 dBm
Link Distance Up to 30 Km @ 3 Gbit/s
Up to 21 Km @ 1.5 Gbit/s
Up to 10 Km @ 270 Mbit/s
Power Consumption
Module Power
Consumption 4 W Max (A frames) 4 PR Max (B frames)

IQFDA31 Connections
Issue 1 Rev 1 Page 10 © 2016 SAM
3 Connections
This section describes the physical input and output connections provided by the IQFDA31.
3.1 SDI Input
3.2 SDI Outputs
3.3 SFP
Serial digital input is made to the unit via two
BNC connectors which terminate in
75 Ohms.
Serial digital outputs from the unit are made
via four BNC connectors which terminate in
75 Ohms.
An SFP cage provides a range of
connectivity options.

IQFDA31 Card Edge LEDs
Issue 1 Rev 1 Page 11 © 2016 SAM
4 Card Edge LEDs

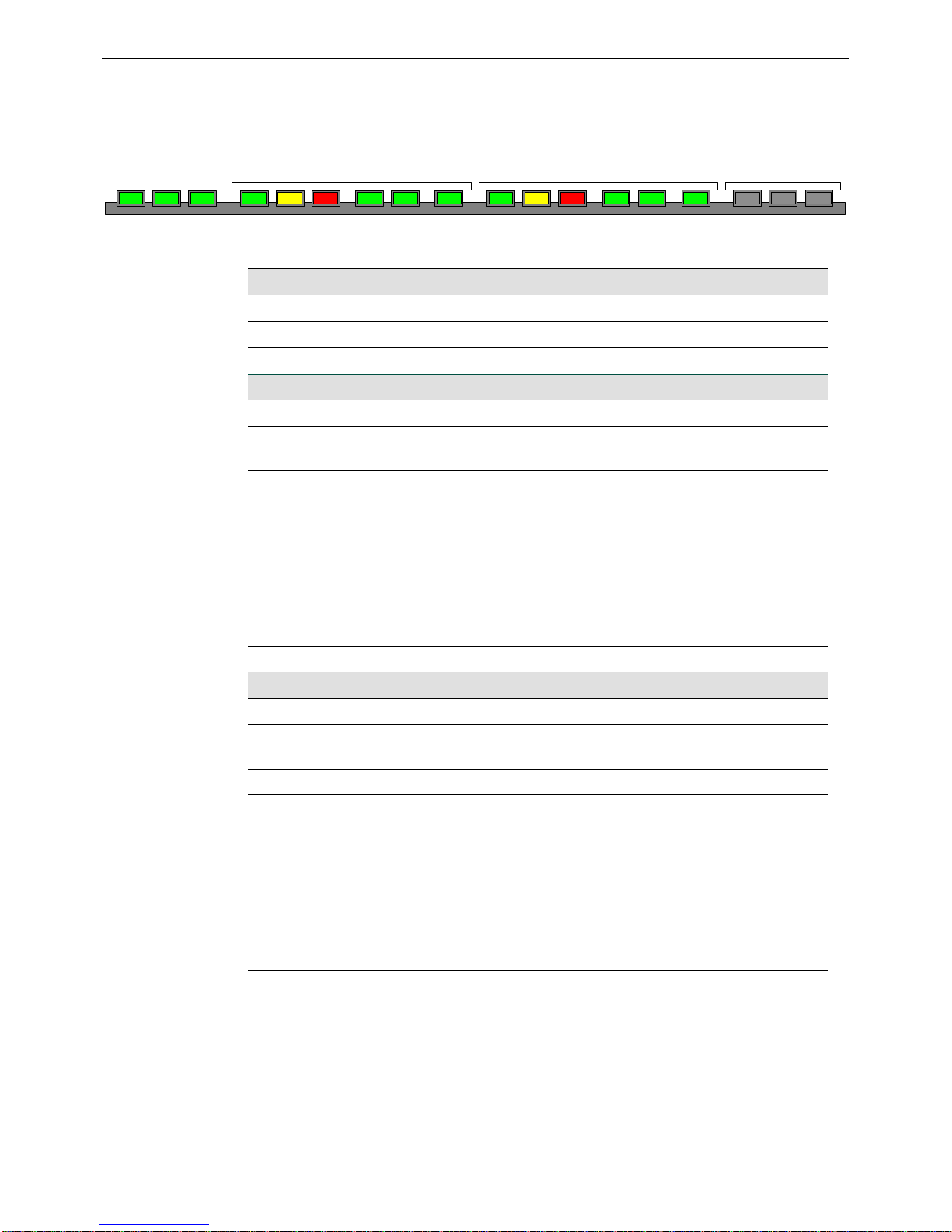

The LEDs on the edge of the module indicate its operating status.
POWER
+POWER -MON RUN OK WARN ERR RATE SFP
CHANNEL B (Input 2) STATUS – Not usedCHANNEL A (Input 1)
WARN ERR RATE SFP
LED Color State Indication
POWER + Green Illuminated A positive power supply is present.
POWER - Green Illuminated A negative power supply is present.
MON RUN Green Flashing The CPU is running.
CHANNEL A
OK Green Illuminated Input channel 1 is locked to the input signal.
WARN Yellow Illuminated The signal on input channel 1 is not being
re-clocked. That is, in re-clock bypass mode.
ERR Red Illuminated Unknown or no input on input channel 1.
RATE Green Illuminated The rate on input channel 1:
• Both LEDs illuminated: 3 Gbit/s
• Left LED illuminated: 1.5 Gbit/s
• Right LED illuminated: 270 Mbit/s
• Both LEDs off: Rate unknown
SFP Green Illuminated Input SFP Rx A selected.
CHANNEL B
OK Green Illuminated Input channel 2 is locked to the input signal.
WARN Yellow Illuminated The signal on input channel 2 is not being
re-clocked. That is, in re-clock bypass mode.
ERR Red Illuminated Unknown or no input on input channel 2.
RATE Green Illuminated The rate on input channel 2:
• Both LEDs illuminated: 3 Gbit/s
• Left LED illuminated: 1.5 Gbit/s
• Right LED illuminated: 270 Mbit/s
• Both LEDs off: Rate unknown
SFP Green Illuminated Input SFP Rx selected.

IQFDA31 Operation Using the RollCall Control Panel
Issue 1 Rev 1 Page 12 © 2016 SAM
5 Operation Using the RollCall Control Panel
5.1 Information Window

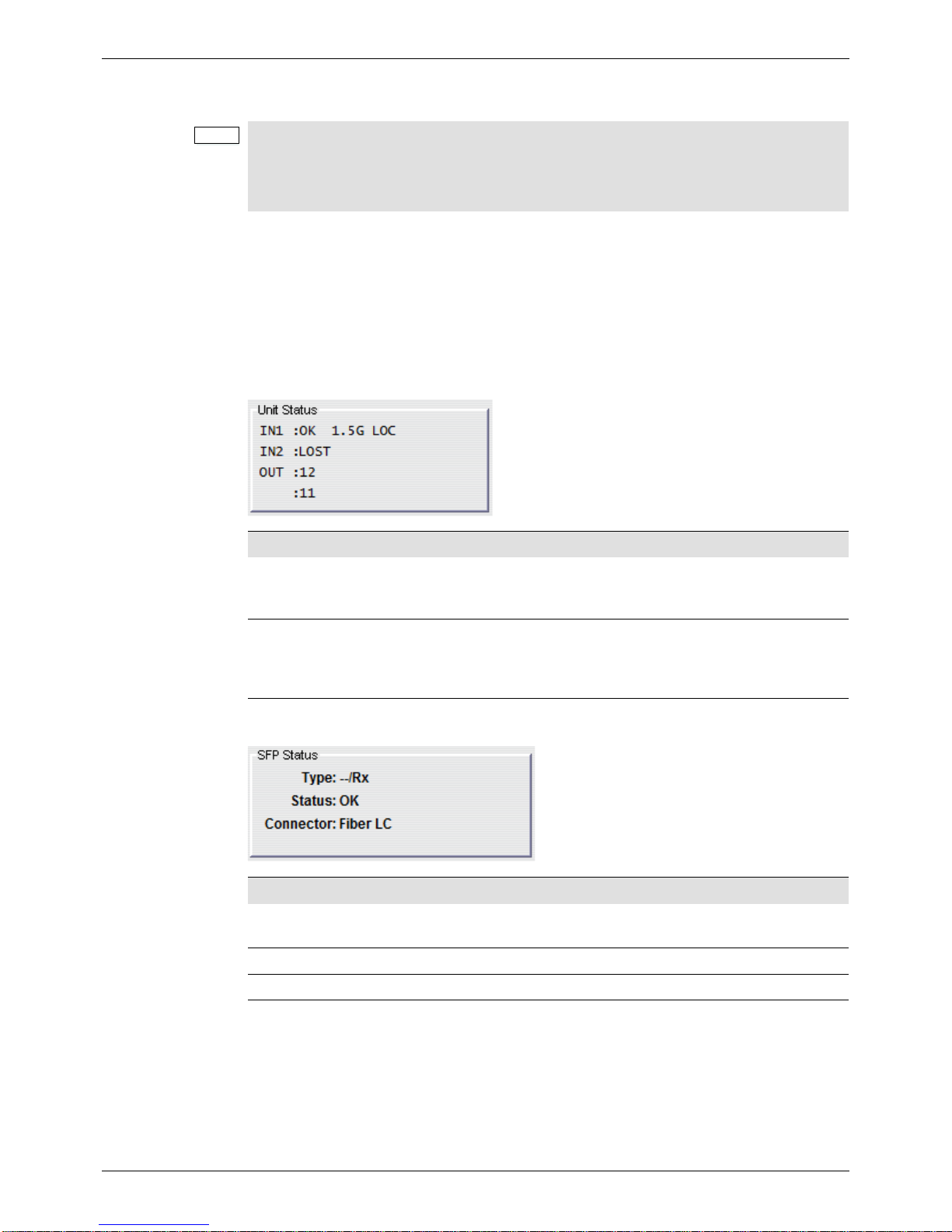

The Information Window is displayed in the upper-right corner of each screen and displays
basic information about the input and output status of the module.
5.1.1 Unit Status
The Unit Status pane provides basic information about the status of the video inputs, video
outputs, product settings, and status.
5.1.2 SFP Status
Note:
The IQFDA31 will dynamically configure itself depending on rear and SFP options. The
RollCall control panel will change to reflect the current product configuration.
The screens shown in this section are for guidance and reference only, and may be slightly
different to those on your module.
Name Description
IN1:
IN2:
Displays the status of Input 1 and Input 2, the detected
rate, and whether the signal is locked or in bypass mode. If
no valid input is detected, asterisks (**) are displayed.
OUT:
The first line represents the outputs (1–4). The second line
is character aligned with the first and indicates the input
routed to that output. If no valid input signal is detected for
the output, an E is displayed.
Name Description
Type: Shows the type of SFP installed. This is supplemented
with a simple report for each SFP.
Status: Shows the operational status of the SFP.
Connector: Shows the physical connector type, for example, Fiber LC.

IQFDA31 Operation Using the RollCall Control Panel
Issue 1 Rev 1 Page 13 © 2016 SAM
5.2 Input

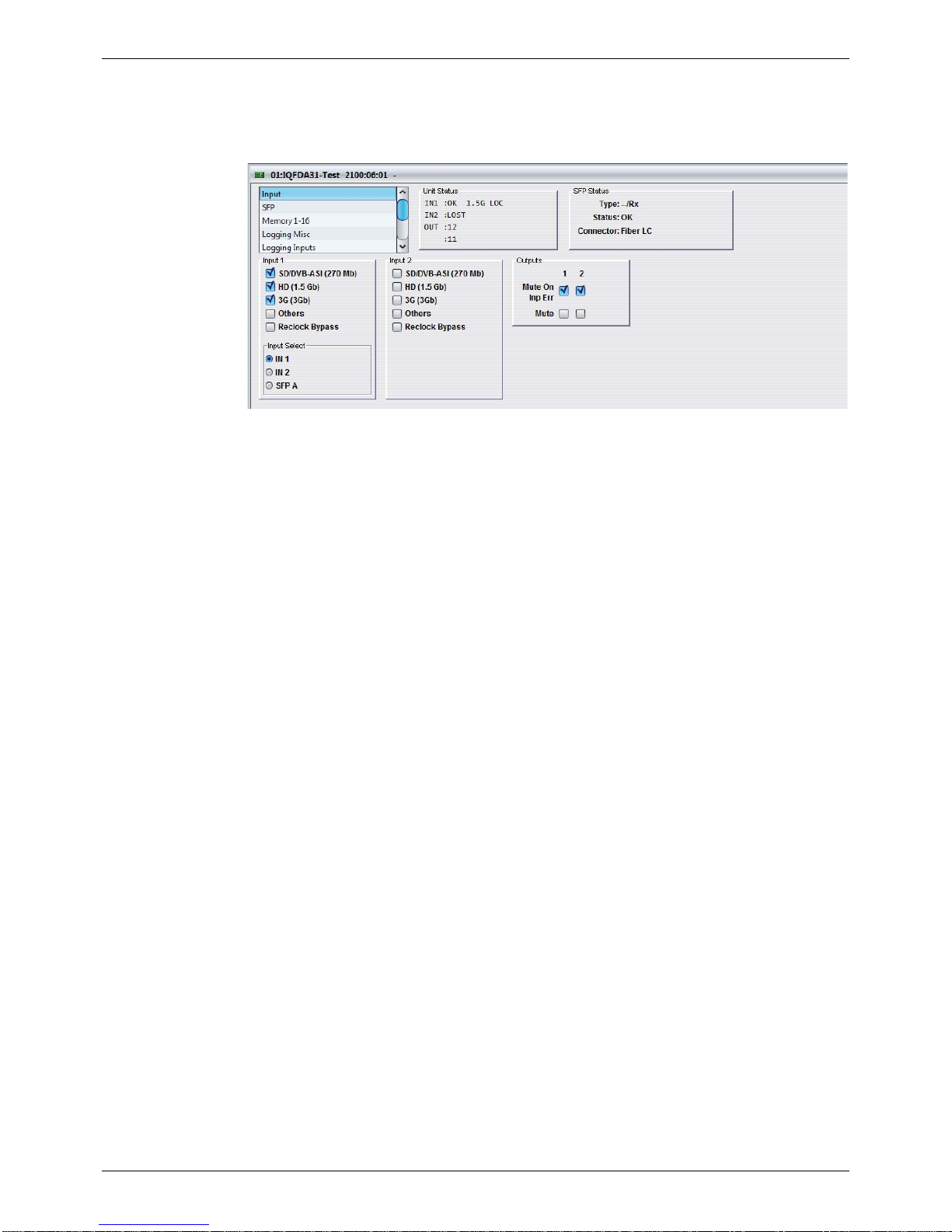

The Input screen enables the inputs and outputs to be configured, and can be used to
determine how the module behaves in the event of an input error.
5.2.1 Input 1 and 2
•SD/DVB-ASI (270 Mb): When selected, the unit will re-clock SD/DVB-ASI (270 Mb)
signals.
•HD (1.5 Gb): When selected, the unit will re-clock HD (1.5 Gb) signals.
•3G (3 Gb): When selected, the unit will re-clock 3G (3 Gb) signals.
•Others: When selected, signals that are not of any of the above rates will be
re-clocked.
•Reclock Bypass: When selected, the unit will not re-clock the input signal. If a
supported rate is detected, the Unit Status will display the detected rate, otherwise, ***
will be displayed.
•Input Select: Use the radio buttons to select the input.
5.2.2 Outputs
Use the radio buttons to specify the input for each of the outputs.
Select Mute On Inp Err to apply a mute to the output if any rate other than those specified as
valid in the Input 1 and Input 2 sections is detected.
Select Mute to manually apply a mute to the output.

IQFDA31 Operation Using the RollCall Control Panel
Issue 1 Rev 1 Page 14 © 2016 SAM
5.3 SFP
5.3.1 SFP Transmit

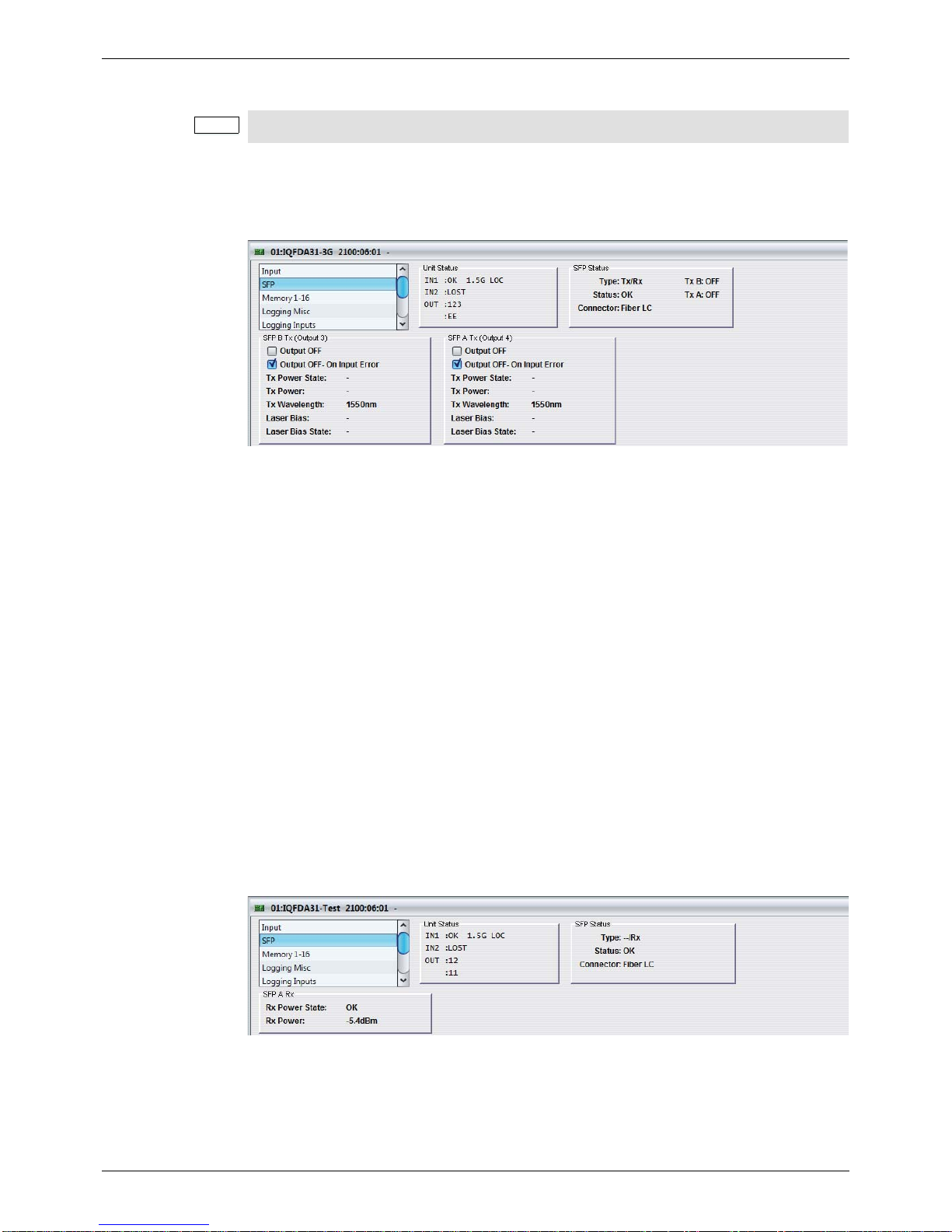

For an SFP transmitter channel, the SFP screen is used to select whether the output is turned
off – either permanently, or when an error condition on the selected input is detected.
5.3.1.1 SFP B Tx
•Output OFF: Enables the fiber optic output to be turned off manually.
•Output OFF- On Input Error: When selected, enables the fiber optic output to be
turned off automatically when the signal is lost at the associated fiber optic receiver
input.
•Tx Power State: Displays the state of the transmitted output signal (options include
OK, WARN:HI, WARN:LO, FAIL:LO and FAIL:HI).
•Tx Power: Displays the signal level of the transmitted output signal (in dBm).
•Tx Wavelength: Displays the wavelength of the transmitted output signal (either 1310
nm or 1550 nm).
•Laser Bias: Displays the bias level (in mA).
•Laser Bias State: Displays the bias state (options include OK, WARN:HI, WARN:LO,
FAIL:LO and FAIL:HI).
5.3.2 SFP Receive
For an SFP receiver channel, the SFP reports the status of the SFP. If a deselected data rate
is presented to the module t will cause an “On Error” condition and the module will handle this
as per its On Error settings on the Translate screen.
5.3.2.1 SFP A Rx
•Rx Power State: Displays the state of the received signal (options include OK,
WARN:HI, WARN:LO, FAIL:LO and FAIL:HI).
•Rx Power: Displays the signal level received at the input (in dBm).
Note:
This screen is only displayed when the module is fitted with a rear that supports SFPs.

IQFDA31 Operation Using the RollCall Control Panel
Issue 1 Rev 1 Page 15 © 2016 SAM
5.4 Memory 1-16
The Memory 1-16 screen enables up to 16 setups to be saved and recalled later. Default
memory names can be changed to provide more meaningful descriptions.
5.4.1 Recall Memory
This column lists the settings that have been previously saved. If no settings have been
saved, None Selected is displayed.
To recall the settings saved in a memory:
• In the Recall Memory column, select the memory to recall by clicking on it. The
recalled settings will be applied and the memory name will appear in the Last
Recalled Memory section.
5.4.2 Save Memory
This column lists the 16 pre-set memory names that are available for use.
To save settings:
• In the Save Memory column, select a memory location, and then click Save. The
current settings are saved and the memory appears in the Recall Memory column.
To clear a memory location:
• In the Save Memory column, select a memory location, and then click Clear. The
current settings stored for that memory are cleared. After you clear a memory
location, it disappears from the Recall Memory list.
5.4.3 Last Recalled Memory
The Last Recalled Memory pane displays the most recently recalled memory. If any of the
settings have been changed since it was recalled, an asterisk will be displayed after the
memory name.
Note:
User memories do not recall log field “states” – that is, whether a log value has been
enabled or disabled.

IQFDA31 Operation Using the RollCall Control Panel
Issue 1 Rev 1 Page 16 © 2016 SAM
5.4.4 Save Memory Name
This option enables the pre-set memory names to be changed (to something more
memorable or meaningful), if required.
To change a memory name:
• In the Save Memory Name field, type the new memory name, and then click the S
button. To return the memory to its default preset value, click P button.

IQFDA31 Operation Using the RollCall Control Panel
Issue 1 Rev 1 Page 17 © 2016 SAM
5.5 Logging
Information about several parameters can be made available to a logging device that is
connected to the RollCall network.
Each logging screen comprises three columns:
•Log Enable: Select the check boxes that correspond to the parameters for which log
information should be collected.
•Log Field: Displays the name of the logging field.
•Log Value: Displays the current log value.
5.5.1 Logging Misc
The Logging Misc screen displays the current log information about the unit’s basic
parameters.
5.5.2 Logging Inputs
The Logging Inputs screen is used to select which fields should be enabled for each of the
serial inputs.

IQFDA31 Operation Using the RollCall Control Panel
Issue 1 Rev 1 Page 18 © 2016 SAM

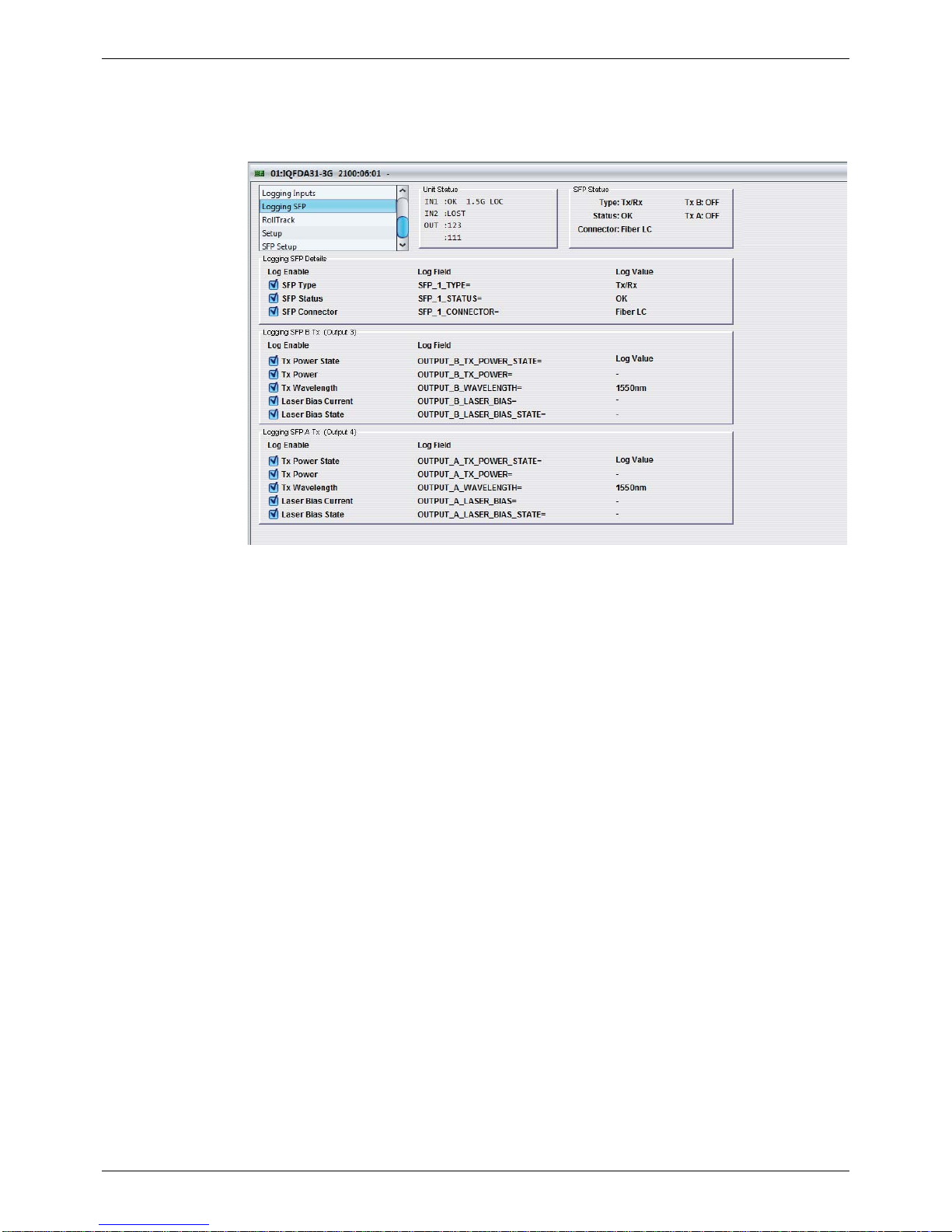

5.5.3 Logging SFP
The Logging SFP screen is used to select which fields should be enabled for each of the SFP
inputs.

IQFDA31 Operation Using the RollCall Control Panel
Issue 1 Rev 1 Page 19 © 2016 SAM
5.5.4 Log Field Descriptions
Log Field Description
SN= The module’s unique serial number.
OS_VERSION= The operating system version.
BUILD_NUMBER= The software build number.
HARDWARE_VERSION The hardware build version.
UPTIME= Shows the time since the last restart (format
ddd:hh:mm:ss).
LICENSED_OPTIONS= The licensed features installed in the module.
ROL_STATES= The status of any RollTracks that have been enabled.
REAR_ID= The rear panel type.
REAR_STATUS= The status of the rear panel.
SLOT_WIDTH= The number of slots used by rear and module.1 or 2.
SLOT_START= The first slot number the rear occupies. Use in
conjunction with SLOT_WIDTH to determine the slots
that the unit occupies.
LAST_RECALLED_MEMORY= The last recalled memory.
POWER USAGE= The power rating for the module. Note: this is not a live
power reading.
INPUT_N_IDENT= The identifier of the serial data input.
INPUT_N_NAME= The name of the serial data input.
INPUT_N_TYPE= This displays the type of input as specified by the unit’s
configuration. Valid values are HD /SD SDI.
INPUT_N_STATE= Displays the current input state. Valid values are:
•OK
• WARN:Mismatch
•FAIL:Lost
•FAIL:Error
Note: WARN:Mismatch indicates that the input and
output standards are not the same.
INPUT_N_SDIRATE= The current bit rate for the serial data input.
SFP_N_TYPE= The transmitter type.
SFP_N_STATUS= The status of the SFPs as reported by the SFPs.
SFP_N_CONNECTOR= The physical connector type, for example, Fiber LC.
OUTPUT_N_TX_POWER_STATE= Displays the TX power status. Valid values are:
•OK
•WARN:HI
•WARN:LO
•FAIL:LO
•FAIL:HI
OUTPUT_N_TX_POWER= The power level of the TX input, in dBm.
OUTPUT_N_WAVELENGTH= The wavelength of the transmitted output signal.

IQFDA31 Operation Using the RollCall Control Panel
Issue 1 Rev 1 Page 20 © 2016 SAM
OUTPUT_N_LASER_BIAS= The bias level, in mA.
OUTPUT_N_LASER_BIAS_STATE= Displays the laser bias status. Valid values are:
•OK
•WARN:HI
•WARN:LO
•FAIL:LO
•FAIL:HI
Log Field Description
Note:
Nshould be replaced with the respective SFP/output identifier, for example, 1 for an SFP
and B for an output.
