Samsung BD-P1620A User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
Blu-ray Disc Player
user manual
BD-P1620
01789T-BD-P1620-XEU-ENG-NEW.indb1 1 2009-04-07 오후 4:02:50

2_ English
key features of your blu-ray
disc player
Player Features
Supports a Variety of Disc Types
Blu-ray (BD-ROM, BD-RE, BD-R), DVD Video, DVD-RW/-R (V mode and finalized only) discs and Audio CD.
CD-RW/CD-R, DVD-RW/-R and USB memory flash stick content such as MP3, JPEG and DivX files.
HDMI (High Definition Multimedia Interface)
HDMI reduces picture noise by allowing a pure digital video/audio signal path from the player to your TV.
DivX
DivX®is a digital video format created by DivX, Inc. This player is an official DivX certified device that plays DivX
video.
Blu-ray Disc Features
Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise
on video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD.
* The following Blu-ray Disc features are disc dependant and will vary.
Appearance and navigation of features will also vary from disc to disc.
Not all discs will have the features described below.
Video highlights
The BD-ROM format supports three highly advanced video codecs, including AVC, VC-1 and MPEG-2.
HD video resolutions are also available:
1920 x 1080 High Definition
1280 x 720 High Definition
For High-Definition Playback
To view high-definition contents on a Blu-ray Disc, an HDTV (High Definition Television) is required.
Some Blu-ray Discs may require using the player's HDMI OUT to view high-definition content. The ability to view
high-definition content on Blu-ray Discs may be limited depending on the resolution of your TV.
Graphic planes
Two individual, full HD resolution (1920x1080)
video layers are available on top of the HD
video layer.
One layer is assigned to video-related
graphics (like subtitles), and the other layer is
assigned to interactive elements, such as
buttons or menus. Various wipes, fades and
scroll effects may be available on both layers.
•
•
•
•
3 4 5 6 7 8 9 10 11 12 13 14 15
%
PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWS
Graphic
Planes
HD Video
01789T-BD-P1620-XEU-ENG-NEW.indb2 2 2009-04-07 오후 4:02:51

English _3
Menu graphics
Support full colour resolution graphics and animation, thereby greatly surpassing the capabilities of DVD-Video.
Unlike DVD, Menus can be accessed during video playback.
Menu sounds
When you highlight or select a menu option on a disc, sounds can be heard such as button clicks or a voice-over
explaining the highlighted menu choice.
Multi-page/PopUp Menus
Unlike DVD-Video, playback is not interrupted each time a new menu
screen is accessed. Due to Blu-ray Disc's ability to preload data from
the disc without interrupting playback, a menu may consist of several
pages.
You can browse through the menu pages or select different menu
paths, while the audio and video continues playing in the background.
Interactivity
Certain Blu-ray Discs may contain Animated menus and Trivia games.
User Browsable Slideshows
With Blu-ray Discs, you can browse through various still pictures while the audio remains playing.
Subtitles
Depending on what is contained on the Blu-ray Disc, you may be able to select different font styles, sizes and
colours for the subtitles. Subtitles may also be animated, scrolled or faded in and out.
BD-LIVE
You can use a Blu-ray Disc supporting BD-LIVE through network connection to enjoy various contents provided
by the disc manufacturer.

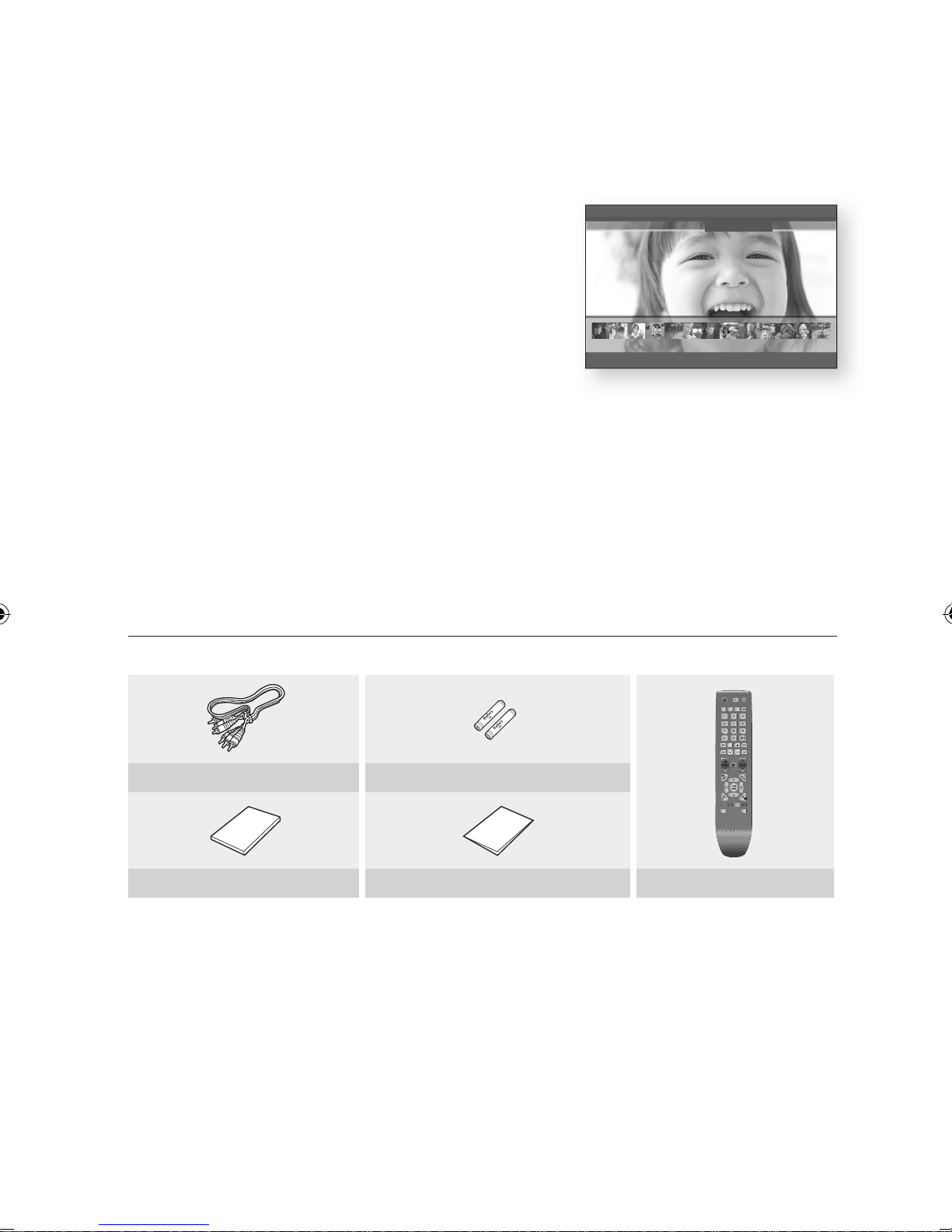

WHAT’S INCLUDED
Check for the supplied accessories below.
A-B
0
1 2 3
7 8 9
4 5 6
RETURN
POWER OPEN/CLOSE
AUDIO SUBTITLE REPEAT REPEAT
CANCEL TV SOURCE
STOP PLAY
BONUSVIEW PAUSE
TV MUTE
ENTER
POPUPMENUDISCMENU
TITLEMENU
A B C D
MENU
EXIT
INFO
TV VOL TV CH
TV
POWER
AK59-00104K
Composite (Video), Audio L/R Cable Batteries for Remote Control (AAA Size)
User Manual Quick Guide Remote Control
3 4 5 6 7 8 9 10 11 12 13 14 15
%
PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWS
01789T-BD-P1620-XEU-ENG-NEW.indb3 3 2009-04-07 오후 4:02:53

4_ safety information
safety information
WARNING
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates “dangerous
voltage” inside the product that presents
a risk of electric shock or personal injury.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK) NO
USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates important
instructions accompanying the product.
Do not install this equipment in a confined space such as a bookcase or similar unit.
WARNING : To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to
rain or moisture.
CAUTION : Blu-ray Disc Player USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE Blu-ray Disc Player CORRECTLY AS
INSTRUCTED.
CAUTION
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
This product satisfies CE regulations when shielded cables and connectors are used to connect the unit to other
equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use
shielded cables and connectors for connections.
IMPORTANT NOTE
The mains lead on this equipment is supplied with a molded plug incorporating a fuse. The value of the fuse is
indicated on the pin face of the plug.
If it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it
must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power
point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do
not connect the plug to a mains jack, as there is a risk of shock hazard from the bared flexible cord.
To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the
mains plug shall be readily operable.
01789T-BD-P1620-XEU-ENG-NEW.indb4 4 2009-04-07 오후 4:02:53

English _5
●SAFETY INFORMATION
The product unit accompanying this user manual is licenced under certain intellectual property rights of certain
third parties. This licence is limited to private non-commercial use by end-user consumers for licenced contents.
No rights are granted for commercial use.
The licence does not cover any product unit other than this product unit and the licence does not extend to any
unlicenced product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in
combination with this product unit. The licence only covers the use of this product unit to encode and/or decode
audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this licence for
product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
PRECAUTIONS
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below.
Keep these operating instructions handy for future reference.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this player near water.
Clean only with dry cloth.
Do not block any ventilation openings, install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, or other player (including amplifiers)
that produce heat.
The polarized or the grounding type plug has an important safety purpose. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
Protect the power cord from being deformed or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the player.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the player. When a cart is used, use caution when moving the cart/player
combination to avoid injury from tip-over.
Unplug this player during lightning storms or when unused for long periods of time.
Refer all servicing to a qualified service personnel. Servicing is required when the player has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
player, the player has been exposed to rain or moisture, does not operate normally, or has been dropped.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
01789T-BD-P1620-XEU-ENG-NEW.indb5 5 2009-04-07 오후 4:02:53

6_ safety information
safety information
Handling Cautions
Before connecting other components to this Blu-ray Disc Player, be sure to turn them all off.
Do not move the Blu-ray Disc Player while a disc is being played as the disc may be scratched or broken, or the
Blu-ray Disc Player’s internal parts may be damaged.
Do not put a flower vase filled with water or any small metal objects on the Blu-ray Disc Player.
Be careful not to put your hand into the disc tray.
Do not place anything other than the disc in the disc tray.
Exterior interferences such as lightning and static electricity can affect the normal operation of this Blu-ray Disc
Player. If this occurs, turn the Blu-ray Disc Player off and on again with the POWER button, or disconnect and
then reconnect the AC power cord to the AC power outlet. The Blu-ray Disc Player will operate normally.
Be sure to remove the disc and turn off the Blu-ray Disc Player after use.
Disconnect the AC power cord from the AC outlet when you don’t intend to use the Blu-ray Disc Player for long
periods of time.
To clean a disc, wipe it in a straight line from the inside to the outside of the disc.
Do not expose the player to any liquid.
When the AC plug is connected to a wall outlet, the player will still draw power (standby mode) when it is turned
off.
The player should not be exposed to dripping or splashing of any liquid and no objects filled with liquids, such as
vases, should be placed on the player.
To disconnect the player from the mains, the plug must be pulled out from the mains socket, therefore the mains
plug shall be easily accessible.
Maintenance of Cabinet
For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
Do not use benzene, thinner, or other solvents for cleaning.
Wipe the cabinet with a soft cloth.
Restrictions on Playback
This player may not respond to all operating commands because some Blu-ray, DVD and CD discs allow
specific or limited operation and features during playback.
Please note that this is not a defect in the player.
Samsung cannot assure that this player will play every disc bearing the Blu-ray Disc, DVD or CD logo because
disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, CD software
and/or the manufacture of discs.
Please contact the SAMSUNG customer care centre if you have questions or encounter difficulty in playing
Blu-ray Disc, DVD, CD discs in this player. Also, refer to rest of this Manual for additional information on
playback restrictions.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
01789T-BD-P1620-XEU-ENG-NEW.indb6 6 2009-04-07 오후 4:02:53

English _7
●CONTENTS
contents
KEY FEATURES OF YOUR BLU-RAY
DISC PLAYER
2
3What’s included
SAFETY INFORMATION
4
4Warning
5Precautions
GETTING STARTED
10
10 Before Using the User’s Manual
11 Disc Type and Characteristics
14 Disc Storage & Management
DESCRIPTION
16
16 Front Panel
17 Front Panel Display
18 Rear Panel
REMOTE CONTROL
19
19 Tour of the Remote Control
20 Setting the Remote Control
20 Regarding the Battery
21 Controllable TV Codes
CONNECTIONS
22
22 Connecting to a TV with an HDMI Cable
(BEST QUALITY)
24 Connecting to a TV with DVI Cable
(BEST QUALITY)
25 Connecting to a TV (Component)
(BETTER QUALITY)
26 Connecting to a TV (Video)
(GOOD QUALITY)
27 Connecting to an Audio System
(2 Channel Amplifier)
28 Connecting to an Audio System
(Dolby Digital, DTS Amplifier)
29 Connecting to an Audio System
(HDMI supported Amplifier)
30 Connecting to the network
01789T-BD-P1620-XEU-ENG-NEW.indb7 7 2009-04-07 오후 4:02:54

8_ contents
contents
SYSTEM SETUP
36
36 Setting the Clock
LANGUAGE SETUP
37
37 Setting up the Language Options
AUDIO SETUP
38
38 Setting up the Audio Options
DISPLAY SETUP
41
41 Setting up the display Options
HDMI SETUP
45
45 Setting up the HDMI setup options
PARENTAL SETUP
48
48 Setting up the Parental Lock
NETWORK SETUP
50
50 Setting up the network setup options
BASIC FUNCTIONS OF YOUR
BLU-RAY DISC PLAYER
32
32 Before Playing
33 On-Screen Menu Navigation
33 Playing a Disc
34 Setting the Sound
35 Using the Search and Skip Functions
35 Slow Motion Play/Step Motion Play
01789T-BD-P1620-XEU-ENG-NEW.indb8 8 2009-04-07 오후 4:02:54

English _9
●CONTENTS
BD DATA MANAGEMENT
55
55 System Device Management
56 DivX(R) Registration
56 DivX(R) Deactivation
SYSTEM UPGRADE
57
57 Firmware Upgrade
59 System Information
59 Firmware upgrade notification
WATCHING A MOVIE
60
60 Using the Display Function
61 Using the Disc Menu & Popup/Title Menu
62 Repeat Play
63 Selecting the Audio Language
63 Selecting the Subtitle Language
64 Changing the Camera Angle
65 BONUSVIEW Settings
65 BD-LIVE™
LISTENING TO MUSIC
66
66 Buttons on the Remote Control used for
Audio CD (CD-DA)/MP3 playback
66 Repeat Audio CD(CD-DA)/MP3
67 Playing an Audio CD(CD-DA)/MP3
PLAYING BACK A PICTURE
70
70 Playing a JPEG disc
APPENDIX
71
71 Troubleshooting
73 Specifications
01789T-BD-P1620-XEU-ENG-NEW.indb9 9 2009-04-07 오후 4:02:54

10_ getting started
getting started
BEFORE USING THE USER’S MANUAL
Make sure to check the following terms before using the user’s manual.
Icons that will be used in this manual
Icon Term Definition
hBD-ROM This involves a function available on a BD-ROM.
gBD-RE This involves a function available on a BD-RE.
fBD-R This involves a function available on a BD-R.
ZDVD-VIDEO This involves a function available on DVD-Video or DVD-RW/-R discs that have been
recorded and finalized in Video Mode.
CDVD-RW This involves a function available on DVD-RW. (V mode and finalized only)
VDVD-R This involves a function available on DVD-R. (V mode and finalized only)
Audio CD This involves a function available on an audio CD-RW/CD-R (CD-DA format).
AMP3
This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB memory flash sticks.
GJPEG
This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB memory flash sticks.
DDivX
This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB memory flash sticks.
FUSB memory
flash stick This involves a function available on USB memory flash stick.
MNote This involves tips or instructions on the page that help each function operate.
About the use of this user’s manual
Be sure to be familiar with Safety Instructions before using this product. (See pages 4~6)
If a problem occurs, check the Troubleshooting section. (See pages 71~72)
Copyright
©2009 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the
prior written permission of Samsung Electronics Co.,Ltd.
1)
2)
01789T-BD-P1620-XEU-ENG-NEW.indb10 10 2009-04-07 오후 4:02:54

English _11
●GETTING STARTED
DISC TYPE AND CHARACTERISTICS

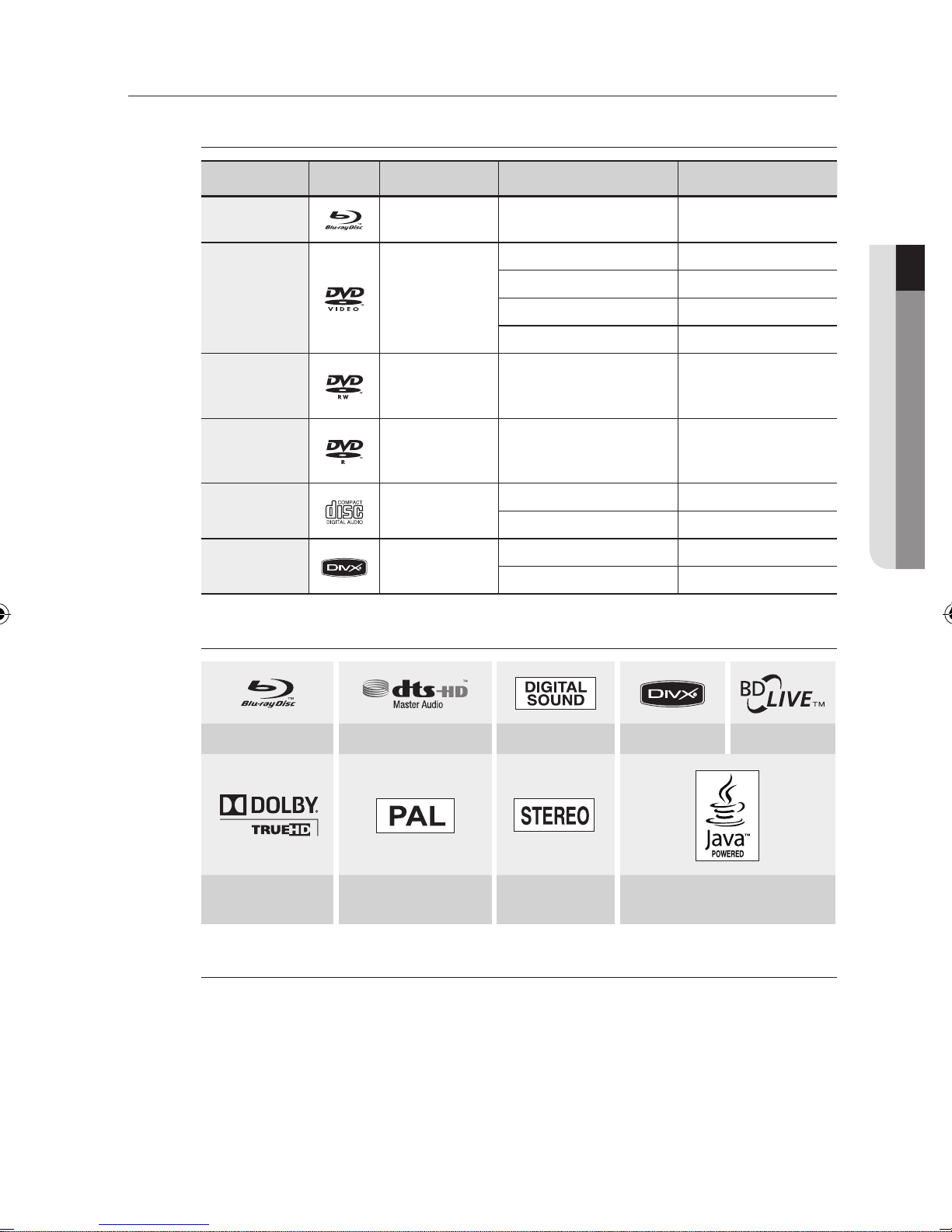

Disc types that can be played
Disc Types Disc Logo Recorded content Disc Shape Max. Playing minute
BD-ROM
BD-RE/BD-R AUDIO + VIDEO Single sided Playing time depends on the Title
DVD-VIDEO AUDIO + VIDEO
Single sided (12 cm) 240
Double sided (12 cm) 480
Single sided (8 cm) 80
Double sided (8 cm) 160
DVD-RW
(V mode and
finalized only)
AUDIO + VIDEO 12 cm (4.7GB) 480
(EX : Extended Play)
DVD-R
(V mode and
finalized only)
AUDIO + VIDEO 12 cm (4.7GB) 480
(EX : Extended Play)
AUDIO-CD AUDIO Single sided (12 cm) 74
Single sided (8 cm) 20
DivX DivX Movie Single sided (12 cm) -
Single sided (8 cm) -
Logos of Discs that can be played
Blu-ray Disc DTS-HD Master Audio Digital Audio DivX BD-LIVE
Dolby TrueHD
PAL broadcast System in
U.K., France, Germany, etc.
Stereo Java
Discs that cannot be played
Blu-ray Discs with a region code other than “Region B”.
DVD-Video with a region number other than “2” or “ALL”
HD DVD
DVD-RAM
•
•
•
•
3.9 GB DVD-R Disc for Authoring.
DVD-RW(VR mode)
DVD-ROM/PD/MV-Disc, etc
CVD/CD-ROM/CDV/CD-G/CD-I/LD
•
•
•
•
01789T-BD-P1620-XEU-ENG-NEW.indb11 11 2009-04-07 오후 4:02:56

12_ getting started
getting started
[Note]
Some commercial discs and DVD discs purchased outside your region may not be playable with this
product. When these discs are played, either “This disc can not be played.” or “Please check the
regional code of the disc.” will be displayed.
If a DVD-R/-RW disc has not been recorded properly in DVD video format, it will not be playable.
Region code
Both the Blu-ray Disc Player and the discs are coded by region. These regional codes must match in
order to play the disc. If the codes do not match, the disc will not play.
The Region Number for this Blu-ray Disc Player is described on the rear panel of the Blu-ray Disc Player.
Disc Type Blu-ray DVD-VIDEO
Region code
B
2
Blu-ray Disc Region Code Area
ANorth America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and
South East Asia.
B Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.
C India, China, Russia, Central and South Asia.
DVD Region Code Area
1 The U.S., U.S. territories and Canada
2 Europe, Japan, the Middle East, Egypt, South Africa, Greenland
3 Taiwan, Korea, the Philippines, Indonesia, Hong Kong
4 Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean
5 Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia
6 China
Blu-ray Disc Compatibility
Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all
discs are compatible and not every disc will play back. For additional information, refer to the
Compliance and Compatibility Notice section of this Manual. If you encounter compatibility problems,
please contact the SAMSUNG customer care centre.
Playback may not work for some types of discs, or when specific operations, such as angle change and aspect
ratio adjustment, are being performed. Information about the discs is written in detail on the disc box. Please refer
to this if necessary.
Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches or deposits of cigarette
smoke on the recording surface may make it impossible to use the disc for playback.
When a BD-J title is played, loading may take longer than a normal title, or some functions may perform slowly.
•
•
M


01789T-BD-P1620-XEU-ENG-NEW.indb12 12 2009-04-07 오후 4:02:57

English _13
●GETTING STARTED
Disc Types
BD-ROM
This Blu-ray disc can only be played back. A BD-ROM disc contains pre-recorded data. Although a BD-
ROM may contain any form of data, most BD-ROM discs will contain movies in High Definition format
for playback on Blu-ray Disc Player's. This unit can play back pre-recorded commercial BD-ROM discs.
BD-RE/BD-R
Blu-ray Disc Rewritable/Blu-ray Disc Recordable. BD-RE/BD-R is the ideal format for making backups,
or recording personal video.
DVD-Video
A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32
subtitle languages. It is equipped with MPEG-2 picture compression and Dolby Digital surround,
allowing you to enjoy vivid and clear theatre quality images.
When switching from the first layer to the second layer of a dual-layered DVD Video disc, there
may be momentary distortion in the image and sound. This is not a malfunction of the unit.
Once a DVD-RW/-R recorded in Video Mode is finalized, it becomes DVD-Video. Pre-recorded
(pre-stamped) commercial DVDs with movies are also referred to as DVD-Videos. This unit can
play back pre-recorded commercial DVD discs (DVD-Video discs) with movies.
Audio CD
An audio disc on which 44.1kHz PCM Audio is recorded.
This unit can play back CD-DA format audio CD-RW and CD-R discs.
The unit may not be able to play some CD-RW or CD-R discs due to the condition of the
recording.
CD-RW/CD-R
Use a 700MB(80 minutes) CD-RW/CD-R disc. If possible, do not use a 800MB(90 minutes) or
above disc, as the disc may not play back.
If the CD-RW/CD-R disc was not recorded as a closed session, you may experience delays when
playing back the beginning of the disc or all recorded files may not play.
Some CD-RW/CD-R discs may not be playable with this unit, depending on the device which
was used to burn them. For contents recorded on CD-RW/CD-R media from CDs for your
personal use, playability may vary depending on contents and discs.
DVD-R Disc Playback
Once a DVD-R recorded in Video Mode is finalized, it becomes DVD-Video.
This unit can play back DVD-R discs recorded and finalized with a DVD video recorder. It may not
be able to play some DVD-R discs depending on the disc and the condition of the recording.
DVD-RW Disc Playback
Playback can be performed with DVD-RW discs recorded in the Video Mode and finalized.
Once a DVD-RW recorded in Video Mode is finalized, it becomes DVD-Video. Ability to play back
may depend on recording conditions.
❖
❖
❖
•
•
•
❖
•
•
•
❖
•
•
•
❖
•
•
❖
•
•
01789T-BD-P1620-XEU-ENG-NEW.indb13 13 2009-04-07 오후 4:02:57

14_ getting started
getting started
Disc Format
DVD-RW/-R (V)
This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be
played by this Blu-ray Disc Player once it has been finalized.
DivX
CD-R/-RW, DVD-R/-RW, USB
Video Files with following extensions can be played. : .avi, .divx, .AVI, .DIVX
DivX Video (Codec) Format : DivX 3.11 DivX 4.x DivX 5.x (without QPEL and GMC)
DivX Audio (Codec) Format : MP3, MPEG1 Audio Layer 2, AC3, DTS
Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt, .ass
Maximum resolution : 720x480@30fps
720x576@25fps
Minimum resolution : 16x16
Maximum frame rate for progressive source : 30 frames per second
Maximum field rate for interlace source : 60 fields per second
You cannot play back the disc that is larger than a 720 x 576 pixel resolution.
AVCHD (Advanced Video Codec High Definition)
This player can playback AVCHD format discs. These discs are normally recorded and used in
camcorders.
The AVCHD format is a high definition digital video camera format.
The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than that
of the conventional image compressing format.
Some AVCHD discs use the “x.v.Colour” format.
This player can playback AVCHD discs using “x.v.Colour” format.
“x.v.Colour” is a trademark of Sony Corporation.
“AVCHD” and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co., Ltd.
and Sony Corporation.
Some AVCHD format discs may not play, depending on the recording condition.
AVCHD format discs need to be finalized.
“x.v.Colour” offers a wider colour range than normal DVD camcorder discs.
Some DivX format discs may not play, depending on the video resolution and frame rate condition.
DISC STORAGE & MANAGEMENT
Disc Handling
Disc Shape
Use discs with regular shapes. If an irregular disc (a disc with a special
shape) is used, this Blu-ray Disc Player may be damaged.
Holding discs
Avoid touching the surface of a disc where recording is performed.
❖
•
❖
•
•
•
•
•
•
•
•
•
•
❖
•
•
•
•
•
•
•
M


❖
•
❖
•
01789T-BD-P1620-XEU-ENG-NEW.indb14 14 2009-04-07 오후 4:02:57

English _15
●GETTING STARTED
Blu-ray Discs
If the player is not used for a long period of time, remove the Blu-ray Disc from the player and
store it in its case.
Be careful not to leave fingerprints or scratches on the surface of the Blu-ray Disc.
DVD-RW and DVD-R
Clean with an optional PD disc cleaner (LF-K200DCA1 where available).
Do not use cleaners or cloths for CDs to clean DVD-RW/-R discs.
DVD-Video, Audio-CD
Wipe off dirt or contamination on the disc with a soft cloth.
Cautions on handling discs
Do not write on the printed side with a ball-point pen or pencil.
Do not use record cleaning sprays or antistatic. Also, do not use volatile
chemicals, such as benzene or thinner.
Do not apply labels or stickers to discs. (Do not use discs fixed with exposed
tape adhesive or leftover peeled-off stickers.)
Do not use scratch-proof protectors or covers.
Do not use discs printed with label printers available on the market.
Do not load warped or cracked discs.
Disc Storage
Be careful not to damage the disc because the data on these discs is highly vulnerable to the
environment.
Do not keep under direct sunlight.
Keep in a cool ventilated area.
Store vertically.
Keep in a clean protection jacket.
If you move your Blu-ray Disc Player suddenly from a cold place to a warm place, condensation may
generate on the operating parts and lens and cause abnormal disc playback. If this occurs, wait for
two hours before connecting the plug to the power outlet. Then insert the disc and try to play back
again.
❖
•
•
❖
•
❖
•
❖
•
•
•
•
•
•
•
•
•
•
•
01789T-BD-P1620-XEU-ENG-NEW.indb15 15 2009-04-07 오후 4:02:57

16_ description
description
FRONT PANEL
DISC TRAY Opens to accept a disc.
DISPLAY Displays the playing status, time, etc.
REMOTE CONTROL SENSOR Detects signals from the remote control.
OPEN/CLOSE BUTTON Opens and closes the disc tray.
PLAY/PAUSE BUTTON Plays a disc or pauses playback.
POWER BUTTON Turns the Blu-ray Disc Player on and off.
STOP BUTTON Stops disc playback.
SEARCH/SKIP BUTTONS Goes to the next title/chapter/track or goes back to the previous title/chapter/track.
USB HOST
A USB memory flash stick can be connected here and used as storage when connected
to BD-LIVE. It can also be used for firmware upgrades and MP3/JPEG/DivX playback.
You must use the USB HOST on the rear panel of the Blu-ray Disc Player to connect a wireless LAN Adapter.
You cannot use USB memory flash sticks simultaneously in both the front and rear USB ports.
M

01789T-BD-P1620-XEU-ENG-NEW.indb16 16 2009-04-07 오후 4:02:59

English _17
●DESCRIPTION
FRONT PANEL DISPLAY
IN DISC INDICATOR Lights when a disc is in the tray.
DISC TYPE INDICATORS Lights to indicate the disc type in the tray.
USB INDICATOR Lights to indicate when USB is connected.
HDMI INDICATOR Lights to indicate when HDMI is connected.
HD INDICATOR Indicates the display output is HD (High Definition).
24F INDICATOR Indicates the current mode is 24Fs (24 frames per second).
STATUS INDICATOR Playing time/current status indicator.
01789T-BD-P1620-XEU-ENG-NEW.indb17 17 2009-04-07 오후 4:02:59

18_ description
description
REAR PANEL
USB HOST
A USB memory flash stick can be connected here and used as storage when
connected to BD-LIVE. It can also be used for firmware upgrades and MP3/JPEG/
DivX playback, as well as for connecting to BD-LIVE with a wireless LAN adapter.
LAN Can be used for connection to BD-LIVE.
It can be also used for firmware upgrades.
COMPONENT
VIDEO OUT Connects to equipment having Component video input.
DIGITAL AUDIO OUT
(OPTICAL) Connects to a Receiver.
HDMI OUT
Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal
on your TV for the best quality picture and to your Receiver for the best quality
sound.
VIDEO OUT Connects the input of external equipment using a video cable.
AUDIO OUT Connects to the audio input of external equipment using audio cables.
Software upgrades using the USB Host jack must be performed with a USB memory flash stick only.
Oversized USB drives may not be able to be inserted when a LAN or HDMI cable is connected.
A USB device consuming more than 500mA requires a separate power supply device for normal operation.
M


Fan
The fan always revolves when the power is on.
Ensure a minimum of 10 cm of clear space on
all sides of the fan when installing the product.
01789T-BD-P1620-XEU-ENG-NEW.indb18 18 2009-04-07 오후 4:03:00

English _19
●REMOTE CONTROL
remote control
TOUR OF THE REMOTE CONTROL
Installing batteries in the Remote Control
1. Lift the cover at the back of the remote control
upward as shown.
2. Install two AAA size batteries.
Make sure to match the “+” and “–” ends
of the batteries with the diagram inside the
compartment.
3. Replace the cover.
Assuming typical TV usage, the batteries last for
about one year.
A-B
0
1 2 3
7 8 9
4 5 6
RETURN
POWER OPEN/CLOSE
AUDIO SUBTITLE REPEAT REPEAT
CANCEL TV SOURCE
STOP PLAY
BONUSVIEW PAUSE
TV MUTE
ENTER
POPUP MENUDISC MENU
TITLE MENU
A B C D
MENU
EXIT
INFO
TV VOL TV CH
TV
POWER
AK59-00104K
OPEN/CLOSE Button
To open and close the disc tray.
POWER Button
SUBTITLE Button
Press this to switch the Blu-ray Disc/DVD’s subtitle
language.
AUDIO Button
Use this to access various audio functions on a disc
(Blu-ray Disc/DVD).
NUMBER Buttons
CANCEL Button
BONUSVIEW Button
Use this to turn the BONUSVIEW function on or off
with supported Blu-ray Discs.
REVERSE/FORWARD SKIP Buttons
Press to skip backwards or forwards.
STOP Button
Press to stop a disc.
REVERSE/FORWARD SEARCH Buttons
Press to search a disc backwards or forwards.
TV VOL Button
TV volume adjustment
TV MUTE Button
Mutes the speakers of your TV.
MENU Button
Brings up the Blu-ray Disc Player’s setup menu.
INFO Button
Displays current setting or disc status.
DISC MENU Button
Use this to enter the disc menu.
TV POWER Button
REPEAT Button
Allows you to repeat a title, chapter, track or disc.
REPEAT A-B Button
Allows you to repeat playback of a certain section.
TV SOURCE Button
After setup, allows you to set the input source on
your TV.
PAUSE Button
Press to pause a disc.
PLAY Button
Press to play a disc.
TV CH Button
Use this to select a TV program.
RETURN Button
ENTER/DIRECTION Buttons
EXIT Button
COLOUR Buttons : RED(A), GREEN (B),
YELLOW(C), BLUE(D)
Used to access special features on BD-J discs
(disc dependent).
POPUP MENU/TITLE MENU Button
Use this to enter the popup menu/title menu.
01789T-BD-P1620-XEU-ENG-NEW.indb19 19 2009-04-07 오후 4:03:02

20_ remote control
remote control
SETTING THE REMOTE CONTROL
You can control certain functions of your TV with this remote control.
Control function buttons include : TV POWER, TV CH , / . ,TV VOL +/–, TV MUTE,
TV SOURCE button.
To determine whether your television is compatible, follow the instructions below.
Switch your television on.
Point the remote control towards the television.
Press and hold the TV POWER button and enter the two-figure code corresponding to the brand
of your television by pressing the appropriate number buttons. (see the next page for the code list).
If your television is compatible with the remote control, it will switch off.
It is now programmed to operate with the remote control.
If several codes are indicated for your television brand, try each one in turn until you find one that works.
If you replace the remote control's batteries, you must set the brand code again.
You can then control the television using the following buttons after pressing the TV button.
Button Function
TV POWER Used to switch the television on and off.
TV SOURCE Used to select an external source.
TV VOL (+/–) Used to adjust the volume of the television.
TV CH (,/.) Used to select the desired channel.
TV MUTE Used to toggle the sound on and off.
The functions listed above will not necessarily work on all televisions. If you encounter problems, operate the
television directly.
REGARDING THE BATTERY
If the remote does not operate properly:
Check the polarity +/– of the batteries (Dry-Cell)
Check if the batteries are drained.
Check if remote sensor is blocked by obstacles.
Check if there is any fluorescent lighting nearby.
Dispose of batteries according to local environmental
regulations. Do not put them in the household trash.
1.
2.
3.
M

M
•
•
•
•
01789T-BD-P1620-XEU-ENG-NEW.indb20 20 2009-04-07 오후 4:03:02
