Samsung S1060 User manual

ENGLISH
1
Getting to know your camera
Getting to know your camera
Identification of features / Contents of camera
Battery life & Number of shots (Recording time)
LCD monitor indicator
Mode dial
Taking a picture
Playing back / Deleting images
Downloading images
Specifications
1
4
5
6
7
8
9
10
11
Contents

Declaration of Conformity
Trade Name : SAMSUNG TECHWIN
Model No. : SAMSUNG S1060
Responsible Party : SAMSUNG ELECTRONICS AMERICA INC.
Address : 105 Challenger Road Ridgefield Park NJ
Telephone No. : 1-800-SAMSUNG(726-7864)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

NOTE :
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

CAUTION :
Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the
equipment.
FCC notice
Microsoft, Windows and Windows logo are registered trademarks
of Microsoft Corporation incorporated in the United States and/or
other countries
All brand and product names appearing in this manual are regis-
tered trademarks of their respective companies.
The contents and illustrations of this manual are subject to change
without prior notice for upgrading the camera functions.
Refer to the user manual included on the Software CD for more
information.
PDF documents of user manual are included in the Software
CD-ROM supplied with this camera. Search the PDF files with
Windows explorer. Before opening the PDF files, you must install
the Adobe Reader included in the Software CD-ROM.

2
Getting to know your camera

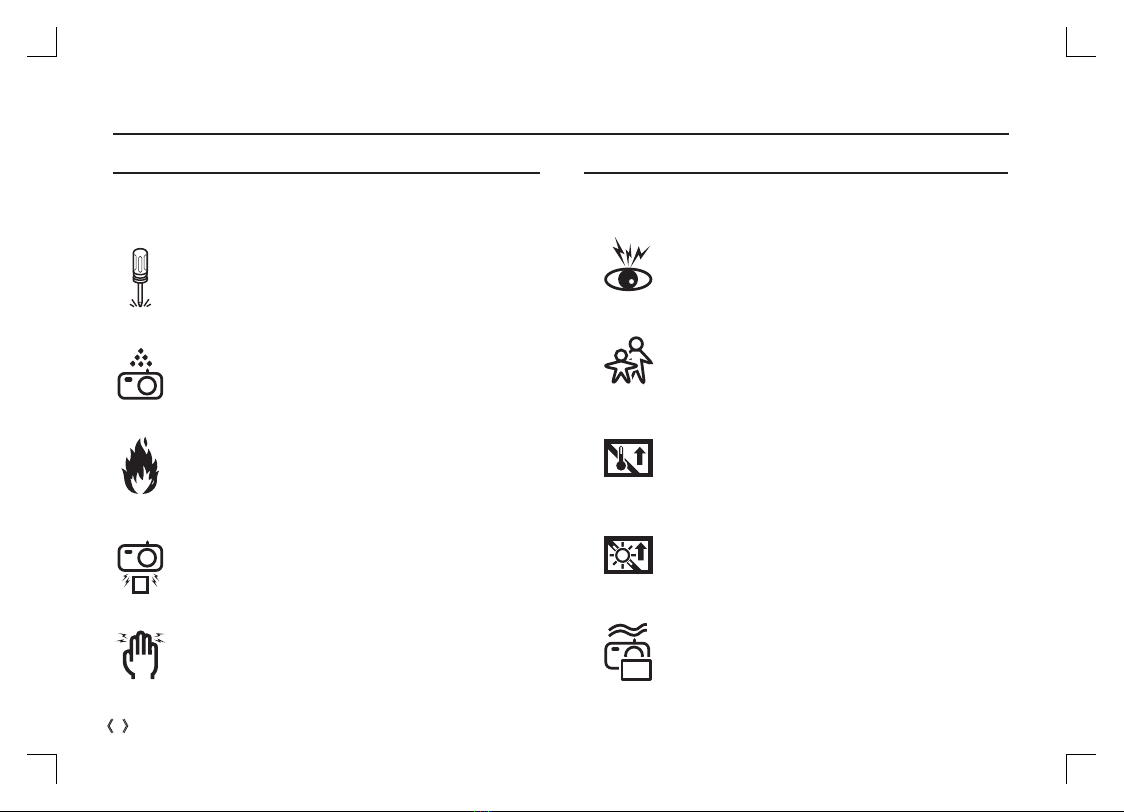

DANGER
Do not attempt to modify this camera in any way. To do so
may result in fire, injury, electric shock or severe damage to
you or your camera. Internal inspection, maintenance and
repairs should only be carried out by your dealer or Samsung
Camera Service centre.
Should any form of liquid or a foreign object enter the camera,
do not use it. Switch off the camera, and then disconnect the
power source. You must contact your dealer or Samsung
Camera Service centre. Do not continue to use the camera as
this may cause a fire or electric shock.
Please do not use this product in close proximity to flammable
or explosive gases, as this could increase the risk of explo-
sion.
Do not insert or drop metallic or inflammable foreign objects
into the camera through access points e.g. the memory card
slot and battery chamber. This may cause a fire or electric
shock.
Do not operate this camera with wet hands. This could pose a
risk of electric shock.
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Do not use the flash in close proximity to people or animals.
Positioning the flash too close to your subject’s eyes may
cause eyesight damage.
For safety reasons keep this product and accessories out of
reach of children or animals to prevent accidents e.g.:
-Swallowing battery or small camera accessories. If an accident
should occur, please consult a doctor immediately.
- There is the possibility of injury from the camera’s moving
parts.
Battery and camera may become hot during prolonged use
and it may result in camera malfunction. Should this be the
case, allow the camera to sit idle for a few minutes to allow
it time to cool.
Do not leave this camera in places subject to extremely high
temperatures, such as a sealed vehicle, direct sunlight or
other places of extreme variances in temperature. Exposure
to extreme temperatures may adversely affect the camera’s
internal components and could cause a fire.
When in use, do not cover the camera or Charger. This may
cause heat to build up and distort the camera body or cause
a fire. Always use the camera and its accessories in a
well-ventilated area.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.

ENGLISH
3
Getting to know your camera

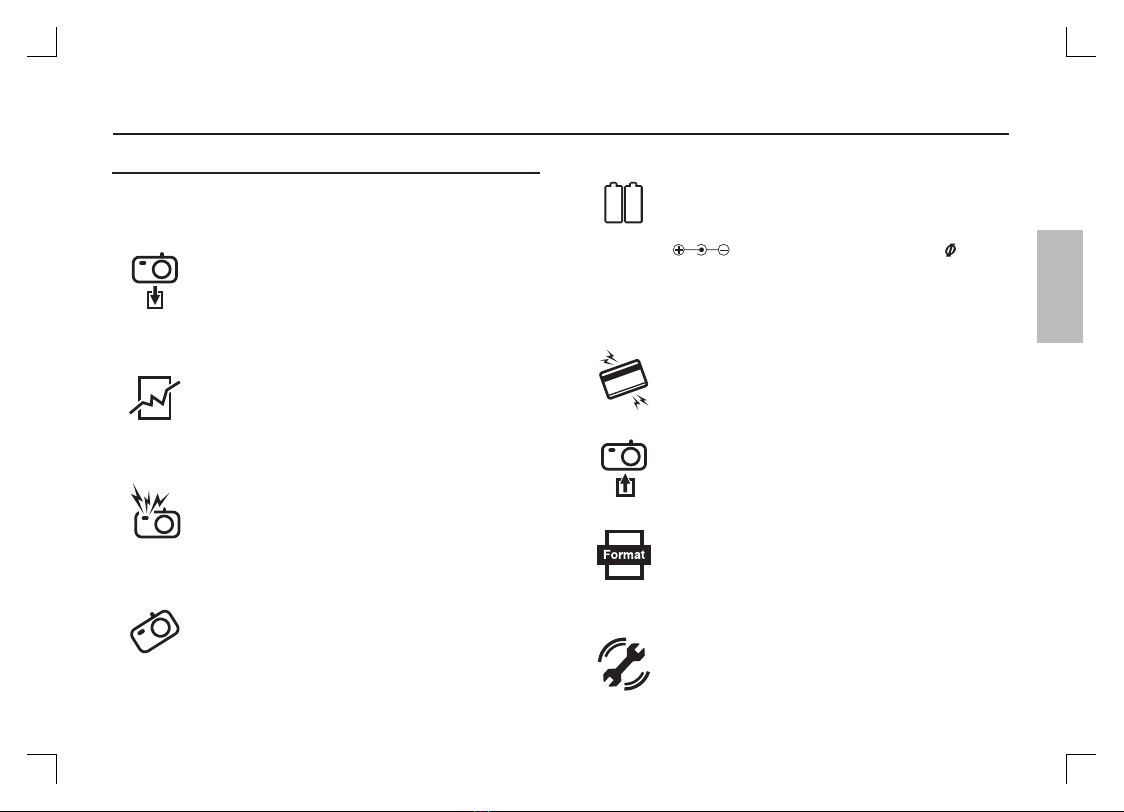

Take care not to touch the lens or lens cover to avoid taking
an unclear image and possibly causing camera malfunction.
Do not fire the flash while it is in contact with hands or
objects. Do not touch the flash after using it continuously. It
may cause burns.
Leaking, overheating, or damaged battery could result in fire
or injury.
- Use battery with the correct specification for the camera.
- Do not short circuit, heat or dispose of battery in fire.
- Do not insert the battery with the polarities reversed.
Remove the battery when not planning to use the camera
for a long period of time.
Otherwise the battery may leak corrosive electrolyte and
permanently damage the camera’s components.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in a minor or moderate injury.
Before an important event or going on a trip, you should
check the camera condition. Samsung cannot be held
responsible for camera malfunctions.
Be sure to format the memory card if you are using a newly
purchased memory for the first time, if it contains data that
the camera cannot recognise, or if it contains images cap-
tured with a different camera.
Do not insert the memory card the wrong way round.
Credit cards may be demagnetized if left near a camera case.
Avoid leaving magnetic strip cards near the case.
Using an AC adapter that doesn’t match with the camera
specification may cause camera malfunction. We recom-
mend supplied battery or exclusive rechargeable battery.
ÄAvailable AC adapter :
Voltage: 3.3V, Ampere: 2.0A, Diameter: 2.35
- After turning on the camera, Check whether the battery
type and the camera setting set on the [Settings] > [Battery
Type] menu are same.

4
ÄPlease check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the
optional equipment, contact your nearest Samsung dealer or Samsung service centre.
Identification of features / Contents of camera
Rechargeable Battery
(SNB-2512)
SD / SDHC memory card /
MMC
USB Cable AV Cable Camera strap
Camera AA Alkaline
Batteries
Charger (SBC-N2) AC Cord Camera case
Software CD
User manual,
Product warranty
Included
items
Optional
items
DC input connection port
Shutter button
Mode dial
Lens / Lens cover
Speaker
Power button
Flash
AF sensor/
Self-timer lamp
USB / AV connection terminal
Microphone
Zoom T button (Digital zoom)
Zoom W button (Thumbnail)
E (Effects) button
Strap eyelet
LCD monitor
5 function button
Play mode / Printer button
Fn / Delete button
Camera status lamp
Face Detection(FD) button

ENGLISH
5
Battery life & Number of shots (Recording time)
When using a 256MB MMC memory, the specified shooting capacity will
be as follows. These figures are approximate as image capacities can be
affected by variables such as subject matter and memory card type.
ÄThe zoom button doesn't use during the movie recording.
The recording times can be changed by the zoom operation.
We recommend batteries for a digital camera (Within a year from the
date of manufacture). The batteries are listed below.
- Non rechargeable batteries : 2 X AA Alkaline (High Capacity)
- Rechargeable batteries (Optional) : SNB-2512 (Ni-MH)
SNB-2512 rechargeable battery Specification
Model SNB-2512
Type Ni-MH
Capacity
25 00mAh
Voltage 1.2V x 2
C harging time Approximately 300 Minutes (Use for SBC-N2)
ÄIncluded battery may vary depending on sales region.
Recorded image
size Super Fine Fine Normal 30 FPS 15 FPS
Still
,
About 59 About 82 About 141 - -
;
About 66 About 93 About 155 - -
.
About 79 About 109 About 183 - -
+
About 83 About 115 About 191 - -
✩
About 110 About 155 About 253 - -
✨
About 171 About 236 About 371 - -

About 479 About 553 About 607 - -
*Movie
clip
ì---
About 3'33" About 7'03"
❪---
About 13'13" About 25'32"

6
LCD monitor indicator
ÄRefer to the user manual included on the Software CD for more information.
Voice memo / Without Sound Ï/ ÇÌ
Optical / Digital Zoom bar /
Digital Zoom rate Í
Recording mode 
Face Detection / Self Portrait
/ 
Aperture Value / Shutter Speed
F2.8, 1/30 
Flash

Self-timer

Macro 
Sharpness 
Color 
Auto Focus Frame 

Number of available shots remaining /
Remaining time
4/00:00:00
Memory card icon /
Internal memory icon Ö/×
Battery
Image Size
Image Quality / Frame Rate
Metering
Drive mode
ISO
White Balance
Exposure compensation
Date / Time
2008/02/01 01:00 PM
Camera shake Warning

ENGLISH
7
Mode dial
You can select a desired camera mode by using the Mode dial on the top of the camera.
AUTO
Selects this mode for quick and easy picture taking
with minimal user interaction.
PROGRAM
Selecting the program mode will configure the camera
with optimal settings. You can still manually configure
all functions except the aperture value and shutter
speed.
DIS
This mode will reduce the effect of camera shake and
help you get a well-exposed image in dim conditions.
MANUAL
You can manually configure all functions with the aper-
ture value and shutter speed.
SCENE
Use the menu to easily configure optimal settings for a
varisty of shooting situations.
PORTRAIT
Use this menu to take a picture of a person.
MOVIE CLIP
A movie clip can be recorded for as long as the avail-
able recording time.
PHOTO HELP GUIDE
Helps the user to learn the correct picture taking meth-
od. This includes solutions for potential problems that
may occur, and enables the user to practice shooting.

8
Taking a picture
How to take a picture
How to record a movie
Rotate the Mode dial and select ( ´).
1. Turn on the camera and select a
camera mode by rotating the mode
dial.
2. Hold the camera as shown
3. Confirm the composition
4. Take a picture.
Pressing halfway down
Focus and Flash status
are checked.
Pressing fully
Image is taken
1. Confirm the composition
2. Start the recording
Press the Shutter button and the
recording starts and press the
Shutter button again to stop the
recording.

ENGLISH
9

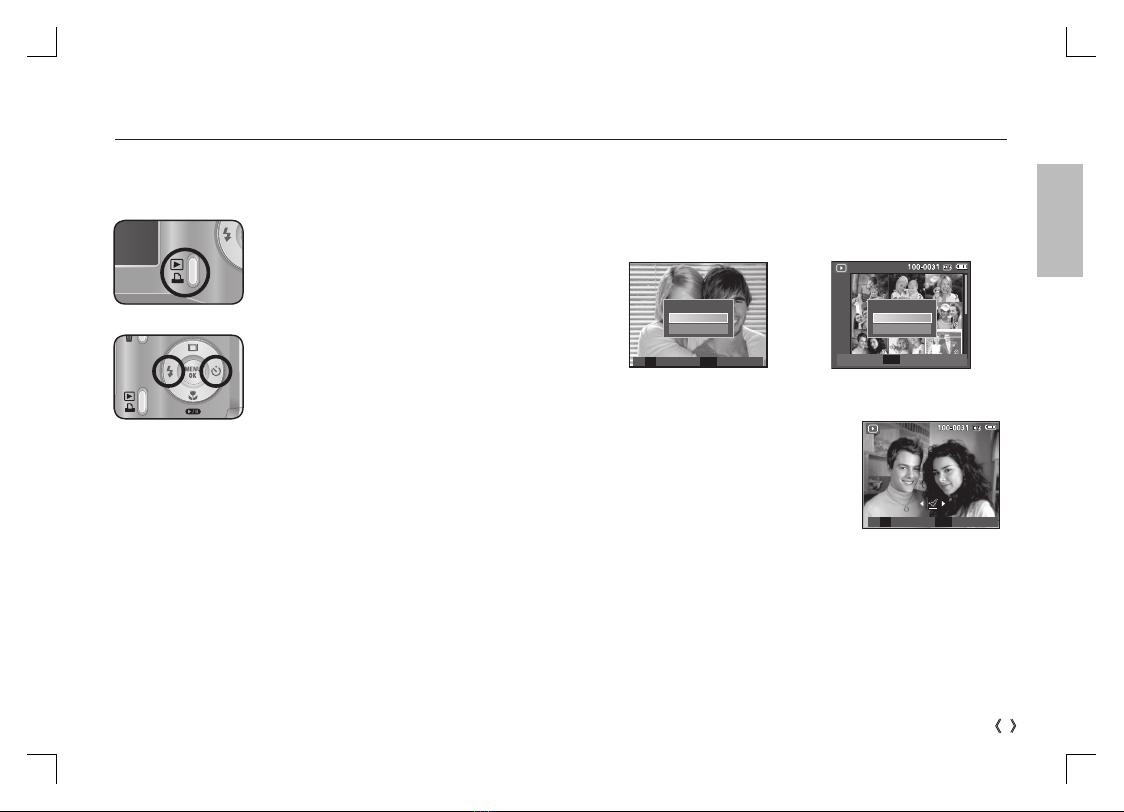

Deleting images
- This deletes images stored on the memory card.
1. Select an image that you want to delete by pressing the Left /
Right button and press the DELETE ( Õ) button.
Playing back / Deleting images
[Single Image] [Thumbnail Image]
2. To add images to delete, press the T
button.
- Left / Right button : Selects images
- T button : Checks for deletion
- OK button : deletes the selected
images.
3. Select the submenu values by pressing the Up / Down button and
then press the OK button.
- If [No] is selected : cancels "Delete Image".
- If [Yes] is selected : deletes the selected images.
Playingback the images
-The last image stored on the memory is displayed.
Press the play button ( Î).
Select an image that you want to play back
by pressing the Left/ Right button
ÄManner mode : Pressing the play mode button for more than 3
seconds changes the buzzer and start-up sound
setting to OFF, even though you may have set
these to ON.
Delete?
No
Yes
Comfirm
OK
Delete?
No
Yes
Select Confirm
T OK
Prev Next
Select Delete
T OK

10
For Windows For Macintosh
PC with processor better than
Pentium 450MHz
(Pentium 800MHz recommended)
Power Mac G3 or later
Windows 98SE / 2000 / ME / XP/
Vista Mac OS 10.0 ~ 10.4
Minimum 128MB RAM
(Over 512MB recommended)
200MB of available hard disk space
(Over 1GB recommend)
Minimum 256MB RAM
110MB of available hard-disk space
USB port USB port
CD-ROM drive CD-ROM drive
1024x768 pixels, 16bit color display
compatible monitor
(24bit color display recommended)
Microsoft DirectX 9.0 or later
PC connection mode
2. Download the images
1. Install the supplied Software.
- Connect the camera and Computer
with supplied USB cable and download
the image on your computer to save
them.
Downloading images

ENGLISH
11
Specifications
Image Sensor - Type : 1/2.33" CCD
- Effective Pixel : Approx. 10.2 Mega-pixel
- Total Pixel : Approx. 10.3 Mega-pixel
Lens - Focal Length : SHD Lens f = 6.3 ~ 31.5mm
(35mm film equivalent : 38 ~ 190mm)
- F No. : F2.8 ~ F4.6
- Digital Zoom : ·Still Image mode :1.0X ~ 5.0X
·Play mode : 1.0X ~ 12.0X
(depends on image size)
LCD Monitor - 2.7" color TFT LCD (230,000 dots)
Focusing
- Type : TTL auto focus (Multi AF, Center AF, Face Detection AF)
- Range
Normal Macro Super Macro Auto Macro
Wide 80cm ~ Infinity 5cm ~ 80cm 1cm ~ 5cm 5cm ~ Infinity
Tele 50cm ~ 80cm - 50cm ~ Infinity
Shutter - Speed 1~1/2,000 sec.
(Manual / Night : 15~1/2,000 sec., Firework : 4 sec.)
Exposure - Control : Program AE, Manual Exposure,
Face Detection AE
- Metering : Multi, Spot, Center-Weighted
- Compensation : ±2EV (1/3EV steps)
- ISO : Auto, 50, 100, 200, 400, 800, 1600
Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in flash,
Slow sync, Flash off
- Range : Wide : 0.4m ~ 3.0m,
Tele : 0.5m ~ 2.5m
- Recharging Time : Approx. 5 sec
Sharpness - Soft+, Soft, Normal, Vivid, Vivid+
Color Effect - Normal, B&W, Sepia, Red, Green, Blue, Negative,
Custom Color
White Balance - Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L,
Tungsten, Custom
Voice Recording - Voice Recording (max. 10 hours)
- Voice Memo in Still Image (max. 10 sec.)
Date Imprinting - Date, Date & Time, Off (user selectable)
Shooting - Still Image
·Mode : Auto, Program, Manual, DIS,
Photo Help Guide , Portrait, Scene
·Scene : Night, Children, Landscape, Close-up,
Text, Sunset, Dawn, Backlight, Firework,
Beach & Snow, Self Shot, Food, Café
·Shooting : Single, AEB
·Self-timer : 10 sec., 2 sec., Double, Motion Timer

12
Specifications
- Movie Clip
·With Audio (recording time : memory capacity dependent)
·Size : 640x480, 320x240
·Frame rate : 30 fps, 15 fps
·5X Optical Zoom and Mute in Zooming
·Movie Editing (Embedded): Pause during
recording, Still Image Capture
Storage - Media
·Internal memory : About 17MB flash memory
·External Memory (Optional) :
MMC card (Up to 2GB guaranteed)
SD card (Up to 4GB guaranteed)
SDHC card (Up to 4GB guaranteed)
- File Format
·Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1,
PictBridge 1.0
·Movie Clip : AVI (MJPEG)
·Audio : WAV
- Image Size
,;.+✩✨
3648X
2736
3648X
2432
3648X
2052
3072X
2304
2592X
1944
2048X
1536
1024X
768
- Capacity (256 MB Size)
,;.+✩✨
Super Fine About 59 About 66 About 79 About 83 About 110 About 171 About 479
Fine About 82 About 93 About 109 About 115 About 155 About 236 About 553
Normal About 141 About 155 About 183 About 191 About 253 About 371 About 607
ÄThese figures are measured under Samsung standard conditions and
may vary depending on shooting conditions and camera settings.
“E” Button - Effect : Color
- Editing : Resize, Rotate, Color
Image Play - Type : Single image, Thumbnails, Multi slide show,
Movie Clip
Interface - Digital output connector : USB 2.0
- Audio : Mono
- Video output : NTSC, PAL (user selectable)
- DC Adapter : 3.3V
Power Source - Primary Battery : 2 X AA Alkaline
- Rechargeable battery (Optional) :
SNB-2512B KIT( 2xAA Ni-MH Battery & Charger )
Ä Included battery may vary depending on sale region.

ENGLISH
13
Specifications
Dimensions (WxHxD) - 98.8 X 63 X 25.6mm
(excluding protrusions)
Weight - Approx. 160g (without batteries and card)
Operating Temperature - 0 ~ 40°C
Operating Humidity - 5 ~ 85%
Software - Samsung Master, Adobe Reader
Specifications are subject to change without prior notice.
All trademarks are the property of their respective owners.

14
Correct Disposal of This Product
Samsung Techwin cares for the environment at all product
manufacturing stages to preserve the environment, and is
taking a number of steps to provide customers with more
environment-friendly products. The Eco mark represents
Samsung Techwin's will to create environment-friendly
products, and indicates that the product satisfies the EU
RoHS Directive.
Correct Disposal of This Product (Waste Electrical & Elec-
tronic Equipment)
(Applicable in the European Union and other European
countries with separate collection systems) This marking
shown on the product or its literature, indicates that it should
not be disposed with other household wastes at the end of its working
life. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of
wastes and recycle it responsibly to promote the sustainable re-use of
material resources. Household users should contact either the retailer
where they purchased this product, or their local government office, for
details of where and how they can take this item for environmentally
safe recycling. Business users should contact their supplier and check
the terms and conditions of the purchase contract. This product should
not be mixed with other commercial wastes for disposal.

ENGLISH
15
MEMO

16
MEMO

~1~
DEUTSCH
Die Kamera kennen lernen
Identifikation der Funktionen / Lieferumfang der Kamera
Batteriebetriebsdauer und Anzahl der Aufnahmen
(Aufnahmezeit)
LCD-Monitoranzeige
Moduswahl
Fotografieren
Wiedergabe / Löschen von Bildern
Herunterladen von Bildern
Technische Daten
1
4
5
6
7
8
9
10
11
Inhalt
Die Kamera kennen lernen
Microsoft Windows und das Windows-Logo sind eingetragene Waren-
zeichen der Microsoft Corporation Incorporated in den Vereinigten
Staaten und/oder anderen Ländern.
Alle in dieser Bedienungsanleitung genannten Marken- und Produktna-
men sind eingetragene Warenzeichen der jeweiligen Firmen.
Inhalt und Illustrationen in diesem Handbuch können bei Aktualisierung
der Kamerafunktionen ohne vorherige Ankündigung verändert werden.
Weitere Informationen finden Sie in der Bedienungsanleitung auf der
Software-CD.
PDF-Dokumente der Bedienungsanleitung befinden sich auf der
Software-CD-ROM im Lieferumfang dieser Kamera. Durchsuchen Sie
die PDF-Dateien mit dem Windows-Explorer. Vor dem Öffnen der PDF-
Dateien müssen Sie den auf der Software-CD-ROM bereitgestellten
Adobe Reader installieren.

~2~
Die Kamera kennen lernen
GEFAHR
Bedienen Sie die Kamera nicht mit nassen Händen. Es besteht
die Gefahr eines Stromschlags.
Versuchen Sie nicht, die Kamera in irgendeiner Weise zu verändern.
Dies kann Feuer, Verletzungen, einen Stromschlag oder schwer-
wiegende Schäden an Ihrer Person oder Ihrer Kamera verursachen.
Die Inspektion des Kamerainneren, Wartung und Reparaturen dürfen
nur von Ihrem Händler oder einem Samsung Camera Kundendienst-
zentrum durchgeführt werden.
Benutzen Sie die Kamera nicht, wenn Flüssigkeiten oder
Fremdkörper in das Innere der Kamera gelangt sind. Schalten
Sie die Kamera aus und unterbrechen Sie dann die Stromver-
sorgung. Wenden Sie sich unbedingt an Ihren Händler oder
ein Samsung-Kamera-Kundendienstzentrum. Benutzen Sie
die Kamera auf keinen Fall weiter, da dies einen Brand oder
Stromschlag verursachen kann.
Benutzen Sie bitte dieses Gerät nicht in nächster Nähe zu
feuergefährlichen oder explosiven Gasen, da damit die Explo-
sionsgefahr vergrößert werden kann.
Stecken Sie keine metallenen oder entzündlichen Fremdkörper
in die Öffnungen der Kamera, wie z. B. den Speicherkartens-
teckplatz und die Batteriekammer. Das kann zu einem Brand
oder Stromschlag führen.
Mit GEFAHR gekennzeichnete Informationen weisen auf eine drohende
Gefahr hin, die zum Tode oder zu schweren Verletzungen führen kann.
WARNUNG
Benutzen Sie den Blitz nicht in nächster Nähe von Menschen
oder Tieren. Wird der Blitz zu nah an den Augen des Motivs
gezündet, kann es zu Augenschäden kommen.
Bewahren Sie aus Sicherheitsgründen dieses Gerät und die
Zubehörteile außer Reichweite von Kindern und Tieren auf, um
Unfälle zu verhindern wie z. B.:
-Verschlucken von Batterien oder Kamerakleinteilen. Bei einem
Unfall suchen Sie bitte sofort einen Arzt auf.
-Es besteht Verletzungsgefahr durch die beweglichen Teile der
Kamera.
Werden Batterien und Kamera über einen längeren Zeitraum
verwendet, kann es zu Fehlfunktionen der Kamera kommen.
Bei längerer Benutzung sollten Sie die Kamera zwischendurch
für einige Minuten abschalten, damit sich das Gerät abkühlen
kann.
Setzen Sie diese Kamera keinen hohen Temperaturen aus, wie
z. B. in einem geschlossenen Fahrzeug, direktem Sonnenlicht
oder anderen Orten mit starken Temperaturunterschieden.
Zu hohe Temperaturen können die Funktion der Kamera
beeinträchtigen, die Bauteile der Kamera zerstören und Feuer
verursachen.
Decken Sie die Kamera oder das Ladegerät bei Benutzung
nicht ab. Das kann zur verstärkten Erwärmung führen und das
Kameragehäuse beschädigen oder ein Feuer verursachen.
Benutzen Sie die Kamera und ihr Zubehör immer an einem gut
belüfteten Ort.
Mit WARNUNG gekennzeichnete Informationen weisen auf eine mögliche
Gefahr hin, die zum Tode oder zu schweren Verletzungen führen kann.

~3~
DEUTSCH
Die Kamera kennen lernen
ACHTUNG
Vermeiden Sie Kontakt mit dem Objektiv, da es andernfalls zu
unscharfen Aufnahmen und zur Fehlfunktion der Kamera kom-
men könnte.
Der Blitz darf beim Zünden nicht mit der Hand oder
irgendwelchen Gegenständen berührt werden. Berühren Sie
den Blitz nicht, wenn er über längere Zeit verwendet wurde.
Dies könnte Verbrennungen verursachen.
Durch Auslaufen, Überhitzen oder Explodieren der Batterien
können Feuer oder Verletzungen verursacht werden.
- Benutzen Sie nur solche Batterien, die die richtigen Spezifika-
tionen für die Kamera aufweisen.
- Die Batterien dürfen niemals kurzgeschlossen, erhitzt oder in
Feuer geworfen werden.
- Legen Sie die Batterien stets polrichtig ein.
Entfernen Sie die Batterien, wenn die Kamera längere Zeit nicht
benutzt wird.
Aus den Batterien kann korrosiver Elektrolyt austreten und die
Bauteile der Kamera irreparabel beschädigen.
Mit ACHTUNG gekennzeichnete Informationen weisen auf eine mögliche
Gefahr hin, die zu leichten oder mittelschweren Verletzungen führen
kann.
Vor einem wichtigen Ereignis oder dem Antritt einer Reise
sollten Sie den Zustand der Kamera überprüfen. Samsung
kann nicht für Funktionsstörungen der Kamera verantwortlich
gemacht werden.
Sie müssen eine neu gekaufte Speicherkarte vor dem ersten
Gebrauch formatieren, ebenso Speicherkarten, die Daten
enthalten, die die Kamera nicht lesen kann oder Bilder, die mit
einer anderen Kamera gemacht wurden.
Setzen Sie die Speicherkarte nicht falsch herum ein.
In der Nähe der Tasche belassene Kreditkarten können ent-
magnetisiert werden.
Karten mit Magnetstreifen niemals in der Nähe der Tasche
liegen lassen.
Die Verwendung eines AC-Adapters, der nicht zur Kameras-
pezifikation passt kann zur Fehlfunktion der Kamera führen.
Wir empfehlen die Verwendung der mitgelieferten Batterie oder
des exklusiven Akkus.
ÄVerfügbarer Wechselstromadapter
Spannung : 3,3V, Amprer: 2,0 A, Durchmesser: 2,35
Nach dem Einschalten der Kamera überprüfen, ob der im
Menü [EINSTELLUNGEN] > [BATT.TYP] festgelegte Batteri-
etyp und die Kameraeinstellung übereinstimmen.
