Samsung SDC-80 User manual

© Samsung Electronics Co.,Ltd. Jan. 2000
Printed in Korea
AD68-00079L
SERVICE MANUAL
SDC-80
DIGITAL CAMERA
SDC-80
SERVICE
1. Introduction
2. Specifications
3. Disassembly and Reassembly
4. Exploded View and Parts List
5. Adjustment
6. Electrical Parts List
7. PCB Diagrams
8. Wiring Diagram
9. Schematic Diagrams
Manual
DIGITAL CAMERA CONTENTS

UPDATE LOG SHEET
Use this page to keep any special servicing information. (Service Bulletin, etc.)
If only parts number changes, Just change parts number directly on parts list.
And if you need more information, please see the service bulletin
Application Data Page Part # Note(Cause & Solution) S/Bulletin #

Samsung Electronics 1-1
The program is to adjust a camera and diagnose a fault when the unit is serviced. The program isn't provid-
ed for customers and only service center to check the camera setting without disassembling and read/mod-
ify the camera control value. Some functions not required in service center aren't used.
1. Provision for program
The program isn't provided with the additional disc and must be downloaded from Single.
2. System Requirements
1. IBM compatible PC (pentium standard)
2. Windows 95 & Mouse
3. Video Card supported more than 256 color
4. 5MB Hard disk space
3. Program Functions
1. SSFDC(SMART MEDIA) FORMAT, DELETE ALL
2. FUNCTION KEY TEST
3. LCD PIXEL TEST
4. LOGO TEST
5. CONTROL LED TEST, LCD PANEL TEST
6. MACRO MODE CHECK, VIDEO JACK TEST, STROBO (FLASH) JACK CHECK
7. OSD (ON SCREEN DISPLAY) OFF
8. PC SHOT, SELF TIMER SHOT
9. AE ADJUSTMENT
10. 3100K, 5100K WHITE BALANCE ADJUSTMENT
11. JPEG, THUMBNAIL DOWN LOAD
12. BACK FOCUS ADJUSTMENT MODE
13. POWER CONSTANT ON
14. RS-232C CHANGER TEST
15. NTST, PAL CONVERT ADJUSTMENT
4.Installing Program
1. Unzip the Dscstudi.zip file downloaded from Single in a folder.
2. Execute the Setup.exe file in the unzipped files.
3. Install as dialog box's message.
4. After completing the installation, check to run the DSCStudio.exe file in the folder where program is
installed.
* Generally, it is created in C:\Program files\Samsung\DSCStudio.
1. Introduction
1-1. Camera Adjustment Program
1-1-1. About the Program

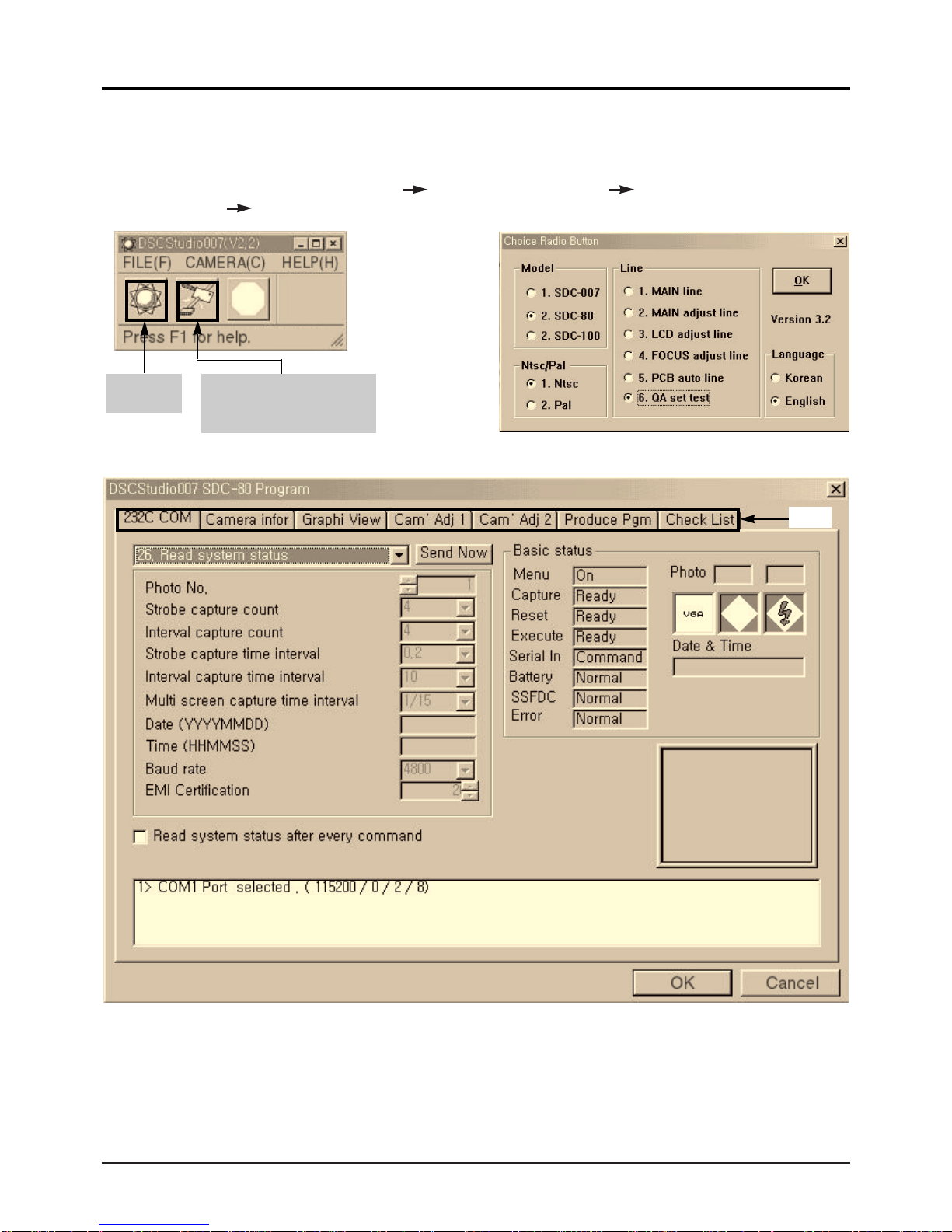

(Figure 3) Basic communication dialog box
(Figure 1) Initial screen dialog box (Figure 2) Choice screen dialog box
• Program start : Turn on PC for Windows Connect PC with camera Power on camera
Execute DSCStudio.exe in Windows
About TAP : • Camera Adjustment I : (see Figure 5) •Camera Adjustment II : (see Figure 6)
• View Graphic File : (see Figure 7) •Test Options : (see Figure 8)
• PGM for Manufacturing : (see Figure 9)
Samsung Electronics1-2
Introduction
1-1-2. DSCStudio Description
Start DSC
studio. Set up Communication
port and communication
speed.(see Figure 4)
TAP

• Describe the relevant things only in (Figure 4).
1. In the DCAM_PARAMETER, the DTL_Glain value is used for HeXa value.
For instance, if DTL_Gain=2631720 is translated into HeXa, it means 0x282828. So y=0x28, Cr=0x28 and
Cb=0x28.
2. In the LCD_Control, the settings are EVR value and also affect LCD output.
3. The Color Bar ON/OFF option can be used to display color bar with LCD and VIDEO OUT.
4. The Update option can be used to write the currently displayed number with EEPROM.
5. The Restore option can be used to restore to the first loaded value (EEPROM value before updating).
6. The Format option can be used to write the EEPROM default value saved in dscdtuio007.ini. of the
window folder.
("0xff" is the initially empty EEPROM value.)
Note) The Format is similar to the Format with LCD option without LCD control value.
7. The Reload option can be used to display the currently recorded EEPROM value on the screen.
*Note
- The model set value is 007 in the PGM mode. However, error occurred when 80 sets are connected to
adjust.
- Make sure that the testing model is the same with the running model in program.
Samsung Electronics1-4
Introduction

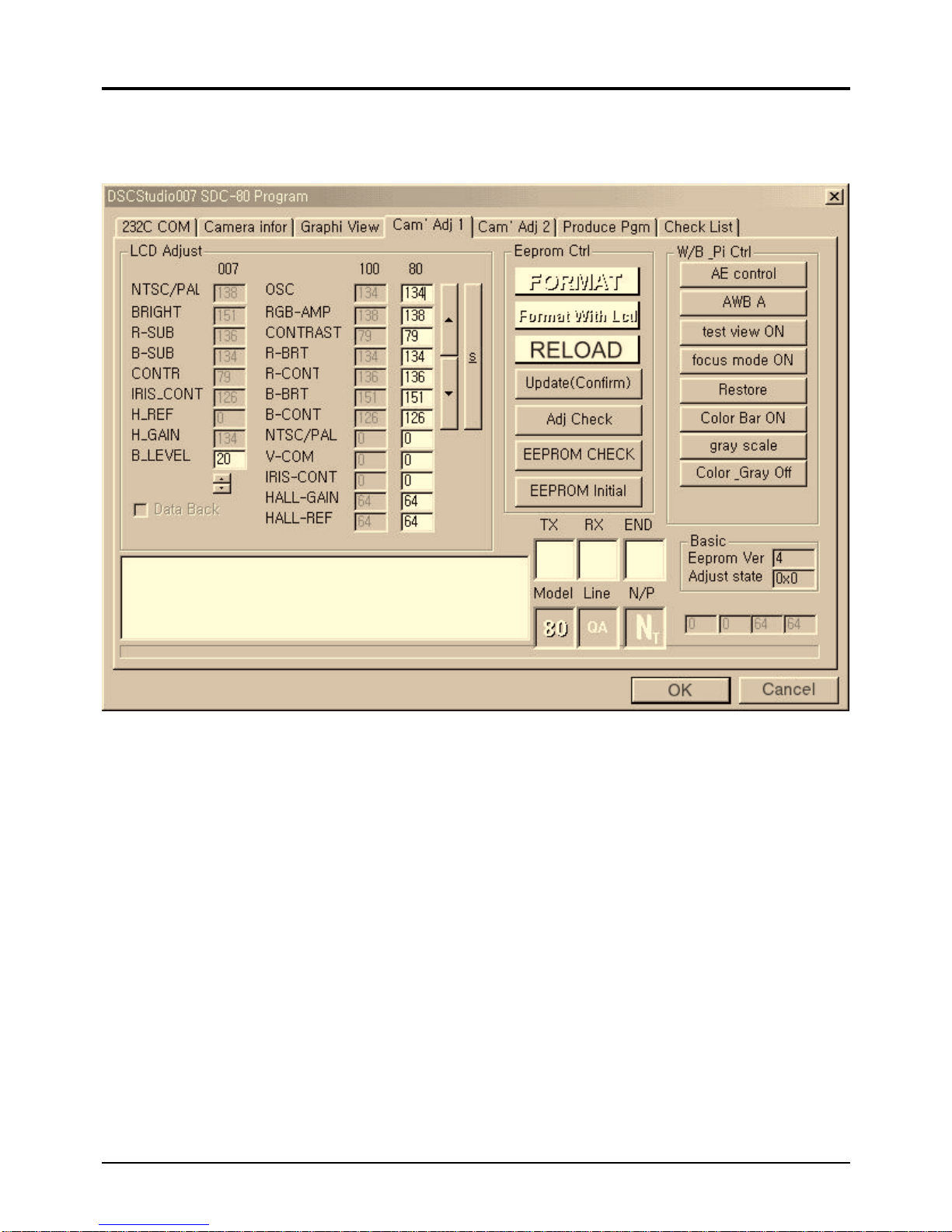

(Figure 5) Camera Adjustment I

Samsung Electronics1-6
Introduction
• The JPEG image can be displayed without any image edit program.
1. Click the Open button to display the file saved as a JPEG format.
2. Click the Slid Show button to display the file containing in the option at an specified interval.

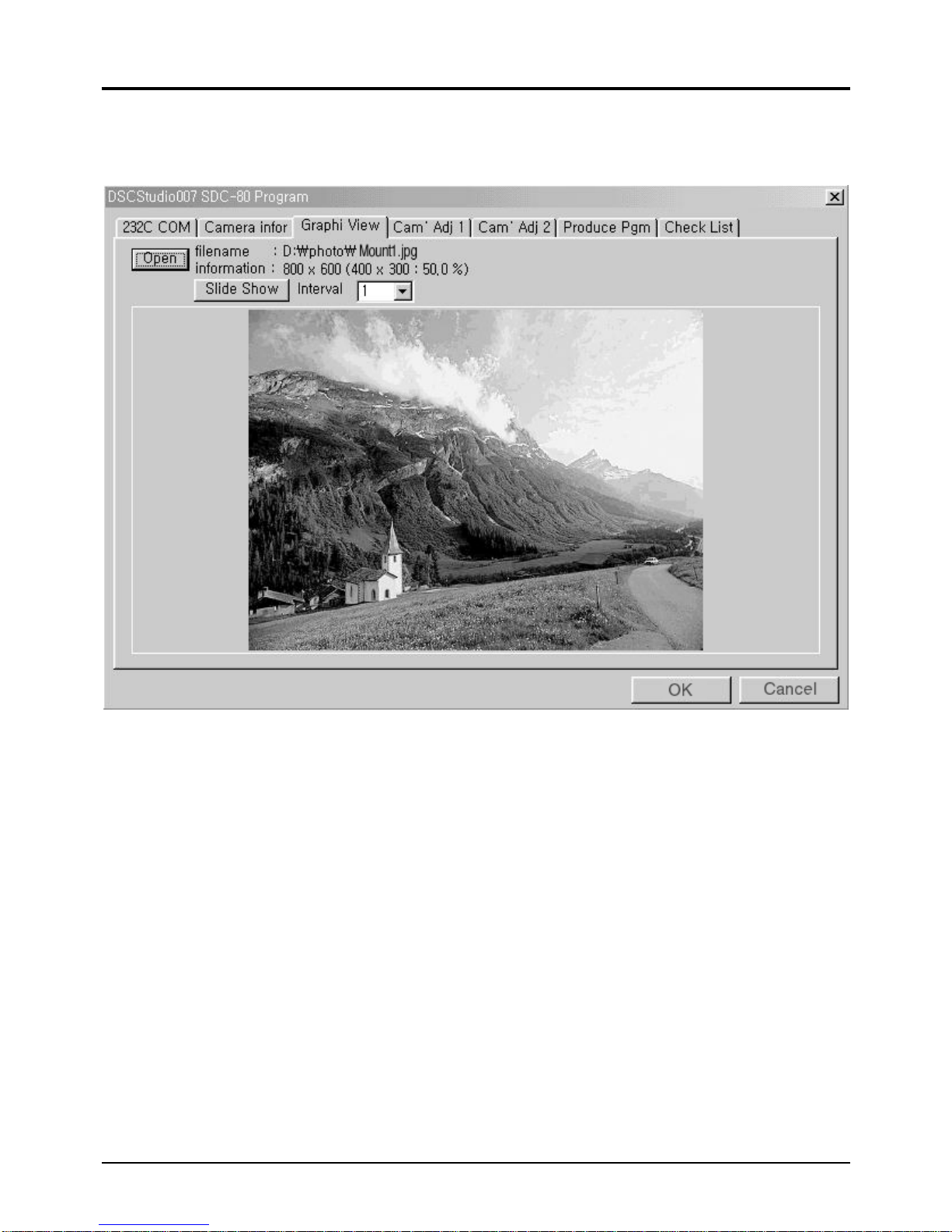

(Figure 7) View Graphic File

Samsung Electronics1-8
Introduction
11.Black Level Adj:
12.AE Adjustment: Adjust the Hall value automatically.
13.3100K W/B test : Set 3100K(incandescent light temperature) white balance.
14.5100K W/B test : Set 5100K(fluorescent light temperature) white balance.
15.Thumbnail Down load : Transfer thumbnail image in the smart media card into PC.
16.JPEG Down Load : Transfer image in the smart media card into PC.
17.Shot 0: Function SHUTTER in camera photo mode.
18.Shot 0: Function SHUTTER in camera photo mode.
19.Shot 0: Function SHUTTER in camera photo mode.
• Run the PI program.
The settings of the Test Options (see Figure 7) are applied as a sequence.
Click the START button to run.
The edit function is enabled when Vs appear in the check boxes of Enable Scroll Inspect Item Window
and Enable Scroll Information Window.
(Figure 9) PGM for Manufacturing

Samsung Electronics 2-1
2. Specifications
✤The technical specifications and design may be changed without notice.
System Specifications
CCD Progressive 0.85M pixel
Number of pixels 1024 x 768 pixel (XGA)
Color Depth 24 bits True Color
Memory capacity Extra (smart media card 4MB/3.3V)
Image Capacity Standard (quality-about 20/high quality-about 10)
Lens Dual fixed focus F:2.8f = 6.6
Focus Length Normal (50cm ~ ) Macro (5 ~ 50cm)
View Finder OVF (optical view finder) & color LCD
Shutter Speed Electric Shutter (1/8 ~ 1/2000)
Exposure Auto / Manual
White Balance Auto
Video Out Both NTSC type & PAL type
Power Source 5.0V:A type battery, 3.6V:Li-ion charger
PC Interface Serial Transmission (RS 232C : Max 115.2kbps)
Compression Standard JPEG
Support O/S MS-Windows 95, 98
S/W CD-Rom (TWAIN Driver, iPhotoExpress)
Dimensions 102 x 75 x 40 (Length x Height x Width)
Net Weigh Less than 199g (not including battery pack)
Basic Shooting
Mode
Full Size Shooting : 1152 x 864 (SQ/HQ)
General Shooting
Standard Shooting
VGA Size Shooting : 640 x 480 (SQ/HQ)
B/W Shooting Full Size B/W : 1152 x 854 (SQ/HQ)
Special Shooting
Mode
Multi Shooting Full Size Division : 1152x 864 (SQ/HQ)
- 4 ~ 16 Images Division
Continuous
Shooting VGA Size continuation : 640 x 480 (SQ/HQ)
- 3 ~ 6 Images Division
Play Mode
Normal Playback One Image at a time, full size playback
Magnified Playback 4 times magnified playback by parts
Multi Playback 6 images-divided multi playback
Automatic Playback Automatic interval playback
Erase Mode Selective Erase Erase selected images among divided images
Full Erase Erase all the memories
Erase Prevention Prevent accidental erase of precious images
Setting Mode Menu bar type control for each status
Transmission Mode PC interfacing only mode
Others - Direct interfacing mode
- Manual adjust mode : adjusting exposure
- Navigation key control : 4-direction movement and selection

Samsung Electronics2-2
Specifications
MEMO
MEMO

Samsung Electronics 3-1
3. Disassembly and Reassembly
3-1. Cabinet Disassembly
3-1-1. Ass’y CASE-TOP Removal

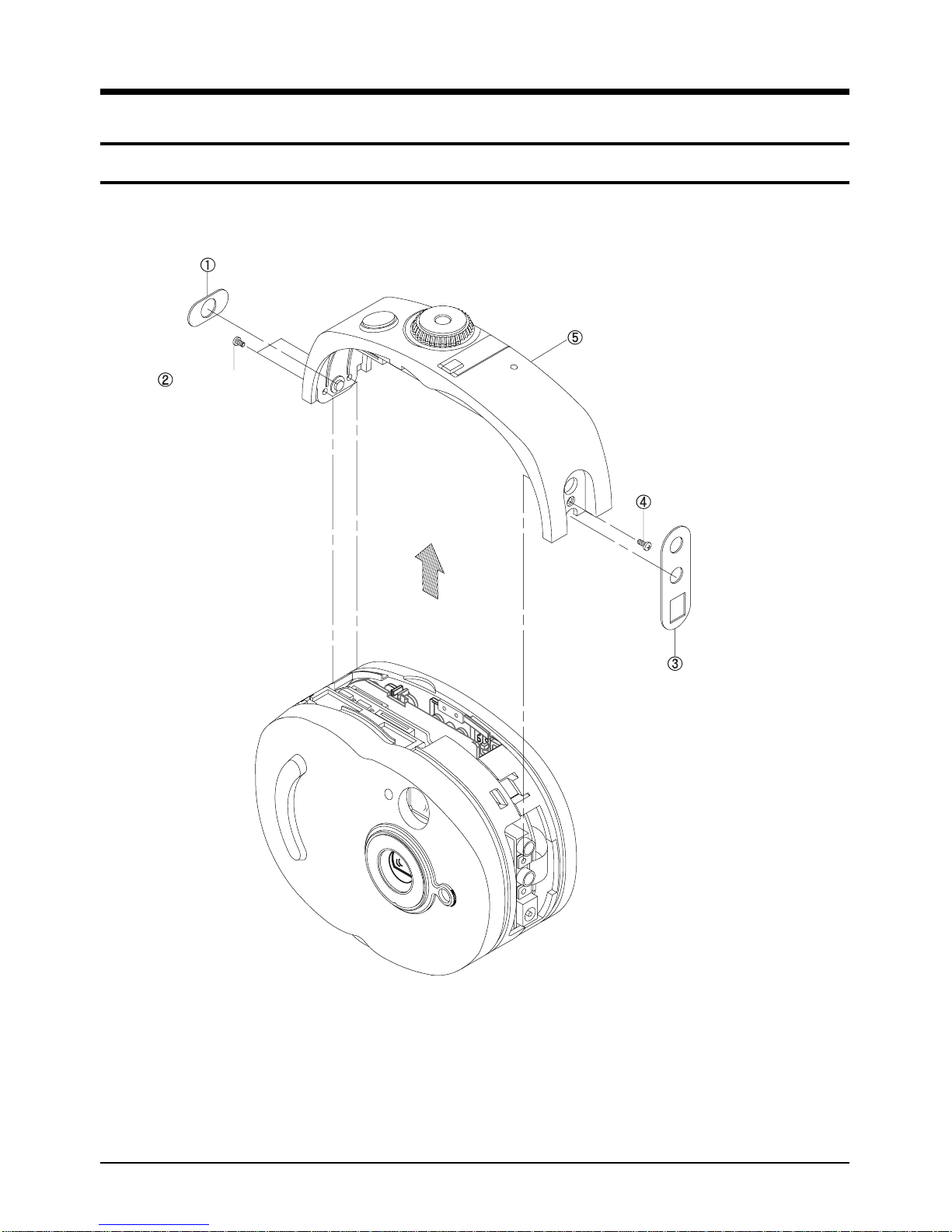

Fig. 3-1 Ass’y CASE-TOP Removal
Remove the INLAY.
Remove 2 screws.
Remove the CASE-TOP.
Remove 1 screw.
Remove the INLAY.

Samsung Electronics3-2
Disassemblr and Reassembly
3-1-2. Ass’y CASE-BOTTOM Removal
Fig. 3-2 Ass’y CASE-BOTTOM Removal
Remove the CASE-BOTTOM.
Remove 3 screws.
Remove 1 screw.

Samsung Electronics3-4
Disassemblr and Reassembly
3-1-4. Ass’y CASE-FRONT Removal
Fig. 3-4 Ass’y CASE-FRONT Removal
Remove 2 screws.
Remove the CASE-FRONT.
* Be careful to assemble MACRO-LEVER with LENS-MACRO when assembling the case-front.

Samsung Electronics3-6
Disassemblr and Reassembly
Fig. 3-6 Ass’y MAIN Removal
3-1-6. Ass’y MAIN Removal
Remove the ASSY-MAIN.
Remove the
3screws.
Remove the FPC-MAIN from MAIN-PCB.

Samsung Electronics3-8
Disassemblr and Reassembly
¡¨BATT + ¡¨
¡¨BATT - ¡¨

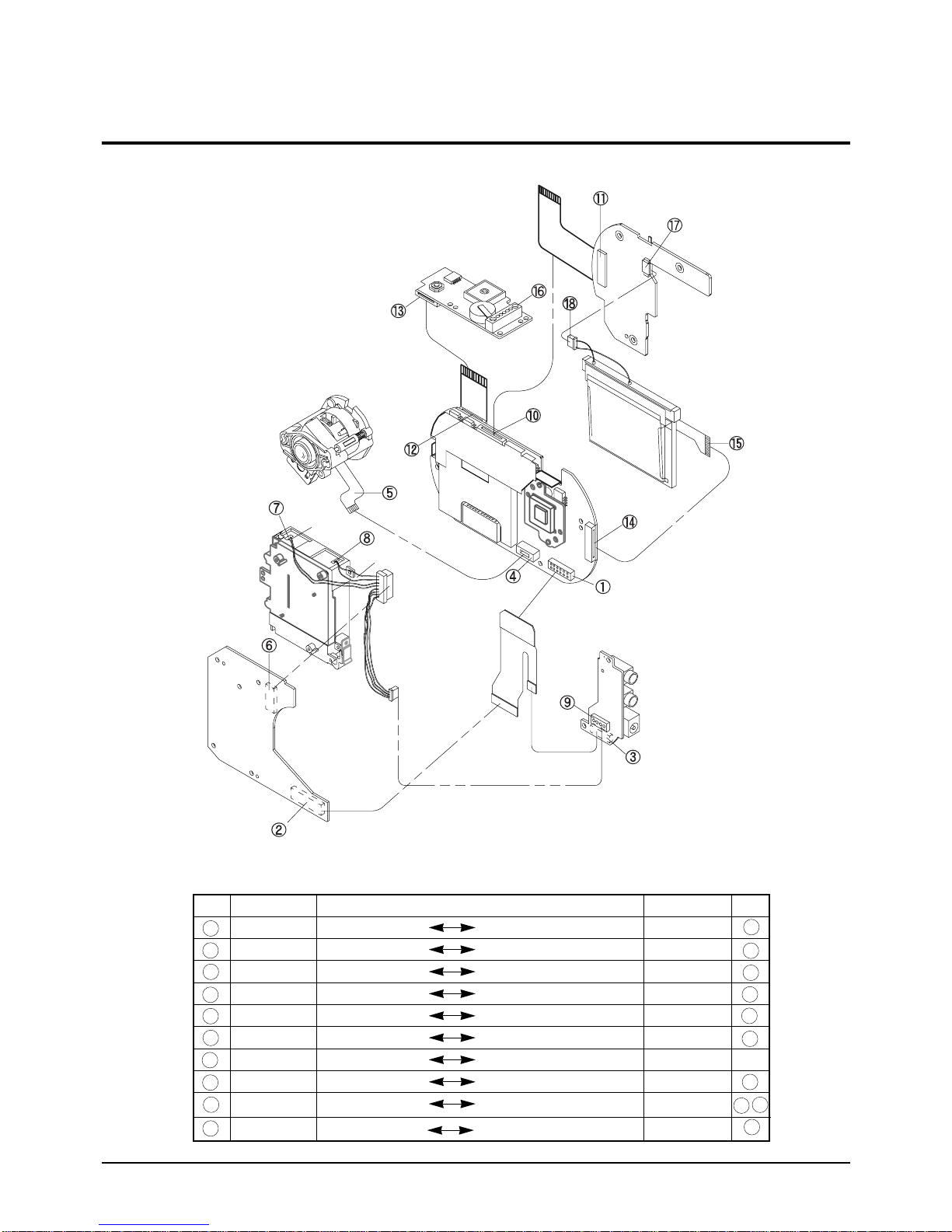

Fig. 3-9 Connector Diagrams
3-3. Connector Diagrams
1
4
10
12
14
16
6
6
6
DIRECTION
MAIN BOARD DC-BOARD
MAIN BOARD JACK BOARD
MAIN BOARD ASSY-LENS
MAIN BOARD REAR BOARD
MAIN BOARD FUNT-BOARD
MAIN BOARD TFT-LCD
FUNT-BOARD ASSY-STROBO
DC-BOARD JACK-BOARD
DC-BOARD BATTERY +, -
REAR-BOARD LCD-B/L
NO. NO.
CONNECTOR
CN02
CN02
CN03
CN05
CN04
CNL01
CNF03
CNP02
CNP02
CNB02
CONNECTOR
CNP03
CNJ02
LENS-FPC
CNB01
CNF01
LCD-FPC
STROBO
CNJ03
BATTERY
HBL
1
2
3
5
11
13
15
18
9
7
8

Samsung Electronics 4-1
4-1. Cabinet Assembly 4-2
4-2. Parts List 4-3
4. Exploded View and Parts List

Samsung Electronics4-2
Exploded View and Parts List
4-1 Cabinet Assembly
101
102 100
105
700
106
105
104
103
400
702
402
403
401
703
701
300
302
308
307
306
305
304
303
310
309
702
703
702
702
301
500
702
800
507
702
504
701
701
700
502
503 506
505
701
702
702
501
508
600
601
608
701
610
702
606 705
607
603
602 605
604
609
200
208
207
105
202 203
701
204
702
701 201
205
206
105

Loc. No New Part No Description and Specification Remark Remark
505 AD64-00139A DOOR-LOCK;-,POM WHT,-,-,-,-,-,SDC-X80
506 AD61-00176A SPRING-DOOR BATT;-,SUS T=0.3,-,-,-,-,-,-
507 AD61-00174A HOLDER-BATT,R;-,ABS,-,-,-,SDC-X80
508 AD97-01067A ASSY-DC/DC BOARD;SDC-80,-,ASSY -DC/DC B
600 AD97-01065A ASSY-MAIN BOARD;SDC-80,-,ASSY -MAIN BOA
601 AD66-30597A LEVER-MACRO;-,ABS,HB,-,-,SDC-007
602 AD29-00003A FILTER-OLP;-,OG-BF458,O.L.P.F,-,-,TR
603 AD73-00016A RUBBER-CCD;SILICON,-,SDC-X80,-
604 AD61-00175A PLATE-CCD;-,AL PLATE T=0.8,-,-,SDC-X80
605 AD99-40009U ASSY-MAIN BOARD,c;SDC-X80,-,ASSY -MAIN B
606 AD63-00122A SHIELD-SUB;-,PBS T0.15,-,-,SDC-80
607 AD97-01702A ASSY-SHIELD CASE MAIN;SDC-80,-,-
608 AD97-00315A ASSY—DSC-LENS;SDC-007,ASSY,PANFOCUS
609 AD97-01472A ASSY-FPC MAIN;SDC-80,FPC MAIN,40*26*T0.6
610 AD41-00097A FFC—FUNC,22PIN;FLATCABLE,0.3,22,SDC-80
700 6002-001094 SCREW-TAPPING;CH(0.5),+,B,M1.7,L3.5,NI P
701 AC60-12128B SCREW-TAPTITE;-,BH,-,TAP,1.7,4,-
702 AD60-00014A SCREW-MACHINE;-,-,-,-,-,-,-,-,WHT
703 6001-001288 SCREW-MACHINE;CH(0.5),+,M1.7,L6.0,NI PLT
704 AC60-10024A SCREW-MACHINE;BH,+,M2,X3,FZW,FE,-,-,-
705 AH60-10112A SCREW-TAPTITE;PH,+,M2,L5,SN1,-,YEL
800 AD97-01491A ASSY-OVF-LENS;SDC-80,ASSY,-
Exploded View and Parts List
4-4

Samsung Electronics 5-1
5. Adjustment
5-1. Camera Adjustment

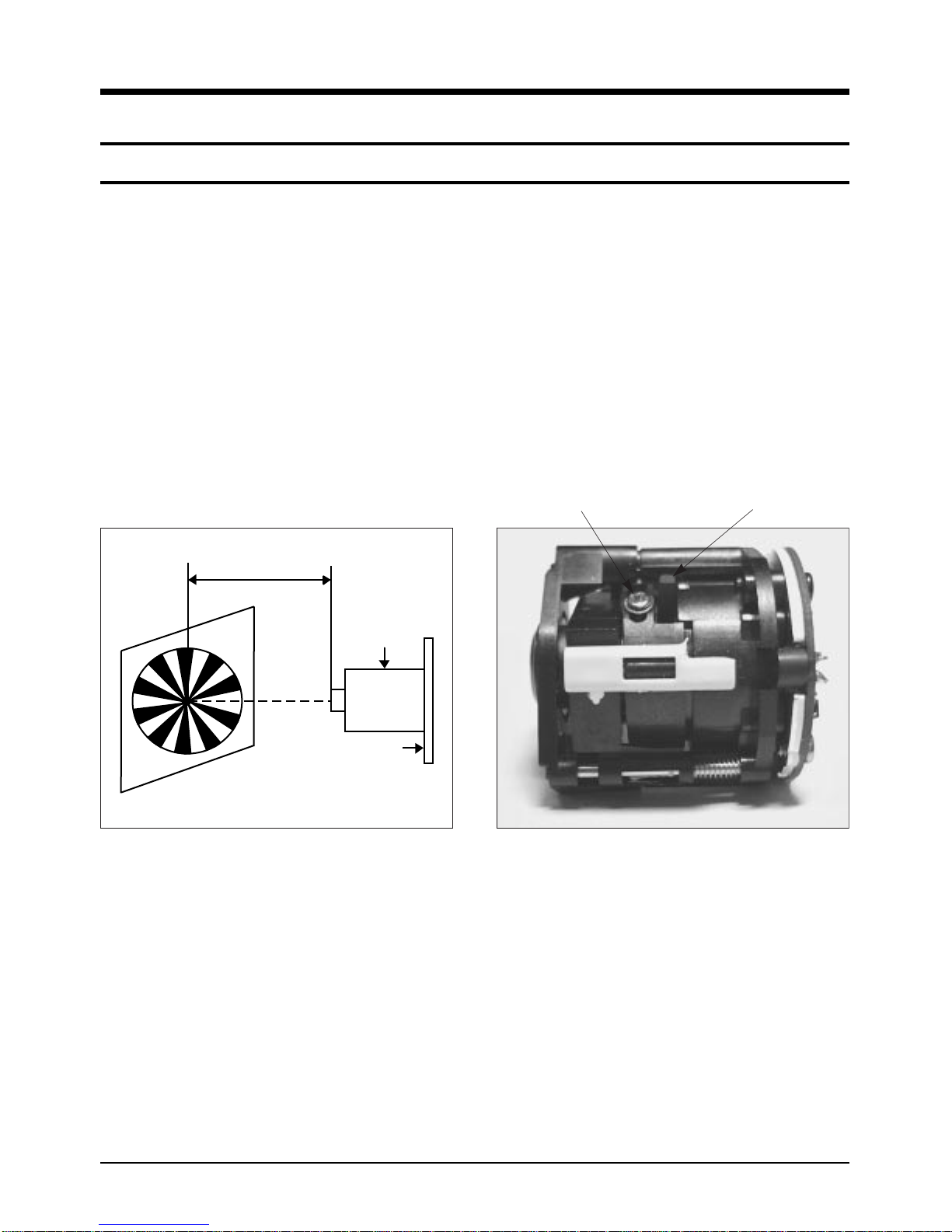

5-1-1. Focus Adjustment
• Adjusting in the Photo Mode
1. Connect the camera and TV to video output cable. Turn on the power and set to the PC mode.
2. Aim the Main board at the focus chart placed 2.5 meters away and perpendicular to the center of the
lens.
3. Loose a fixing screw lightly positioned in front of a lever in the state of pulling back macro lever
toward °ƒ (counterclockwise at the front).
4. Turn the focus adjusting lever until a lever is in focus through the TV screen (not to move the macro
lever).
5. Tighten the fixing screw when the lever is in focus.
* In the Photo mode, the state of the focus may be difficult to check. If it isn’t, you can adjust in Resume
mode or with program for adjustment after taking a photograph.
• Adjusting with Program for Adjustment
* If the program for adjustment is used, the 3 times magnified screen allows you exactly to adjust camera.
1. Connect the camera to TV and PC with video output cable and PC connecting cable. Turn on the power
and set to the PC mode.
2. Aim the Main board at the focus chart placed 2.5 meters away and perpendicular to the center of the
lens.
3. After running the program for adjustment on the PC to click the Focus Mode On button in the Camera
Adjustment mode.
4. Repeat step 3 through 5 of “Adjusting in the Photo Mode”.
5. Click the Focus Mode On button and finish the program for adjustment.
(Focus Adjustment)
Focus Adjusting Lever
Fixing screw
(Lens & Lever Position)
2.5 m
LENS
FOCUS CHART
MAIN BOARD

Samsung Electronics5-2
Adjustment
5-1-3. Program for Adjustment
5-1-2. MCLK Adjustment
1. Turn on camera power and set to Photo mode.
2. One adjustment point is TP1-MCLK. Adjust using CT301.
3. Connect probe of frequency counter with TP1.
4. Using CT301, adjust it so that MCLK is 54.00MHz+00Hz.
(External view of PCB :Main Board component side)

Samsung Electronics5-4
Adjustment
5-2-3. Adjustment
1. PD
1) TPL6-OSC & OSC mode
2) - Connect the probe of oscilloscope to TPL-OSC.
- Press the UP/DOWN button or the number buttons so that the A is
2.0µs ± 0.2µs (when NTSC).
3) Using the UPDATE button, store the adjusted value in the EEPROM.
* Using OSC or CSHD, adjust the trigger.
2. BRIGHTNESS
1) TPL2-VG & RGB-AMP mode
2) - Connect the probe of oscilloscope to TPL2-VG.
- Press the UP/DOWN button or the number buttons so that the B
level (between blacks) is 3.5 ±0.1Vp-p.
3) Using the UPDATE button, store the adjusted value in the EEPROM.
* Using FRP(or use No. 2 - 7 alignment wave form in common), adjust
the trigger.
3. CONTRAST
1) TPL2-VG & CONTRAST mode
2) - Connect probe of oscilloscope to TPL2-VG.
- Press the UP/DOWN button or the number buttons so that the C
level (between black and white) is 3.0 ±0.1Vp-p.
3) Using the UPDATE button, store the adjusted value in the EEPROM.
4. R-BRIGHT
1) TP3-VR & R-BRT mode (Bright wave form)
2) - Connect the probe of oscilloscope to TP3-VR.
- Press the UP/DOWN button or the number buttons so that the B
level (between pedestals) is 3.5 ±0.1Vp-p.
3) Using the UPDATE button, store the adjusted value in the EEPROM.
5. R-CONTRAST
1) TPL3-VR & R-CONT mode (Contrast wave form)
2) - Connect the probe of oscilloscope to TPL3-VR.
- Press the UP/DOWN button or the number buttons so that the C
level is 3.0 ±0.1Vp-p.
3) Using the UPDATE button, store the adjusted value in the EEPROM.
6. B-BRIGHT
1) TPL1-VB & B-BRT mode (Bright wave form)
2) - Connect the probe of oscilloscope to TPL1-VB.
- Press the UP/DOWN button or the number buttons so that the B
level is 3.5 ±0.1Vp-p.
3) Using the UPDATE button, store the adjusted value in the EEPROM.
PD wave form
BRIGHT wave form
CONTRAST wave form
