Samsung TL350 Instruction manual

This Quick Start Manual has been specially designed to guide
you through the basic functions and features of your device.
Please read the Quick Start Manual and User Manual carefully
to ensure safe and correct use.
Quick Start Manual
TL350
For more information, refer to
the User Manual included on the
supplied CD-ROM.
ENG / SPA
FOR TECHNICAL SUPPORT, PLEASE CALL 1-800-SAMSUNG (726-7864)
POR FAVOR LLAMAR 1-800-SAMSUNG (726-7864) PARA ASISTENCIA TECNICA

EN-2
Health and safety informationContents
Warnings
Do not use your camera near flammable or explosive
gases and liquids
Do not use your camera near fuels, combustibles, or
flammable chemicals. Do not store or carry flammable
liquids, gases, or explosive materials in the same
compartment as the camera or its accessories.
Keep your camera away from small children and pets
Keep your camera and all accessories out of the reach of
small children and animals. Small parts may cause choking
or serious injury if swallowed. Moving parts and accessories
may present physical dangers as well.
Prevent damage to subjects’ eyesight
Do not use the flash in close proximity (closer than 1 m/
3 ft) to people or animals. Using the flash too close to your
subject’s eyes can cause temporary or permanent damage.
Health and safety information 2
Camera layout ……………… 4
Setting up your camera …… 5
Unpacking ……………………… 5
Inserting the battery and
memory card …………………… 6
Charging the battery …………… 6
Turning on your camera………… 7
Selecting options ……………… 7
Capturing photos or videos 8
Playing files ………………… 9
Transferring files to a PC
(Windows) …………………… 10
Specifications ……………… 11
1
15
14
34
79
97
124

EN-3
English
t Exercise caution when connecting cables or adapters
and installing batteries and memory cards. Forcing
the connectors, improperly connecting cables, or
improperly installing batteries and memory cards can
damage ports, connectors, and accessories.
t Do not insert foreign objects into any of your camera’s
compartments, slots, or access points. This type of
damage may not be covered by your warranty.
Protect batteries, chargers, and memory cards from
damage
t Avoid exposing batteries or memory cards to very
cold or very hot temperatures (below 0° C/32° F or
above 40° C/104° F). Extreme temperatures can
reduce the charging capacity of your batteries and
can cause memory cards to malfunction.
t Prevent memory cards from making contact with
liquids, dirt, or foreign substances. If dirty, wipe the
memory card clean with a soft cloth before inserting
in your camera.
Handle and dispose of batteries and chargers with
care
t Use only Samsung-approved batteries and chargers.
Incompatible batteries and chargers can cause serious
injuries or damage to your camera.
t Never place batteries or cameras on or in heating
devices, such as microwave ovens, stoves, or
radiators. Batteries may explode when overheated.
Cautions
Handle and store your camera carefully and sensibly
t Do not allow your camera to get wet—liquids can
cause serious damage. Do not handle your camera
with wet hands. Water damage to your camera can
void your manufacturer’s warranty.
t Avoid using or storing your camera in dusty, dirty,
humid, or poorly-ventilated areas to prevent damage
to moving parts and internal components.

EN-4
1
Mode dial
2
Shutter button
3
POWER button
4
Mini dashboard
5
Speaker
6
AF-assist light/timer lamp
7
Lens
8
Battery chamber cover
Camera layout
^
Recorder button
&
Function button
*
Playback button
(
Navigation button/OK button
)
MENU button
a
Tripod mount
b
Display
1
9
34
5
6
7
8
200!
*&^
%
)(
#
a
@
$
b
9
Flash
0
Microphone
!
Zoom button
@
Status lamp
#
HDMI port (Accepts HDMI cable)
$
Drive mode dial
%
USB and A/V port (Accepts USB
cable or A/V cable)
1
2

EN-5
English
Setting up your camera
Unpacking
Camera AC adapter/USB cable
(AD44-00143A)/(AD39-00165A)
Rechargeable battery
(4302-001226)
Strap
(Black: AD63-02604A/
Silver: AD63-02596A)
Software CD-ROM
(User manual included)
(AD46-00337A)
Quick Start Manual
(AD68-04844A)
Optional accessories
Memory cards A/V cable
(AD39-00146A)
Battery charger
(AD44-00164A)
HDMI cable
(AD39-00179A)

EN-6
Setting up your camera
Inserting the battery and memory card Charging the battery
3
Insert the battery
with the Samsung
logo facing down.
2
Insert the memory
card with the
gold-colored
contacts facing up.
1
4
Indicator light
Red: Charging
Green: Fully charged
Before using the camera for the first time, you must
charge the battery.
 Removing the battery  Removing the memory card
Push gently the card until the
card disengages from the
camera, and then pull it out of
the slot.

EN-7
English
1
Press [POWER].
The initial setup screen appears when you turn on
your camera for the first time.
2
Select a language, select a time zone, and set
the date and time.
Language
Time Zone
Date & Time
English
London
Exit Move
2010/01/01
1
In Shooting mode, press [m].
2
Rotate or press the navigation button to scroll
to an option or menu.
To move up or down press [D] or [c]. To move
left or right press [F] or [I].
Rotate the navigation button any direction.
3
Press [o] to confirm the highlighted option
or menu.
Press [m] again to go back to the previous
menu.
Turning on your camera Selecting options

EN-8
Taking a photo
1
Rotate the mode dial to t.
2
Align your subject in the frame.
3
Press [Shutter] halfway down to focus
automatically.
A green frame means the subject in focus.
00001
F2.4 1/60
4
Press [Shutter] all the way down to take the
photo.
Recording a video
1
Rotate the mode dial to v.
2
Align your subject in the frame.
3
Press (Recorder) to start recording.
Press [o] to pause or resume.
4
Press (Recorder) again to stop the
recording.
Note
Number of photos by resolution (for 1 GB SD)
Super
Fine Fine Normal RAW RAW + S.Fine
RAW +
Fine
RAW +
Normal
180 328 451 41 31 37 39
201 363 497 42 32 37 40
220 392 531 42 33 38 40
235 420 568 42 34 38 40
235 419 568 42 34 38 40
319 542 707 43 36 40 42
471 746 928 44 39 42 43
645 967 1,161 45 41 43 44
1,056 1,331 1,458 46 43 44 44
These figures are measured under Samsung’s standard conditions. Your
results may vary depending on shooting conditions and camera settings.
Capturing photos or videos

EN-9
English
Playing files
Viewing photos
1
Press [P].
2
Press [F] or [I] to scroll through files.
Press and hold [F] or [I] to scroll through files
quickly.
F2.4 1/60
Viewing videos
1
Press [P].
2
Press [o].
3
Use the following buttons to control playback.
[F]
Scan backward. The camera
scans backward in 2X, 4X, and 8X
increments when you press [F].
[o]
Pause or resume playback.
[I]
Scan forward. The camera
scans forward in 2X, 4X, and 8X
increments when you press [I].
[Zoom] left
or right
Adjust the volume level.

EN-10

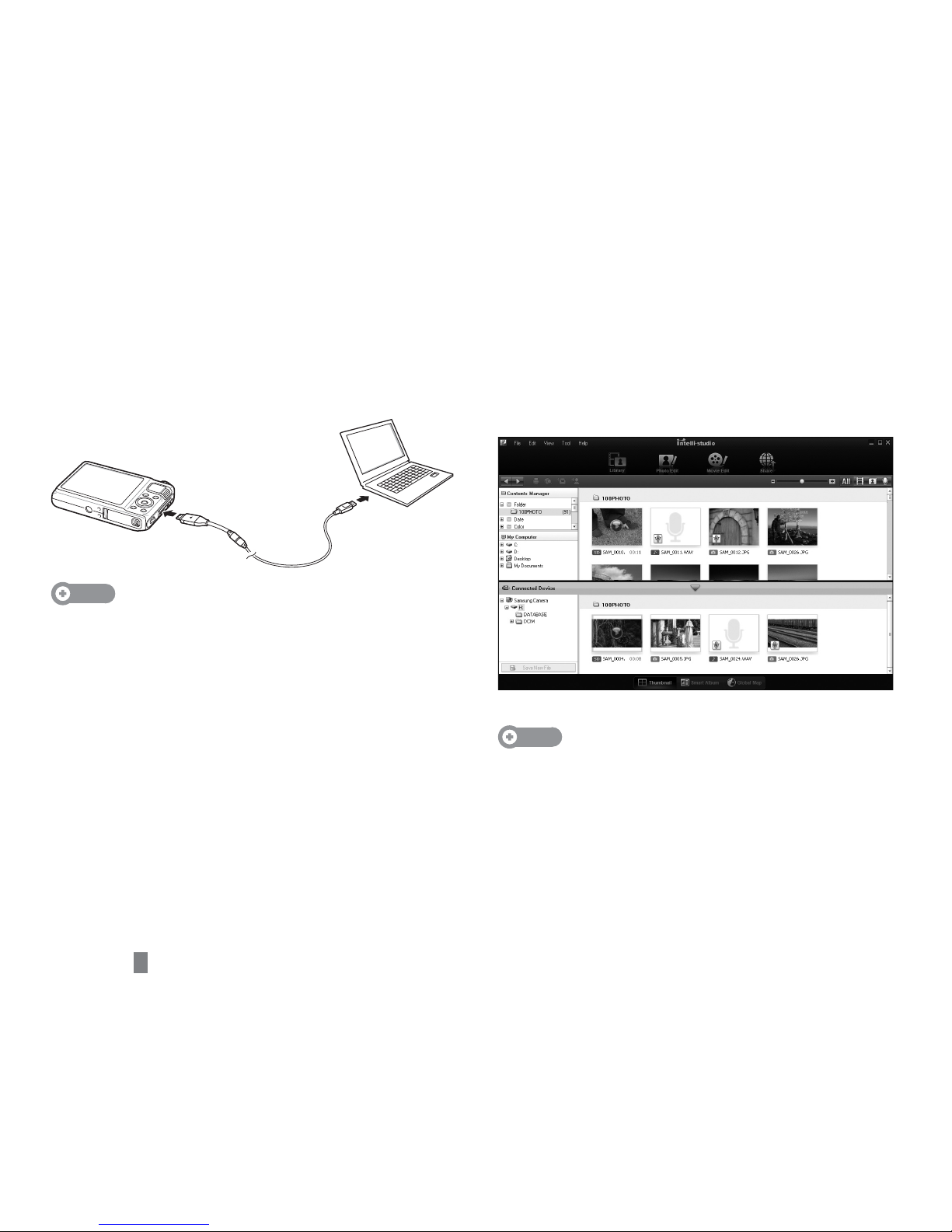

Transferring files to a PC (Windows)
1
Connect the camera to the PC with the USB
cable.
Note
Make sure that the PC Software option is set to On in the
settings menu.
2
Turn on the camera.
The computer recognizes the camera automatically.
For Windows Vista and Windows 7, select
Run iStudio.exe from the AutoPlay window.
3
Select a folder on your computer to save new
files.
If your camera has no new files, the pop-up window
for saving new files will not appear.
4
Select Yes.
New files will be transferred to your computer.
You can now use the Intelli-studio program.
Note
About Intelli-studio
Intelli-studio is a built-in program that allows you to play
back and edit files. You can also upload files to websites,
such as Flickr or YouTube.

EN-11
English
Image sensor
t Type: 1/2.4" (approx. 7.59 mm) High Speed CMOS
t Effective pixels: approx. 10 mega-pixels
t Total pixels: approx. 10.6 mega-pixels
Lens
t Focal length: Schneider-KREUZNACH lens f = 4.3 - 21.5 mm
(35 mm film equivalent: 24 - 120 mm)
t F-stop range: F2.4 (W) - F5.8 (T)
Display 3.0" (7.62 cm) VGA AMOLED
Focusing TTL auto focus (Multi AF, Center AF, Selection AF, Manual Focus, Face Detection AF,
Tracking AF), Movie AF (CAF)
Shutter speed
t Auto: 1/8 - 1/2,000 sec.
t Program: 1 - 1/2,000 sec.
t Manual: 16 - 1/2,000 sec.
t Night: 8 - 1/2,000 sec.
t Fireworks: 2 sec.
Storage
t Internal memory: approx. 22 MB
t External memory (Optional): SD card (up to 4 GB guaranteed),
SDHC card (up to 8 GB guaranteed)
Internal memory capacity may not match these specifications.
DC power input connector 20 pin
Rechargeable battery Lithium-ion battery (SLB-11A, 1,130 mAh)
Dimensions (W x H x D) 99.5 x 59 x 21.7 mm
Weight 153.3 g (without battery and memory card)
Operating temperature 0 - 40° C
Operating humidity 5 - 85 %
Specifications

Please refer to the warranty that came with your product
or visit our website http://www.samsung.com for after-
sales service or inquiries.
AD68-04844A (1.0)

This user manual includes detailed usage
instructions for your camera. Please read
this manual thoroughly.
Common questions
Quick reference
Contents
Basic functions
Extended functions
Shooting options
Playback/Editing
Appendixes
Index
User Manual
TL350
ÄClick a topic

1
Health and safety information
Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera.
Warning—situations that could cause injury to yourself or
others
Caution—situations that could cause damage to your
camera or other equipment
Note—notes, usage tips, or additional information
Safety warnings
Do not use your camera near flammable or explosive
gases and liquids
Do not use your camera near fuels, combustibles, or flammable
chemicals. Do not store or carry flammable liquids, gases, or
explosive materials in the same compartment as the camera or its
accessories.
Keep your camera away from small children and pets
Keep your camera and all accessories out of the reach of small
children and animals. Small parts may cause choking or serious
injury if swallowed. Moving parts and accessories may present
physical dangers as well.
Prevent damage to subjects’ eyesight
Do not use the flash in close proximity (closer than 1 m/3 ft) to
people or animals. Using the flash too close to your subject’s
eyes can cause temporary or permanent damage.
Handle and dispose of batteries and chargers with care
• Use only Samsung-approved batteries and chargers.
Incompatible batteries and chargers can cause serious injuries
or damage to your camera.
• Never dispose of batteries in a fire. Follow all local regulations
when disposing of used batteries.
• Never place batteries or cameras on or in heating devices,
such as microwave ovens, stoves, or radiators. Batteries may
explode when overheated.
• Do not use a damaged power supply cord, plug, or loose
outlet when charging batteries. This may cause a fire or electric
shock.

2
Health and safety information
• Exercise caution when connecting cables or adapters and
installing batteries and memory cards. Forcing the connectors,
improperly connecting cables, or improperly installing batteries
and memory cards can damage ports, connectors, and
accessories.
• Do not insert foreign objects into any of your camera’s
compartments, slots, or access points. Damage due to
improper use may not be covered by your warranty.
• Do not swing your camera by the strap. This may cause injury
to yourself or others.
• Do not paint your camera, as paint can clog moving parts and
prevent proper operation.
• Paint or metal on the outside of the camera may cause
allergies, itchy skin, eczema, or swelling for people with
sensitive skin. If you have experience any of these symptoms,
stop using the camera immediately and consult a doctor.
Safety precautions
Handle and store your camera carefully and sensibly
• Do not allow your camera to get wet—liquids can cause serious
damage. Do not handle your camera with wet hands. Water
damage to your camera can void your manufacturer’s warranty.
• Do not expose the camera to direct sunlight or high
temperatures for an extended period of time. Prolonged
exposure to sunlight or extreme temperatures can cause
permanent damage to your camera’s internal components.
• Avoid using or storing your camera in dusty, dirty, humid, or
poorly-ventilated areas to prevent damage to moving parts and
internal components.
• Remove the batteries from your camera when storing it for an
extended period of time. Installed batteries may leak or corrode
over time and cause serious damage to your camera.
• Protect your camera from sand and dirt when using it on
beaches or in other similar areas.
• Protect your camera from impact, rough handling, and
excessive vibration to avoid serious damage.

3
Health and safety information
• Do not use memory cards that have been formatted by other
cameras or by a computer. Reformat the memory card with
your camera.
• Never use a damaged charger, battery, or memory card.
Use only Samsung-approved accessories
Using incompatible accessories may damage your camera,
cause injury, or void your warranty.
Protect your camera’s lens
• Do not expose the lens to direct sunlight, as this may discolor
the image sensor or cause it to malfunction.
• Protect your lens from fingerprints and scratches. Clean your
lens with a soft, clean, debris-free lens cloth.
Protect batteries, chargers, and memory cards from
damage
• Avoid exposing batteries or memory cards to very cold or very
hot temperatures (below 0º C/32º F or above 40º C/104º F).
Extreme temperatures can reduce the charging capacity of your
batteries and can cause memory cards to malfunction.
• Prevent batteries from making contact with metal objects, as
this can create a connection between the + and – terminals
of your battery and lead to temporary or permanent battery
damage. Also, this may cause a fire or electric shock.
• Prevent memory cards from making contact with liquids, dirt, or
foreign substances. If dirty, wipe the memory card clean with a
soft cloth before inserting in your camera.
• Do not allow liquids, dirt, or foreign substances to come in
contact with the memory card slot. Doing so may cause the
camera to malfunction.
• Insert a memory card in the correct direction. Inserting a
memory card in the wrong direction may damage your camera
and memory card.
• Turn off the camera when inserting or removing the memory
card.
• Do not bend, drop, or subject memory cards to heavy impact
or pressure.

4
Health and safety information
Important usage information
Allow only qualified personnel to service your camera
Do not allow unqualified personnel to service the camera or
attempt to service the camera yourself. Any damage that results
from unqualified service is not covered by your warranty.
Ensure maximum battery and charger life
• Overcharging batteries may shorten battery life. After charging is
finished, disconnect the cable from your camera.
• Over time, unused batteries will discharge and must be
recharged before use.
• Disconnect chargers from power sources when not in use.
• Use batteries only for their intended purpose.
Exercise caution when using the camera in humid
environments
When transferring the camera from a cold environment to a warm
and humid one, condensation can form on the delicate electronic
circuitry and memory card. In this situation, wait for at least 1 hour
until all moisture has evaporated before using the camera.
Check that the camera is operating properly before use
The manufacturer takes no responsibility for any loss of files or
damage that may result from camera malfunction or improper
use.

5
Copyright information
• Microsoft Windows and the Windows logo are
registered trademarks of the Microsoft Corporation.
• Mac is a registered trademark of the Apple Corporation.
• HDMI, the HDMI logo and the term “High Definition
Multimedia Interface” are trademarks or registered
trademarks of HDMI Licensing LLC.
• Camera specifications or contents of this manual may
be changed without prior notice due to upgrade of
camera functions.
• For Open Source License information, refer to the
“OpenSourceInfo.pdf” in the provided CD-ROM.
Organization of the user manual
Basic functions 13
Learn about your camera’s layout, icons, and basic
functions for shooting.
Extended functions 34
Learn how to take a photo by selecting a mode and
how to record a video or voice memo.
Shooting options 51
Learn about the options you can set in Shooting mode.
Playback/Editing 79
Learn how to play back photos, videos, or voice
memos and edit photos or videos. Also, learn how to
connect your camera to your computer, photo printer,
TV, or HDTV.
Appendixes 108
Refer to settings, error messages, specifications, and
maintenance tips.

6
Indications used in this manual
Shooting mode Indication
Smart Auto
t
Program
p
Aperture Priority
A
Shutter Priority
S
Manual
M
DUAL IS
d
Scene
s
Movie
v
Shooting mode icons
These icons indicate that a function is available in the
corresponding modes. The smode may not support functions
for all scenes.
For example:
Available in the
Program, Aperture
Priority, Shutter
Priority, DUAL IS,
and Movie modes
Icons used in this manual
Icon Function
Additional information
Safety warnings and precautions
[] Camera buttons. For example, [Shutter] represents the
shutter button.
() Page number of related information

The order of options or menus you must select to perform a
step; for example: Select
a White Balance (represents
select
a , and then White Balance).
*Annotation
Abbreviations used in this manual
Abbreviation Definition
AF Auto Focus
DIS Digital Image Stabilization
DPOF Digital Print Order Format
EV Exposure Value
OIS Optical Image Stabilization
WB White Balance

7
Pressing the shutter
• Half-press [Shutter]: press the shutter halfway down
• Press [Shutter]: press the shutter all the way down
Half-press [Shutter] Press [Shutter]
Subject, background, and composition
• Subject: the main object of a scene, such as a person, animal,
or still life
• Background: the objects around the subject
• Composition: the combination of a subject and background
Background
Subject
Composition
Exposure (Brightness)
The amount of light that enters your camera determines the
exposure. You can alter the exposure with shutter speed,
aperture value, and ISO speed. By altering the exposure, your
photos will be darker or lighter.
Normal exposure Overexposure (too bright)
Expressions used in this manual
