Samsung VLUU PL100 Instruction manual

Quick Start Manual
PL100/PL101
This Quick Start Manual has been specially designed to guide
you through the basic functions and features of your device.
Please read the Quick Start Manual and User Manual carefully
to ensure safe and correct use.
For more information, refer to
the User Manual included on the
supplied CD-ROM.
ENG / GER / FRE / SPA / ITA / DUT / POR
PL100_QSM_EUR1.indb 3 2010-01-27 오후 2:58:36

2
Health and safety informationContents
Warnings
Do not use your camera near flammable or explosive
gases and liquids
Do not use your camera near fuels, combustibles, or
flammable chemicals. Do not store or carry flammable
liquids, gases, or explosive materials in the same
compartment as the camera or its accessories.
Keep your camera away from small children and pets
Keep your camera and all accessories out of the reach of
small children and animals. Small parts may cause choking
or serious injury if swallowed. Moving parts and accessories
may present physical dangers as well.
Prevent damage to subjects’ eyesight
Do not use the flash in close proximity (closer than 1 m/3
ft) to people or animals. Using the flash too close to your
subject’s eyes can cause temporary or permanent damage.
Health and safety information 2
Camera layout ……………… 4
Setting up your camera …… 5
Unpacking ……………………… 5
Inserting the battery and memory
card ……………………………… 6
Charging the battery ……………6
Turning on your camera………… 7
Selecting options ……………… 7
Capturing photos or videos 8
Playing files ………………… 9
Transferring files to a PC
(Windows) ……………………10
Specifications ………………11
1
13
12
27
55
68
91
PL100_QSM_EUR1.indb 2 2010-01-27 오후 2:58:36

3
English
Exercise caution when connecting cables or adapters•
and installing batteries and memory cards. Forcing
the connectors, improperly connecting cables, or
improperly installing batteries and memory cards can
damage ports, connectors, and accessories.
Do not insert foreign objects into any of your camera’s•
compartments, slots, or access points. This type of
damage may not be covered by your warranty.
Protect batteries, chargers, and memory cards from
damage
Avoid exposing batteries or memory cards to very•
cold or very hot temperatures (below 0° C/32° F or
above 40° C/104° F). Extreme temperatures can
reduce the charging capacity of your batteries and
can cause memory cards to malfunction.
Prevent memory cards from making contact with•
liquids, dirt, or foreign substances. If dirty, wipe the
memory card clean with a soft cloth before inserting
in your camera.
Handle and dispose of batteries and chargers with
care
Use only Samsung-approved batteries and chargers.•
Incompatible batteries and chargers can cause serious
injuries or damage to your camera.
Never place batteries or cameras on or in heating•
devices, such as microwave ovens, stoves, or
radiators. Batteries may explode when overheated.
Cautions
Handle and store your camera carefully and sensibly
Do not allow your camera to get wet—liquids can•
cause serious damage. Do not handle your camera
with wet hands. Water damage to your camera can
void your manufacturer’s warranty.
Avoid using or storing your camera in dusty, dirty,•
humid, or poorly-ventilated areas to prevent damage
to moving parts and internal components.
PL100_QSM_EUR1.indb 3 2010-01-27 오후 2:58:36

4
Camera layout
1
Shutter button
2
POWER button
3
Microphone
4
Front LCD button
5
Flash
6
Lens
7
Battery chamber cover
8
Front display
9
AF-assist light/timer lamp
10
Zoom button
11
Speaker
12
Status lamp
13
Mode dial
14
USB and A/V port (Accepts USB cable or A/V cable)
15
Function button
16
Playback button
17
Navigation button/OK button
18
MENU button
19
Tripod mount
20
Main display
1
11
4
3
2
9
8
10
5
6
7
18
20
12
13
14
1
2
19
16
17
15
PL100_QSM_EUR1.indb 4 2010-01-27 오후 2:58:37

5
English
Setting up your camera
Unpacking
Camera AC adapter/USB cable Rechargeable battery Strap
Software CD-ROM
(User manual included)
Quick Start Manual
Optional accessories
Camera case Memory card A/V cable Battery charger
PL100_QSM_EUR1.indb 5 2010-01-27 오후 2:58:39

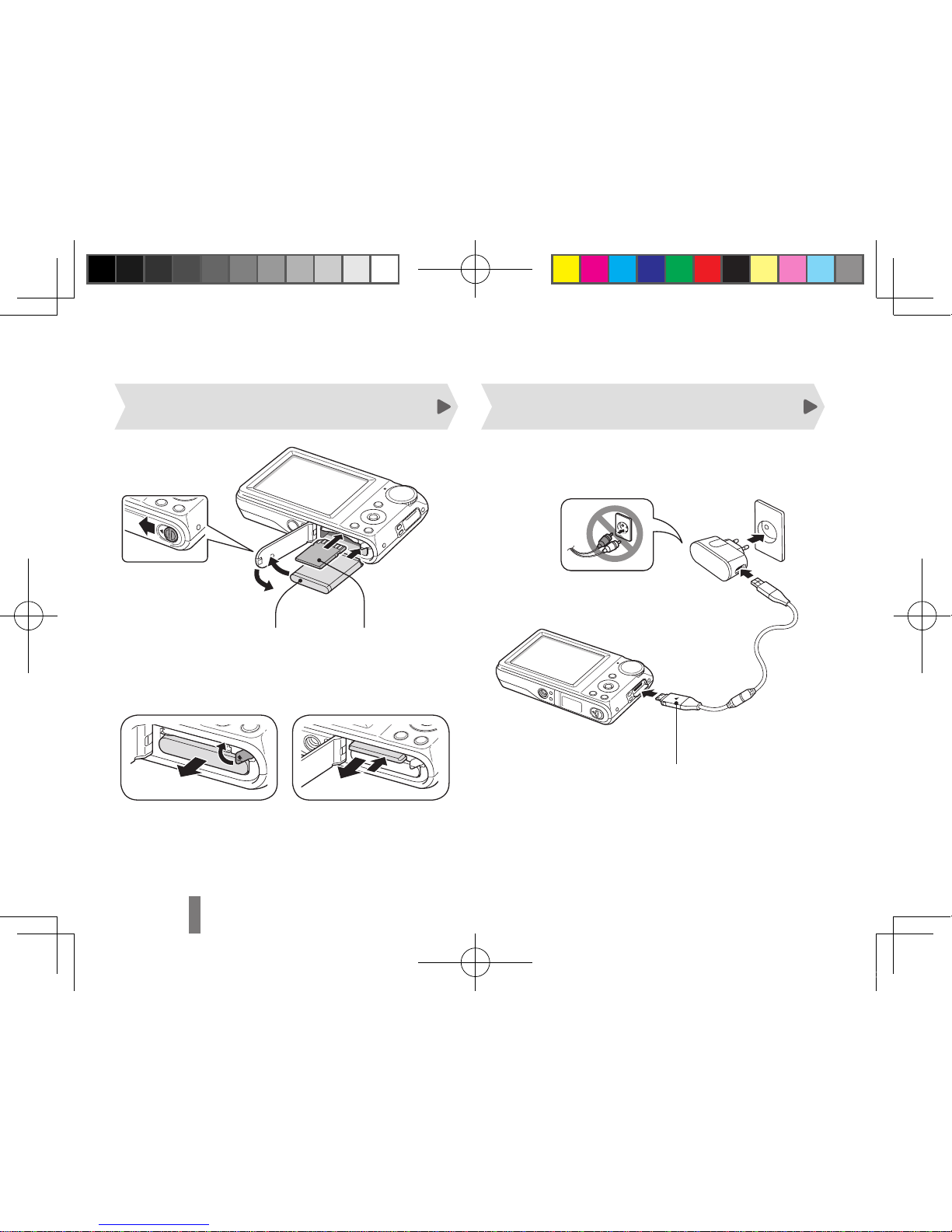

6
Setting up your camera
Inserting the battery and memory card Charging the battery
With the Samsung logo
3
facing up
With the gold-
2
colored contacts
facing up
Indicator light
Red▪: Charging
Green▪: Fully charged
Before using the camera for the first time, you must
charge the battery.
1
4
▼ Removing the battery
▼ Removing the memory card
Push gently until the card
disengages from the camera
and then pull it out of the slot.
PL100_QSM_EUR1.indb 6 2010-01-27 오후 2:58:40

7
English
Press [
1
POWER].
The intial setup screen appears when you turn on▪
your camera for the first time.
Select a language, set the date and time, and
2
select a time zone.
In Shooting mode, press [
1
m].
Use the navigation buttons to scroll to an
2
option or menu.
Back
EV
Move
To move left or right, press [▪F] or [t].
To move up or down, press [▪D] or [M].
Press [
3
o] to confirm the highlighted option
or menu.
Press [▪m] again to go back to the previous
menu.
Turning on your camera Selecting options
PL100_QSM_EUR1.indb 7 2010-01-27 오후 2:58:40

8
Taking a photo
Rotate the mode dial to
1
a.
Align your subject in the frame.
2
Press [
3
Shutter] halfway down to focus
automatically.
A green frame means the subject in focus.▪
Press [
4
Shutter] all the way down to take the
photo.
Taking a photo of yourself using the
front display
The front display will help you take self-portraits.
In Shooting mode, press [
1
Front LCD] once.
The front display turns on in the Self-portrait mode.▪
Press [
2
Shutter] halfway down to focus.
Press [
3
Shutter] all the way down to take the
photo.
Capturing photos or videos
PL100_QSM_EUR1.indb 8 2010-01-27 오후 2:58:41

9
English
Playing files
Recording a video
Rotate the mode dial to
1
v.
Align your subject in the frame.
2
Press [
3
Shutter].
Press [▪o] to pause or resume.
Press [
4
Shutter] again to stop the recording.
Note
Number of photos by resolution (for 1 GB SD)
Resolution Super Fine Fine Normal
4000 X 3000 147 284 403
3984 X 2656 167 313 441
3840 X 2160 202 367 528
3264 X 2448 211 374 537
2560 X 1920 339 566 792
2048 X 1536 510 802 1,065
1920 X 1080 735 1,144 1,437
1024 X 768 1,287 1,670 1,872
These figures are measured under Samsung’s standard
conditions and may vary depending on shooting conditions
and camera settings.
Viewing photos
Press [
1
P].
Press [
2
F] or [t] to scroll through files.
Press and hold to scroll through files quickly.▪
Viewing videos
Press [
1
P].
Press [
2
o].
Use the following buttons to control playback.
3
[F]Scan backward
[o]Pause or resume playback
[t]Scan forward
[Zoom] left or right Adjust the volume level
PL100_QSM_EUR1.indb 9 2010-01-27 오후 2:58:43

10
Transferring files to a PC (Windows)
Connect the camera to your computer with the
1
USB cable.
Turn on the camera.
2
The computer recognizes the camera automatically.▪
For Windows Vista, select▪Run Installer.exe from
the AutoPlay window.
Select a folder on your computer to save new
3
files.
If your camera has no new files, the pop-up window▪
for saving new files will not appear.
Select
4
Yes.
New files will be transferred to your computer.▪
You can now use the Intelli-studio program.
Note
About Intelli-studio
Intelli-studio is a program that allows you to play back and
edit files. You can also upload files to websites, such as
Flickr or YouTube.
PL100_QSM_EUR1.indb 10 2010-01-27 오후 2:58:43
